mp-5914-2/Li3BN2/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-5914-2.tar.gz

Equation of state

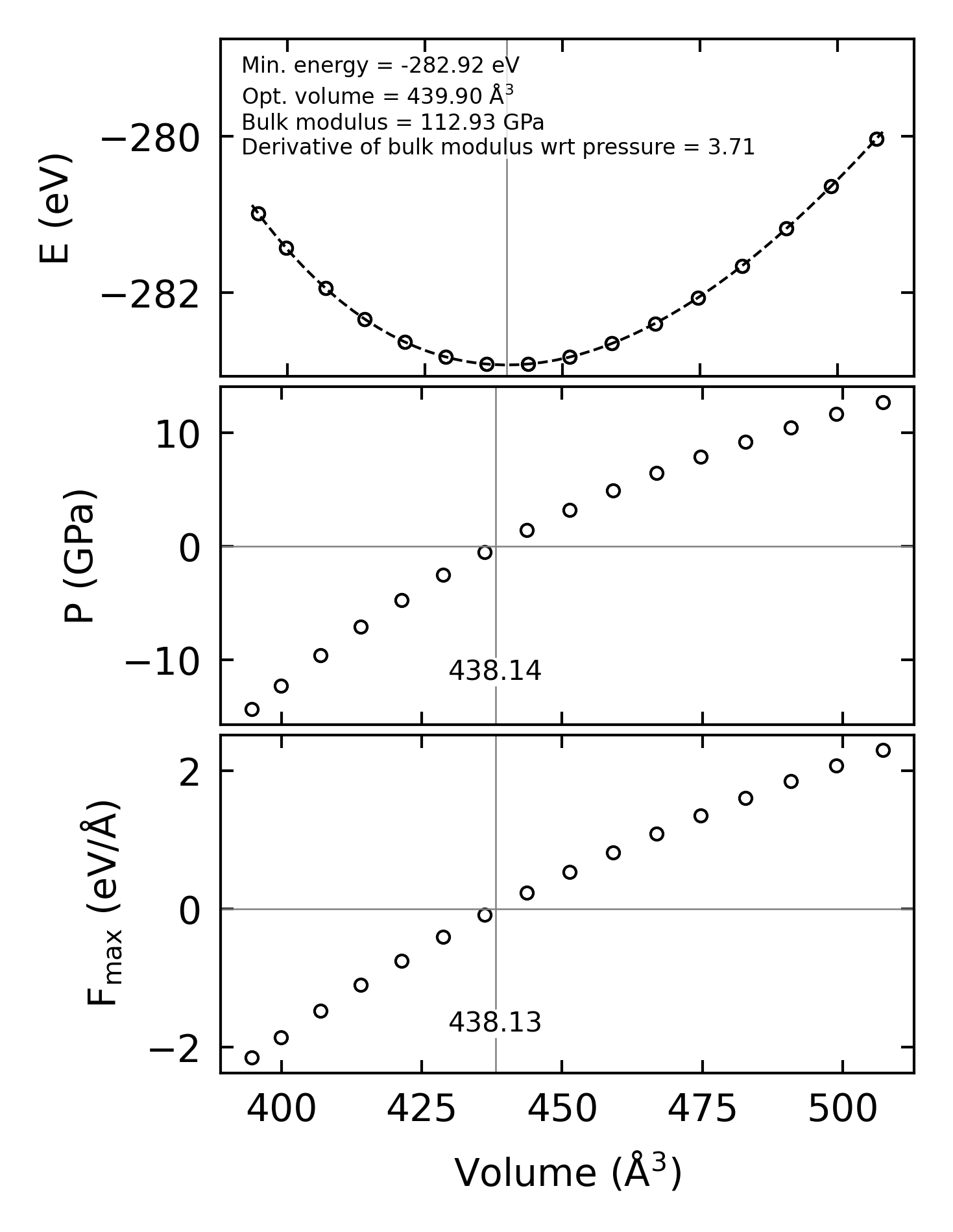

../../_images/fig_bm4871.png — (a) Equation of state

Harmonic properties

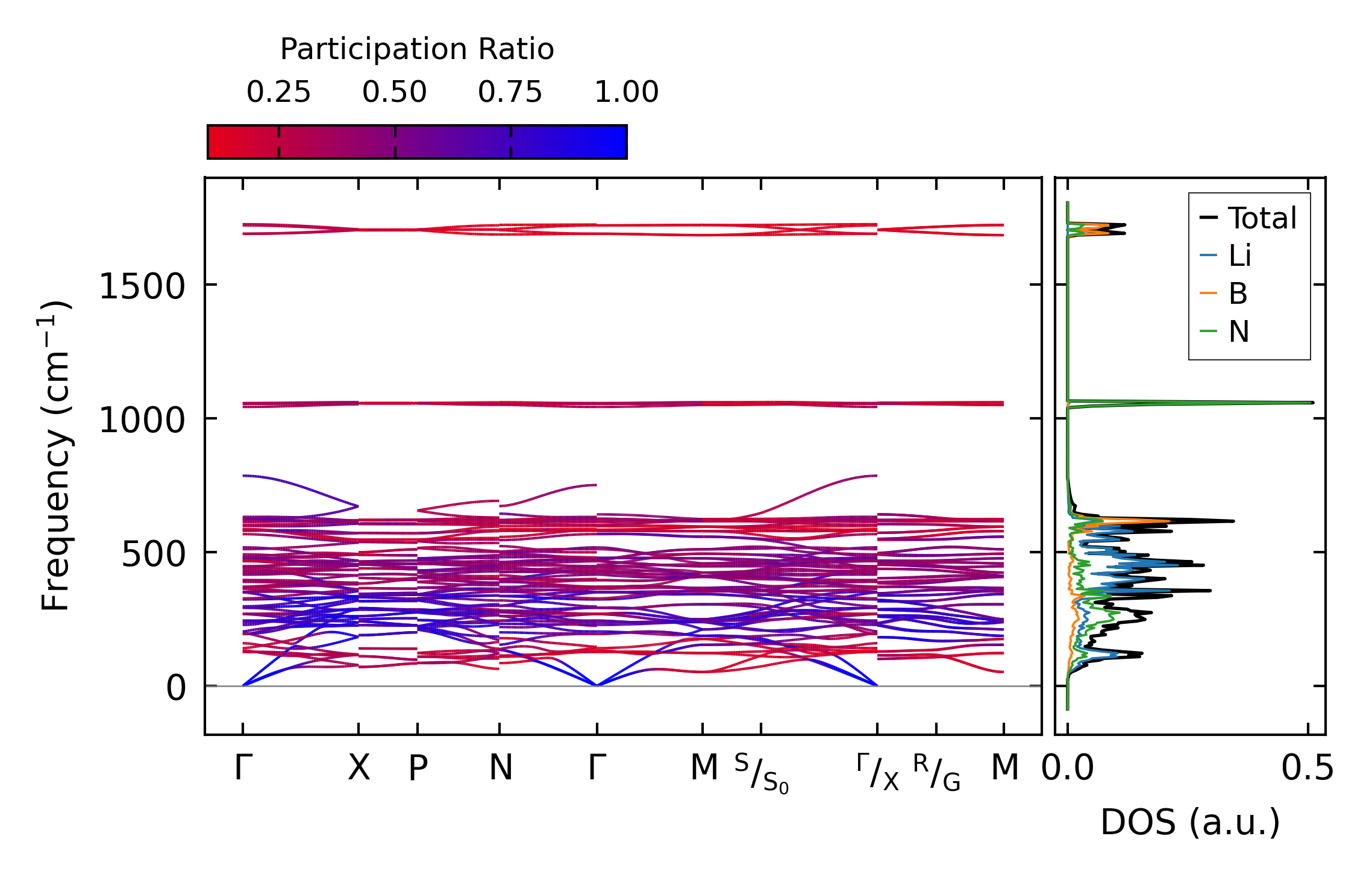

../../_images/fig_bandos_pr9765.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9765.png — (b) Thermodynamic properties

Grüneisen parameters

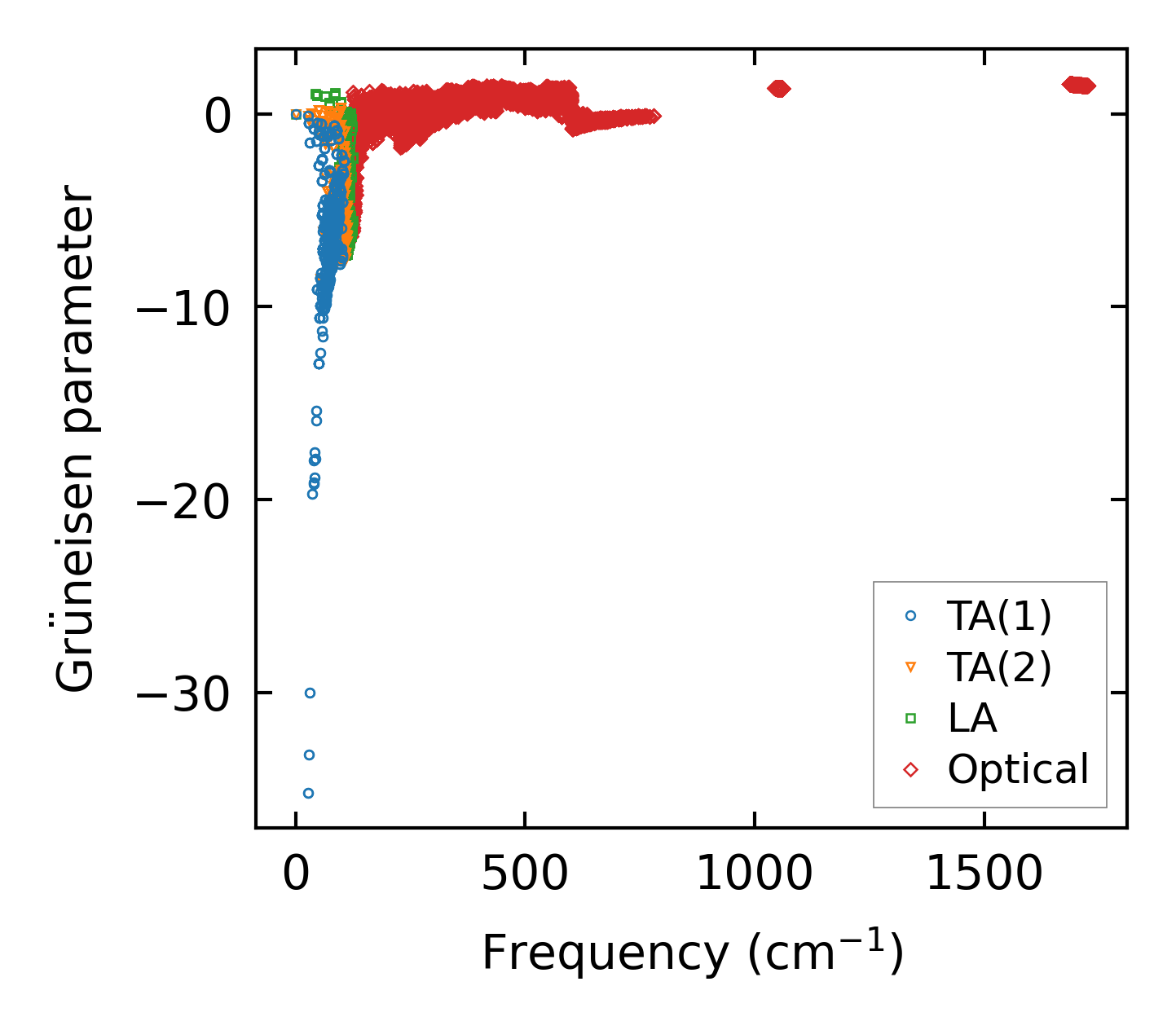

../../_images/fig_gru_all3905.png — (a) Grüneisen parameters

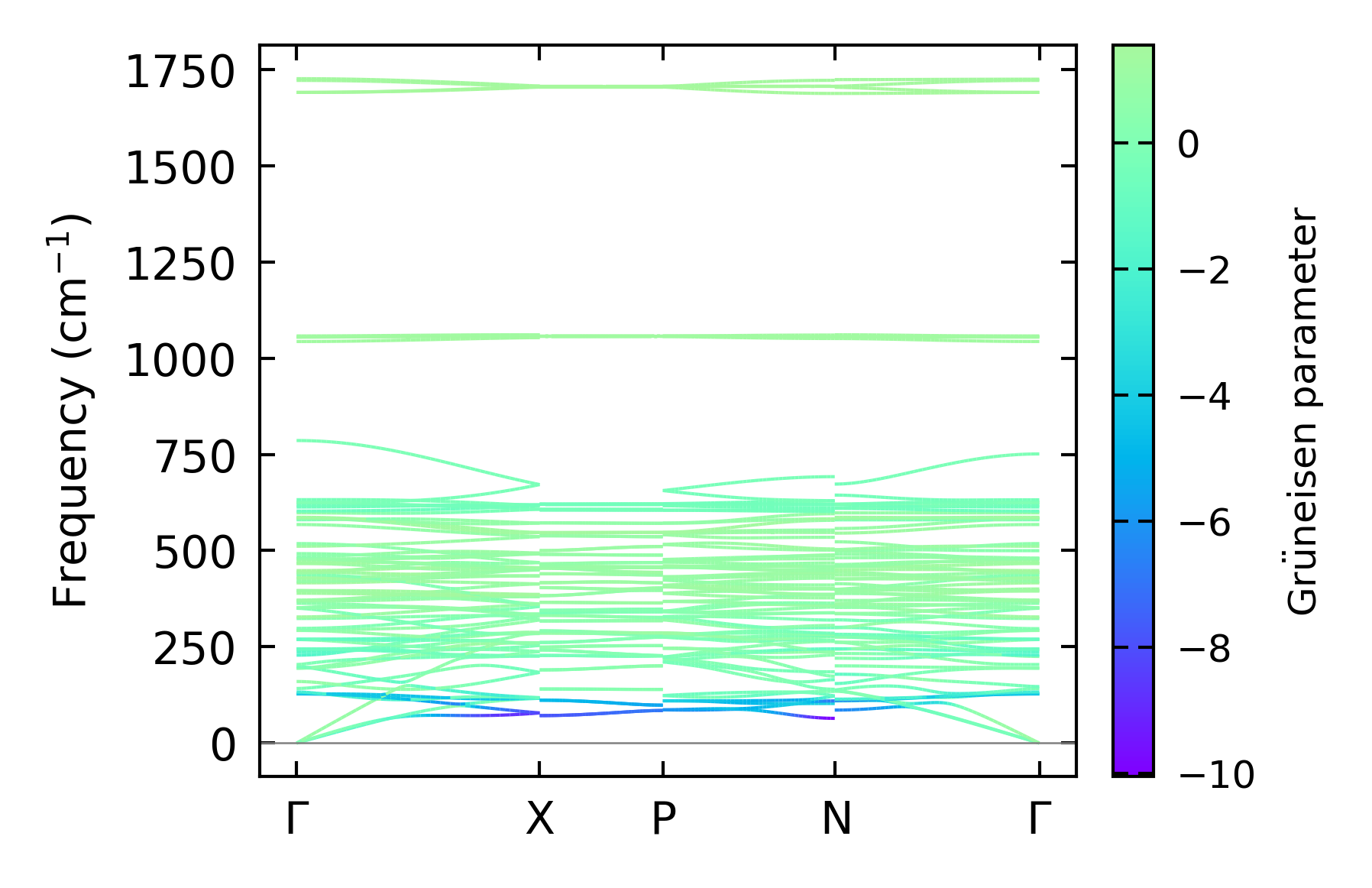

../../_images/fig_gruneisen3905.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

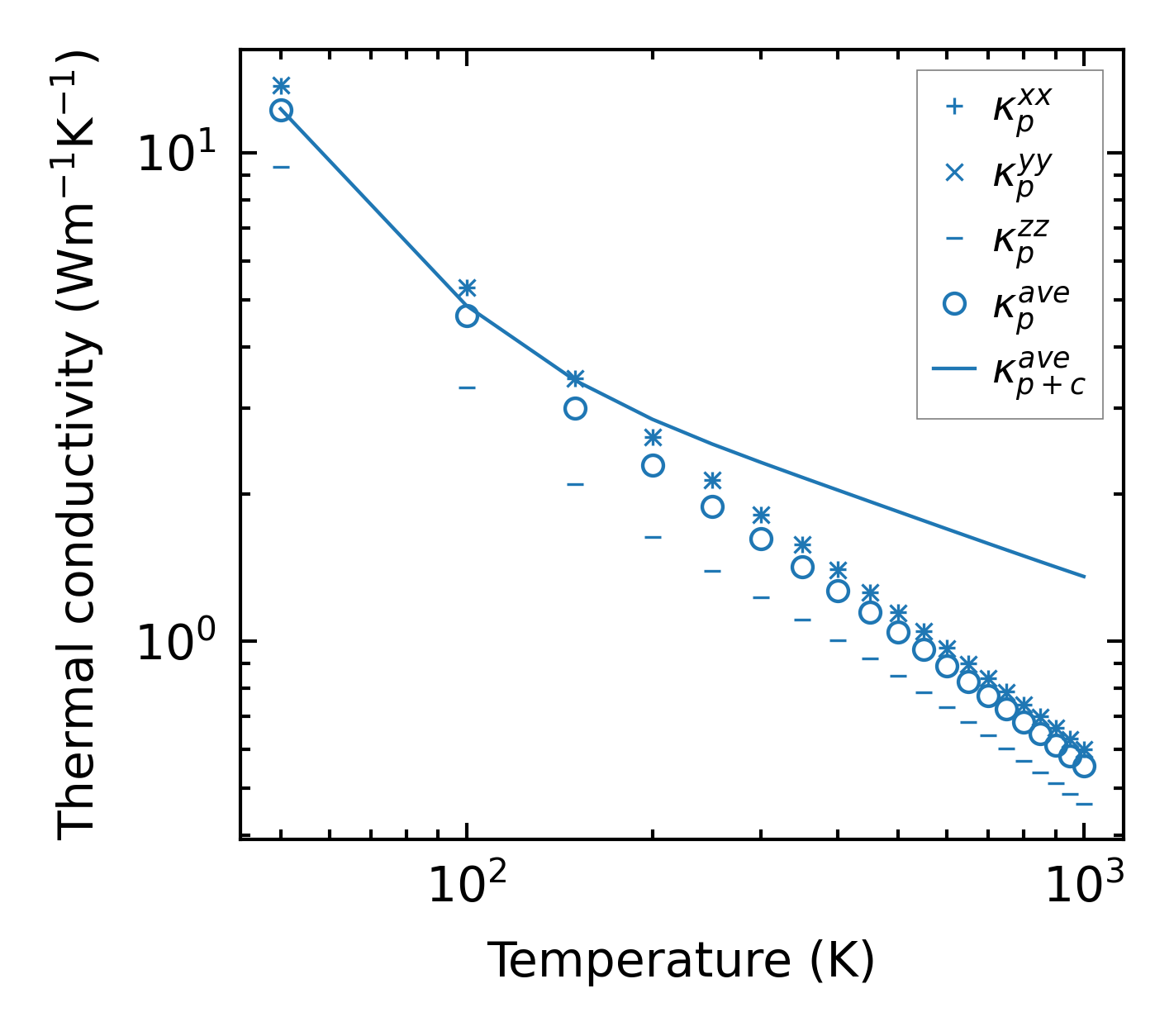

../../_images/fig_kappa7363.png — (a) Temperature-dependent lattice thermal conductivity

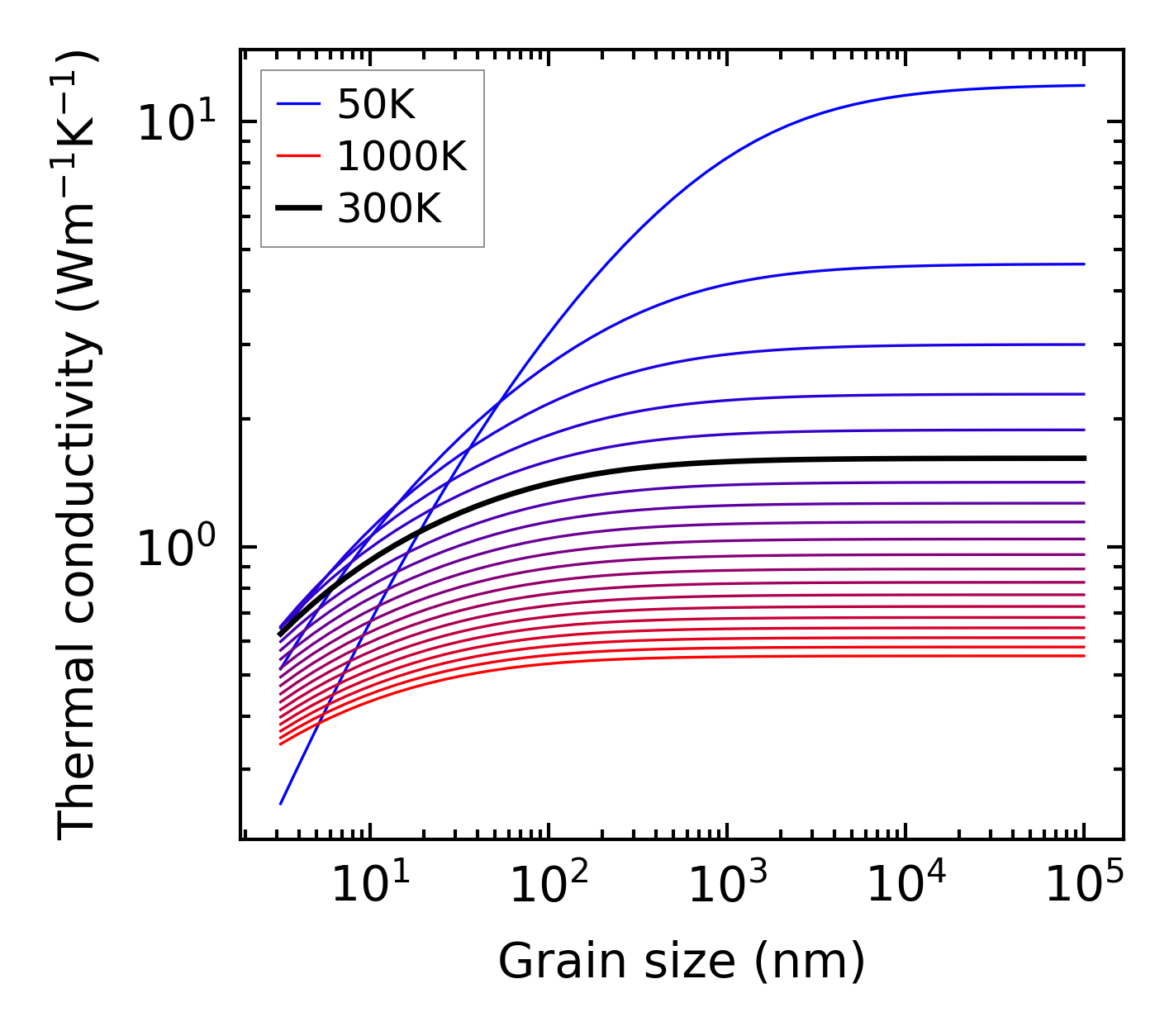

../../_images/fig_kappa_vs_grain_size3956.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

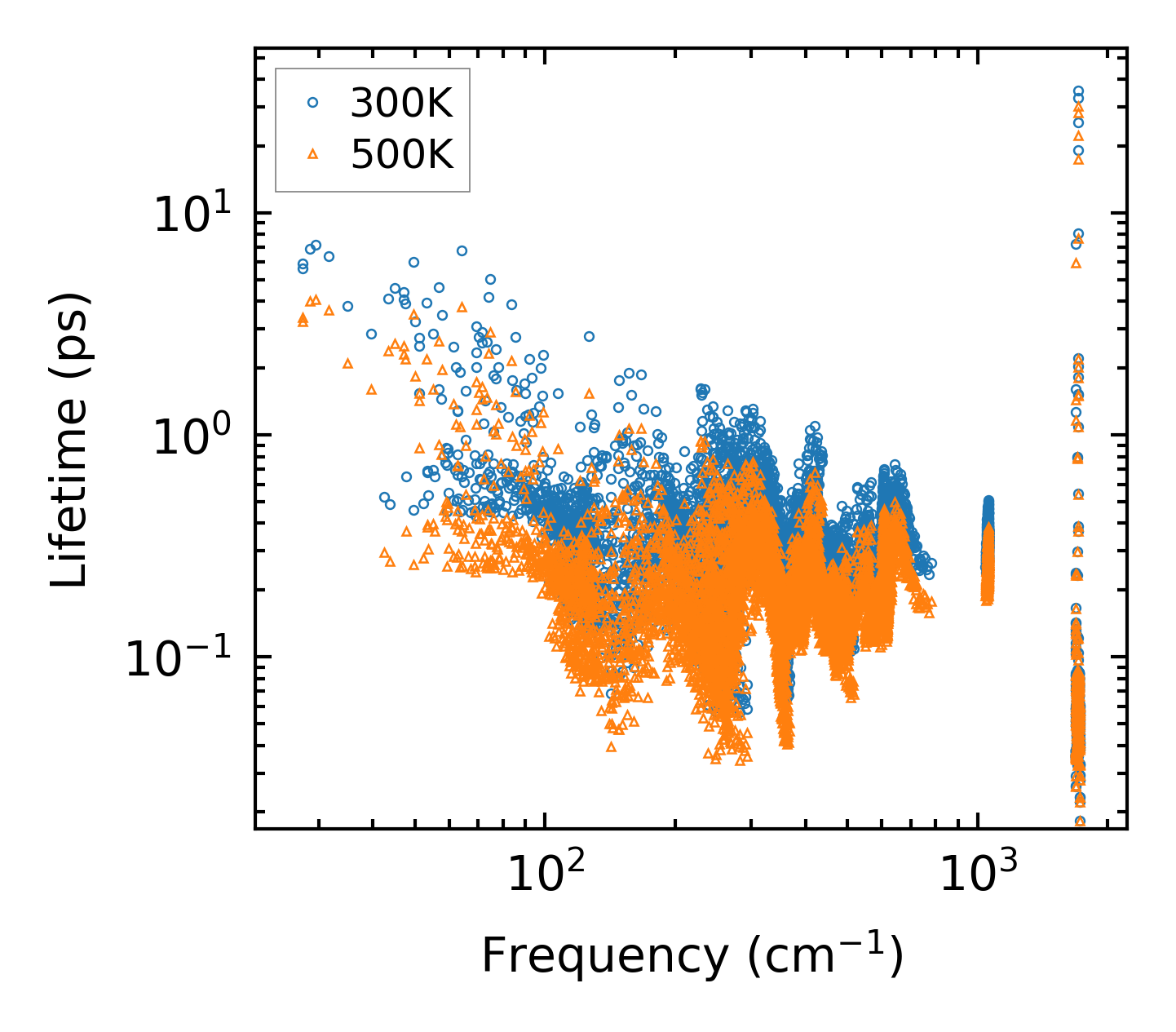

../../_images/fig_lifetime3868.png — (a) Phonon lifetime due to phonon-phonon scattering

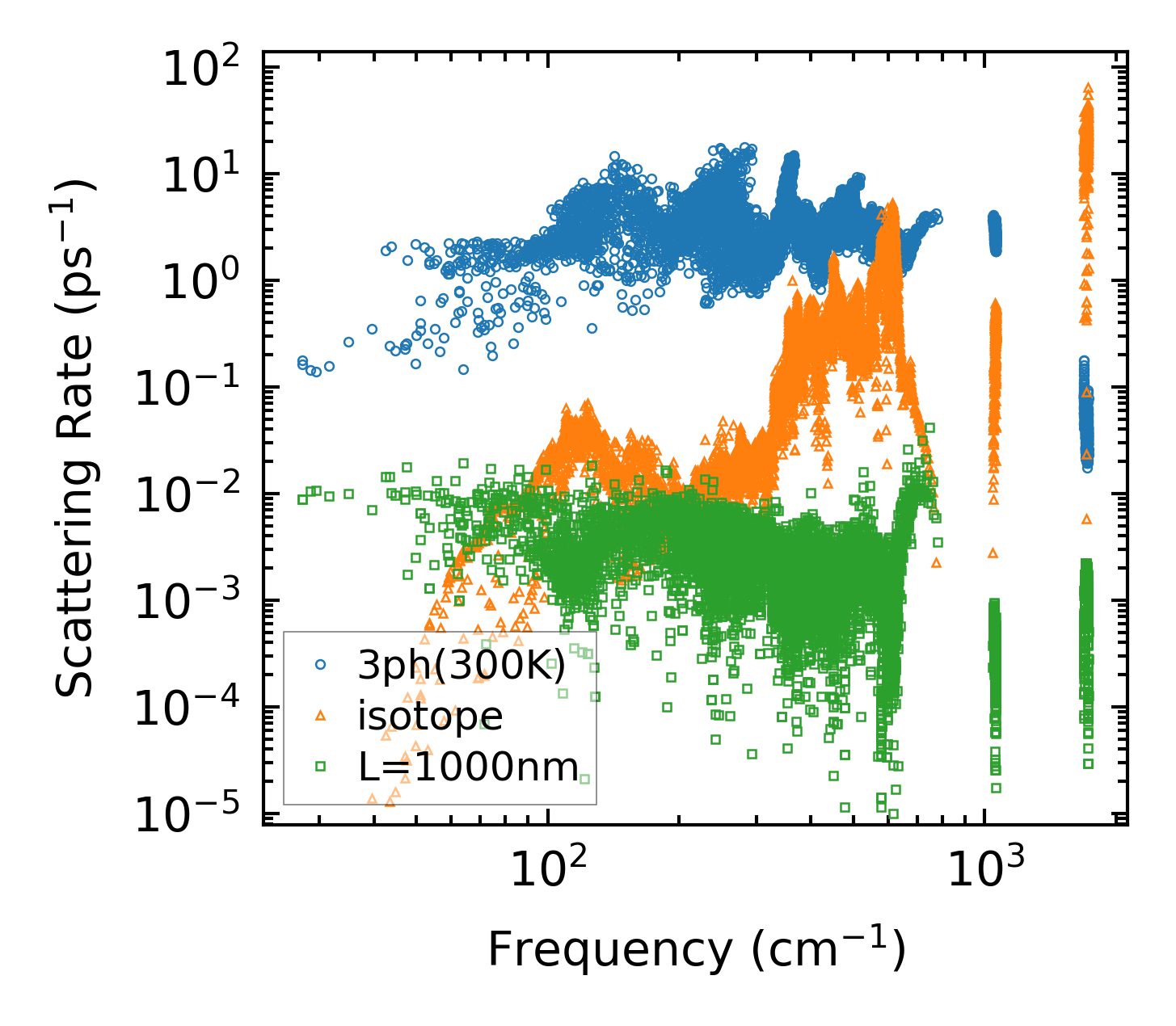

../../_images/fig_scat_rates3867.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

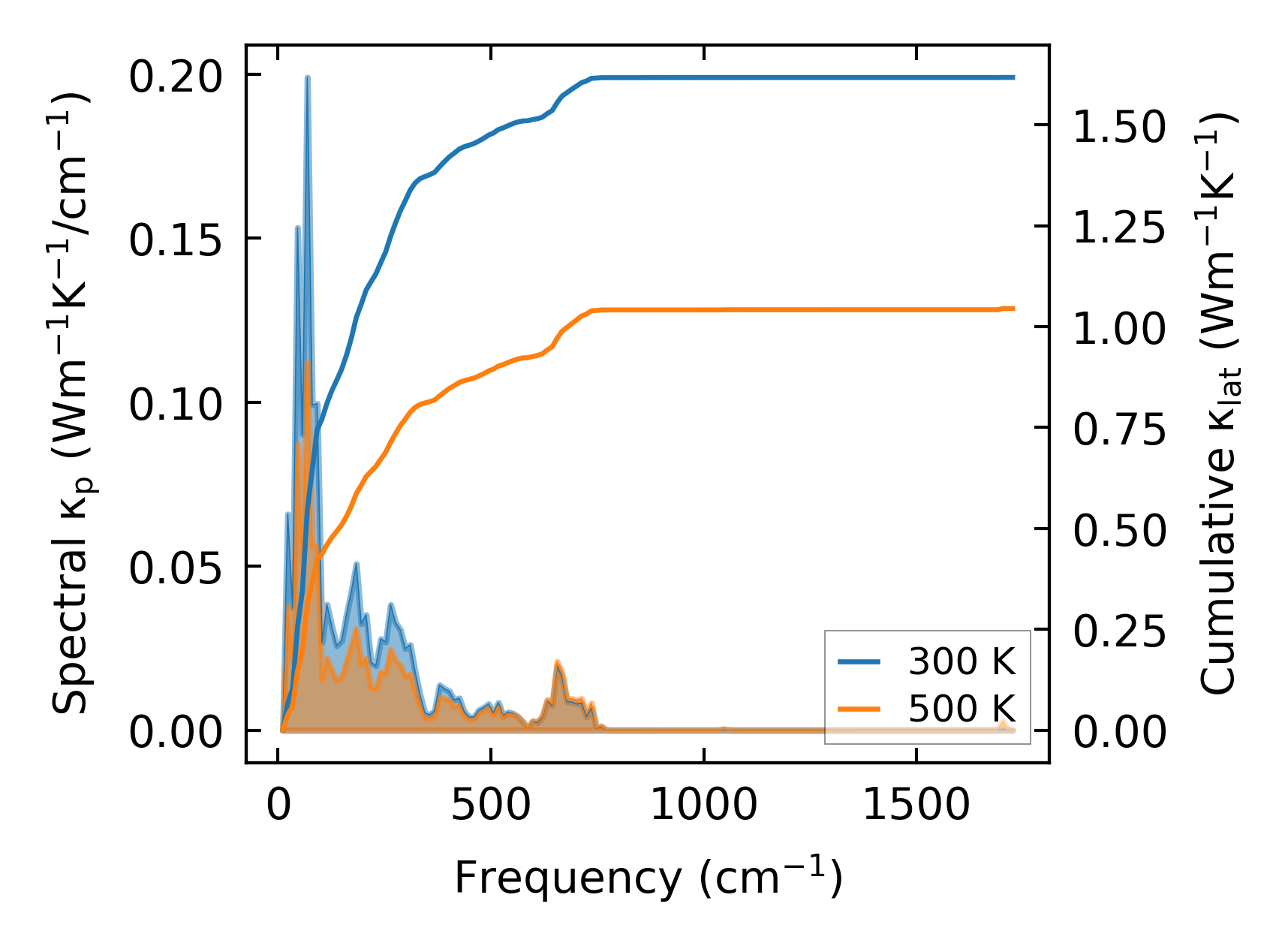

../../_images/fig_cumu_frequency3868.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

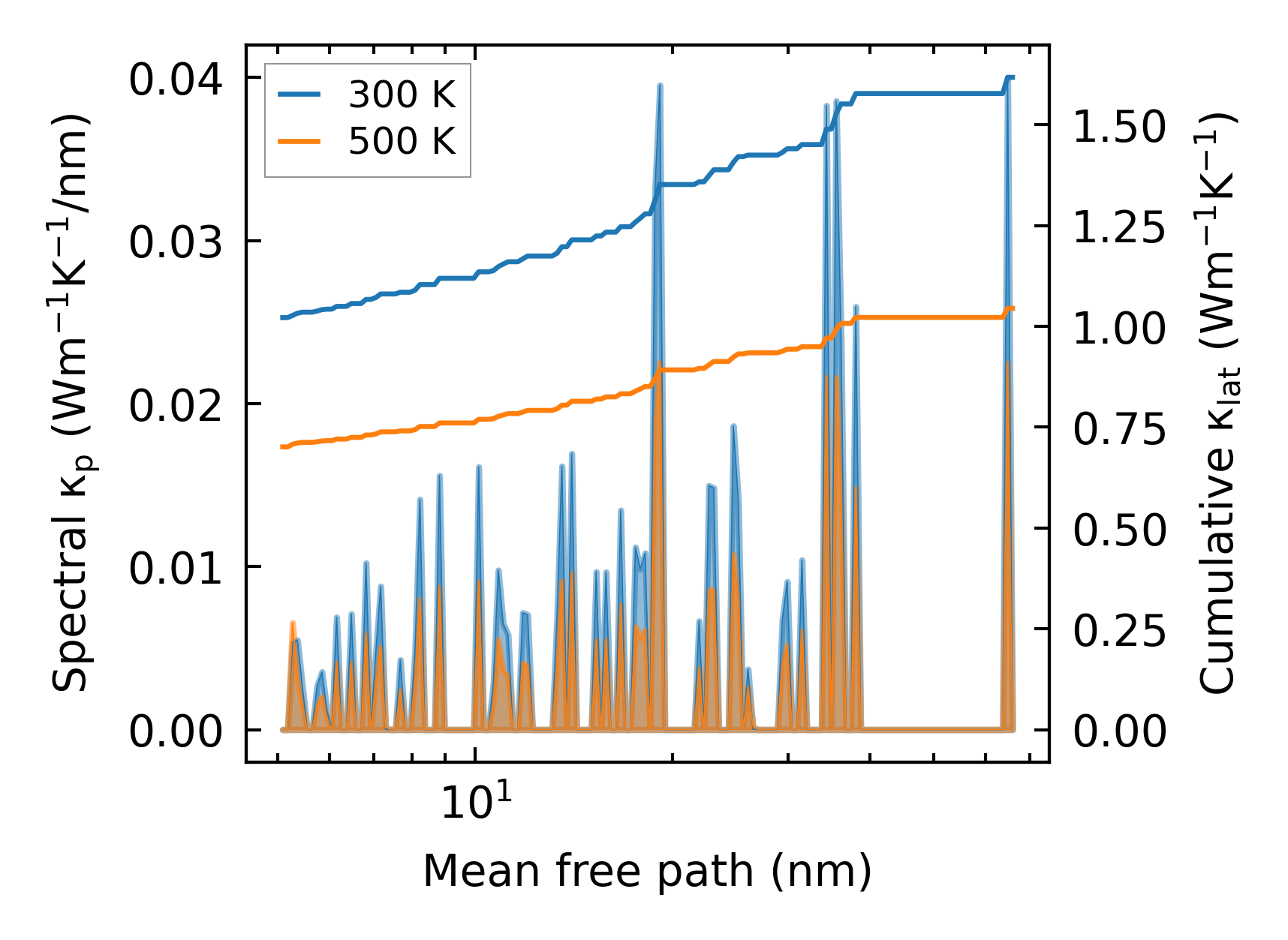

../../_images/fig_cumu_mfp3867.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

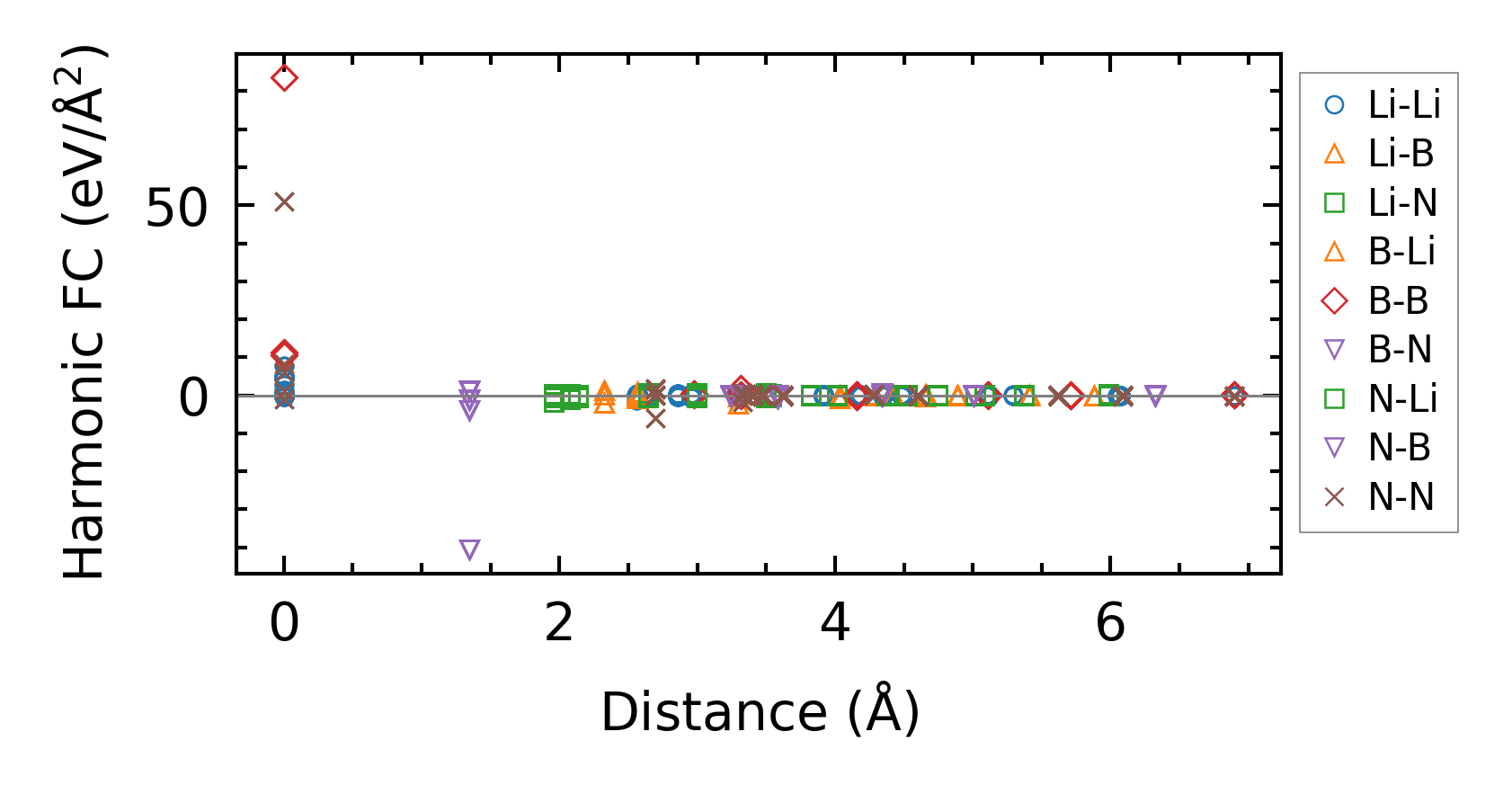

../../_images/fig_fc29523.png — (a) Force constants w.r.t atomic distance

Summary

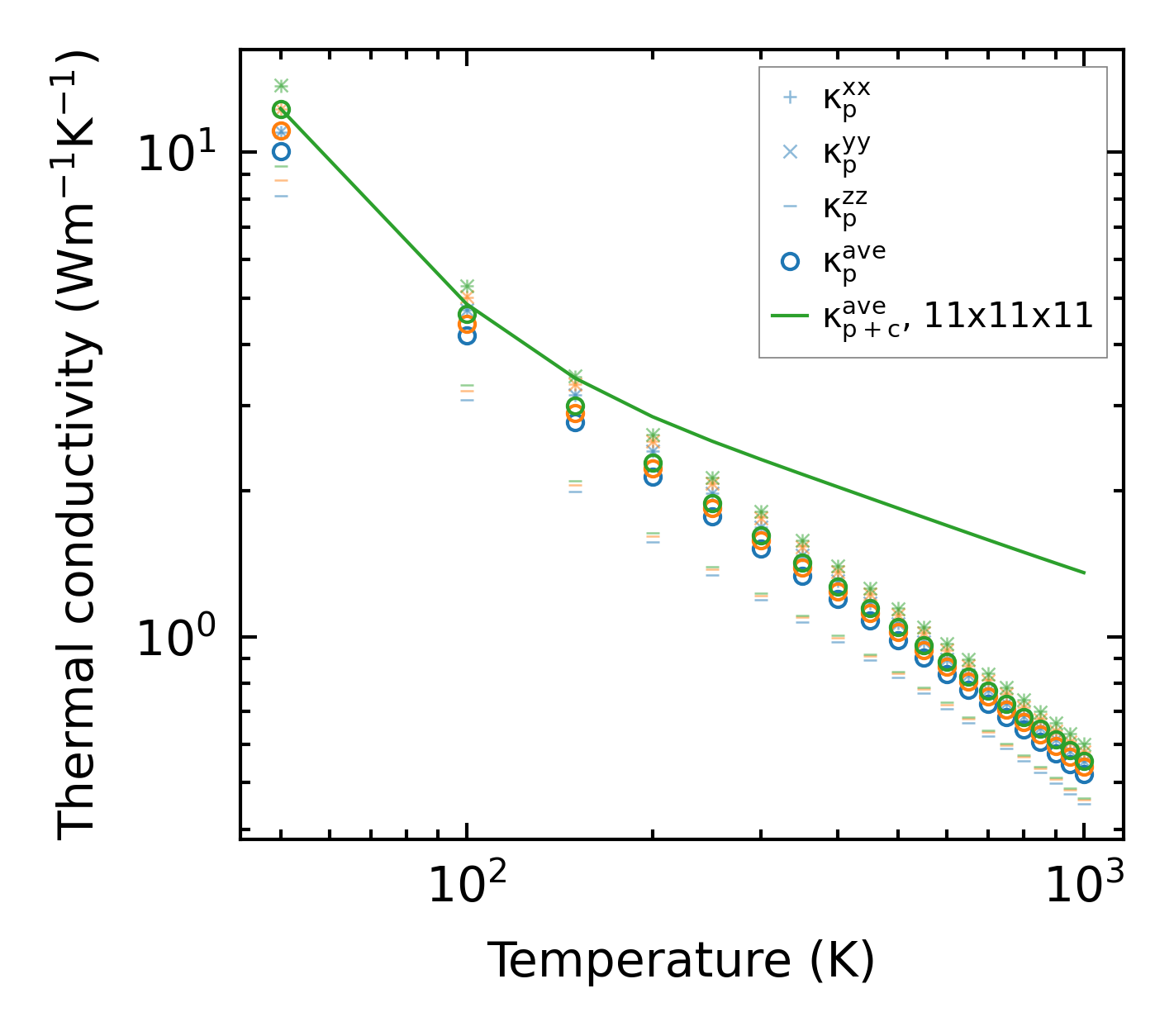

../../_images/fig_kappa7364.png — (a) Temperature-dependent lattice thermal conductivity

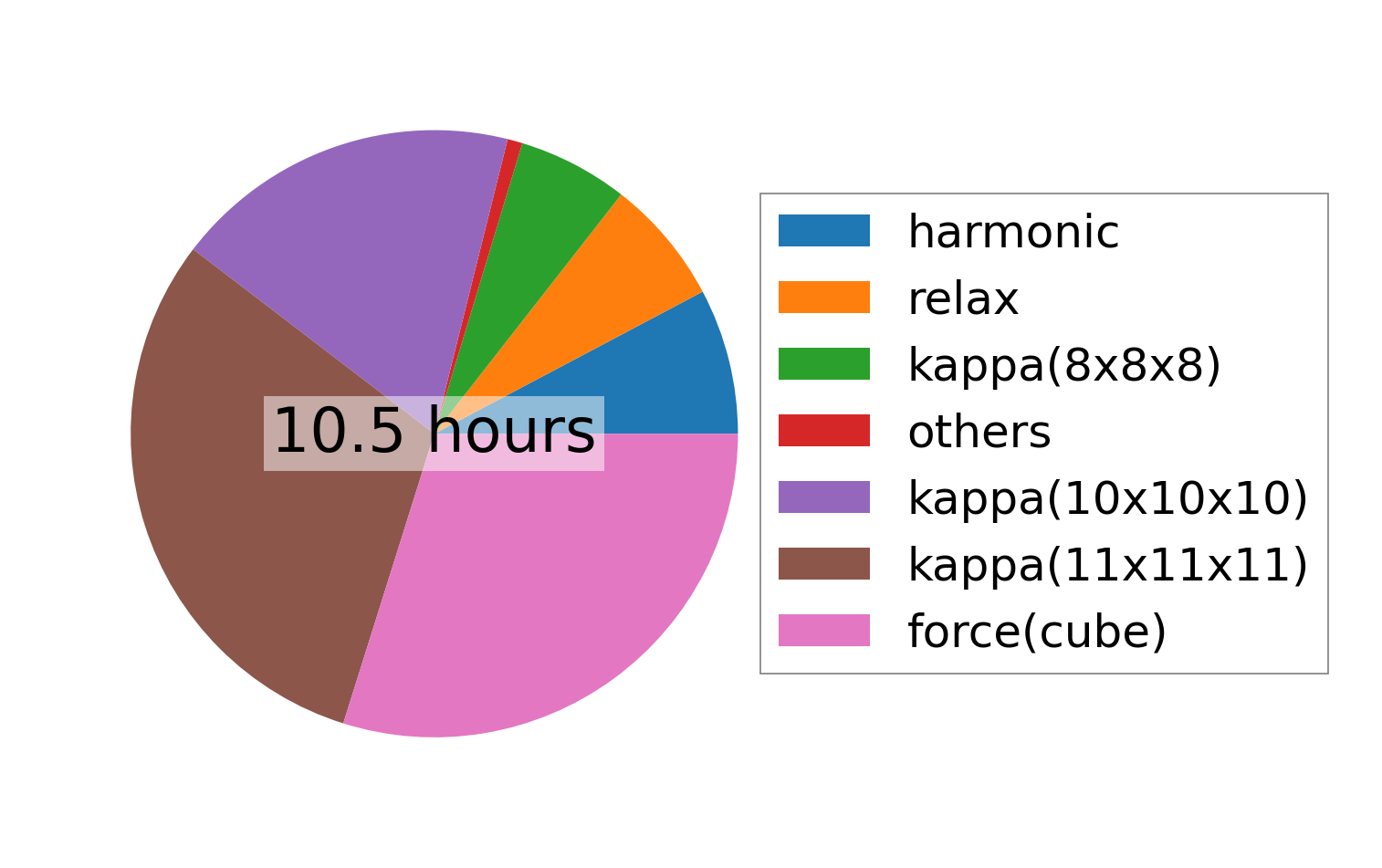

../../_images/fig_times16977.png — (b) Computation time
