mp-5518-2/GaAgSe2/anharm

Space group: I-42d (122)
Link: Materials Project
Download: mp-5518-2.tar.gz

Equation of state

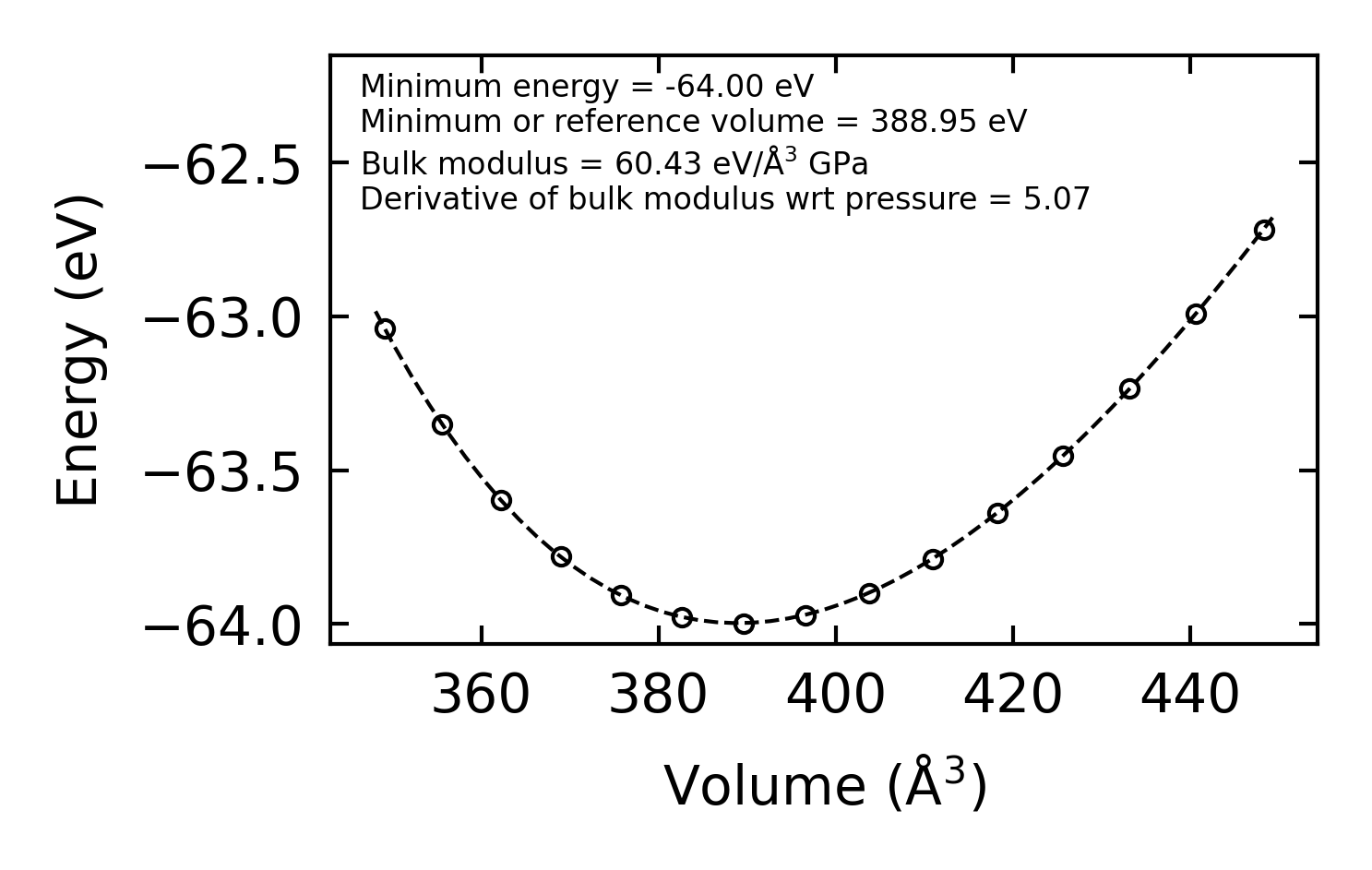

../../_images/fig_bm4999.png — (a) Equation of state

Harmonic properties

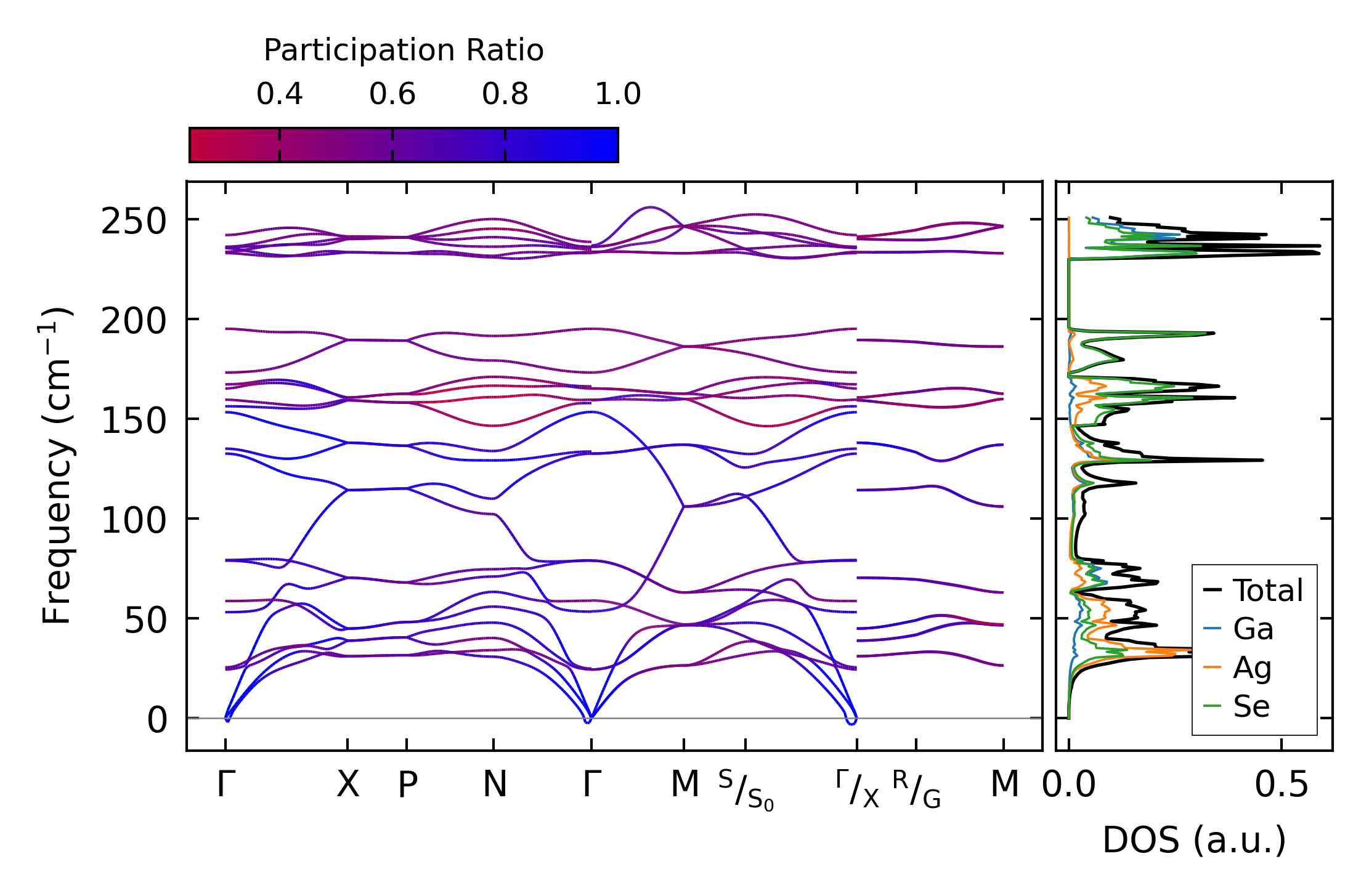

../../_images/fig_bandos_pr9999.png — (a) Phonon dispersion with participation ratio and DOS

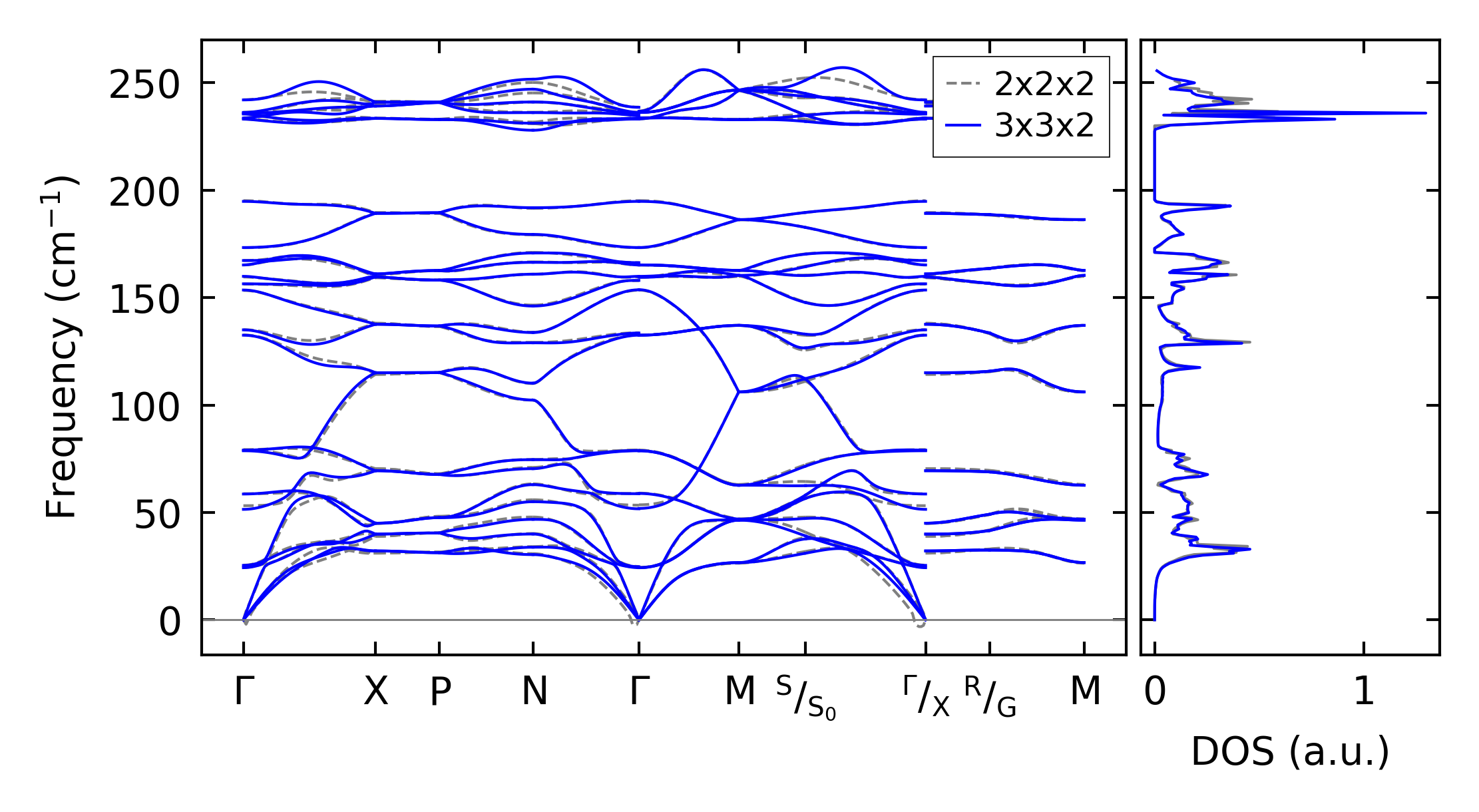

../../_images/fig_bandos13936.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9999.png — (c) Thermodynamic properties

Grüneisen parameters

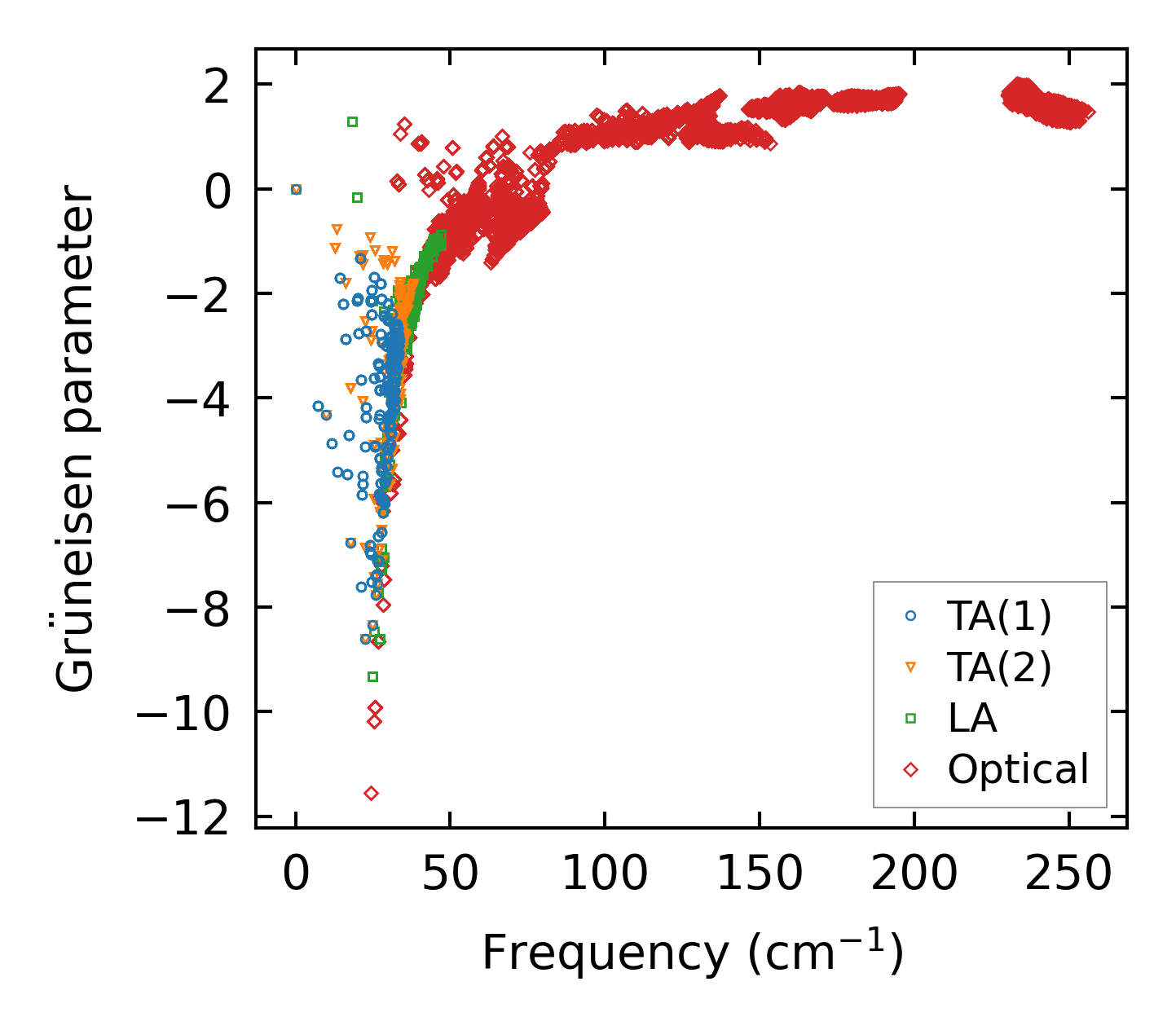

../../_images/fig_gru_all4007.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4007.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x2 — q-mesh: 12x12x12, supercell: 3x3x2

../../_images/fig_kappa7557.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4060.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

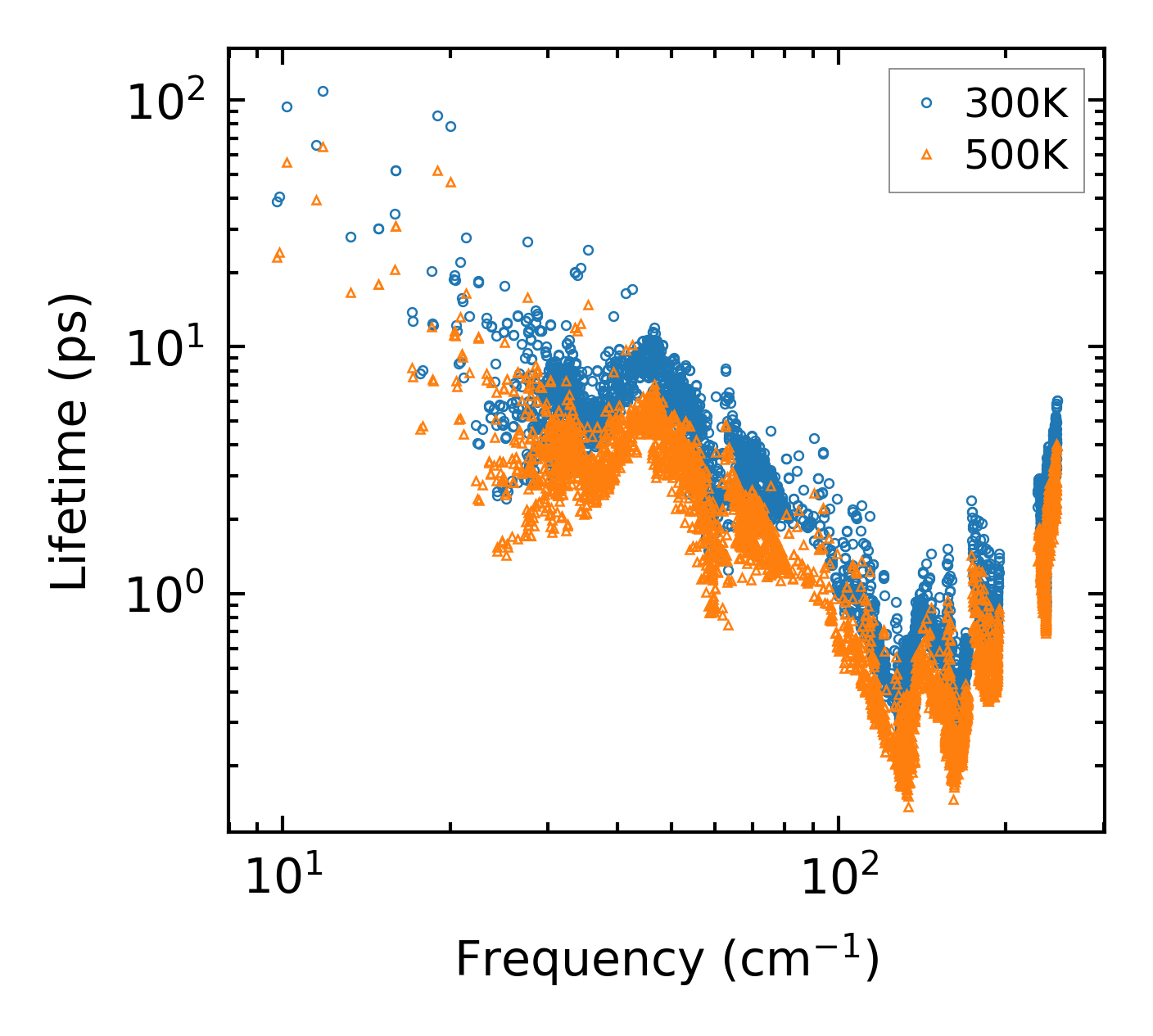

../../_images/fig_lifetime3969.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3968.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

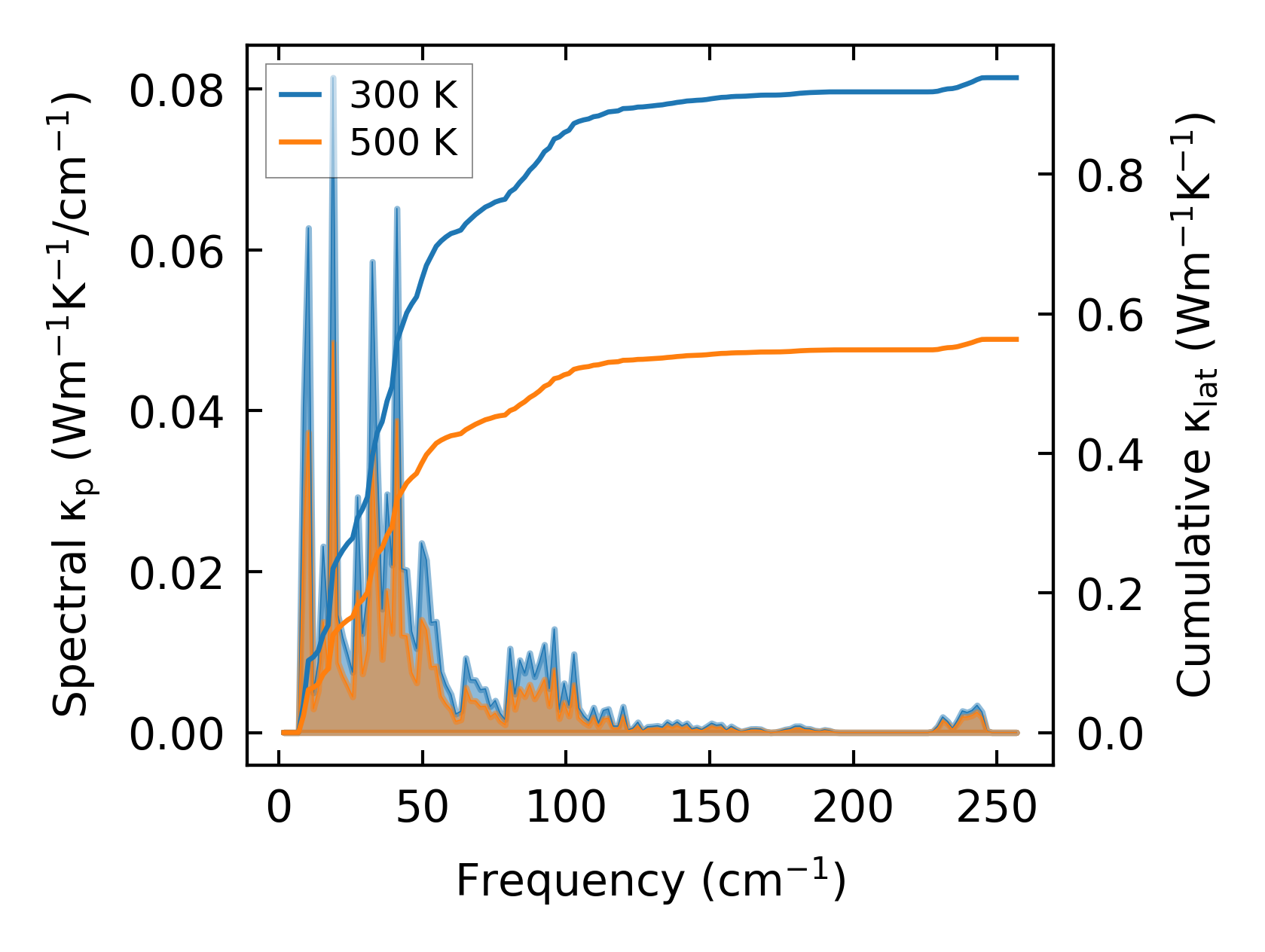

../../_images/fig_cumu_frequency3969.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3968.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

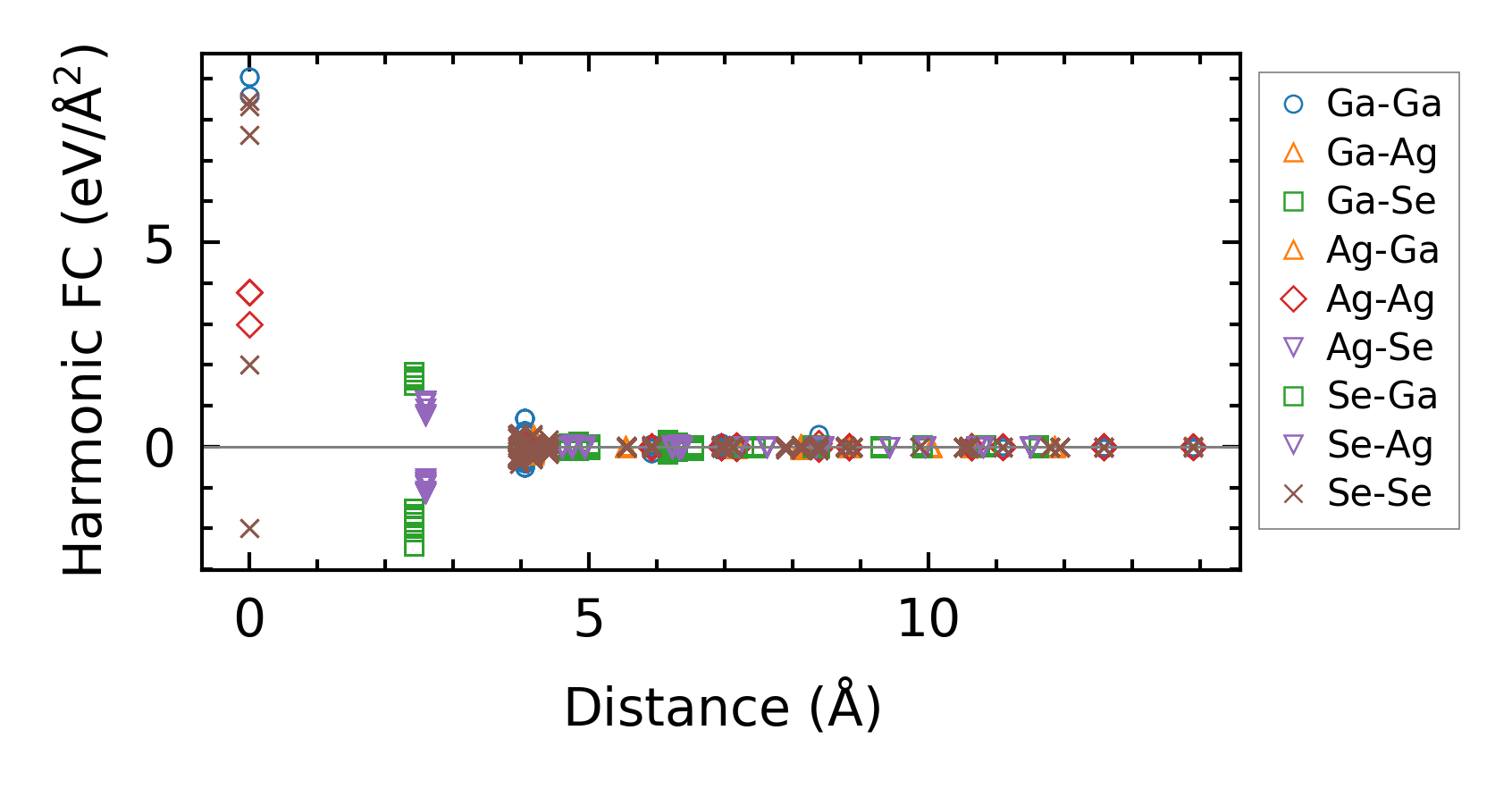

../../_images/fig_fc29752.png — (a) Force constants w.r.t atomic distance

Summary

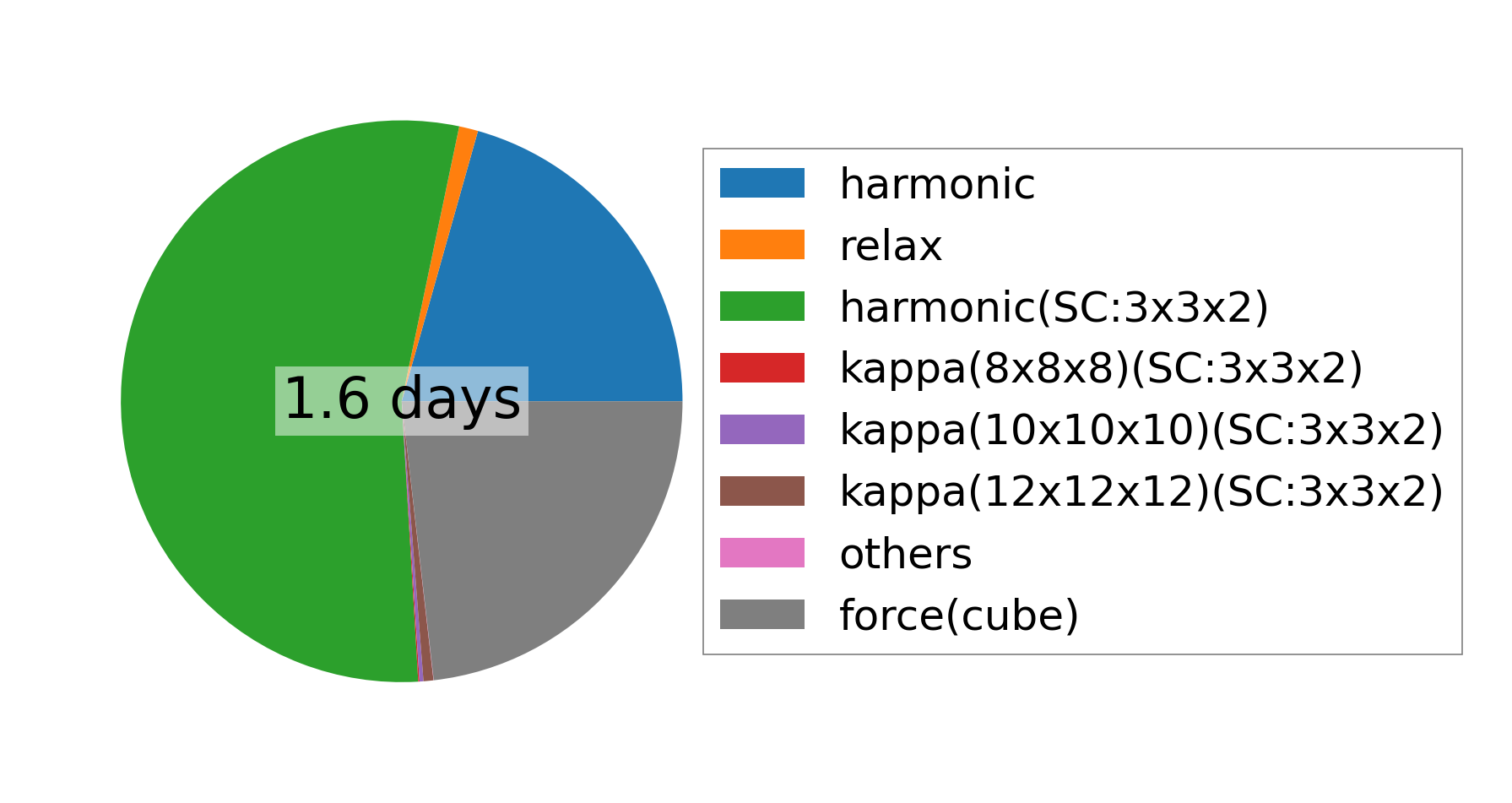

../../_images/fig_times17363.png — (a) Computation time
