mp-5496/Al5C3N/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-5496.tar.gz

Harmonic properties

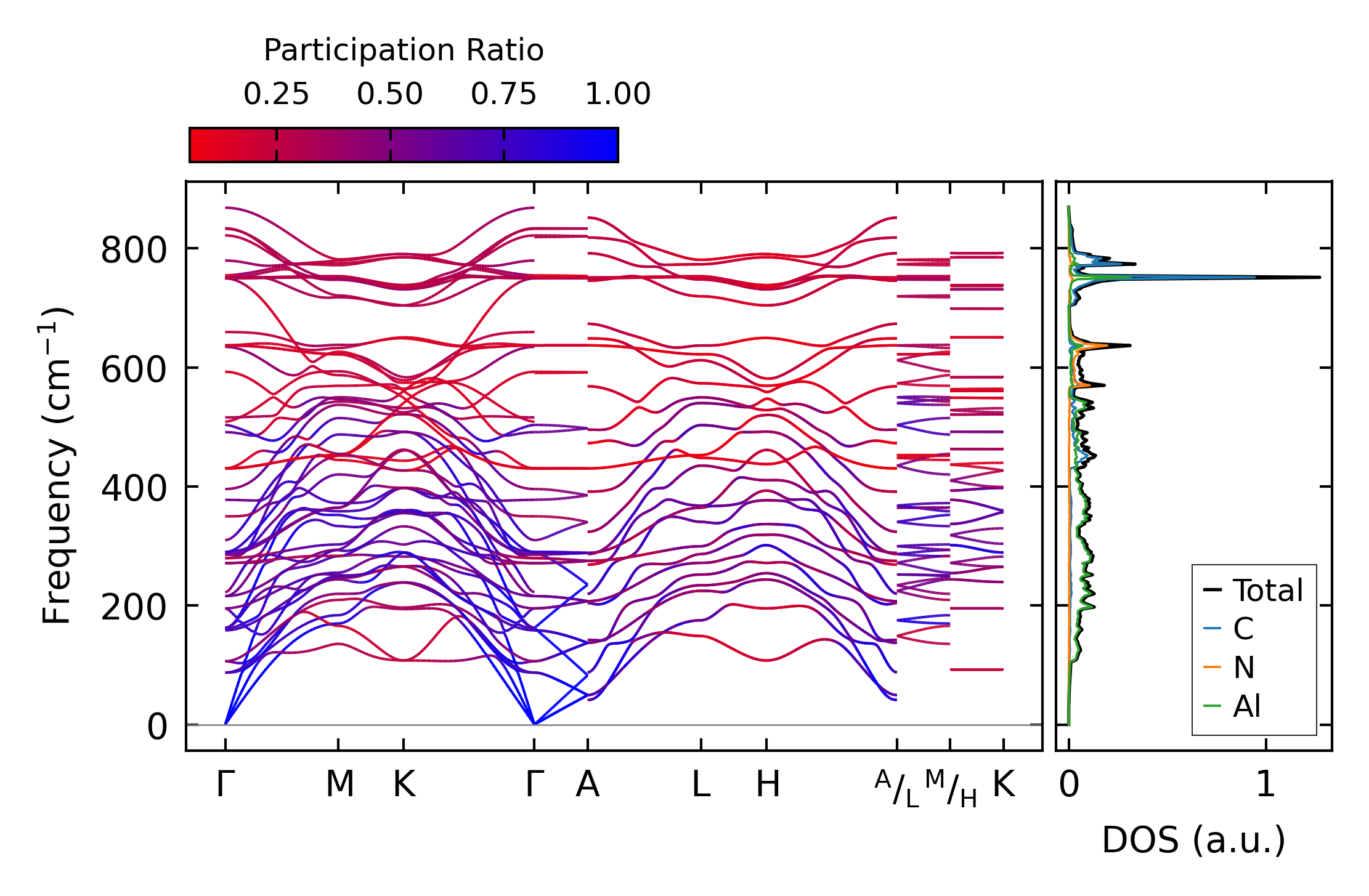

../../_images/fig_bandos_pr9992.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9992.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4005.png — (a) Grüneisen parameters

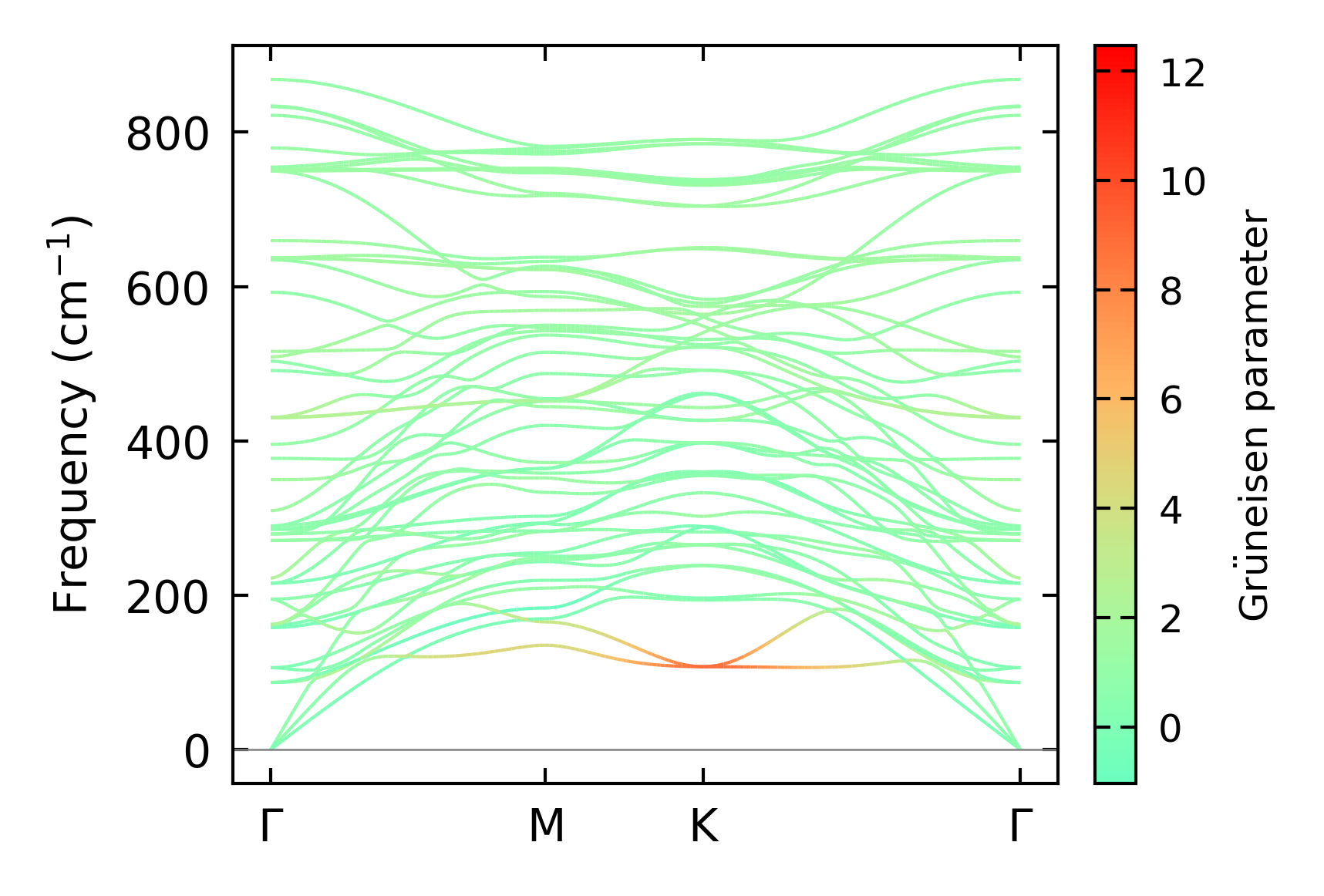

../../_images/fig_gruneisen4005.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 22x22x3, supercell: 2x2x1

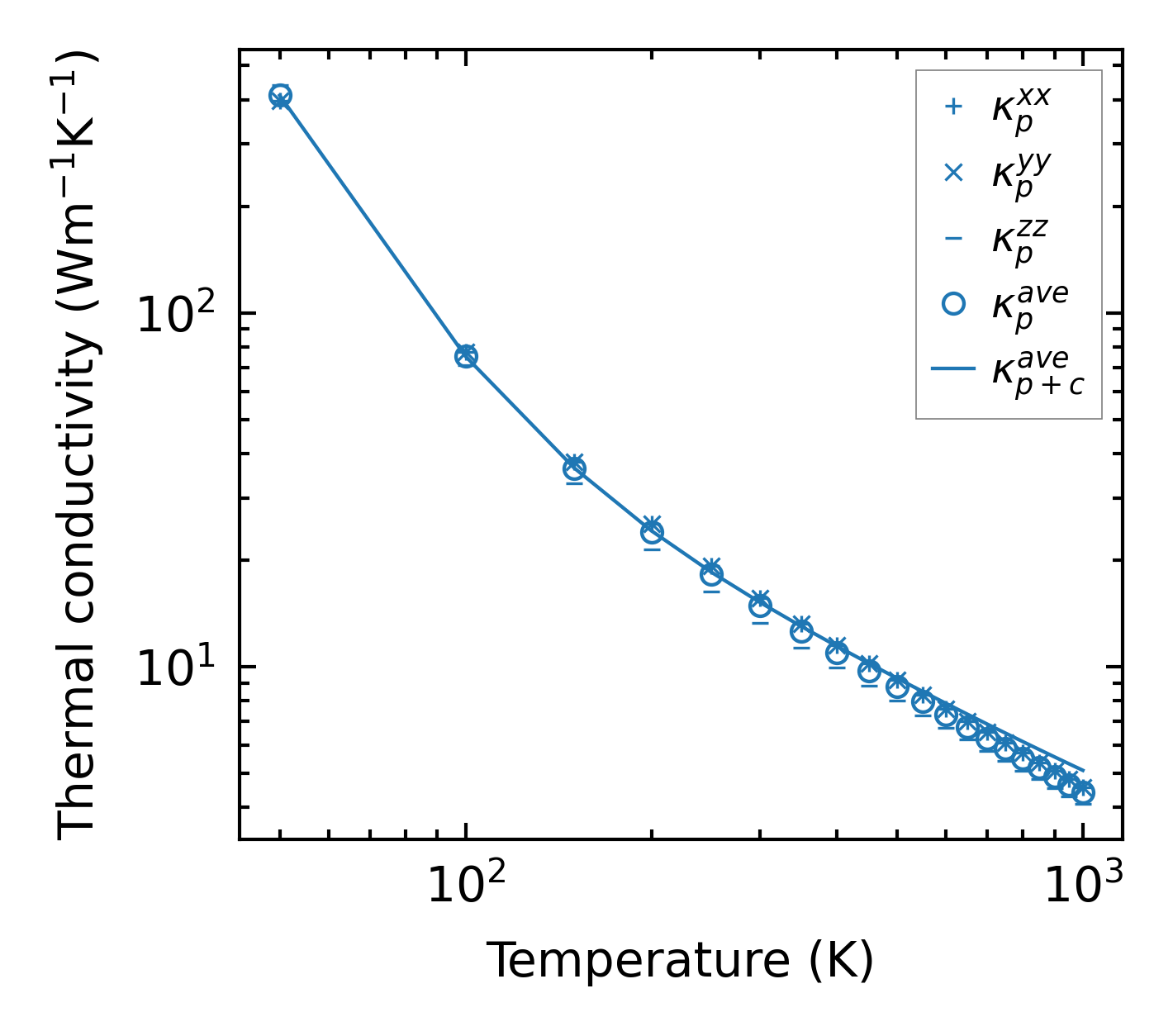

../../_images/fig_kappa7553.png — (a) Temperature-dependent lattice thermal conductivity

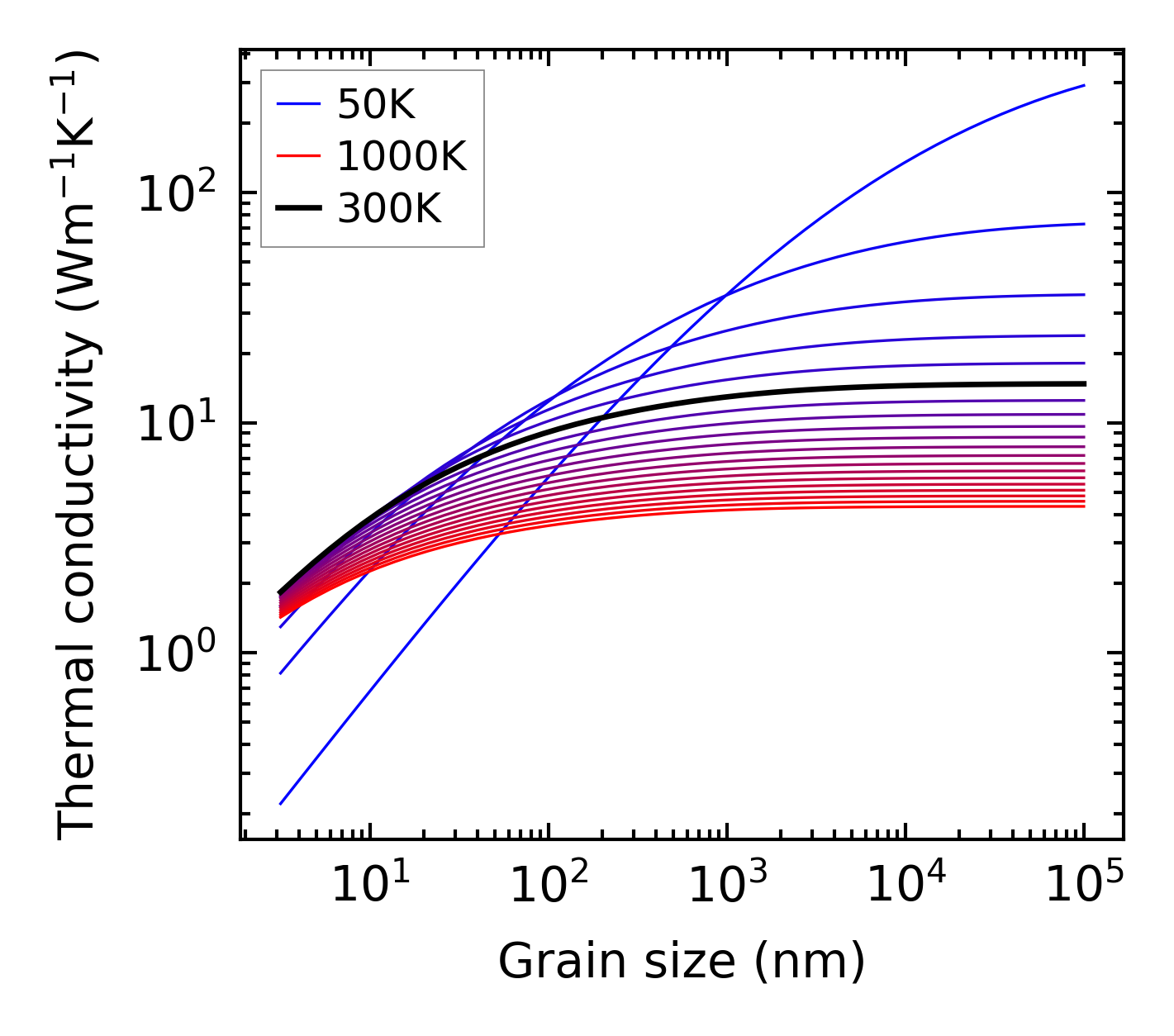

../../_images/fig_kappa_vs_grain_size4058.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3967.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3966.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3967.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

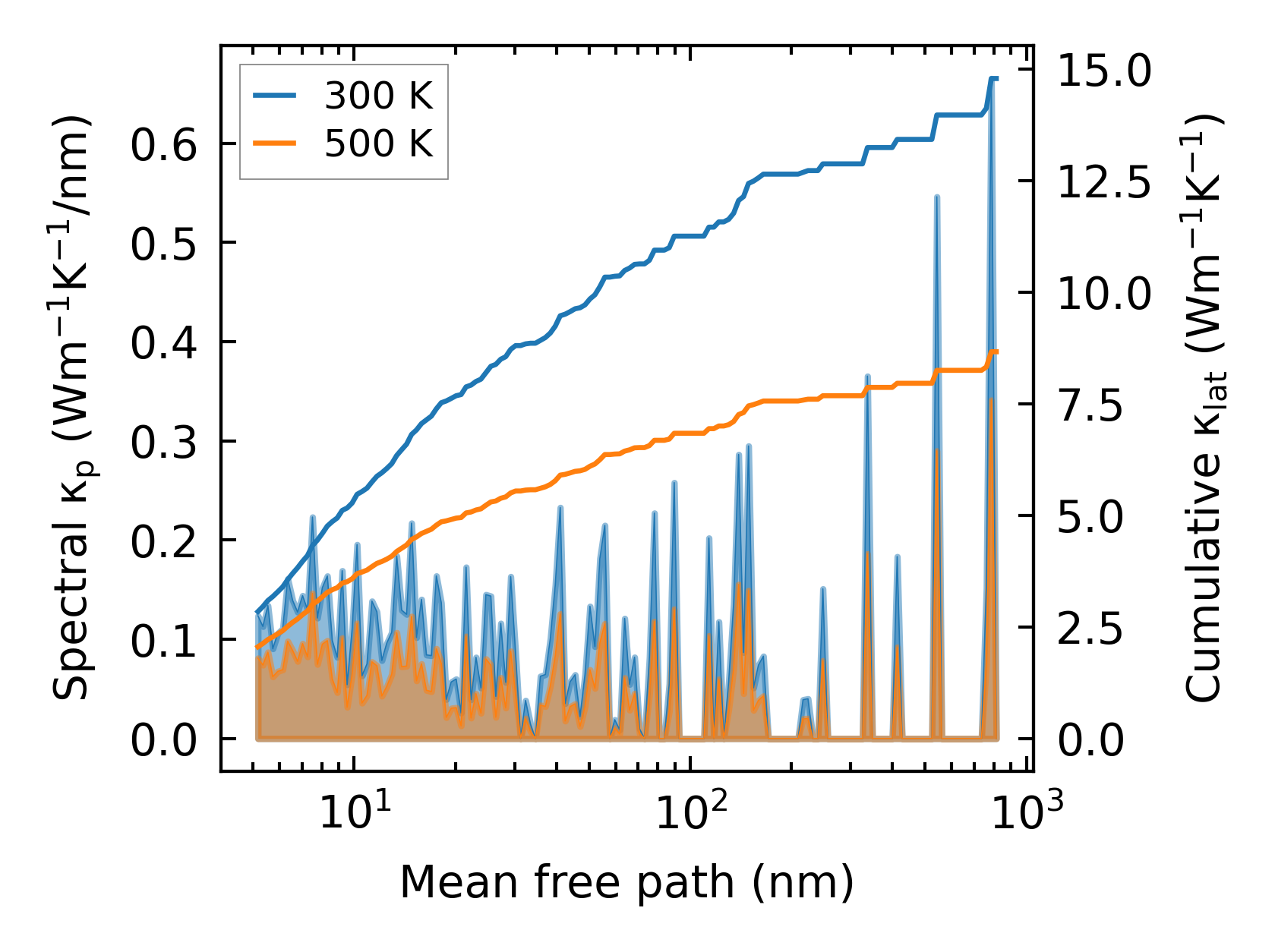

../../_images/fig_cumu_mfp3966.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

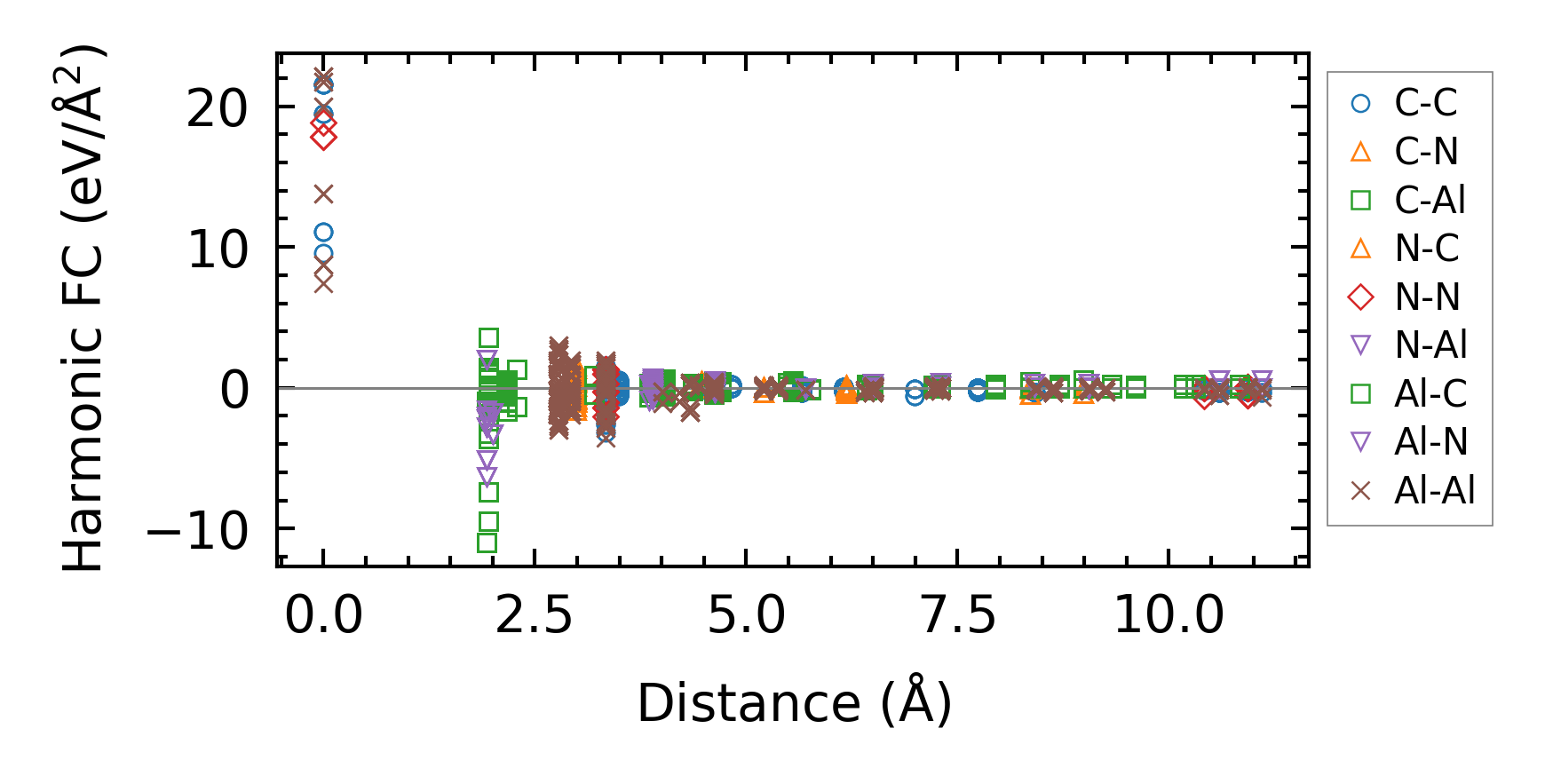

../../_images/fig_fc29745.png — (a) Force constants w.r.t atomic distance

Summary

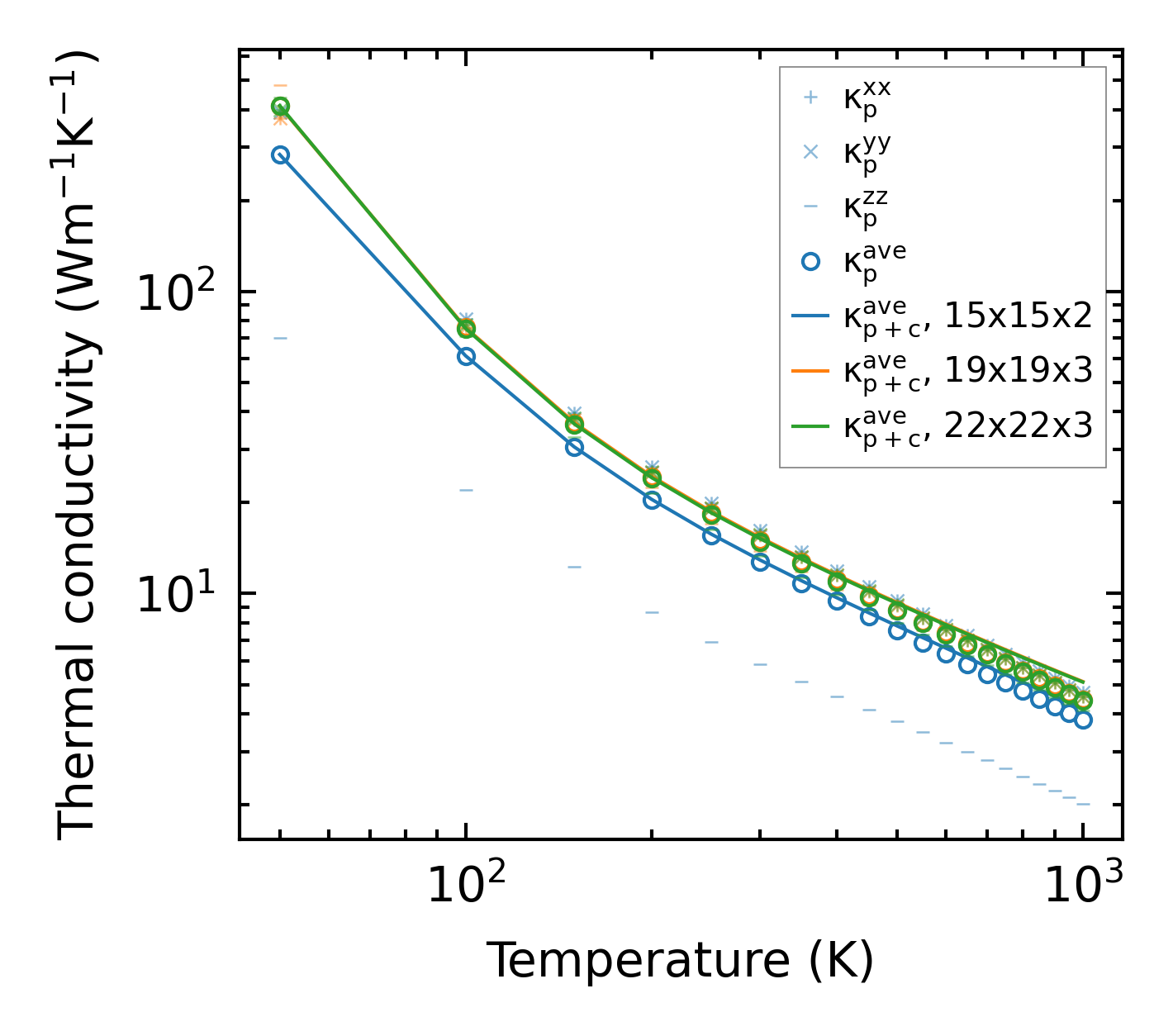

../../_images/fig_kappa7554.png — (a) Temperature-dependent lattice thermal conductivity

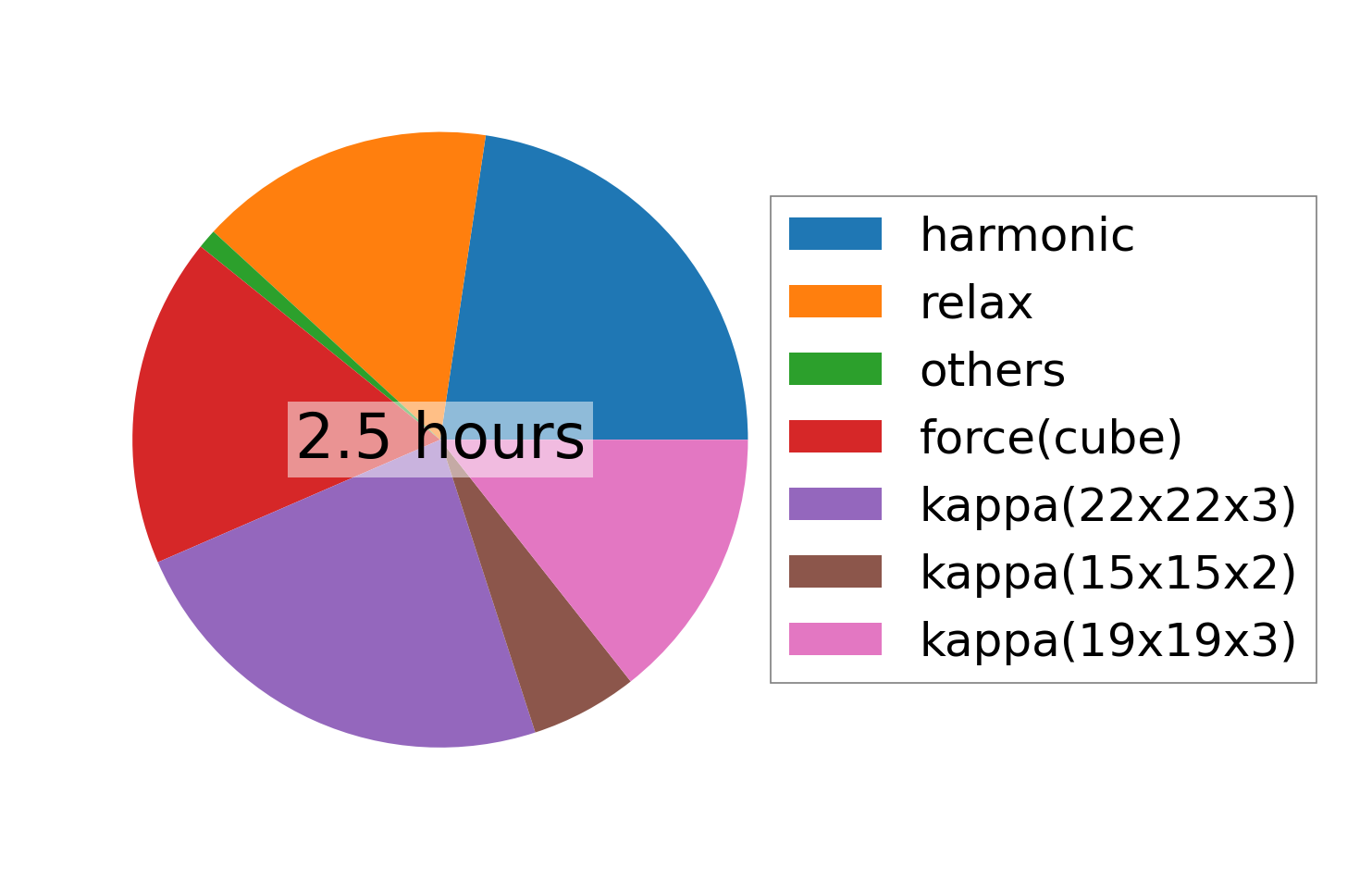

../../_images/fig_times17353.png — (b) Computation time
