mp-5327-2/Na4UO5/anharm

Space group: I4/m (87)
Link: Materials Project
Download: mp-5327-2.tar.gz

Equation of state

../../_images/fig_bm4957.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9940.png — (a) Phonon dispersion with participation ratio and DOS

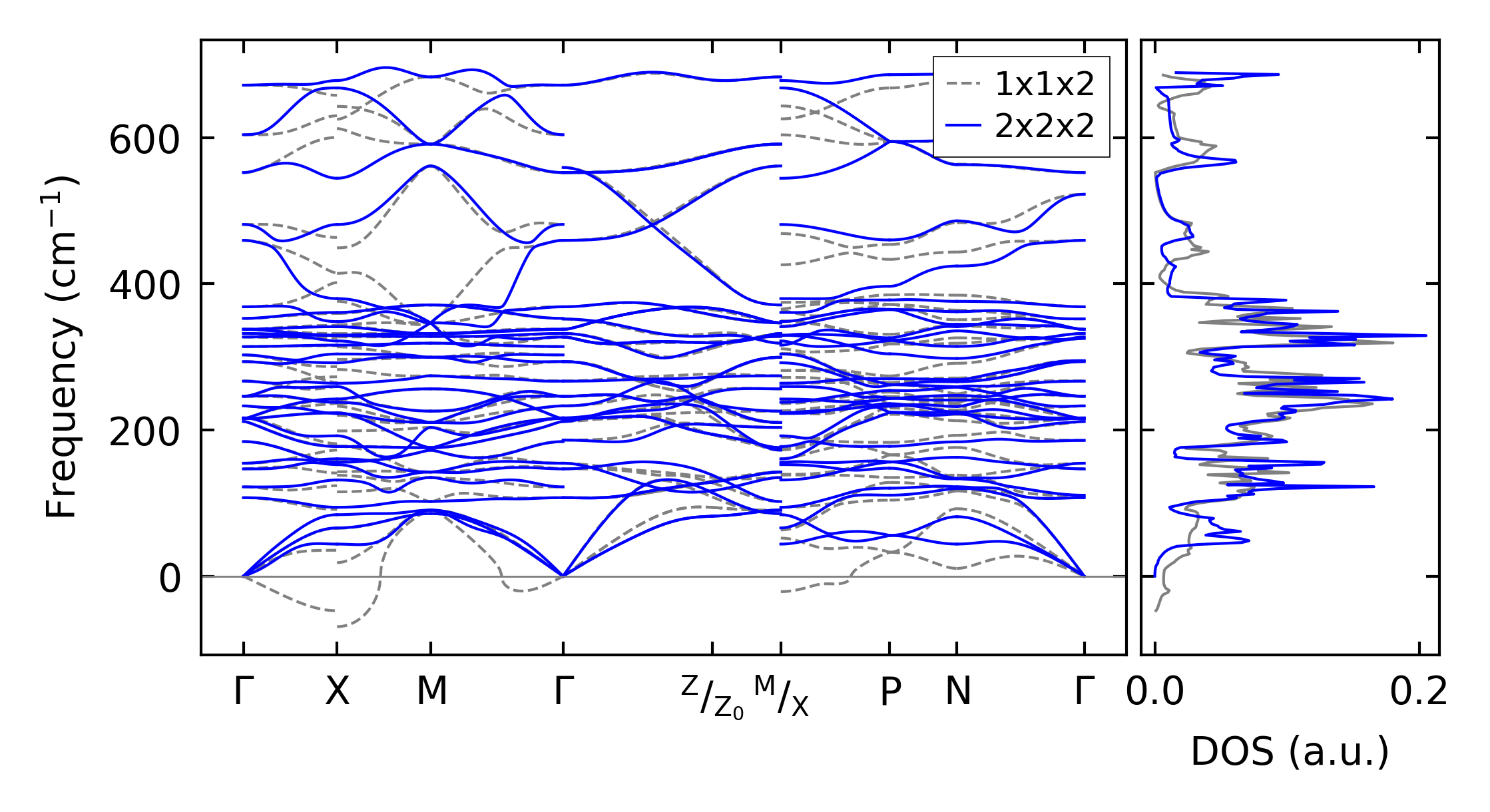

../../_images/fig_bandos13864.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9940.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3985.png — (a) Grüneisen parameters

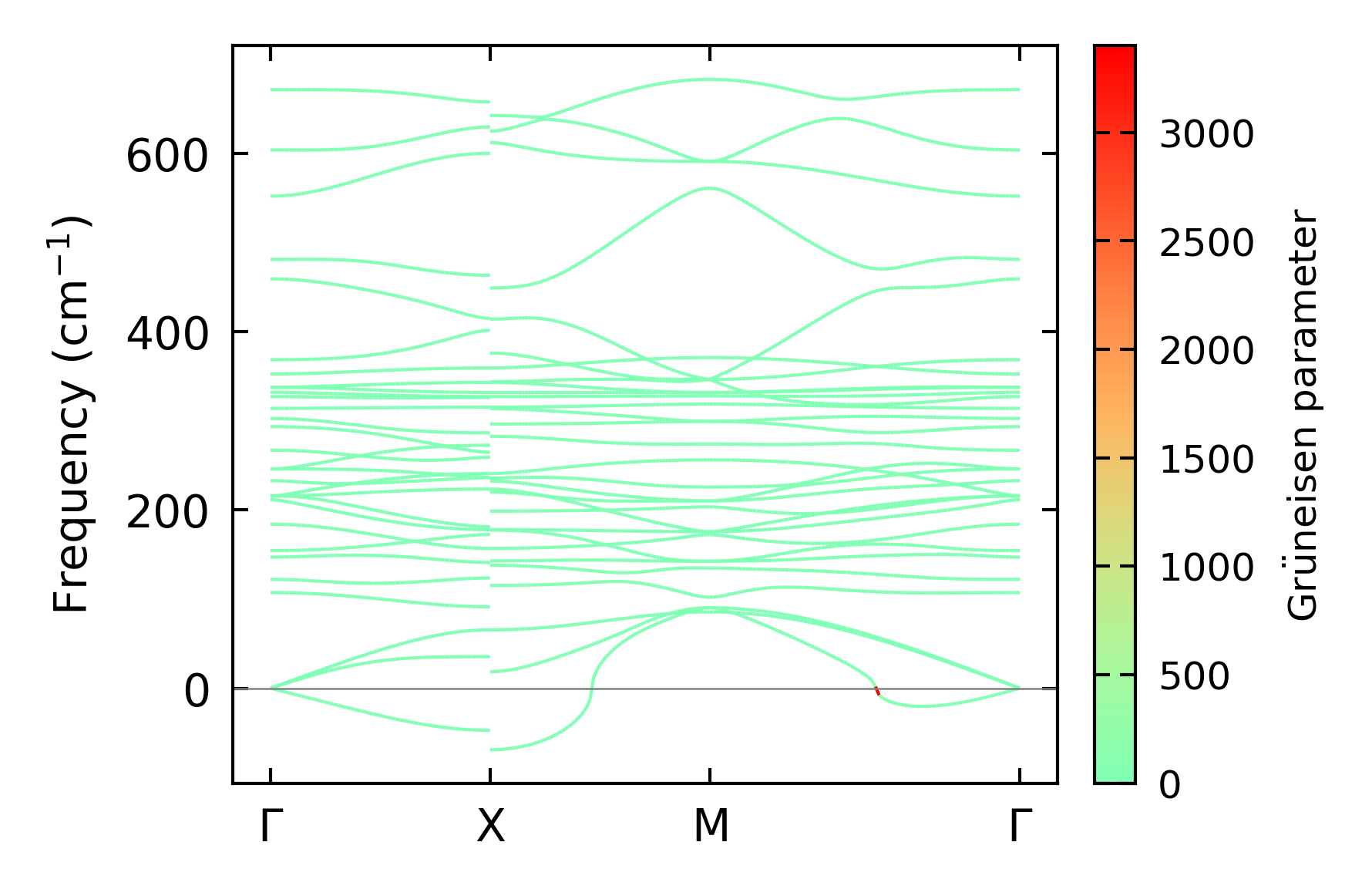

../../_images/fig_gruneisen3985.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 14x14x14, supercell: 2x2x2

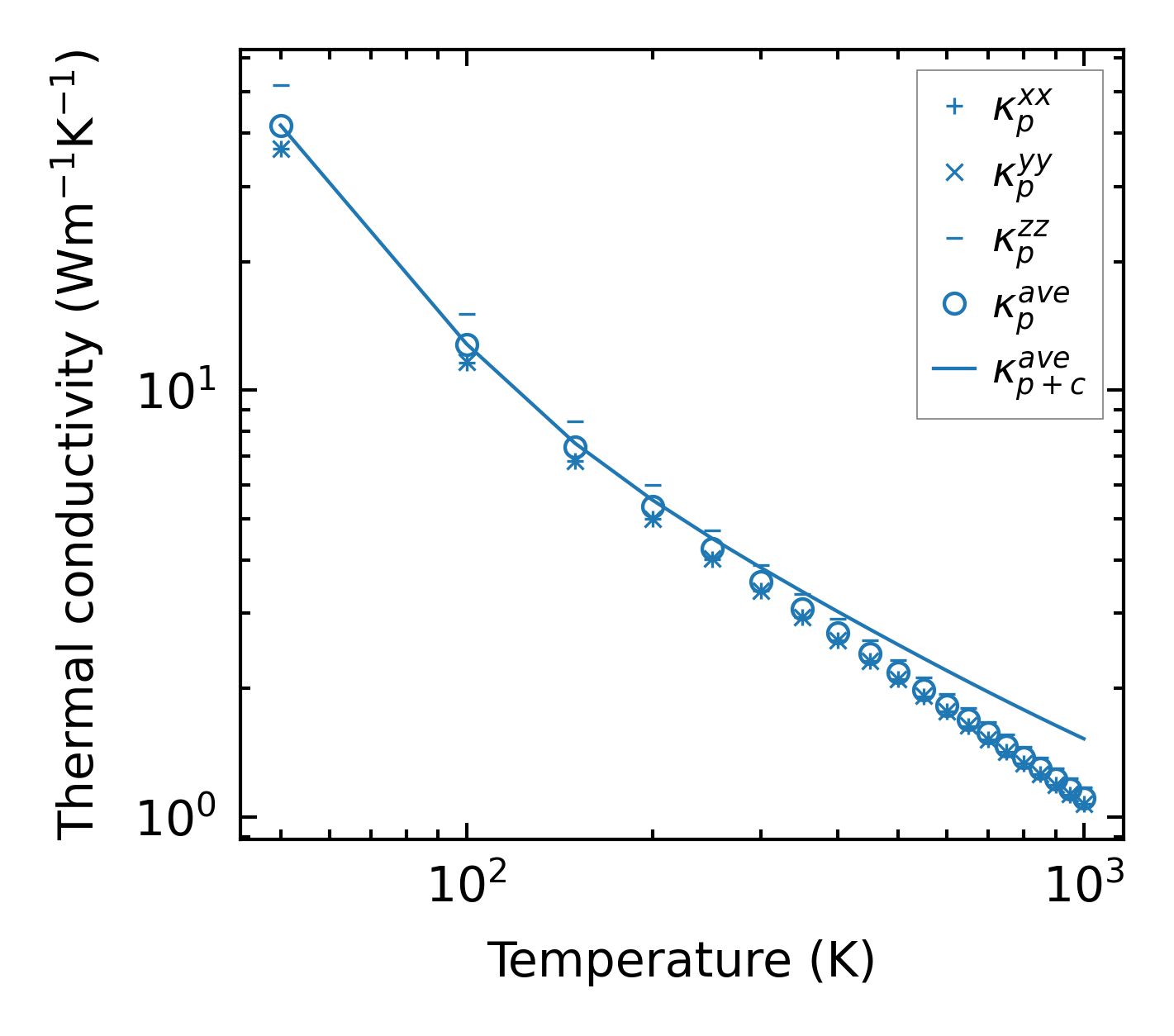

../../_images/fig_kappa7516.png — (a) Temperature-dependent lattice thermal conductivity

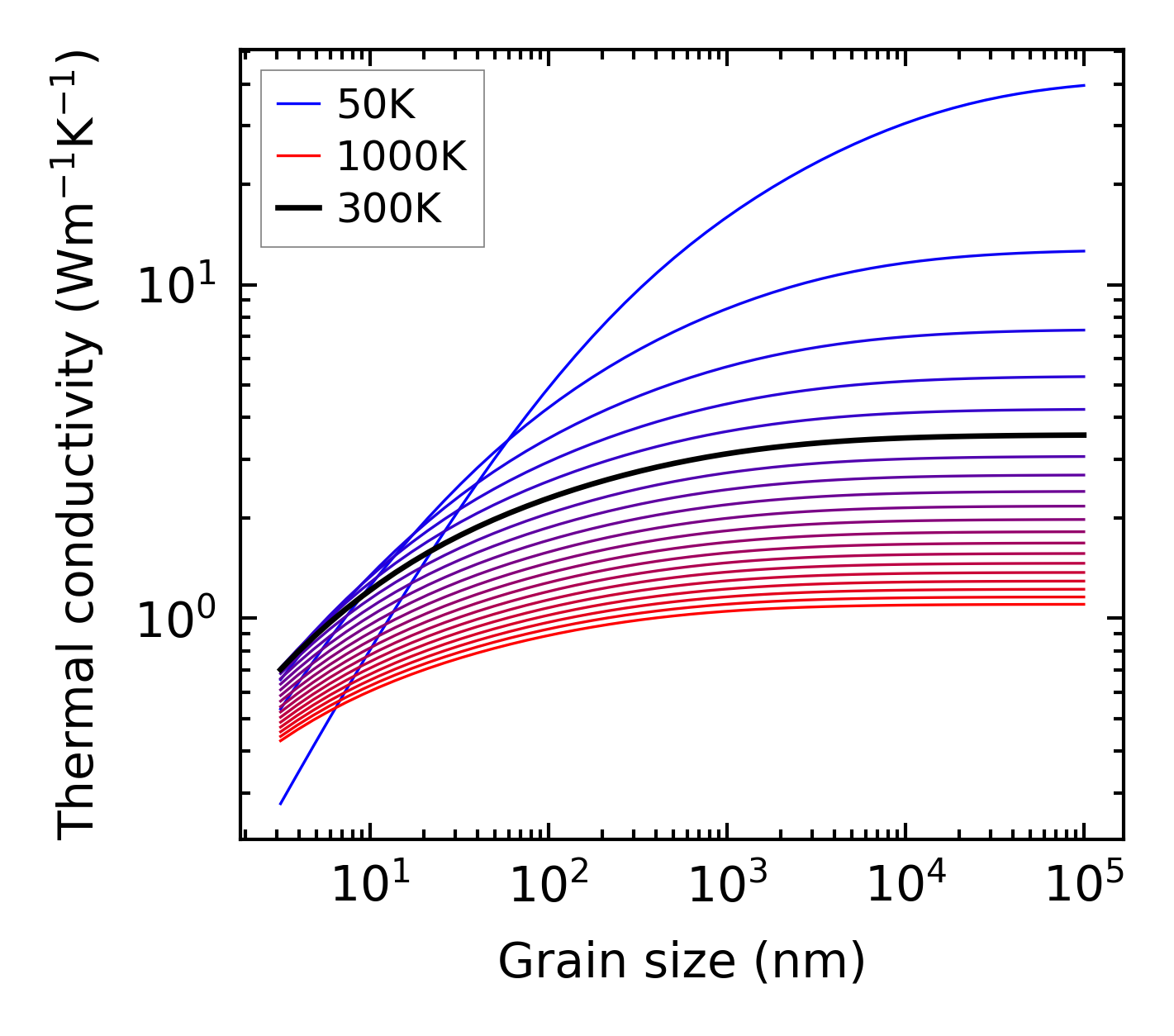

../../_images/fig_kappa_vs_grain_size4037.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3947.png — (a) Phonon lifetime due to phonon-phonon scattering

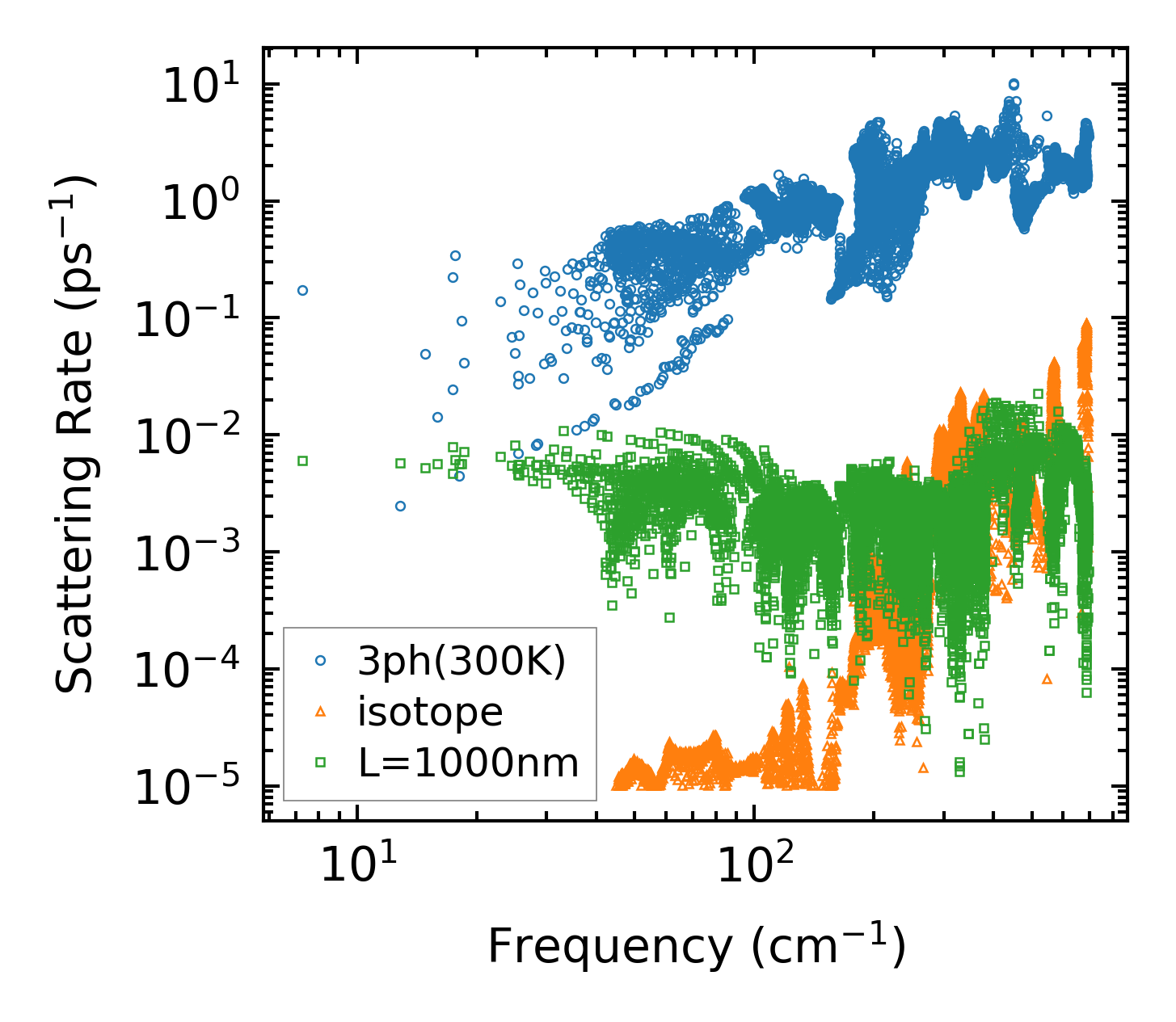

../../_images/fig_scat_rates3946.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

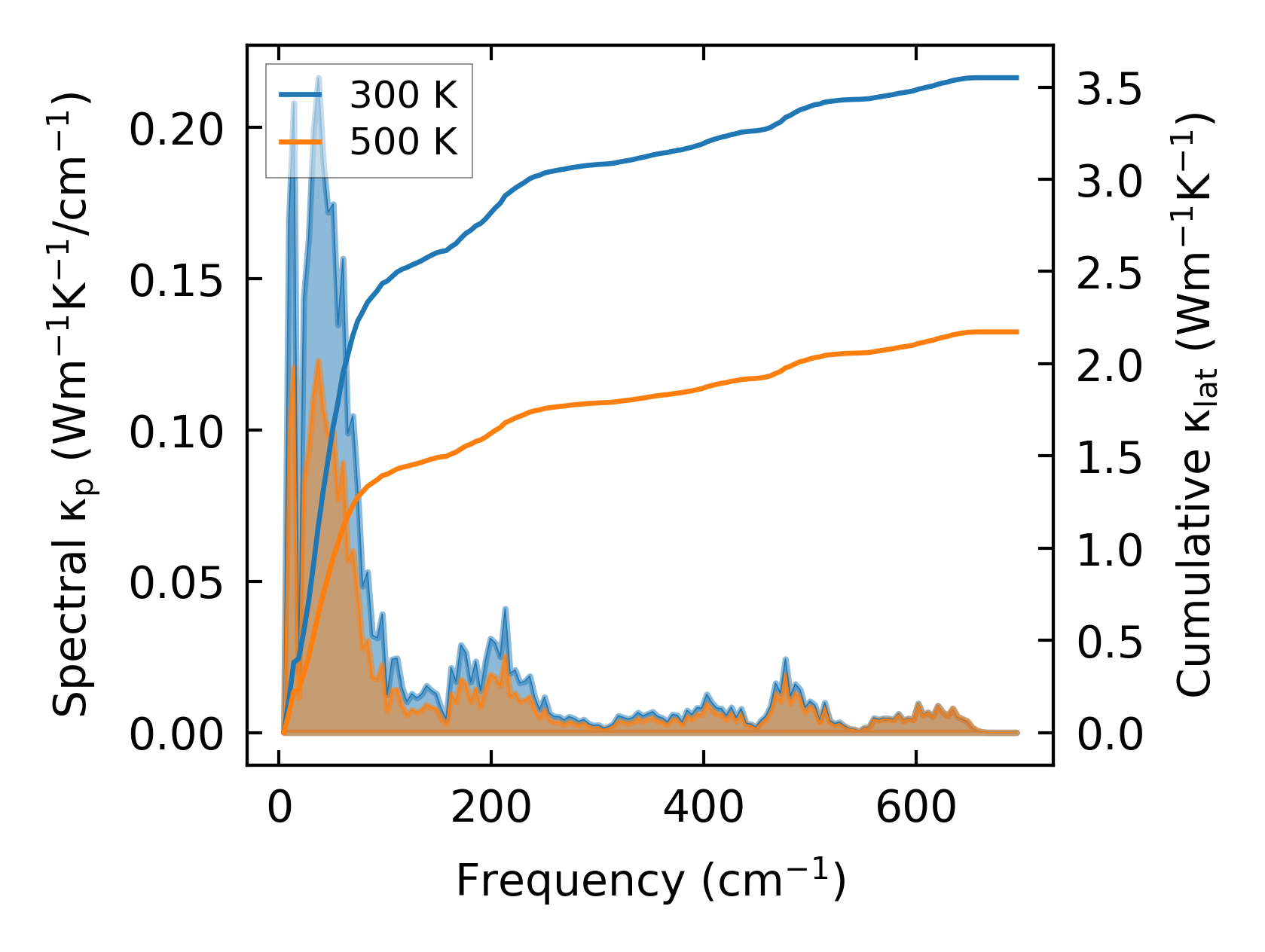

../../_images/fig_cumu_frequency3947.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3946.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

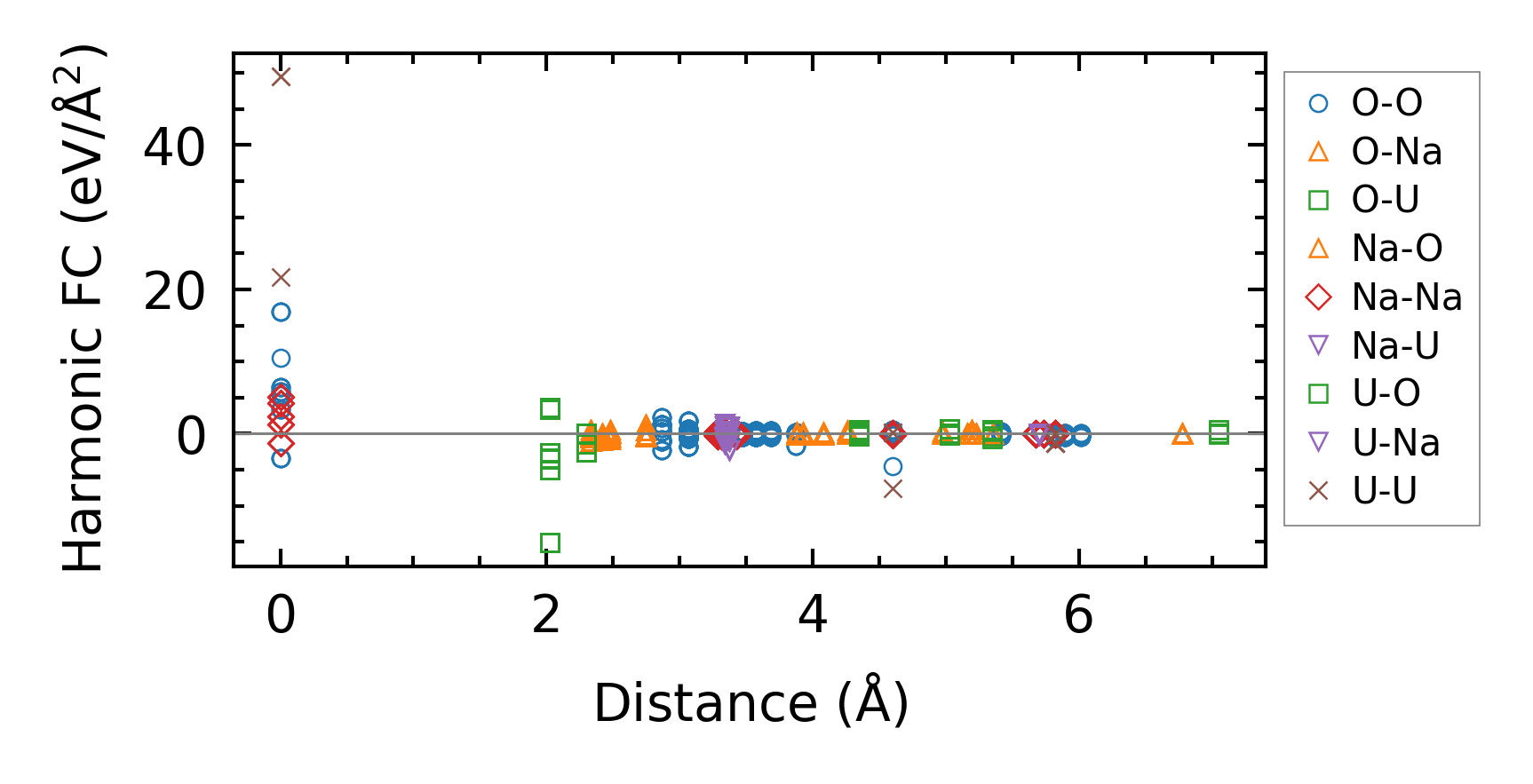

../../_images/fig_fc29693.png — (a) Force constants w.r.t atomic distance

Summary

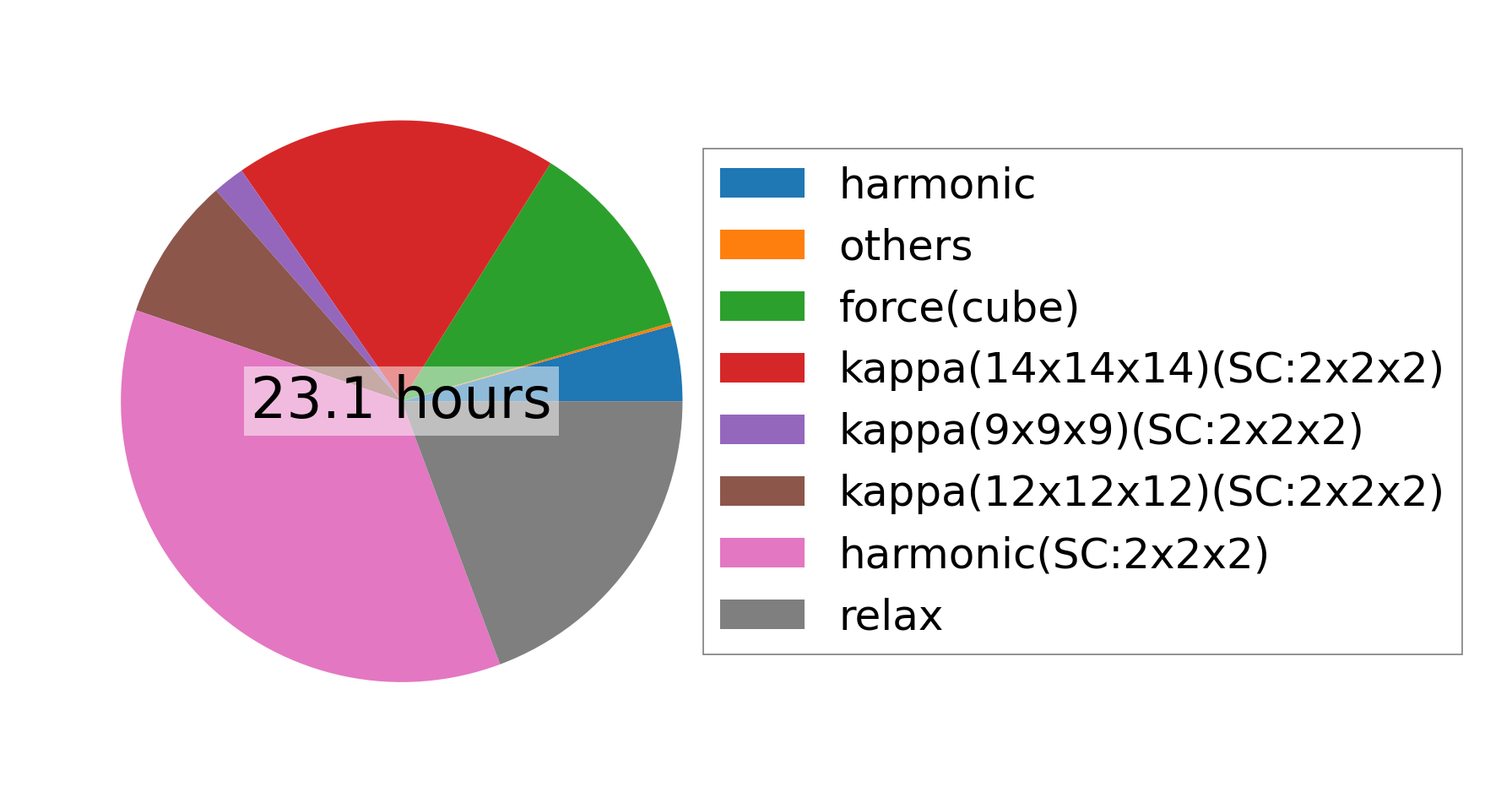

../../_images/fig_times17273.png — (a) Computation time
