mp-5639/Mg2SiO4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-5639.tar.gz

Harmonic properties

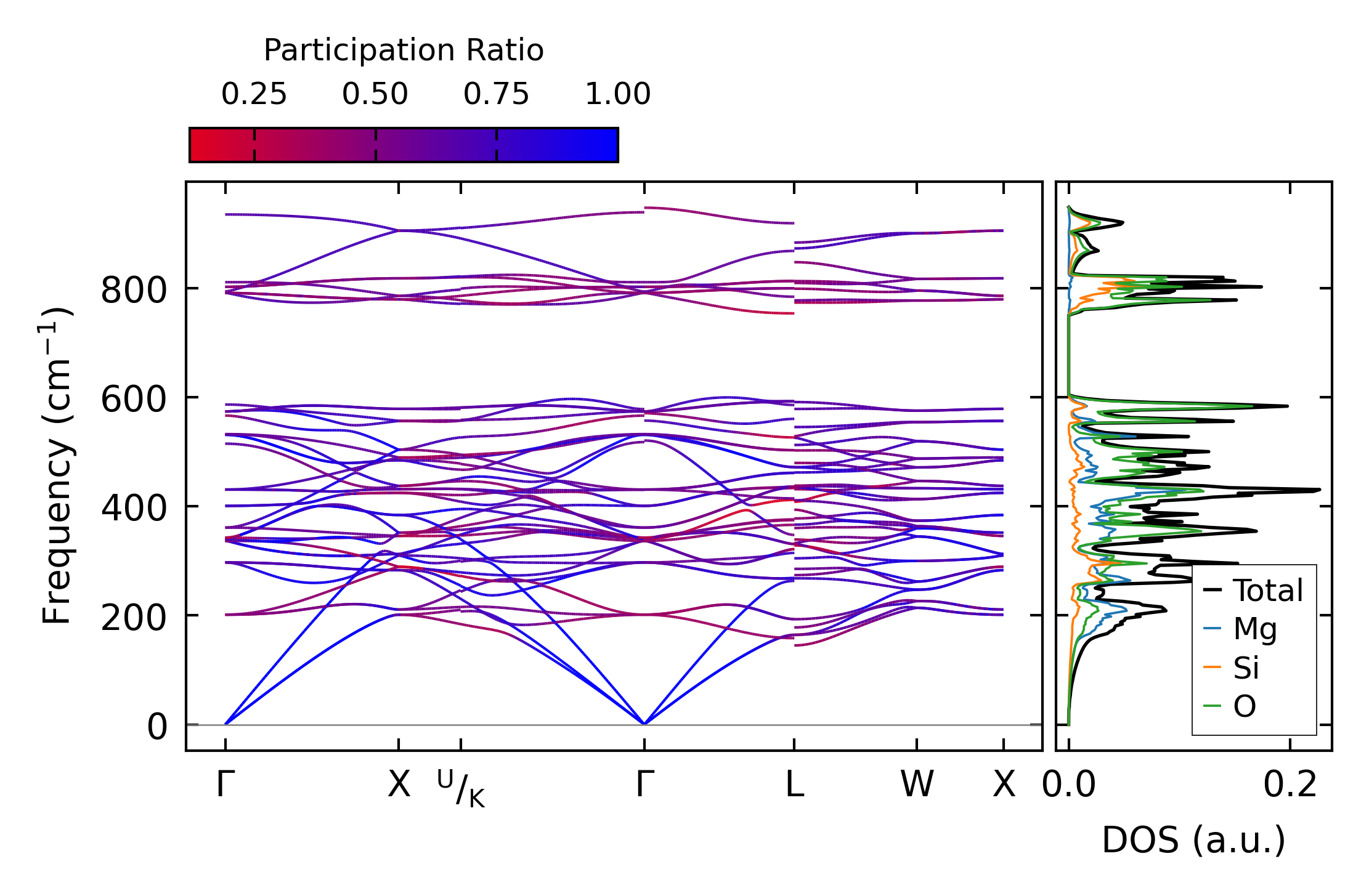

../../_images/fig_bandos_pr10028.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10028.png — (b) Thermodynamic properties

Grüneisen parameters

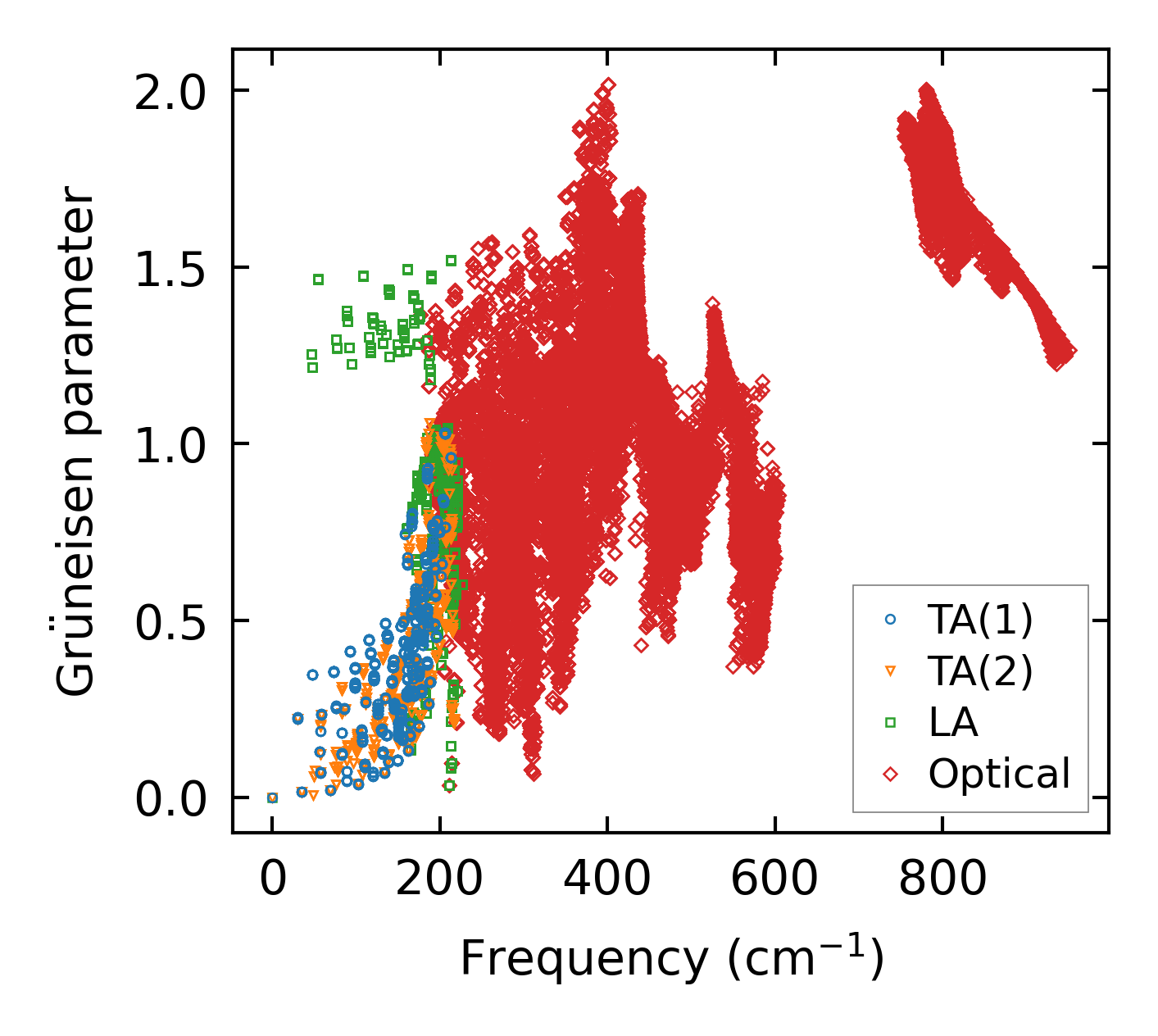

../../_images/fig_gru_all4027.png — (a) Grüneisen parameters

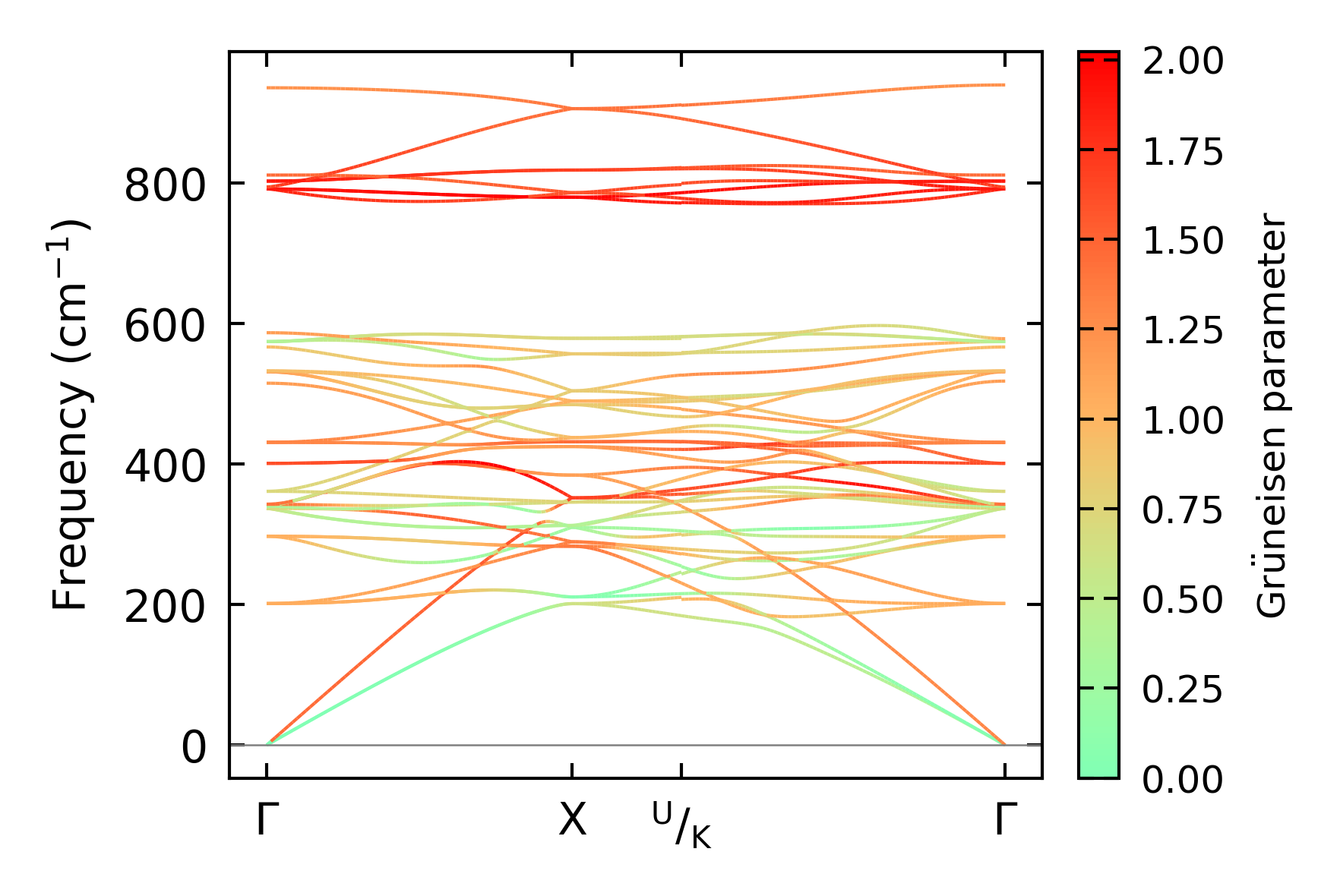

../../_images/fig_gruneisen4027.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

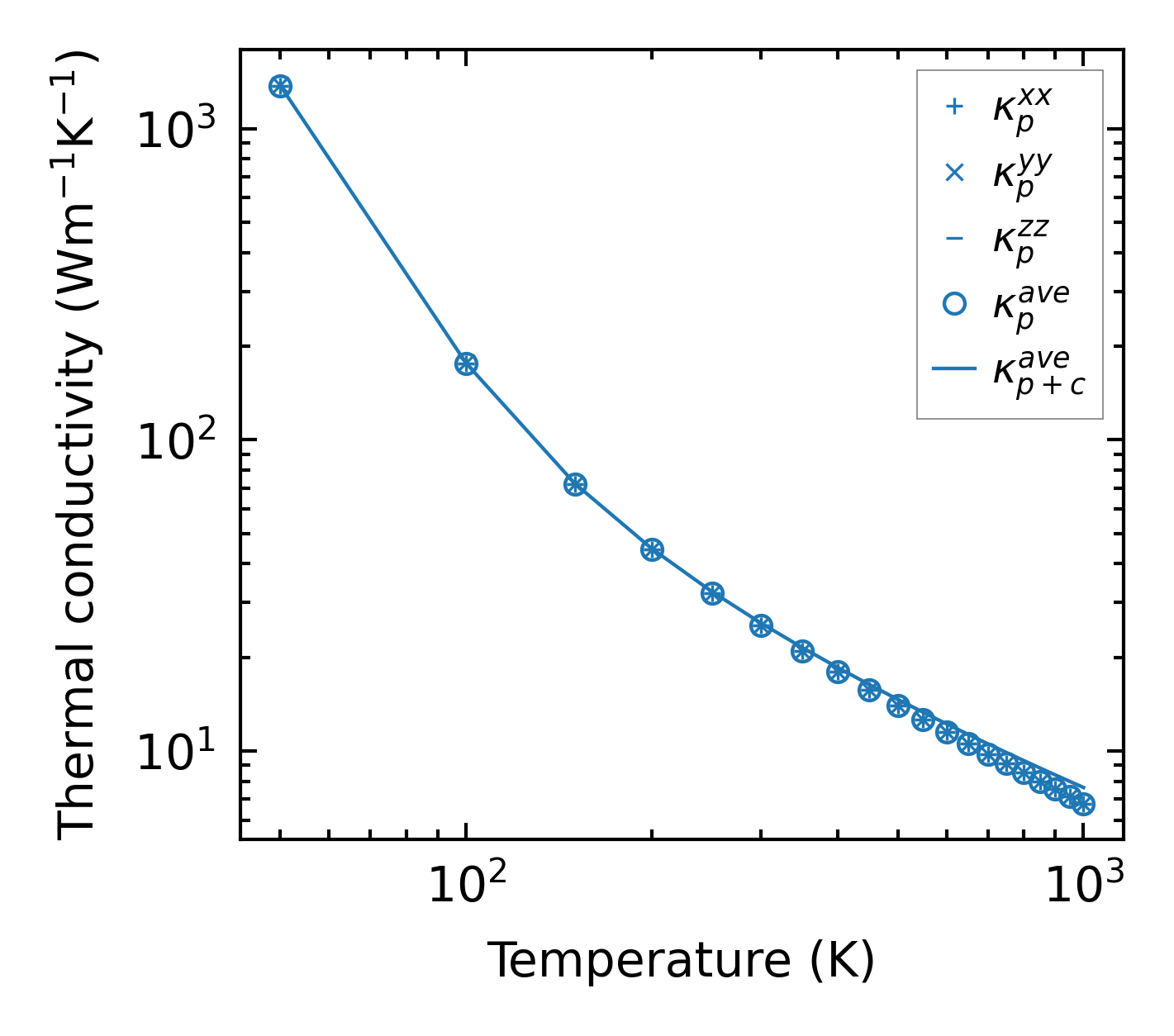

../../_images/fig_kappa7595.png — (a) Temperature-dependent lattice thermal conductivity

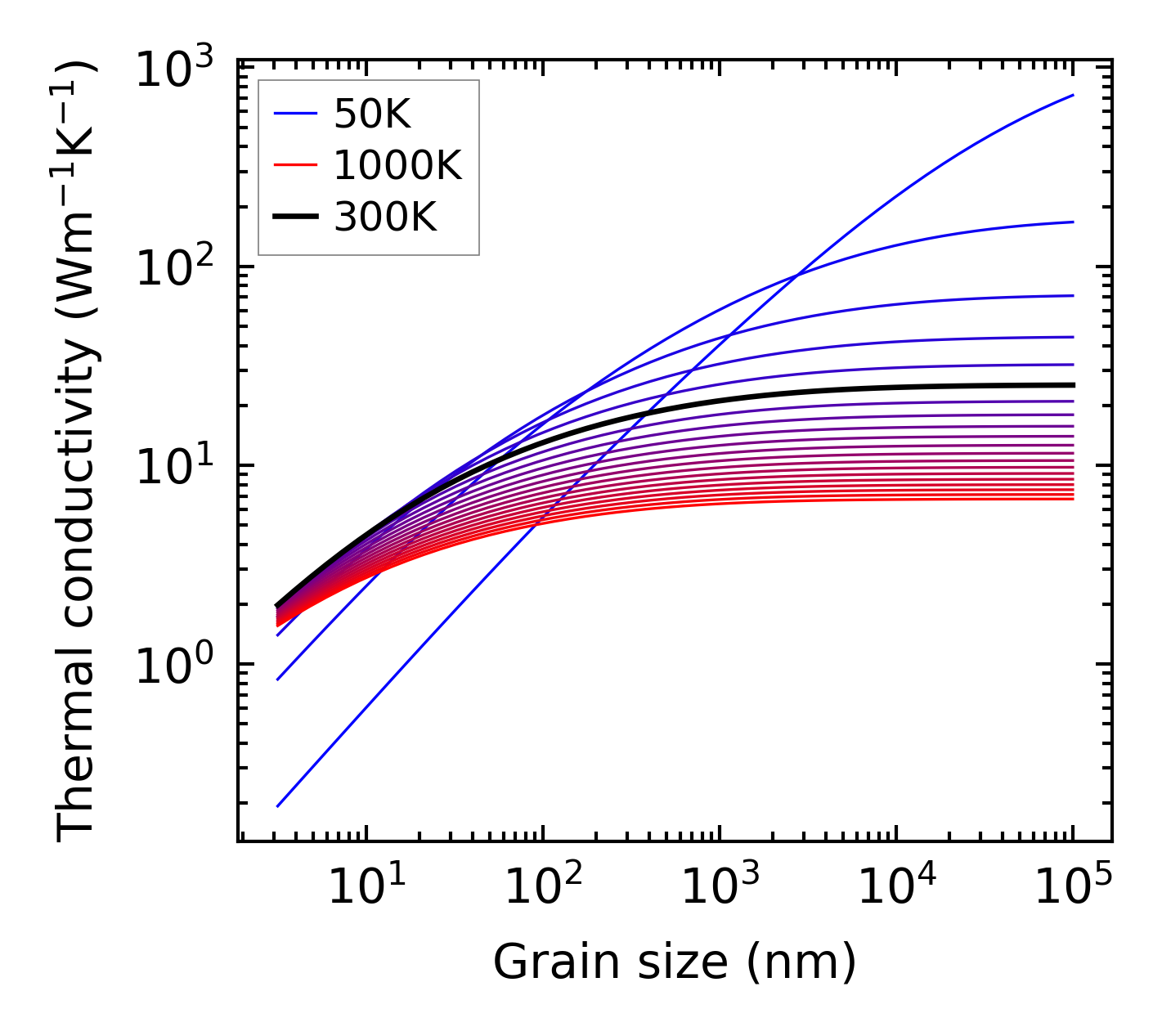

../../_images/fig_kappa_vs_grain_size4080.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

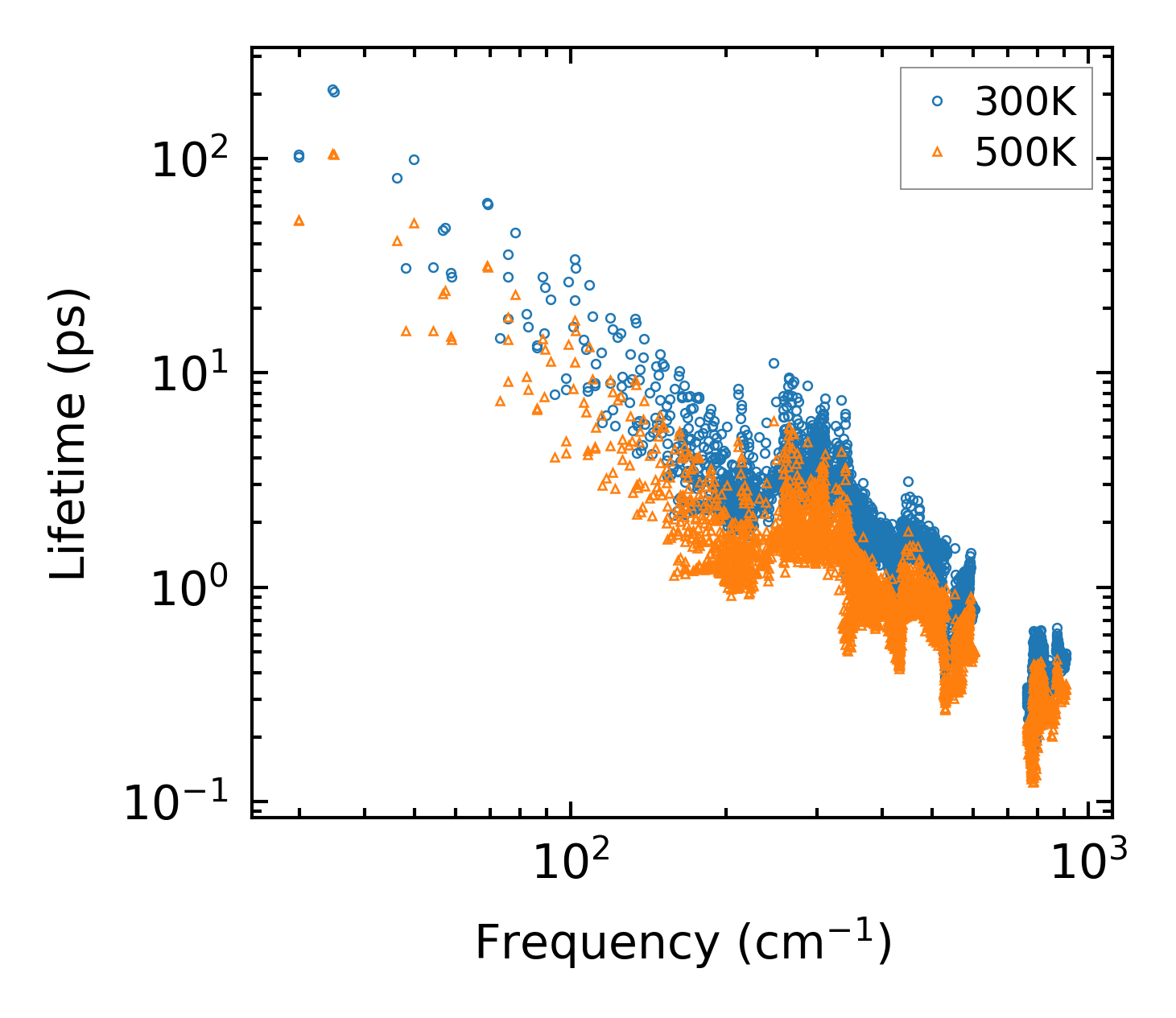

../../_images/fig_lifetime3989.png — (a) Phonon lifetime due to phonon-phonon scattering

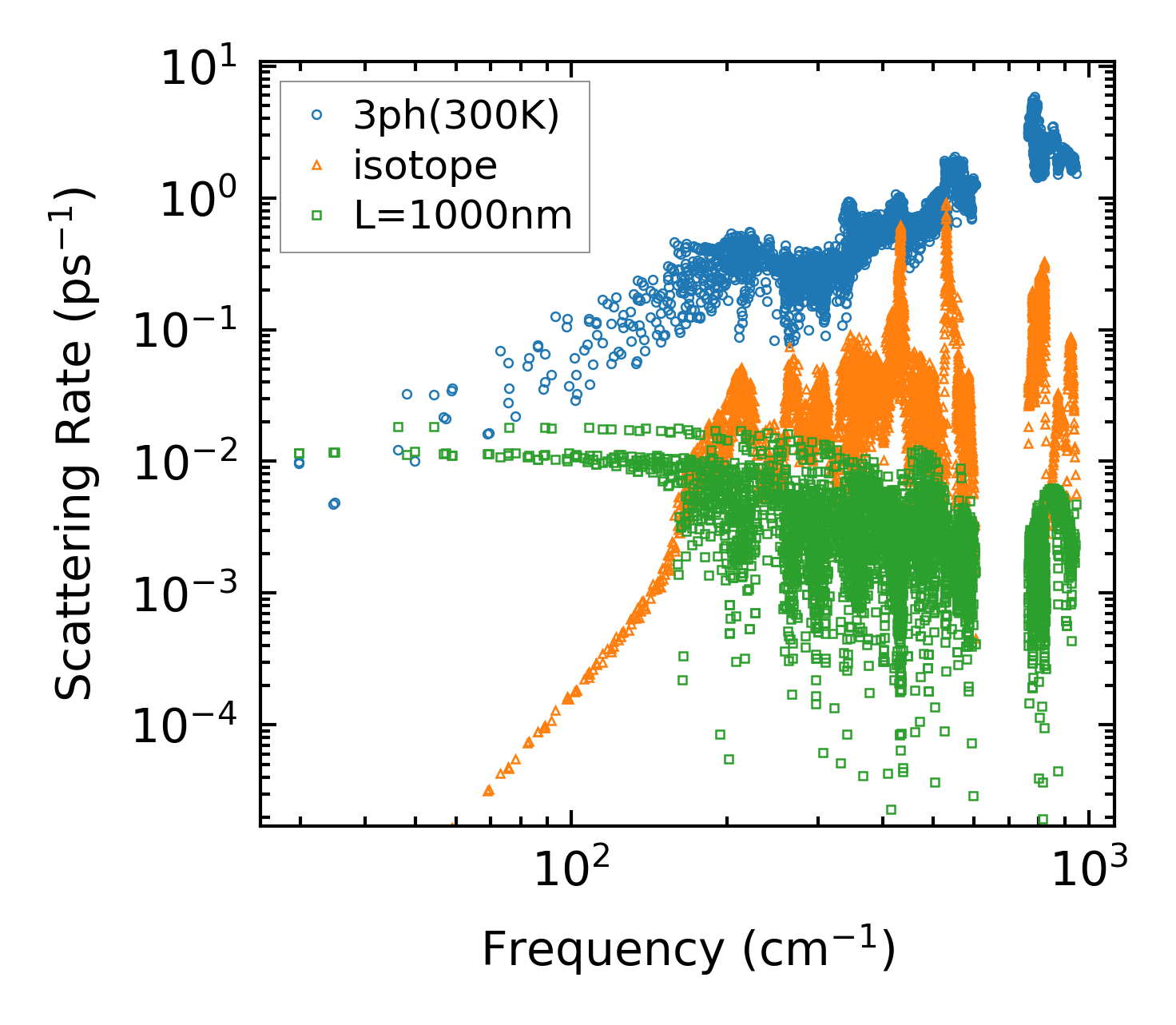

../../_images/fig_scat_rates3988.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

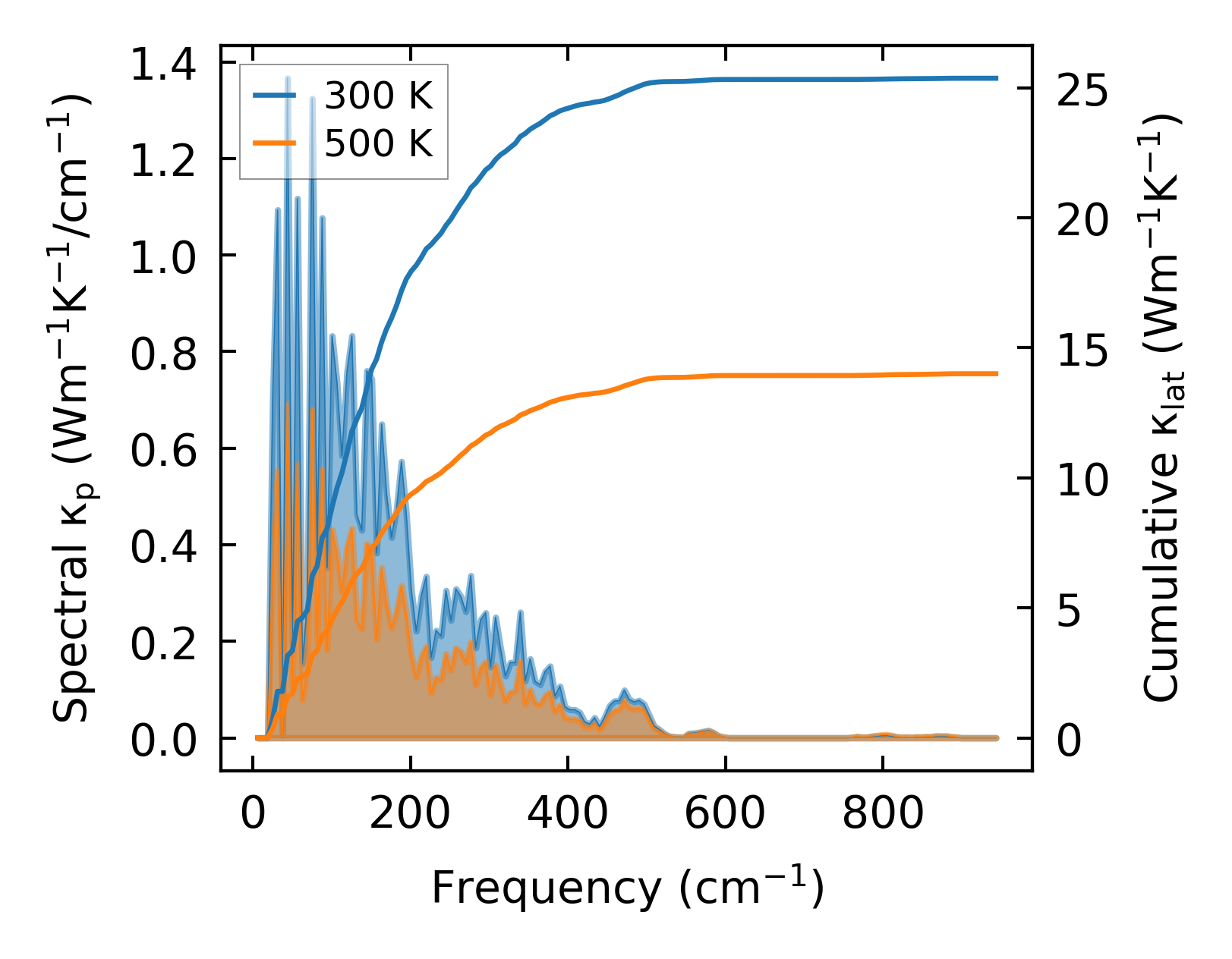

../../_images/fig_cumu_frequency3989.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

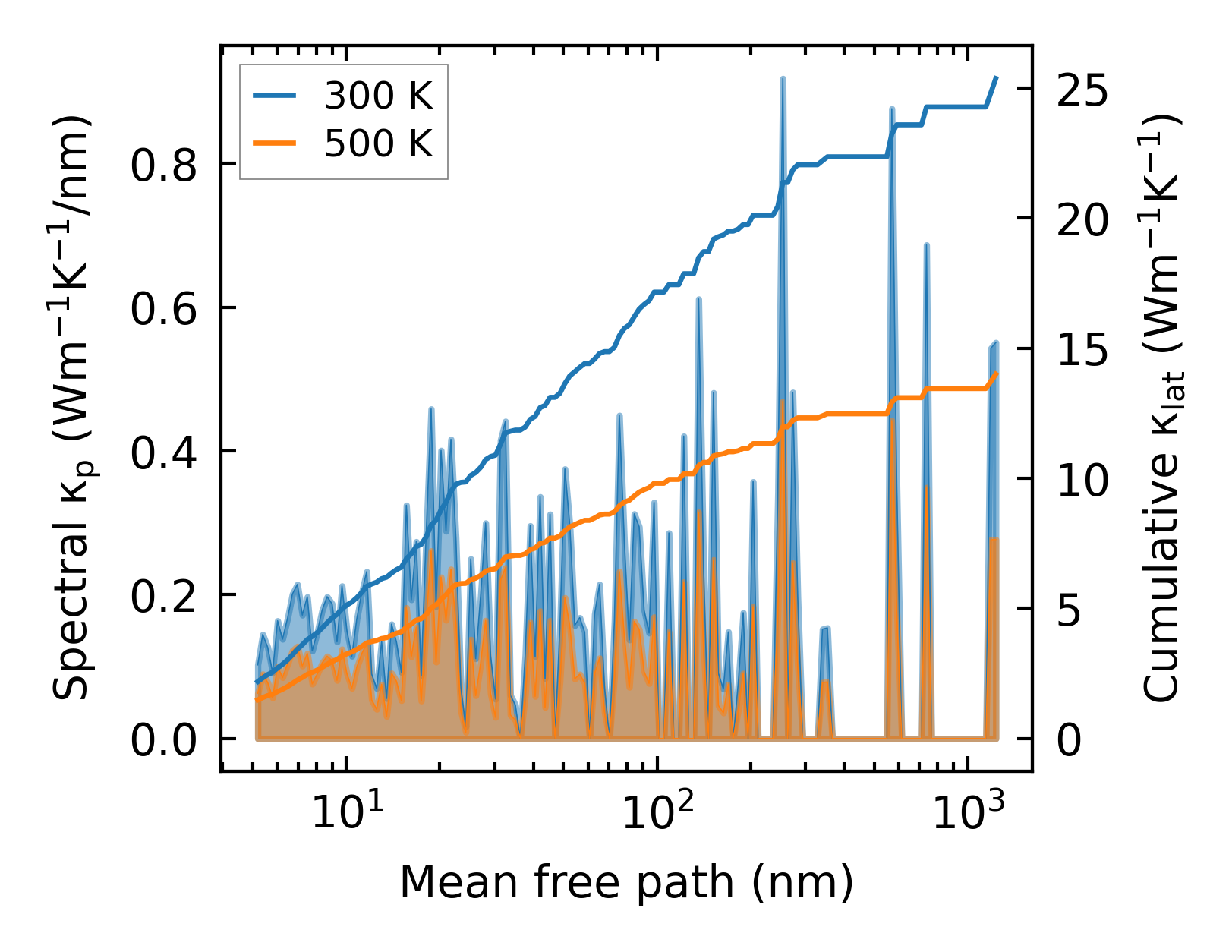

../../_images/fig_cumu_mfp3988.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

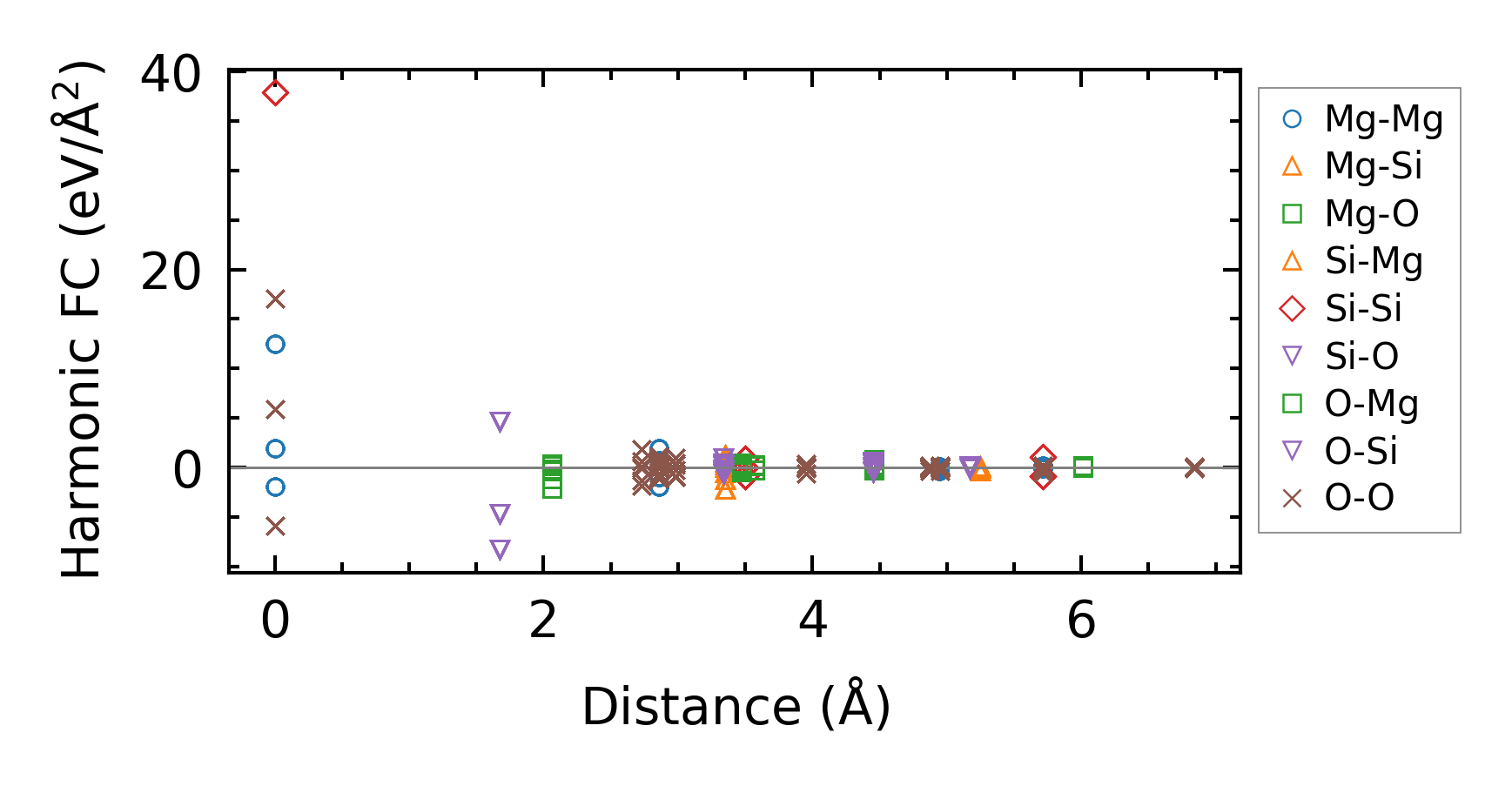

../../_images/fig_fc29781.png — (a) Force constants w.r.t atomic distance

Summary

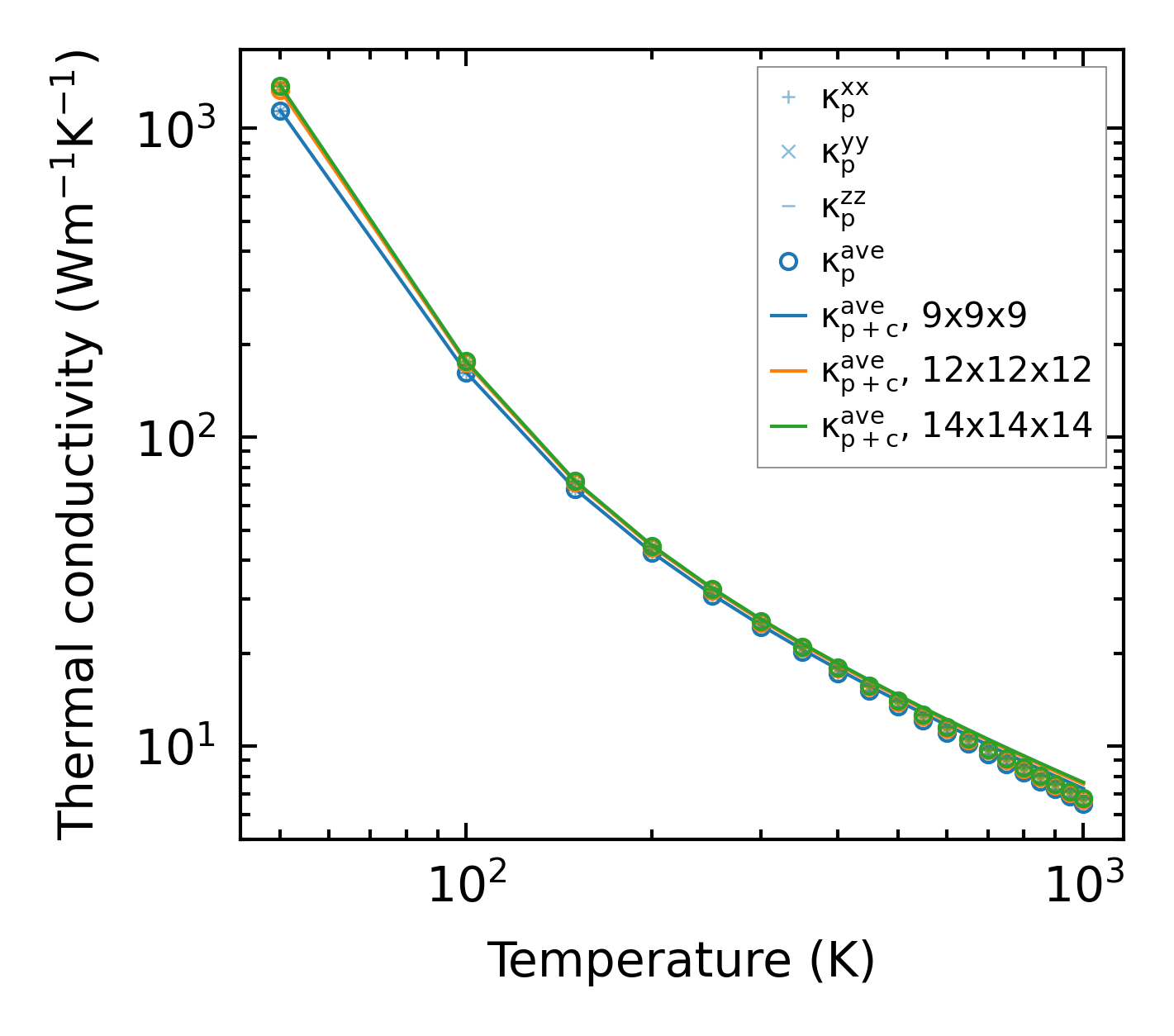

../../_images/fig_kappa7596.png — (a) Temperature-dependent lattice thermal conductivity

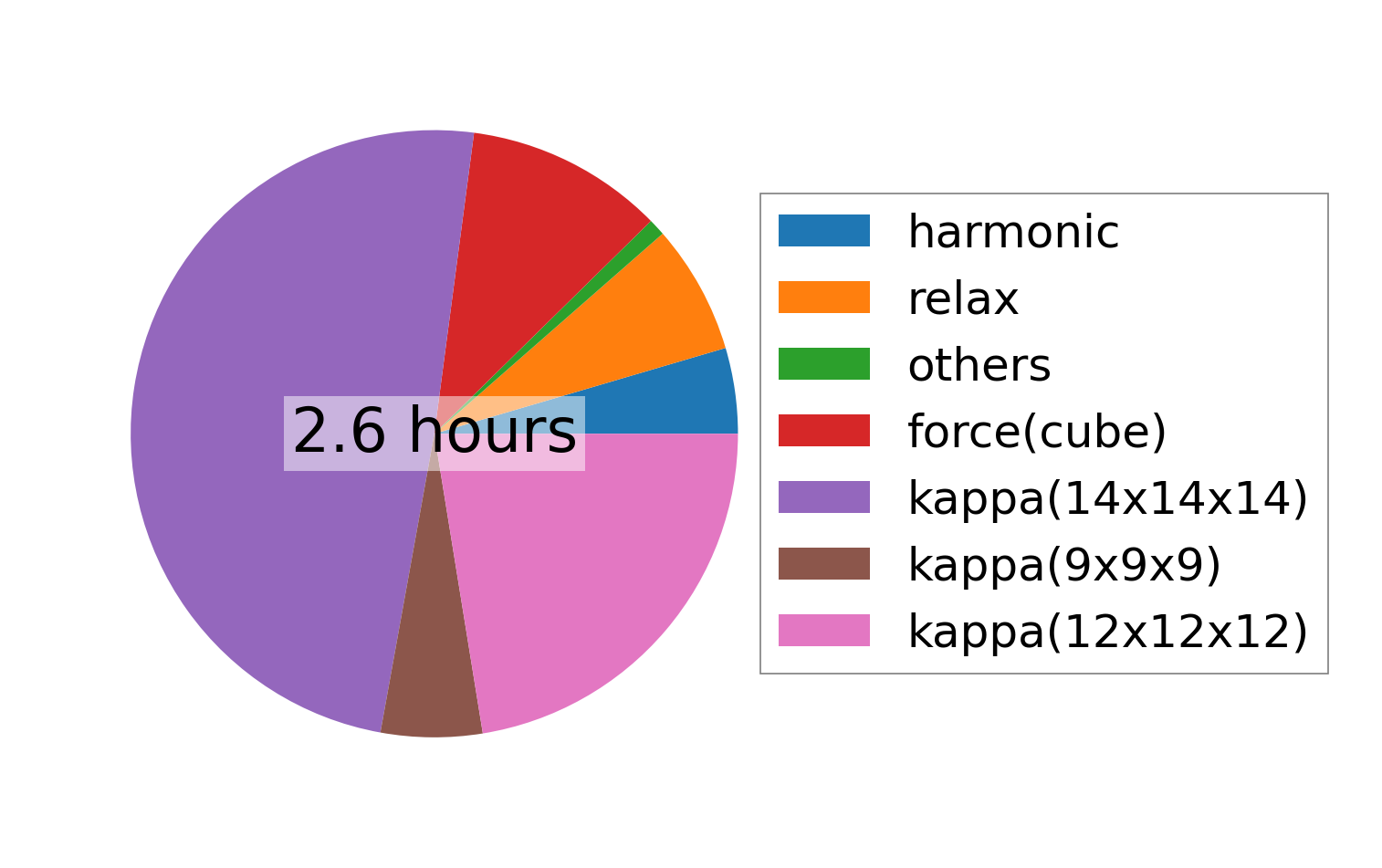

../../_images/fig_times17405.png — (b) Computation time
