mp-5132-2/YPO4/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-5132-2.tar.gz

Equation of state

../../_images/fig_bm4930.png — (a) Equation of state

Harmonic properties

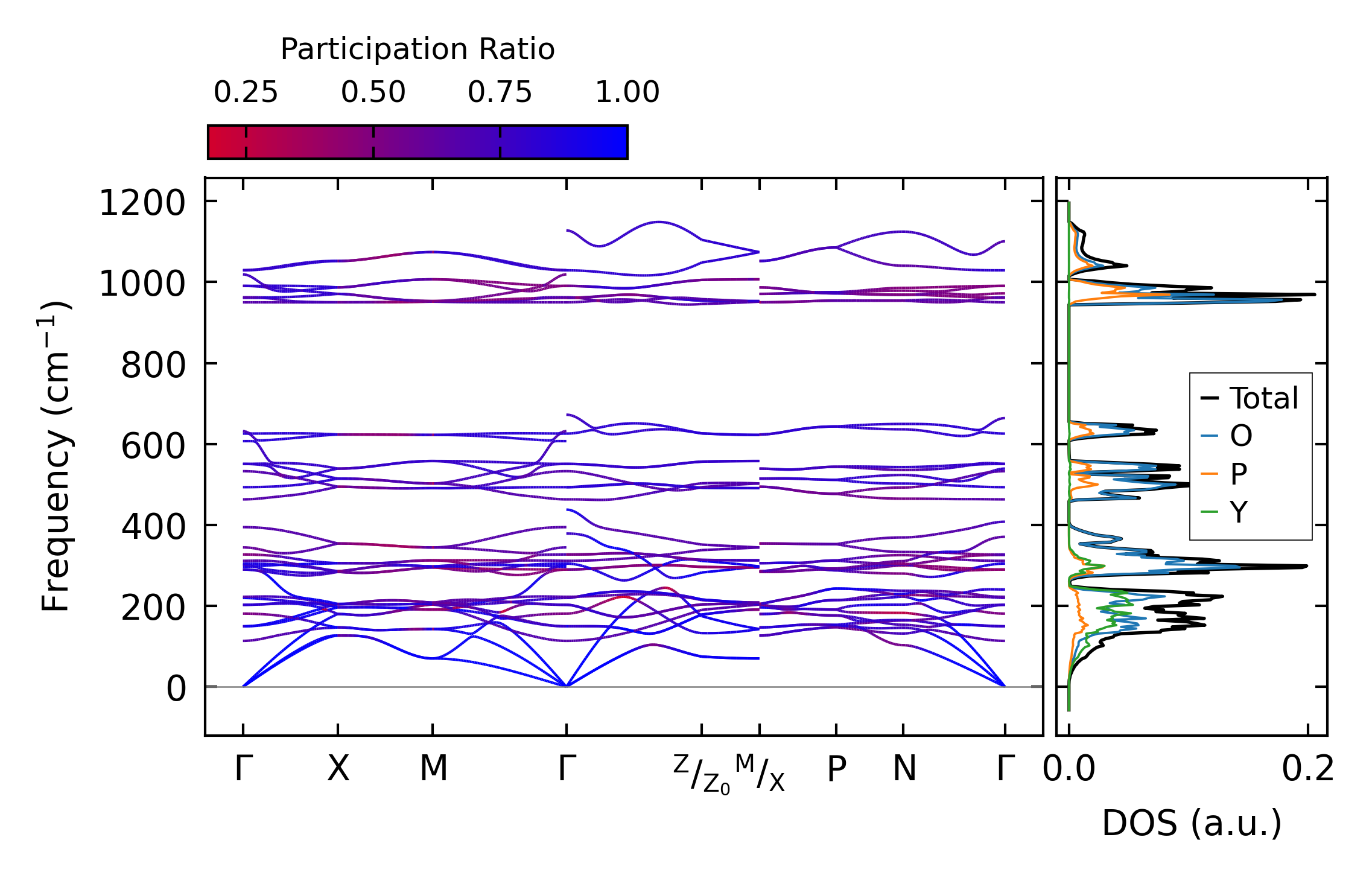

../../_images/fig_bandos_pr9904.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9904.png — (b) Thermodynamic properties

Grüneisen parameters

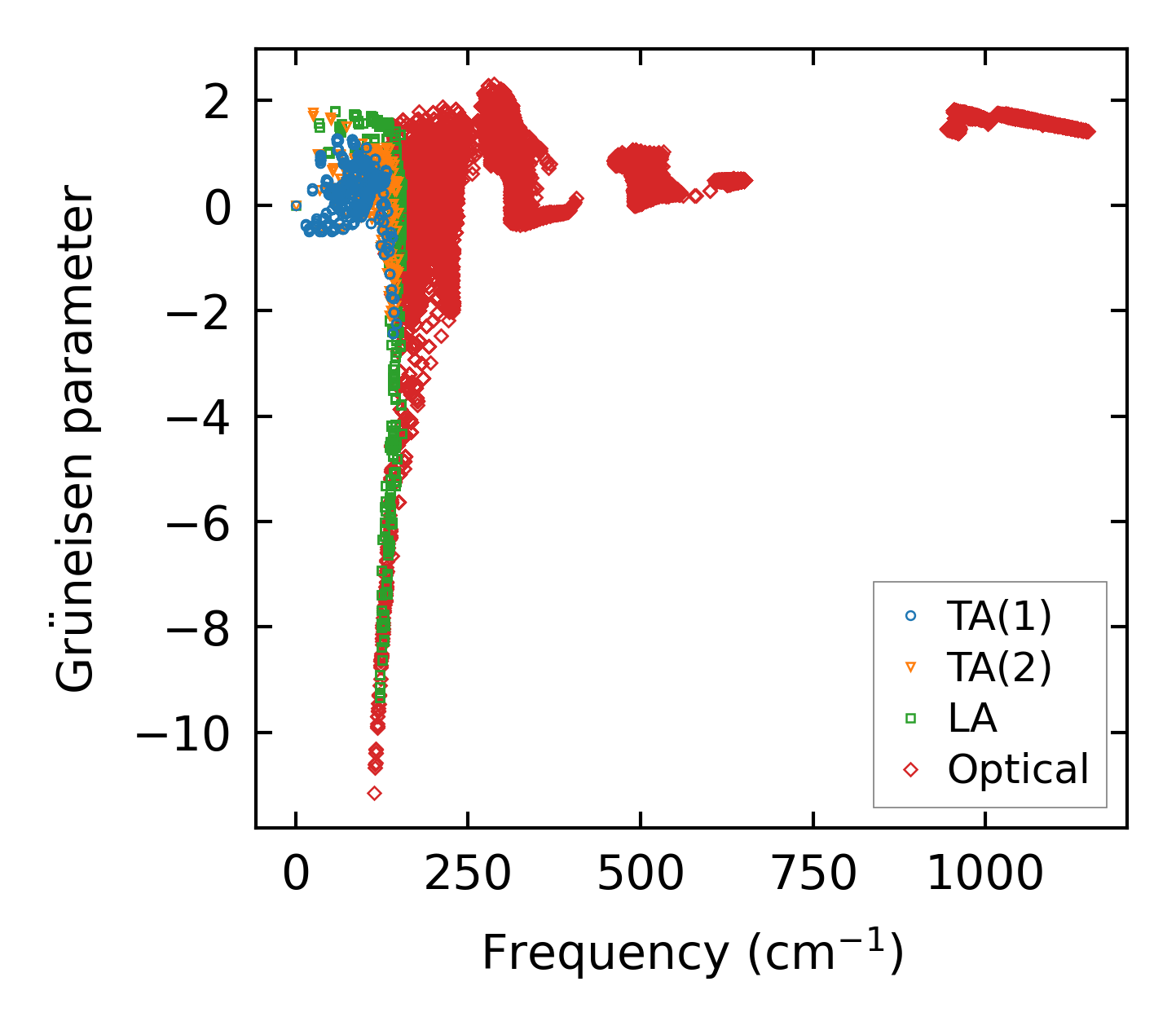

../../_images/fig_gru_all3968.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3968.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x2

../../_images/fig_kappa7483.png — (a) Temperature-dependent lattice thermal conductivity

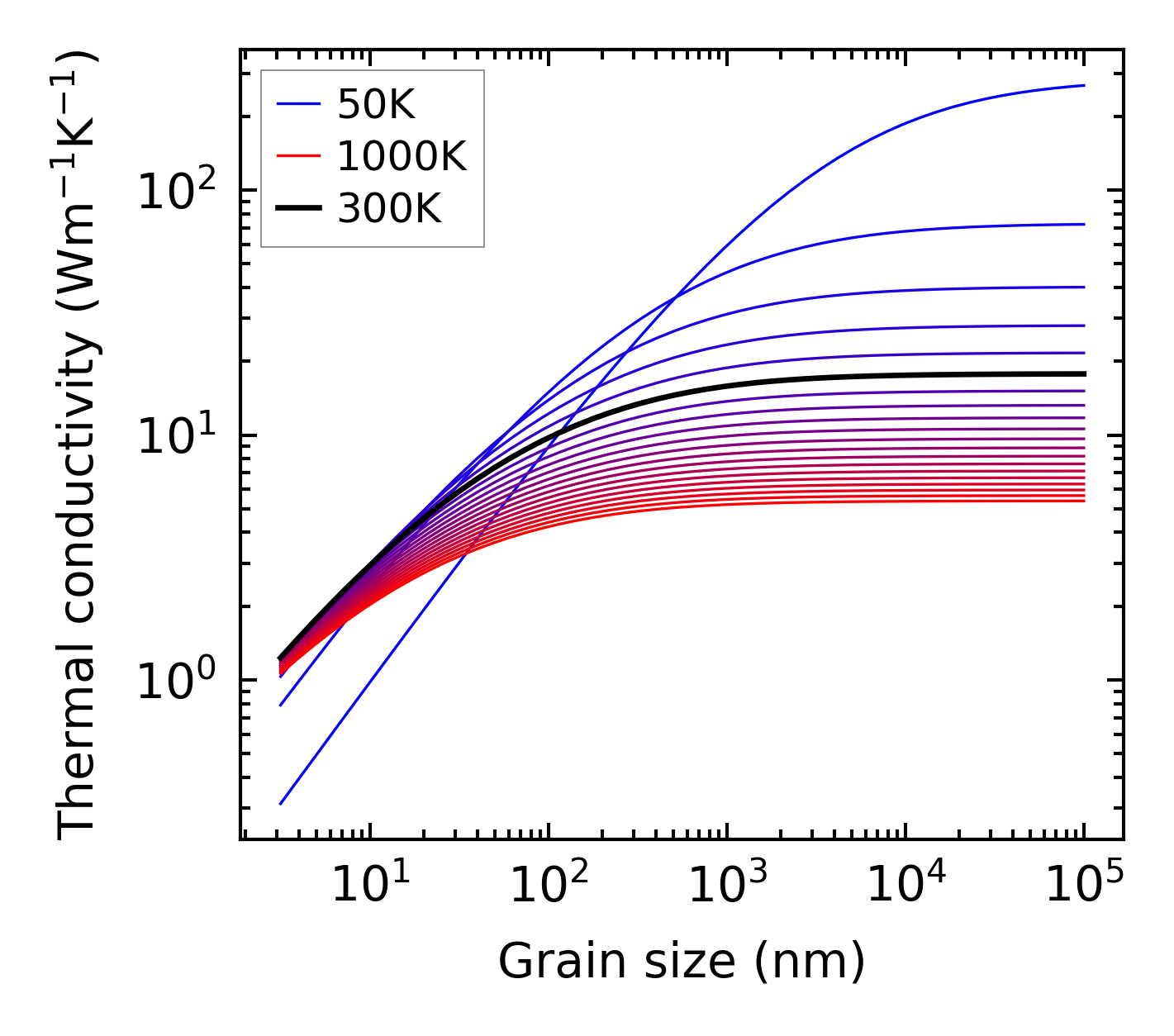

../../_images/fig_kappa_vs_grain_size4020.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

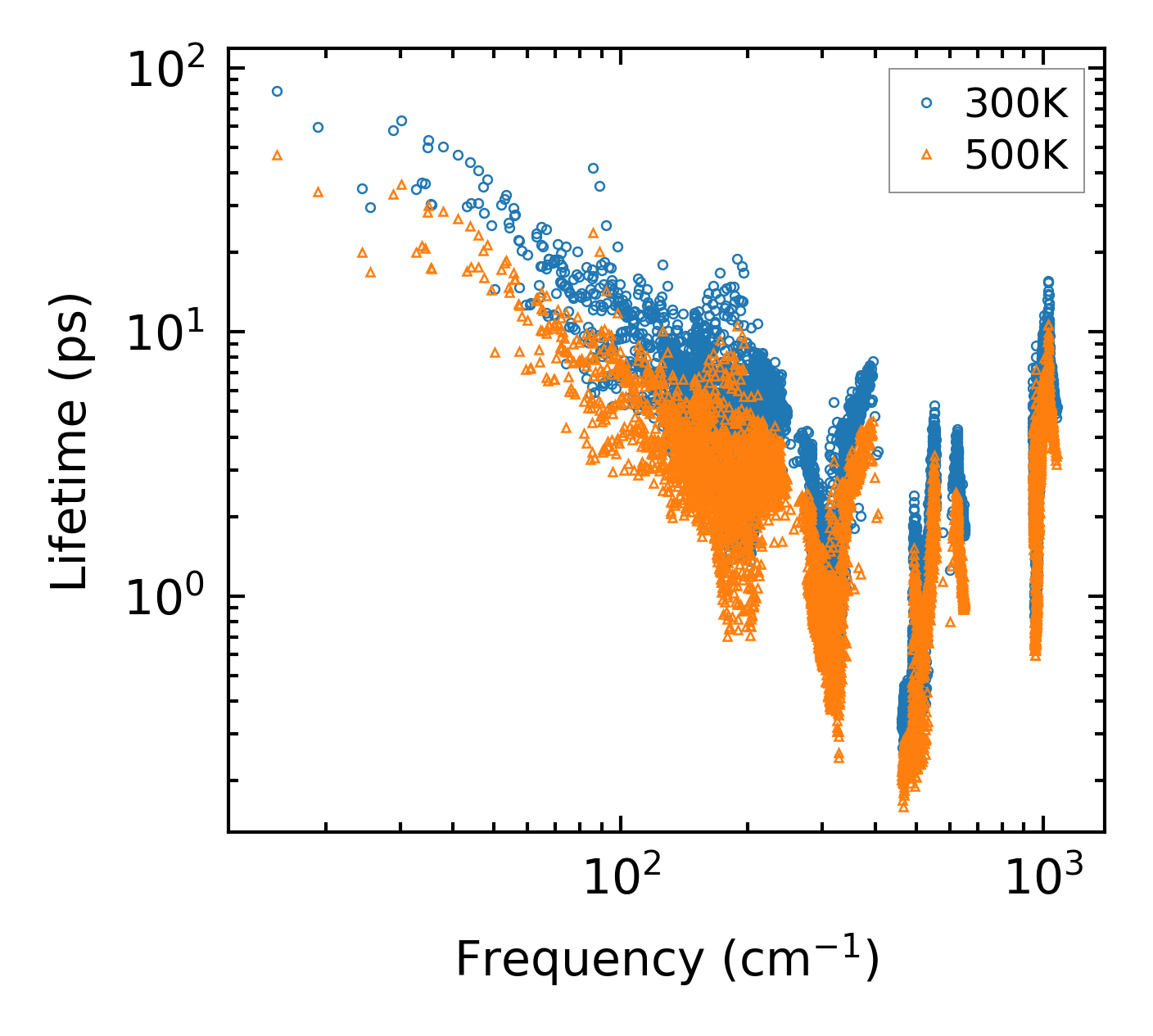

../../_images/fig_lifetime3931.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3930.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

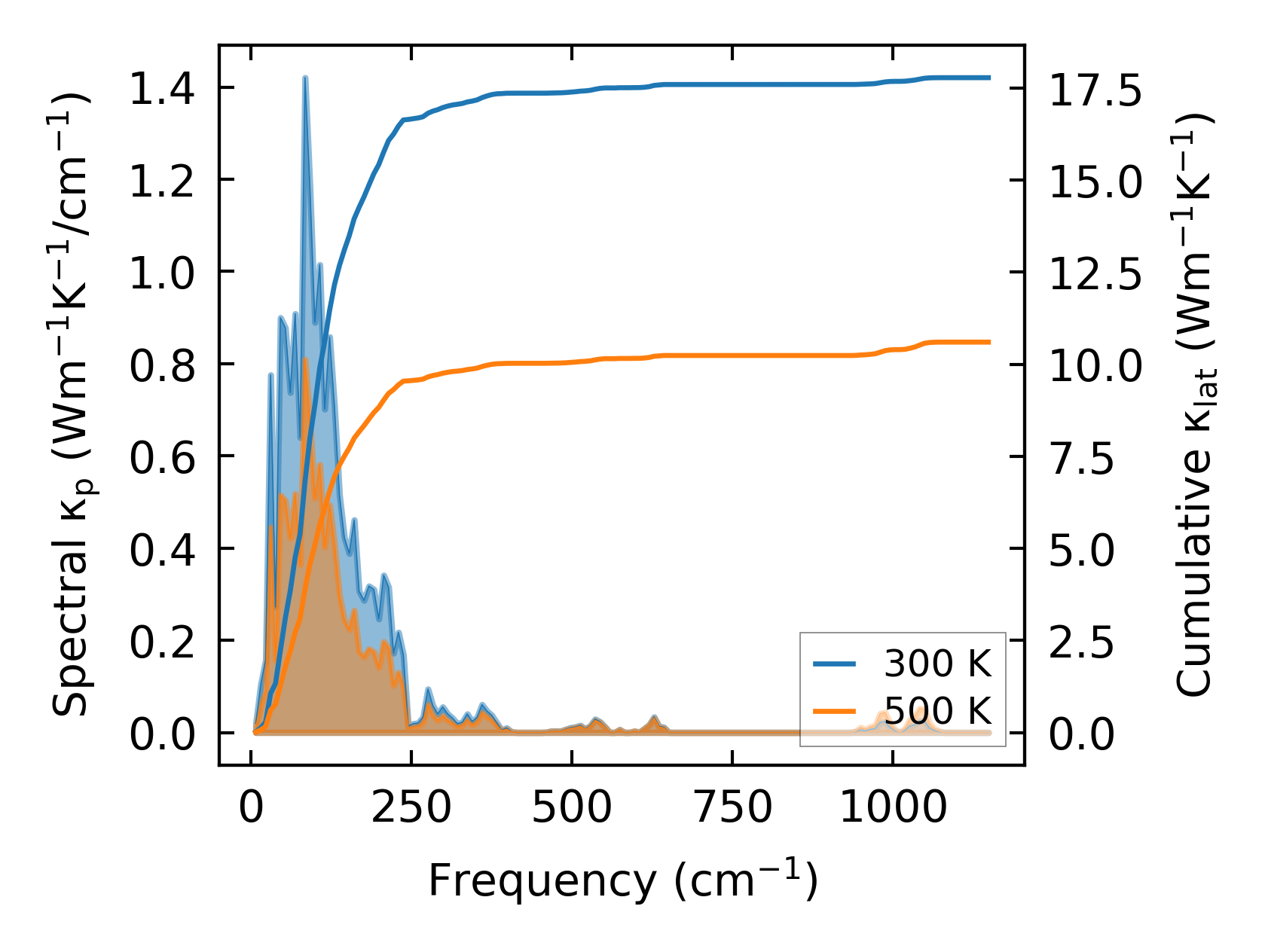

../../_images/fig_cumu_frequency3931.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

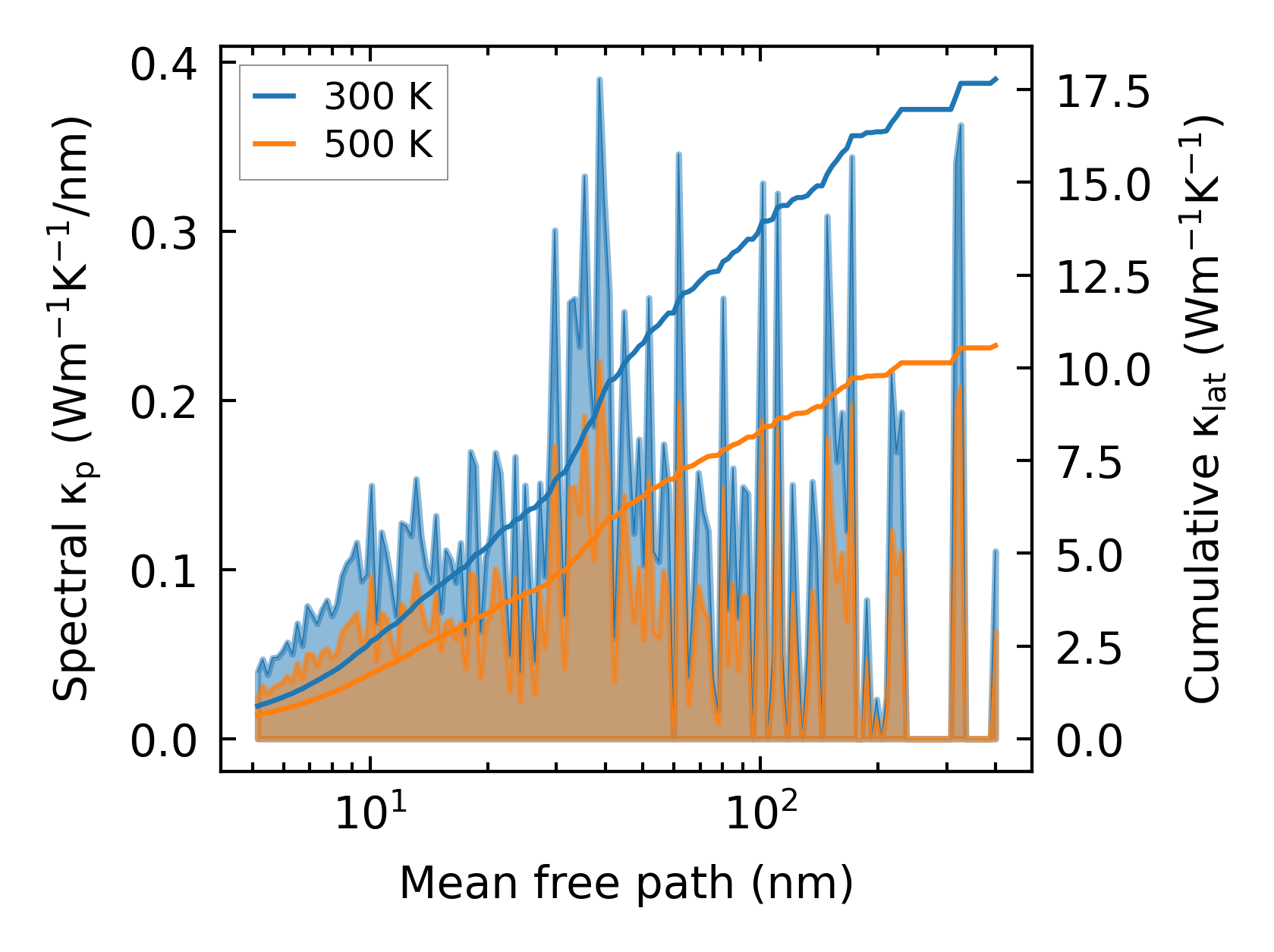

../../_images/fig_cumu_mfp3930.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29658.png — (a) Force constants w.r.t atomic distance

Summary

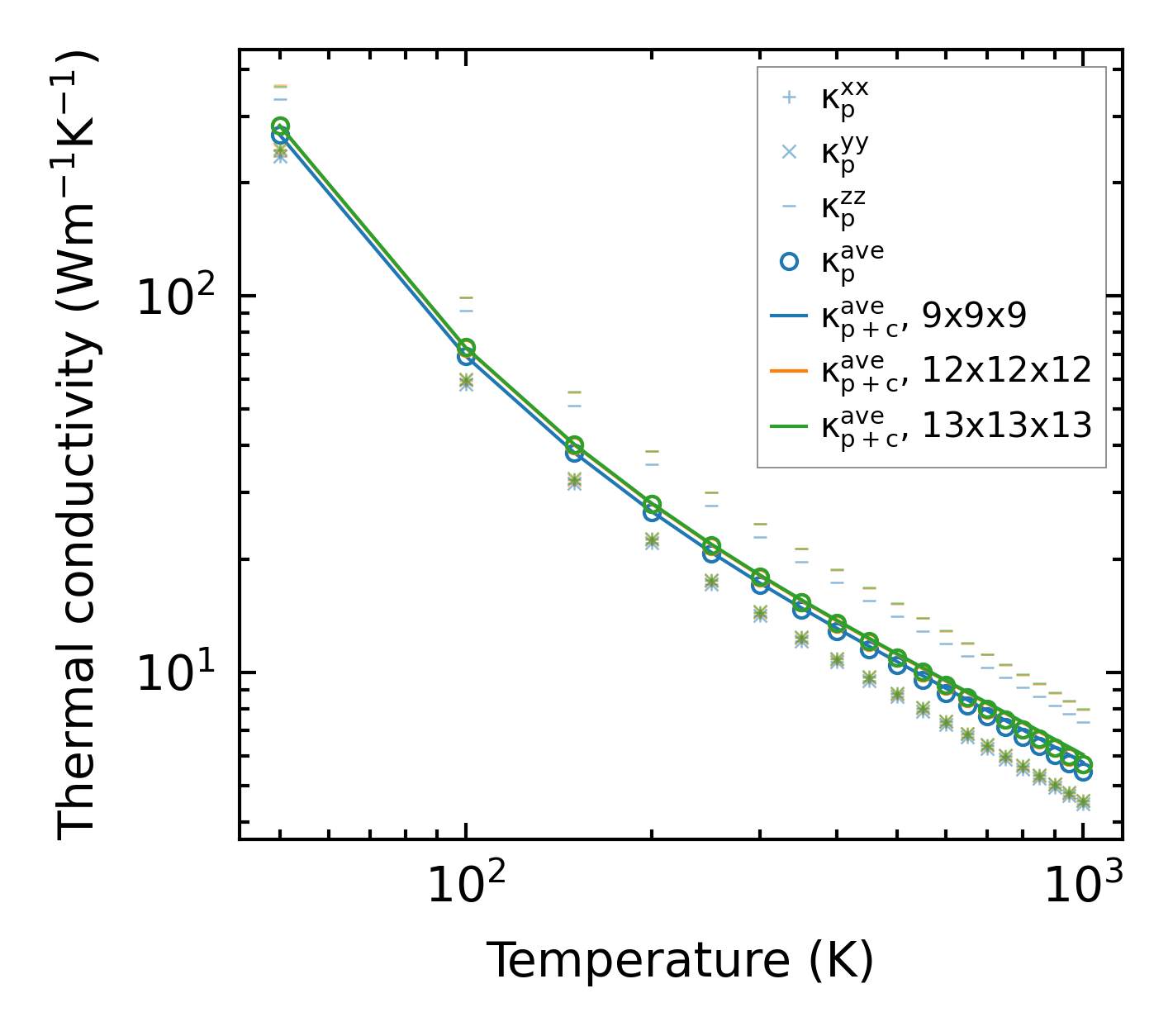

../../_images/fig_kappa7484.png — (a) Temperature-dependent lattice thermal conductivity

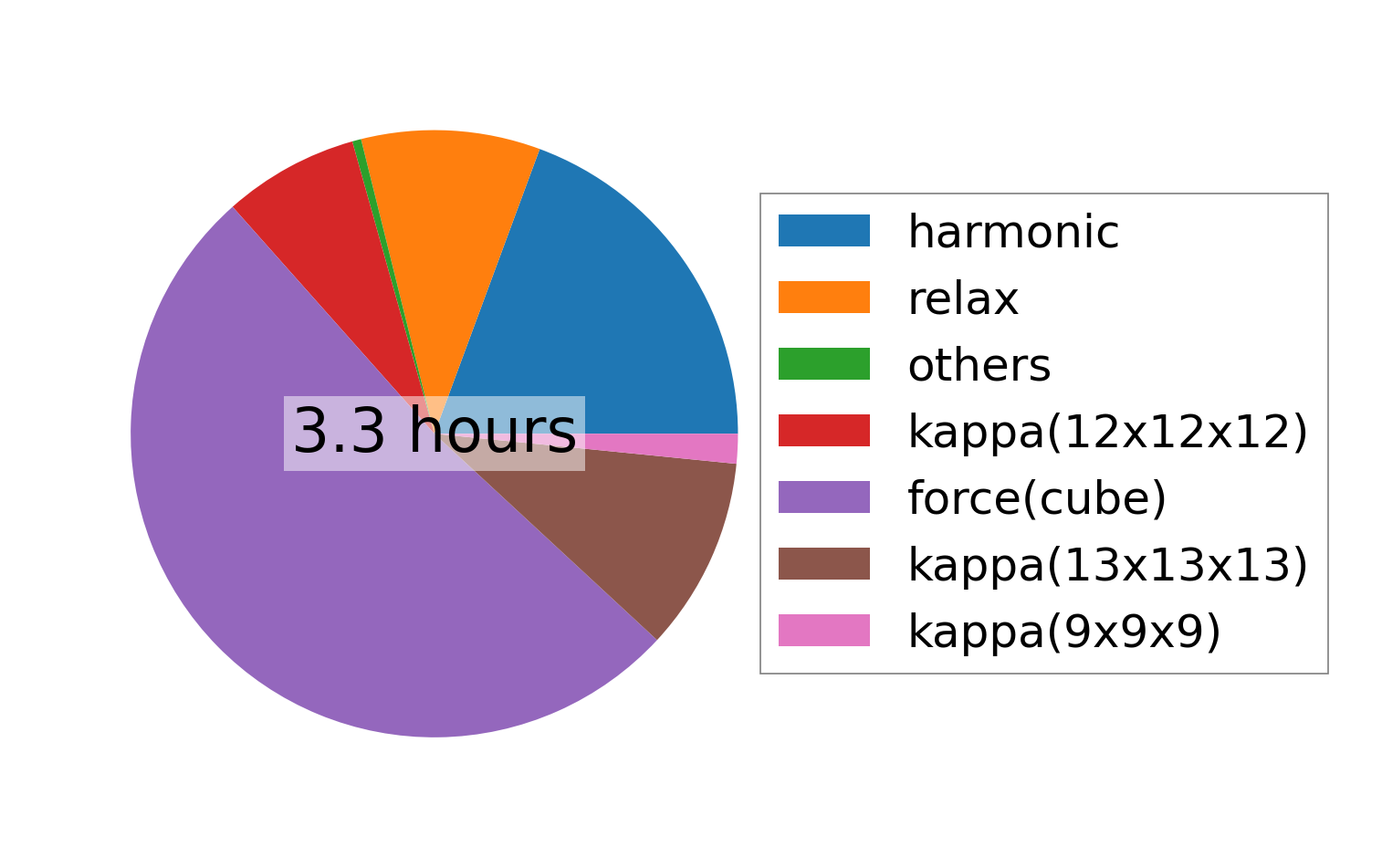

../../_images/fig_times17210.png — (b) Computation time
