mp-5588-2/BaSiF6/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-5588-2.tar.gz

Equation of state

../../_images/fig_bm5006.png — (a) Equation of state

Harmonic properties

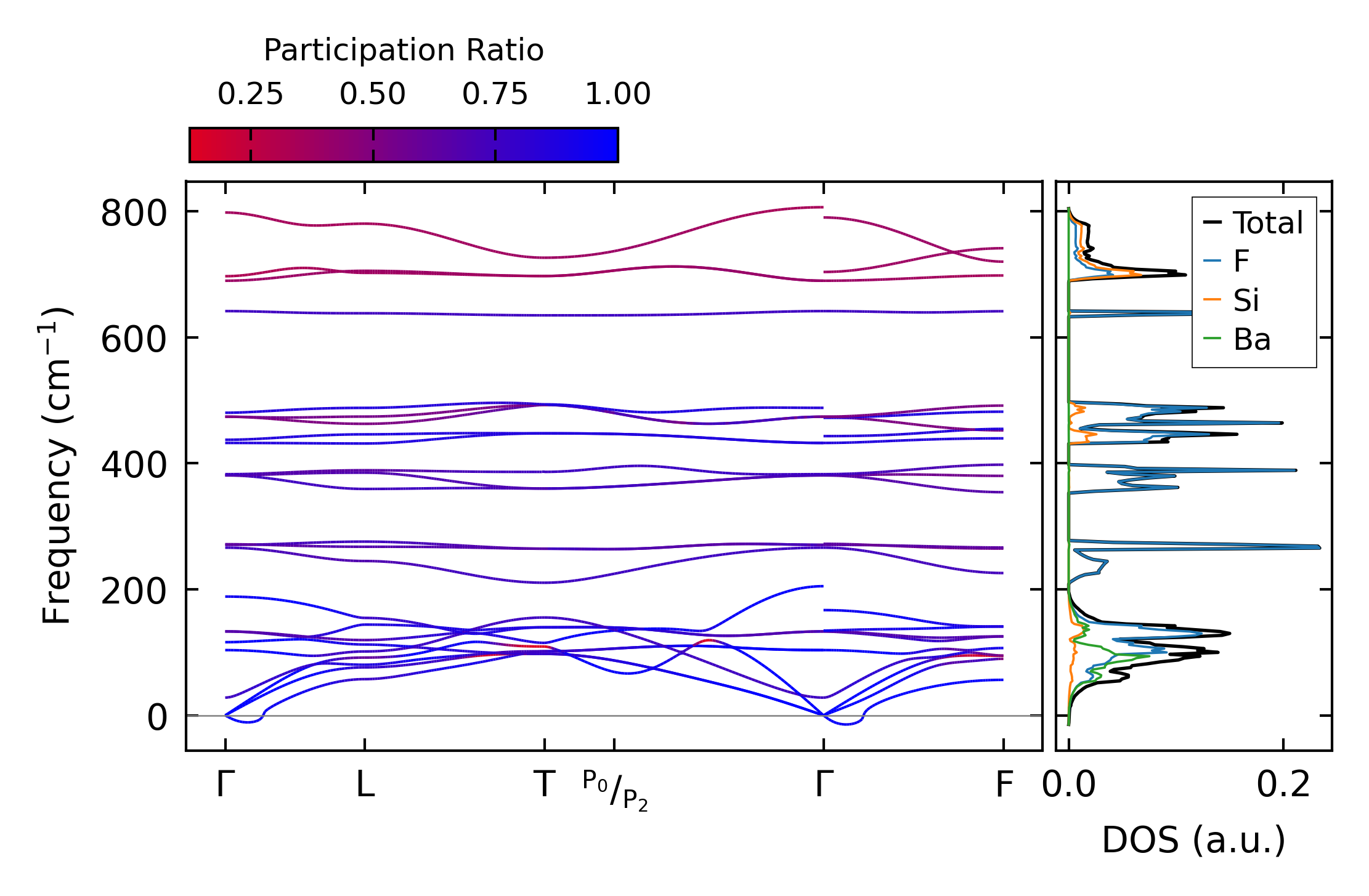

../../_images/fig_bandos_pr10012.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos13947.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo10012.png — (c) Thermodynamic properties

Grüneisen parameters

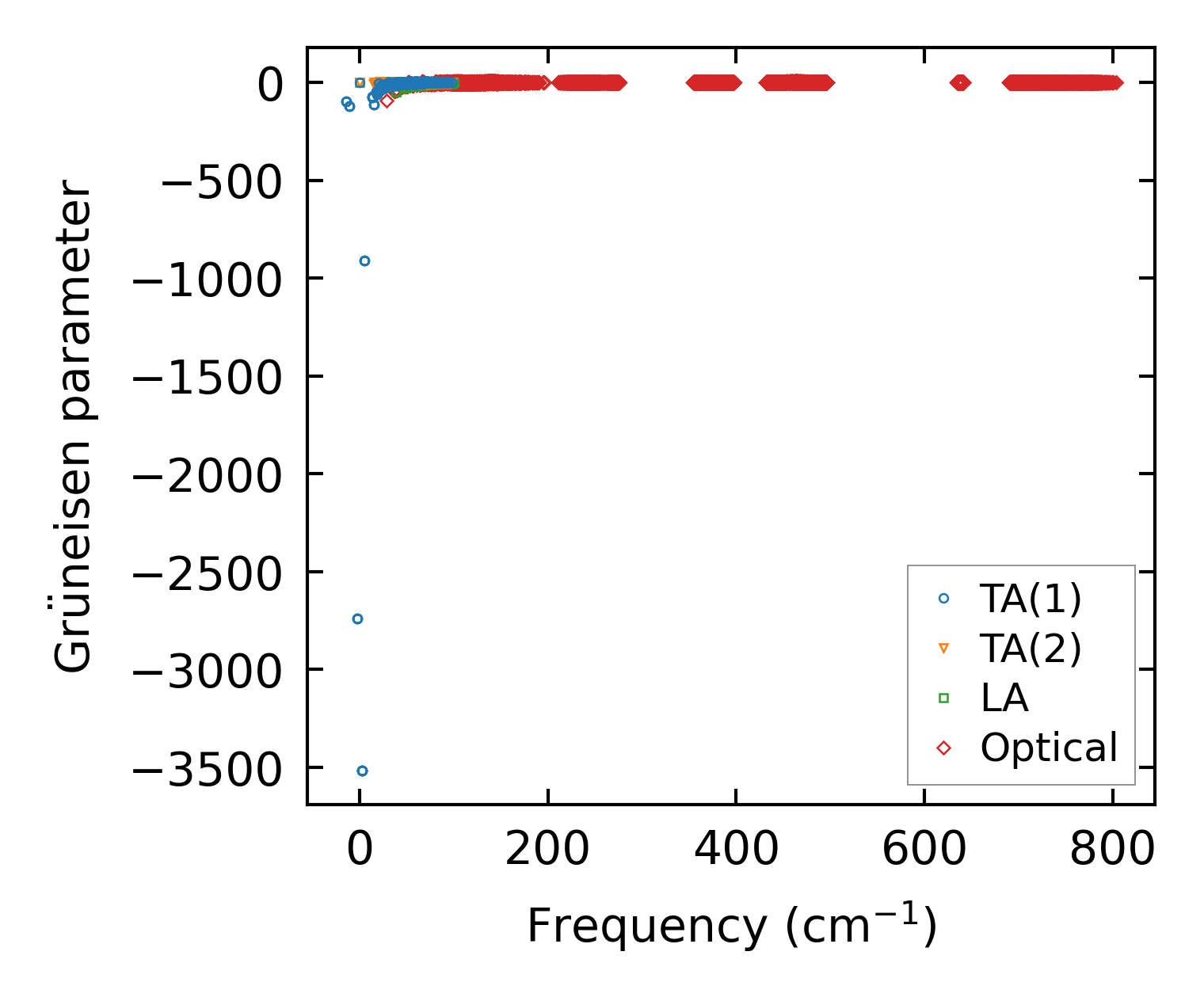

../../_images/fig_gru_all4016.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4016.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 15x15x15, supercell: 2x2x2

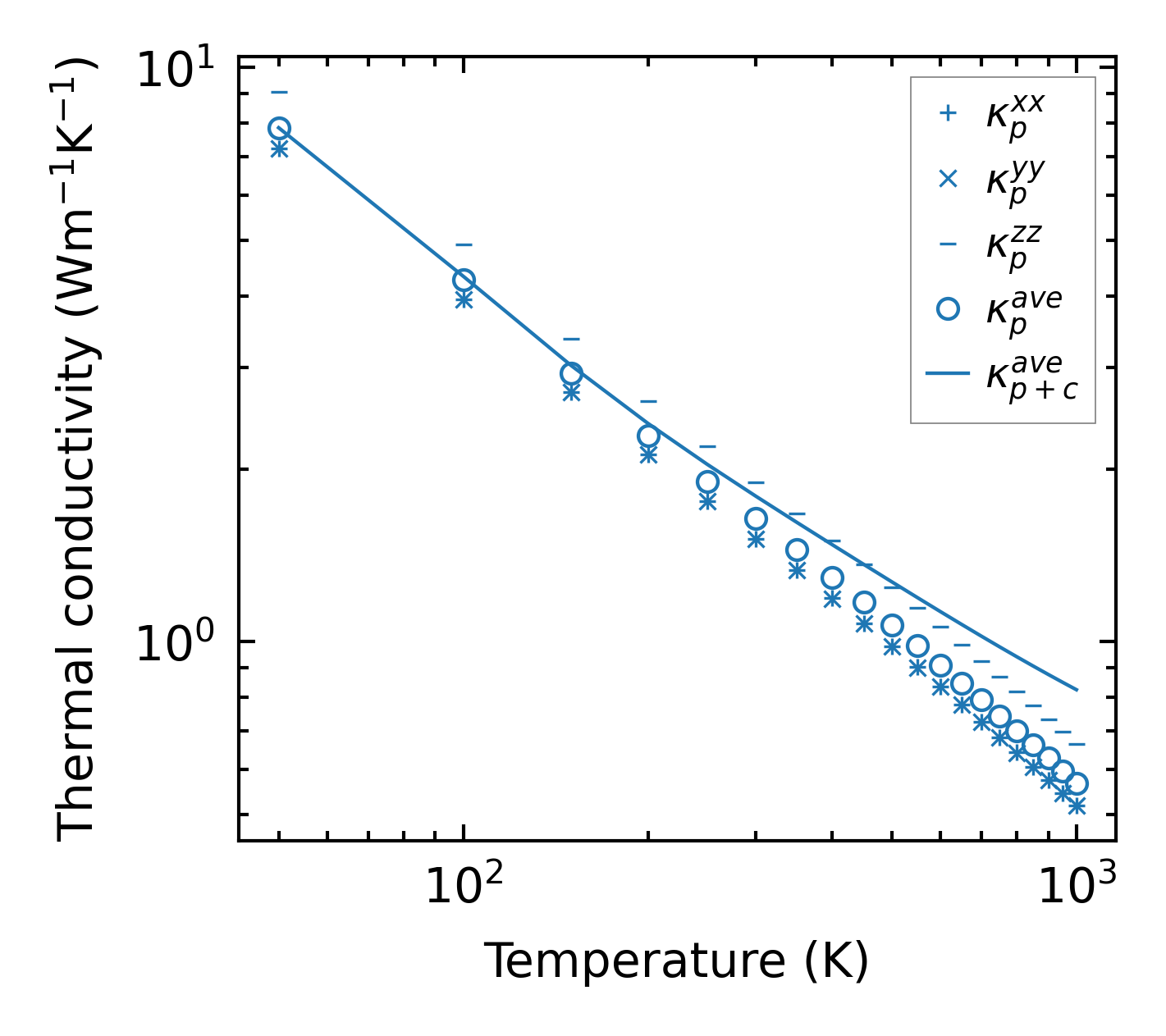

../../_images/fig_kappa7574.png — (a) Temperature-dependent lattice thermal conductivity

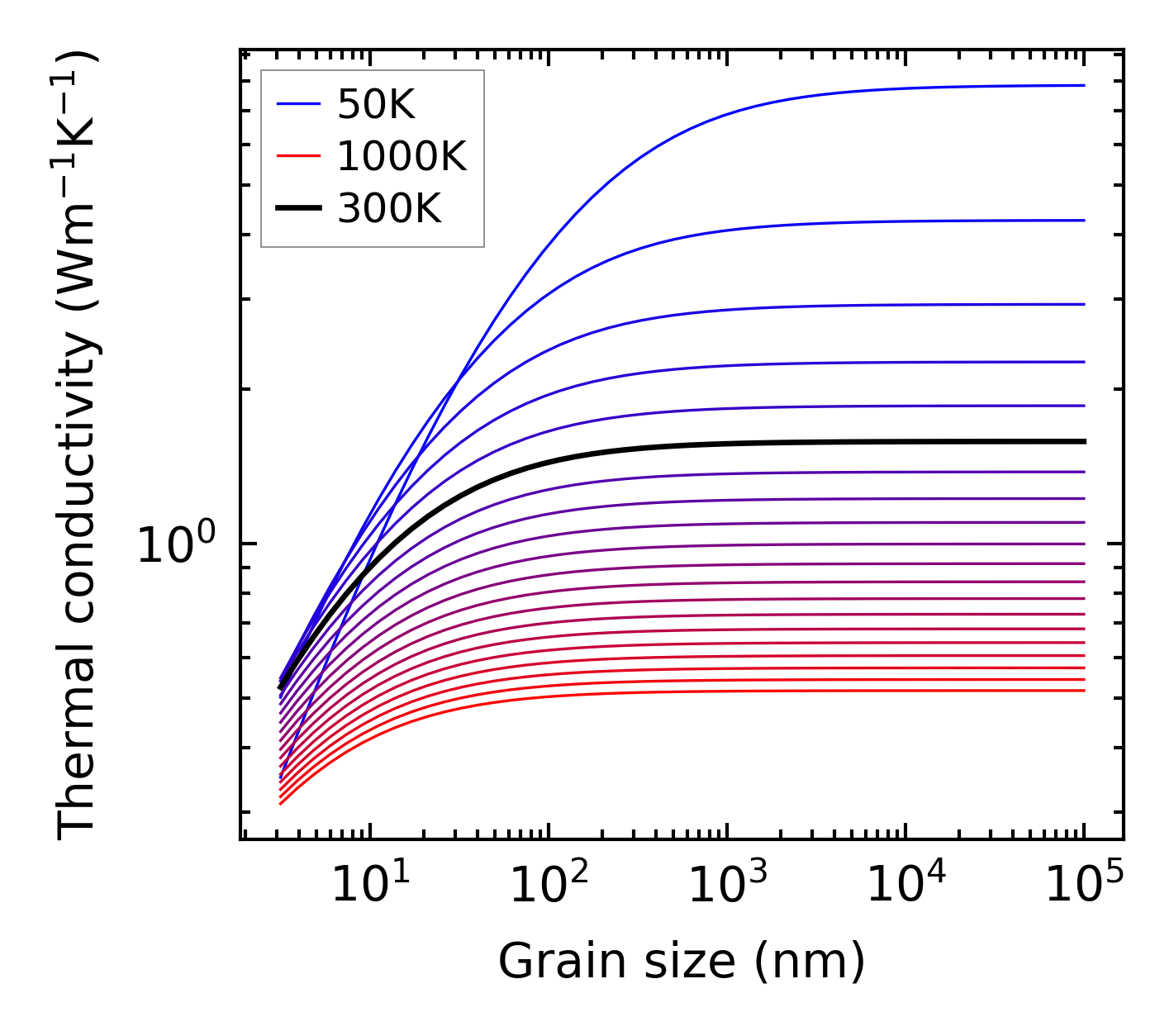

../../_images/fig_kappa_vs_grain_size4069.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3978.png — (a) Phonon lifetime due to phonon-phonon scattering

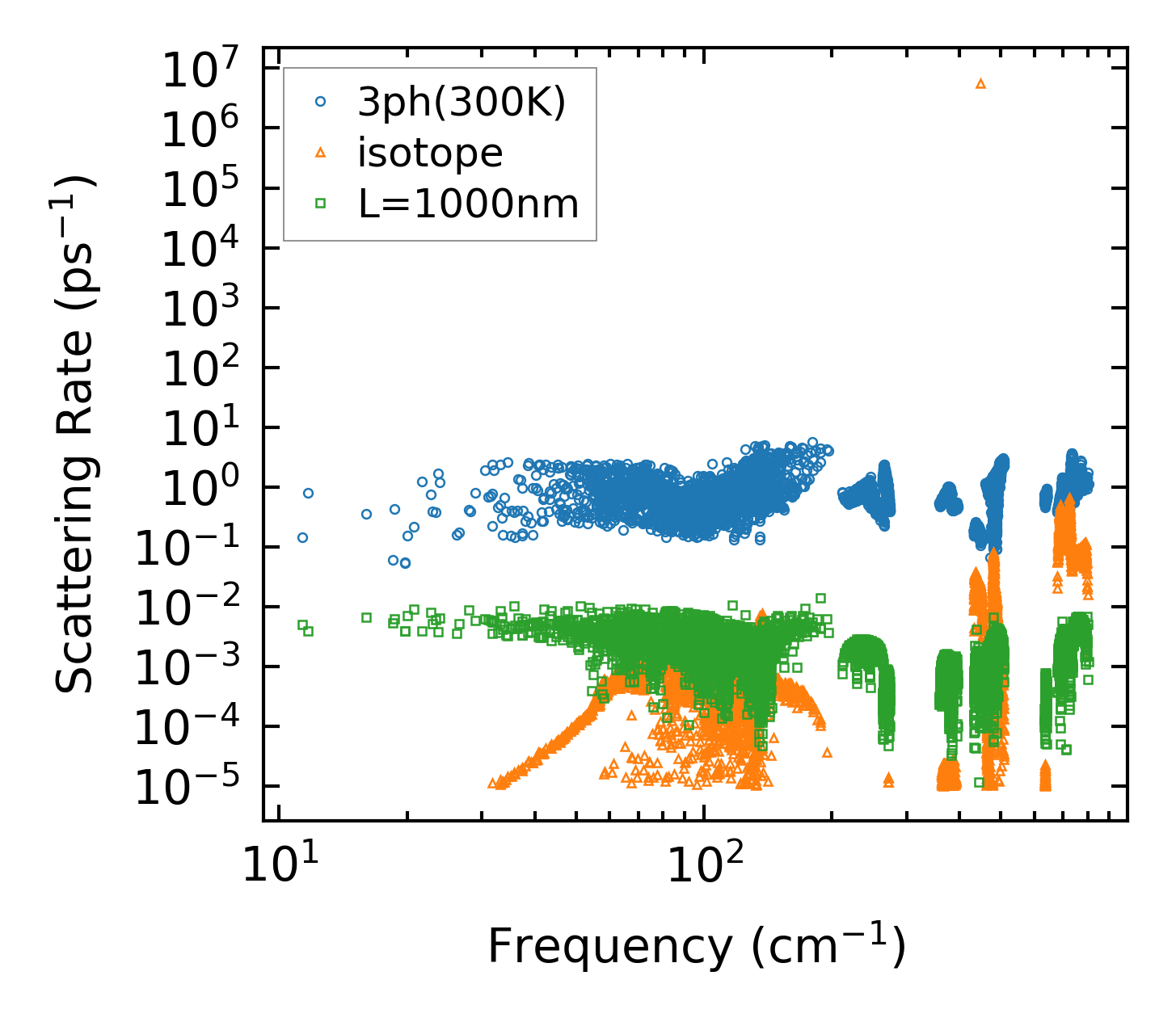

../../_images/fig_scat_rates3977.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

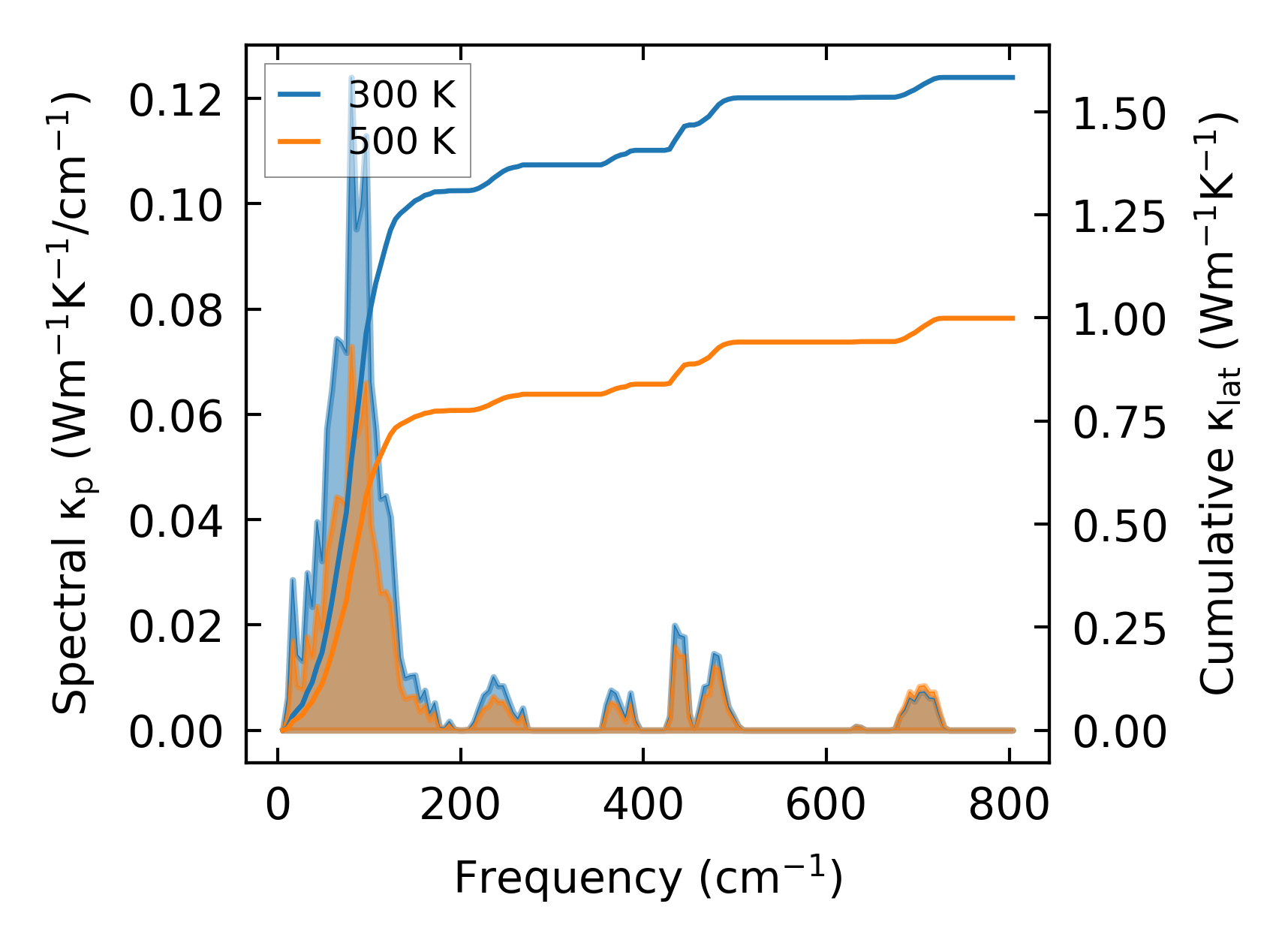

../../_images/fig_cumu_frequency3978.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3977.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

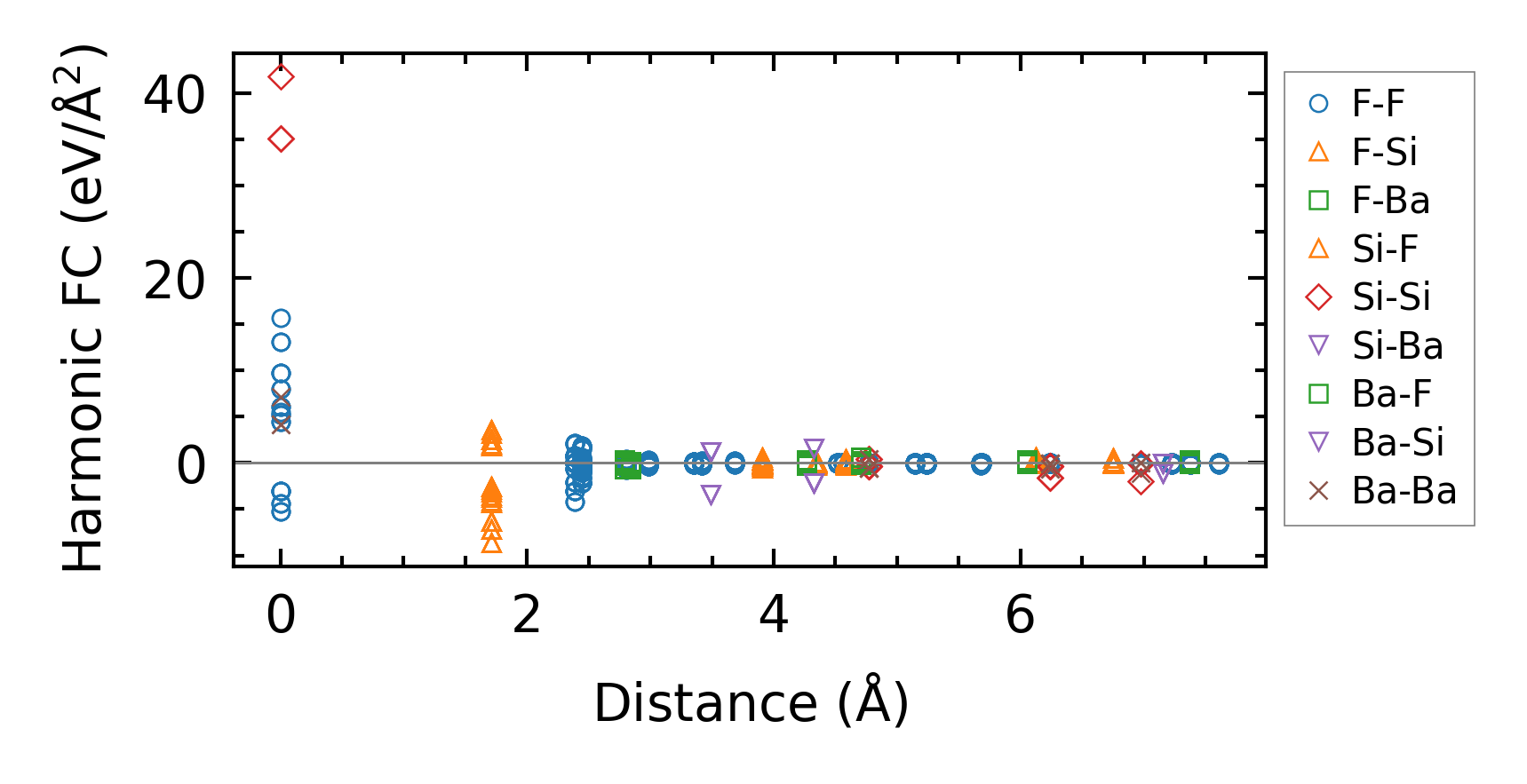

../../_images/fig_fc29765.png — (a) Force constants w.r.t atomic distance

Summary

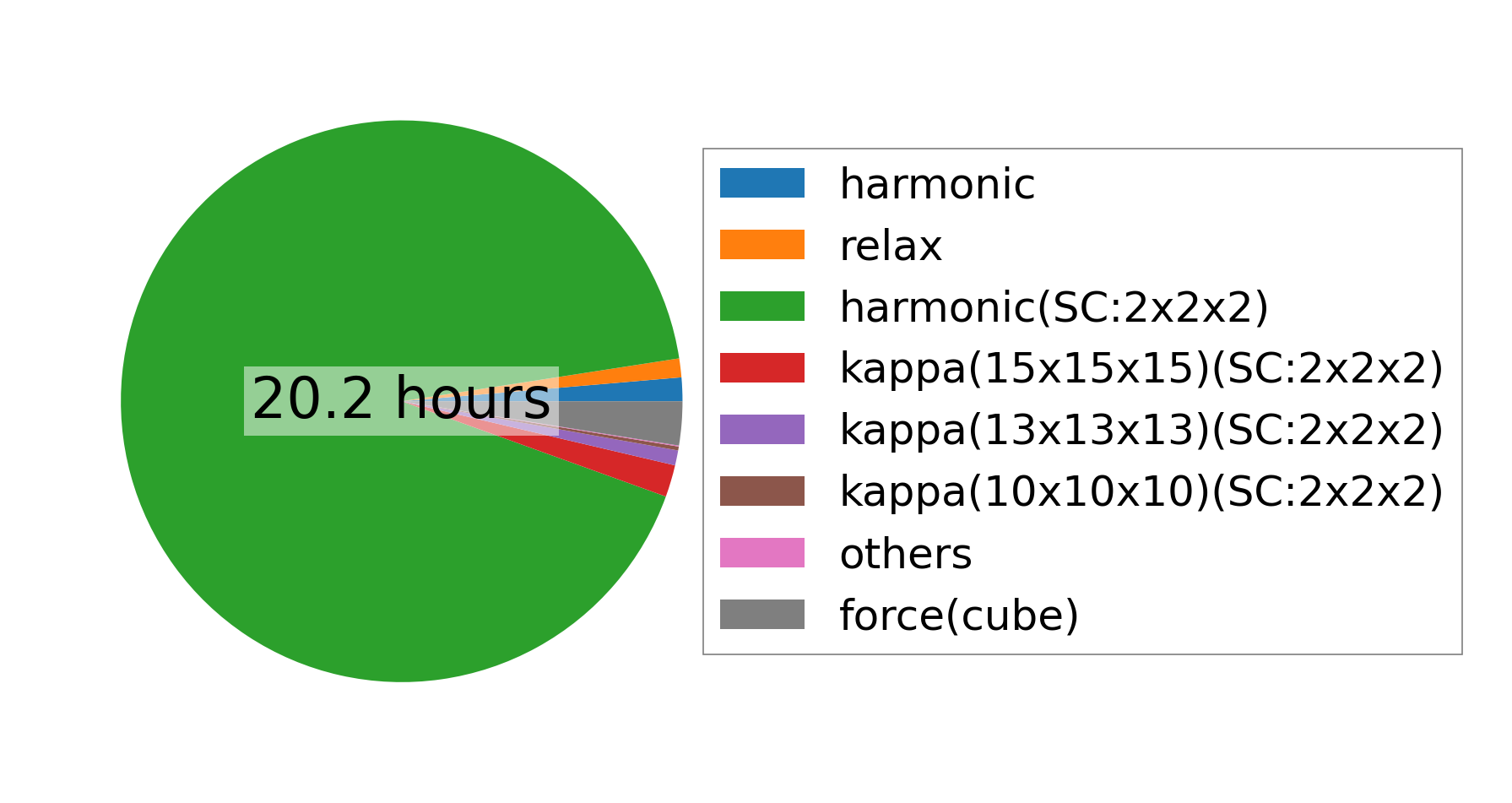

../../_images/fig_times17382.png — (a) Computation time
