mp-5146/ZnRh2O4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-5146.tar.gz

Harmonic properties

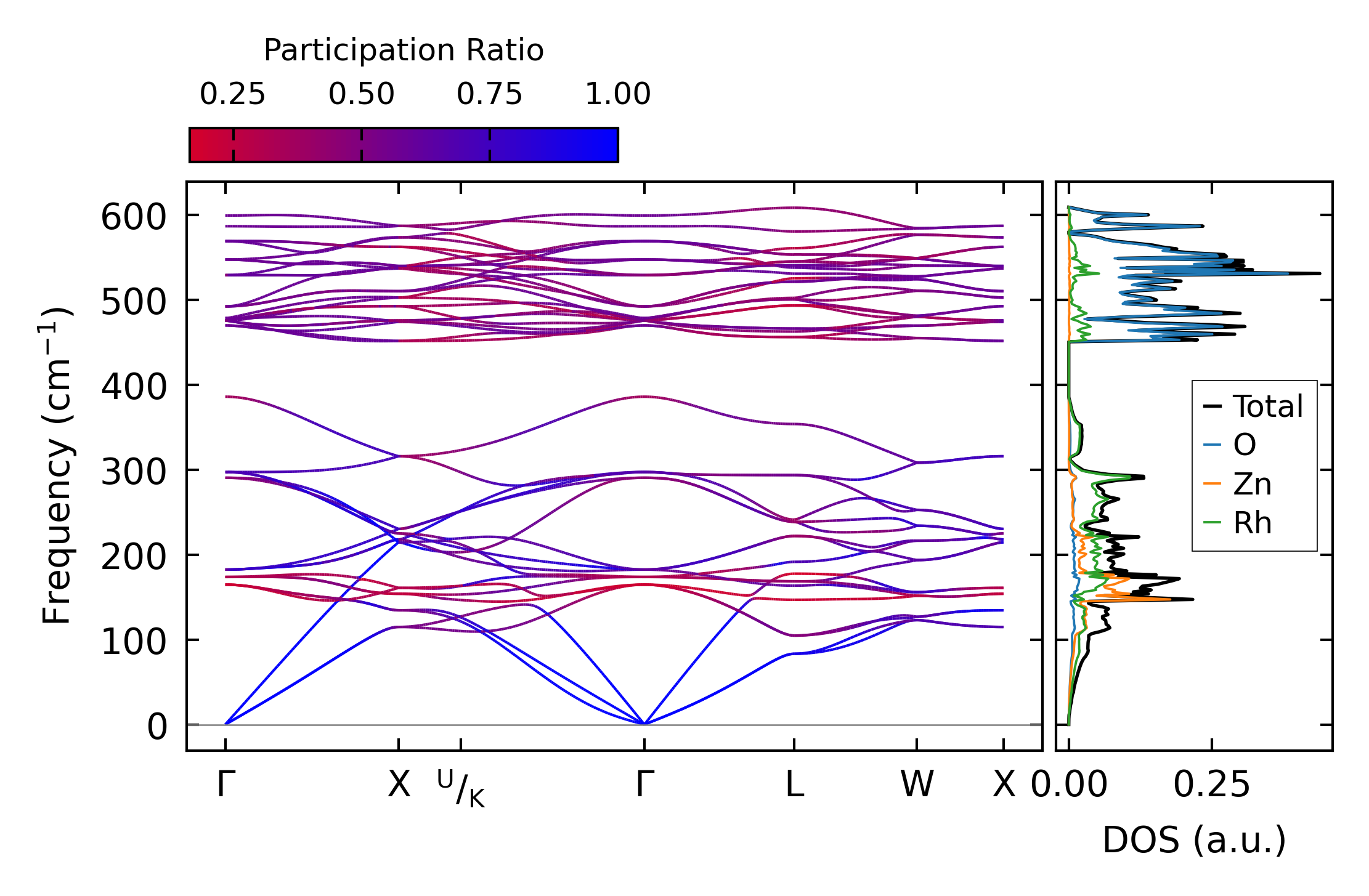

../../_images/fig_bandos_pr9906.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9906.png — (b) Thermodynamic properties

Grüneisen parameters

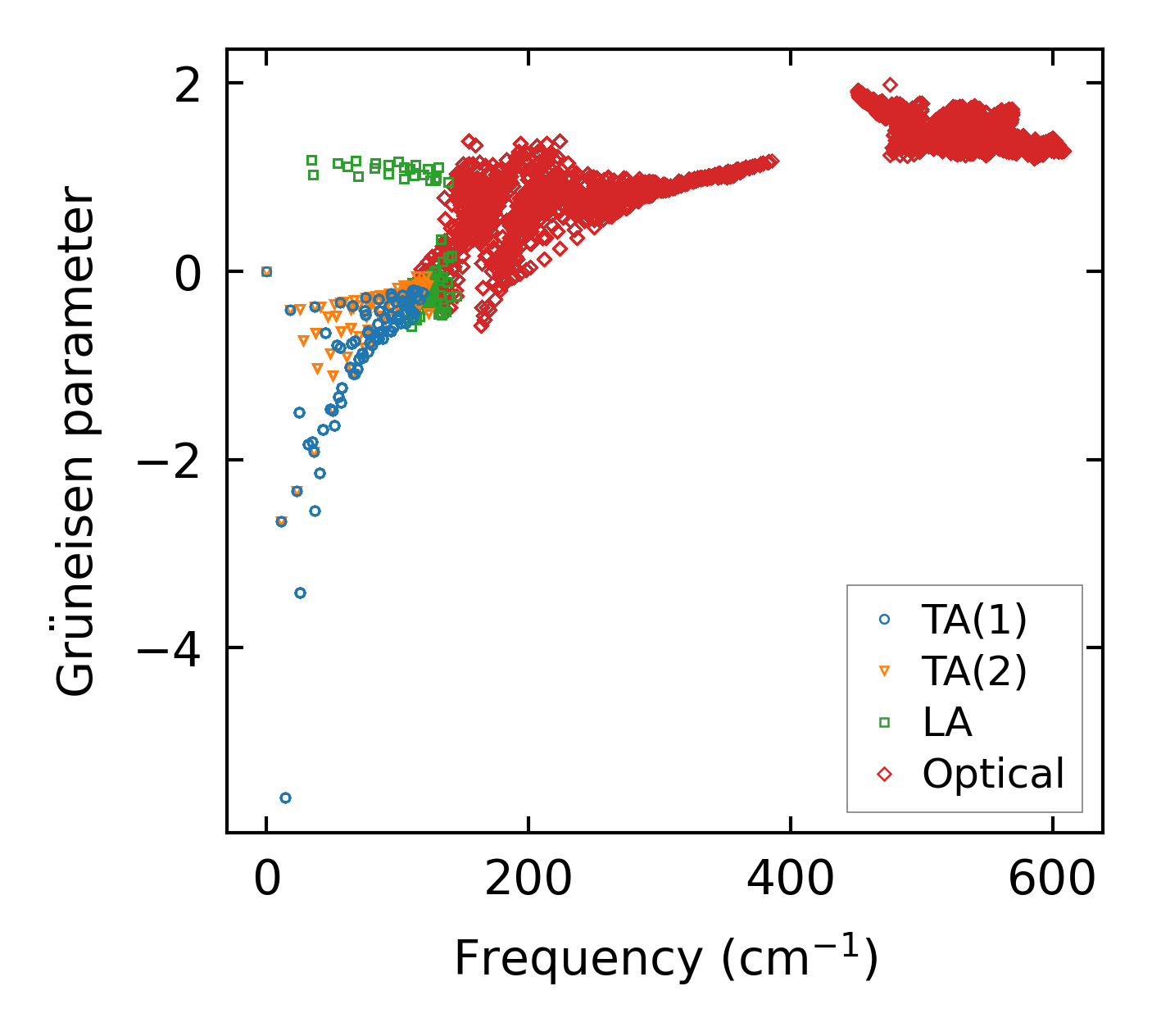

../../_images/fig_gru_all3969.png — (a) Grüneisen parameters

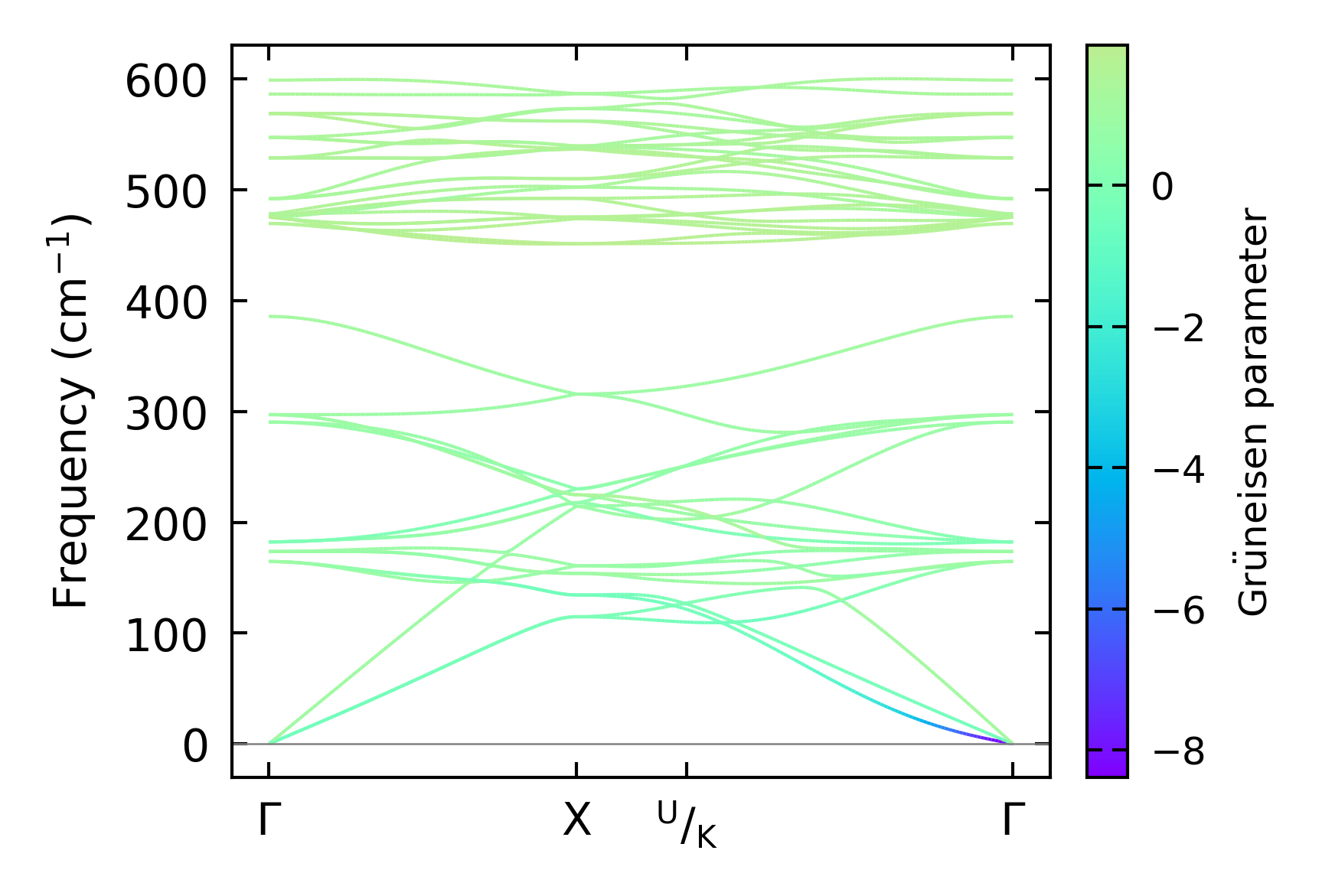

../../_images/fig_gruneisen3969.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

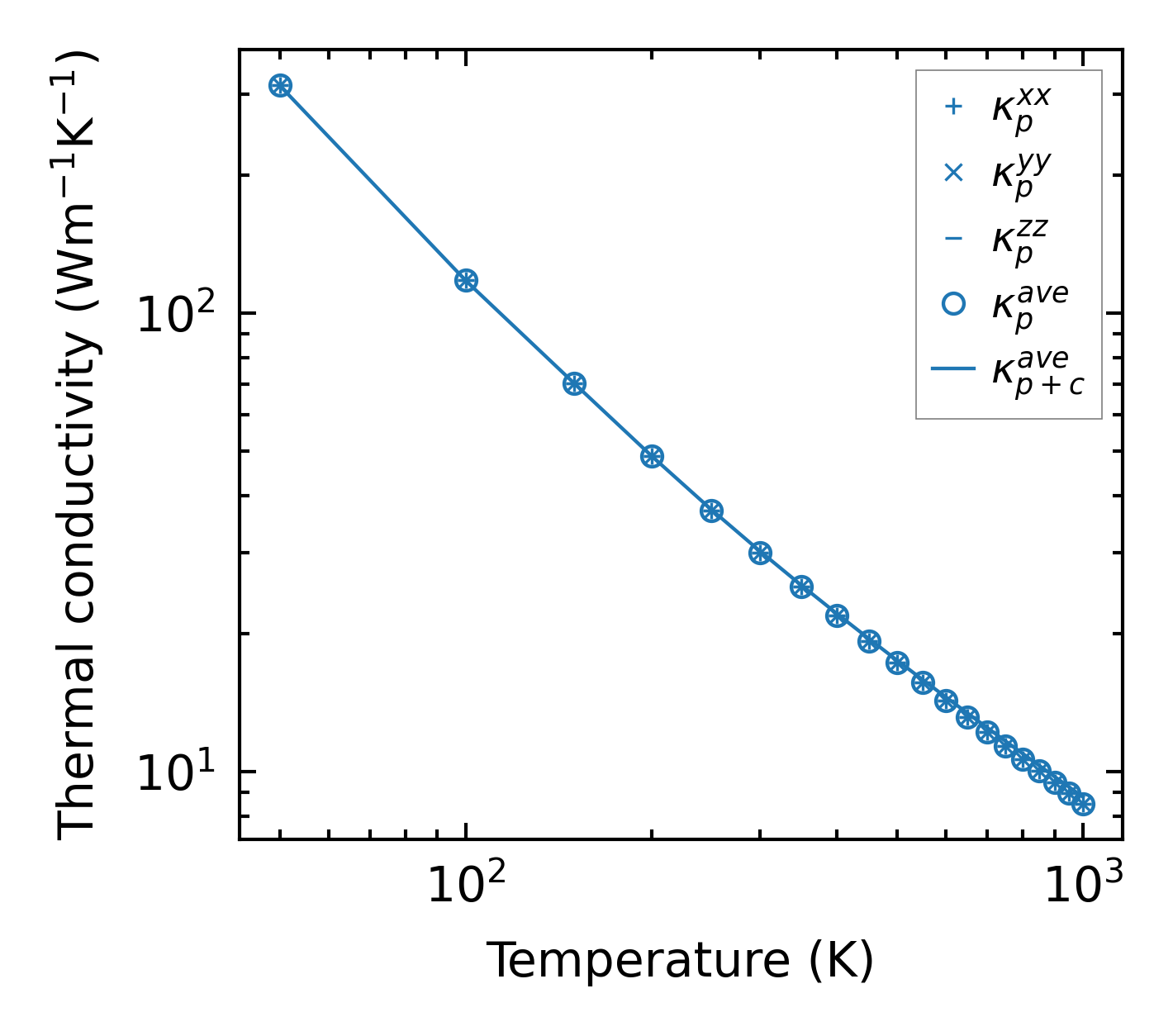

../../_images/fig_kappa7485.png — (a) Temperature-dependent lattice thermal conductivity

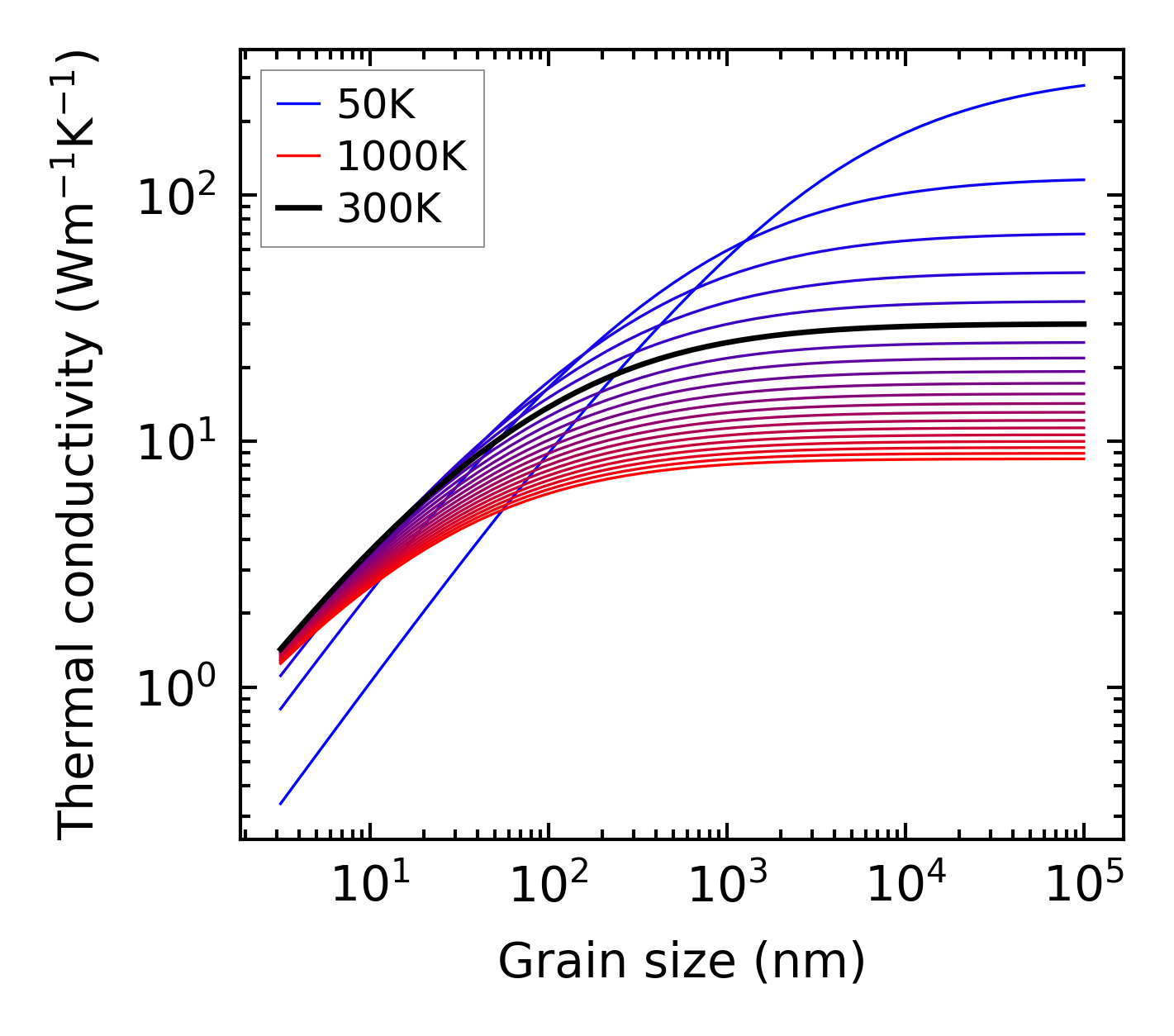

../../_images/fig_kappa_vs_grain_size4021.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Force constants

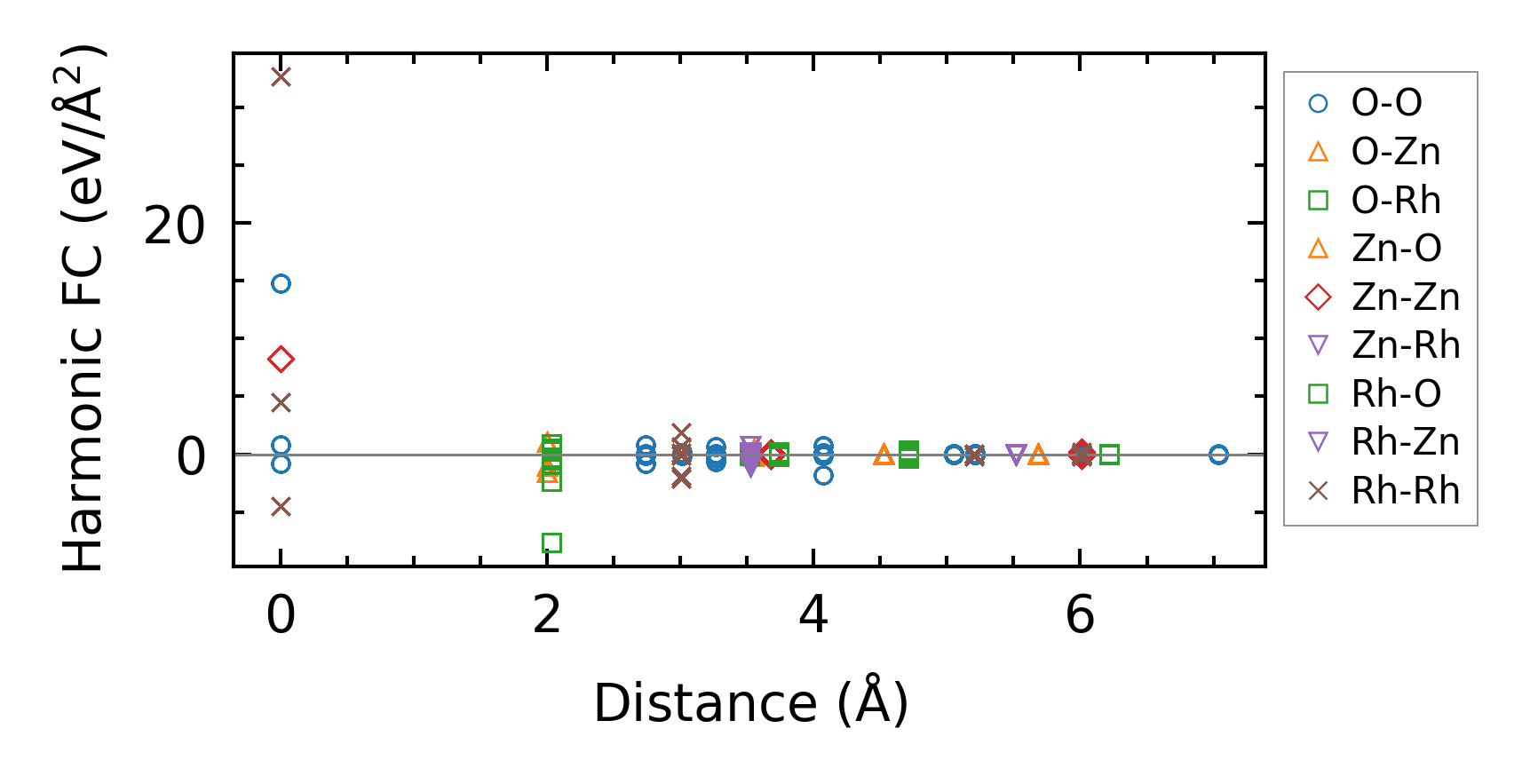

../../_images/fig_fc29660.png — (a) Force constants w.r.t atomic distance

Summary

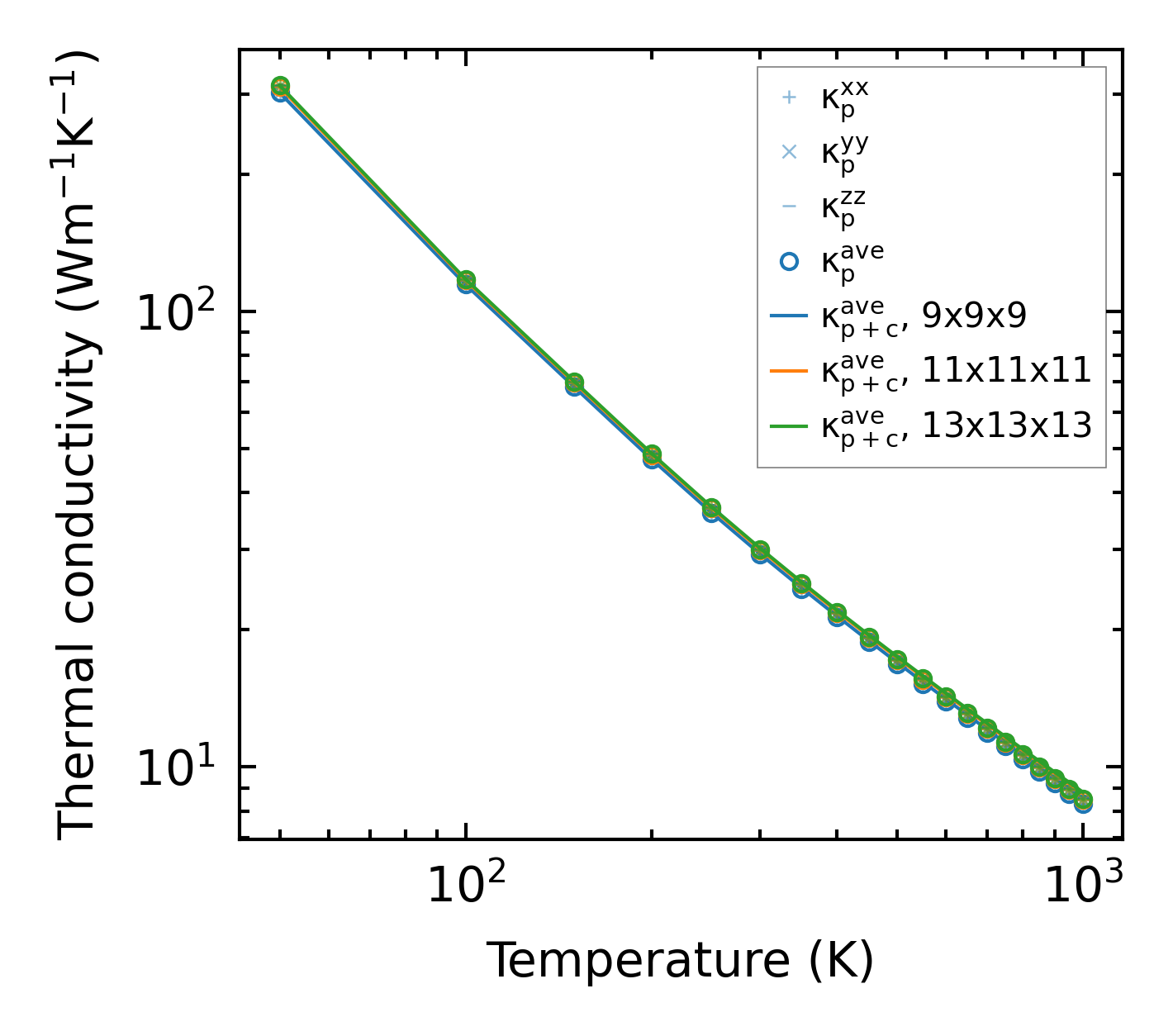

../../_images/fig_kappa7486.png — (a) Temperature-dependent lattice thermal conductivity

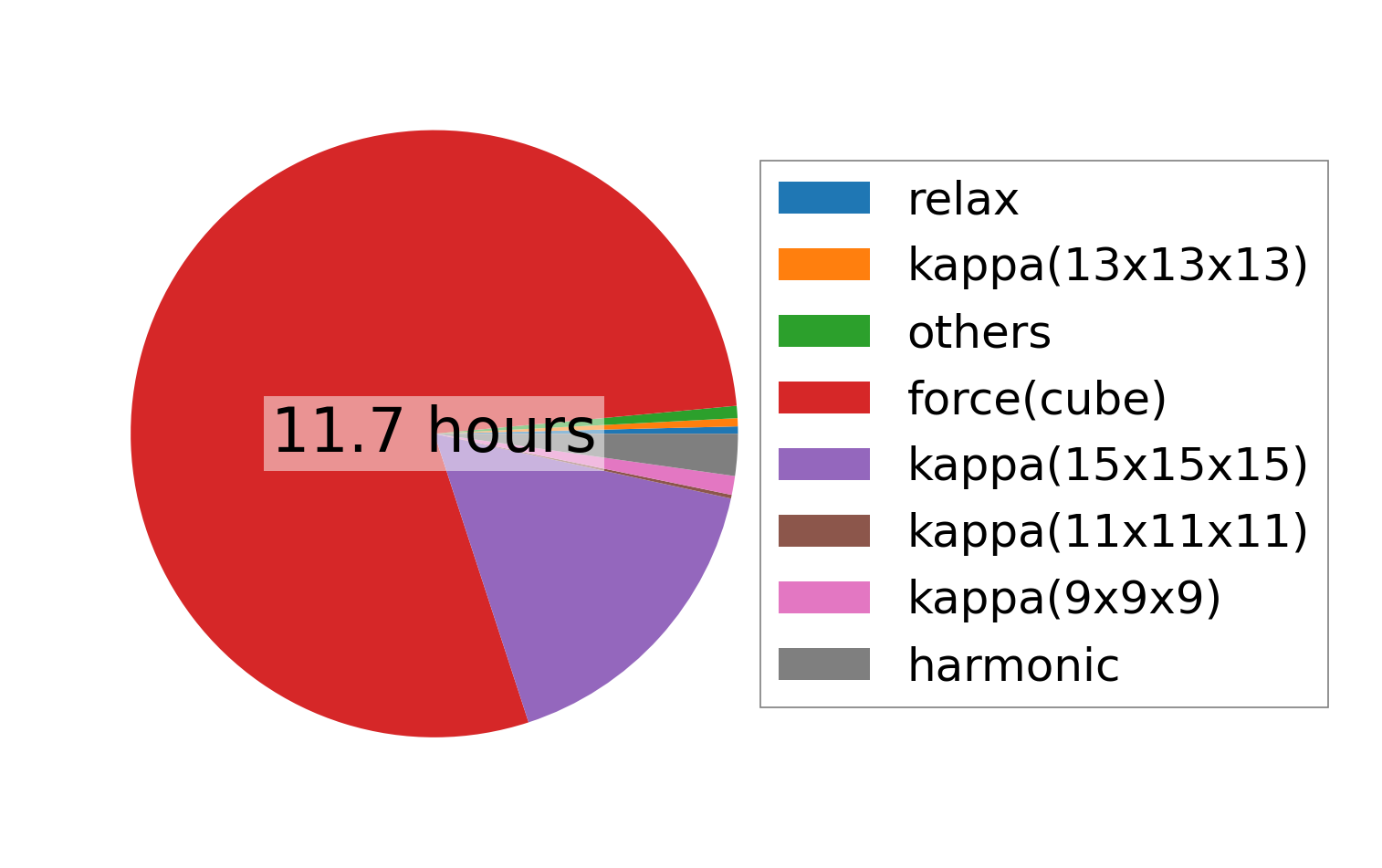

../../_images/fig_times17213.png — (b) Computation time
