mp-5694/NaHoS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-5694.tar.gz

Harmonic properties

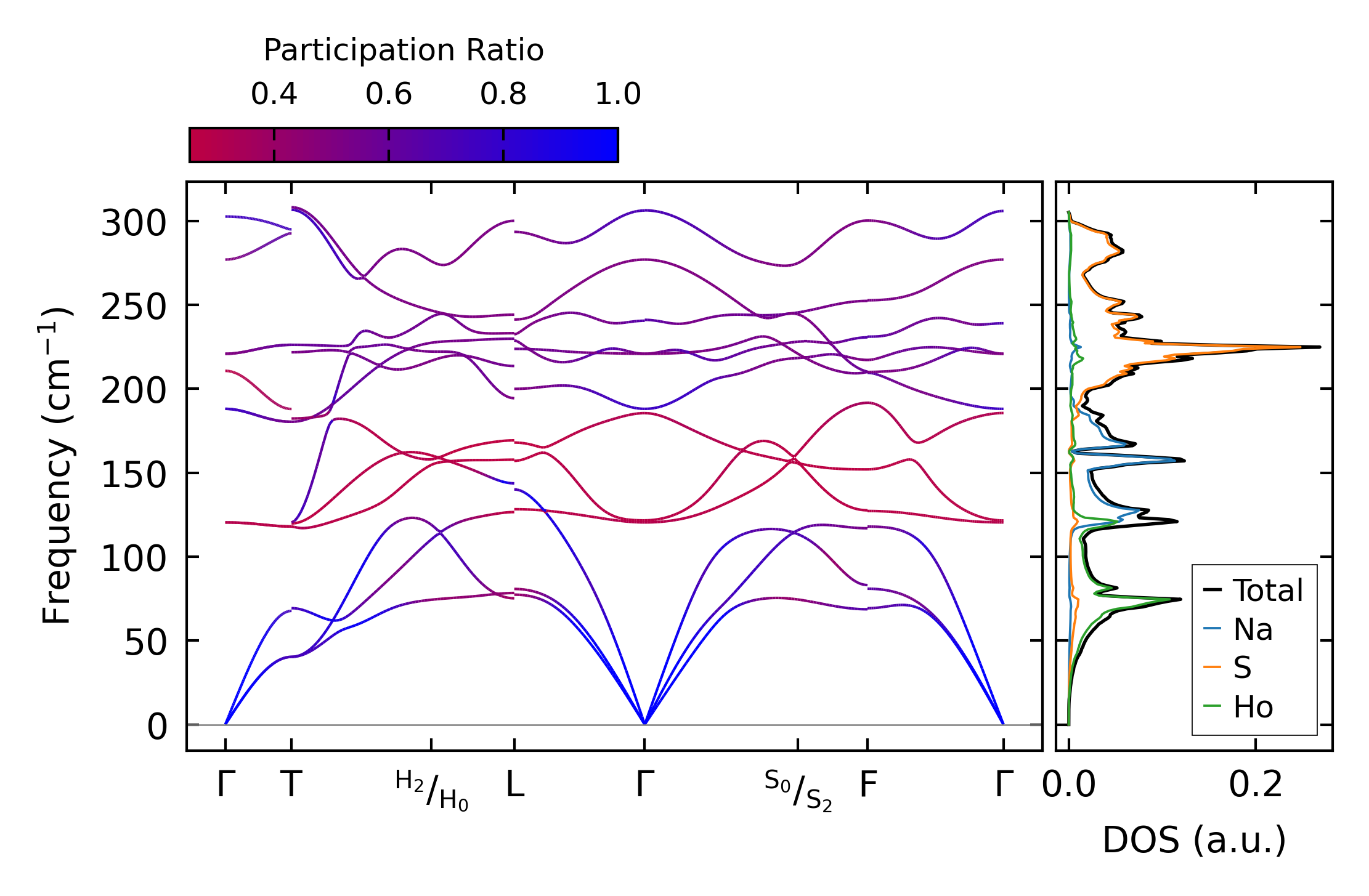

../../_images/fig_bandos_pr10035.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10035.png — (b) Thermodynamic properties

Grüneisen parameters

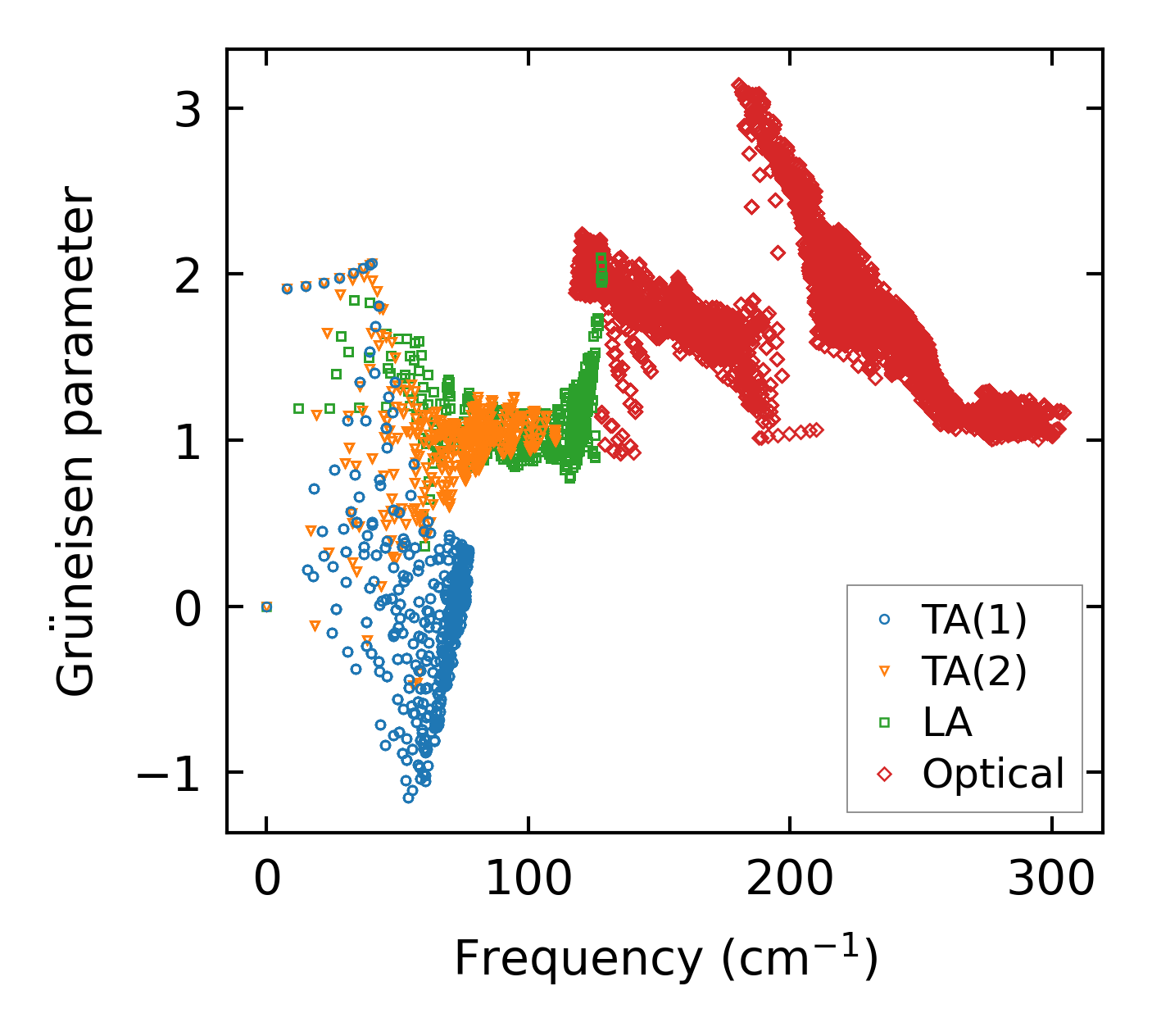

../../_images/fig_gru_all4029.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4029.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x16, supercell: 3x3x1

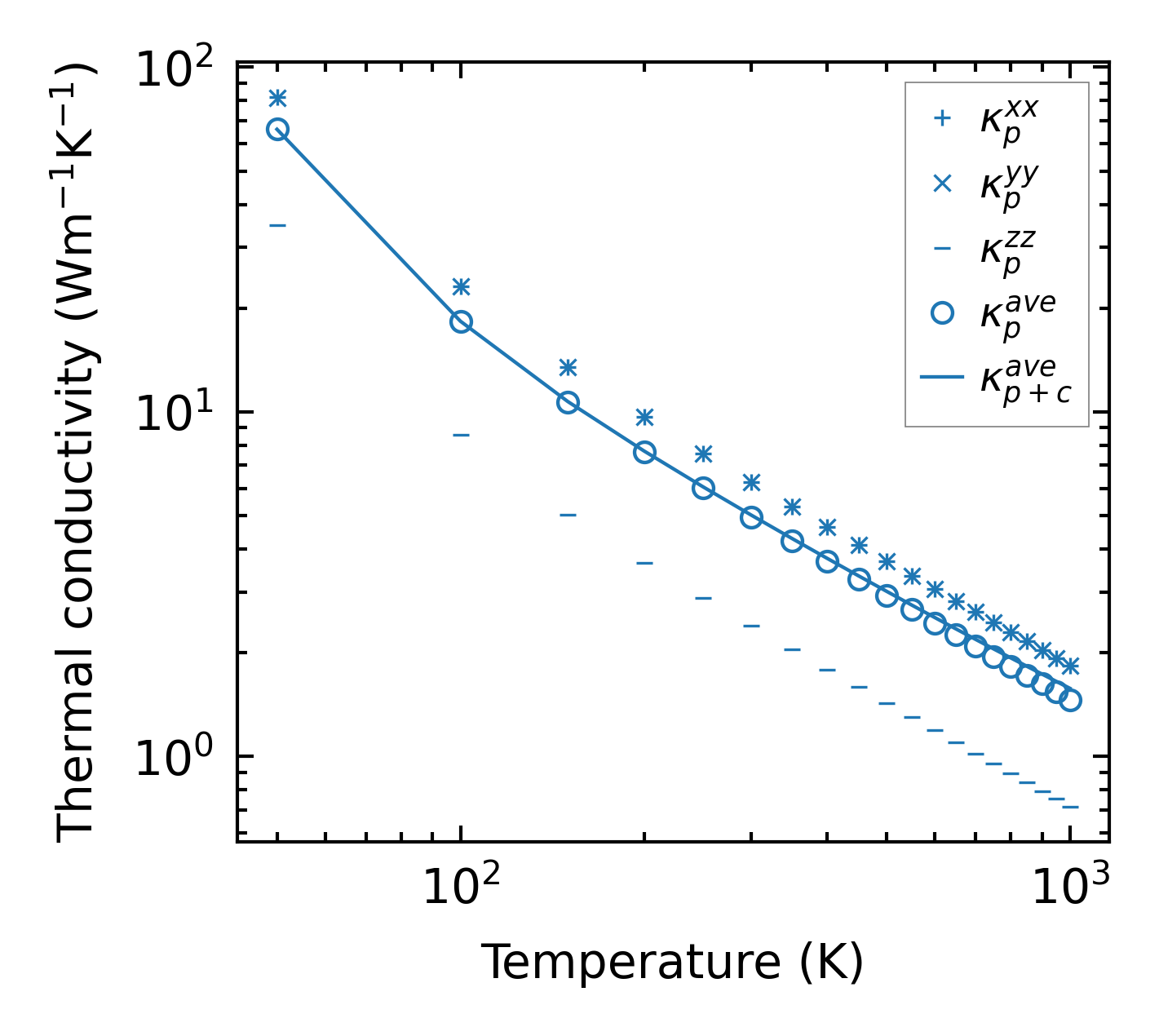

../../_images/fig_kappa7599.png — (a) Temperature-dependent lattice thermal conductivity

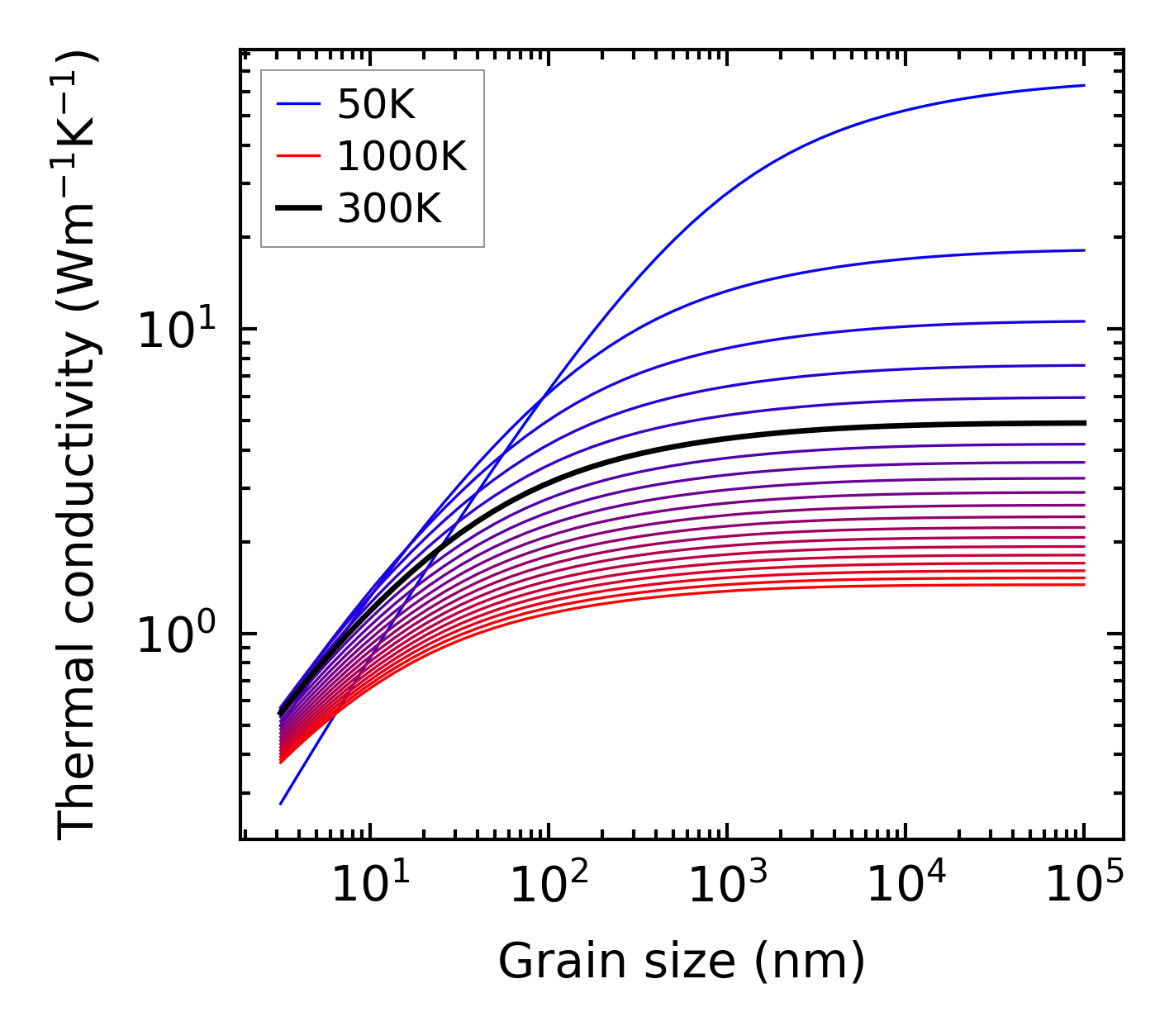

../../_images/fig_kappa_vs_grain_size4082.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

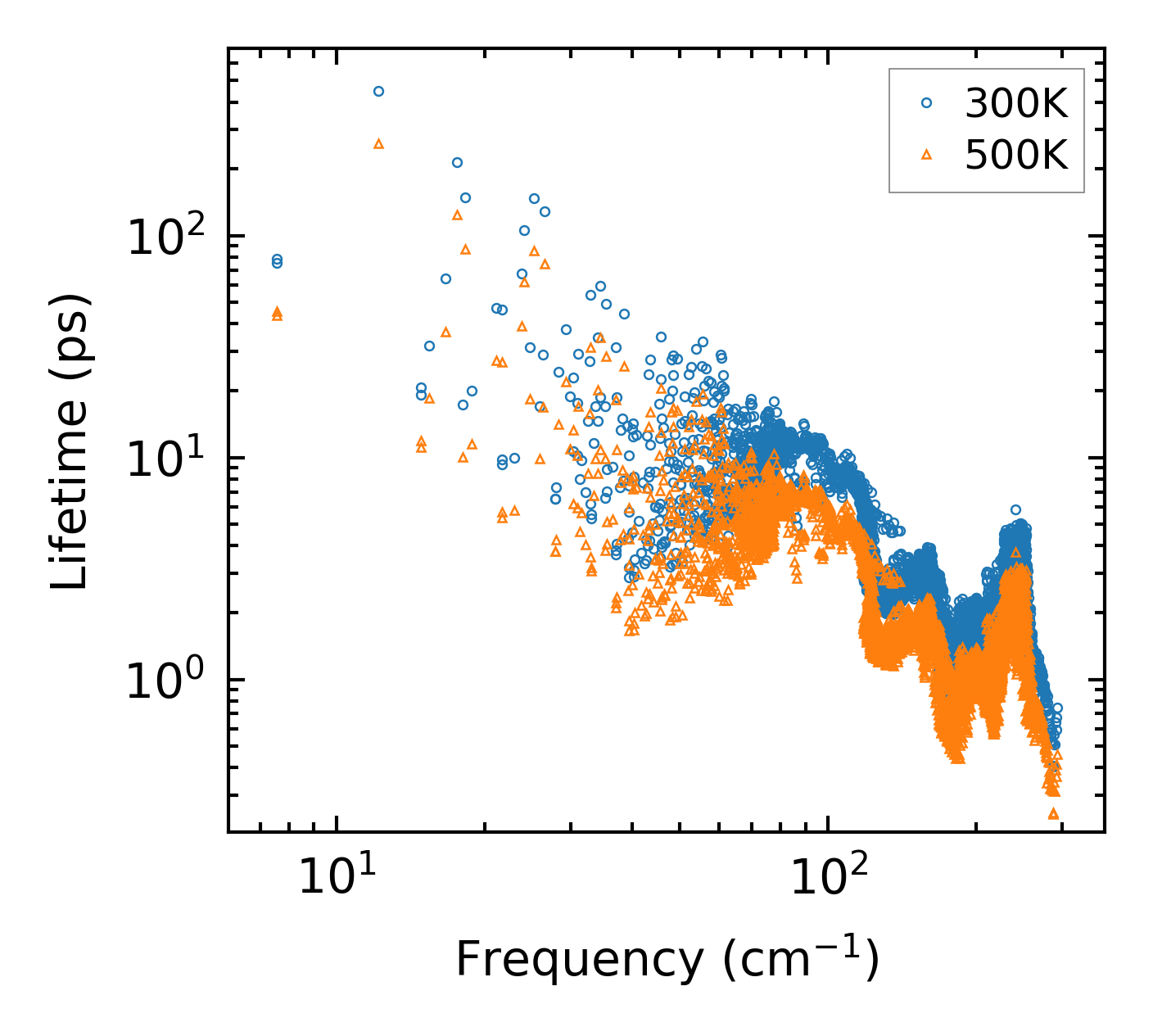

../../_images/fig_lifetime3991.png — (a) Phonon lifetime due to phonon-phonon scattering

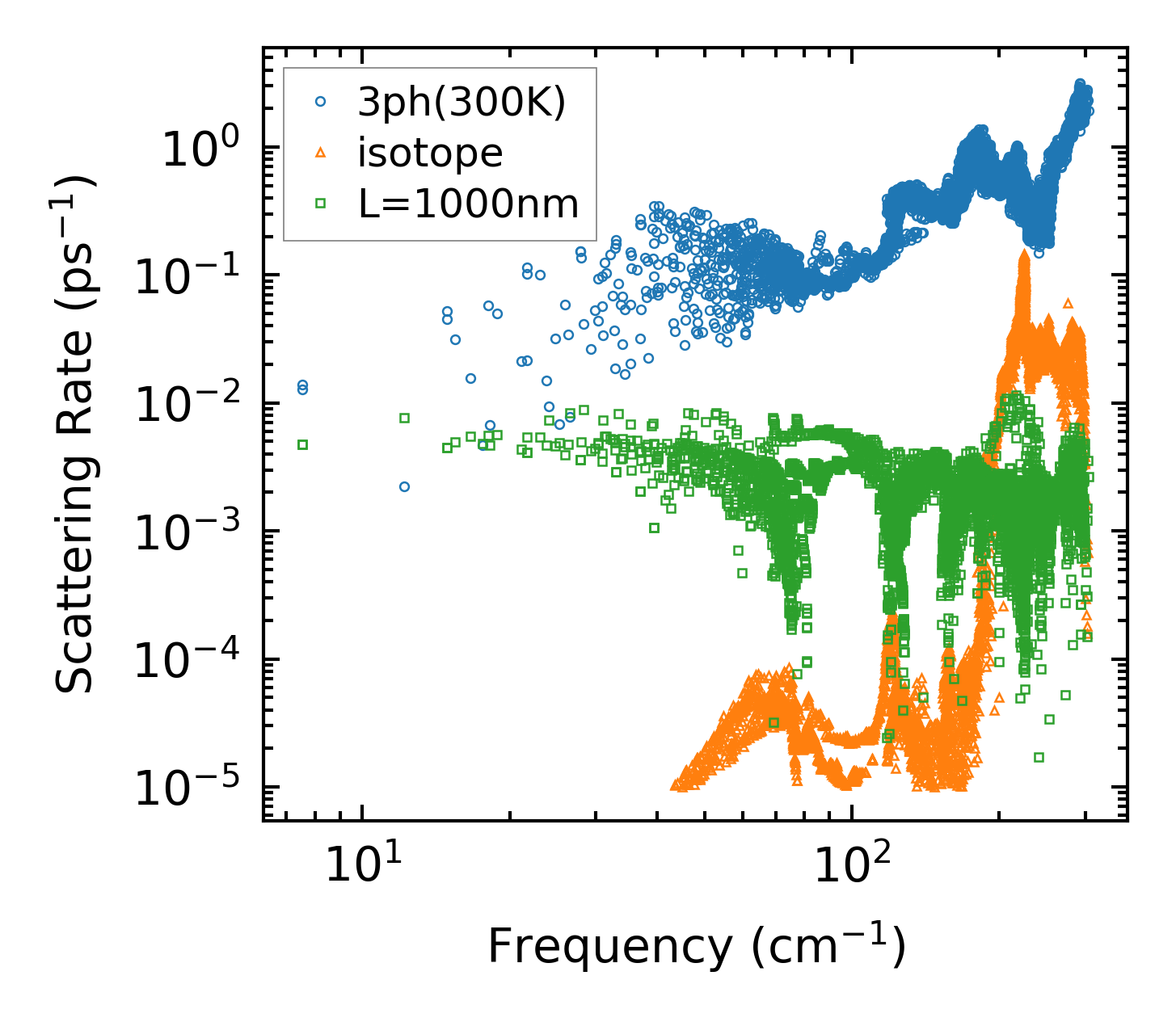

../../_images/fig_scat_rates3990.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

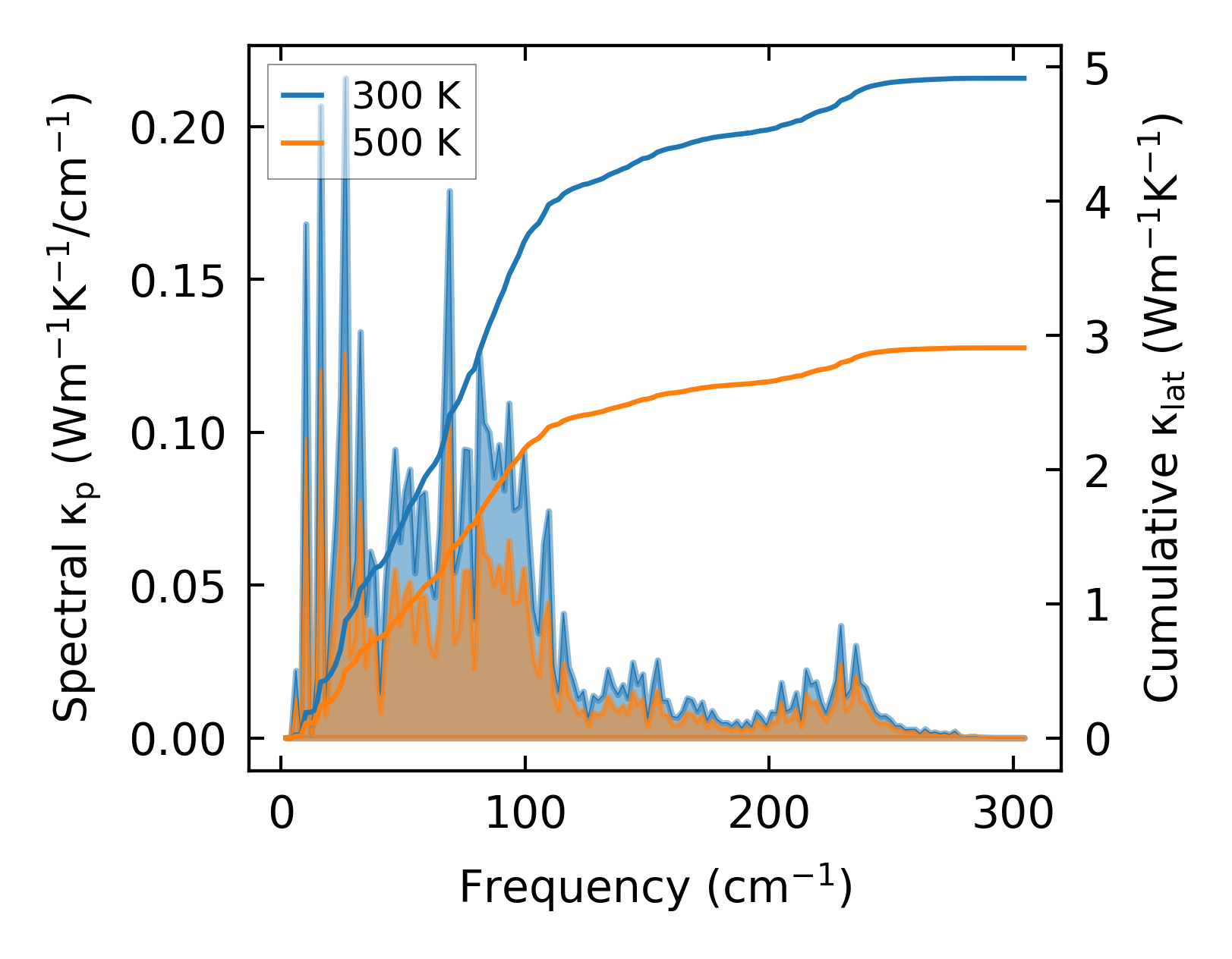

../../_images/fig_cumu_frequency3991.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

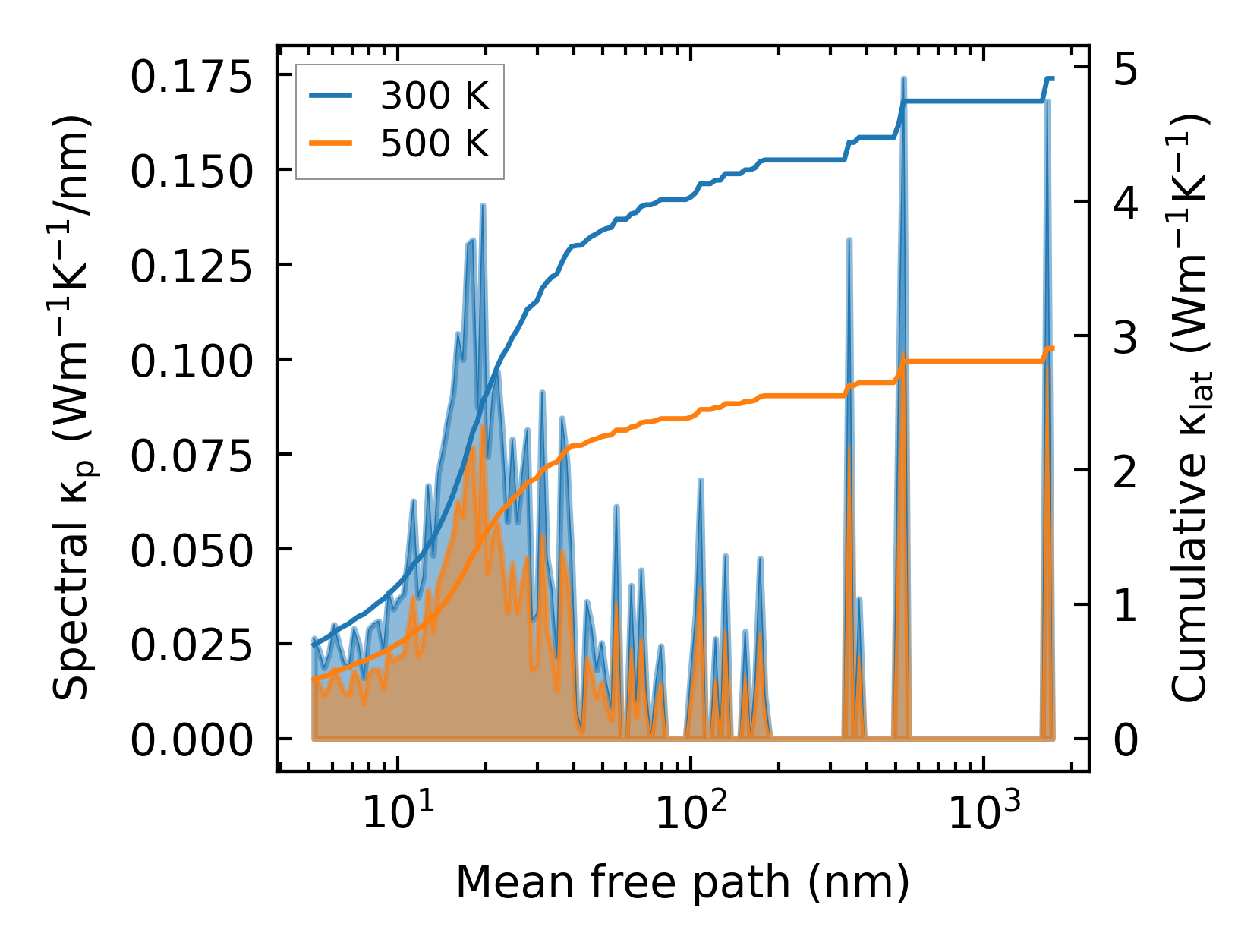

../../_images/fig_cumu_mfp3990.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29788.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7600.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17417.png — (b) Computation time
