mp-5045-2/SnGeS3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-5045-2.tar.gz

Harmonic properties

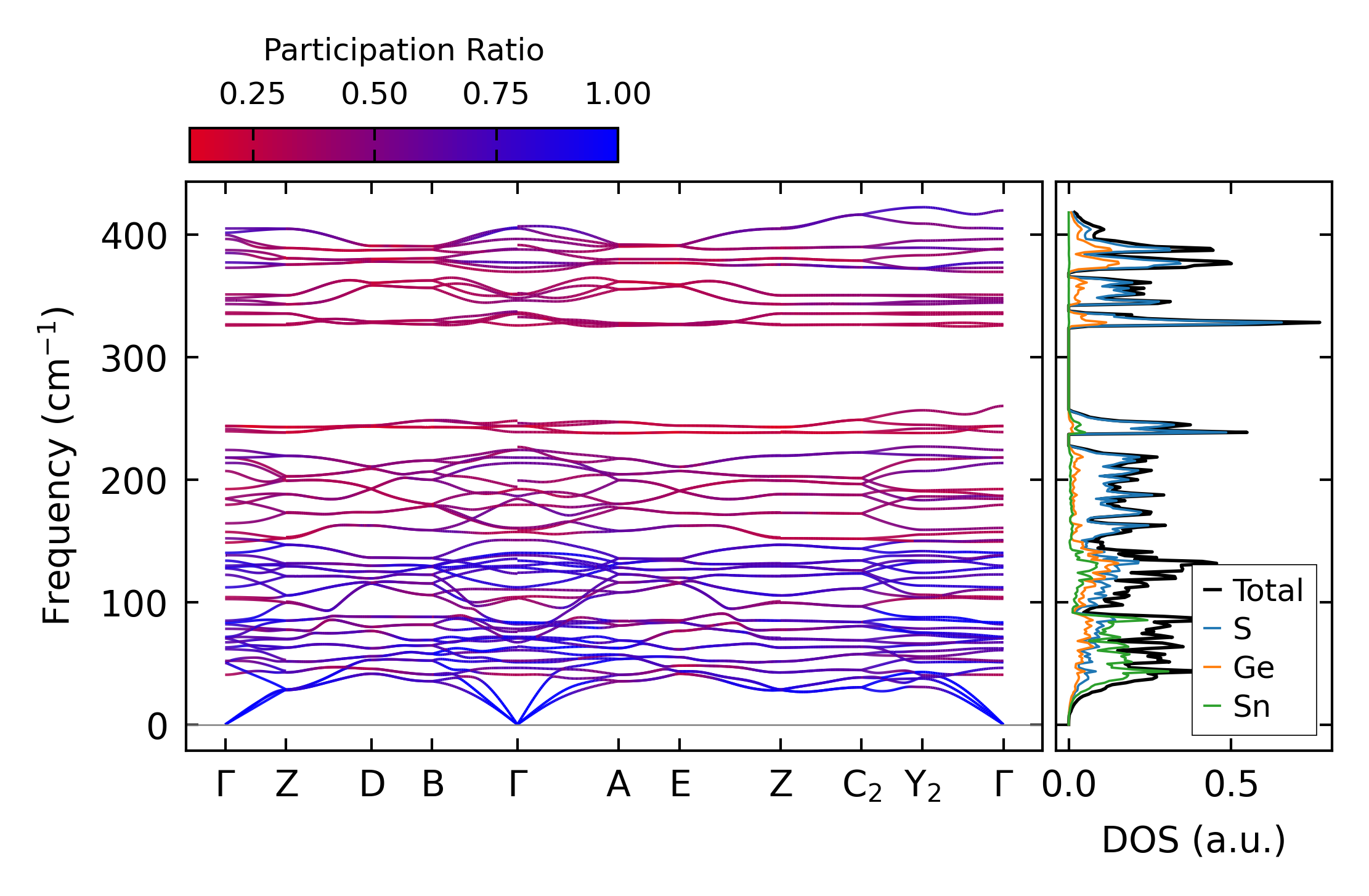

../../_images/fig_bandos_pr10238.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10238.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4130.png — (a) Grüneisen parameters

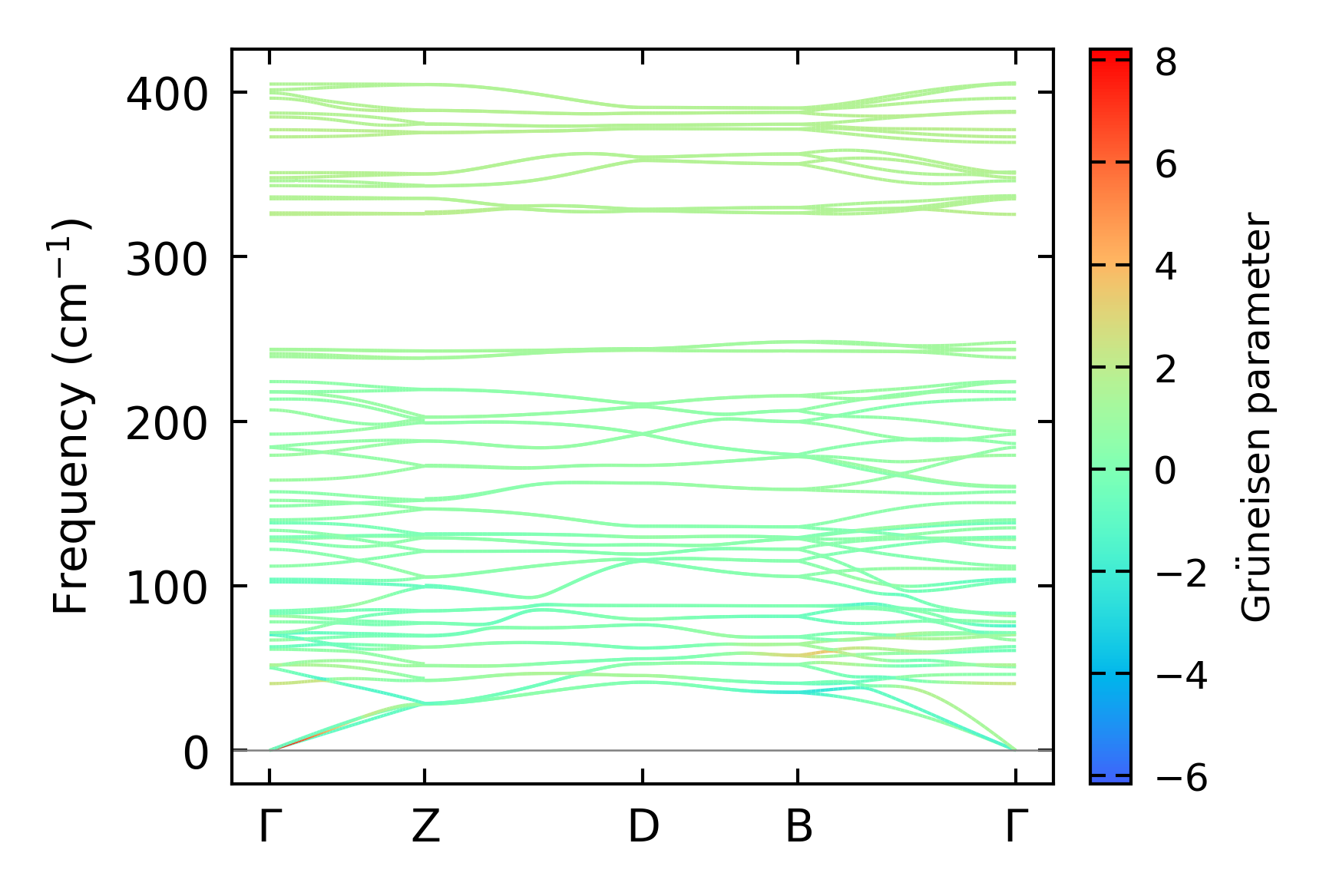

../../_images/fig_gruneisen4130.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x7x10, supercell: 2x1x2

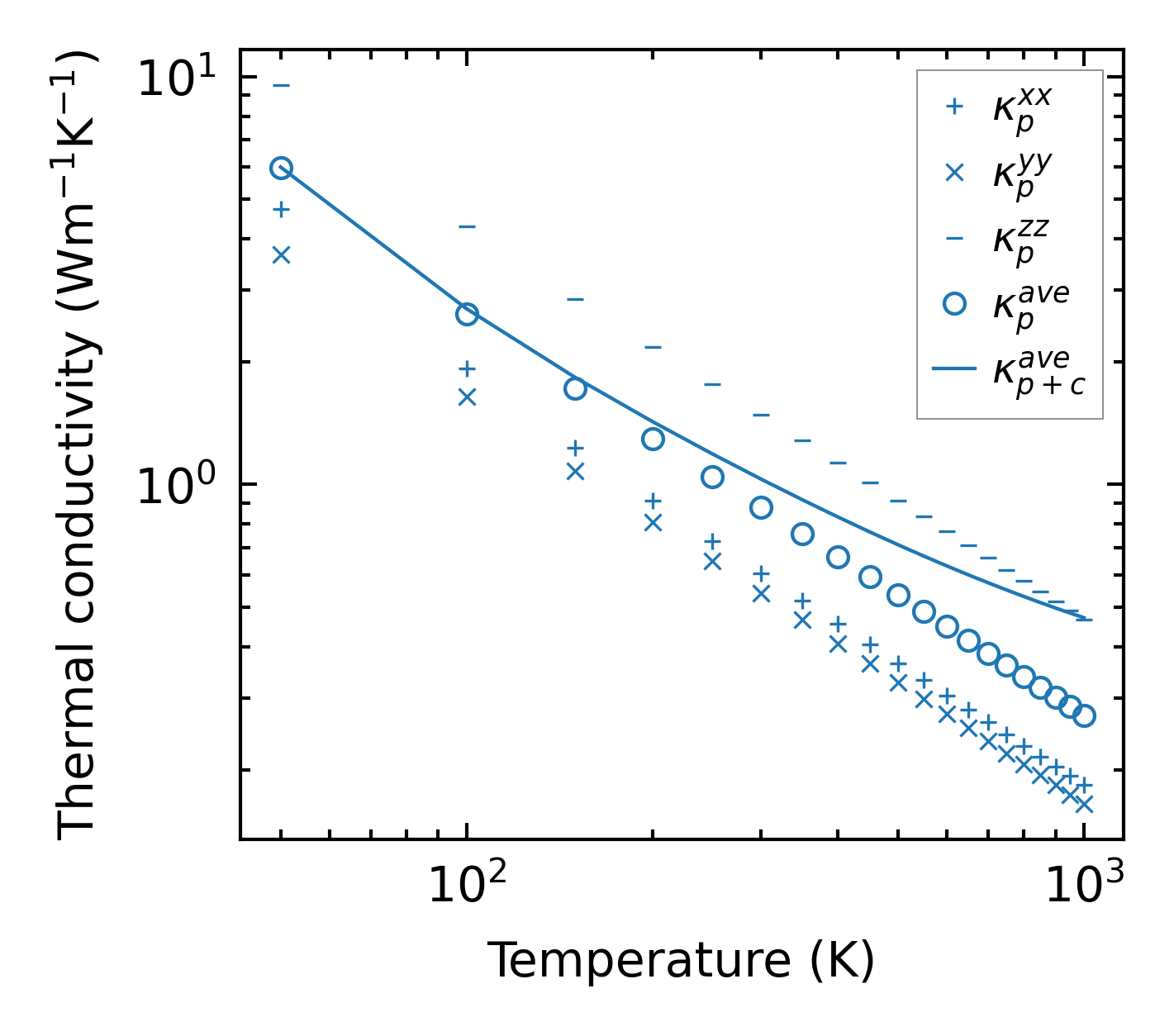

../../_images/fig_kappa7787.png — (a) Temperature-dependent lattice thermal conductivity

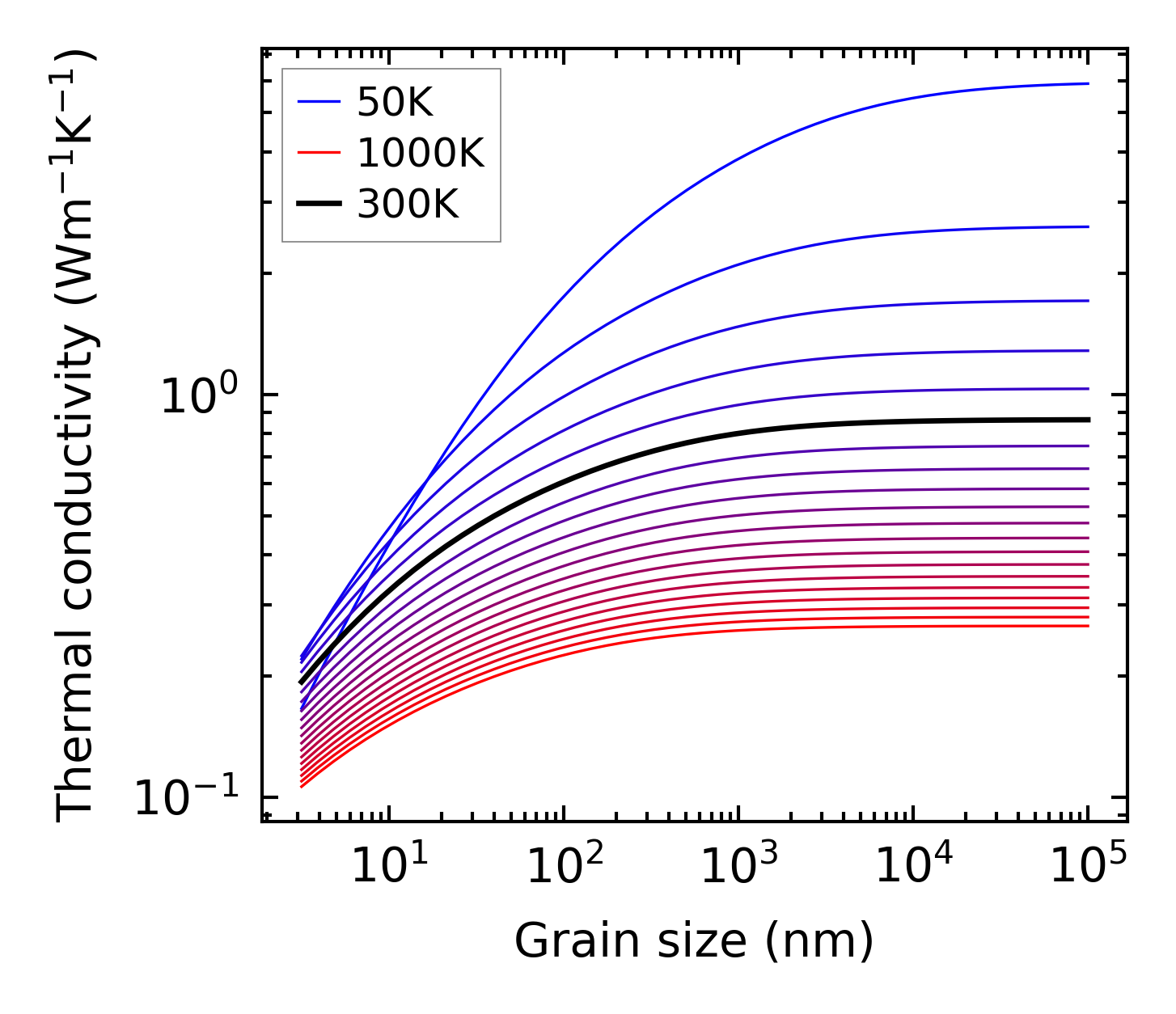

../../_images/fig_kappa_vs_grain_size4185.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

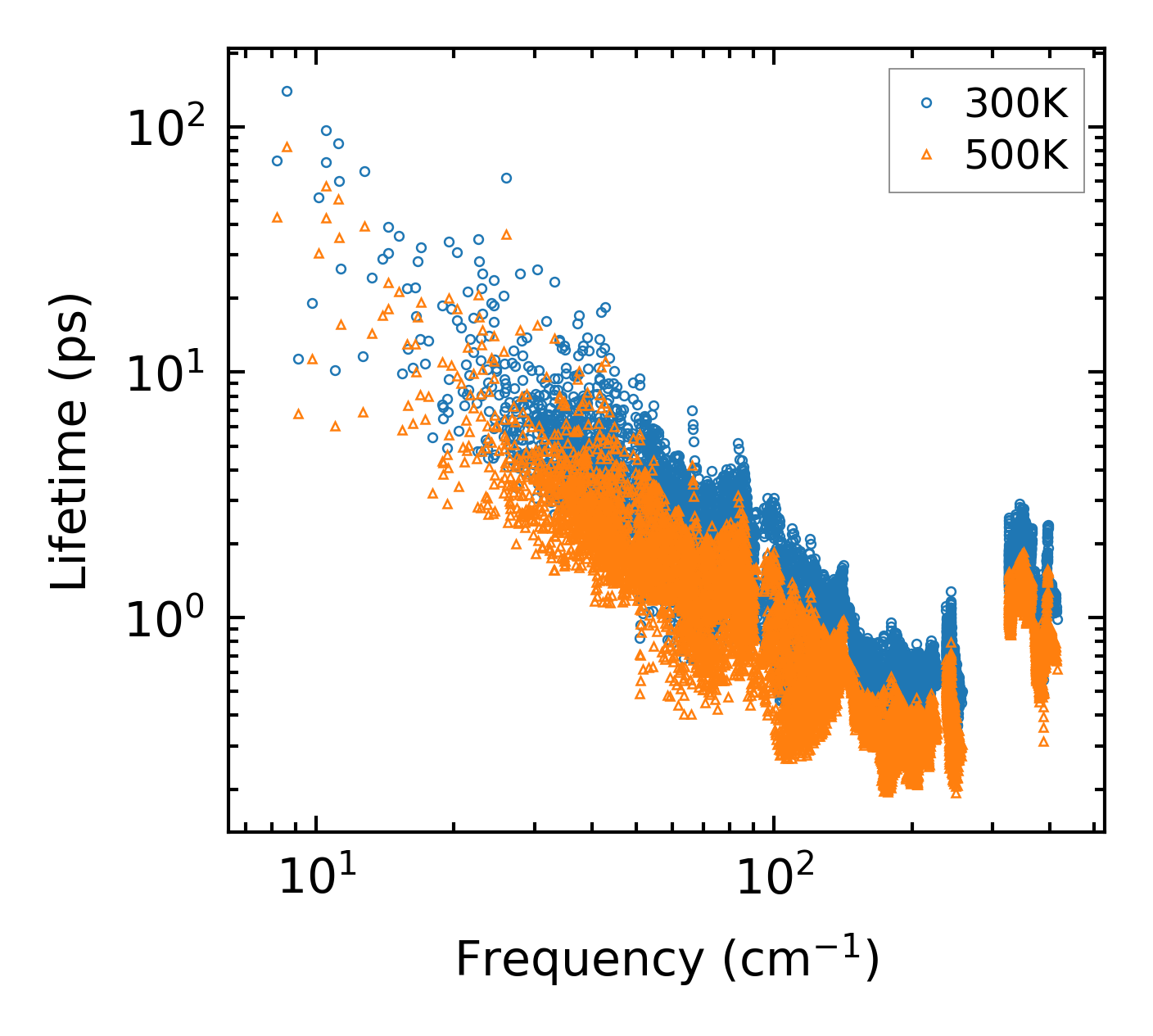

../../_images/fig_lifetime4092.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4091.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

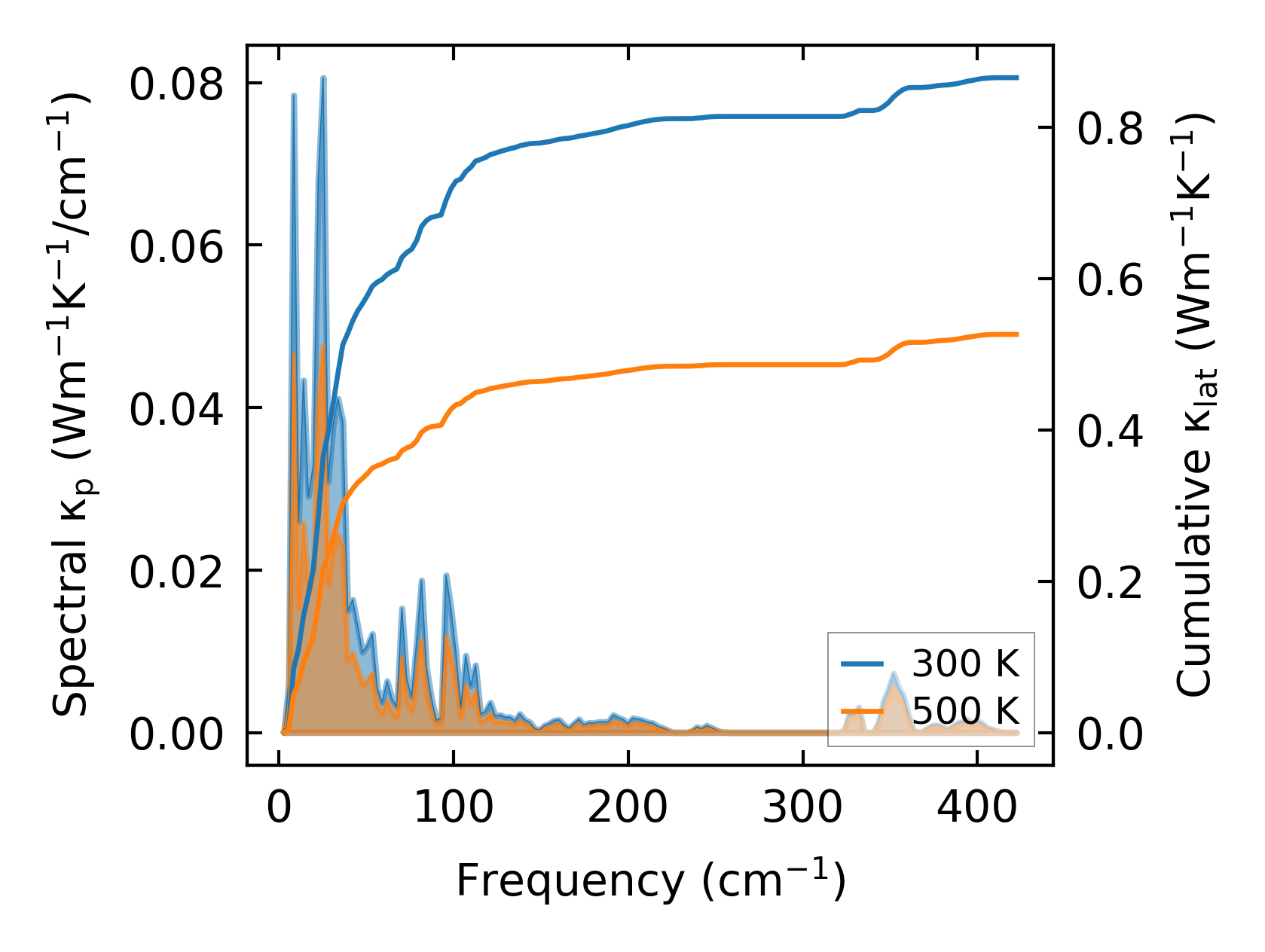

../../_images/fig_cumu_frequency4092.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4091.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29989.png — (a) Force constants w.r.t atomic distance

Summary

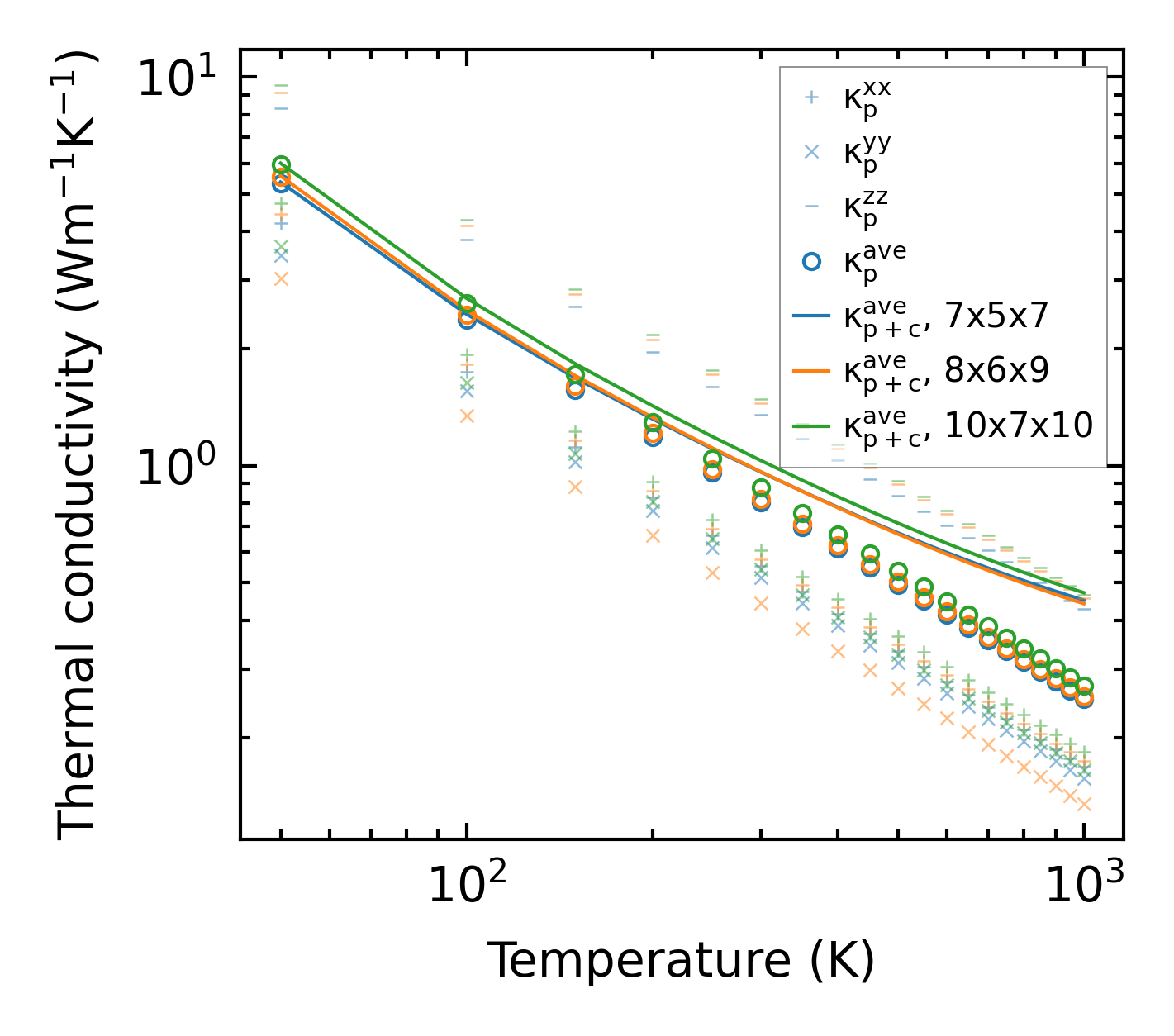

../../_images/fig_kappa7788.png — (a) Temperature-dependent lattice thermal conductivity

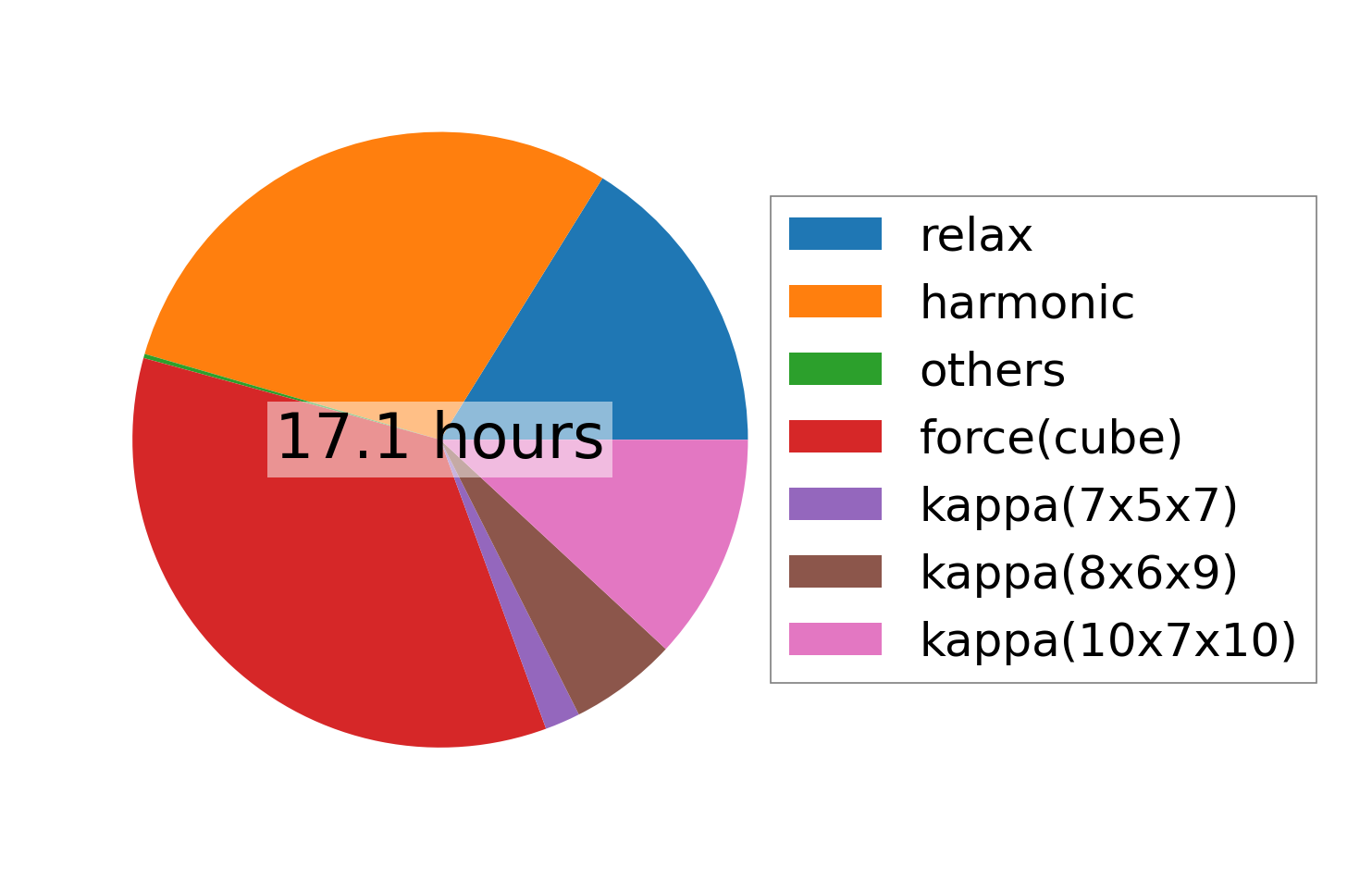

../../_images/fig_times17707.png — (b) Computation time
