mp-5878-2/KZnF3/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-5878-2.tar.gz

Equation of state

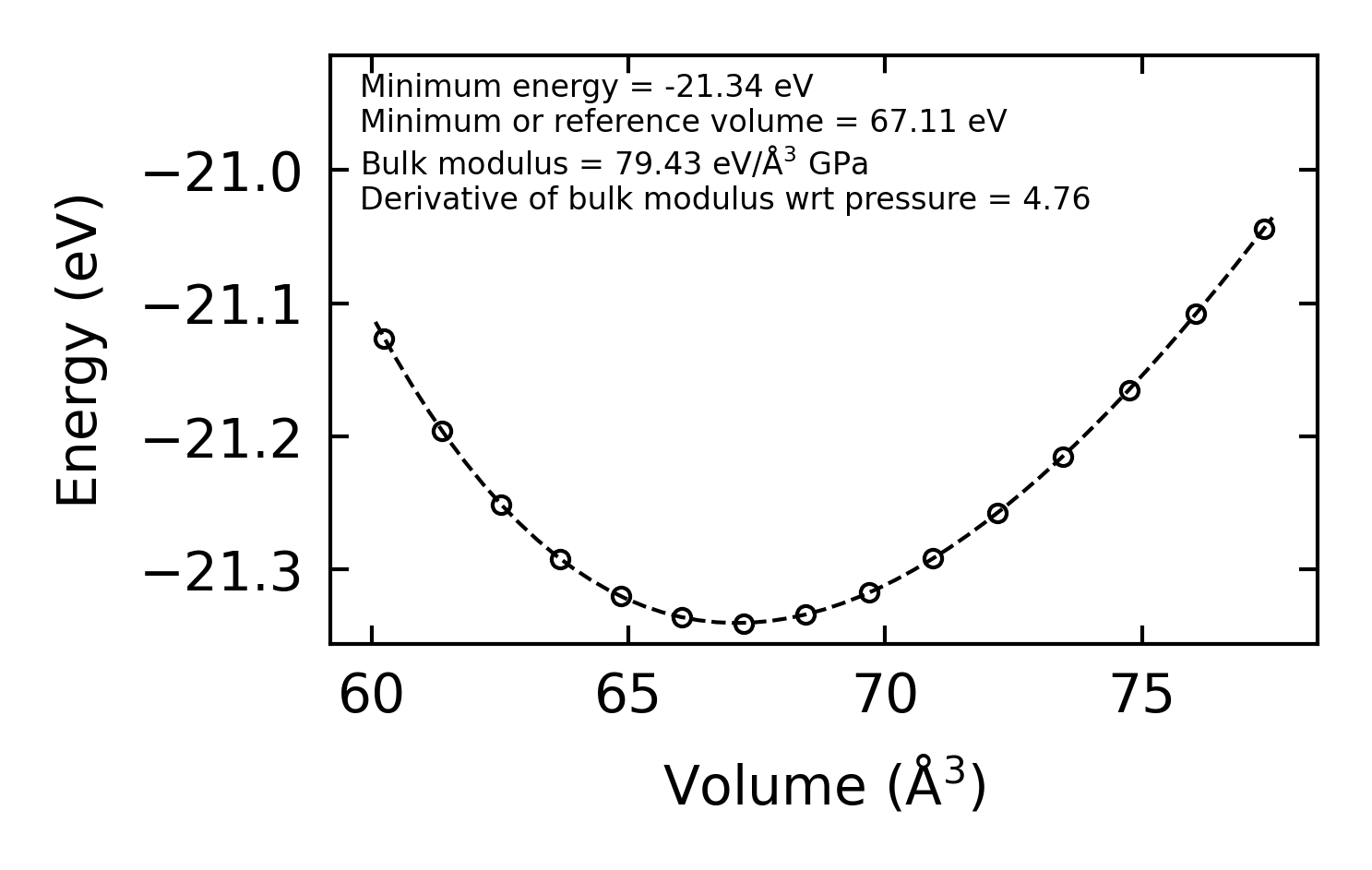

../../_images/fig_bm4863.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9754.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9754.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3897.png — (a) Grüneisen parameters

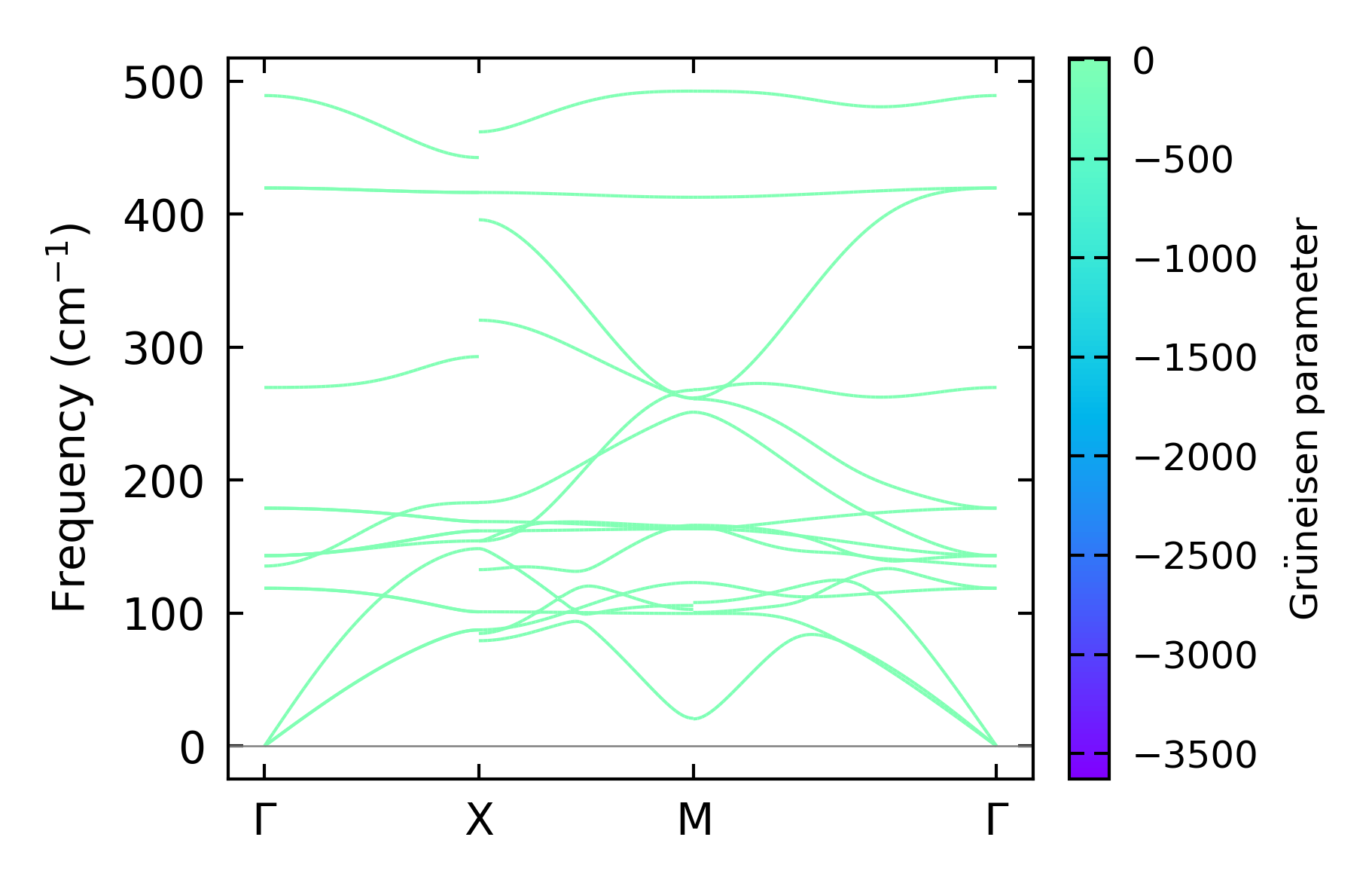

../../_images/fig_gruneisen3897.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 17x17x17, supercell: 3x3x3

../../_images/fig_kappa7346.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3947.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon, supercell 4x4x4 — q-mesh: 17x17x17, supercell: 4x4x4

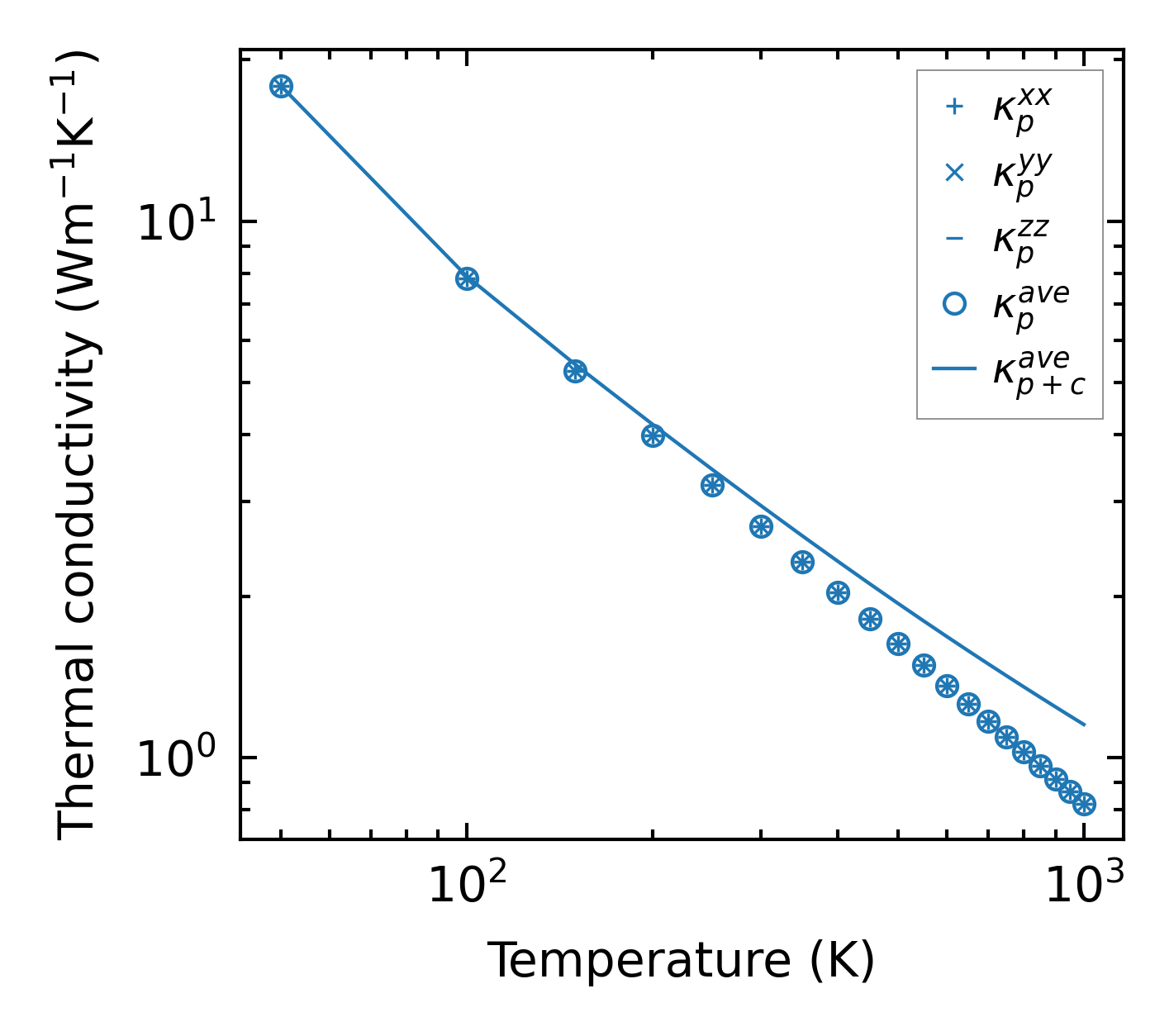

../../_images/fig_kappa7347.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3948.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

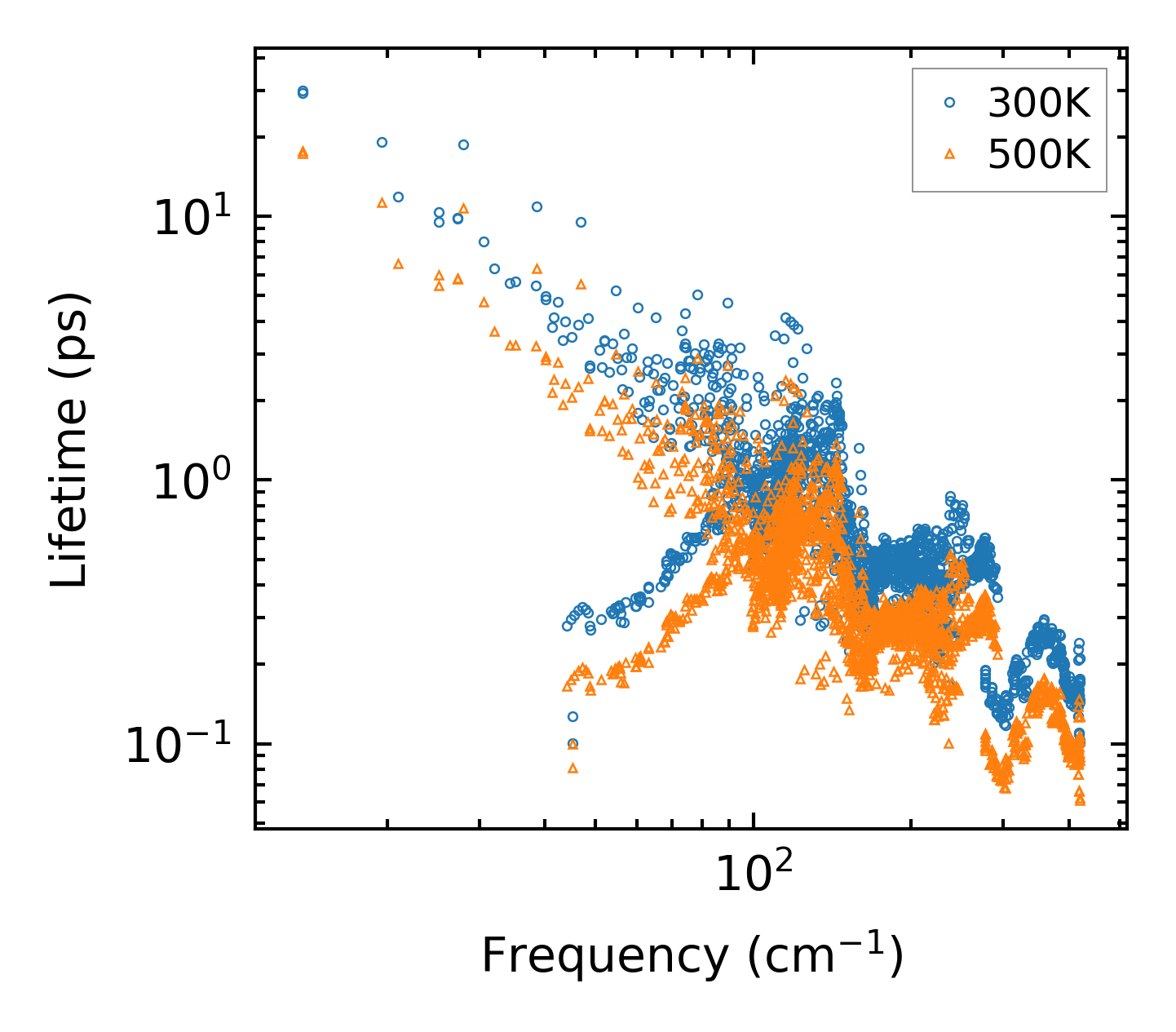

../../_images/fig_lifetime3860.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3859.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

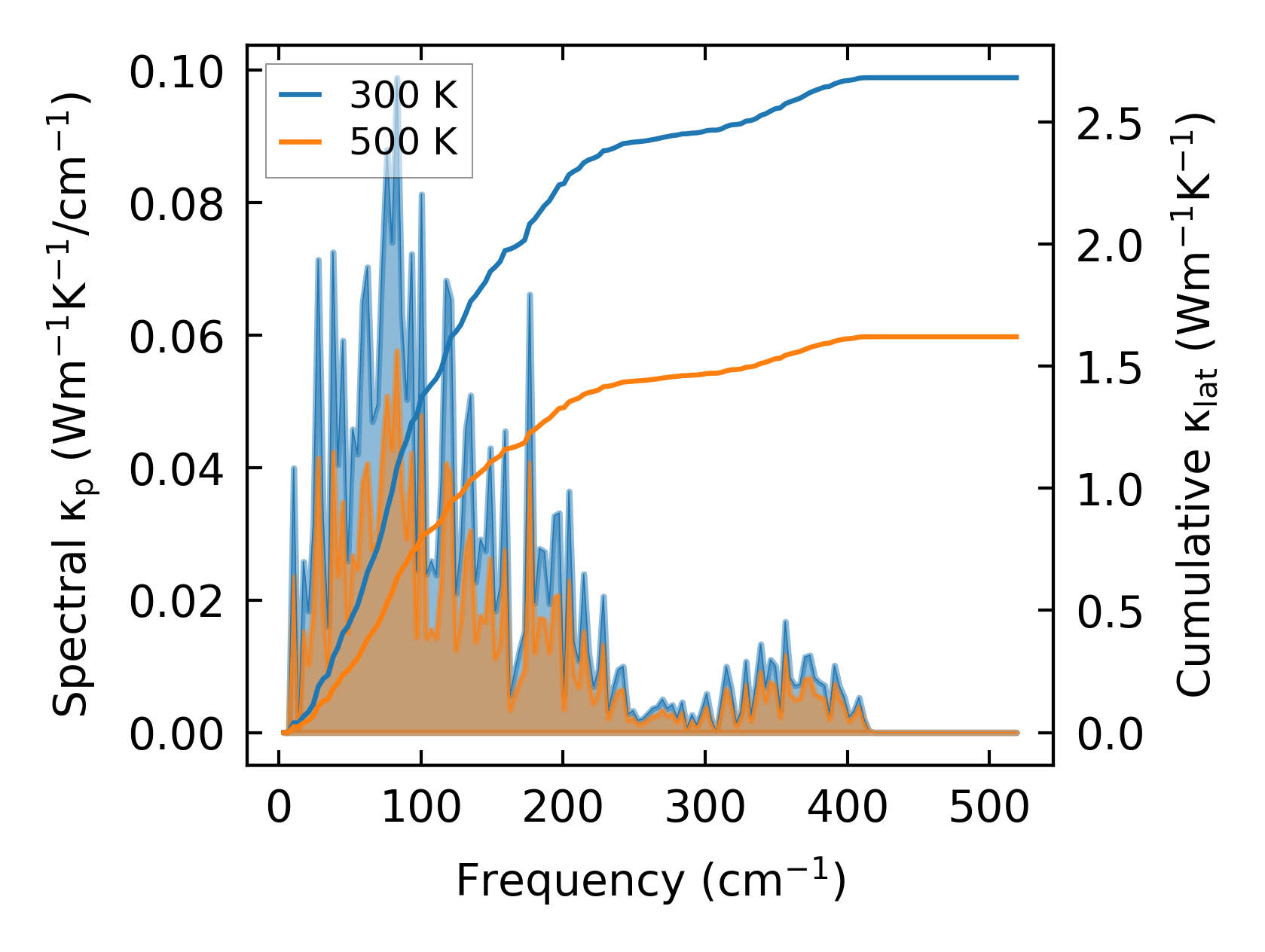

../../_images/fig_cumu_frequency3860.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

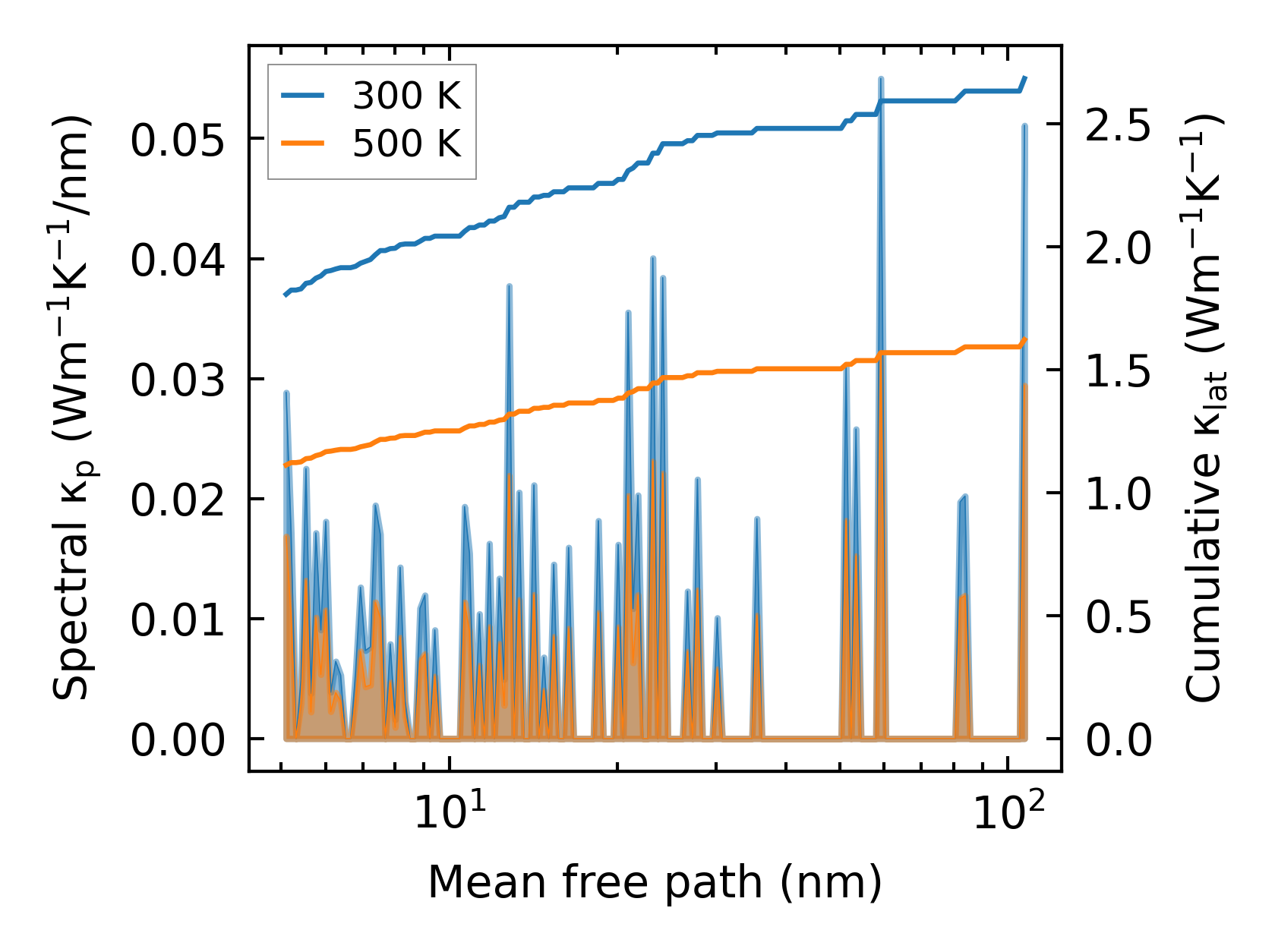

../../_images/fig_cumu_mfp3859.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3242.png — (a) Force constants w.r.t atomic distance

Summary

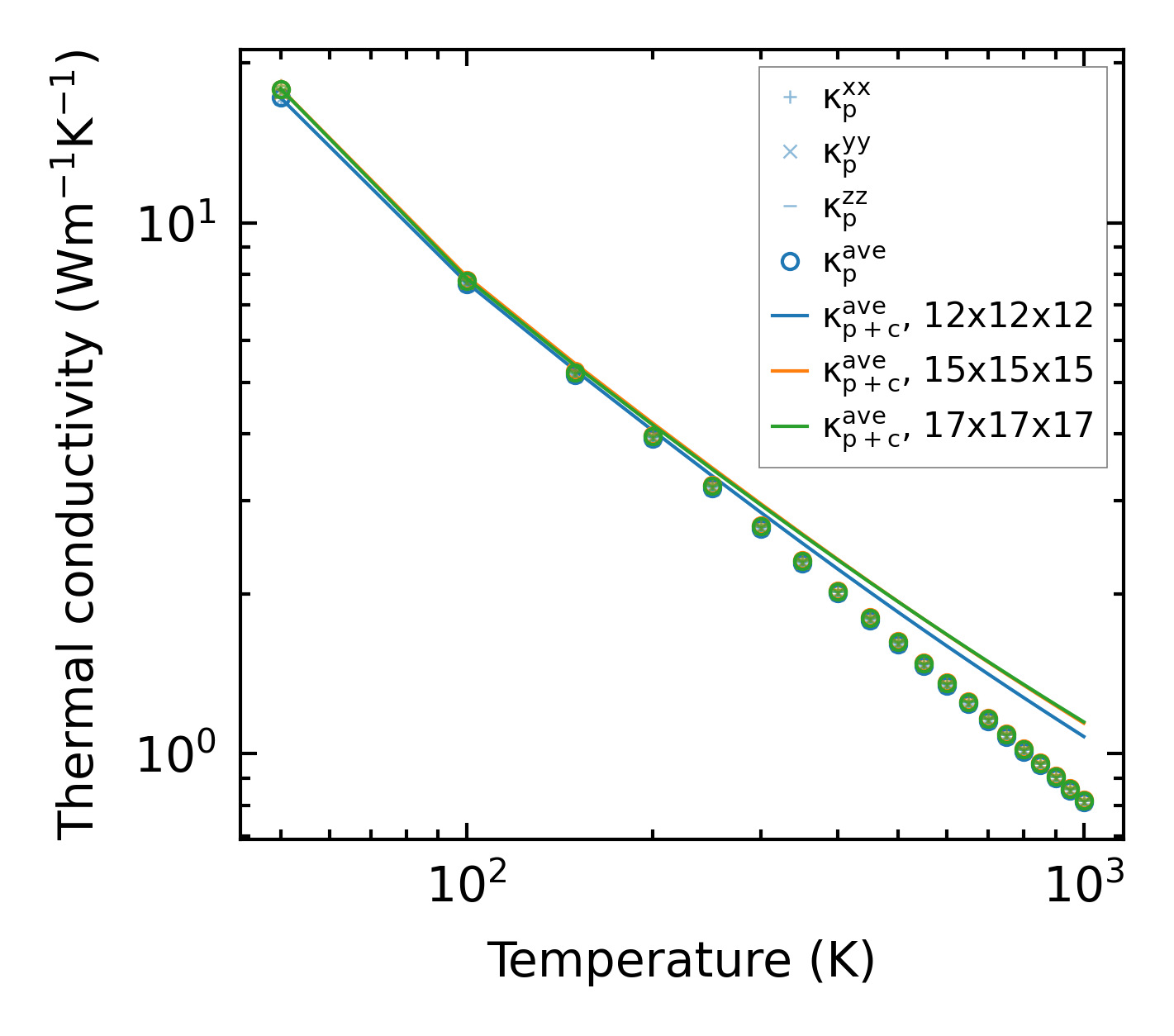

../../_images/fig_kappa7348.png — (a) Temperature-dependent lattice thermal conductivity

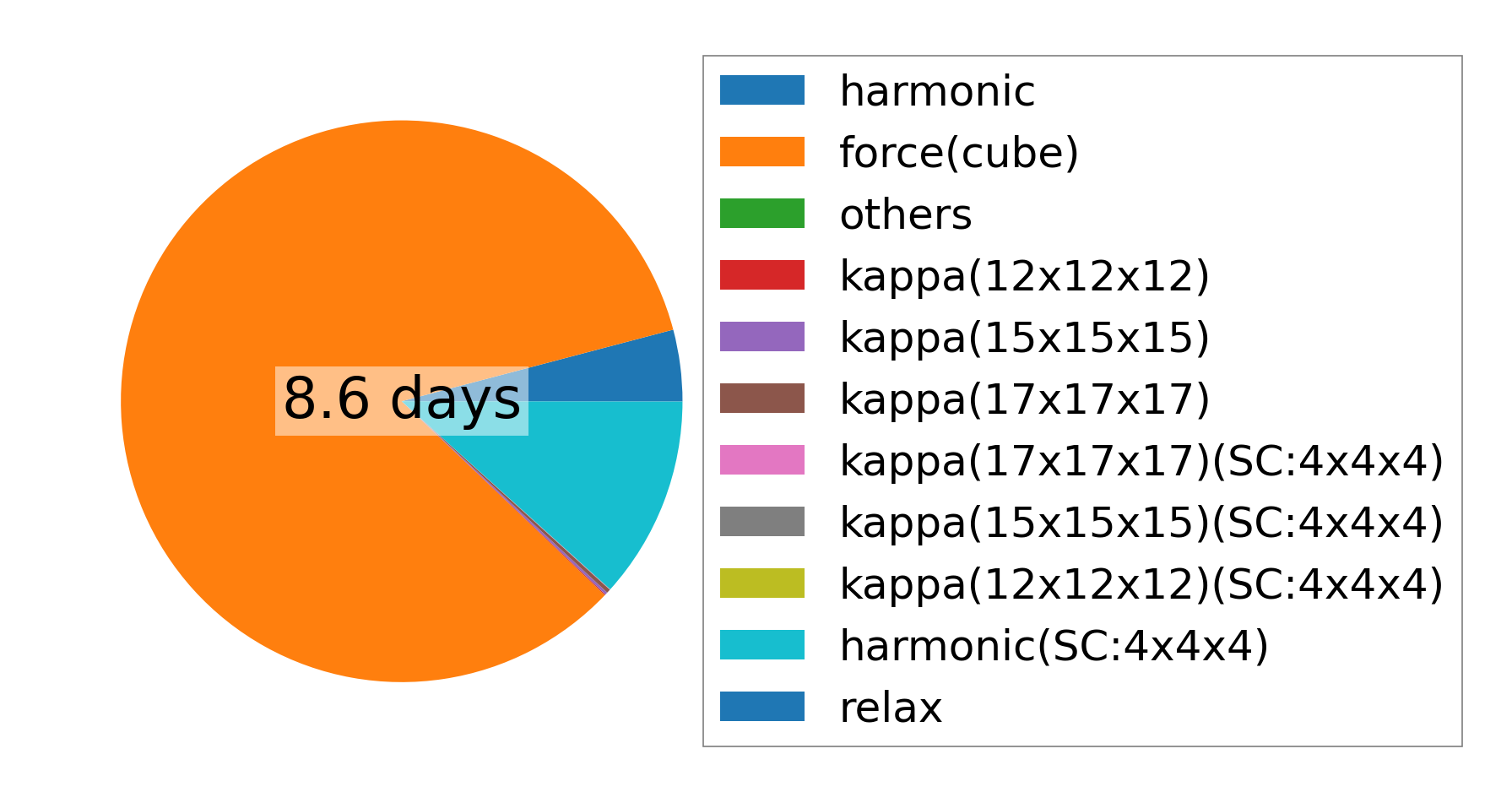

../../_images/fig_times16959.png — (b) Computation time
