mp-4824/NaZnP/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-4824.tar.gz

Harmonic properties

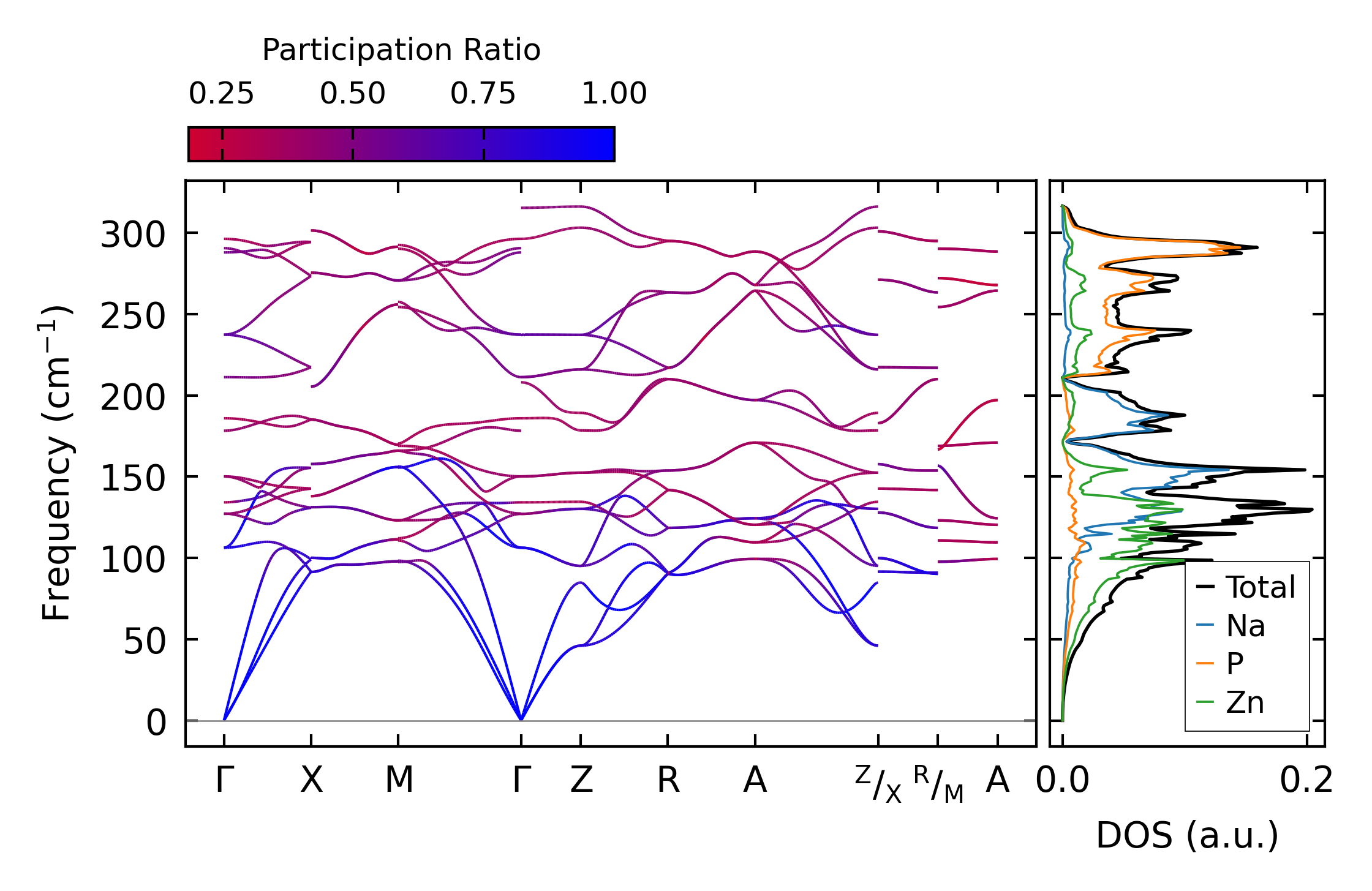

../../_images/fig_bandos_pr10149.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10149.png — (b) Thermodynamic properties

Grüneisen parameters

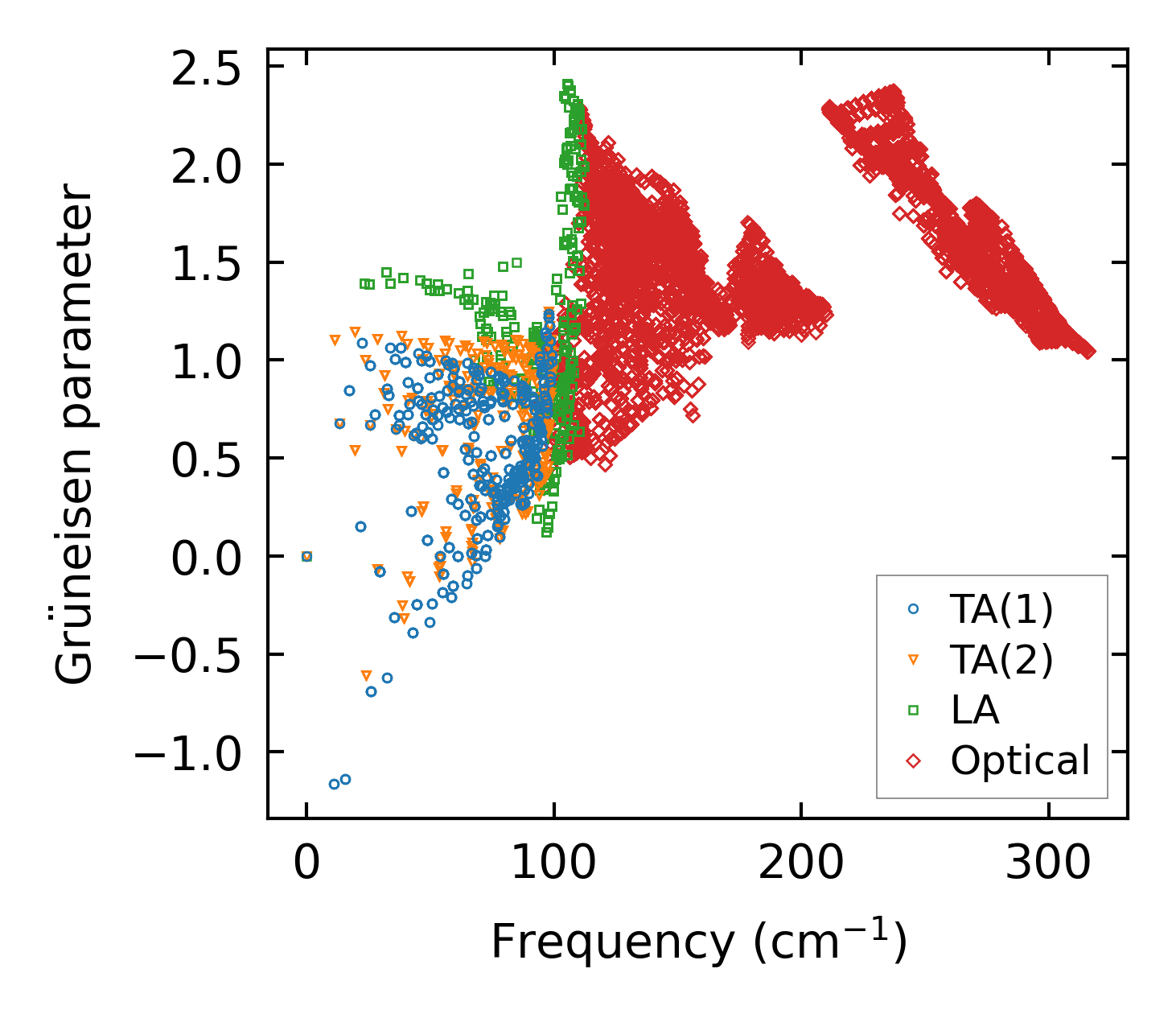

../../_images/fig_gru_all4091.png — (a) Grüneisen parameters

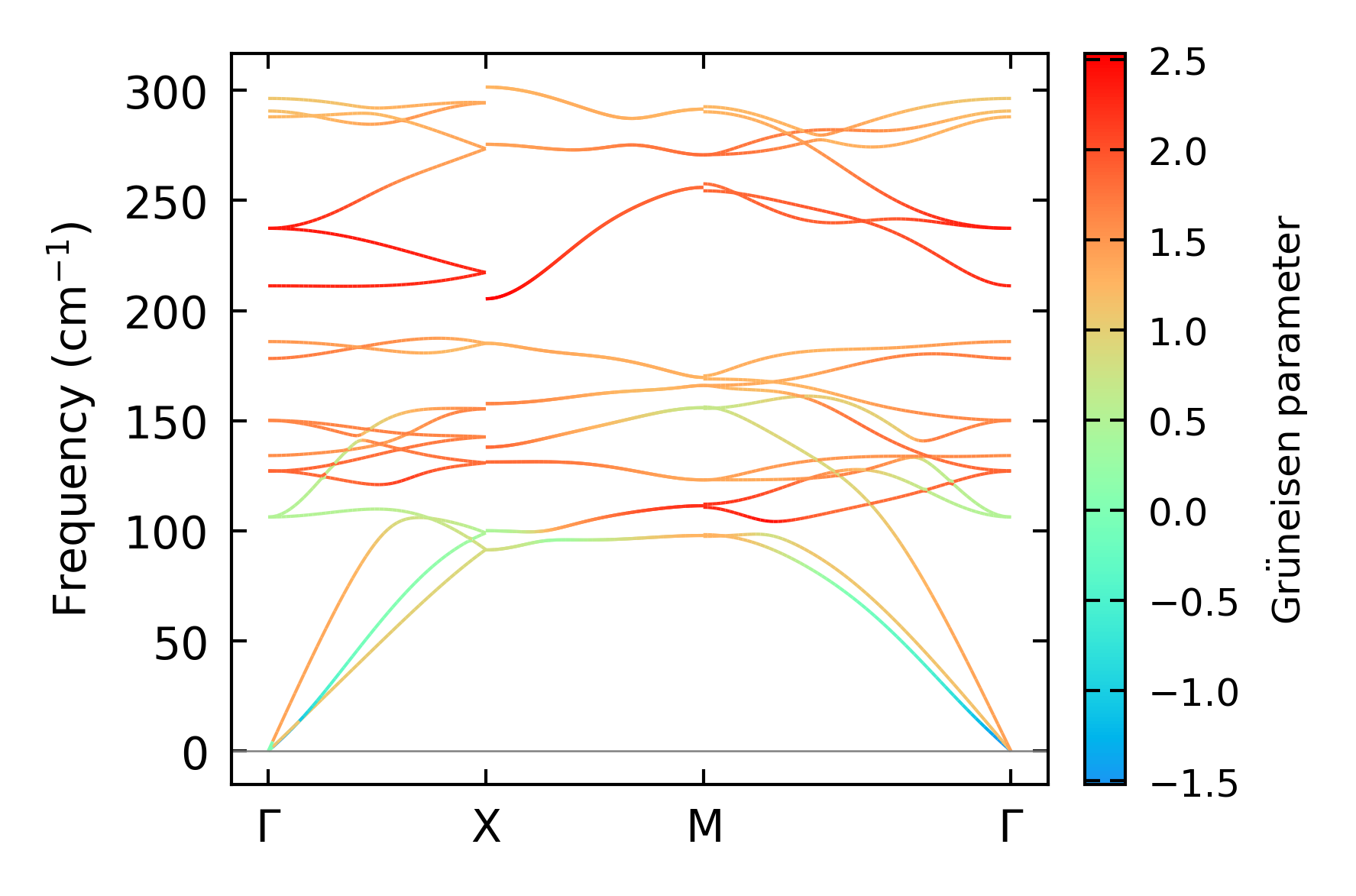

../../_images/fig_gruneisen4091.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x10, supercell: 3x3x2

../../_images/fig_kappa7715.png — (a) Temperature-dependent lattice thermal conductivity

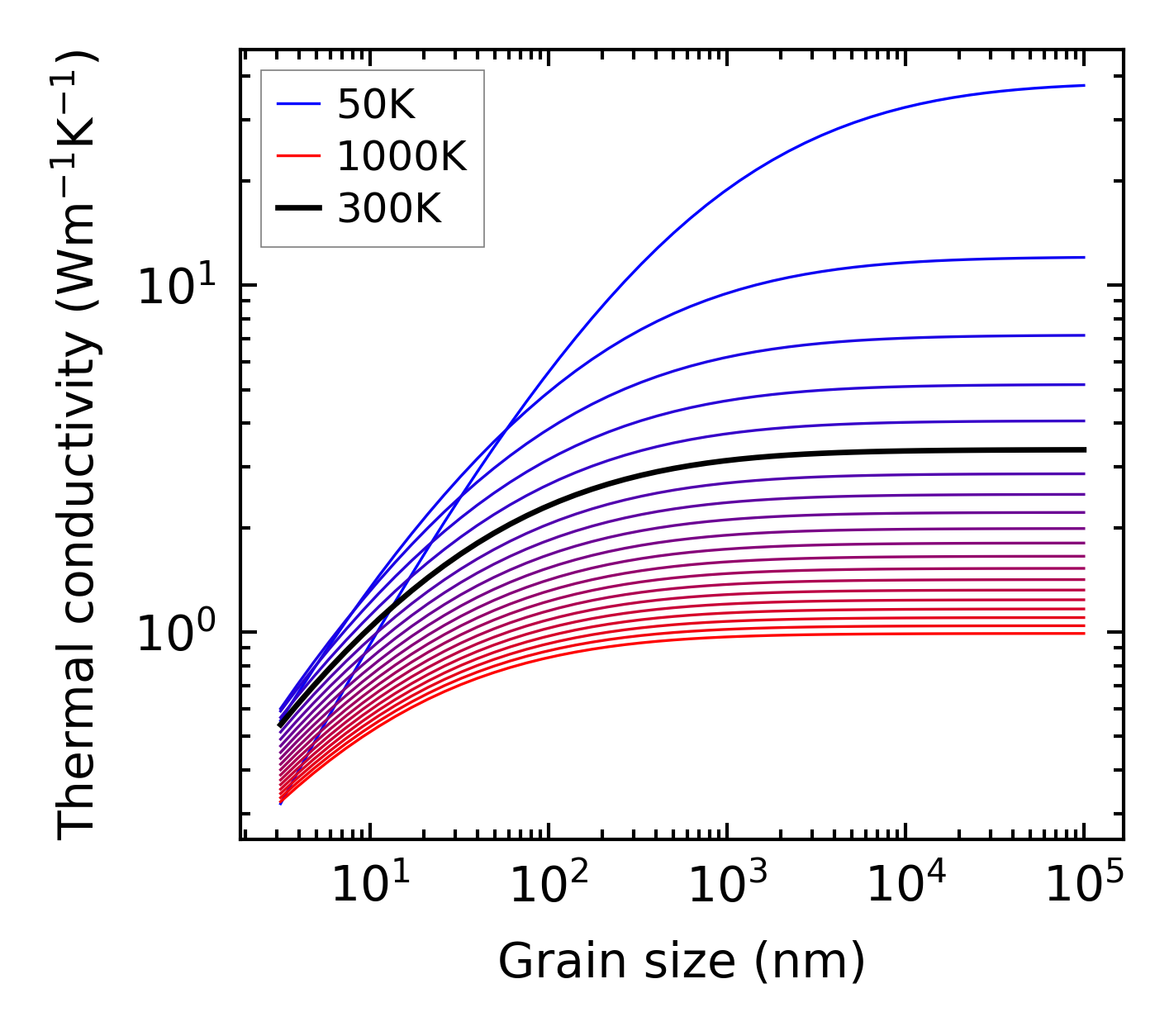

../../_images/fig_kappa_vs_grain_size4146.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

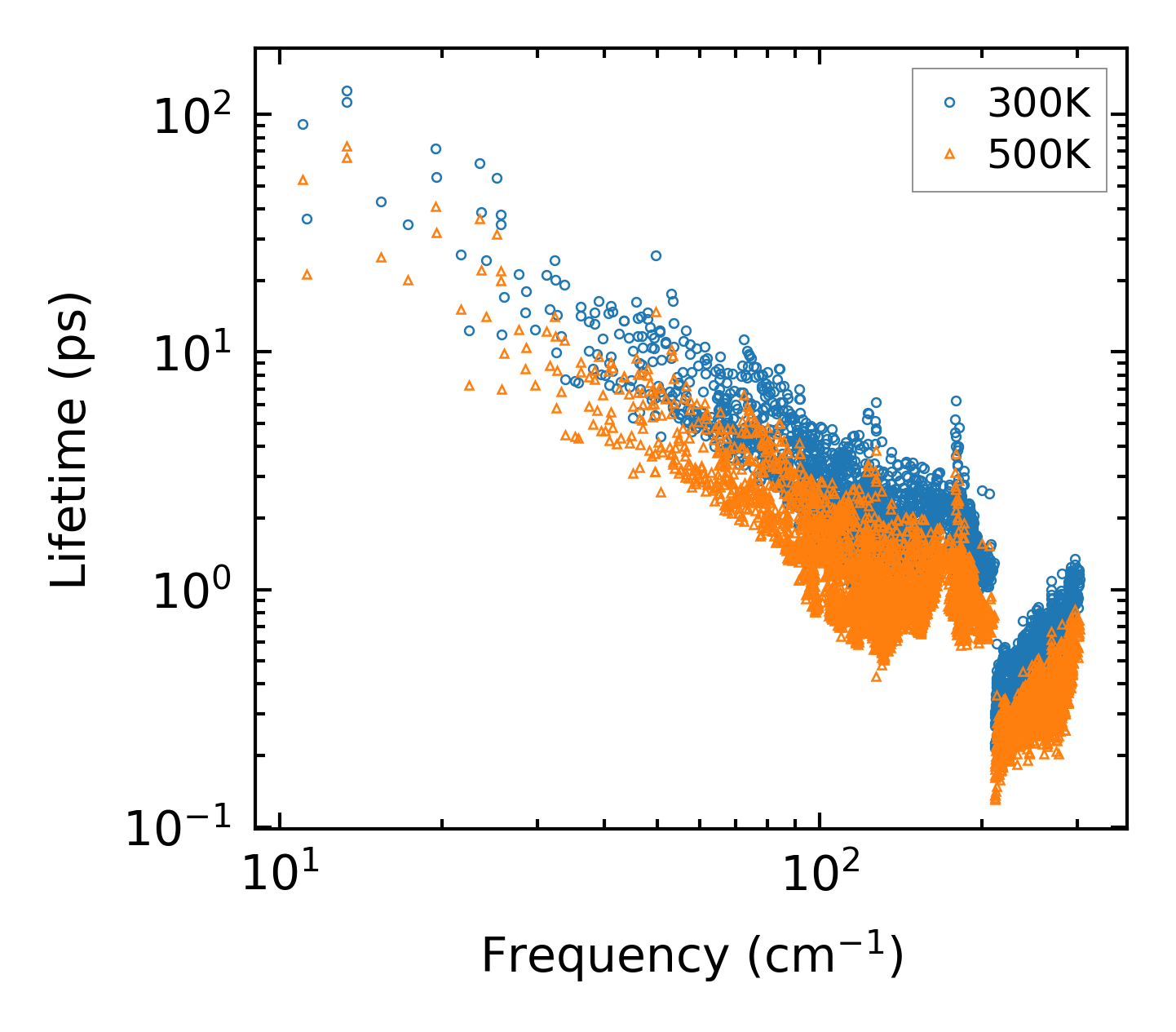

../../_images/fig_lifetime4053.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4052.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

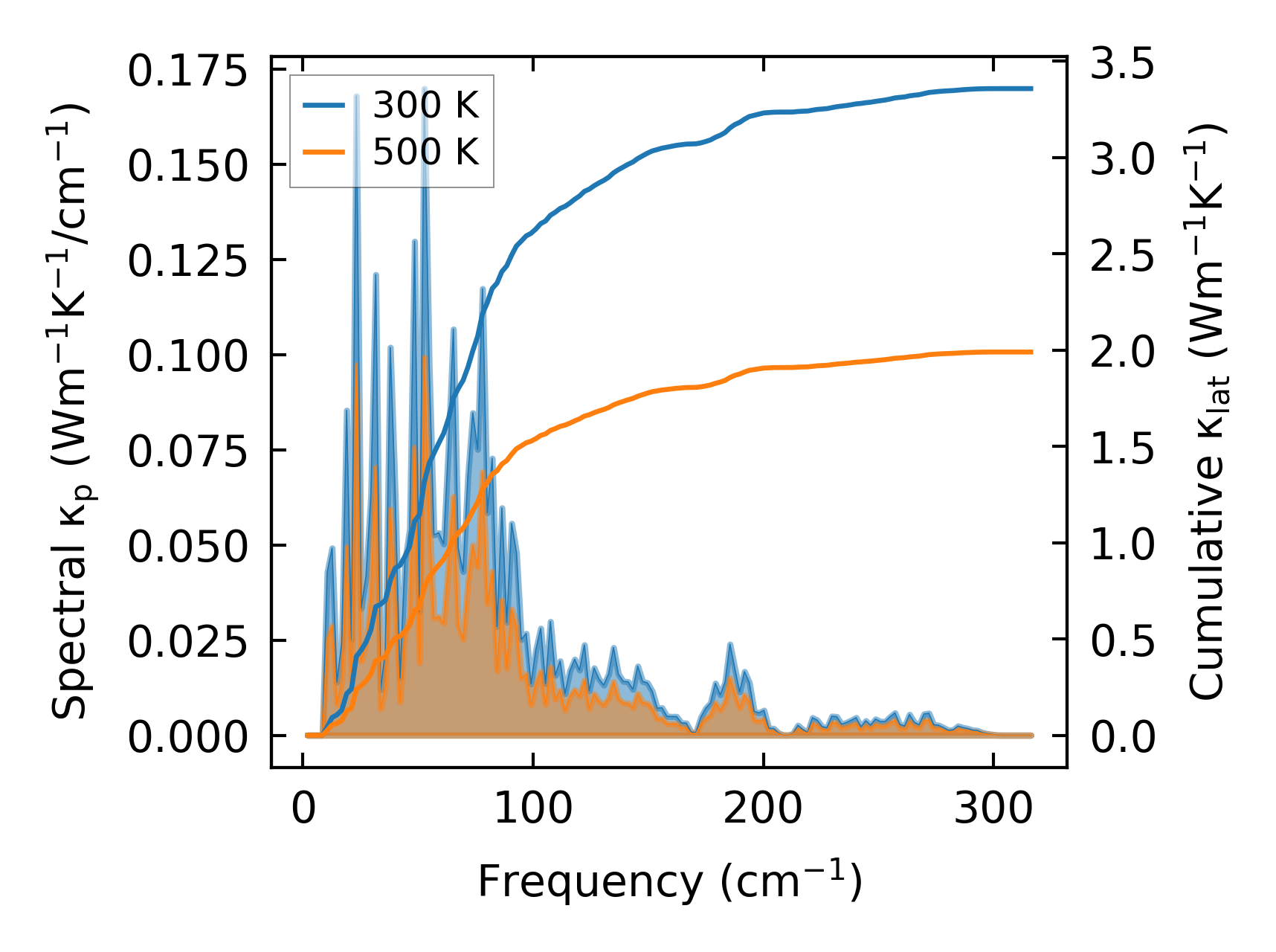

../../_images/fig_cumu_frequency4053.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

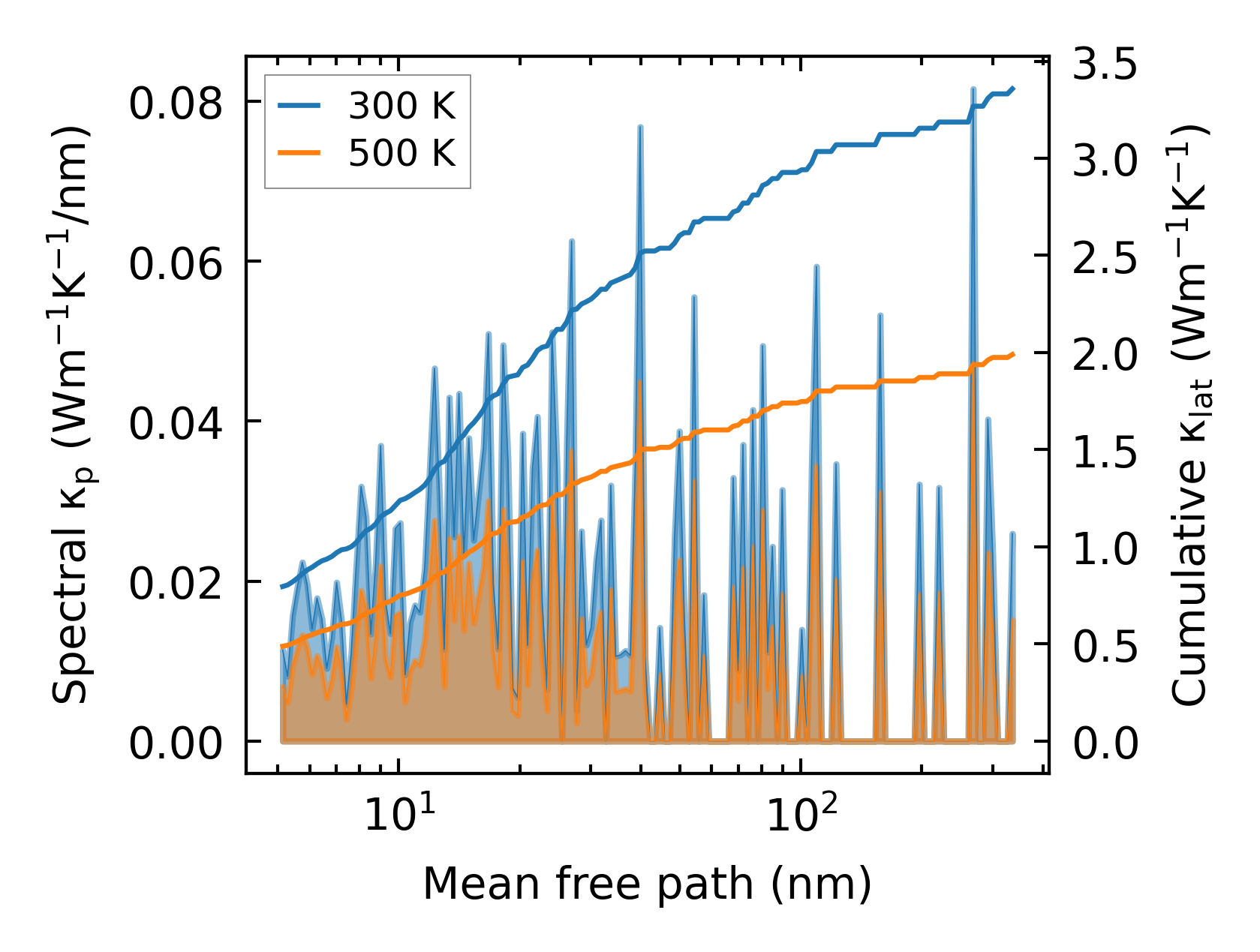

../../_images/fig_cumu_mfp4052.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29901.png — (a) Force constants w.r.t atomic distance

Summary

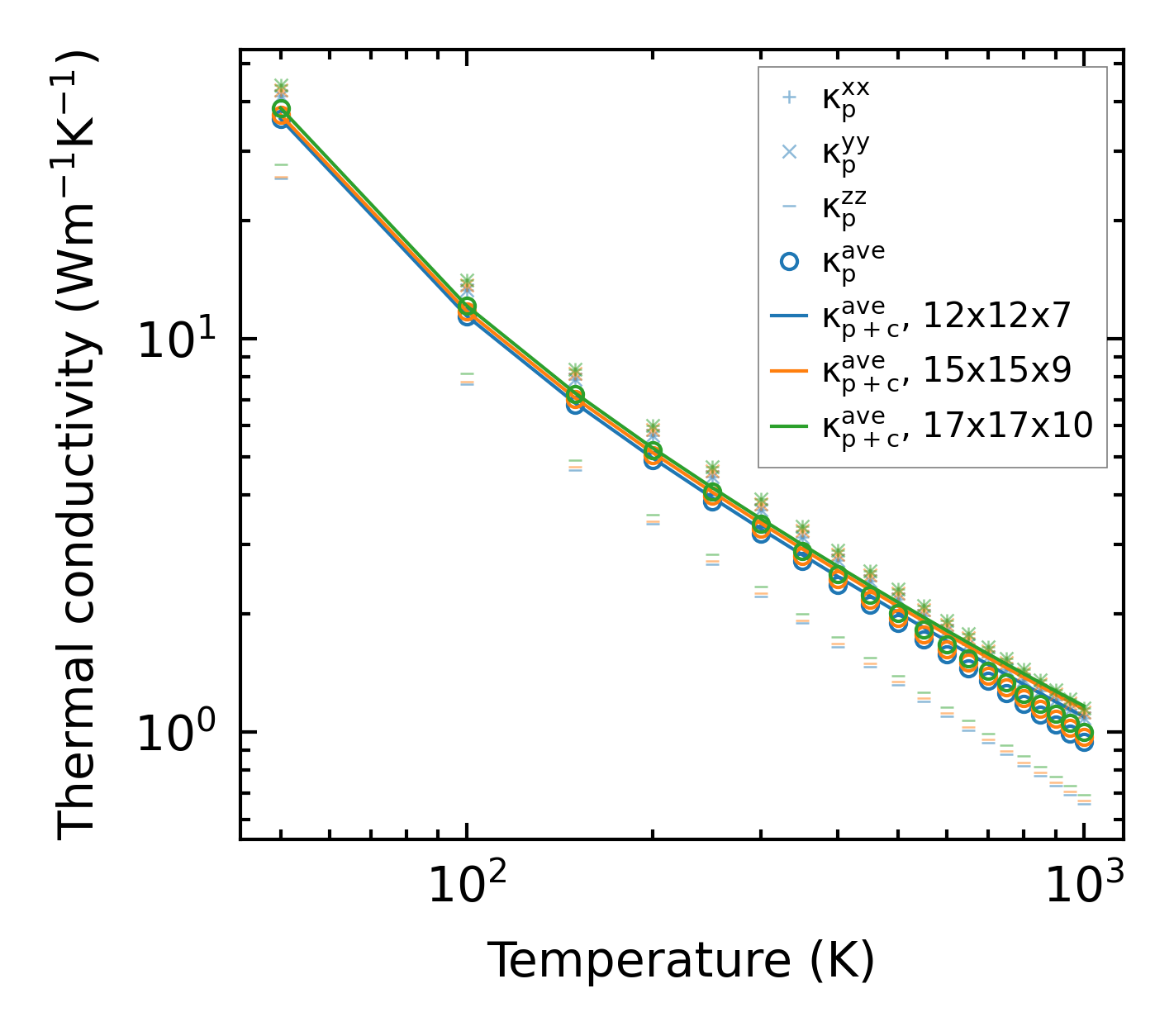

../../_images/fig_kappa7716.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17592.png — (b) Computation time
