mp-4571-2/CaZrO3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-4571-2.tar.gz

Equation of state

../../_images/fig_bm5046.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr10077.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10077.png — (b) Thermodynamic properties

Grüneisen parameters

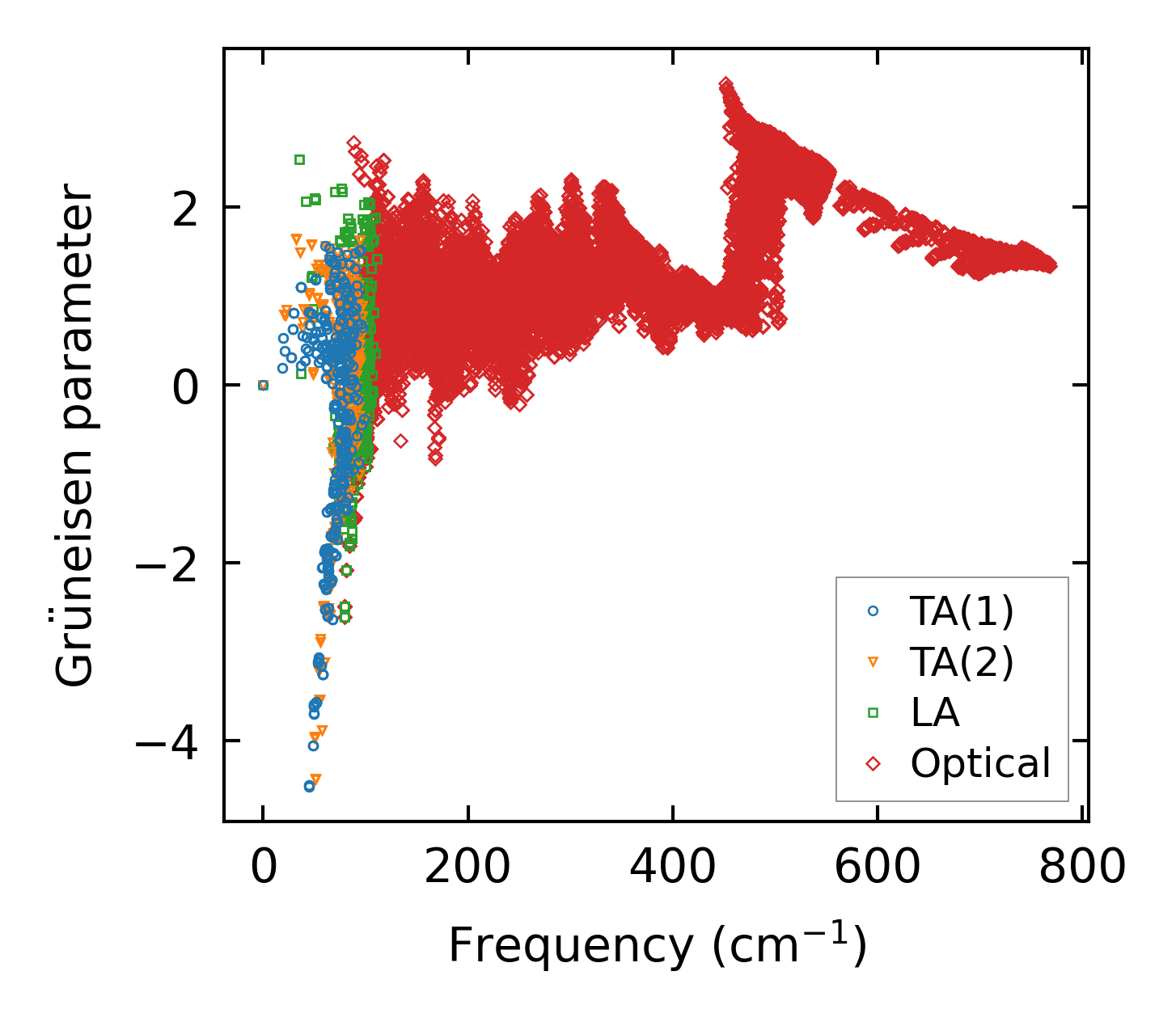

../../_images/fig_gru_all4052.png — (a) Grüneisen parameters

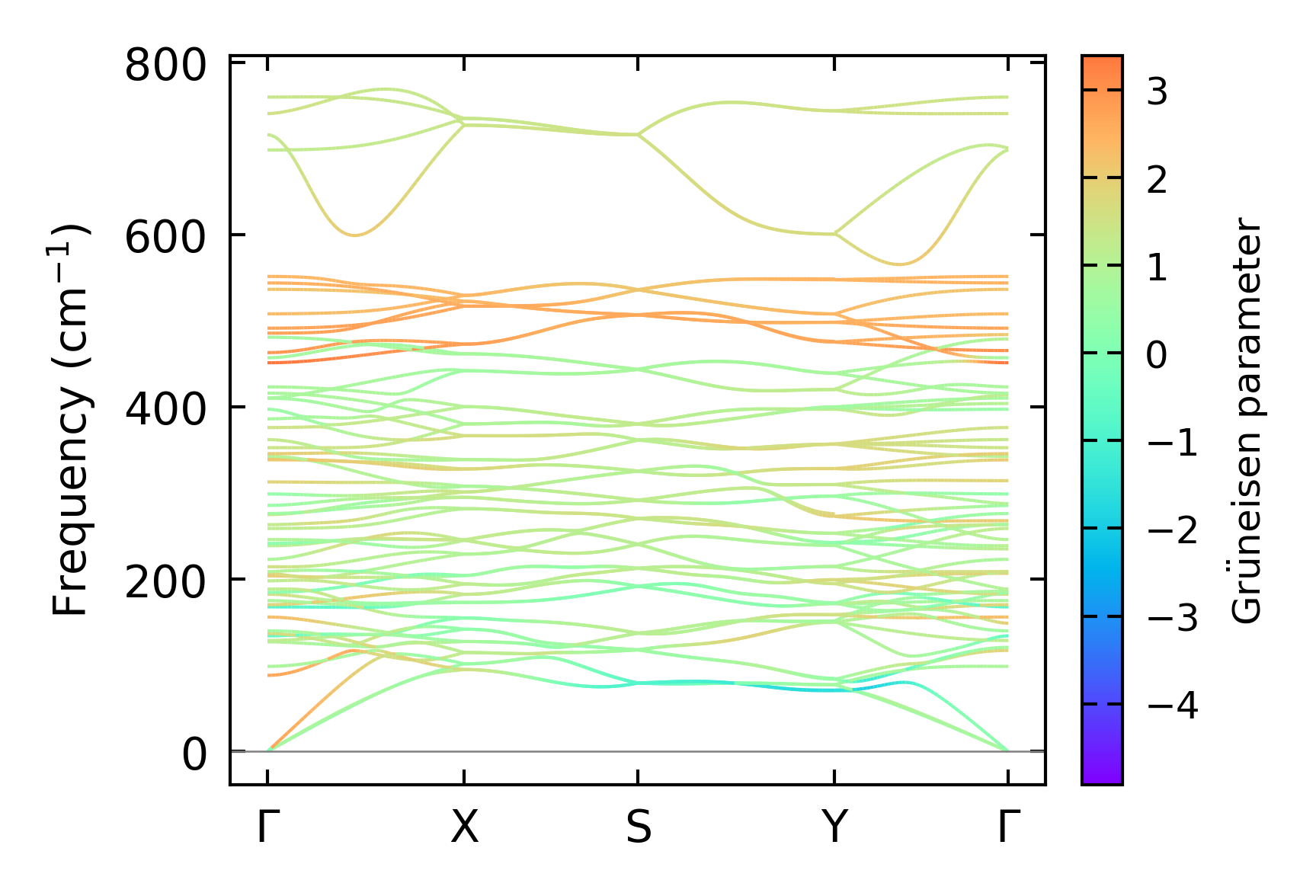

../../_images/fig_gruneisen4052.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x9x12, supercell: 2x1x2

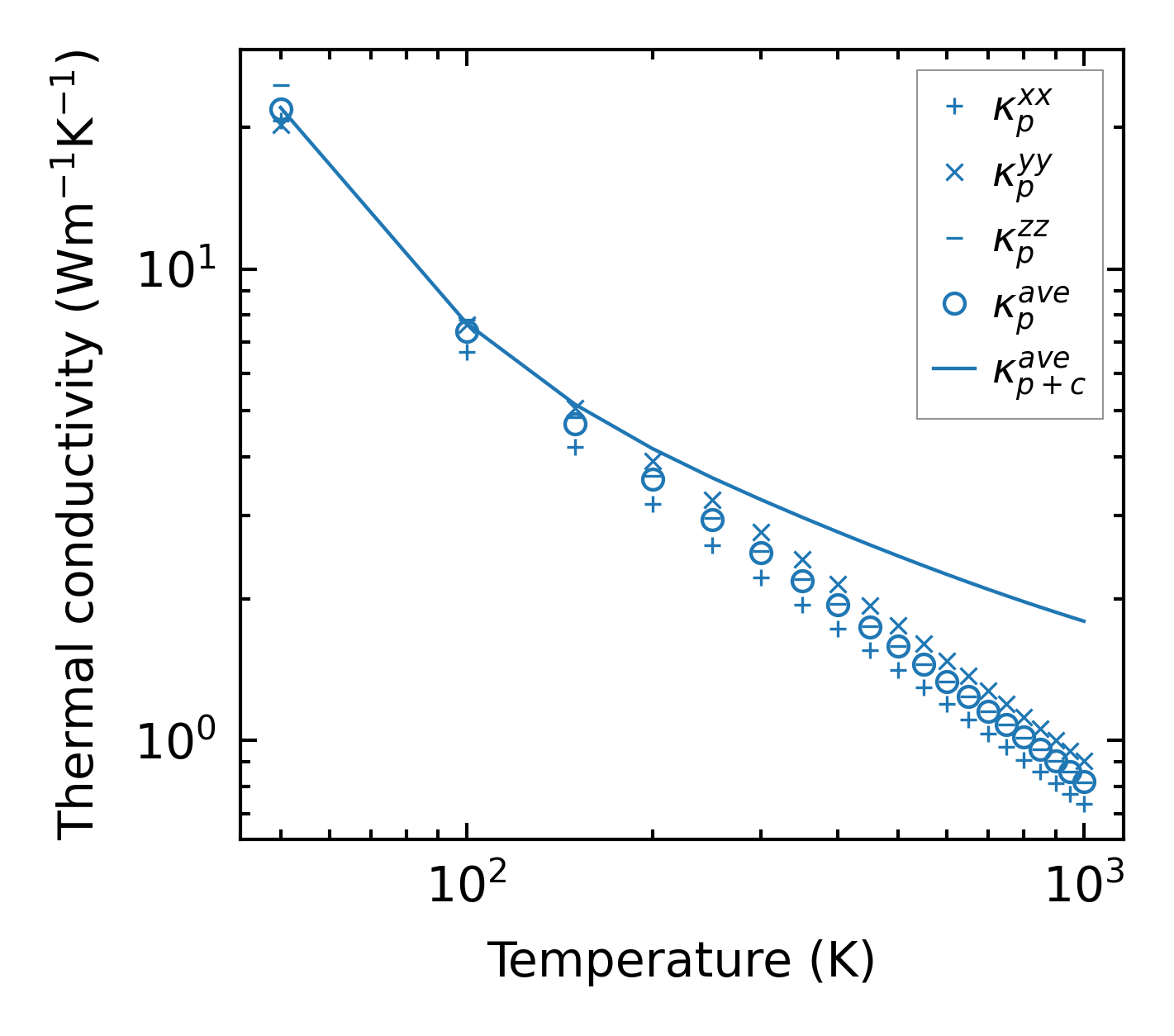

../../_images/fig_kappa7645.png — (a) Temperature-dependent lattice thermal conductivity

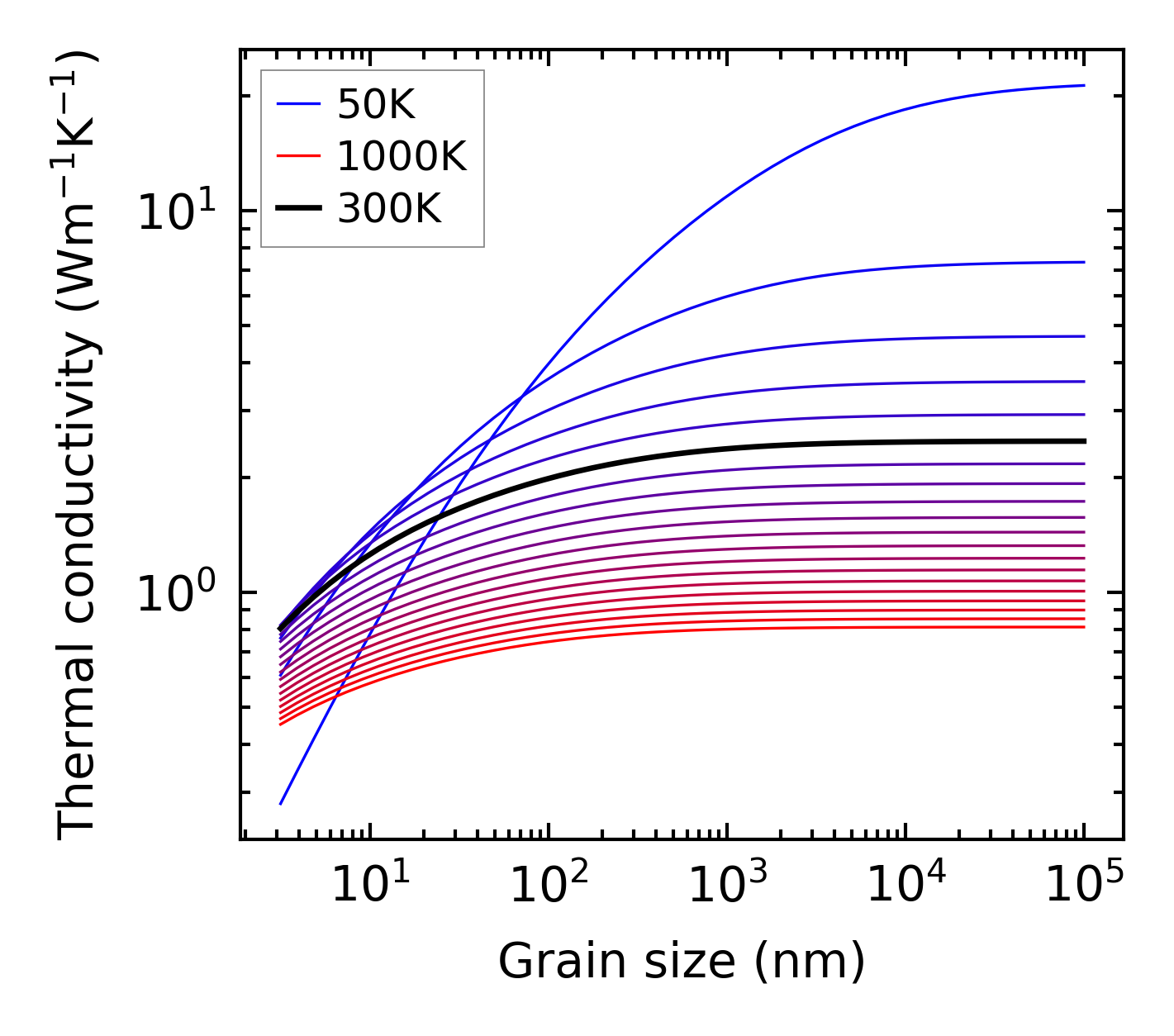

../../_images/fig_kappa_vs_grain_size4106.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

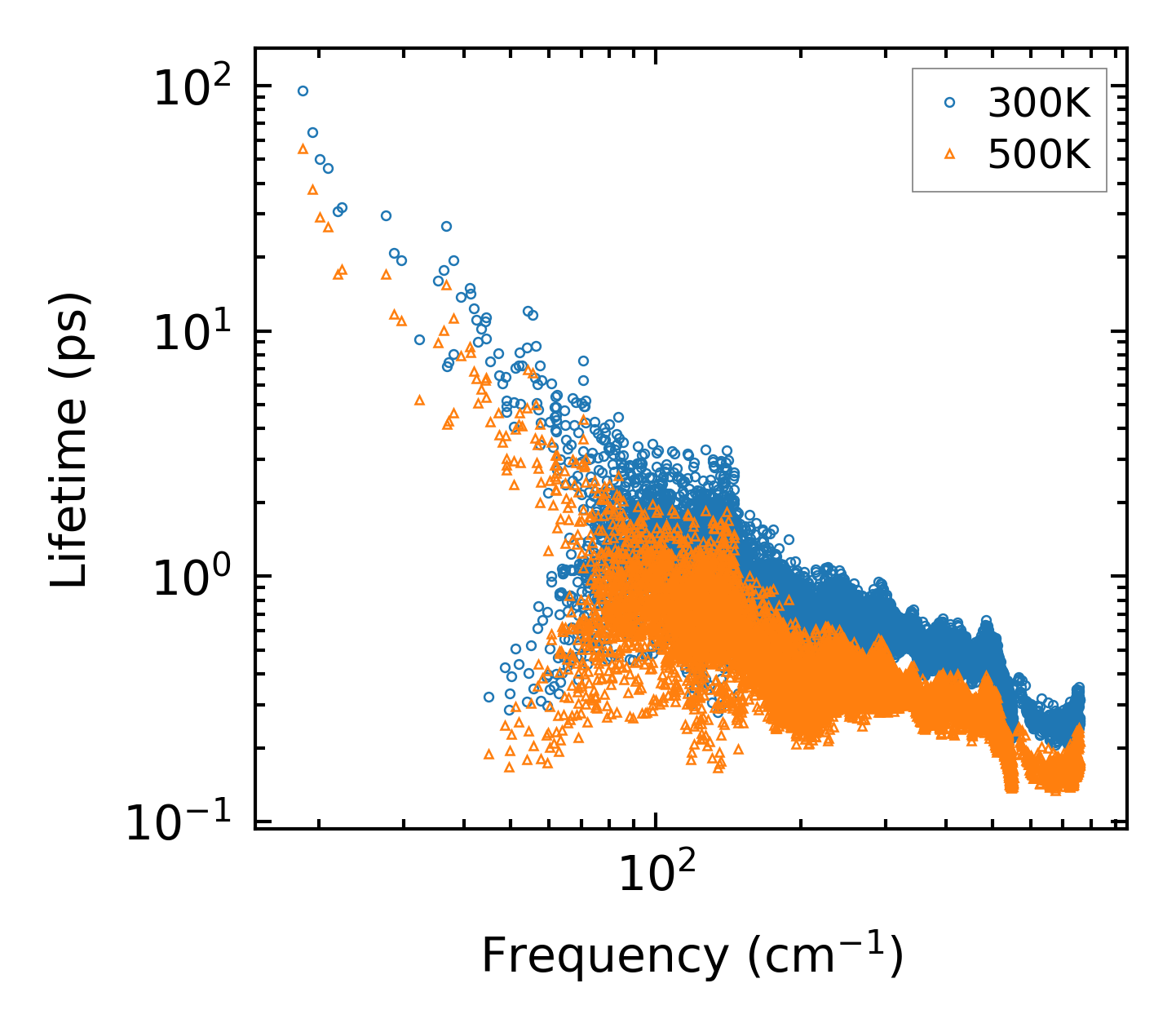

../../_images/fig_lifetime4014.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4013.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4014.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

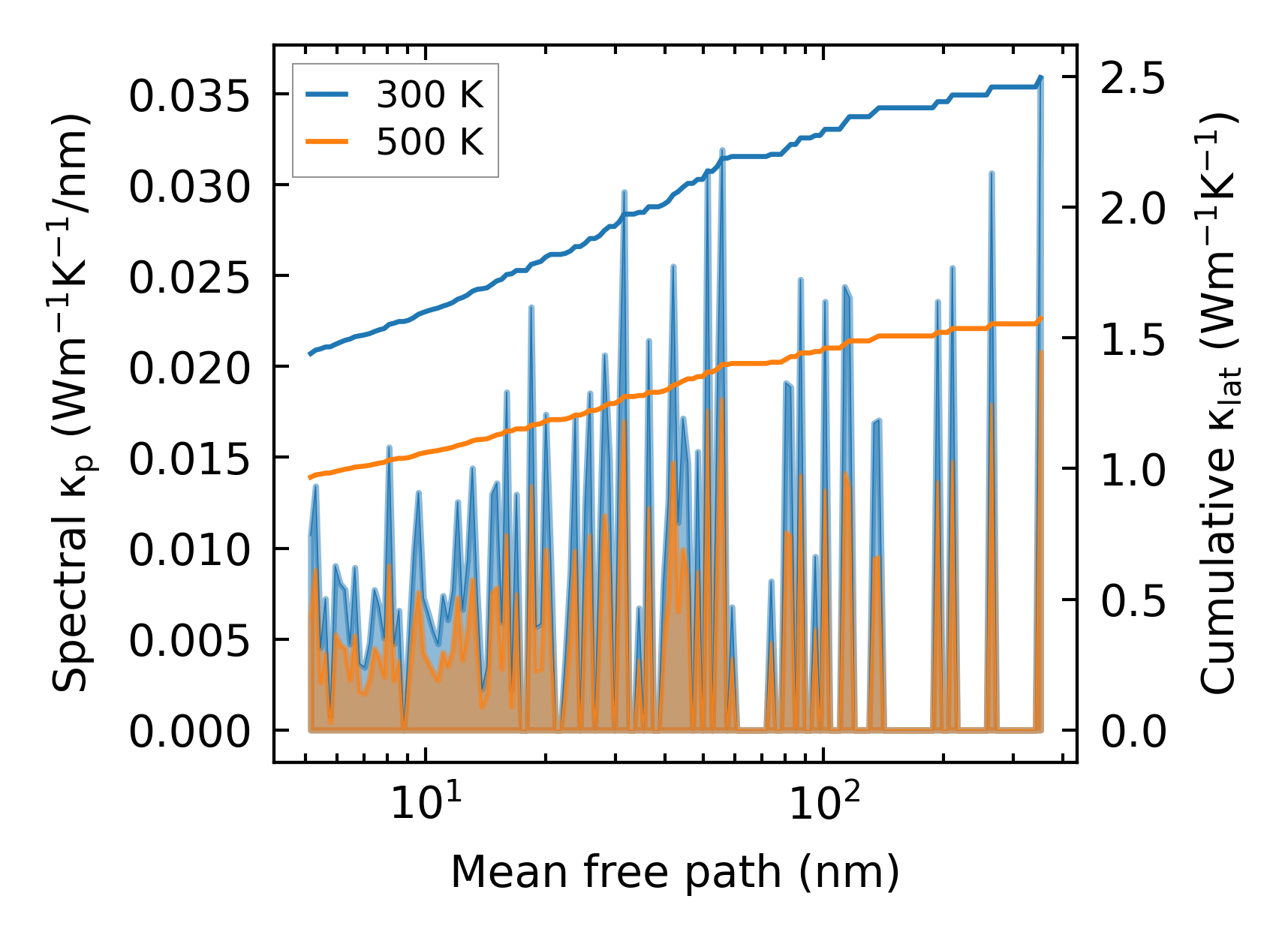

../../_images/fig_cumu_mfp4013.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

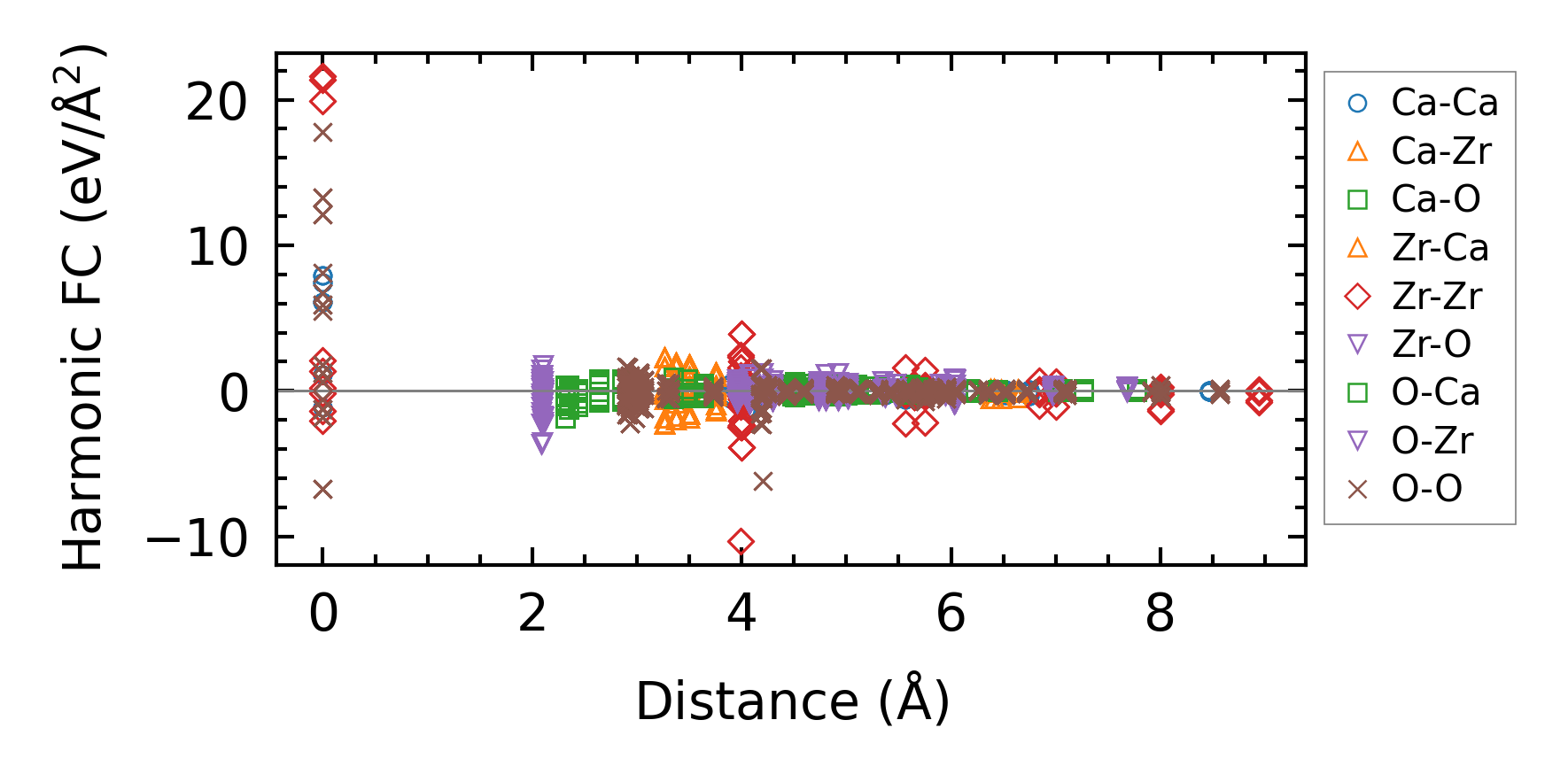

../../_images/fig_fc29829.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7646.png — (a) Temperature-dependent lattice thermal conductivity

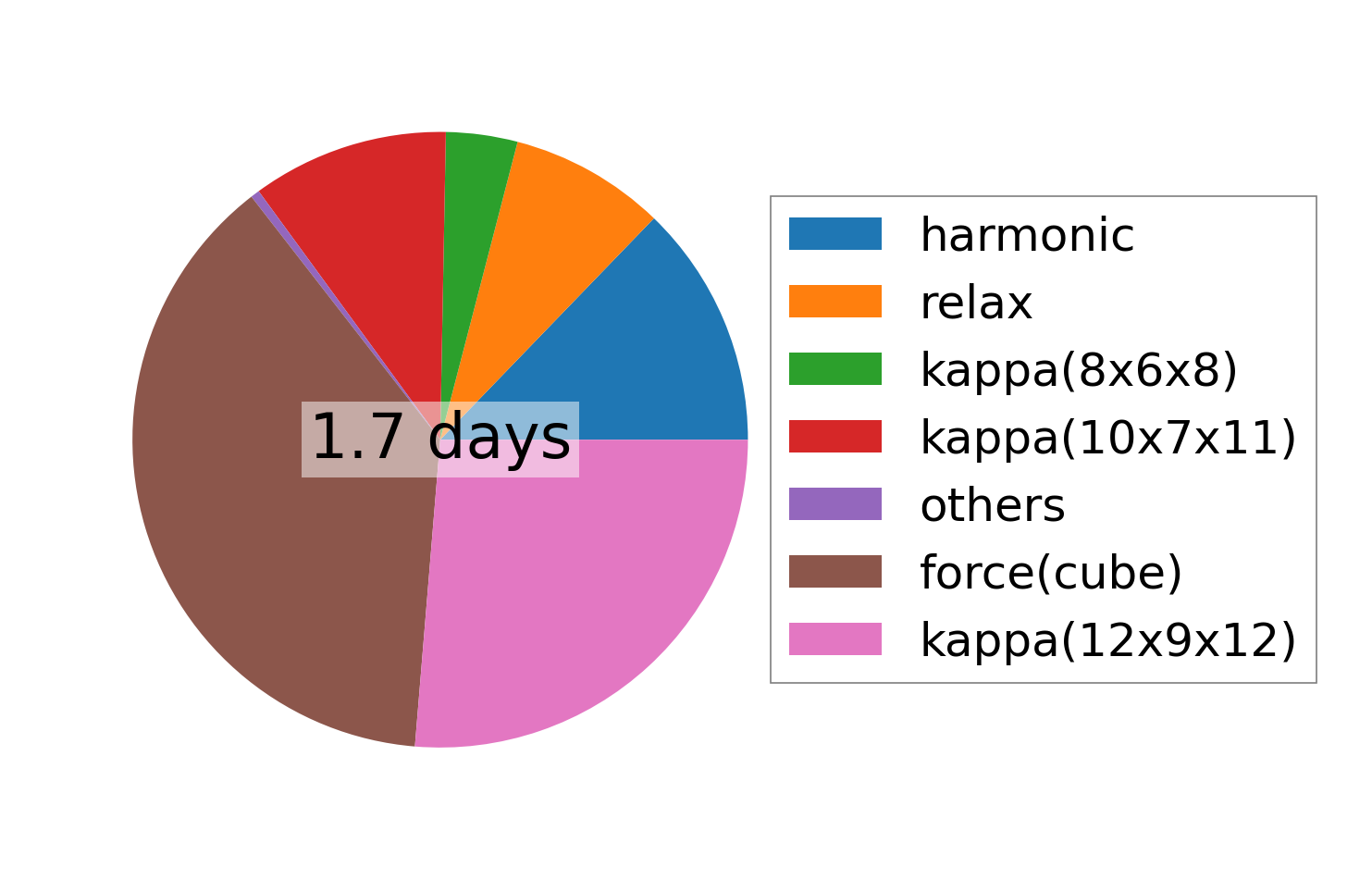

../../_images/fig_times17478.png — (b) Computation time
