mp-4823/Na2PdC2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-4823.tar.gz

Harmonic properties

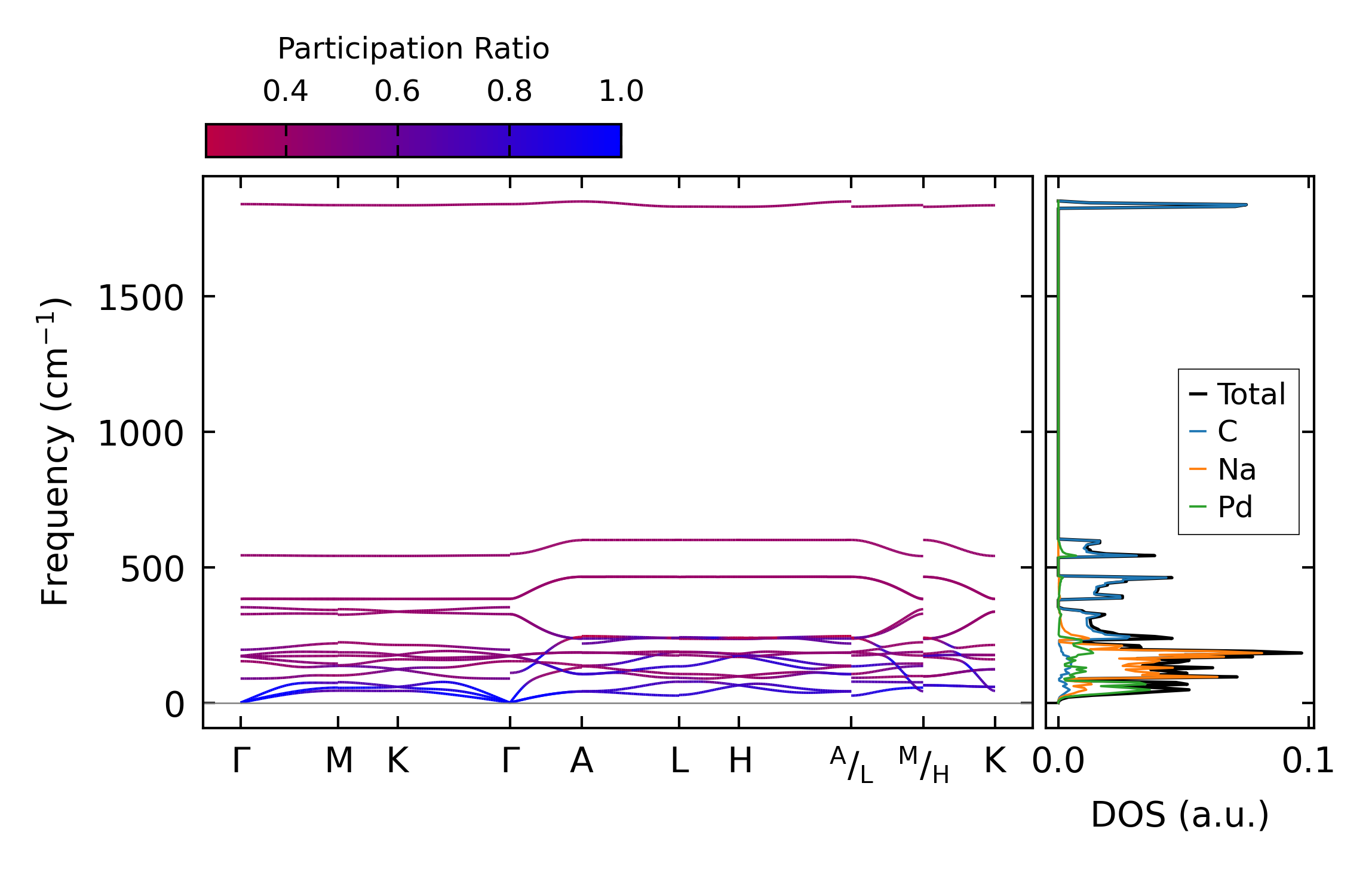

../../_images/fig_bandos_pr10148.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10148.png — (b) Thermodynamic properties

Grüneisen parameters

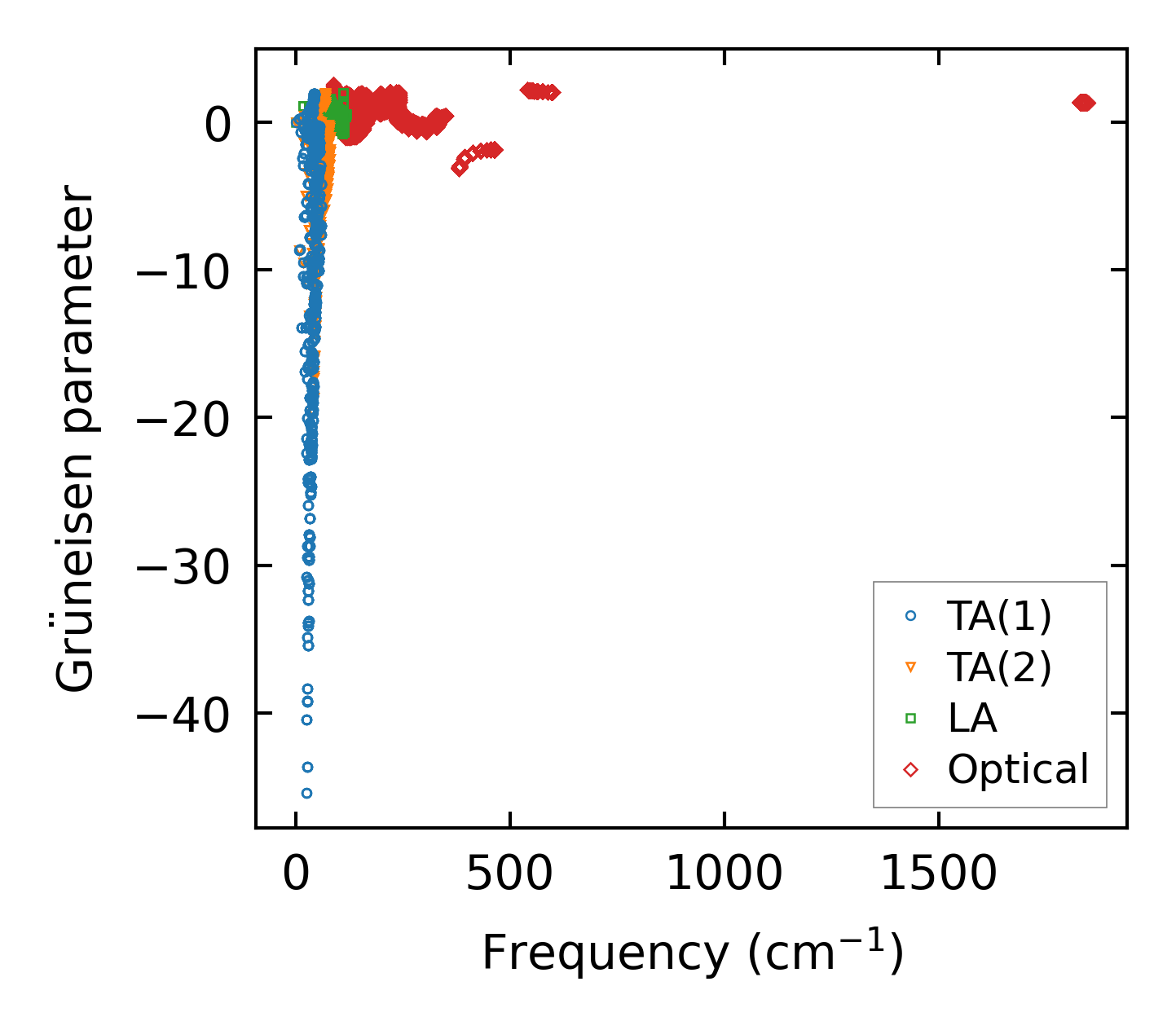

../../_images/fig_gru_all4090.png — (a) Grüneisen parameters

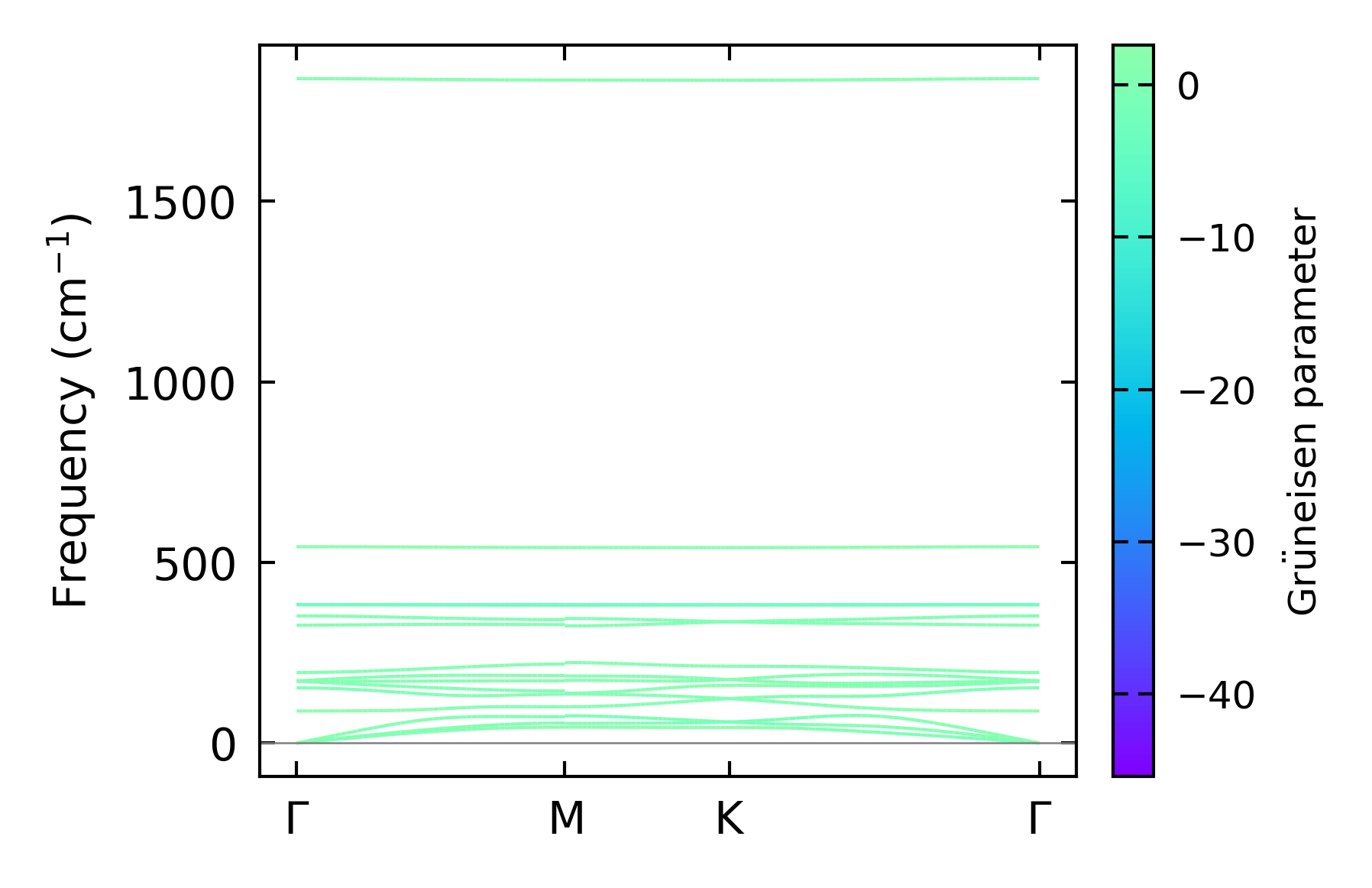

../../_images/fig_gruneisen4090.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x14, supercell: 3x3x3

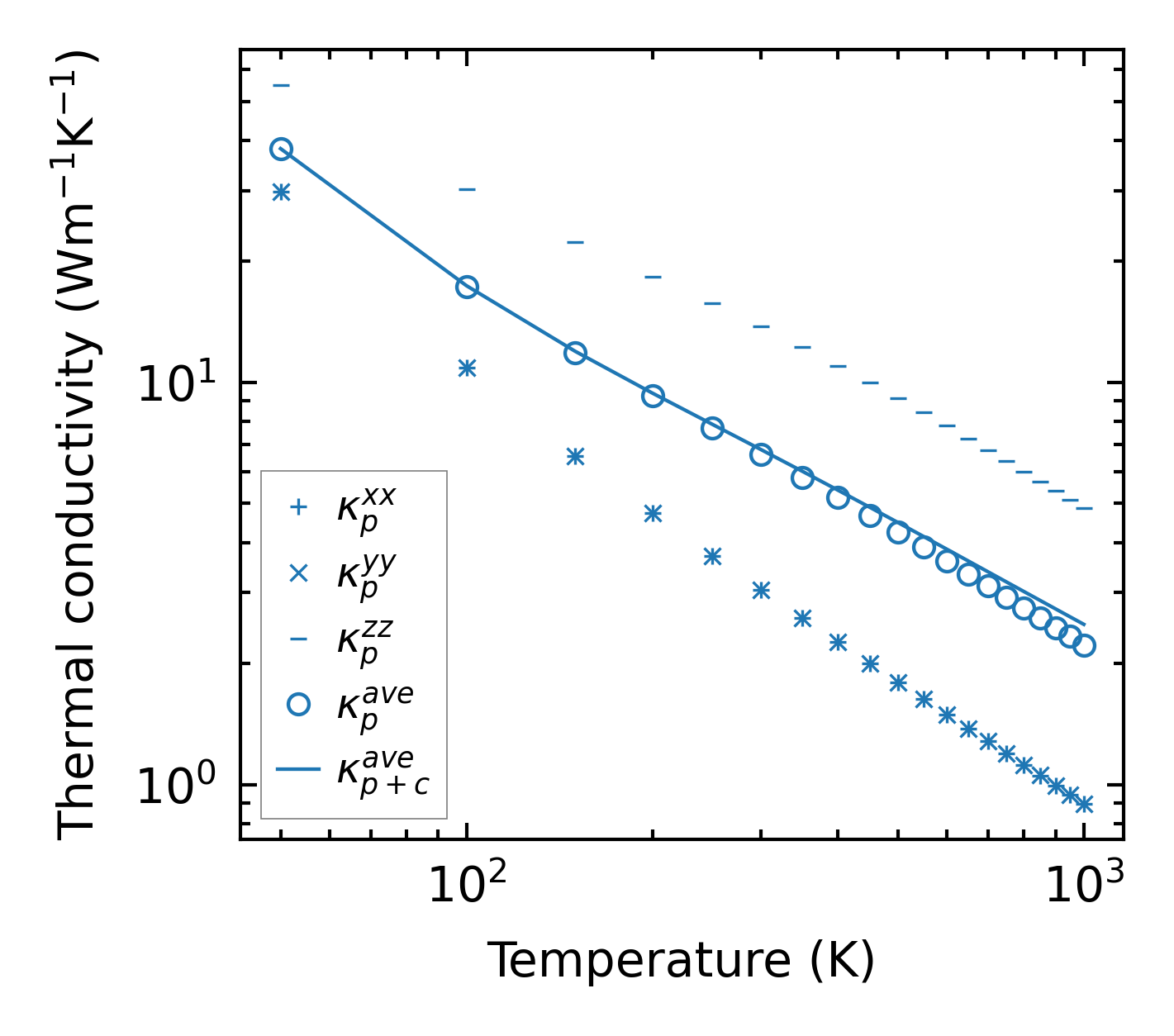

../../_images/fig_kappa7713.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4145.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

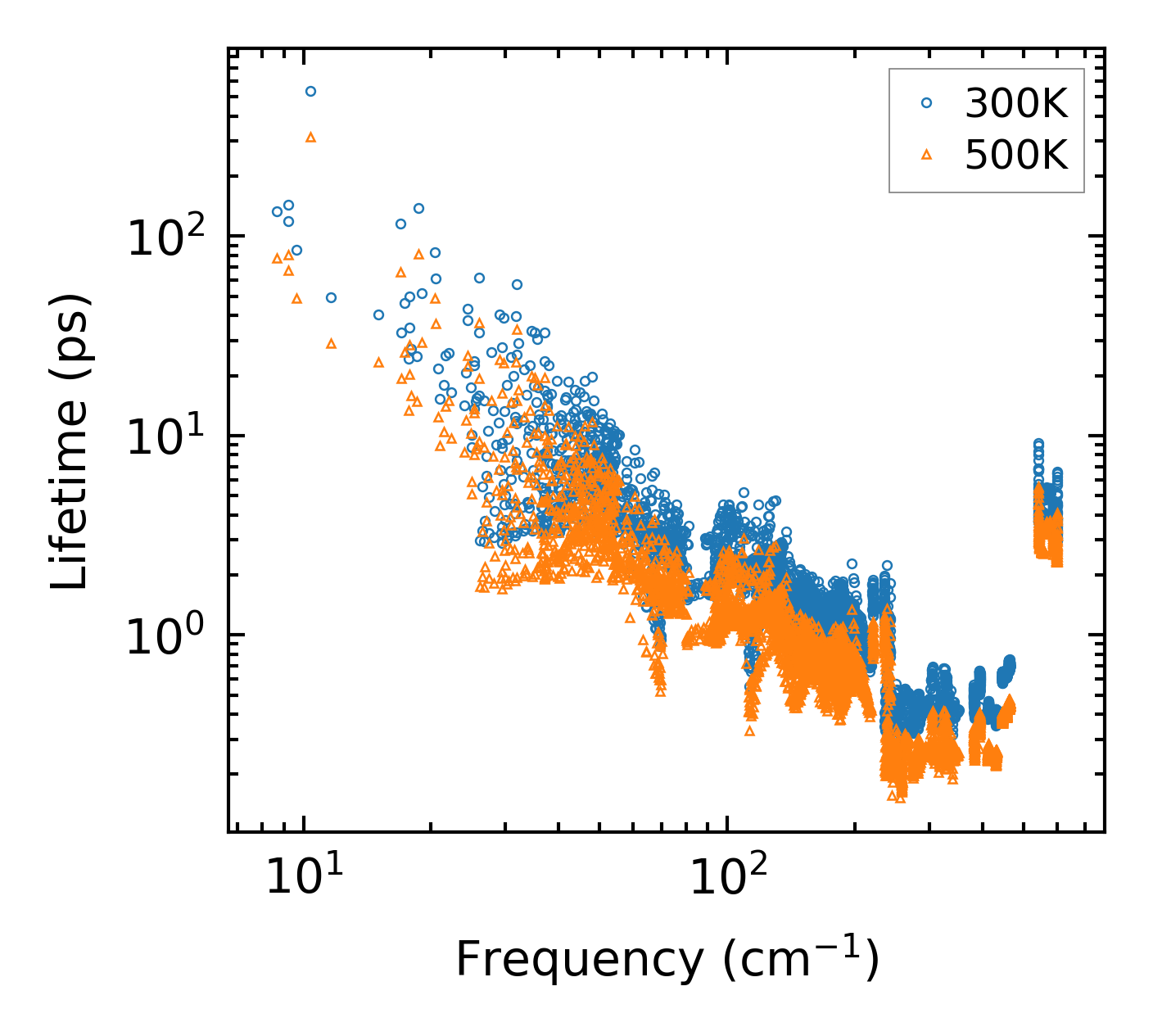

../../_images/fig_lifetime4052.png — (a) Phonon lifetime due to phonon-phonon scattering

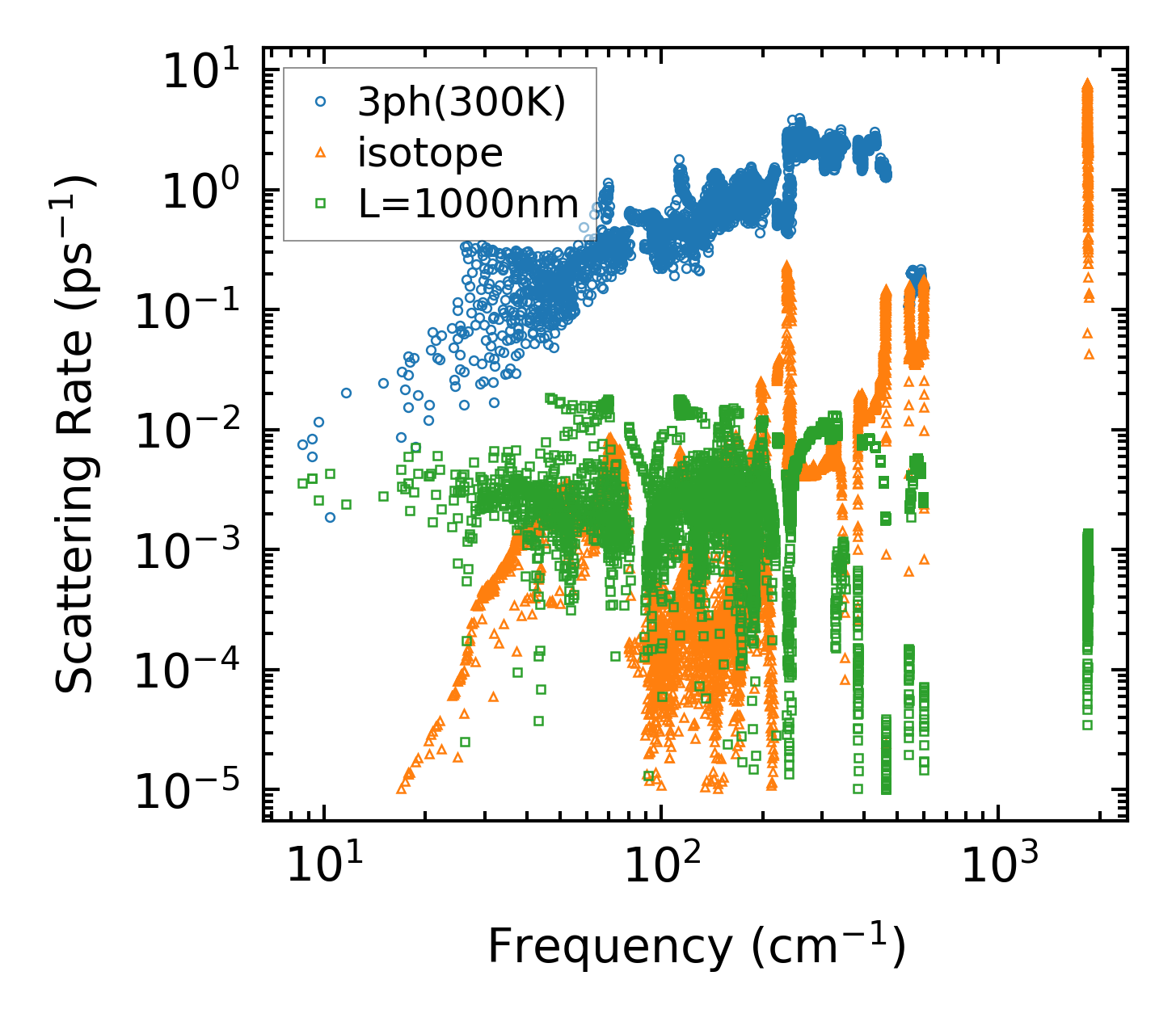

../../_images/fig_scat_rates4051.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4052.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4051.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

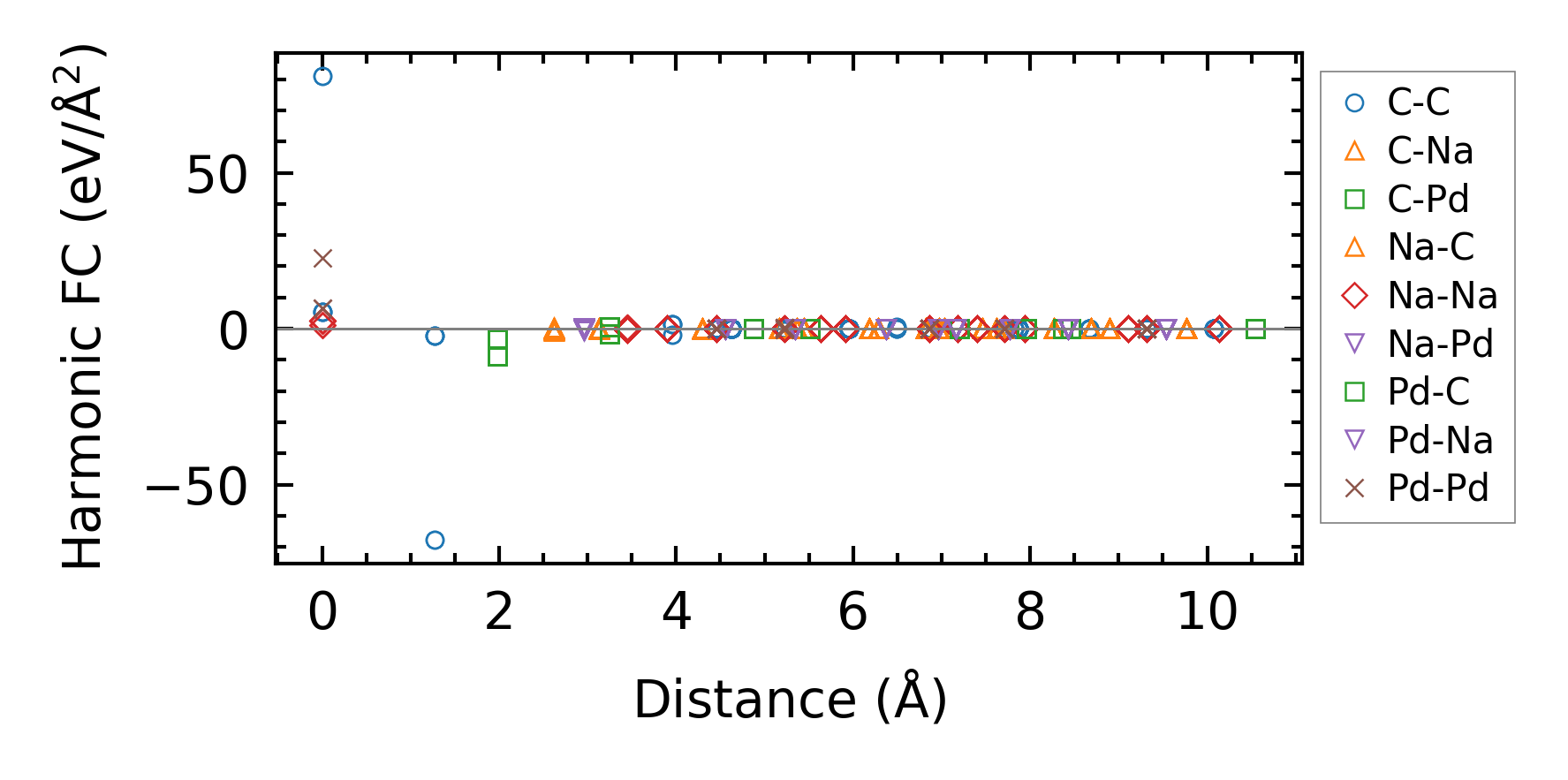

../../_images/fig_fc29900.png — (a) Force constants w.r.t atomic distance

Summary

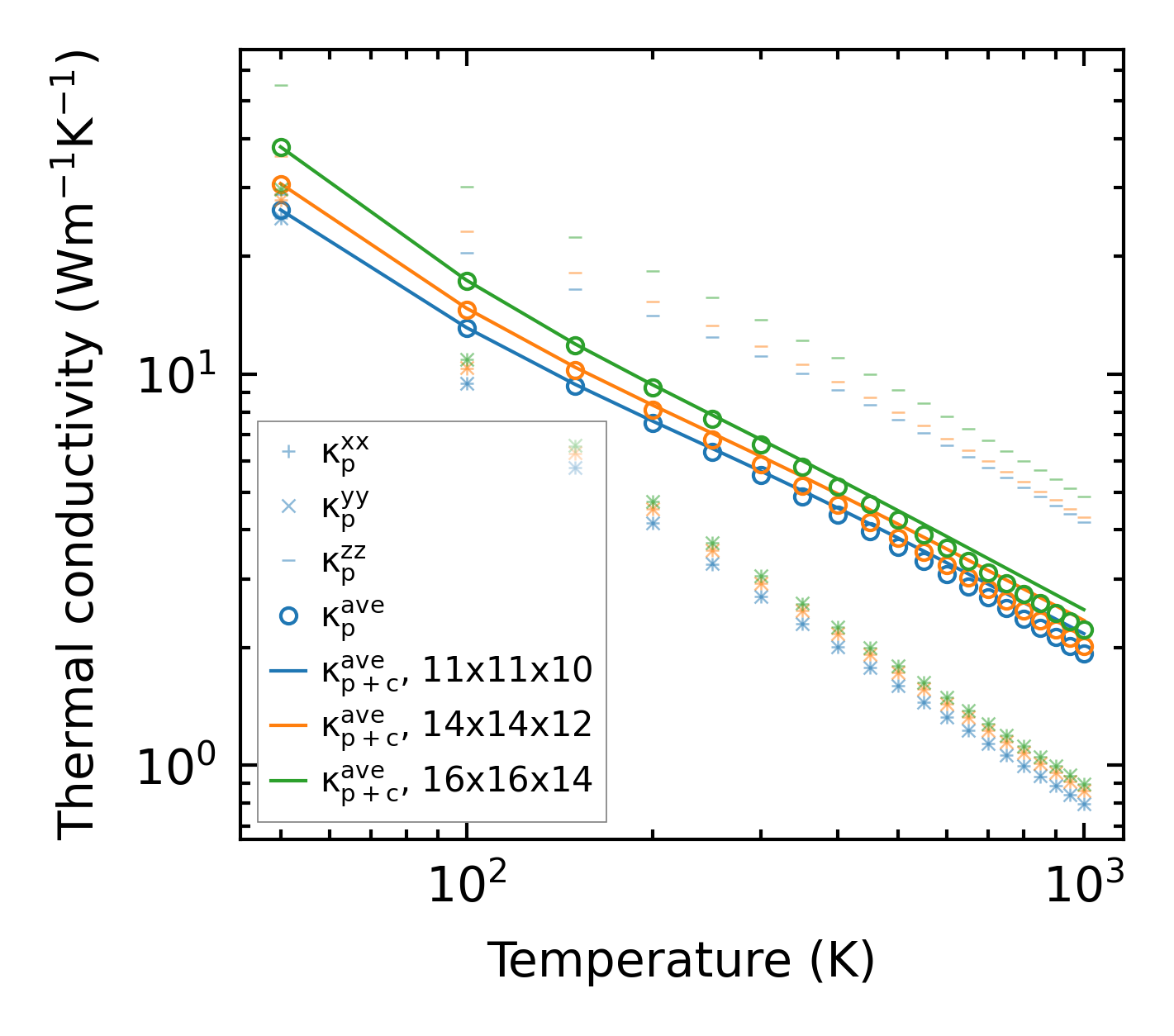

../../_images/fig_kappa7714.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17591.png — (b) Computation time
