mp-4024-2/DyAgTe2/anharm

Space group: P-42_1m (113)
Link: Materials Project
Download: mp-4024-2.tar.gz

Equation of state

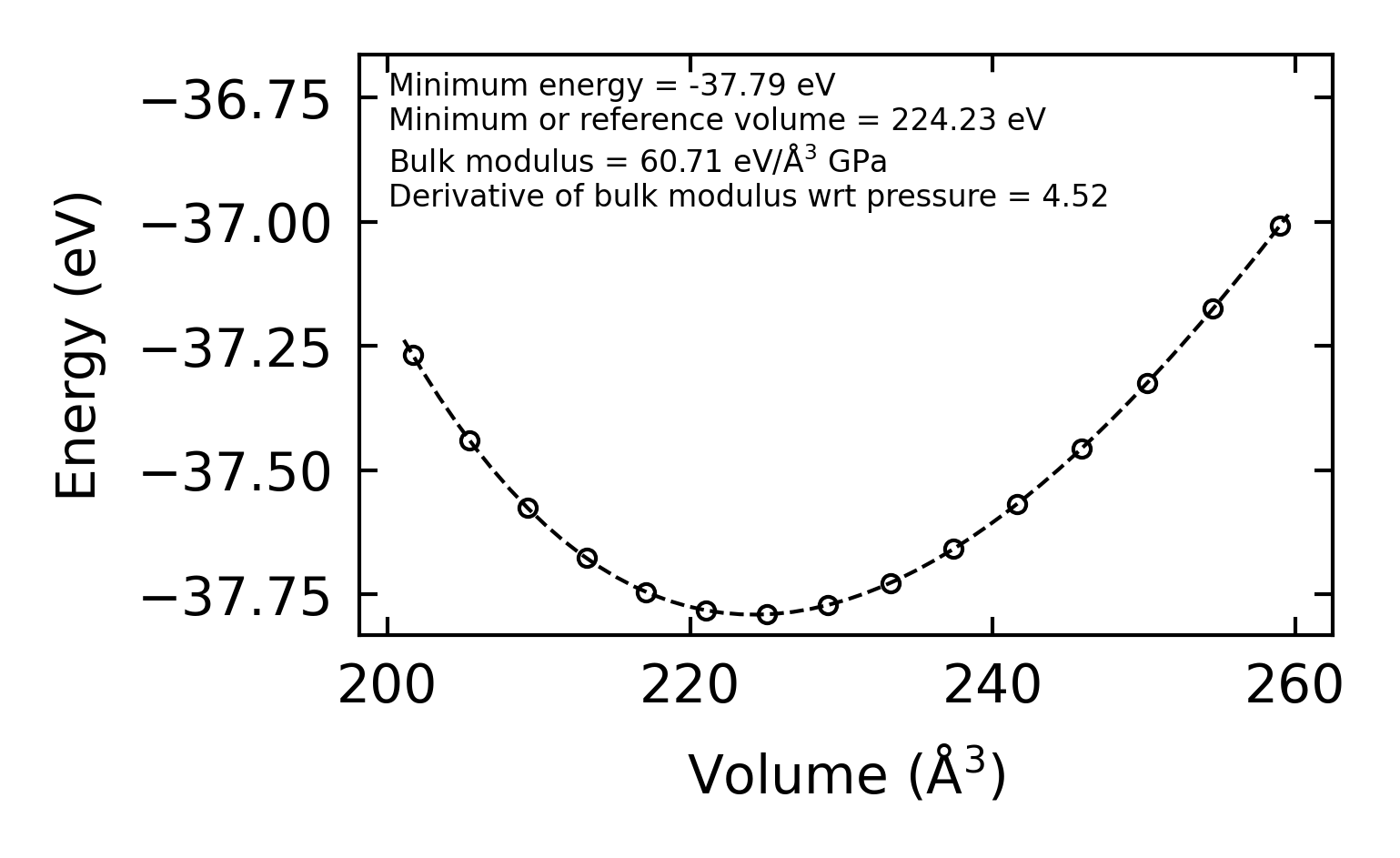

../../_images/fig_bm5166.png — (a) Equation of state

Harmonic properties

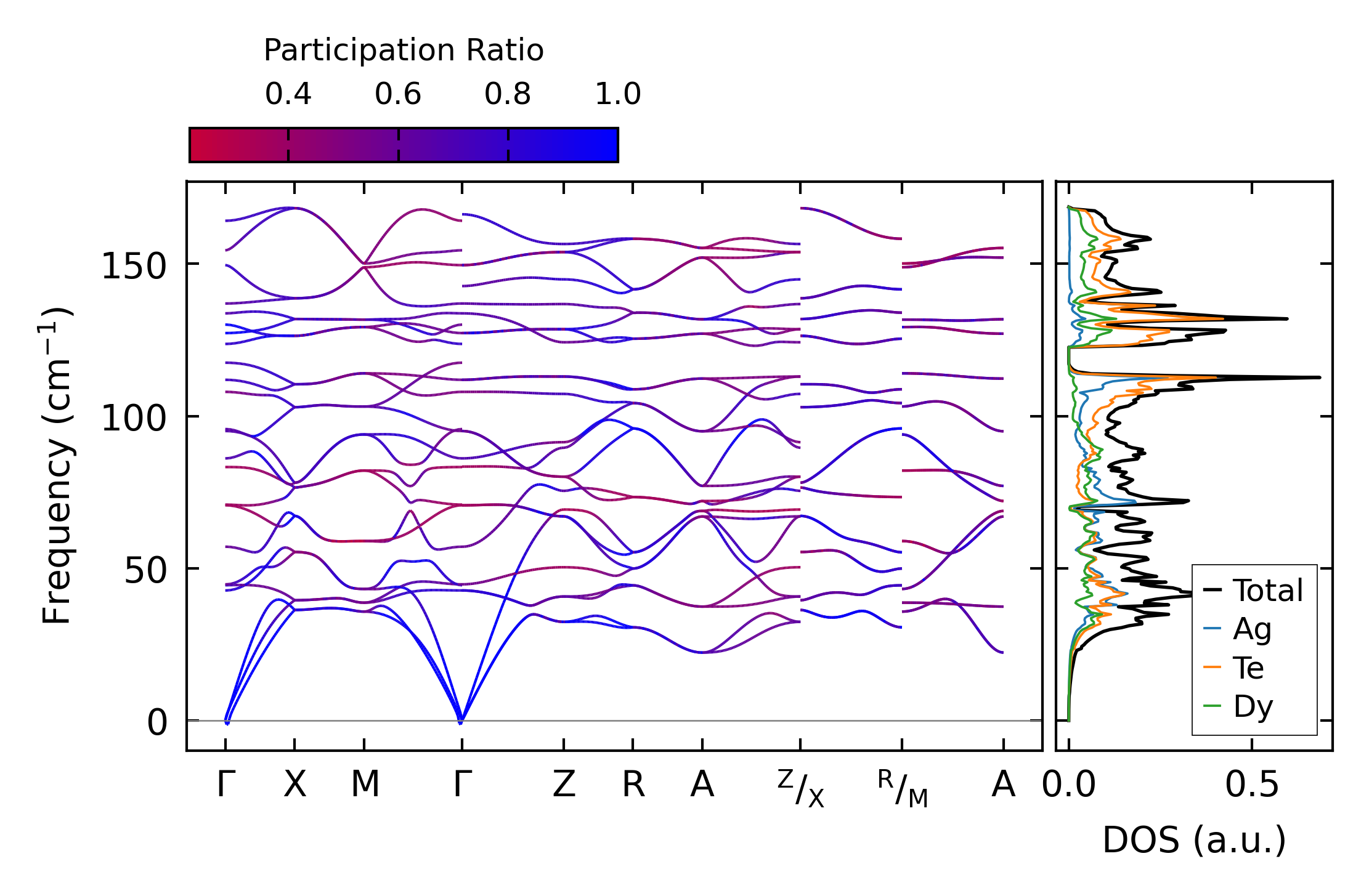

../../_images/fig_bandos_pr10308.png — (a) Phonon dispersion with participation ratio and DOS

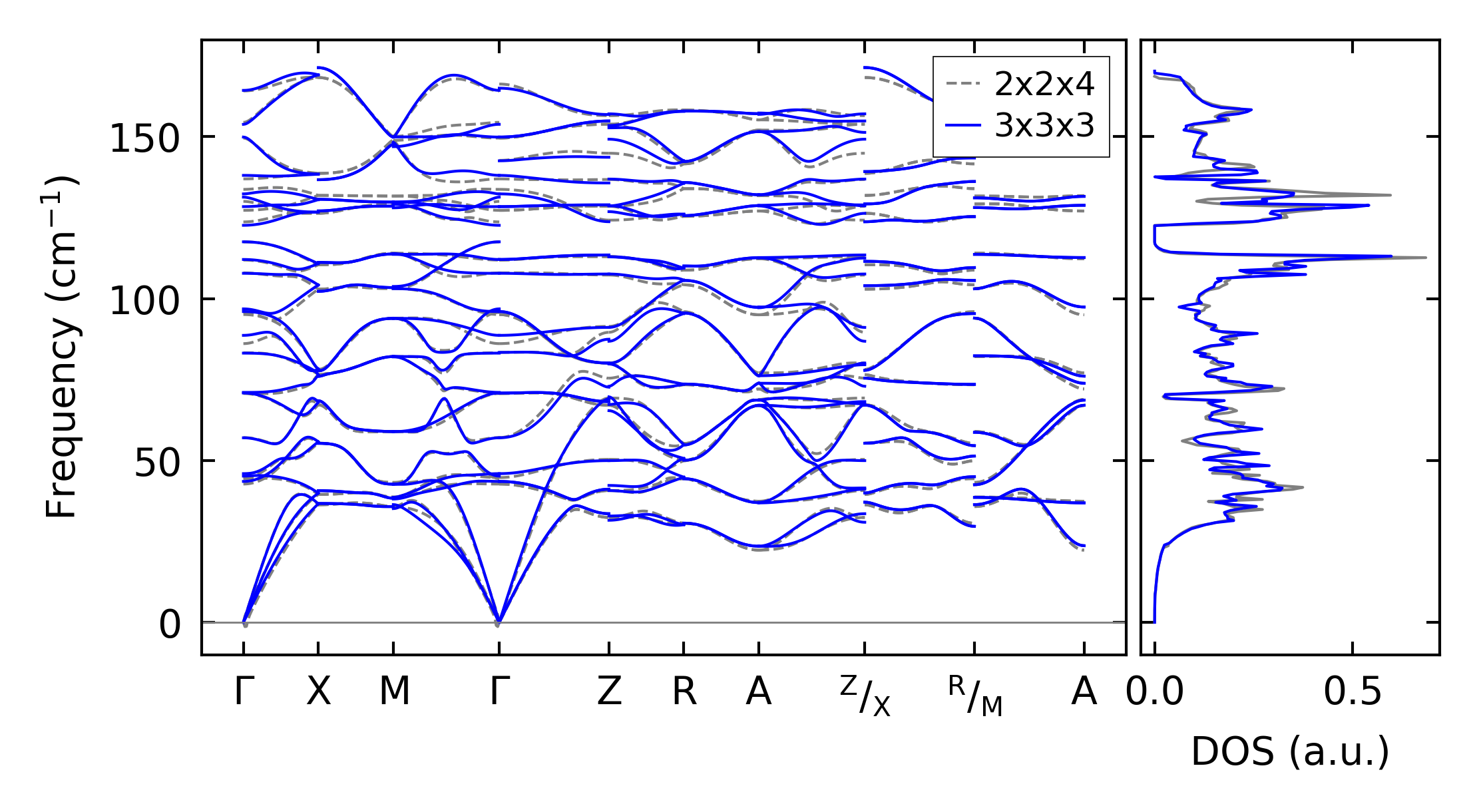

../../_images/fig_bandos14259.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo10308.png — (c) Thermodynamic properties

Grüneisen parameters

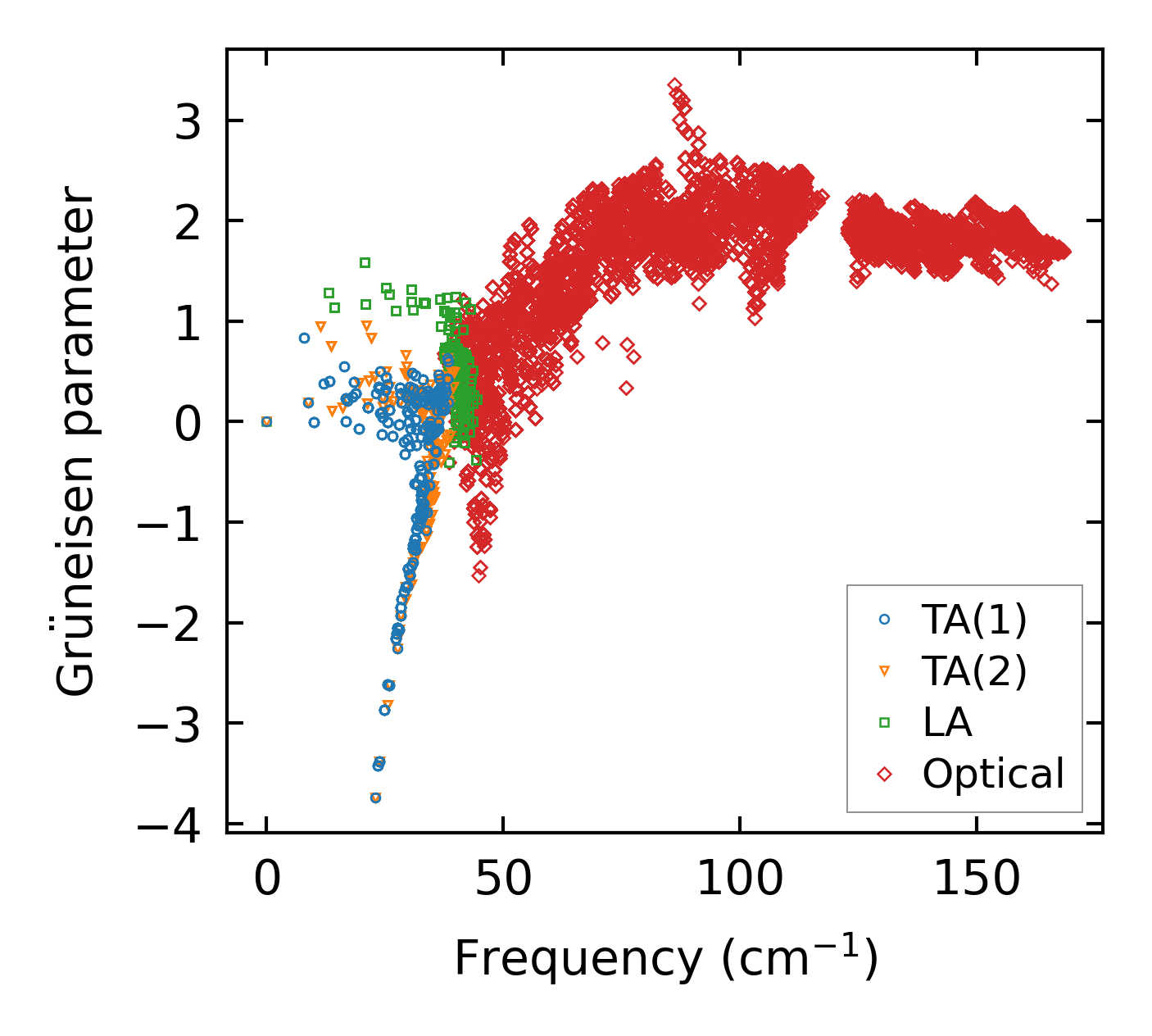

../../_images/fig_gru_all4154.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4154.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x3 — q-mesh: 10x10x15, supercell: 3x3x3

../../_images/fig_kappa7833.png — (a) Temperature-dependent lattice thermal conductivity

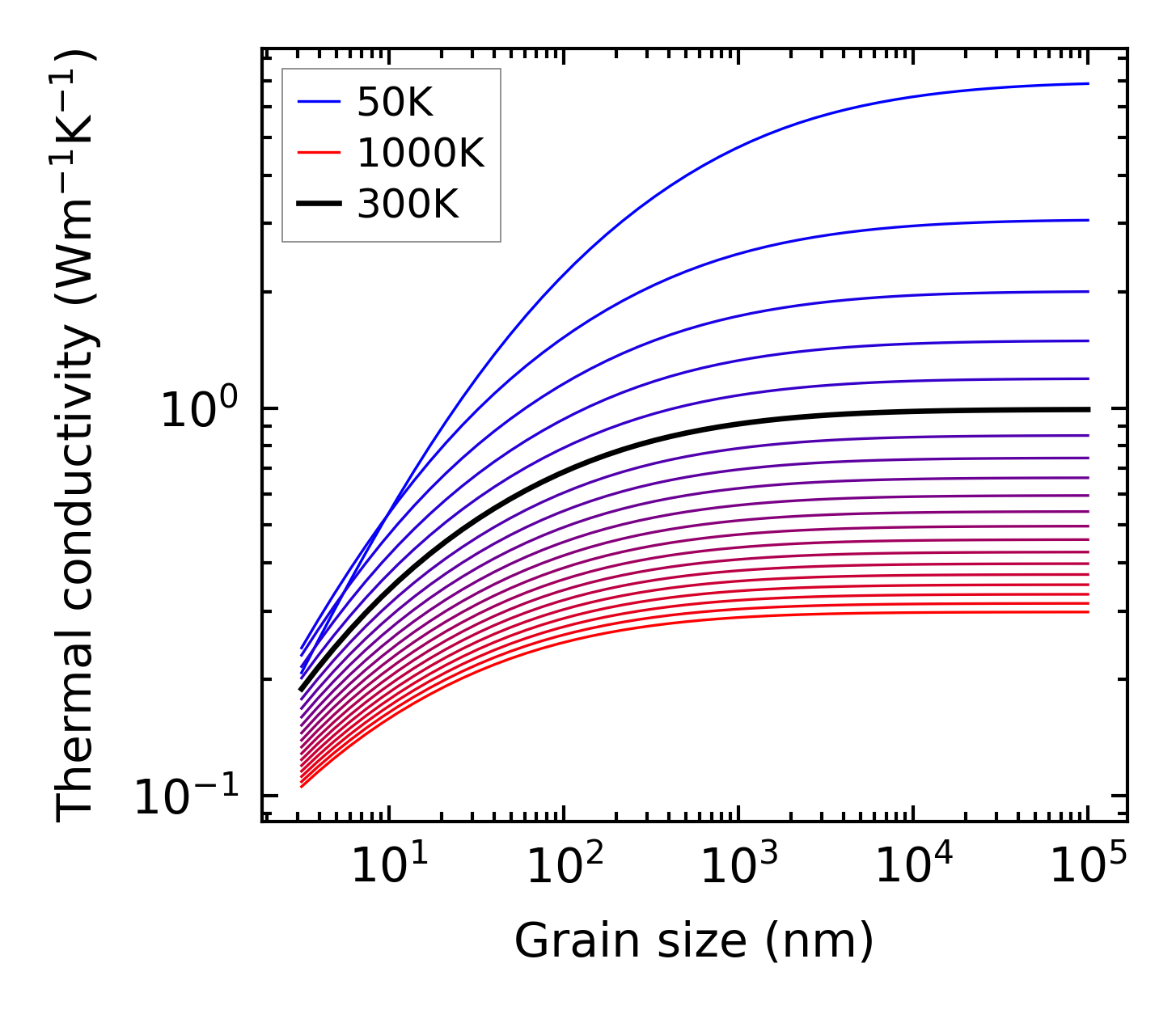

../../_images/fig_kappa_vs_grain_size4210.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4116.png — (a) Phonon lifetime due to phonon-phonon scattering

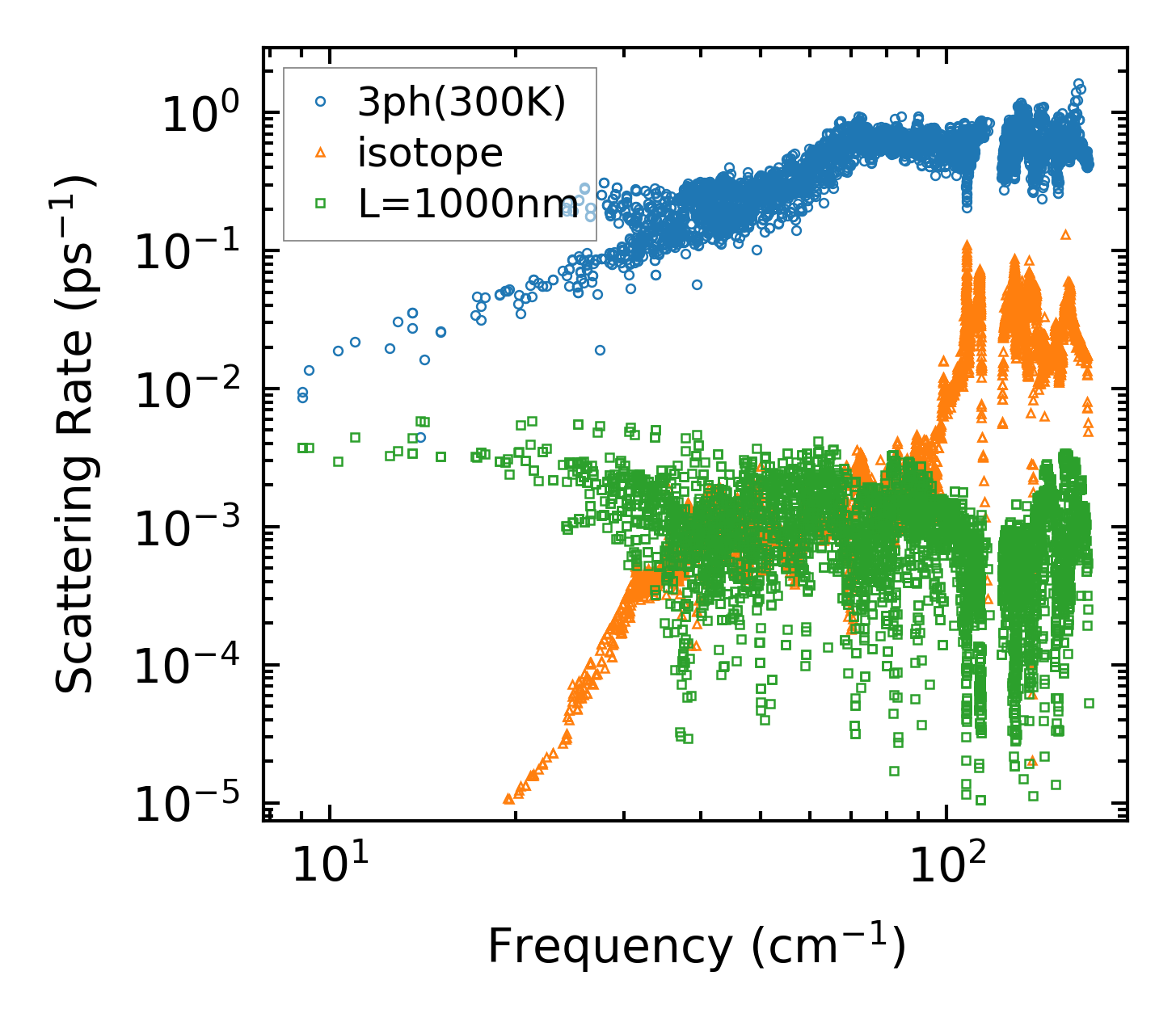

../../_images/fig_scat_rates4115.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4116.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

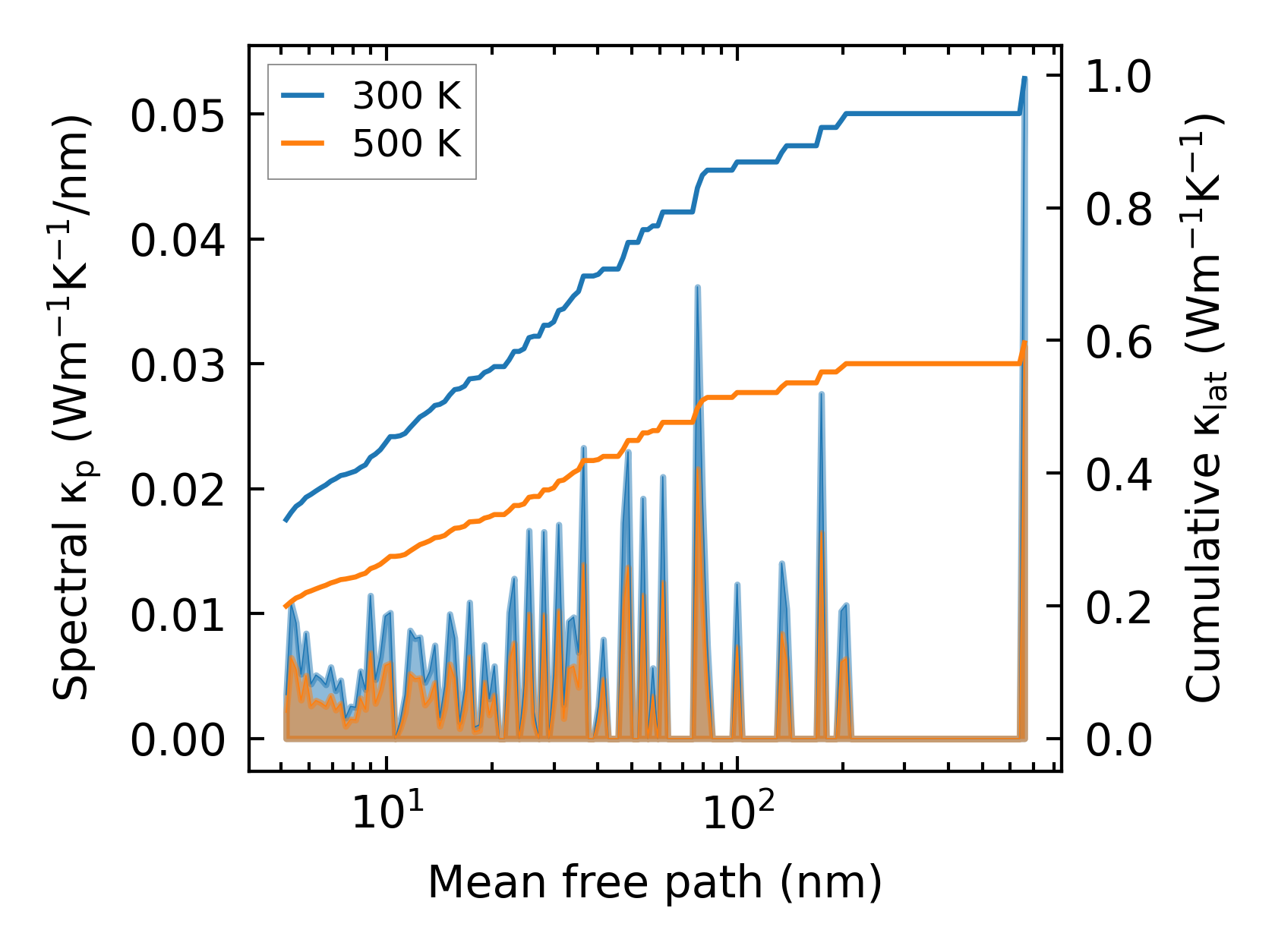

../../_images/fig_cumu_mfp4115.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc210058.png — (a) Force constants w.r.t atomic distance

Summary

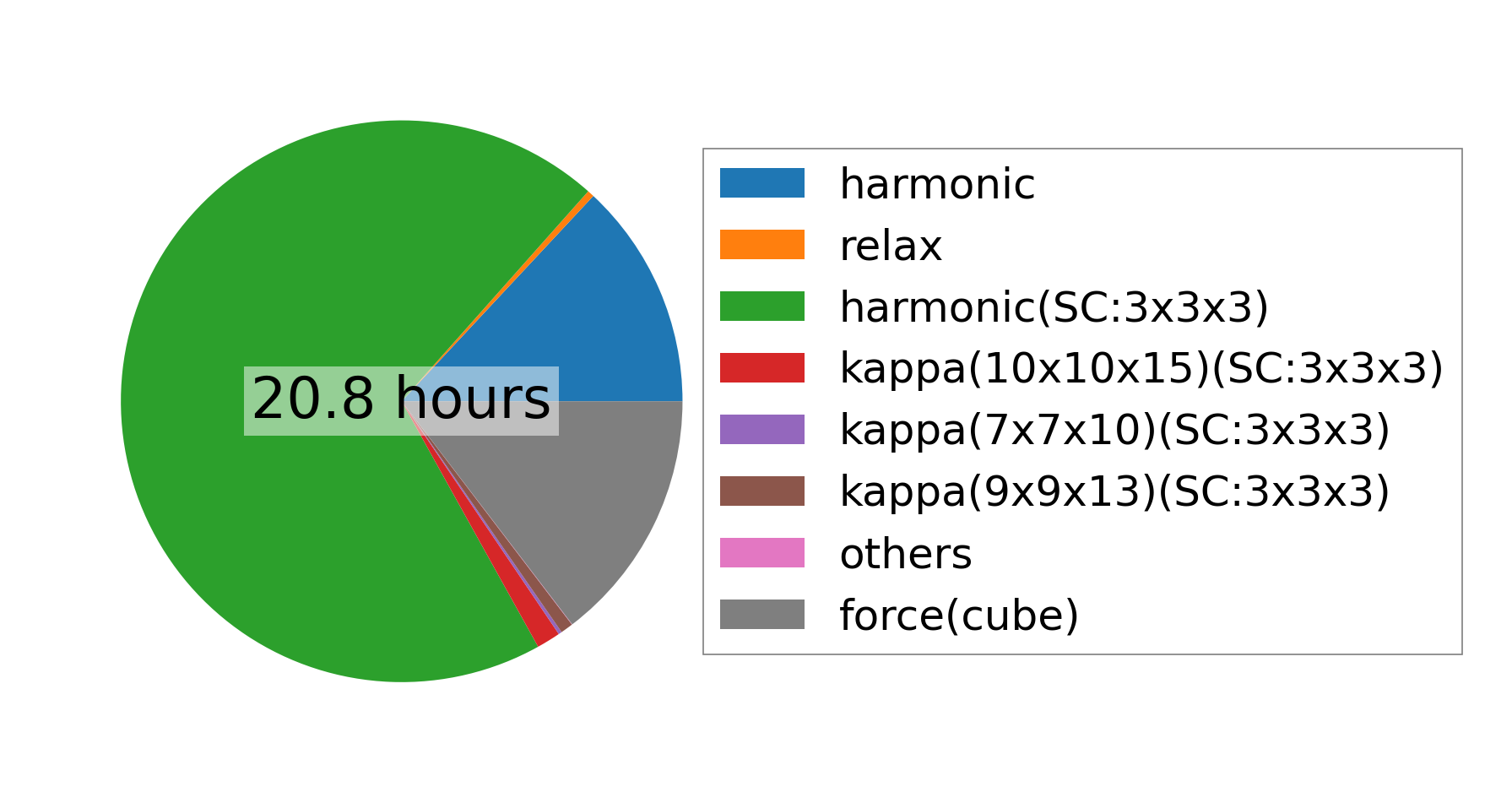

../../_images/fig_times17809.png — (a) Computation time
