mp-4287/Sr2SnO4/anharm

Space group: P4_2/ncm (138)
Link: Materials Project
Download: mp-4287.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10372.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10372.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4194.png — (a) Grüneisen parameters

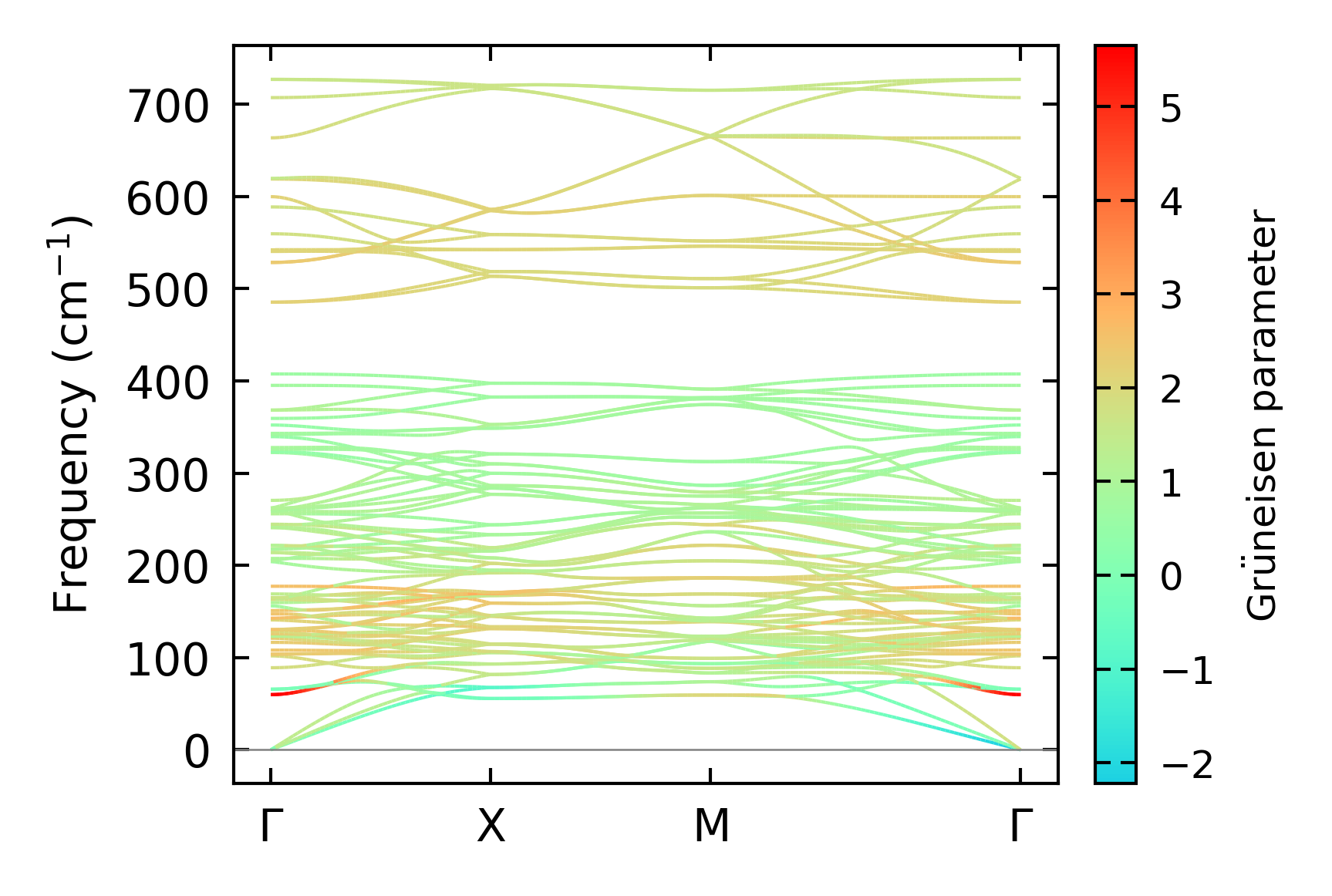

../../_images/fig_gruneisen4194.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x5, supercell: 2x2x1

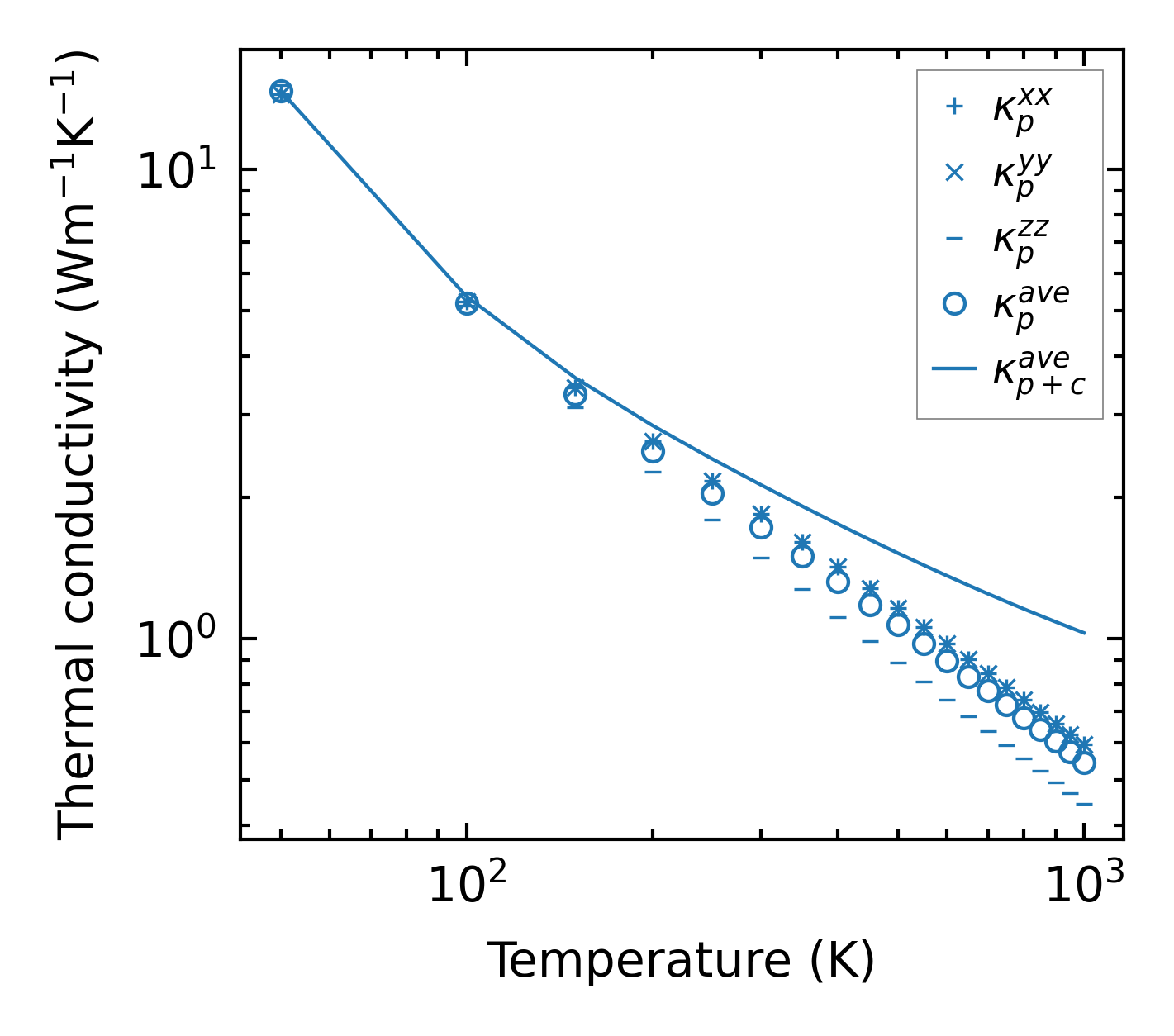

../../_images/fig_kappa7906.png — (a) Temperature-dependent lattice thermal conductivity

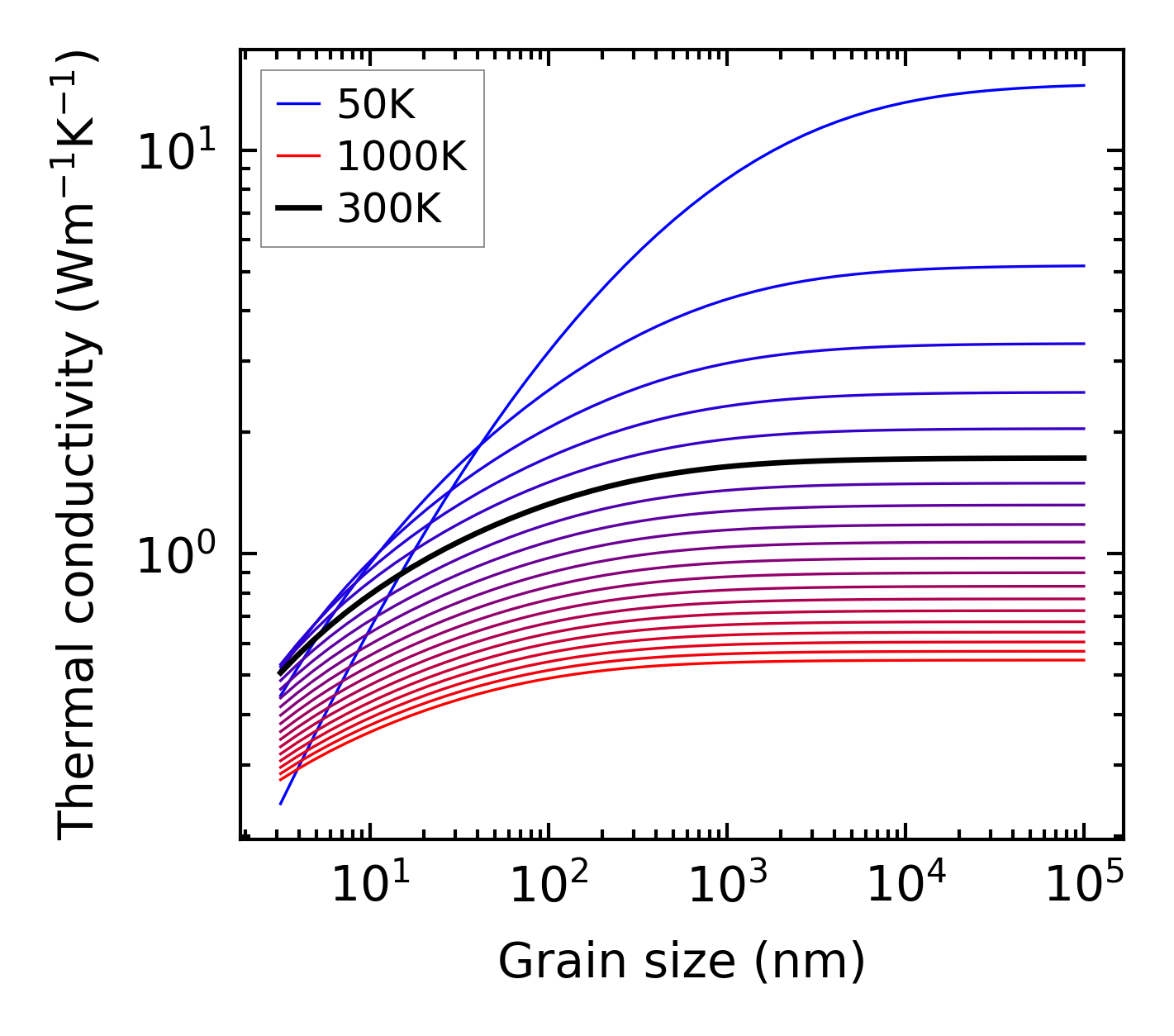

../../_images/fig_kappa_vs_grain_size4248.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

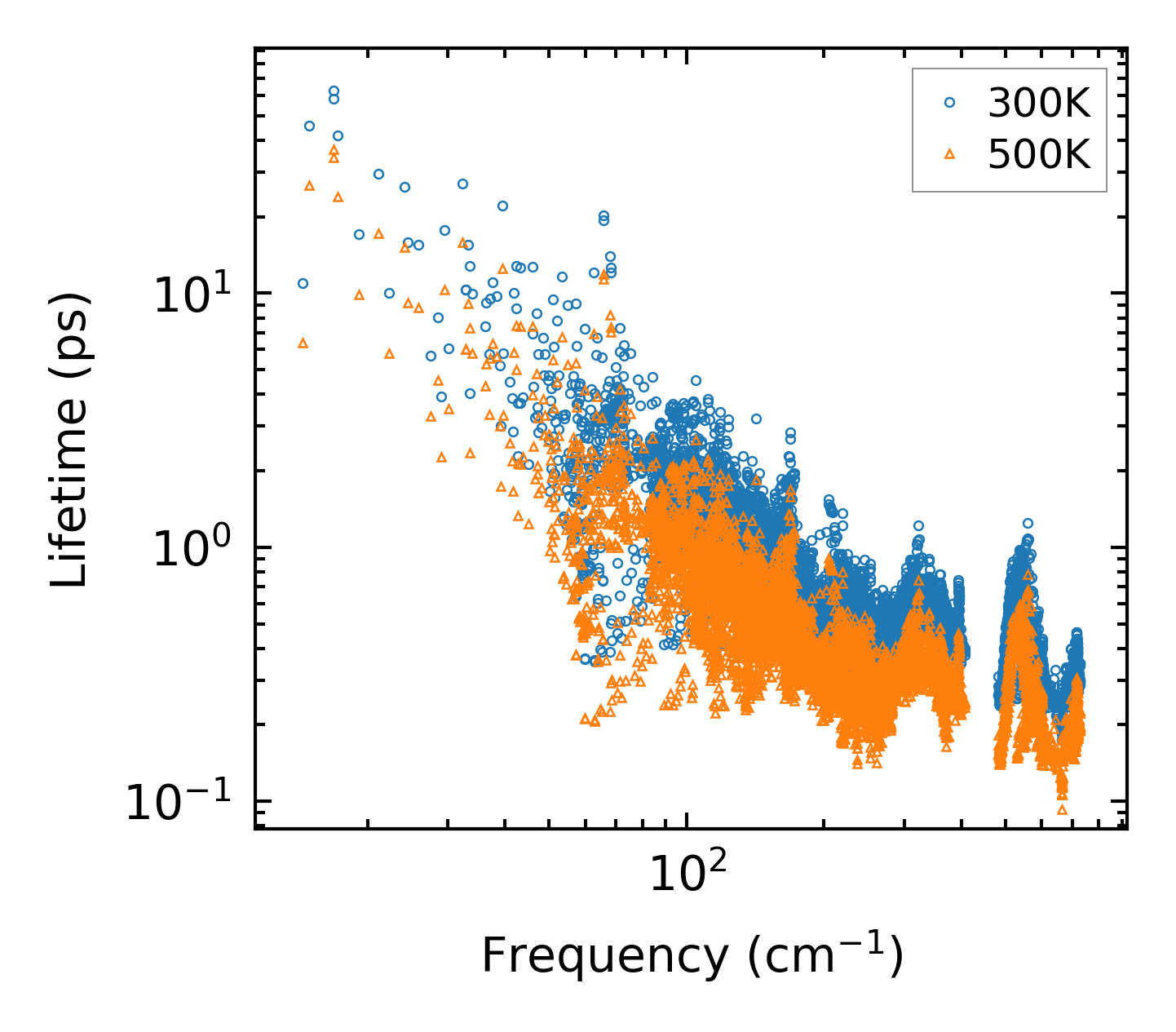

../../_images/fig_lifetime4154.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4153.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

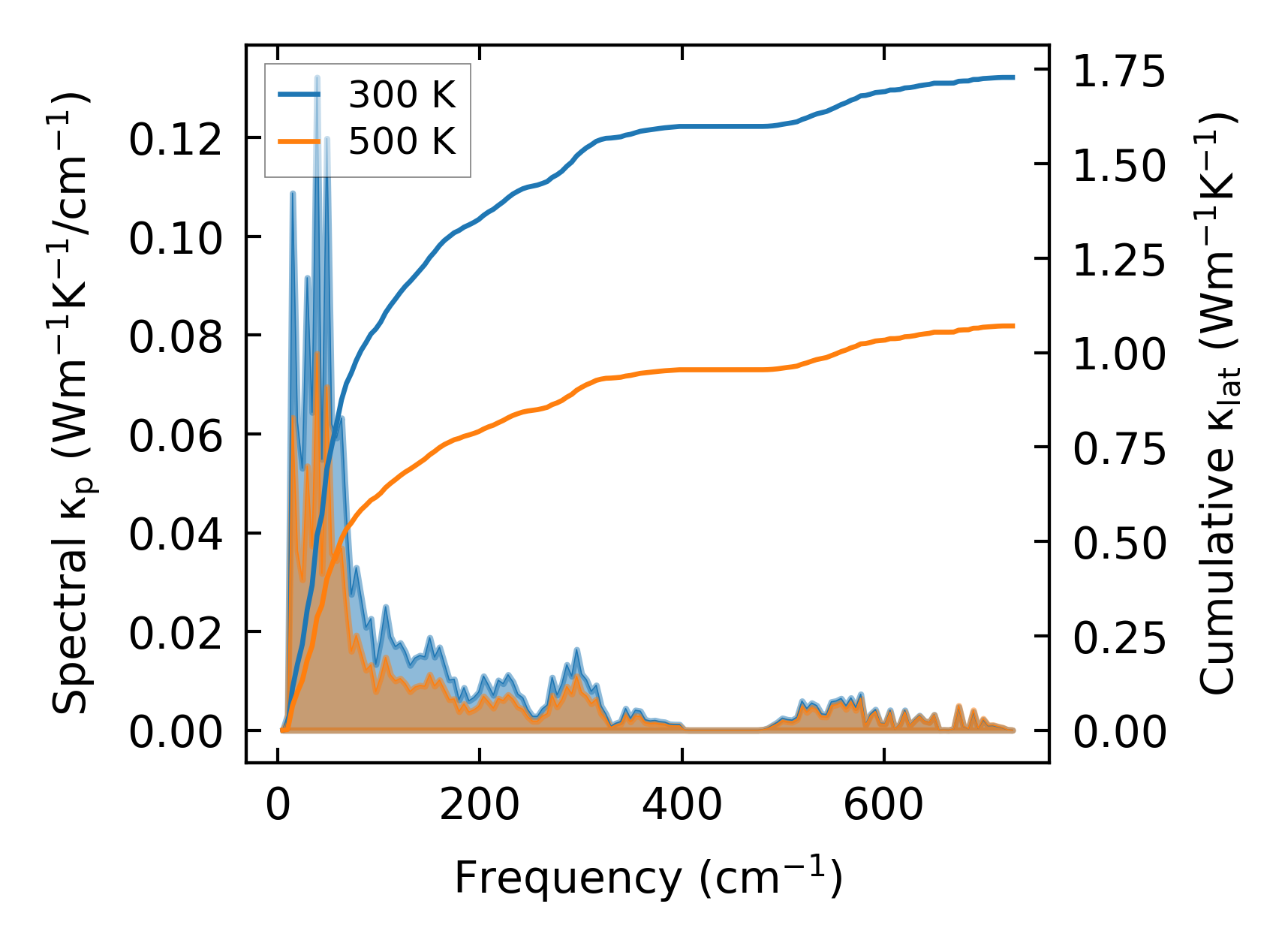

../../_images/fig_cumu_frequency4154.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4153.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

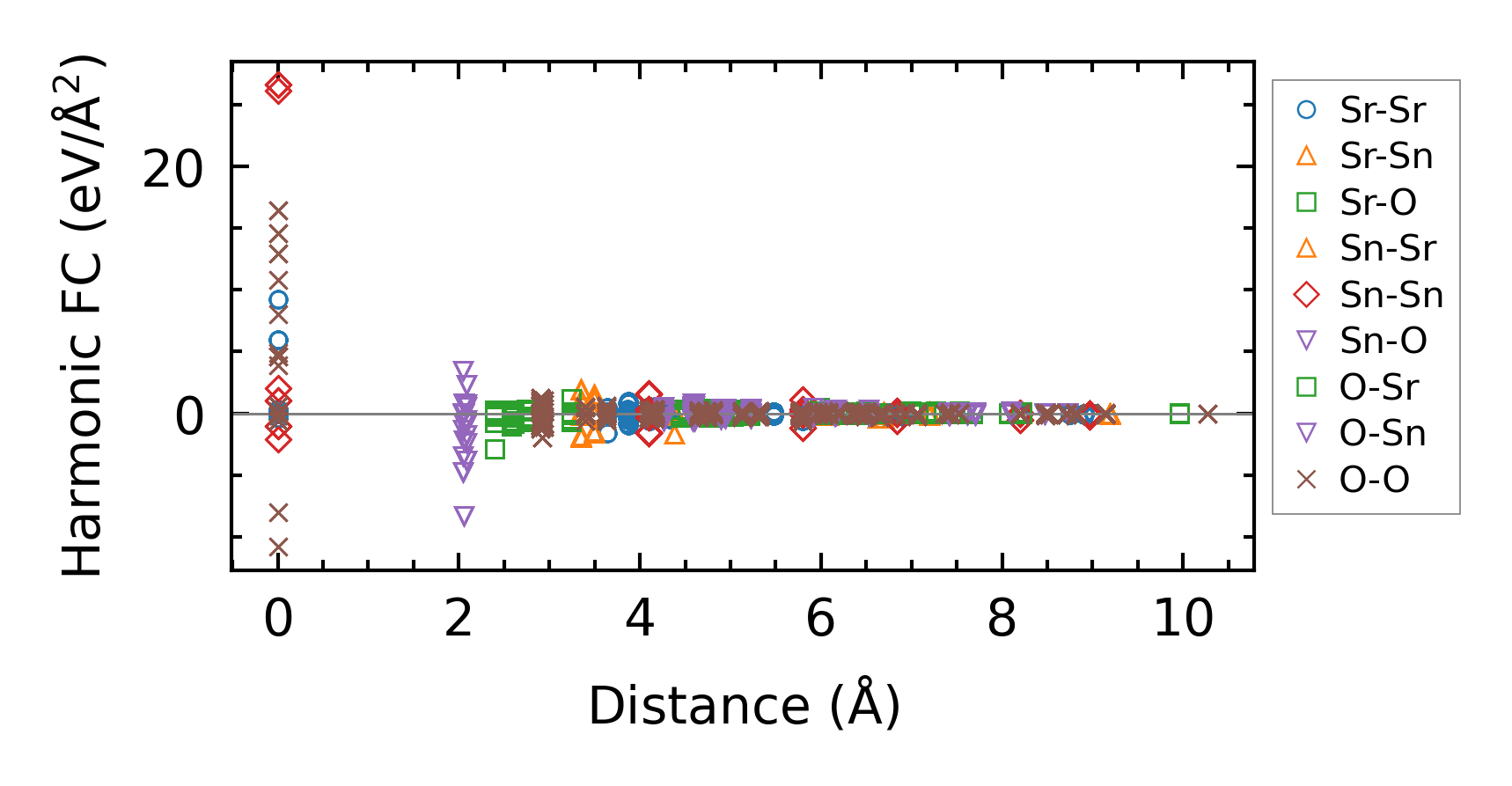

../../_images/fig_fc210116.png — (a) Force constants w.r.t atomic distance

Summary

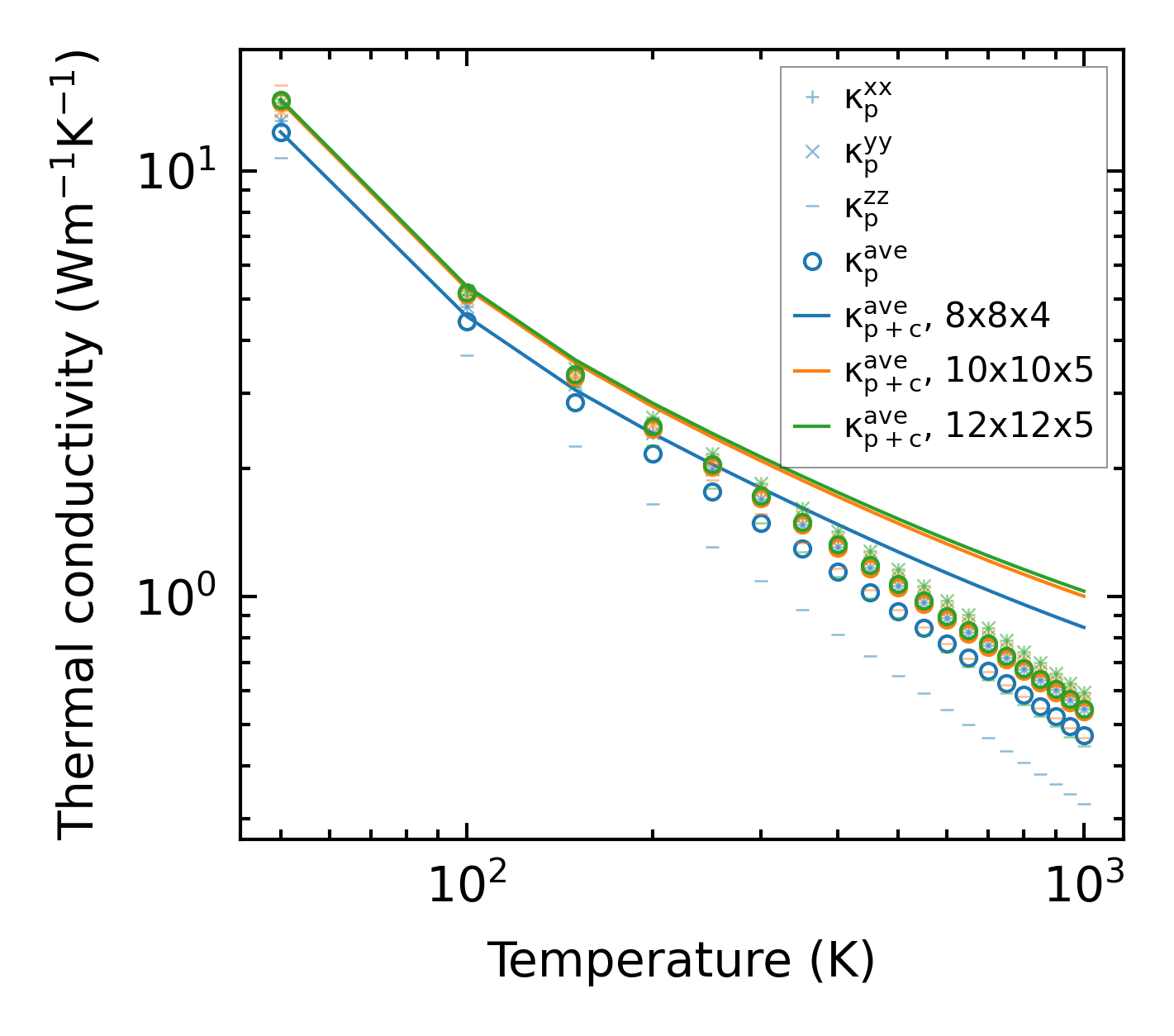

../../_images/fig_kappa7907.png — (a) Temperature-dependent lattice thermal conductivity

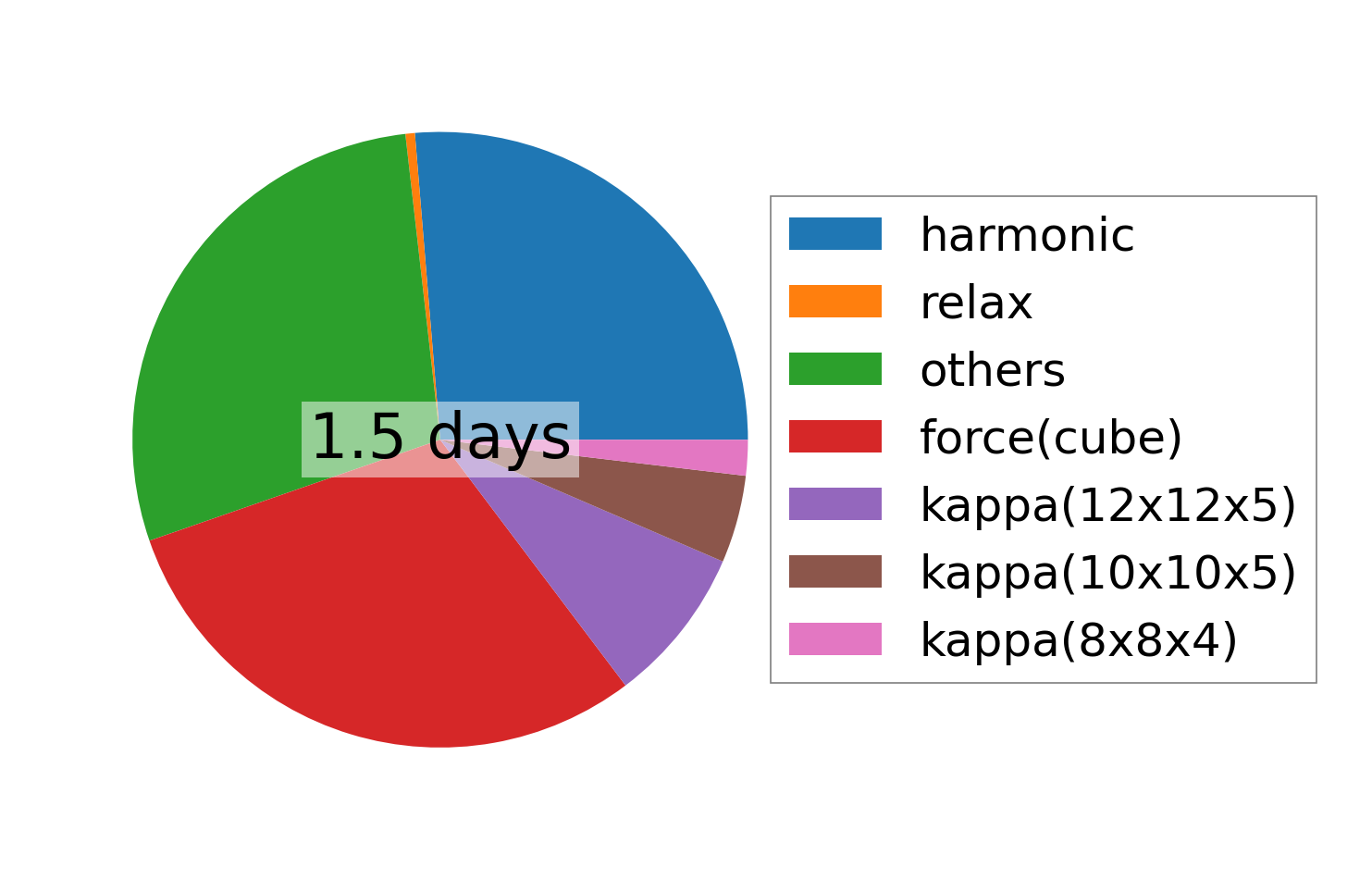

../../_images/fig_times17903.png — (b) Computation time
