mp-4426/Li4SeO5/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-4426.tar.gz

Harmonic properties

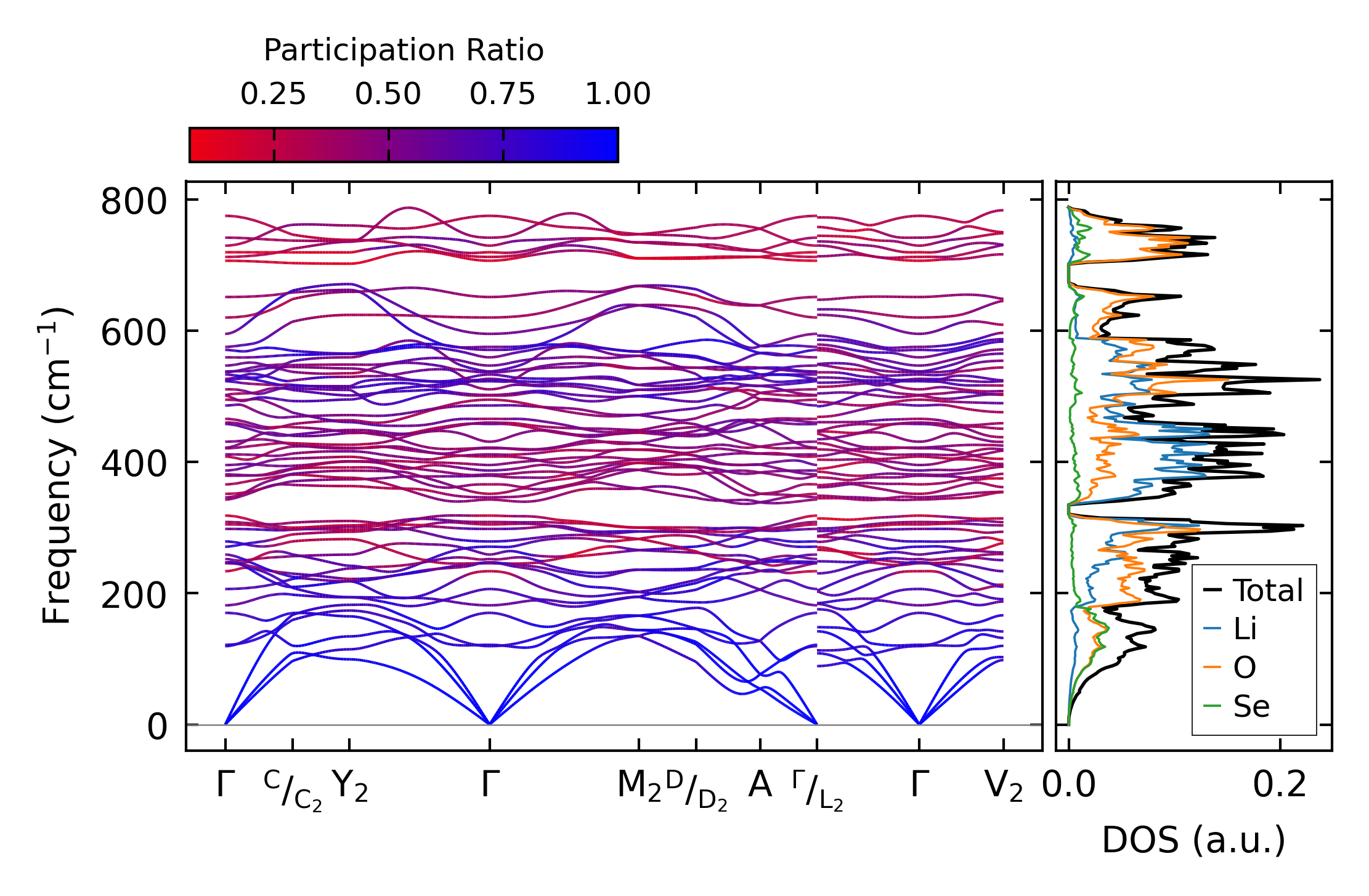

../../_images/fig_bandos_pr10407.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10407.png — (b) Thermodynamic properties

Grüneisen parameters

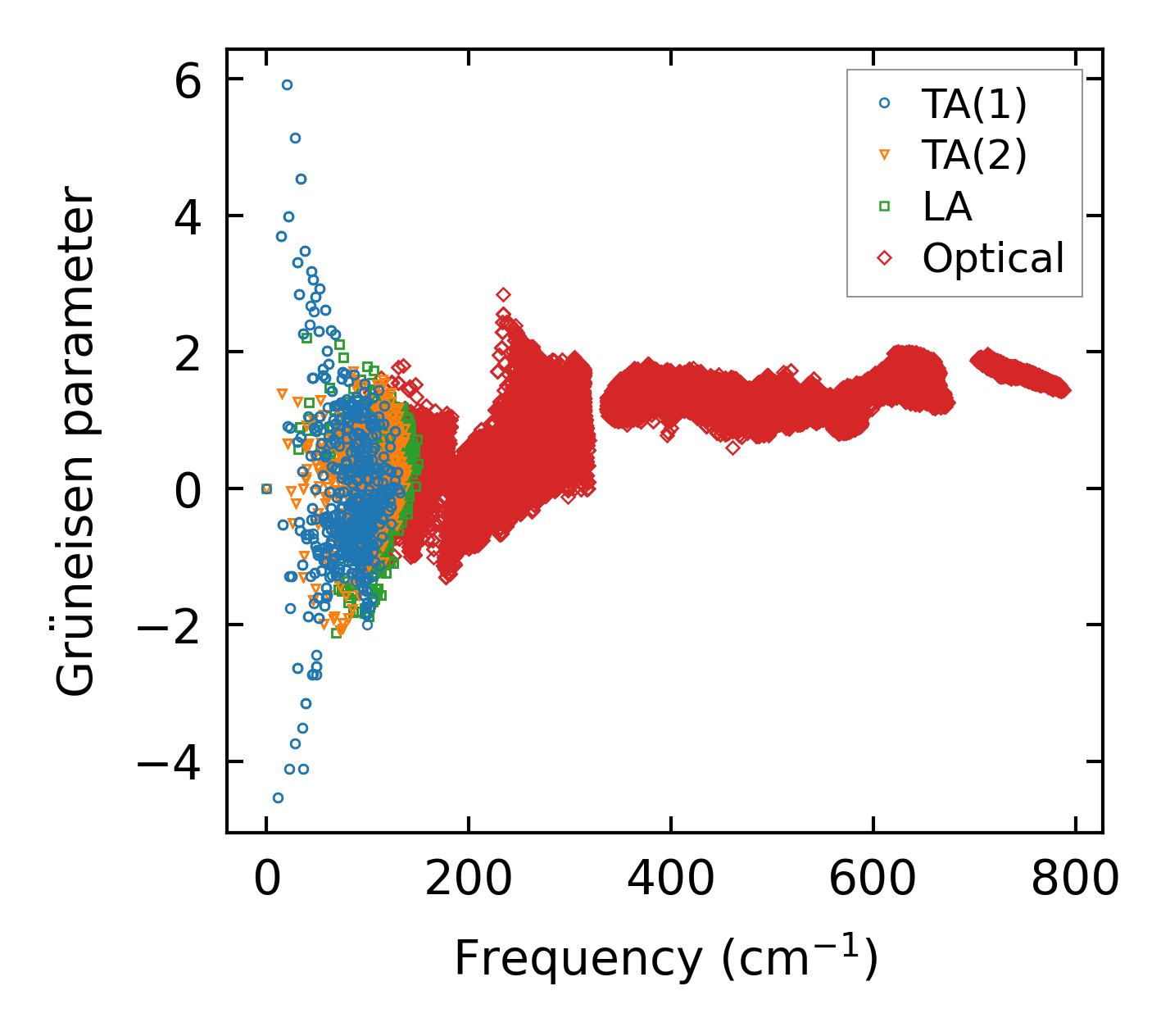

../../_images/fig_gru_all4213.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4213.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x9, supercell: 1x2x1

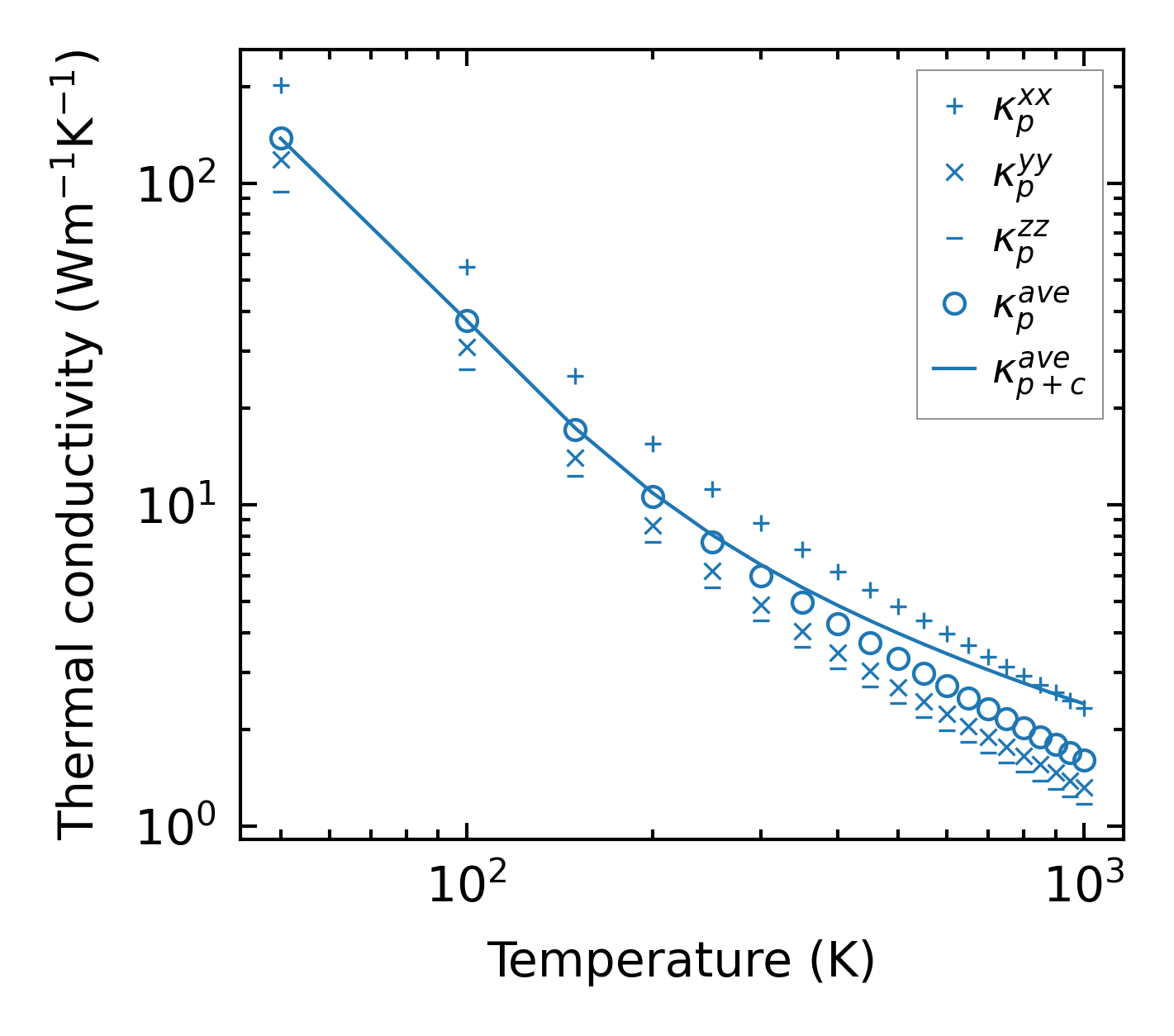

../../_images/fig_kappa7943.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4267.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4173.png — (a) Phonon lifetime due to phonon-phonon scattering

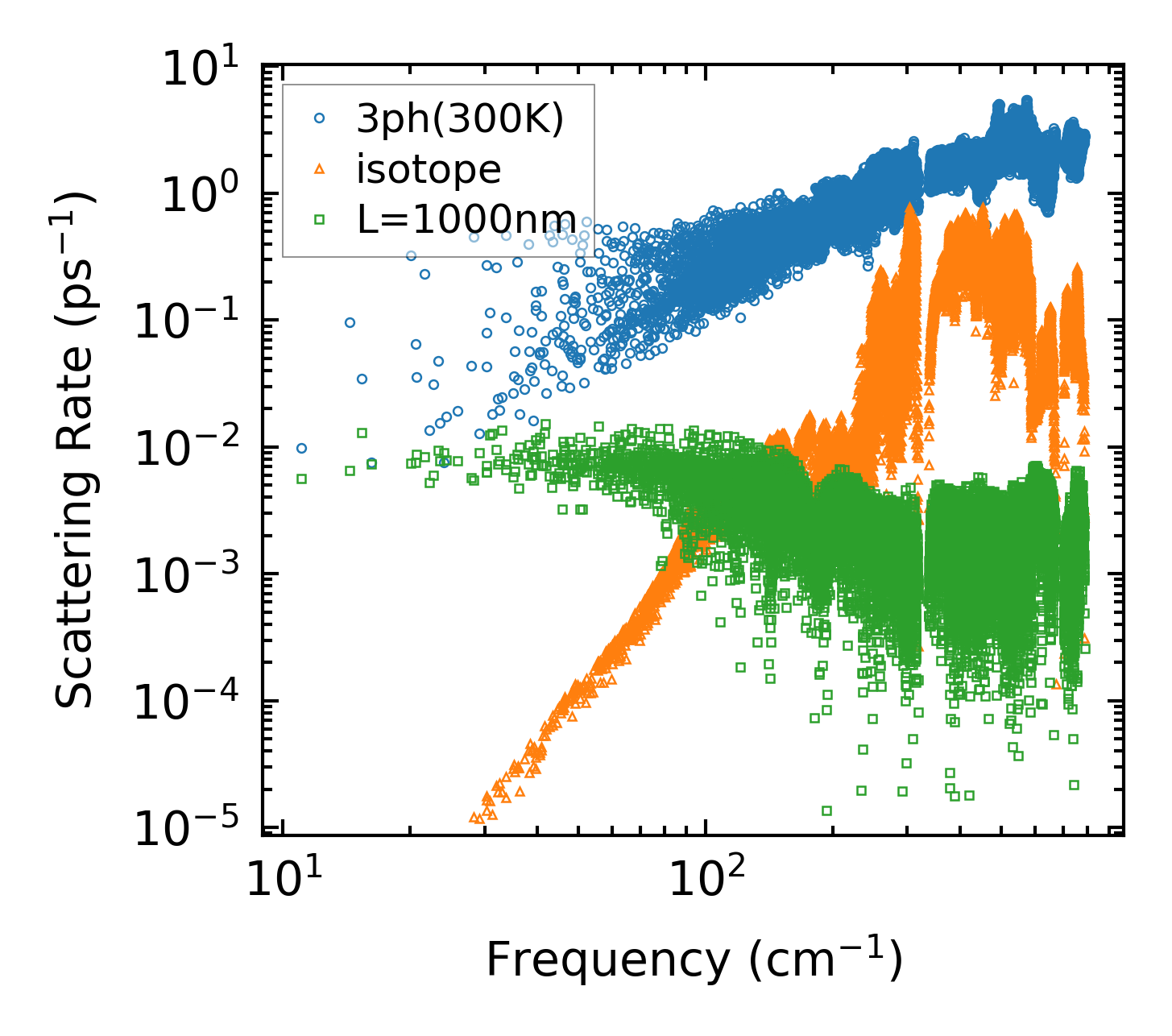

../../_images/fig_scat_rates4172.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4173.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

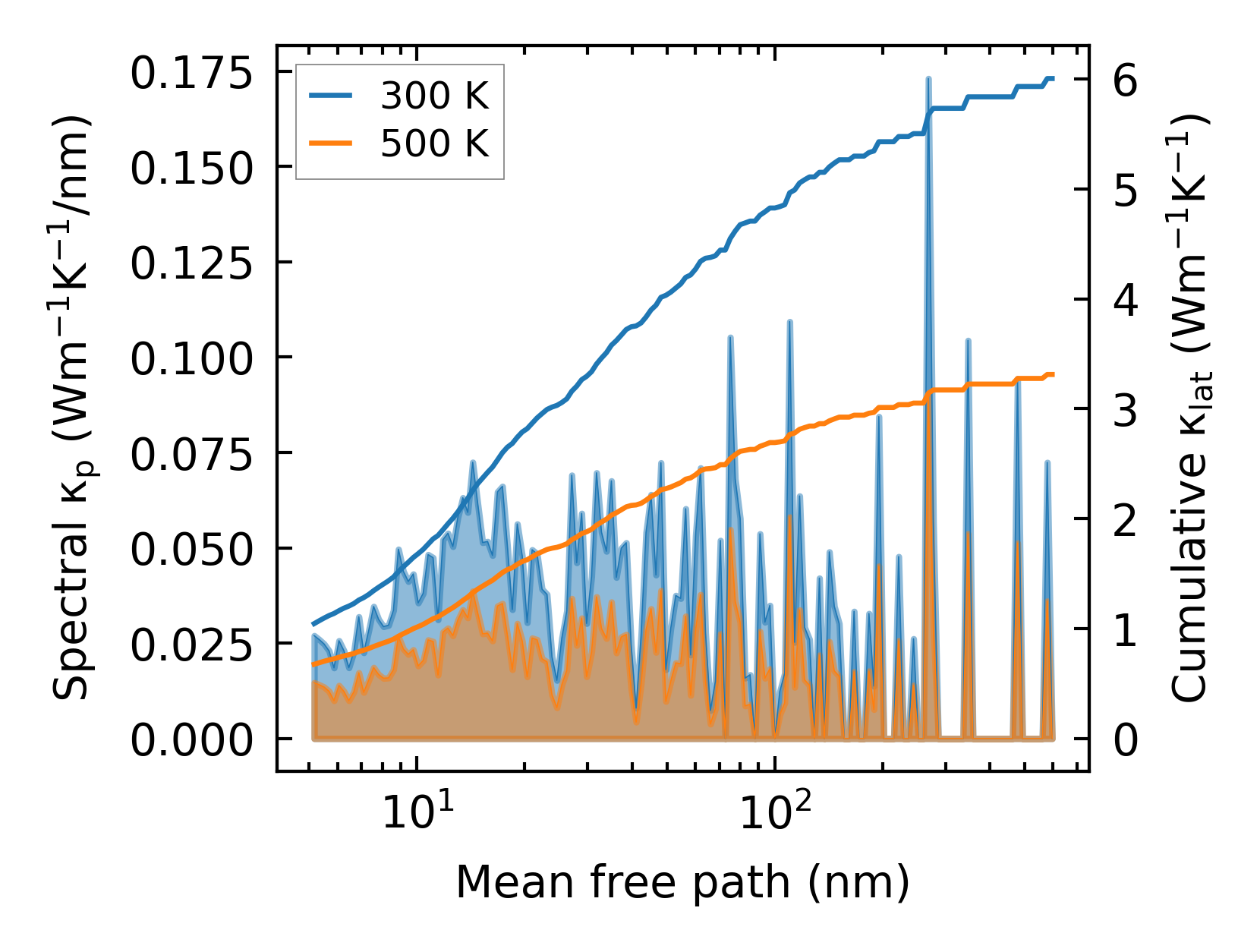

../../_images/fig_cumu_mfp4172.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

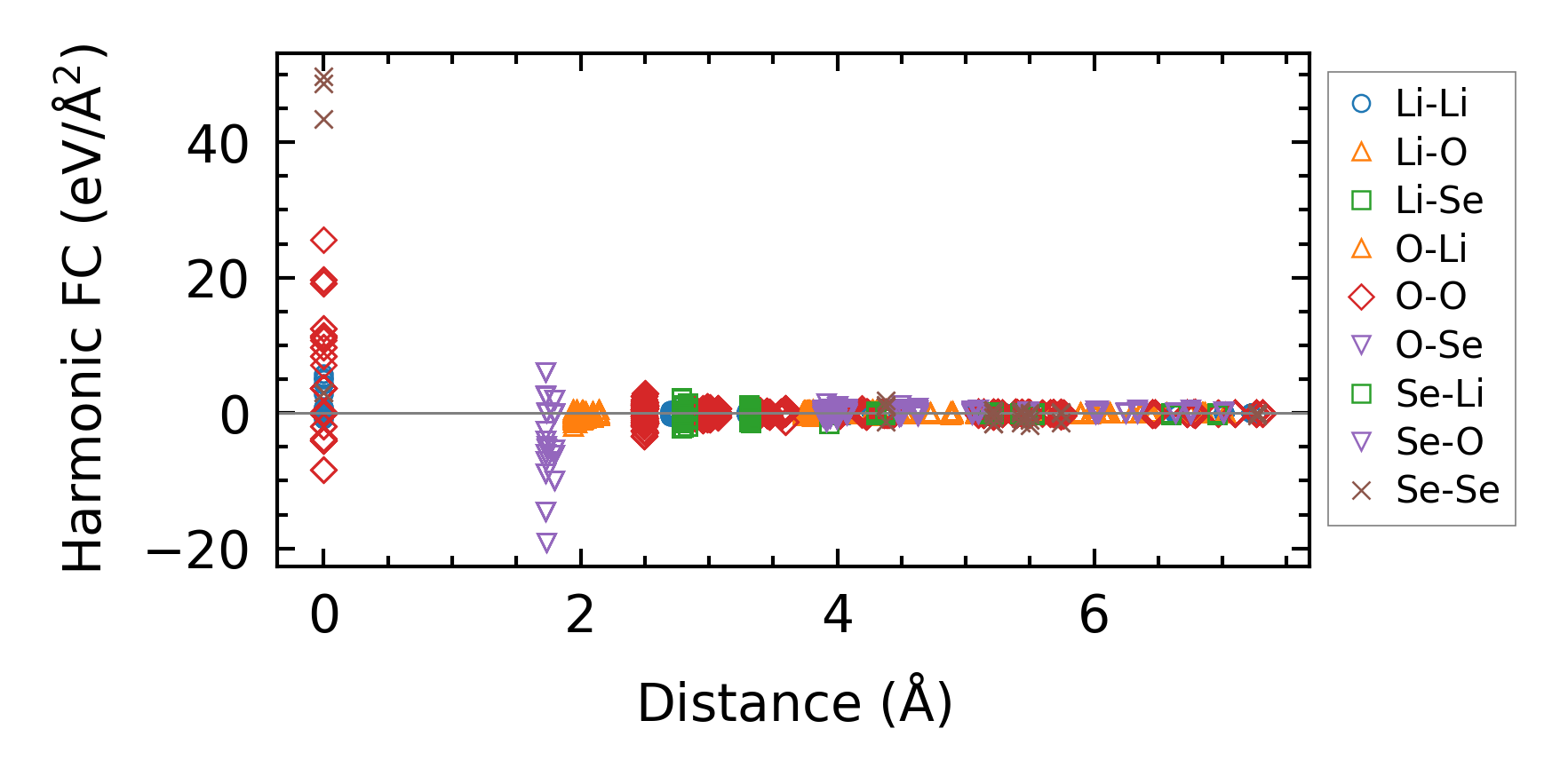

../../_images/fig_fc210150.png — (a) Force constants w.r.t atomic distance

Summary

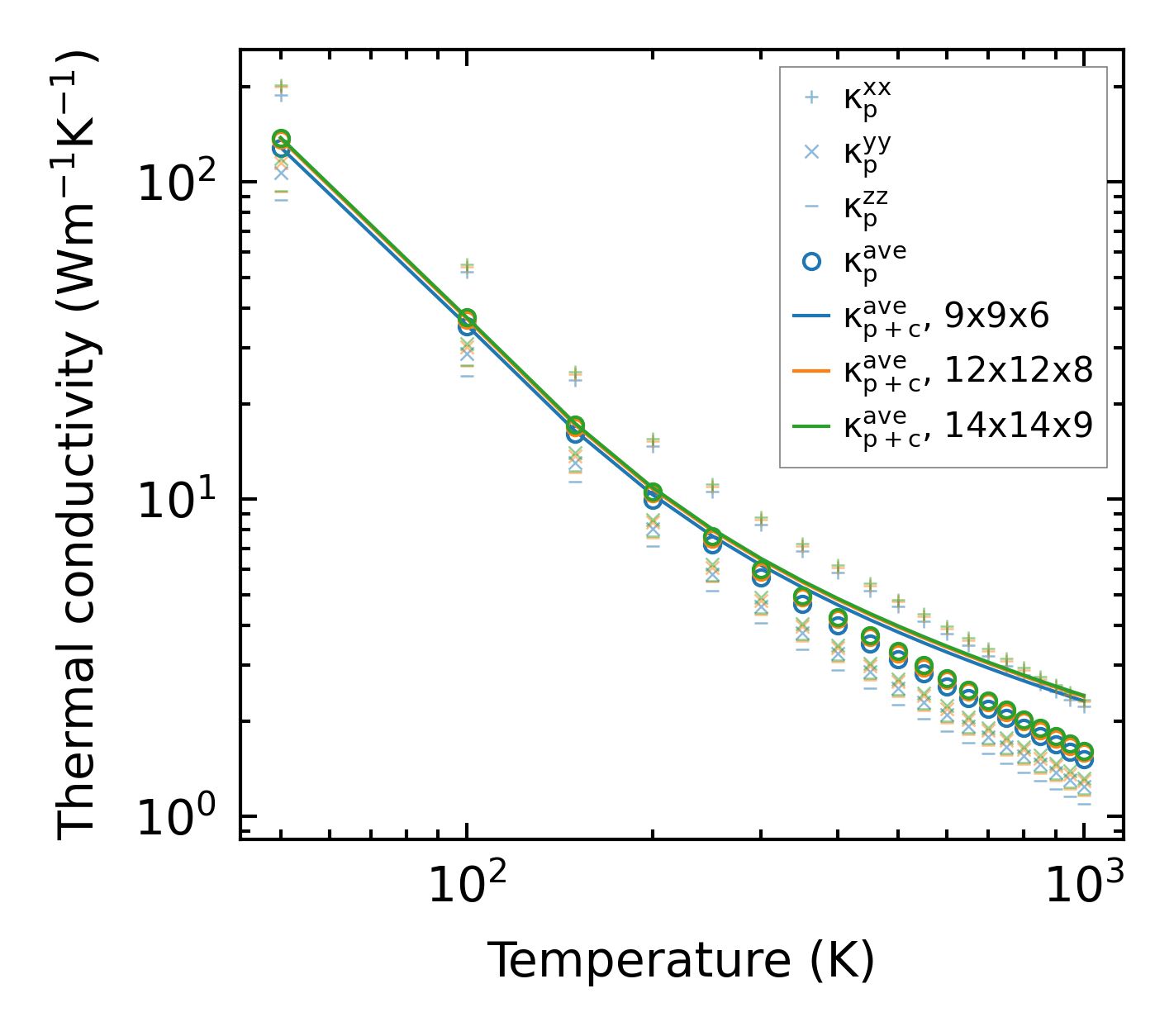

../../_images/fig_kappa7944.png — (a) Temperature-dependent lattice thermal conductivity

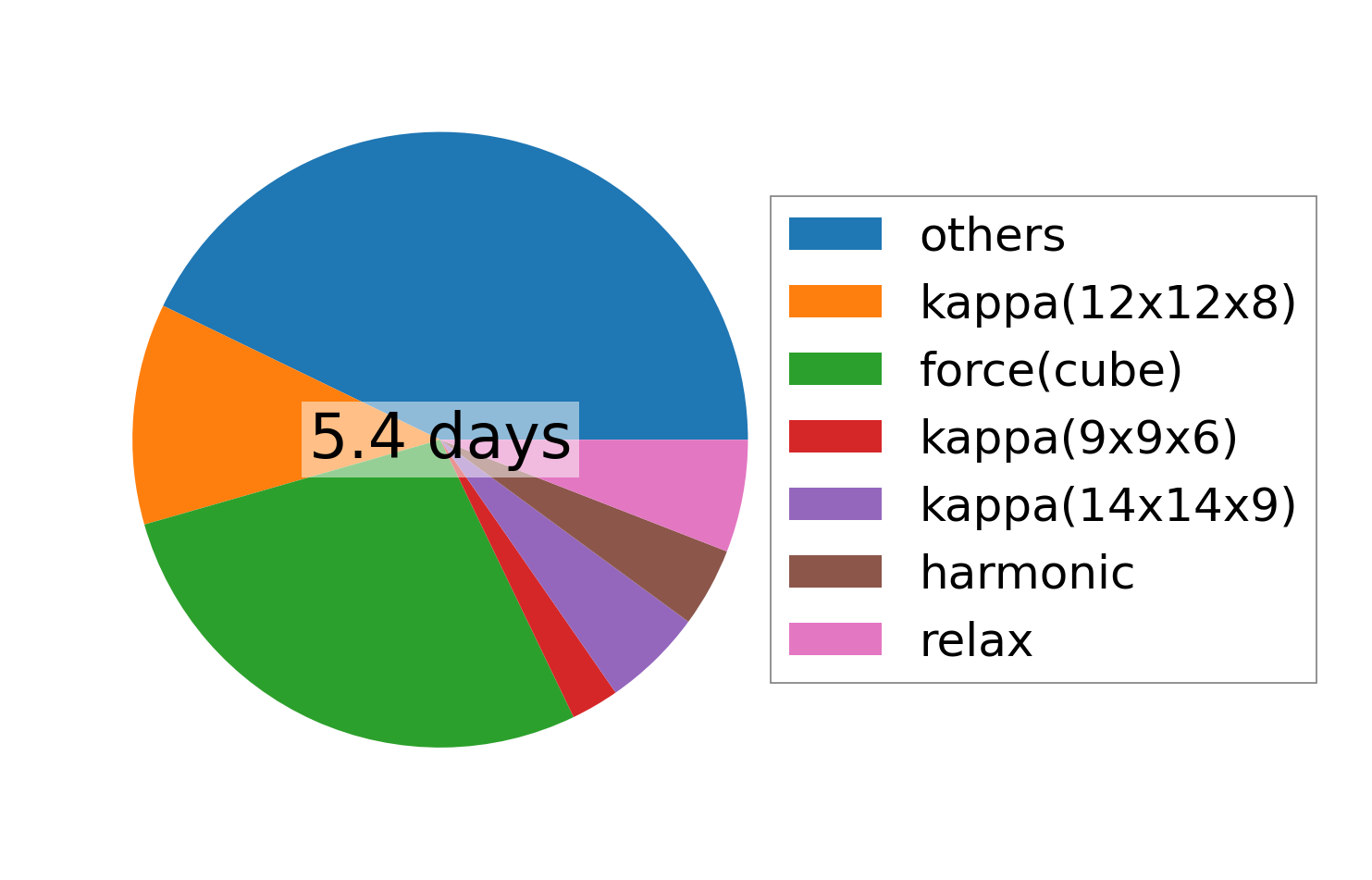

../../_images/fig_times17951.png — (b) Computation time
