mp-4575/MgGeO3/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-4575.tar.gz

Harmonic properties

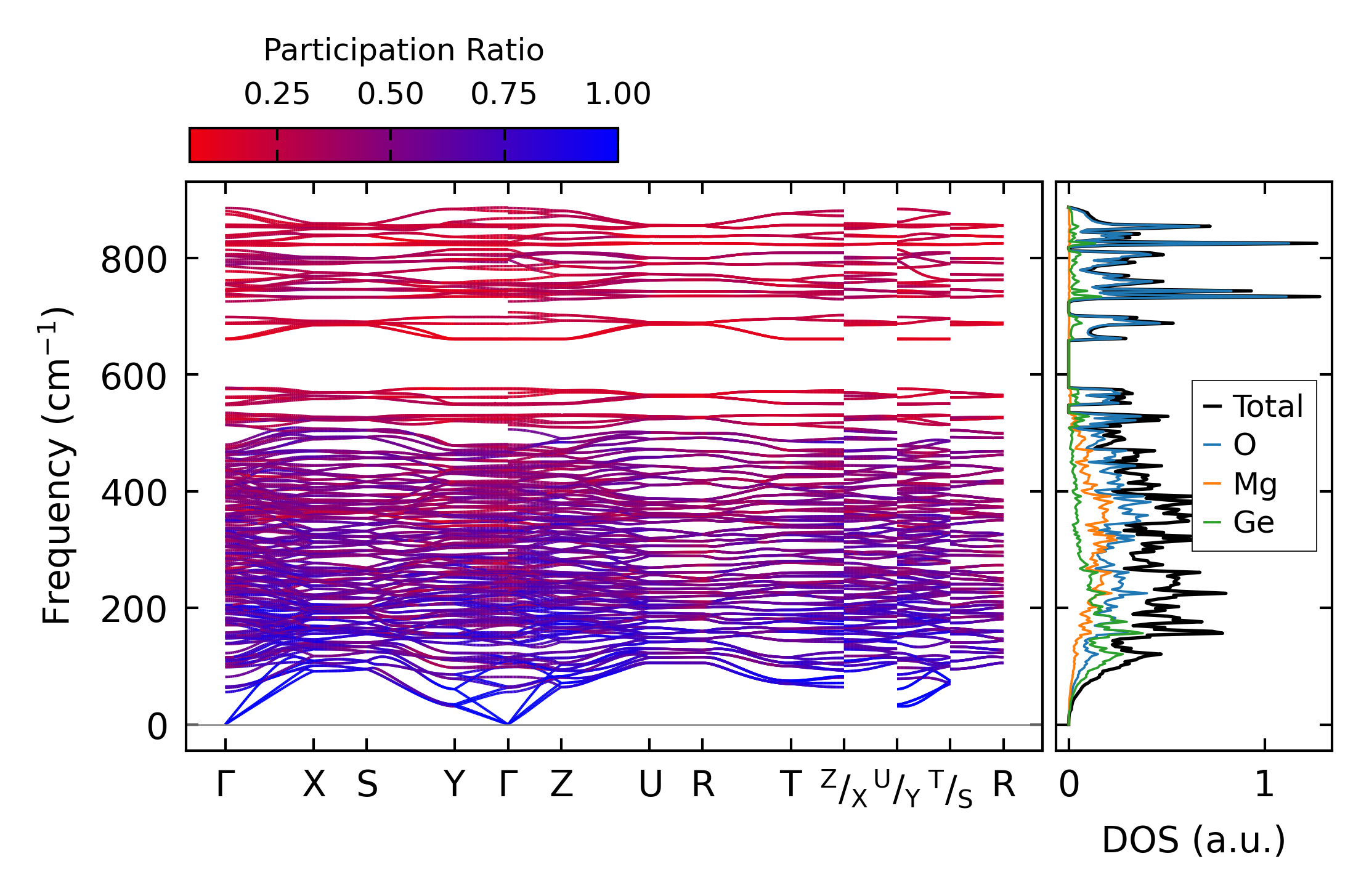

../../_images/fig_bandos_pr10078.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10078.png — (b) Thermodynamic properties

Grüneisen parameters

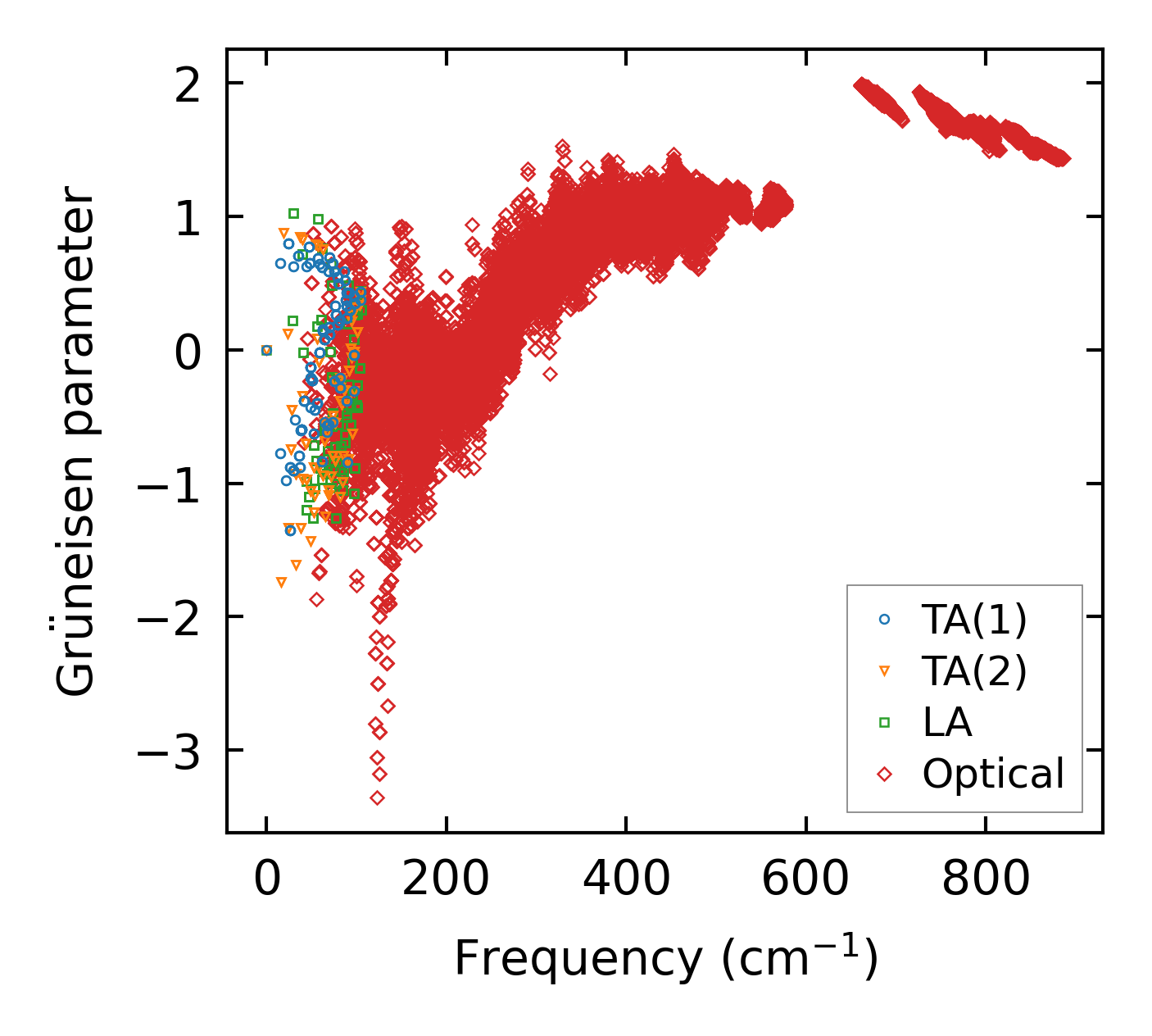

../../_images/fig_gru_all4053.png — (a) Grüneisen parameters

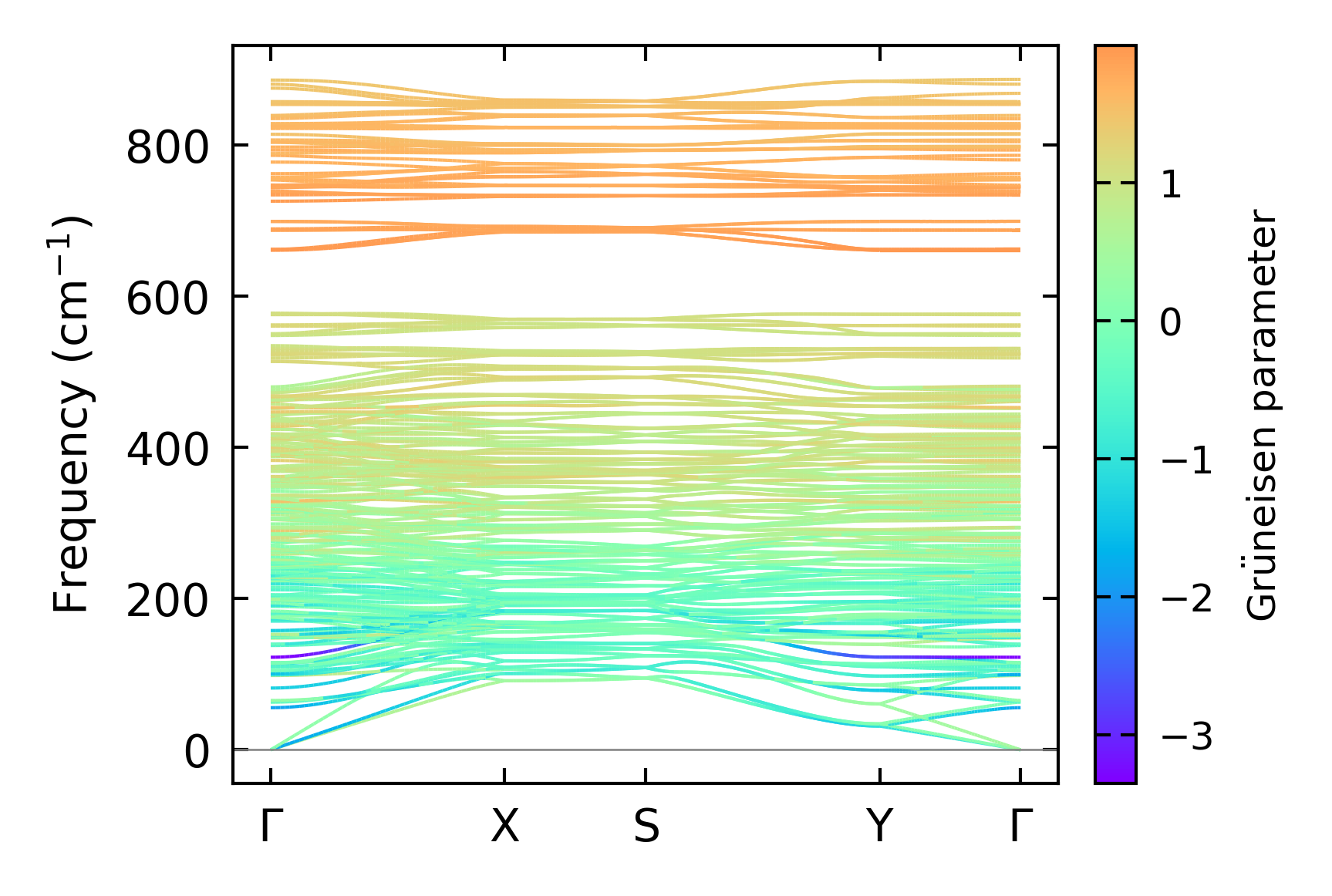

../../_images/fig_gruneisen4053.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x3x8, supercell: 1x1x1

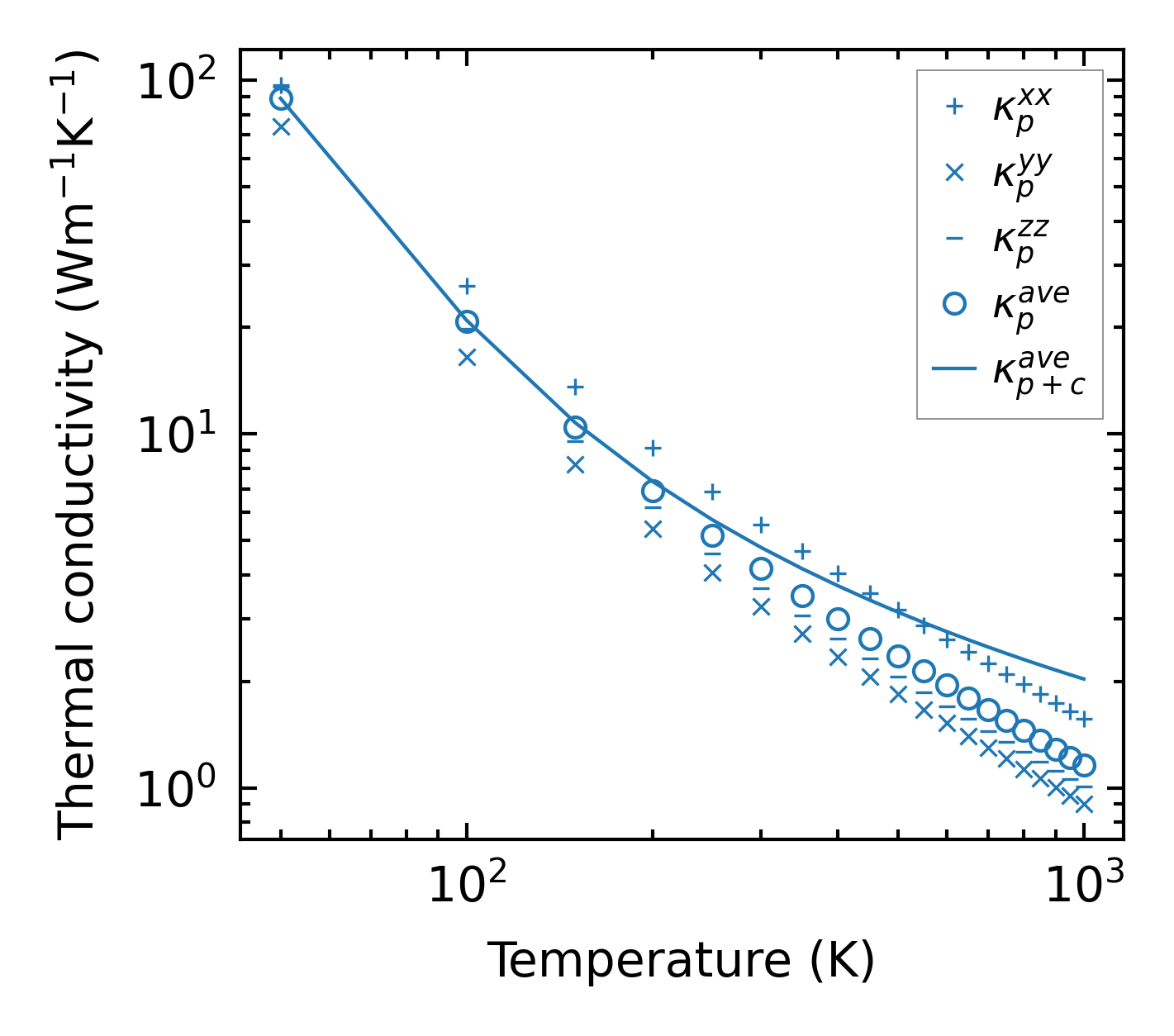

../../_images/fig_kappa7647.png — (a) Temperature-dependent lattice thermal conductivity

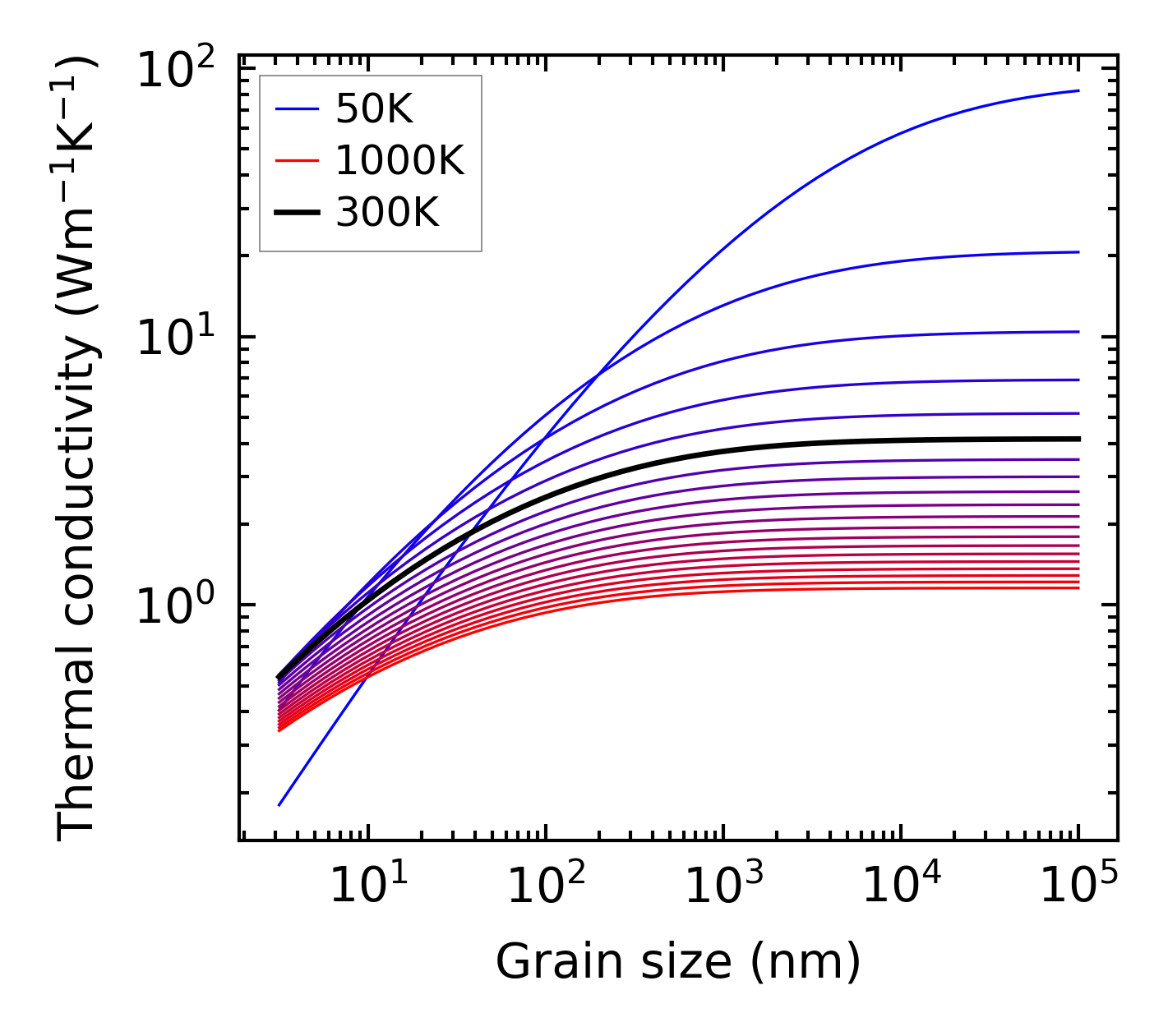

../../_images/fig_kappa_vs_grain_size4107.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

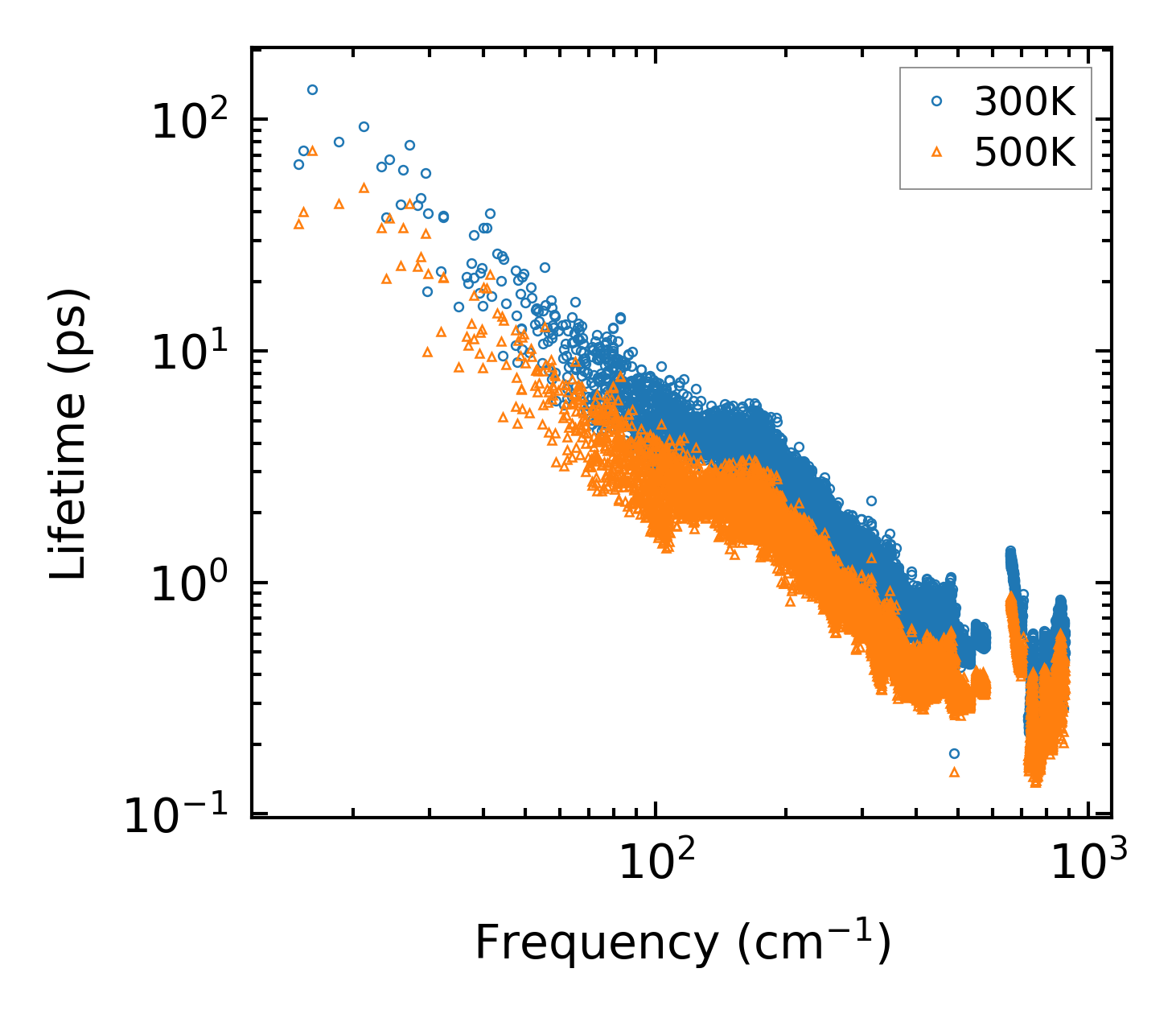

../../_images/fig_lifetime4015.png — (a) Phonon lifetime due to phonon-phonon scattering

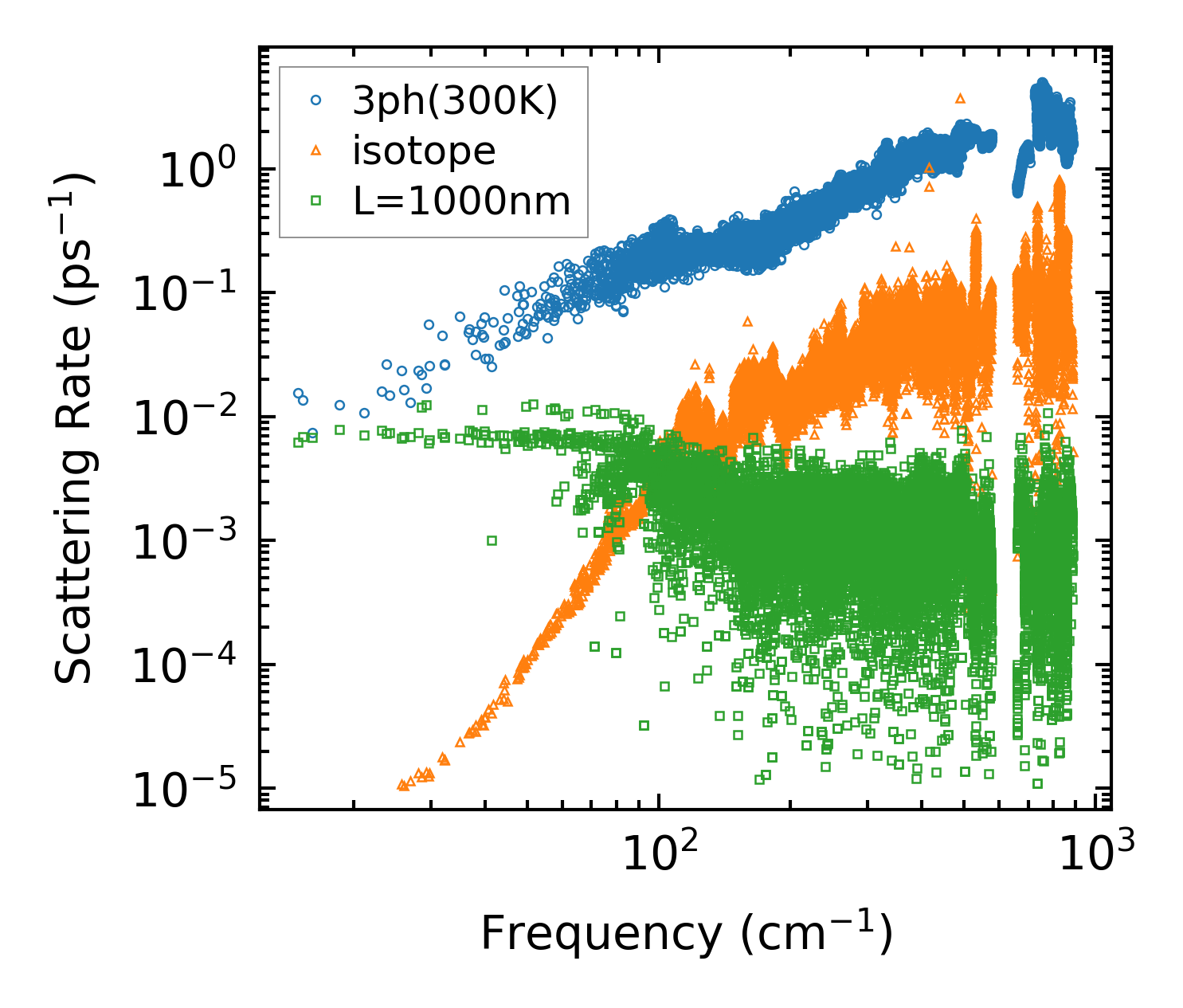

../../_images/fig_scat_rates4014.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

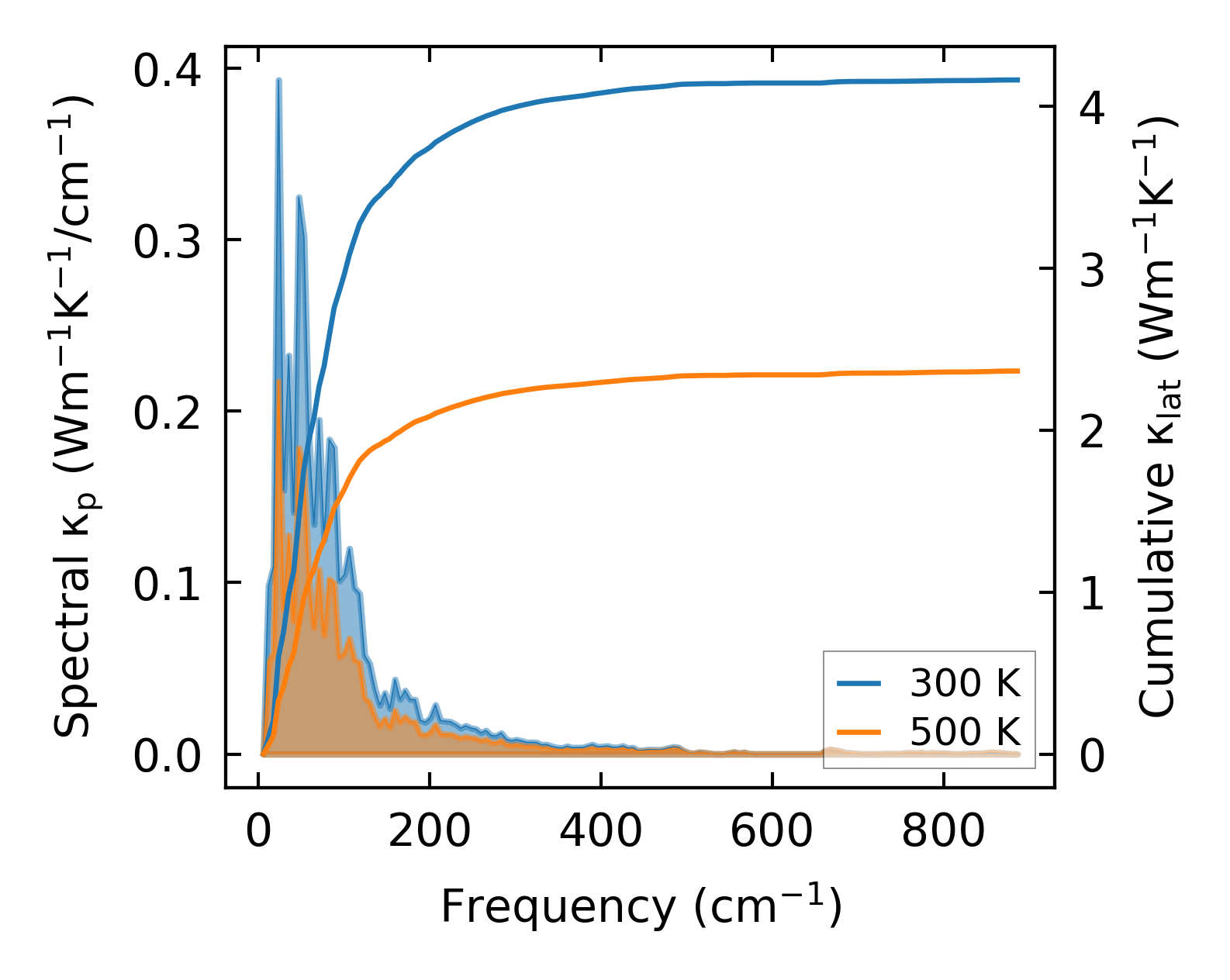

../../_images/fig_cumu_frequency4015.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

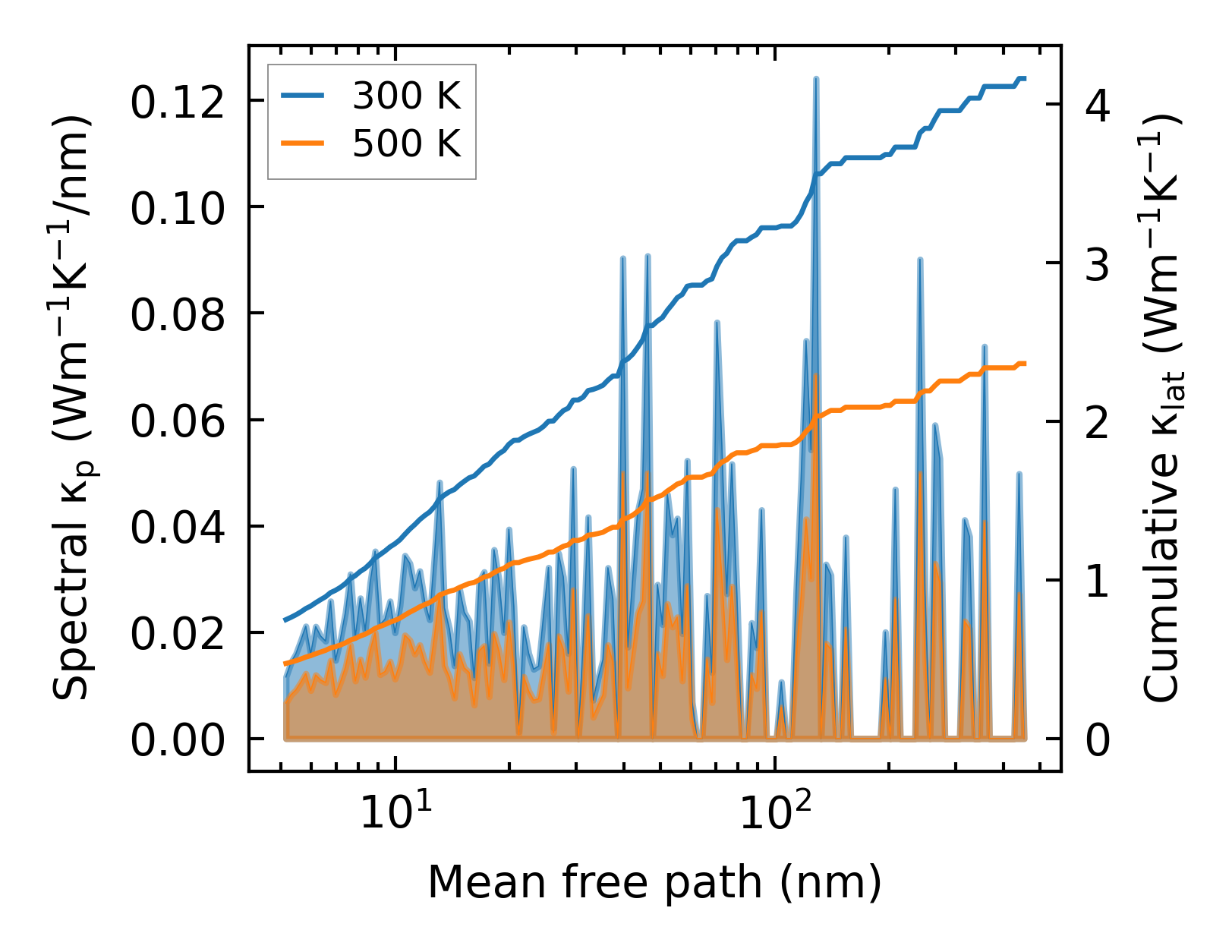

../../_images/fig_cumu_mfp4014.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

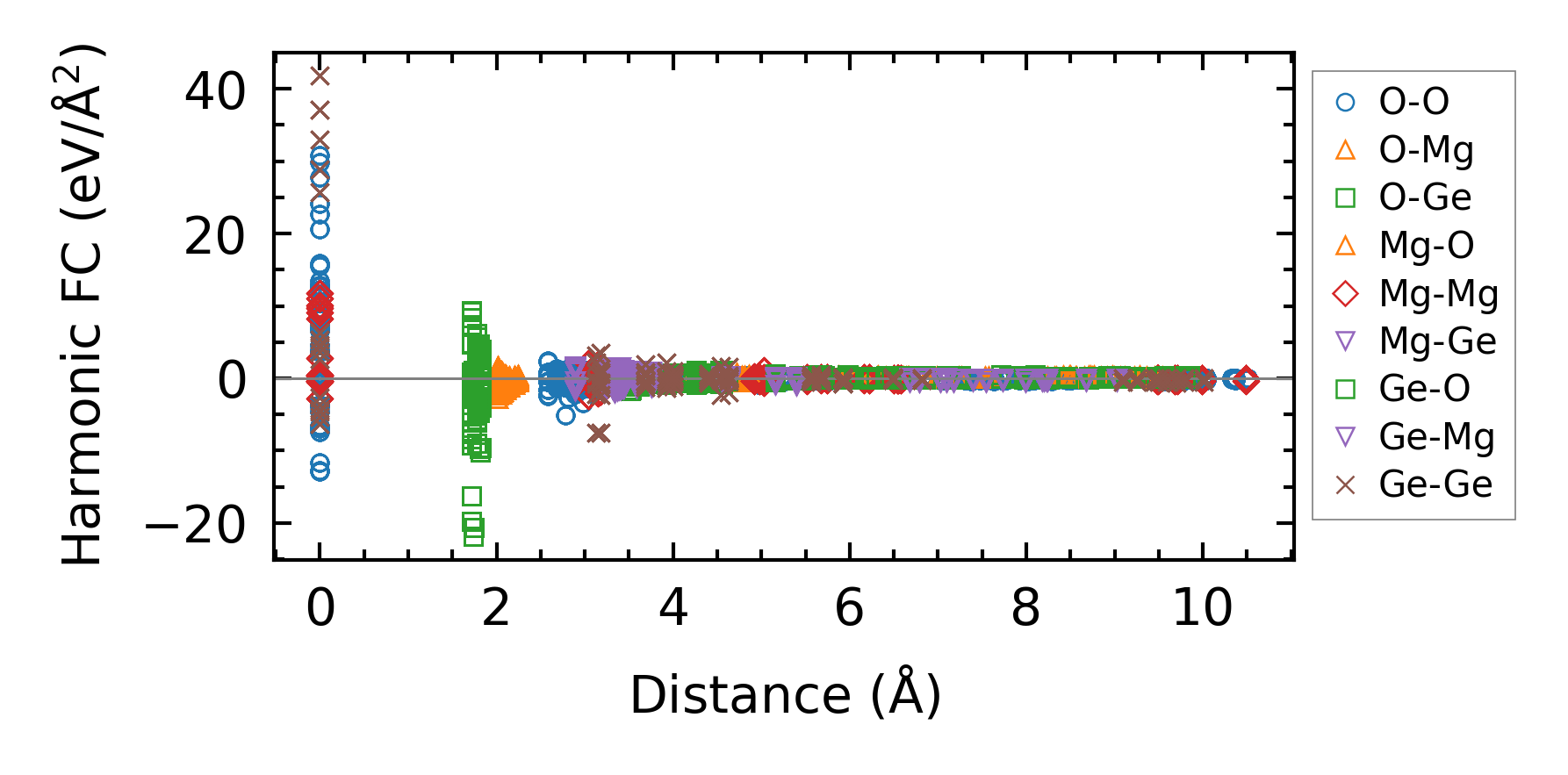

../../_images/fig_fc29830.png — (a) Force constants w.r.t atomic distance

Summary

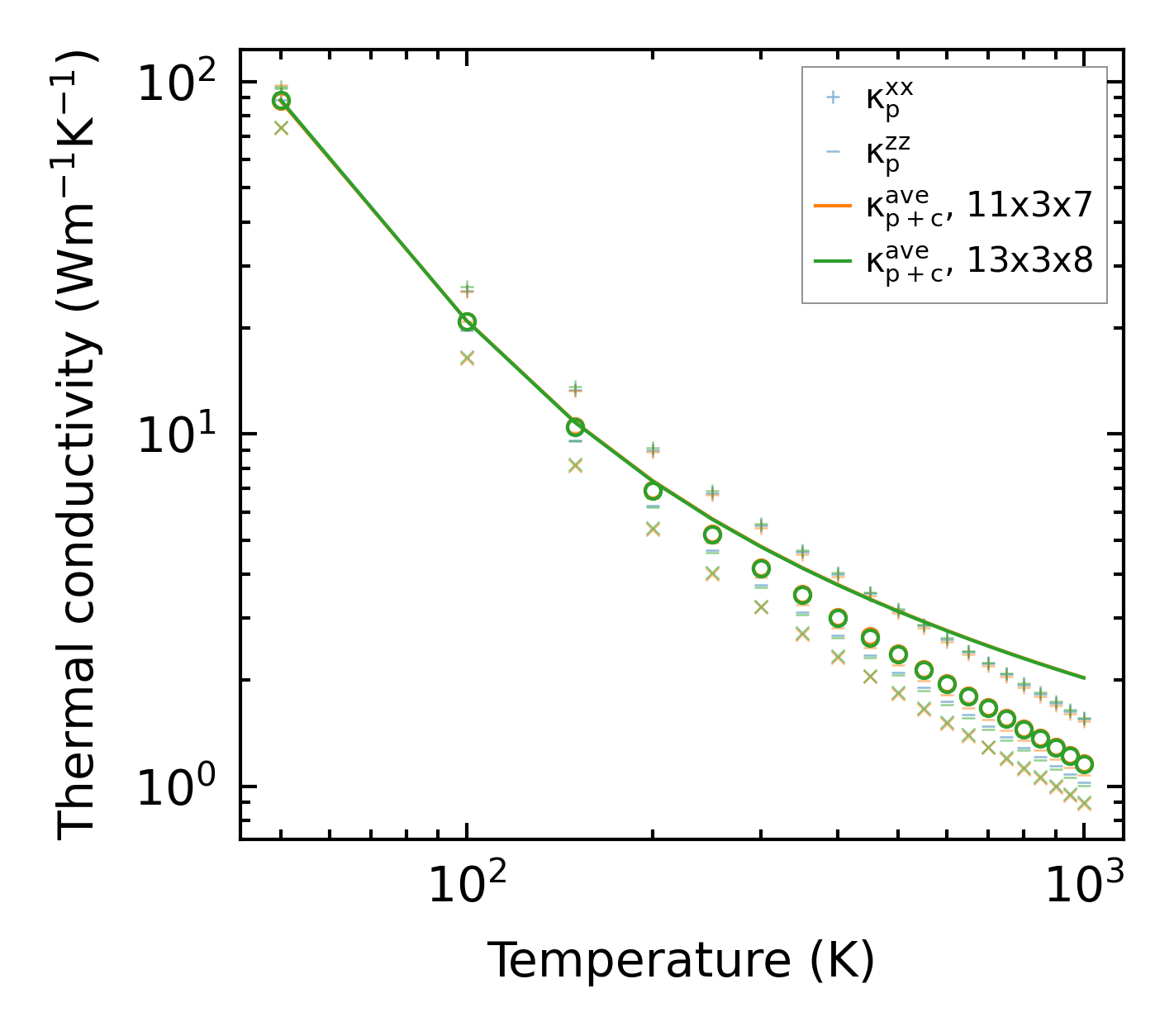

../../_images/fig_kappa7648.png — (a) Temperature-dependent lattice thermal conductivity

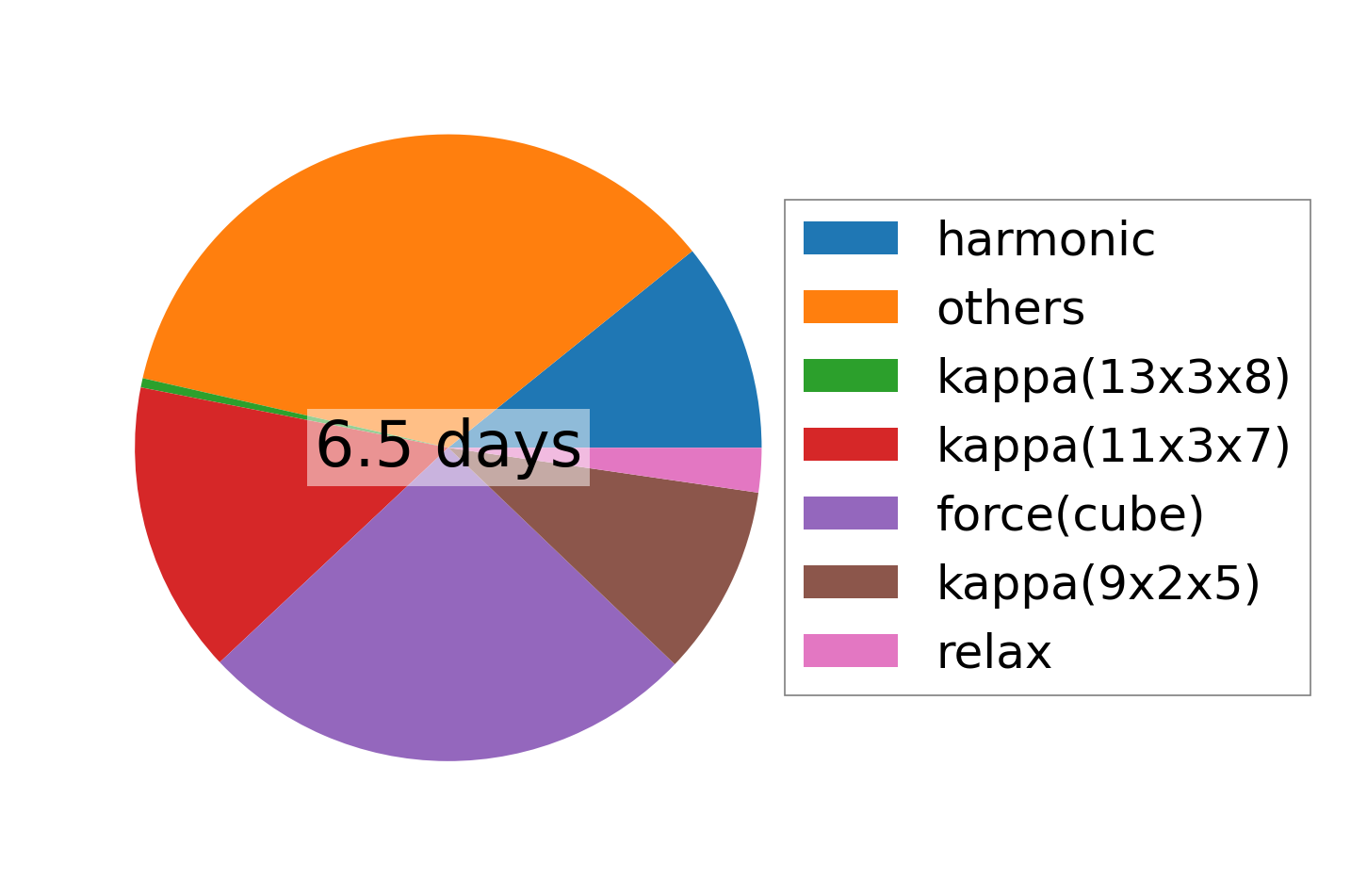

../../_images/fig_times17479.png — (b) Computation time
