mp-4753/Al2SiO5/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-4753.tar.gz

Harmonic properties

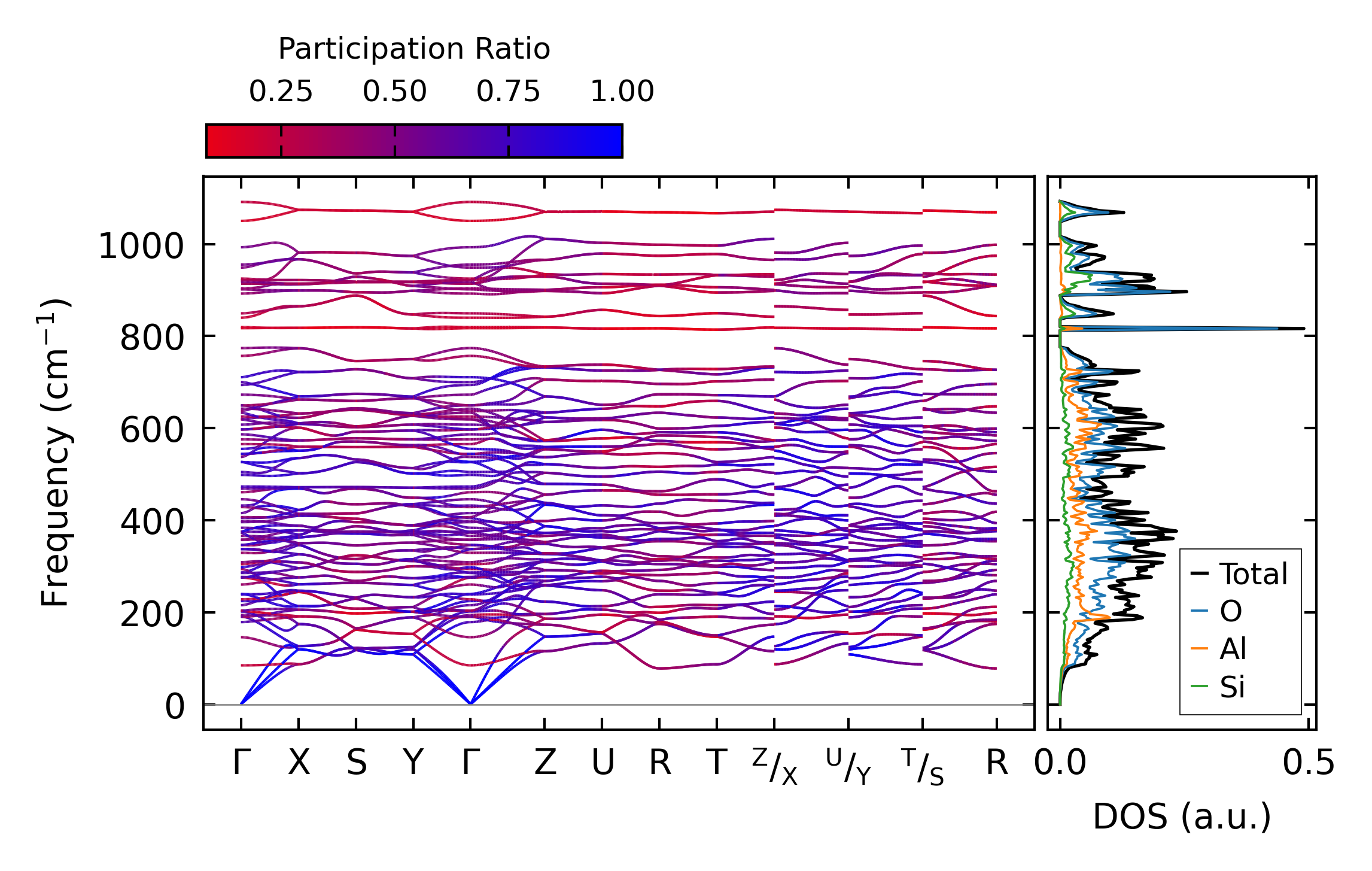

../../_images/fig_bandos_pr10132.png — (a) Phonon dispersion with participation ratio and DOS

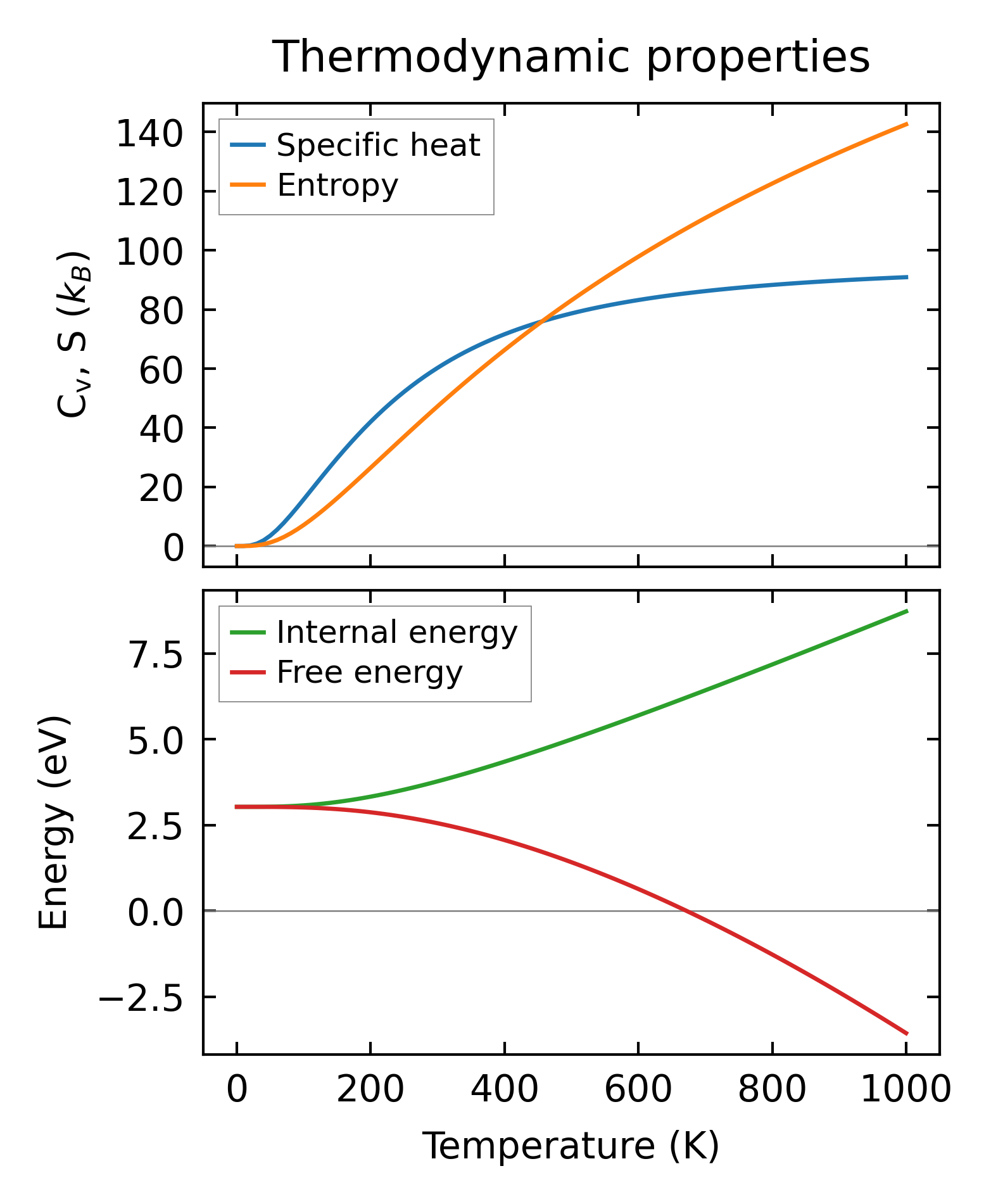

../../_images/fig_thermo10132.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4079.png — (a) Grüneisen parameters

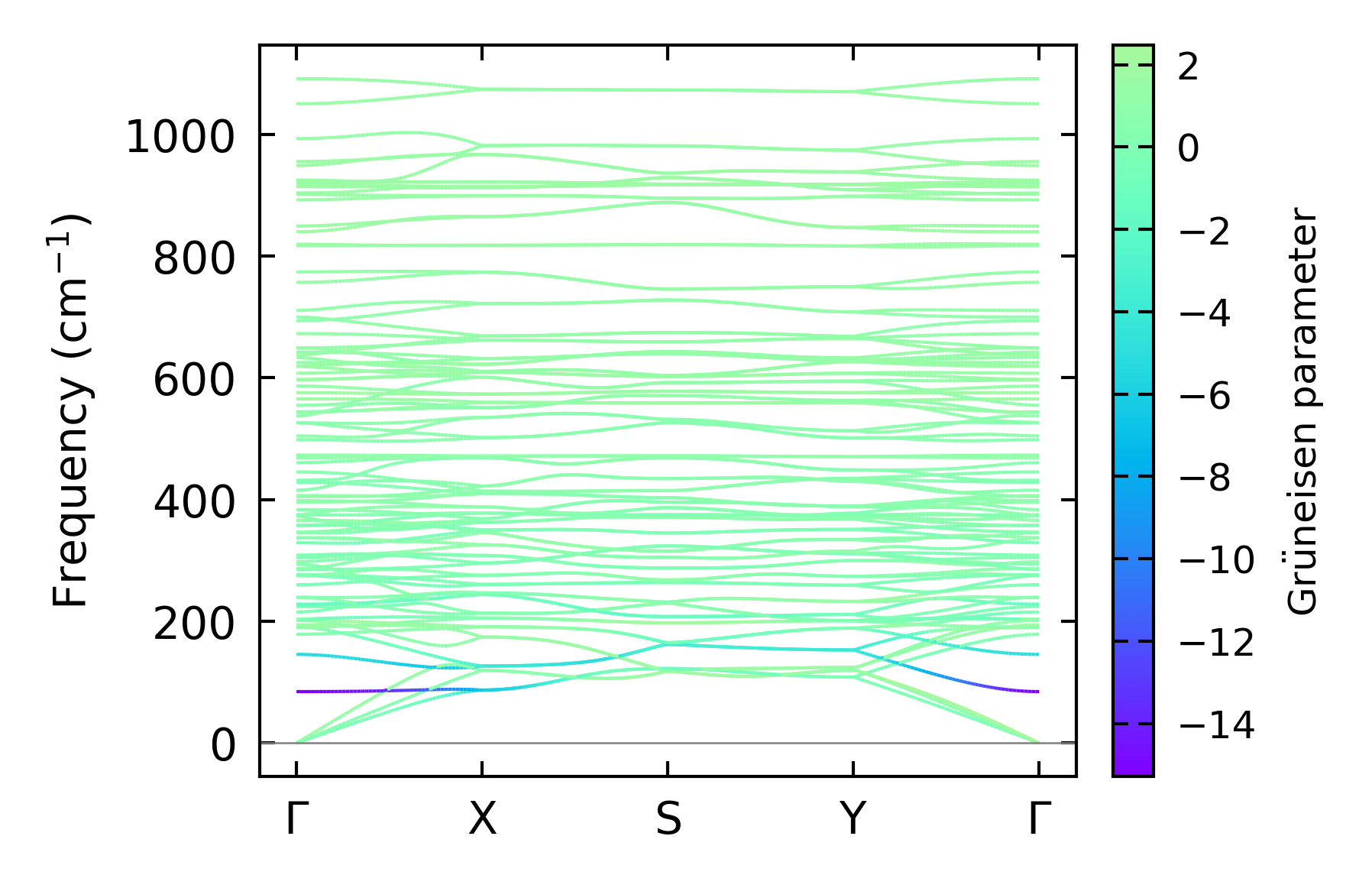

../../_images/fig_gruneisen4079.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x12, supercell: 2x1x2

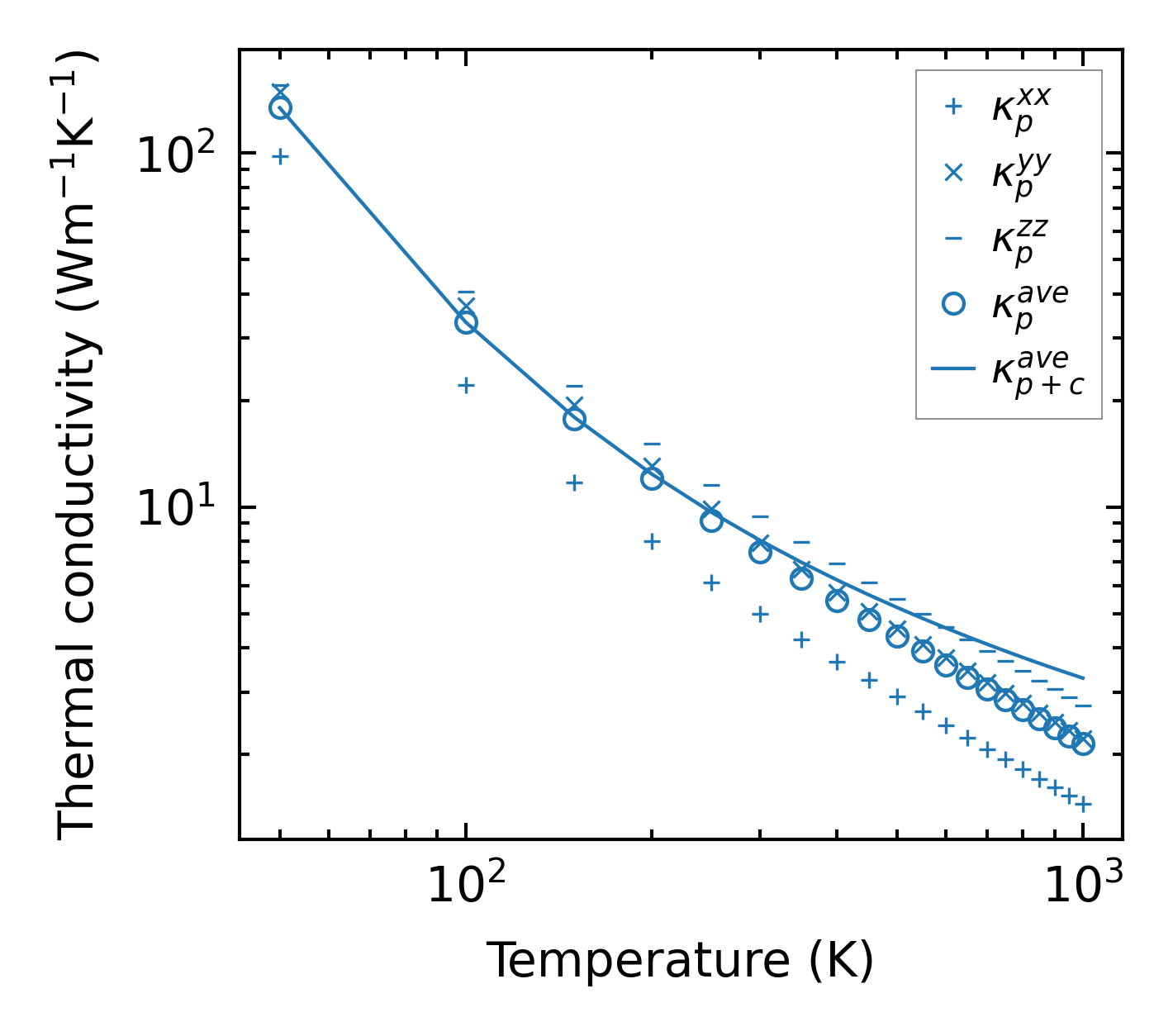

../../_images/fig_kappa7693.png — (a) Temperature-dependent lattice thermal conductivity

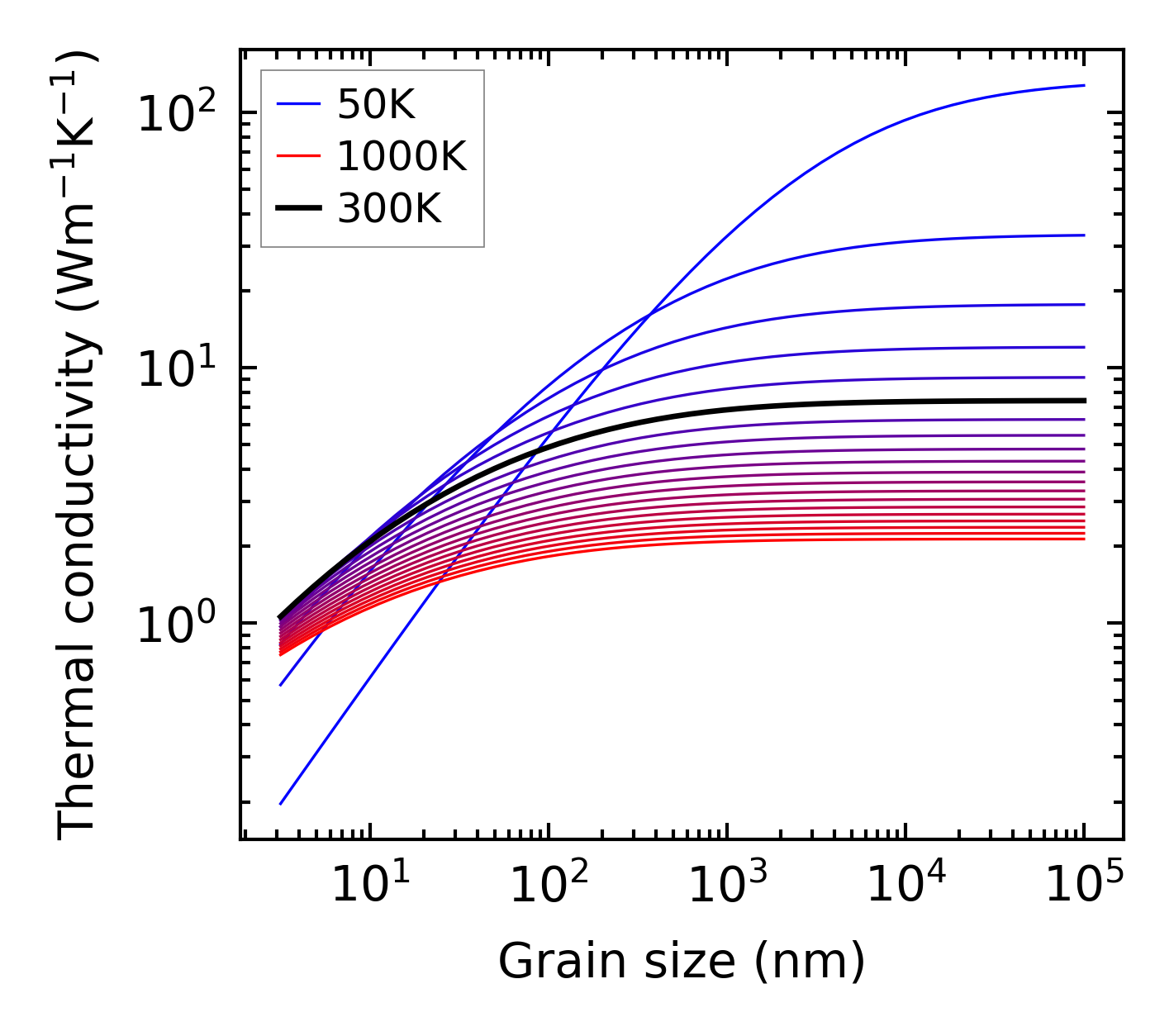

../../_images/fig_kappa_vs_grain_size4134.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

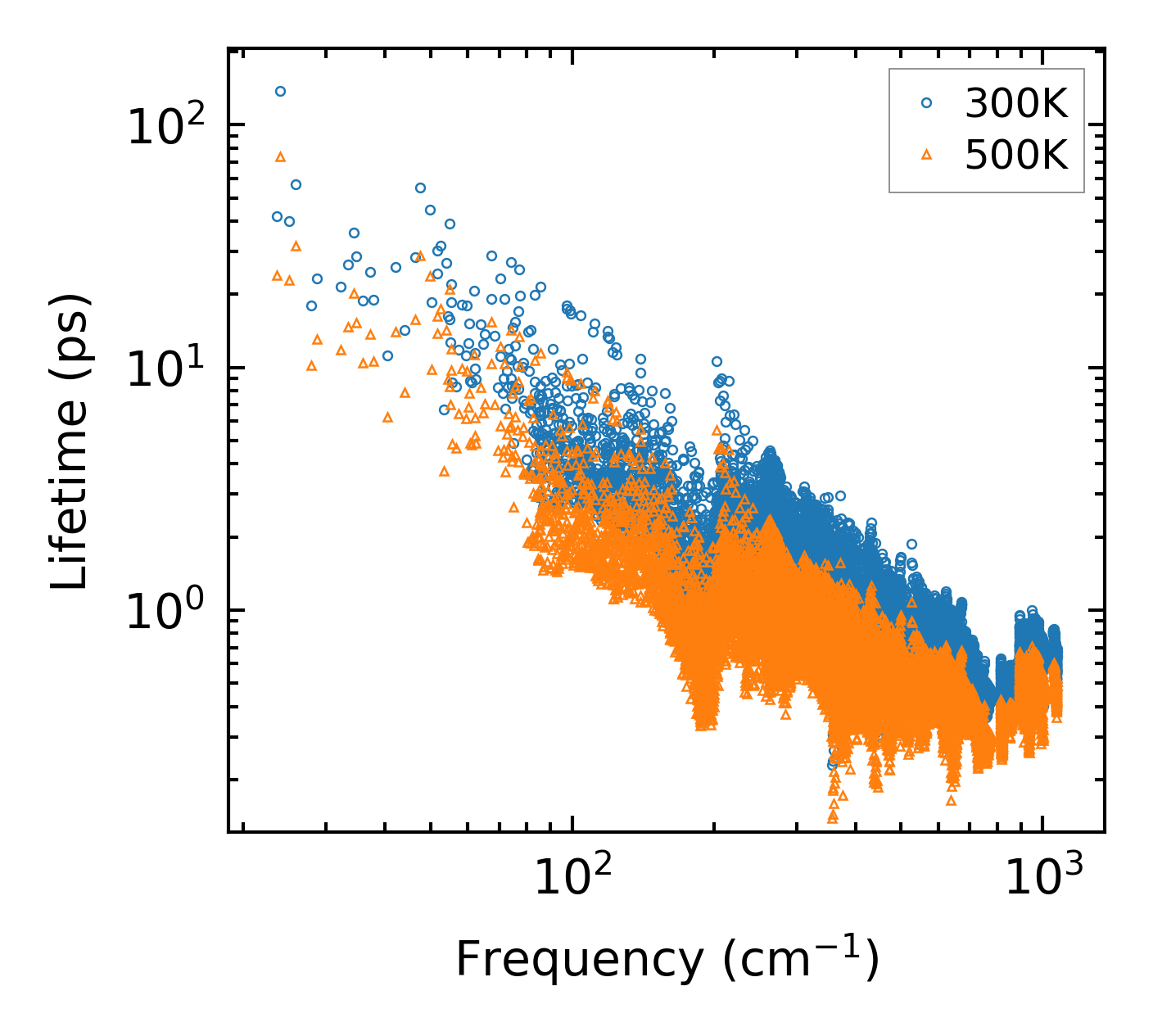

../../_images/fig_lifetime4041.png — (a) Phonon lifetime due to phonon-phonon scattering

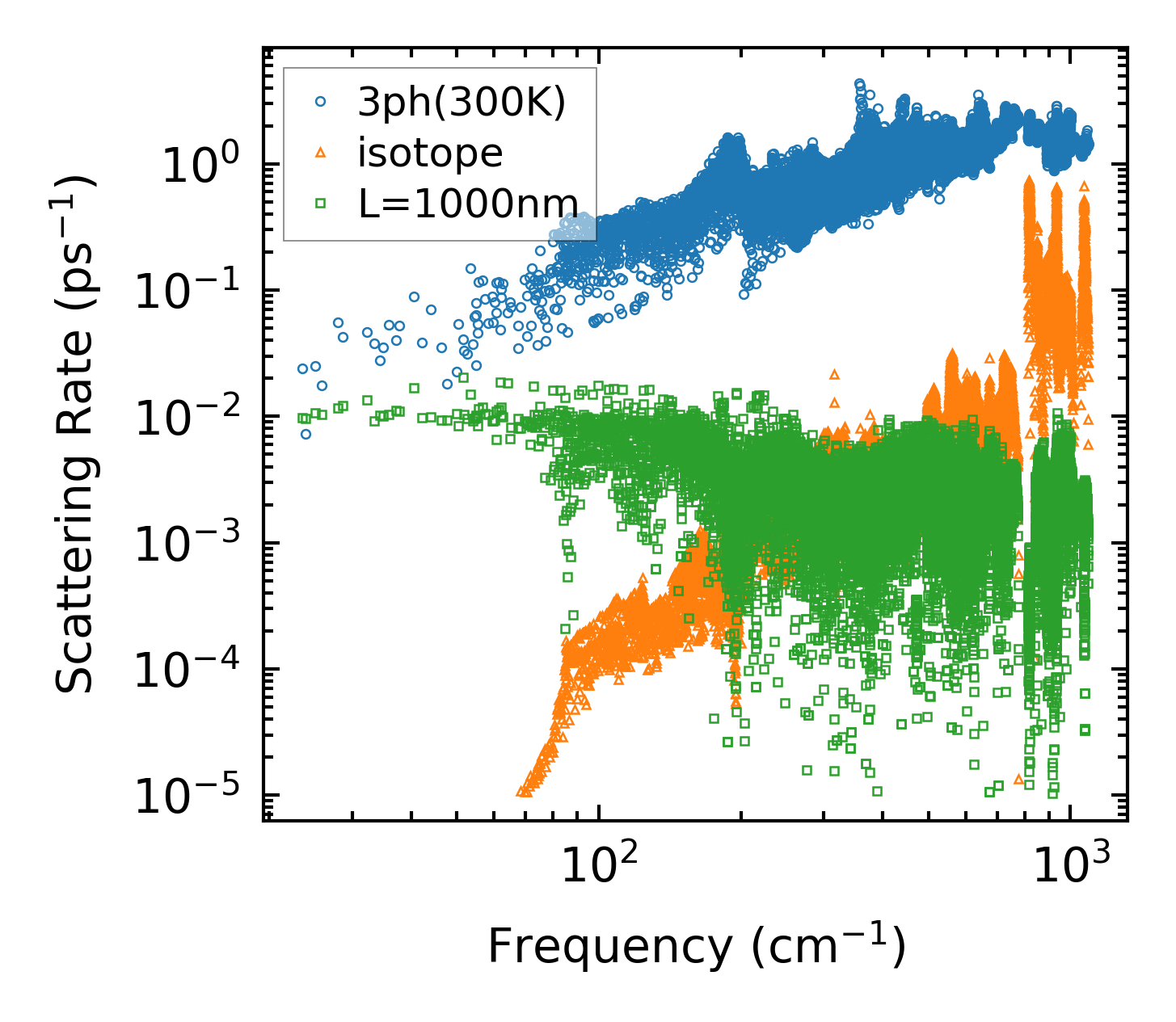

../../_images/fig_scat_rates4040.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4041.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4040.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29884.png — (a) Force constants w.r.t atomic distance

Summary

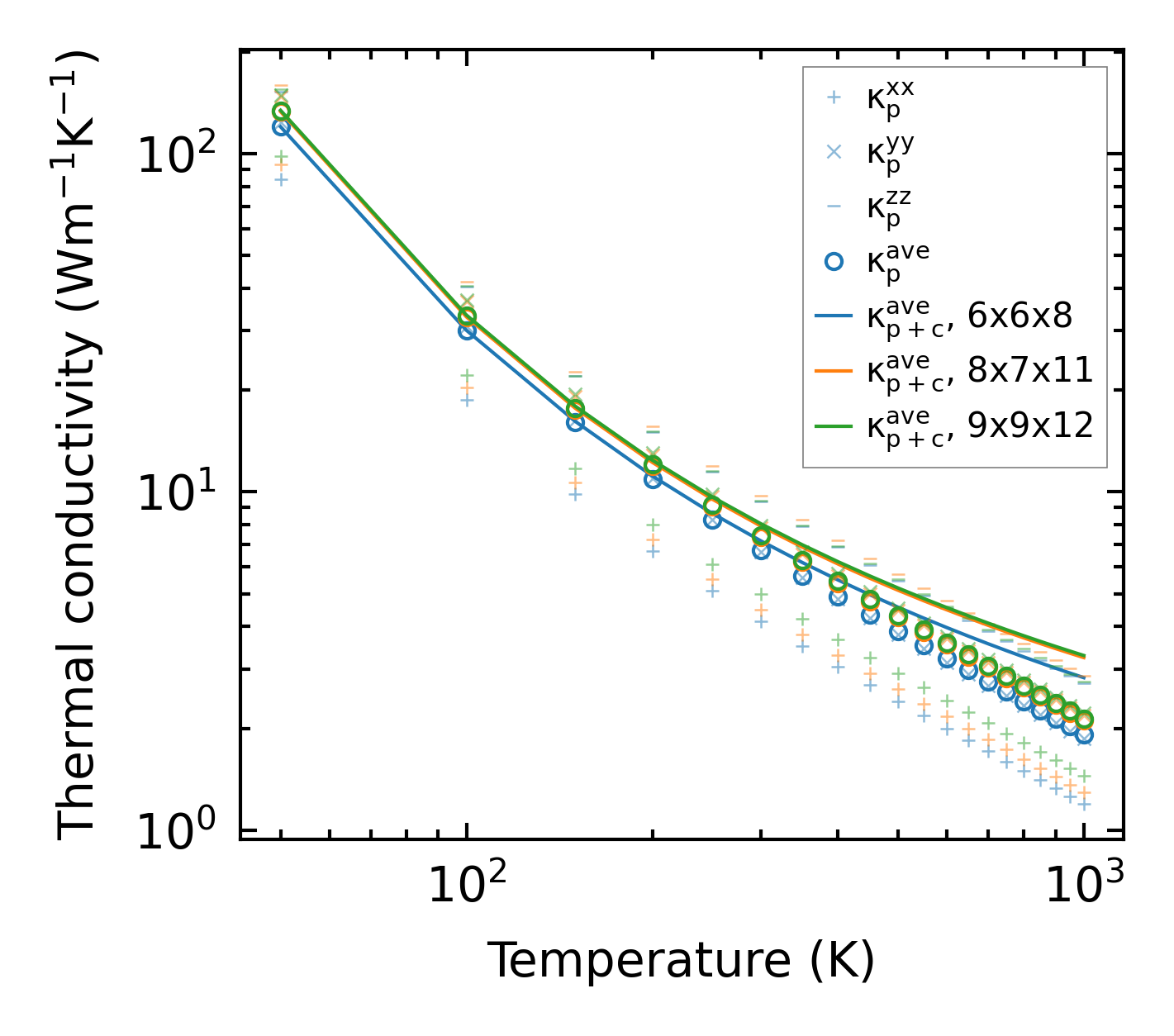

../../_images/fig_kappa7694.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17563.png — (b) Computation time
