mp-4321-2/MgSiO3/harm

Equation of state

../../_images/fig_bm5205.png

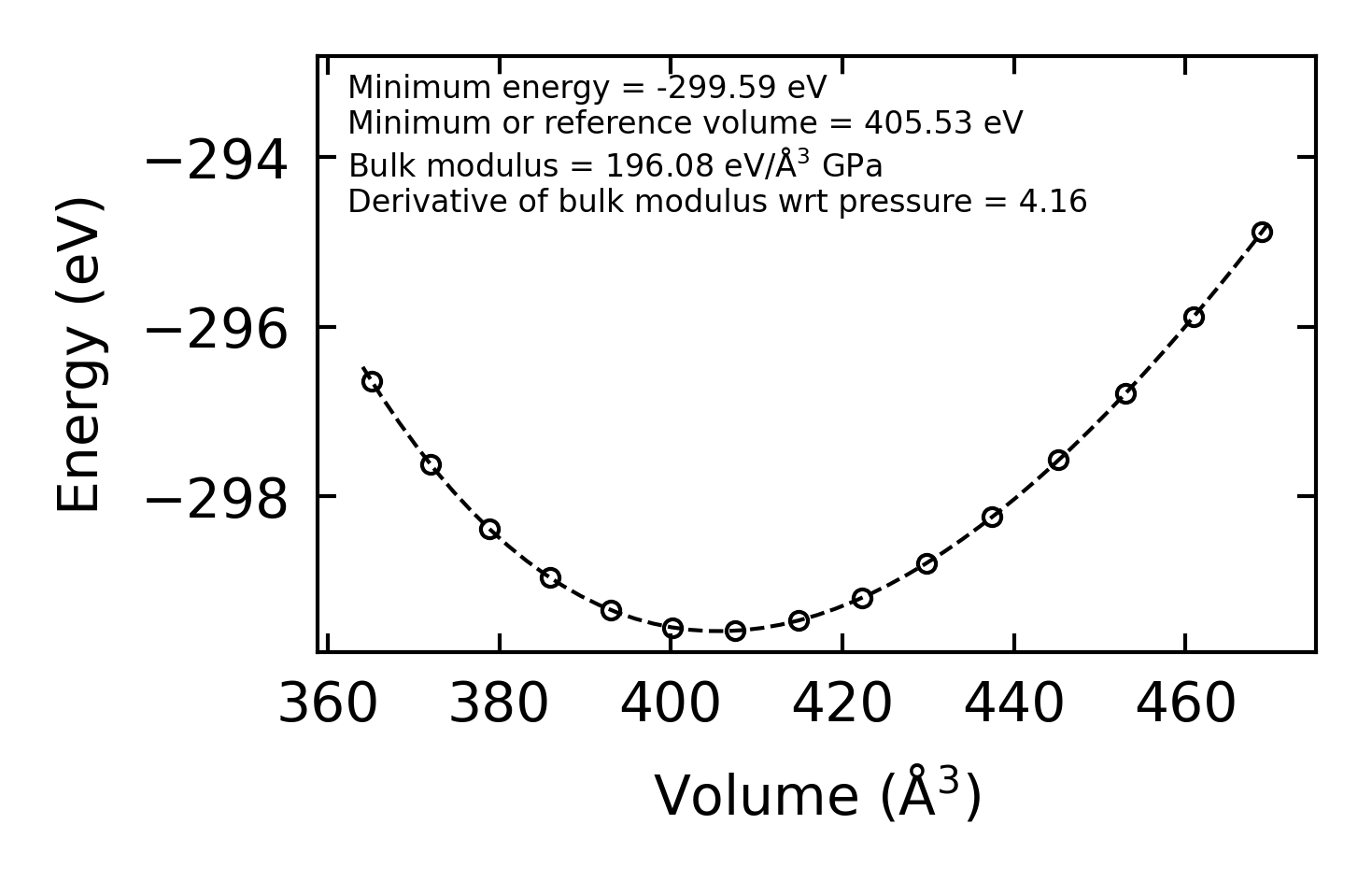

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr10378.png

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos14321.png

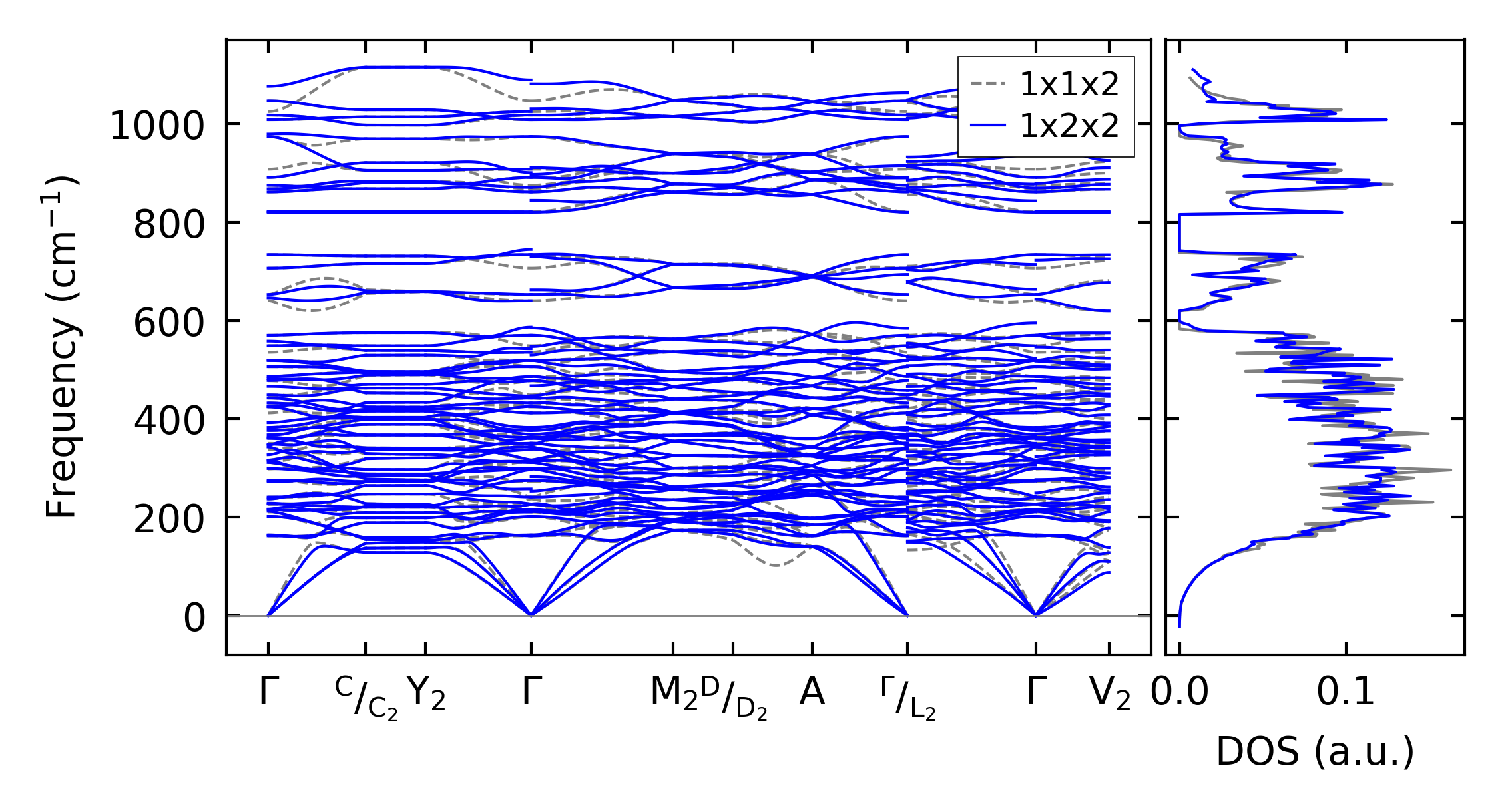

(b) Phonon dispersion and DOS

../../_images/fig_thermo10378.png

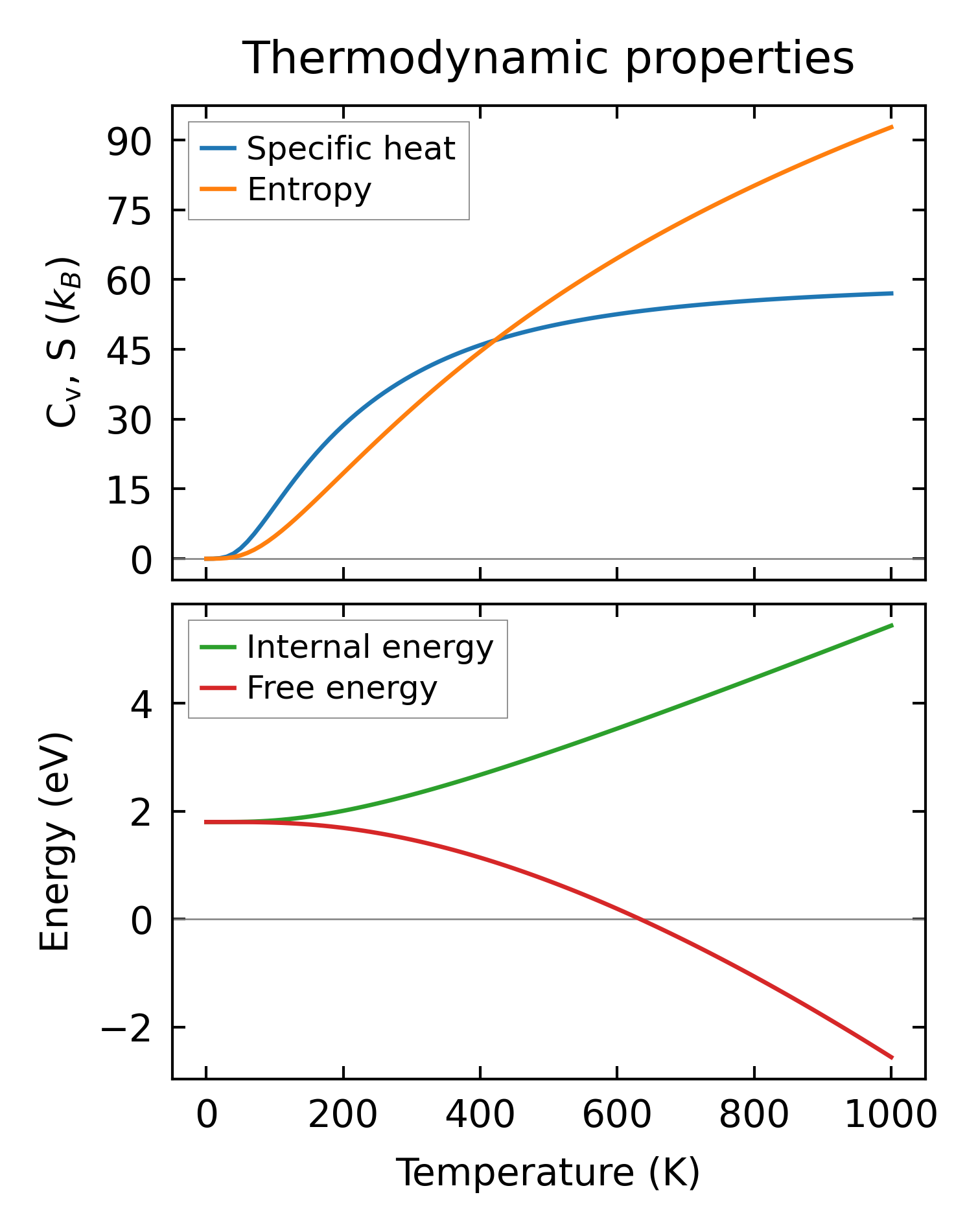

(c) Thermodynamic properties

Force constants

../../_images/fig_fc210122.png

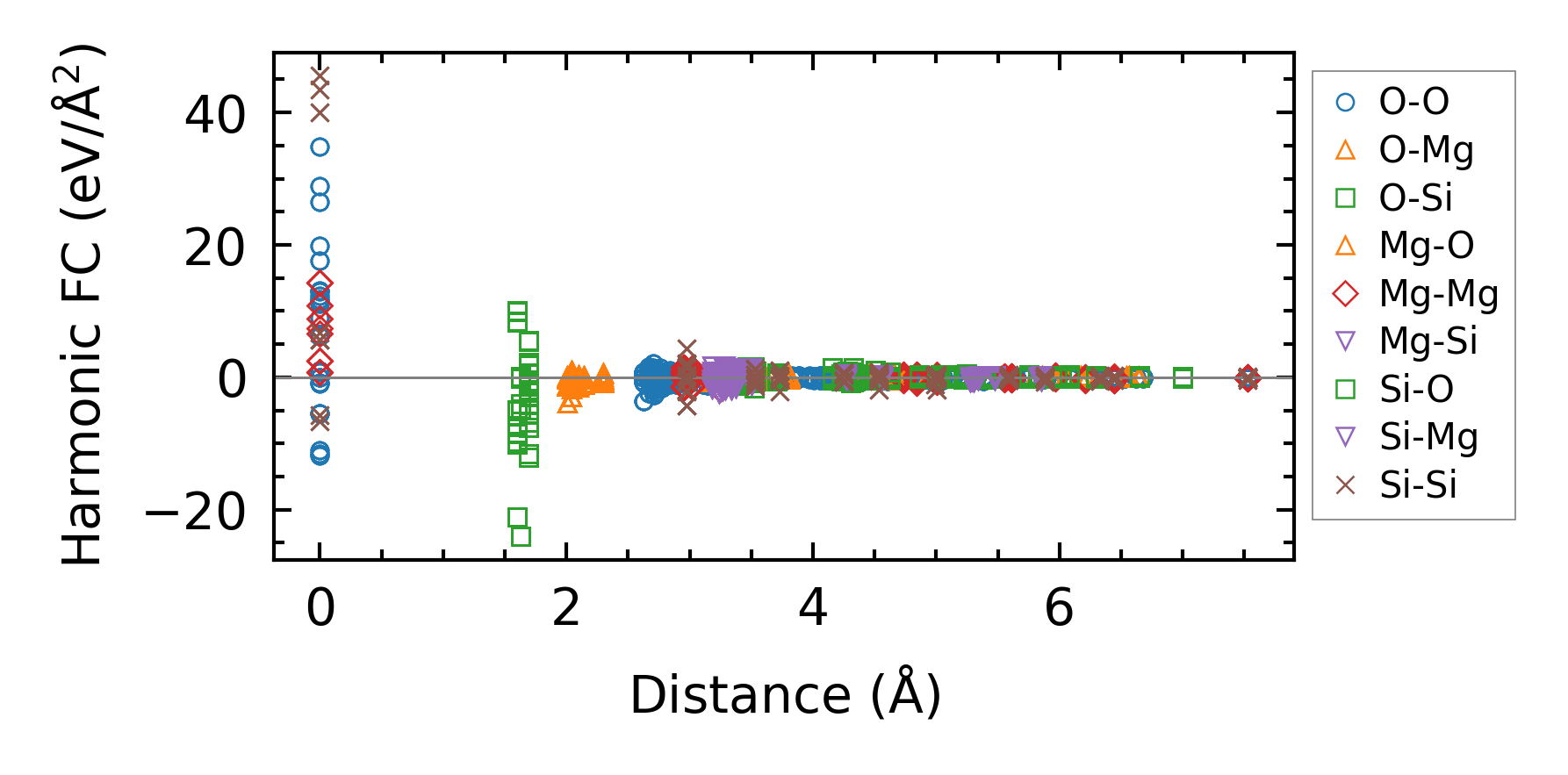

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times17909.png

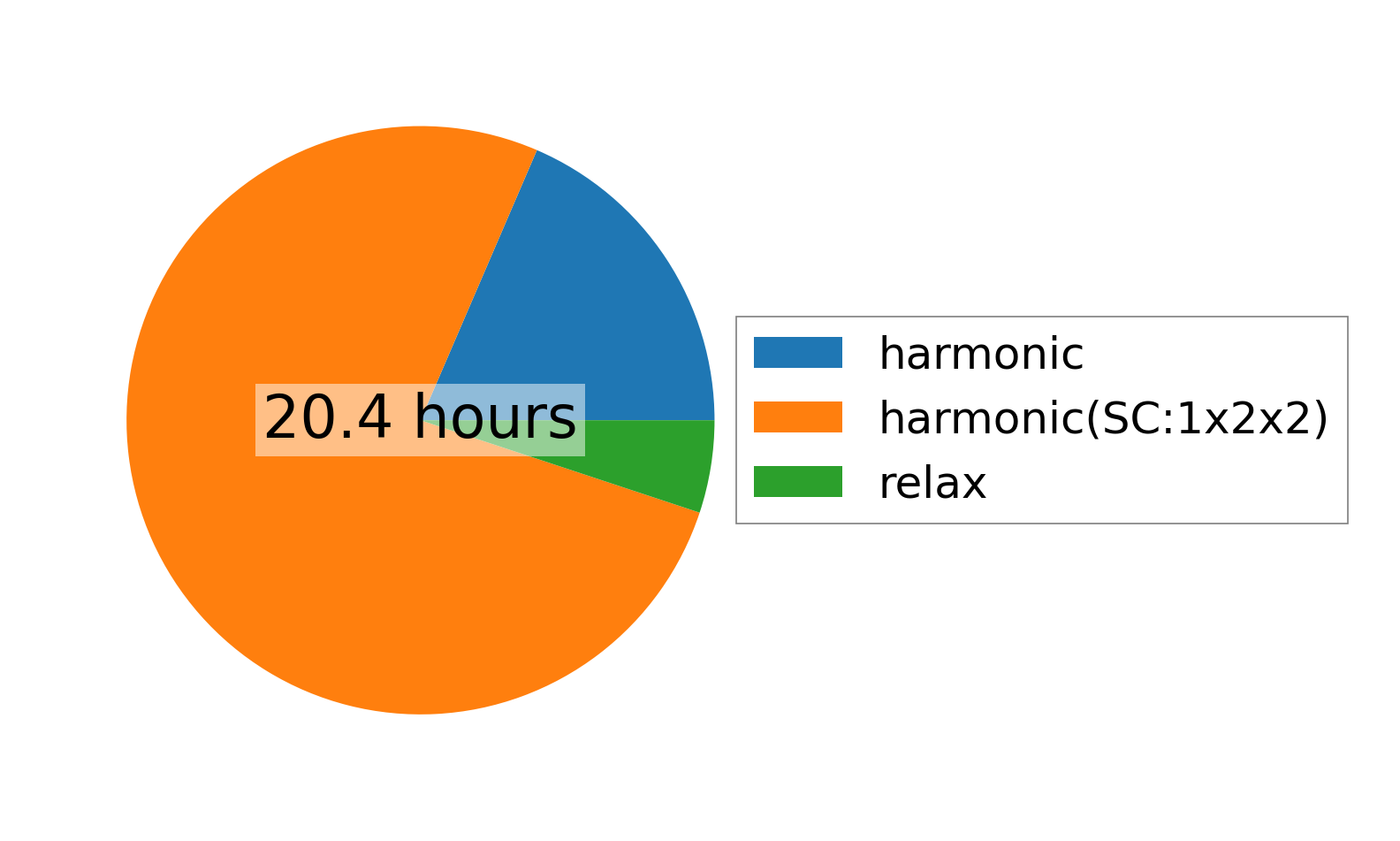

(a) Computation time
