mp-4350-2/La2Se3O9/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-4350-2.tar.gz

Equation of state

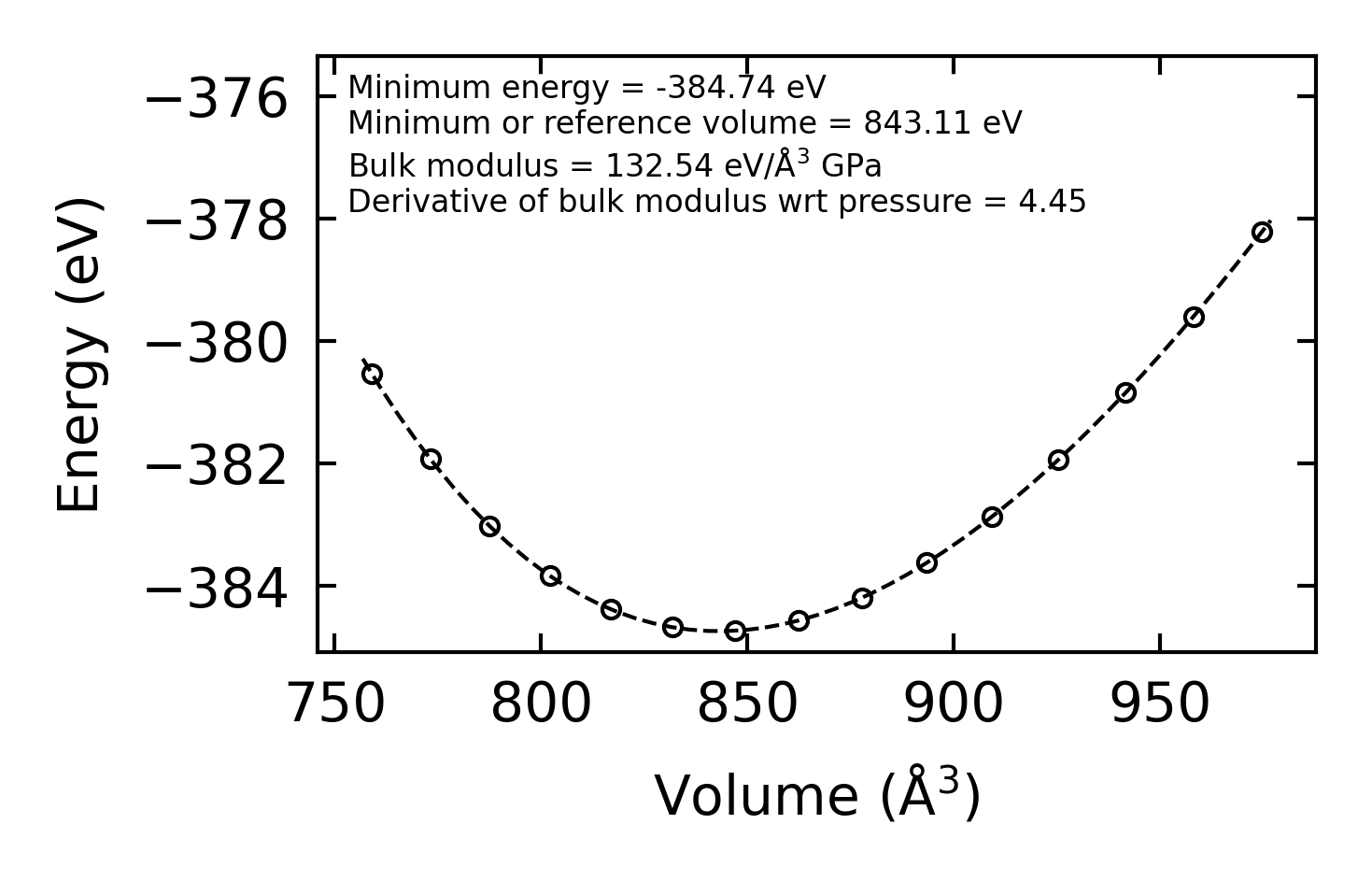

../../_images/fig_bm5210.png — (a) Equation of state

Harmonic properties

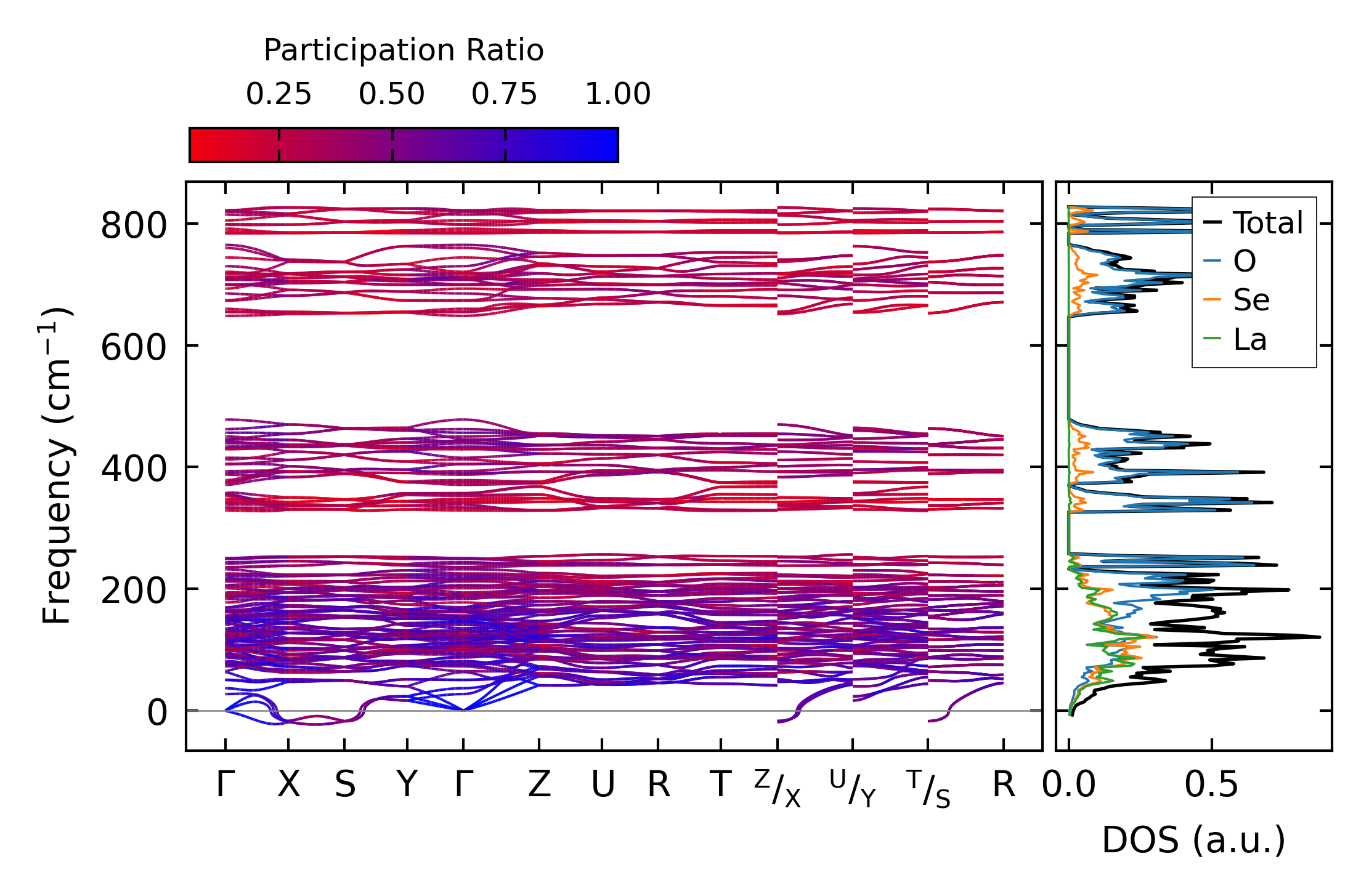

../../_images/fig_bandos_pr10386.png — (a) Phonon dispersion with participation ratio and DOS

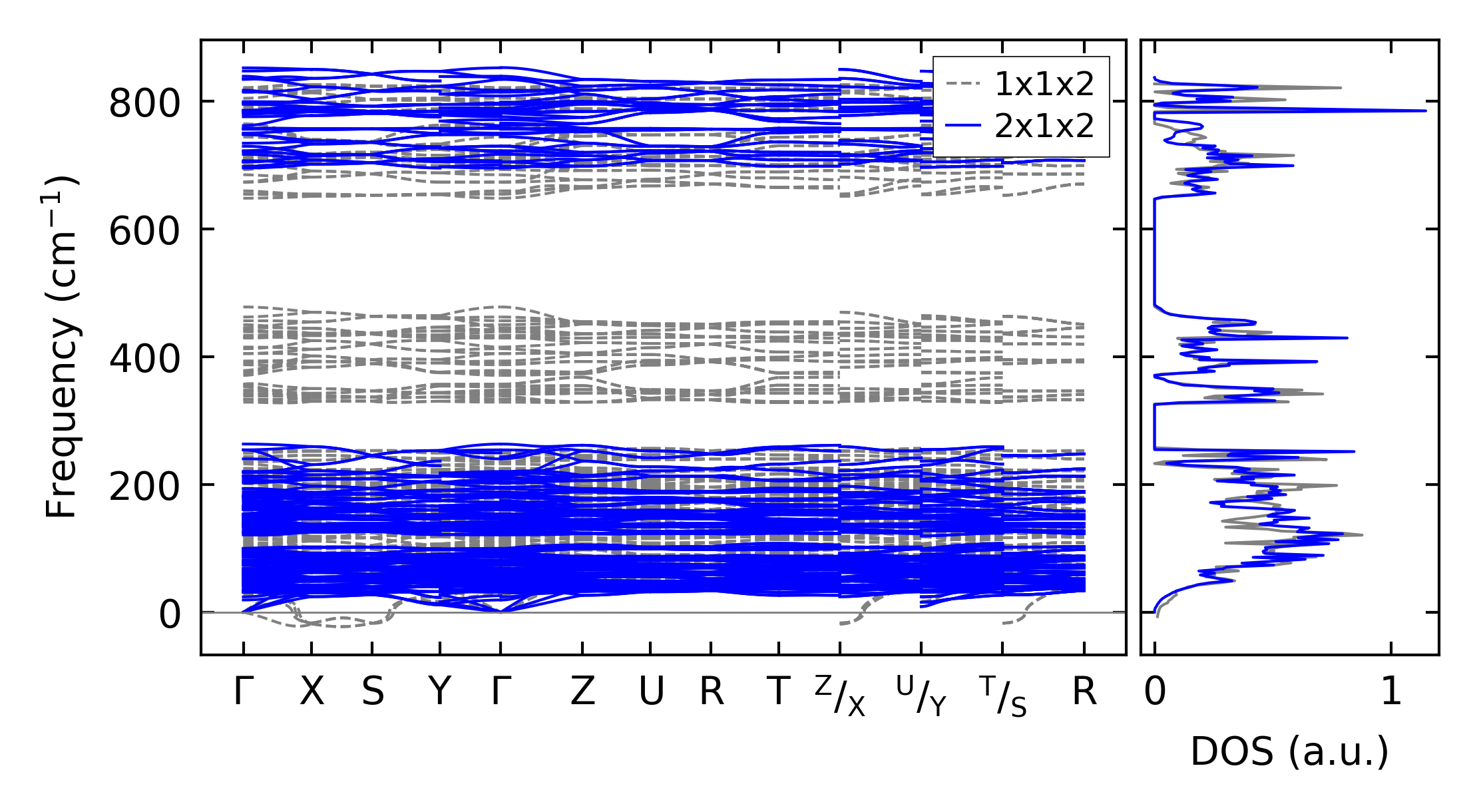

../../_images/fig_bandos14331.png — (b) Phonon dispersion and DOS

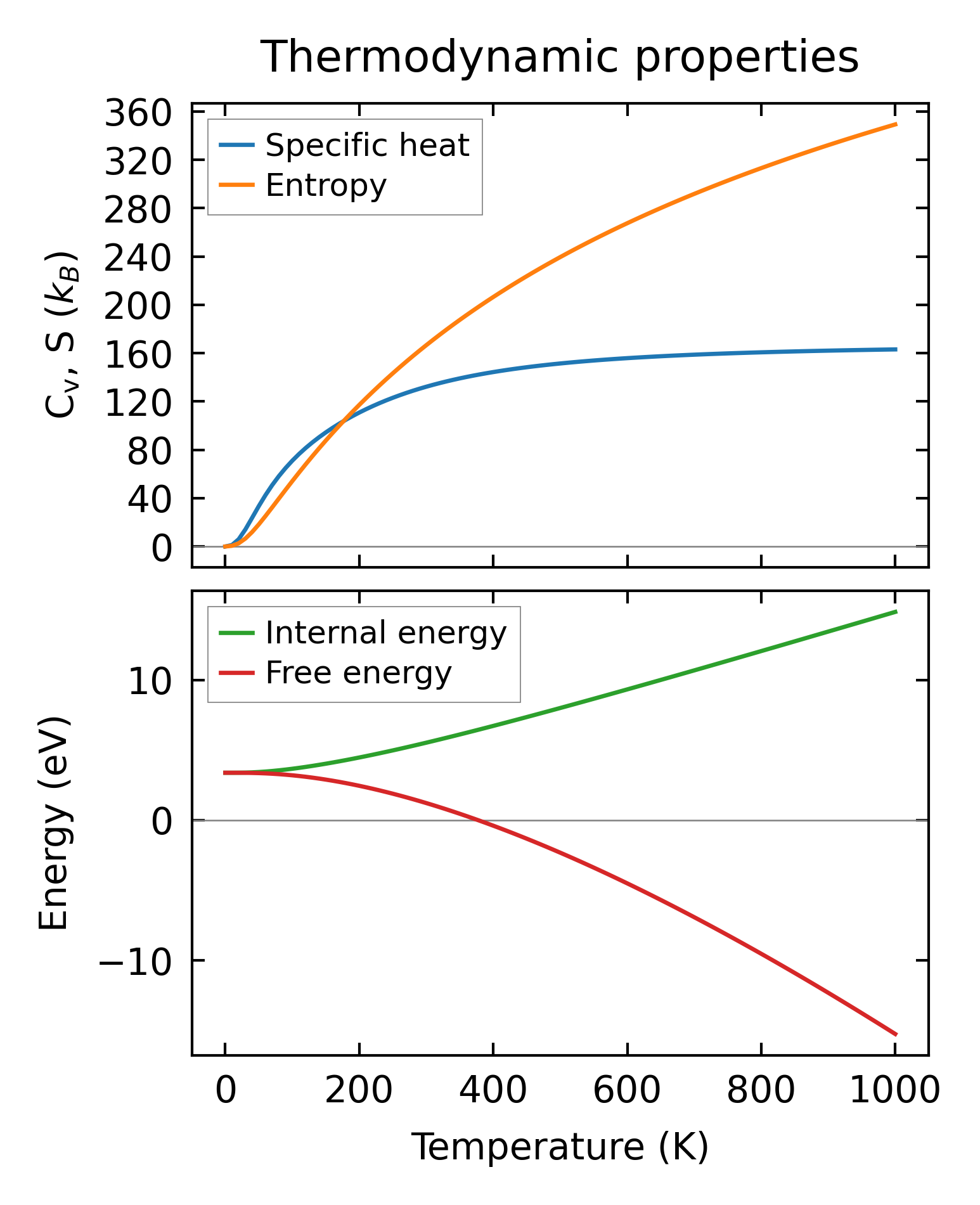

../../_images/fig_thermo10386.png — (c) Thermodynamic properties

Grüneisen parameters

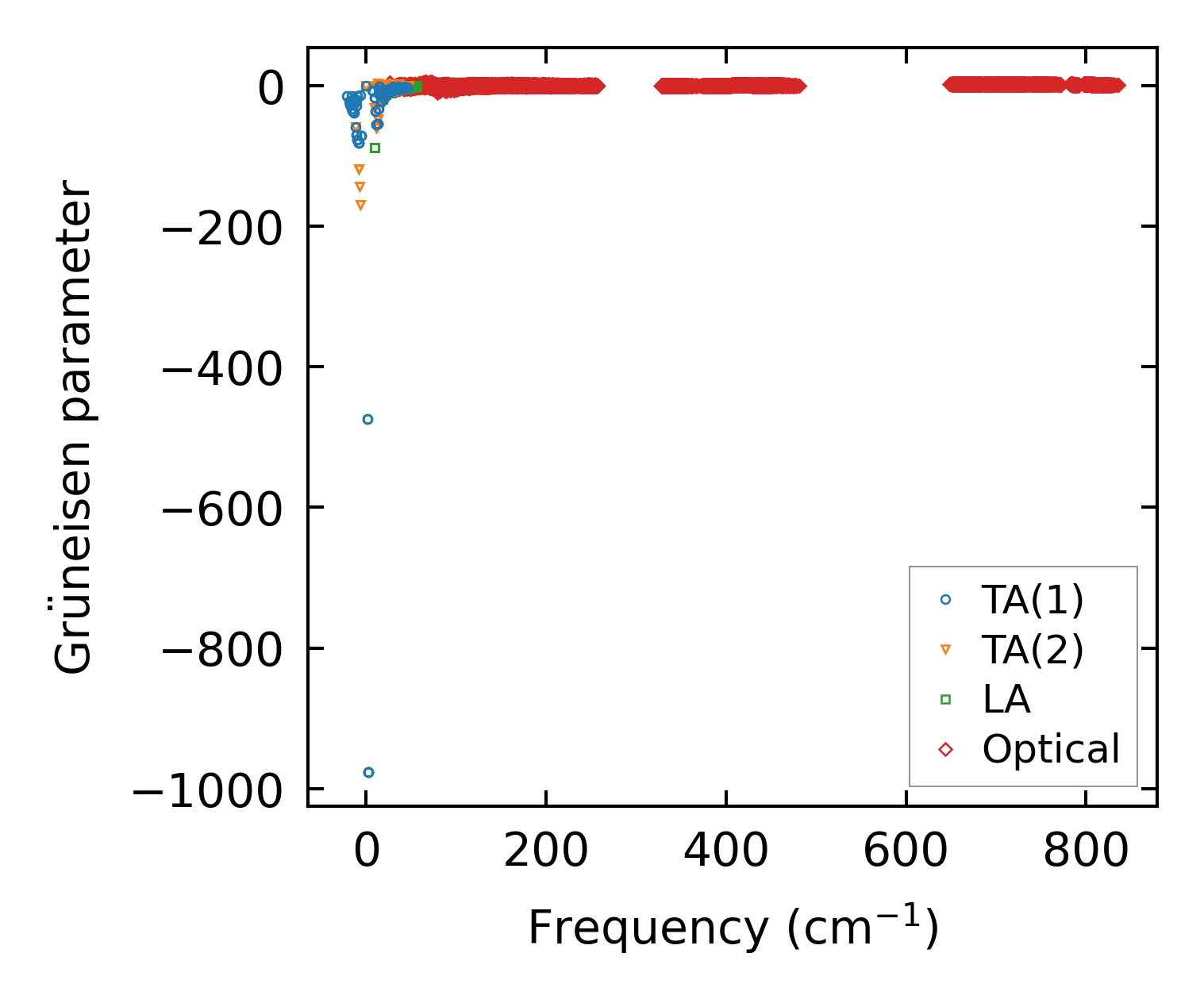

../../_images/fig_gru_all4200.png — (a) Grüneisen parameters

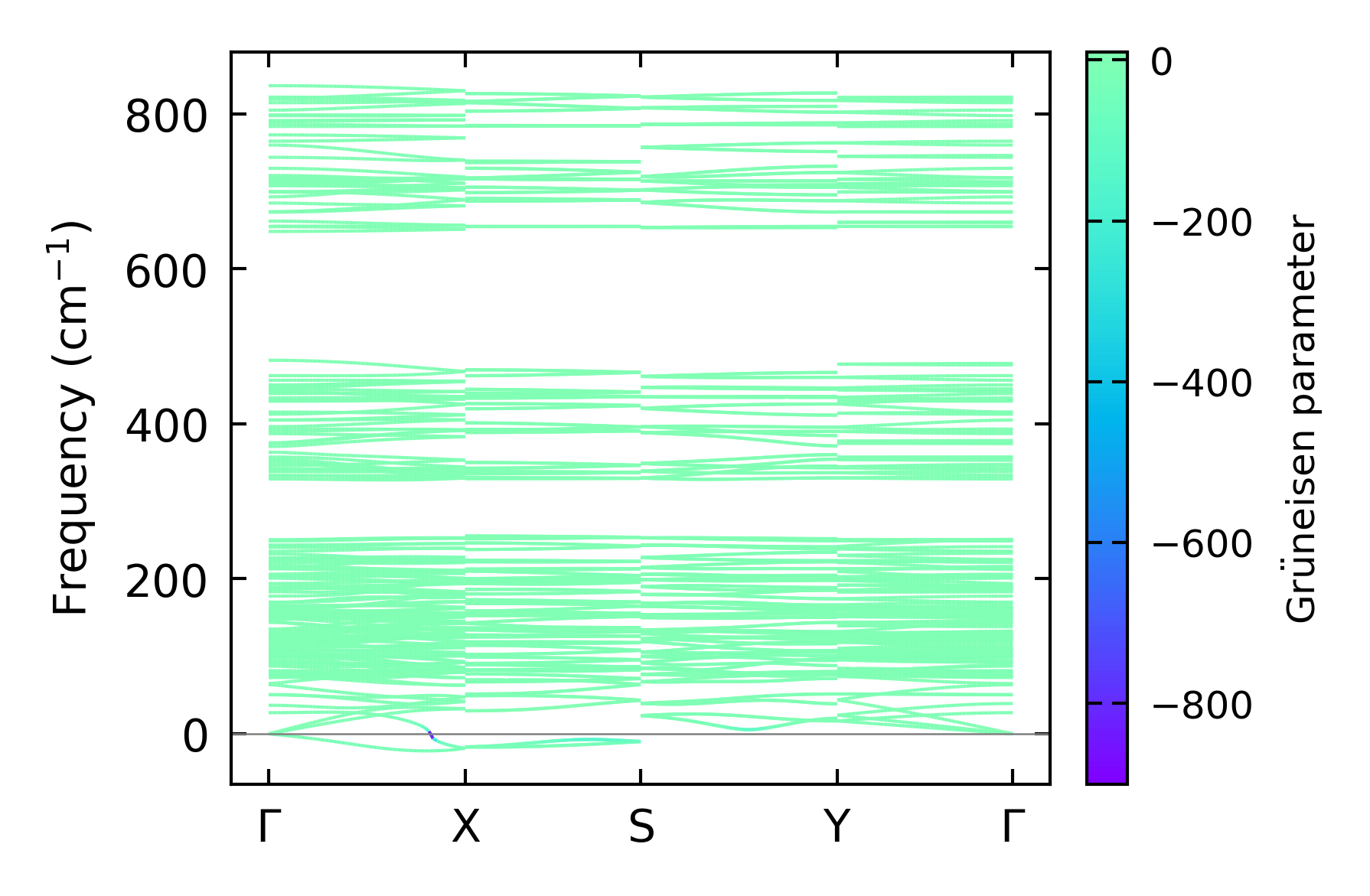

../../_images/fig_gruneisen4200.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x2 — q-mesh: 8x5x10, supercell: 2x1x2

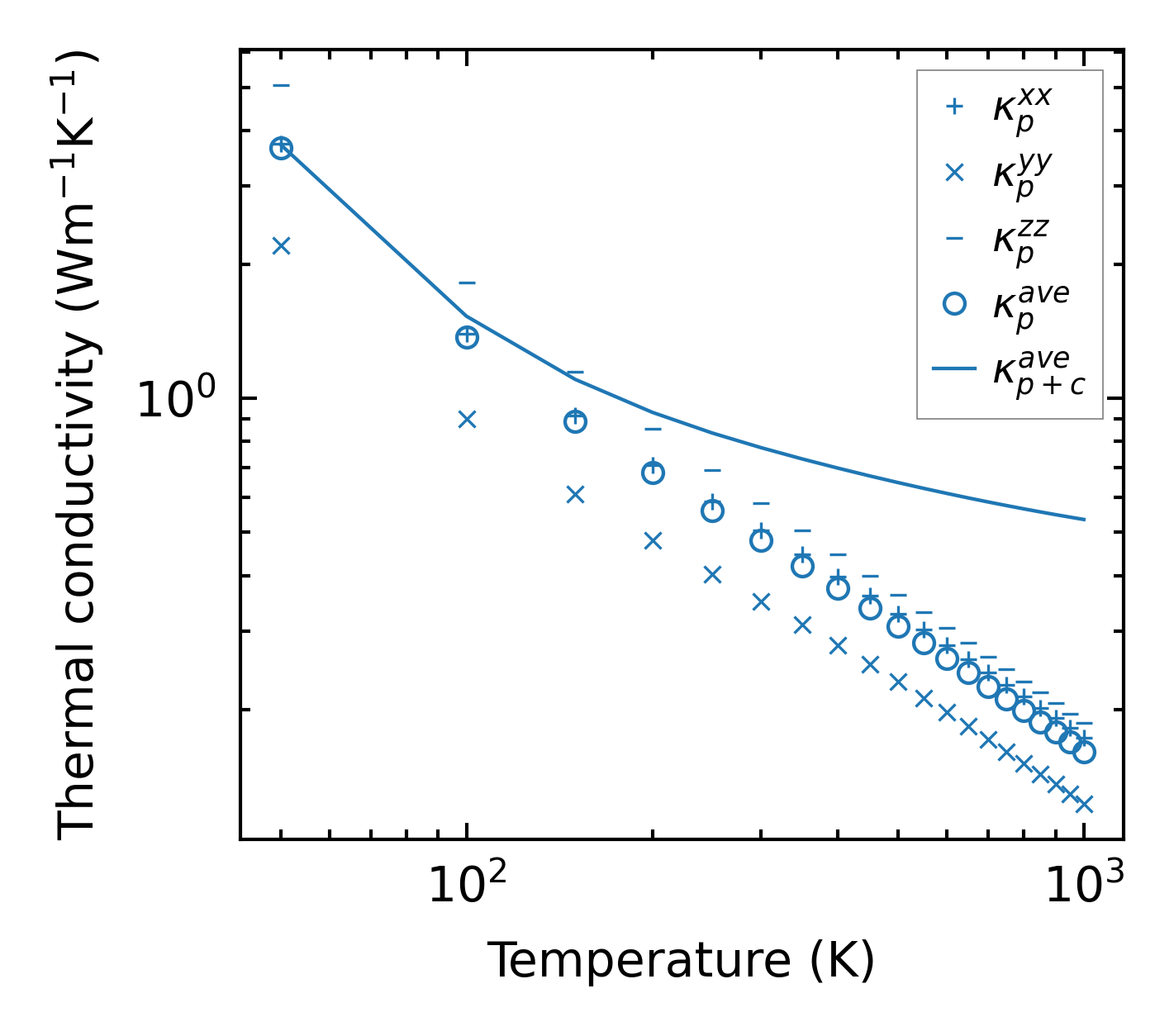

../../_images/fig_kappa7918.png — (a) Temperature-dependent lattice thermal conductivity

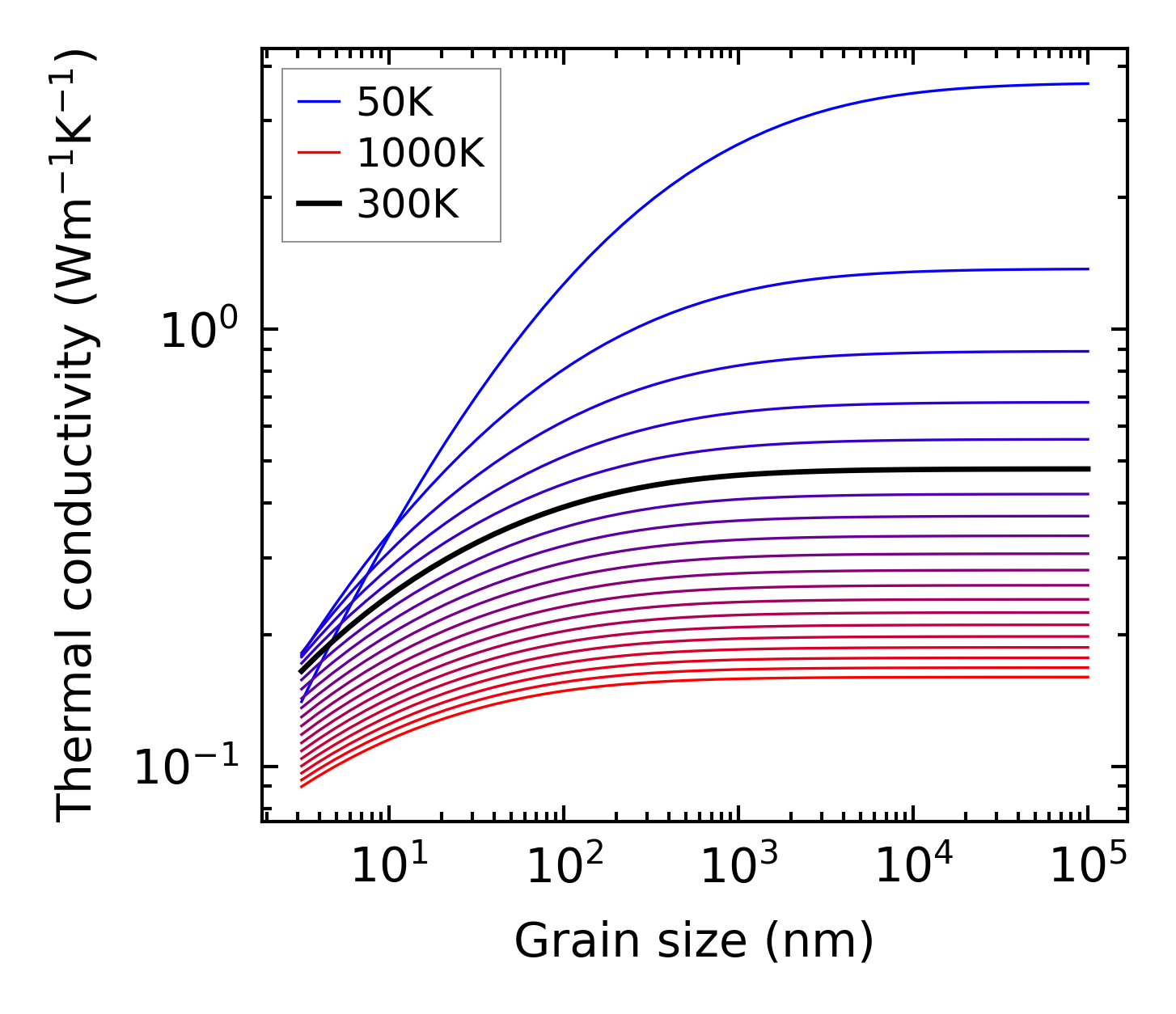

../../_images/fig_kappa_vs_grain_size4254.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

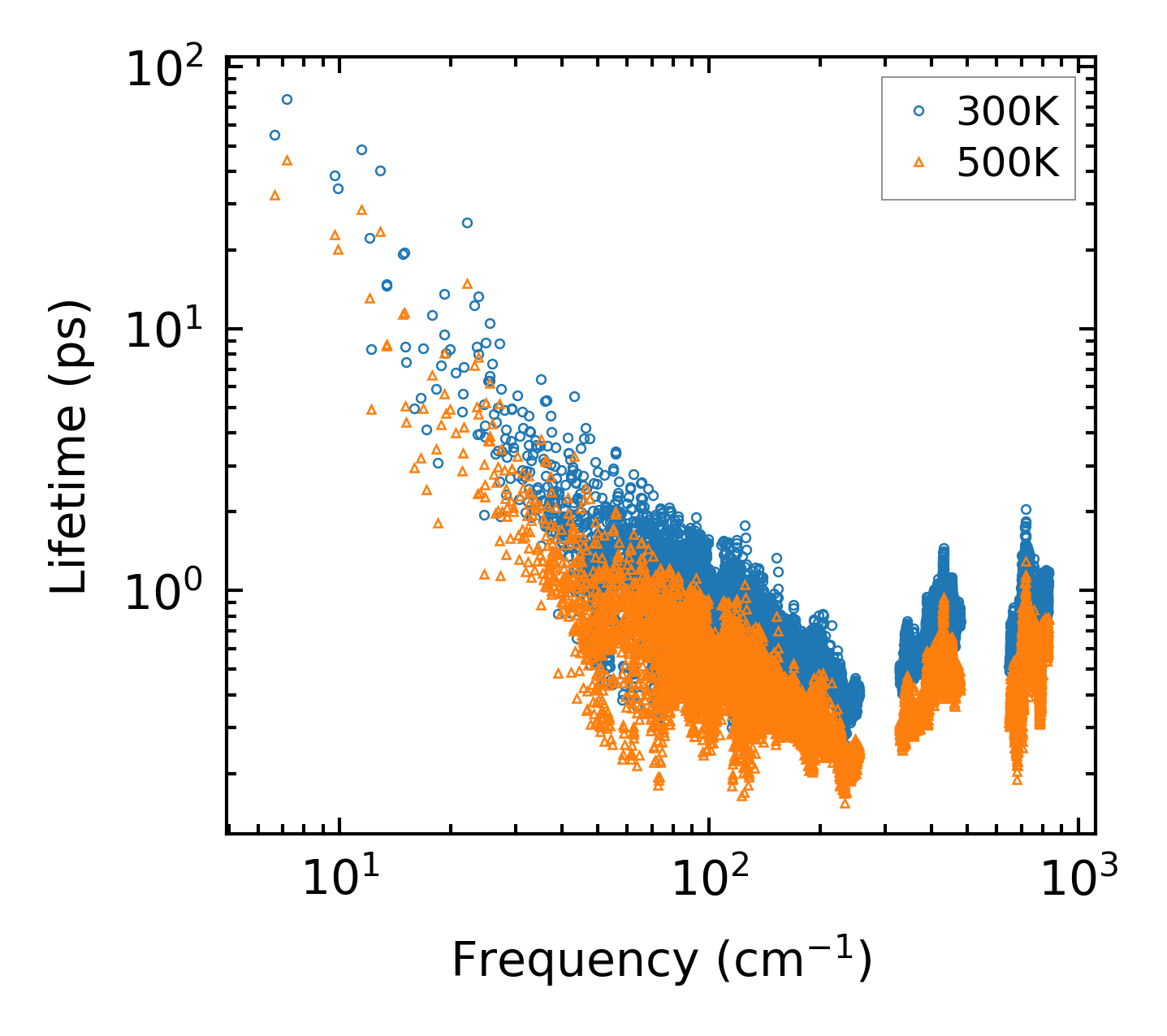

../../_images/fig_lifetime4160.png — (a) Phonon lifetime due to phonon-phonon scattering

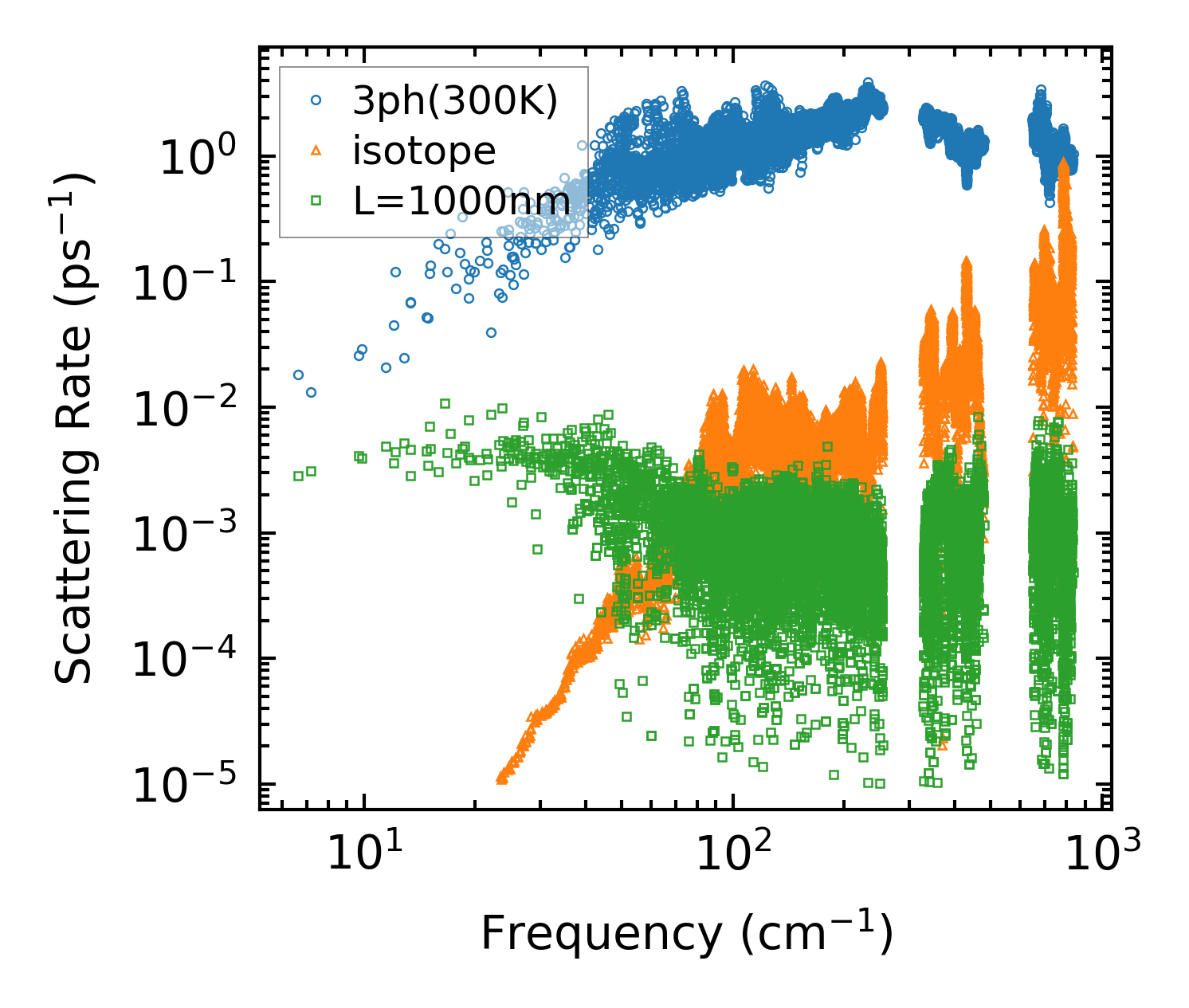

../../_images/fig_scat_rates4159.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

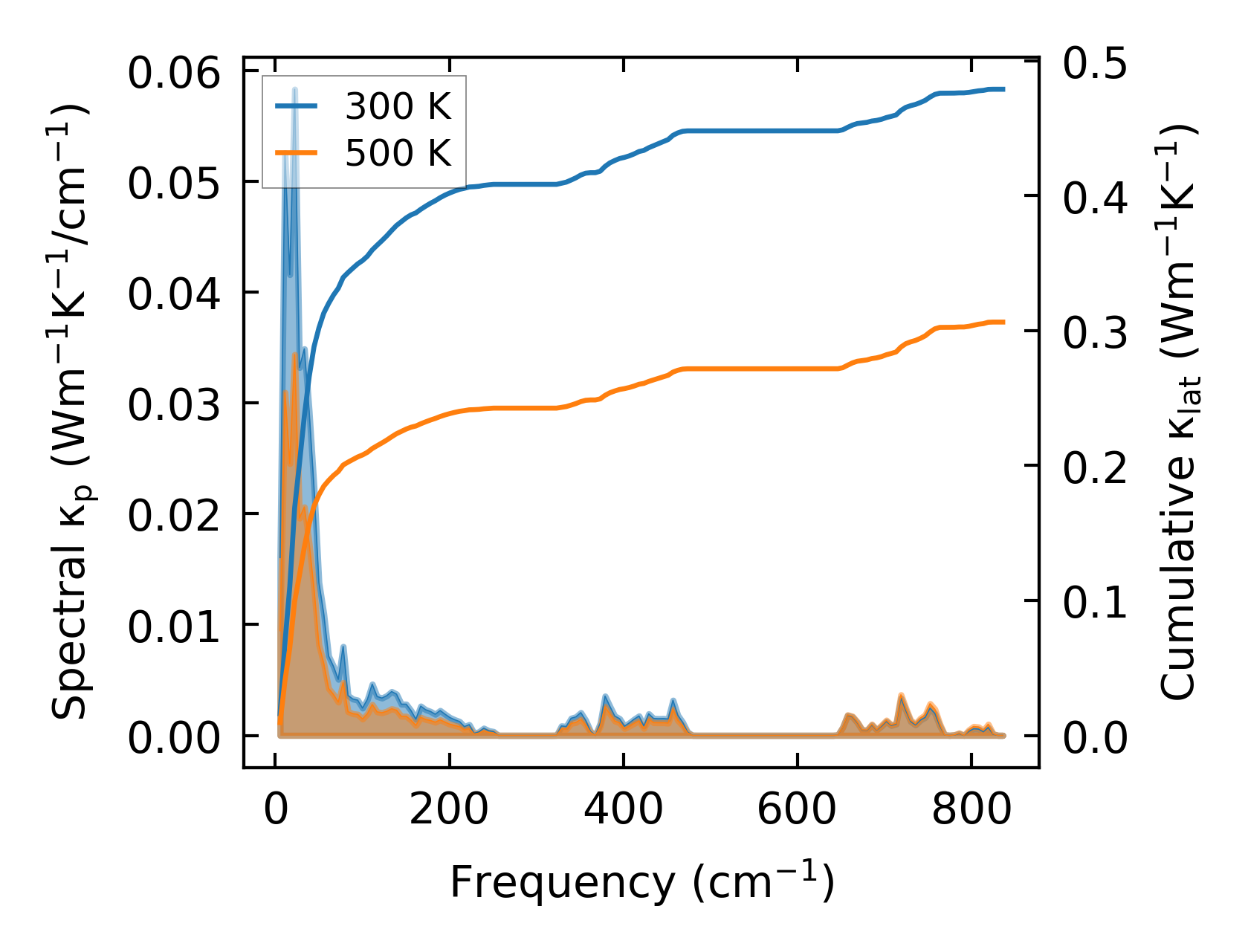

../../_images/fig_cumu_frequency4160.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

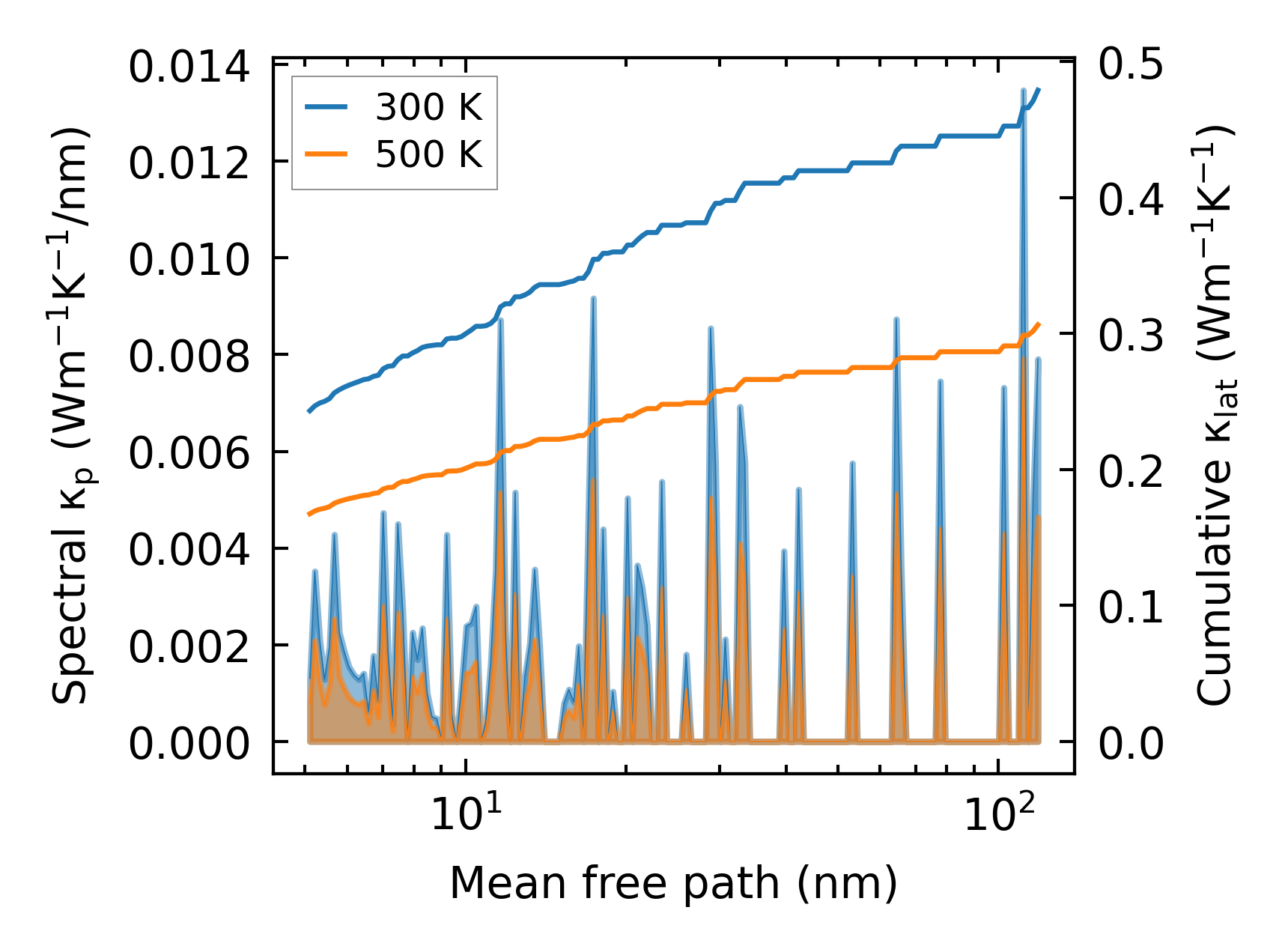

../../_images/fig_cumu_mfp4159.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

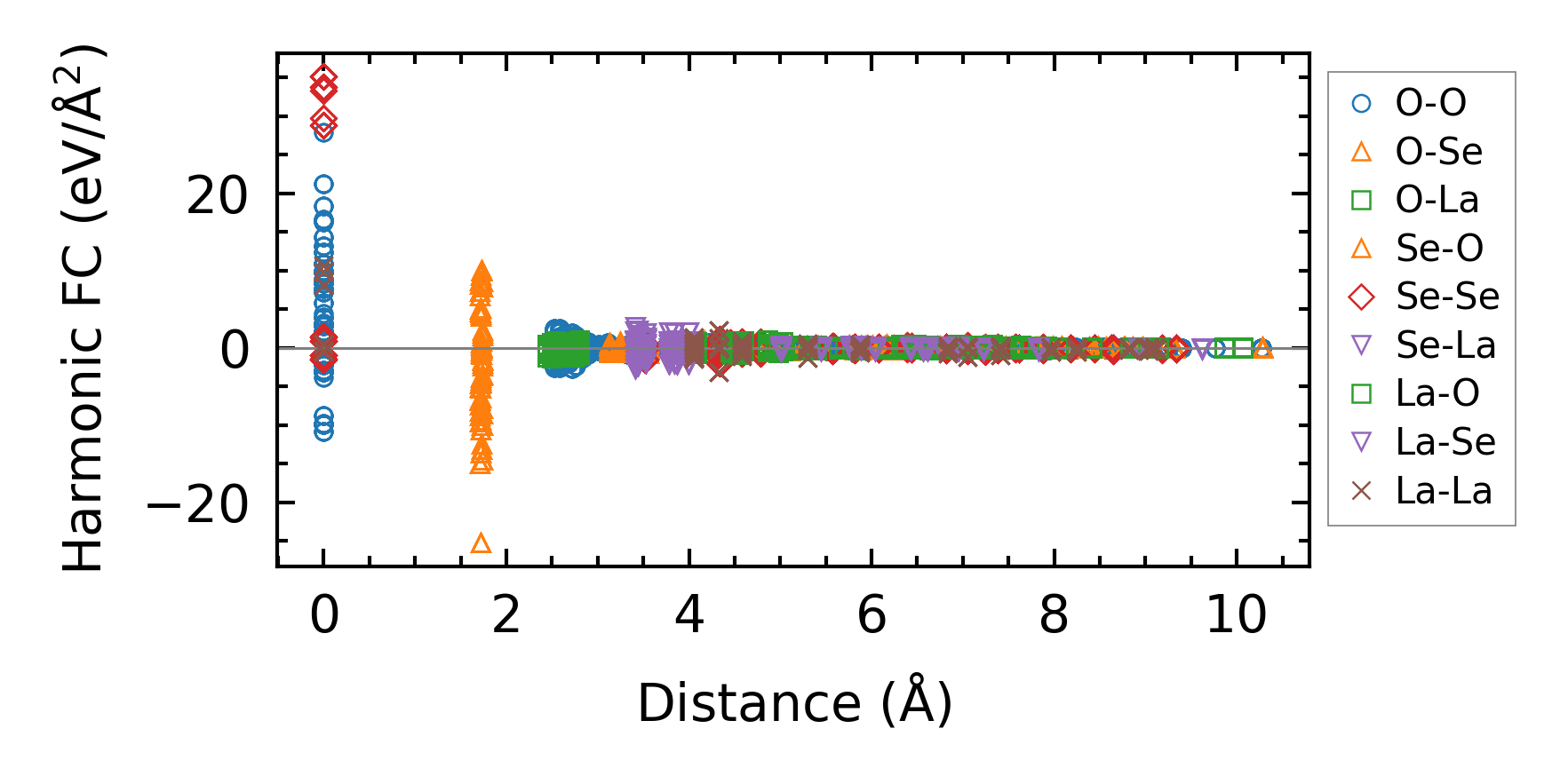

../../_images/fig_fc210129.png — (a) Force constants w.r.t atomic distance

Summary

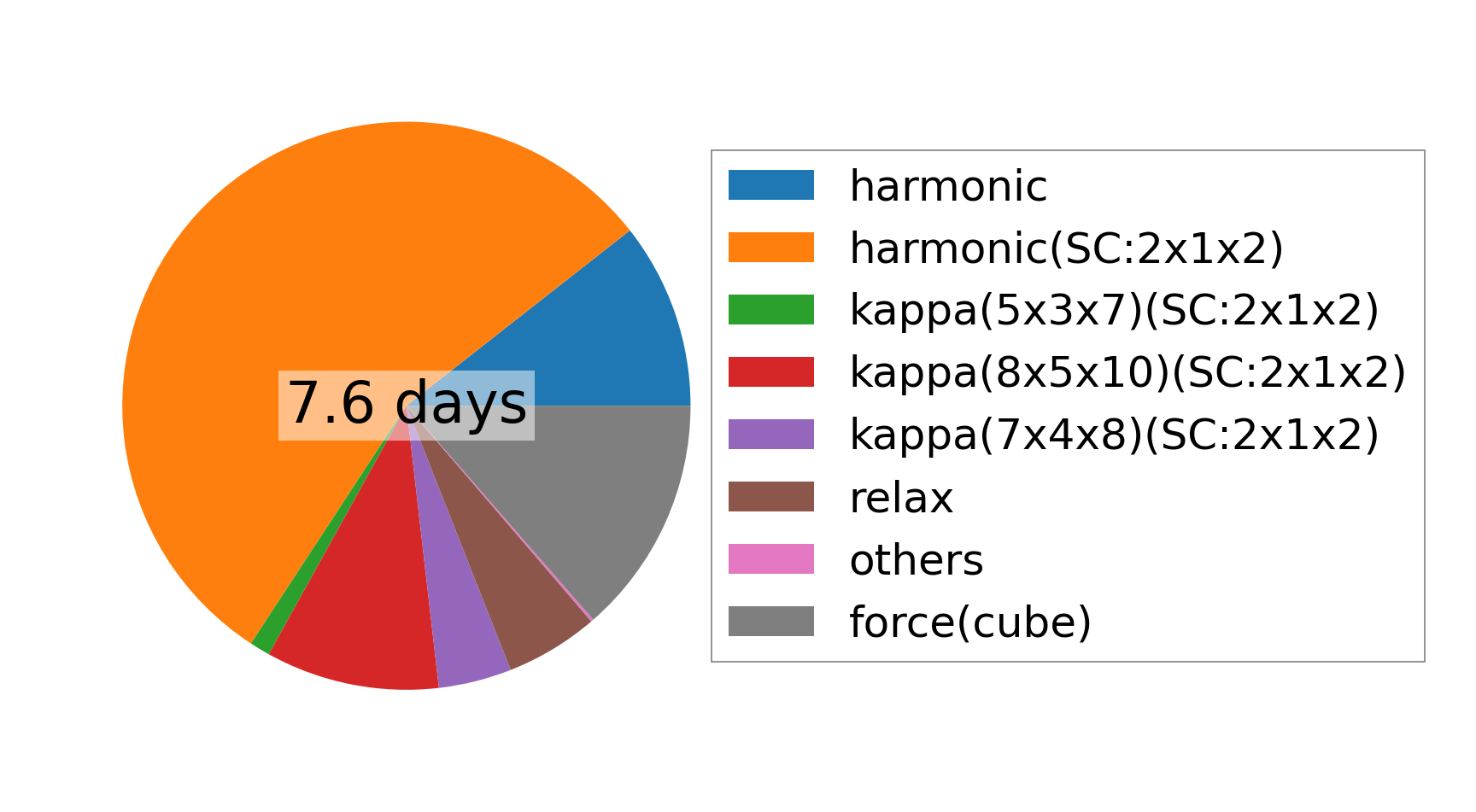

../../_images/fig_times17922.png — (a) Computation time
