mp-4287-2/Sr2SnO4/anharm

Space group: P4_2/ncm (138)
Link: Materials Project
Download: mp-4287-2.tar.gz

Equation of state

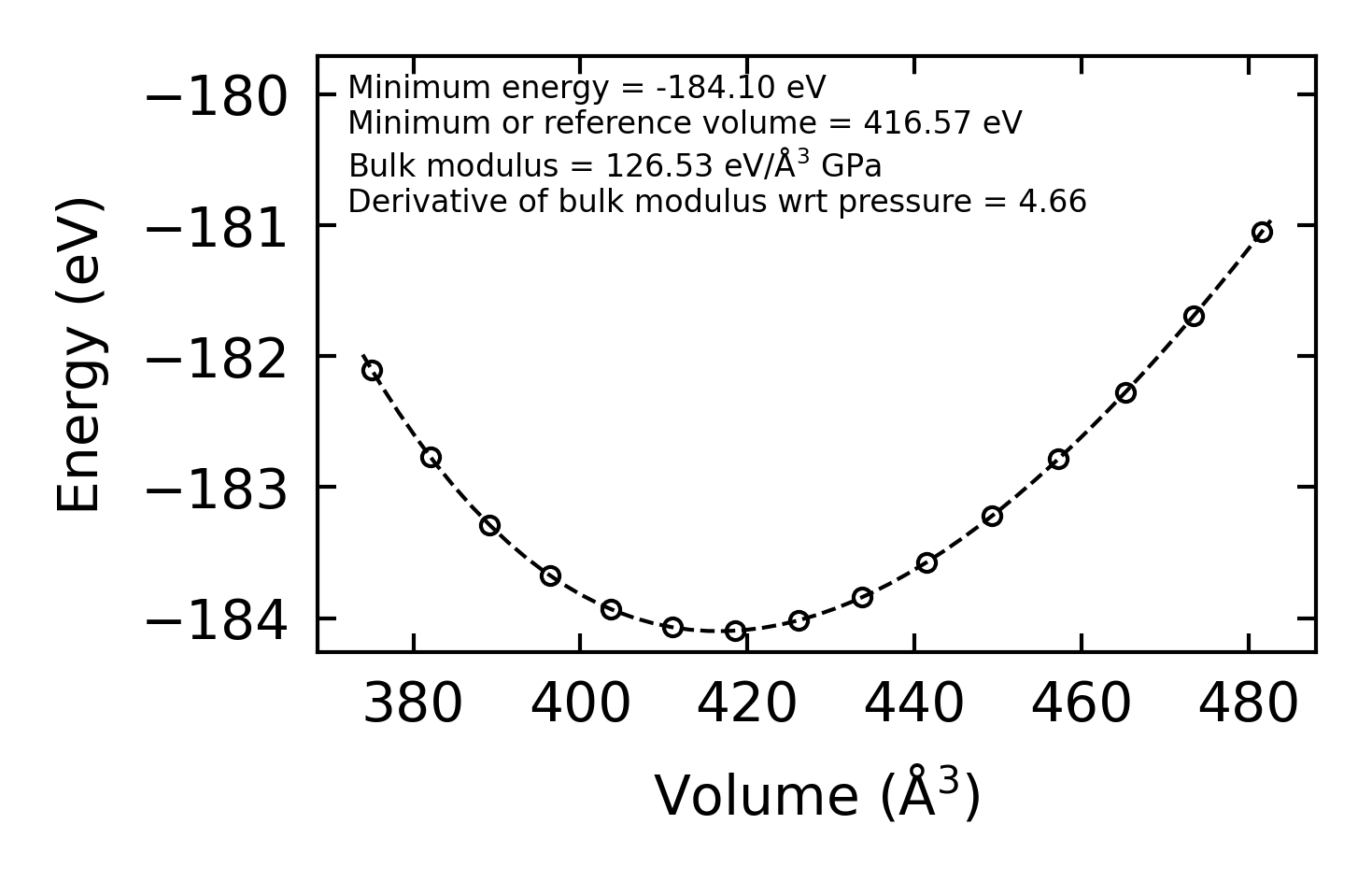

../../_images/fig_bm5202.png — (a) Equation of state

Harmonic properties

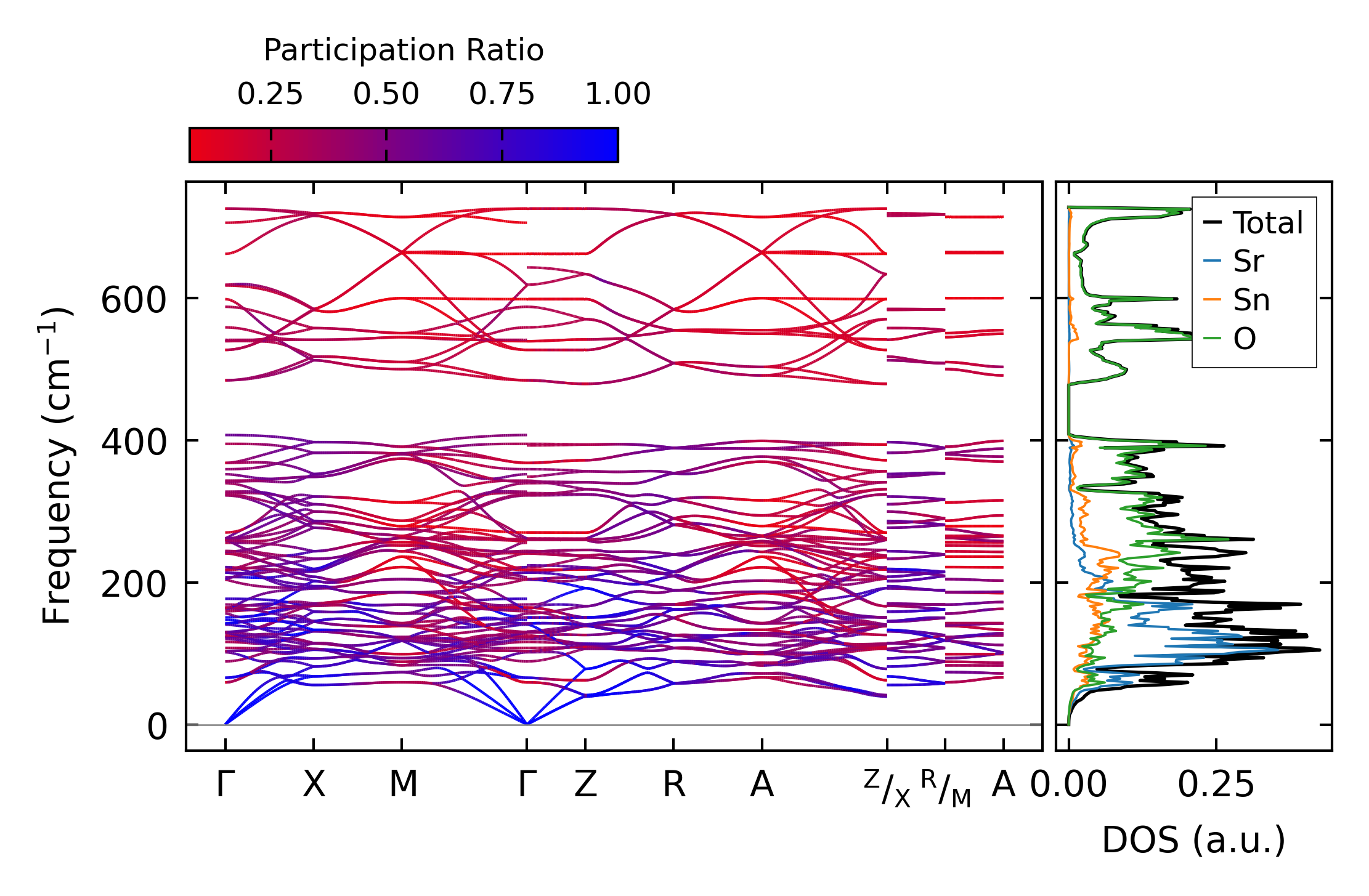

../../_images/fig_bandos_pr10373.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10373.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4195.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4195.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x5, supercell: 2x2x1

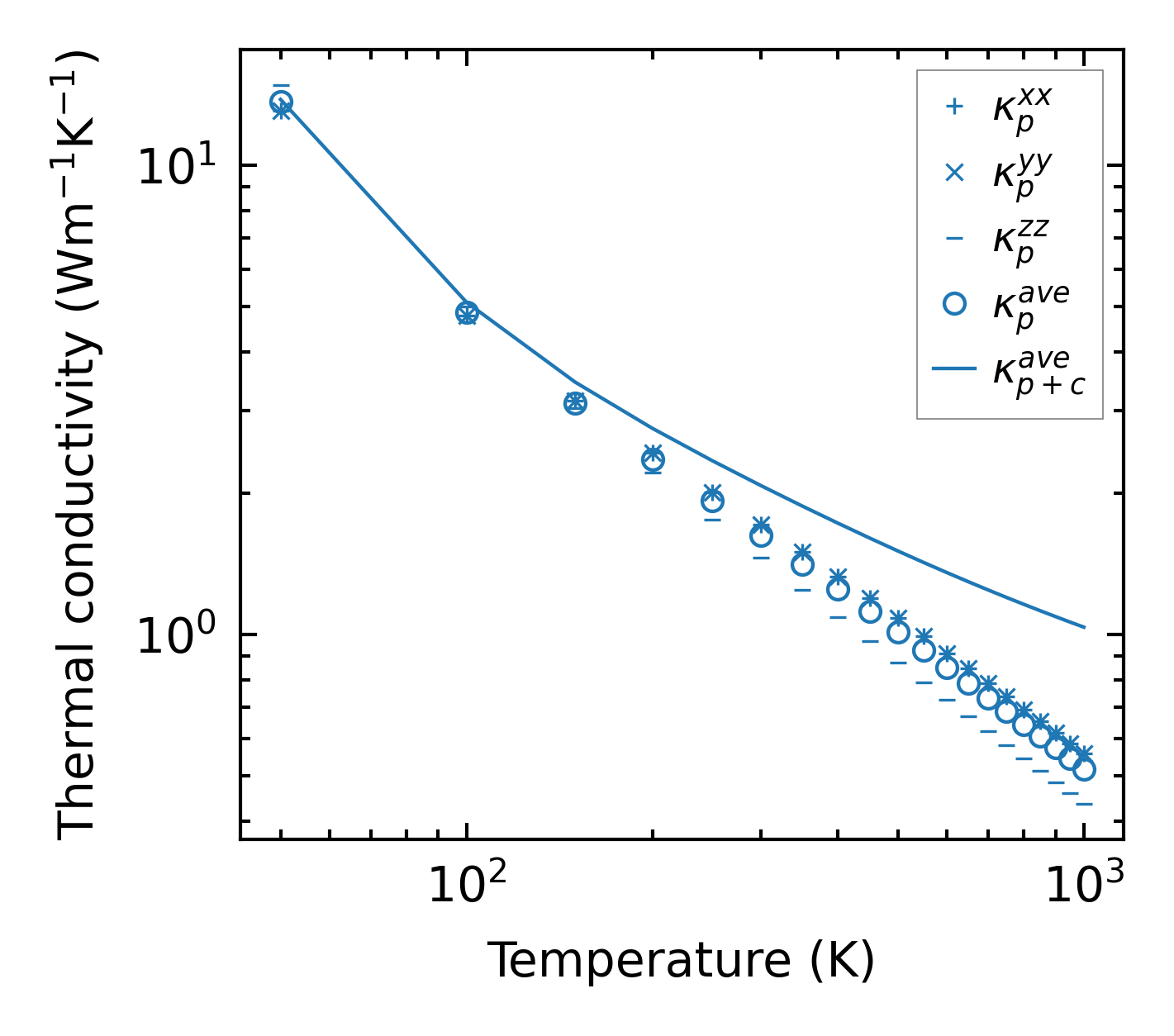

../../_images/fig_kappa7908.png — (a) Temperature-dependent lattice thermal conductivity

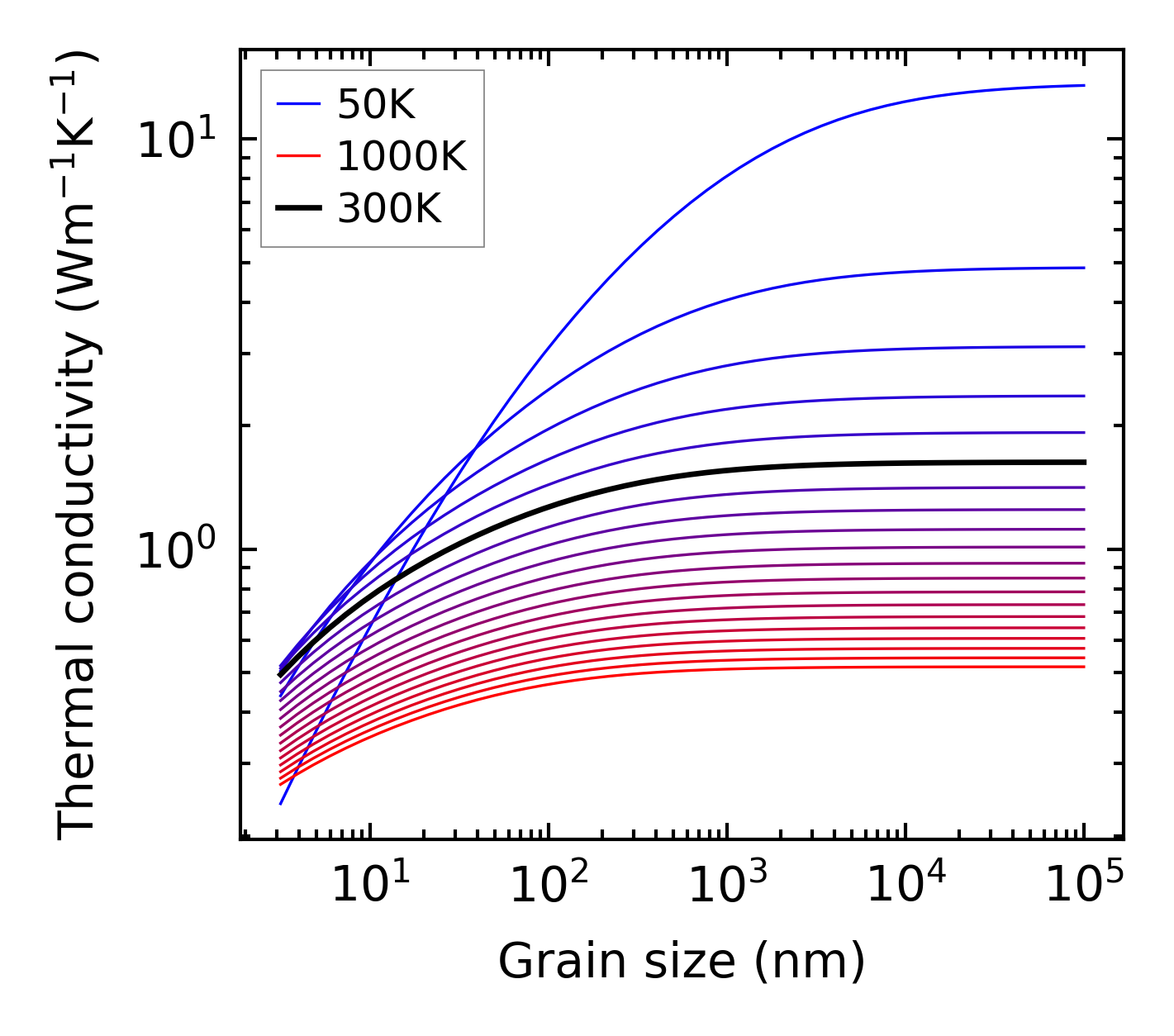

../../_images/fig_kappa_vs_grain_size4249.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4155.png — (a) Phonon lifetime due to phonon-phonon scattering

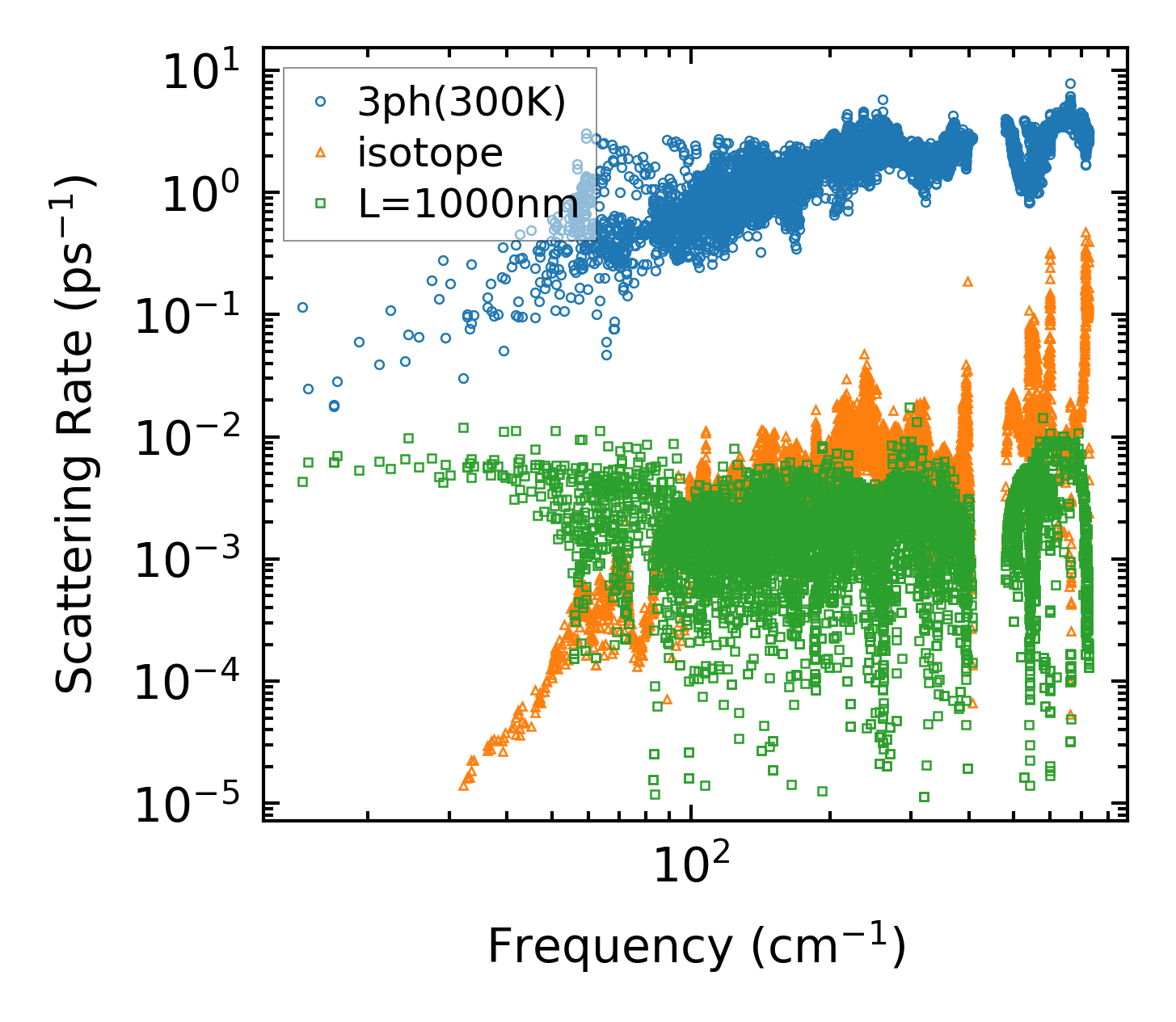

../../_images/fig_scat_rates4154.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4155.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

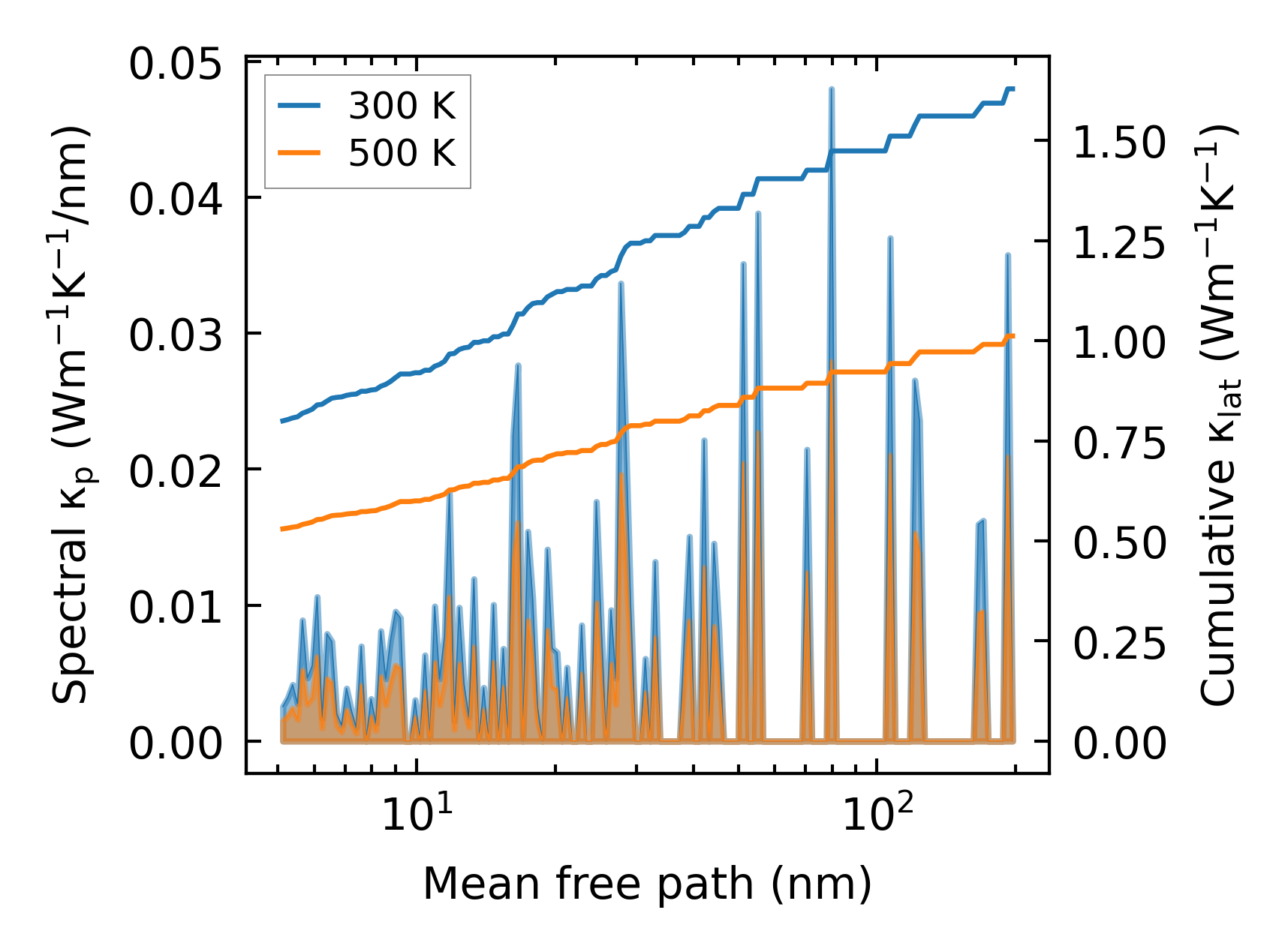

../../_images/fig_cumu_mfp4154.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

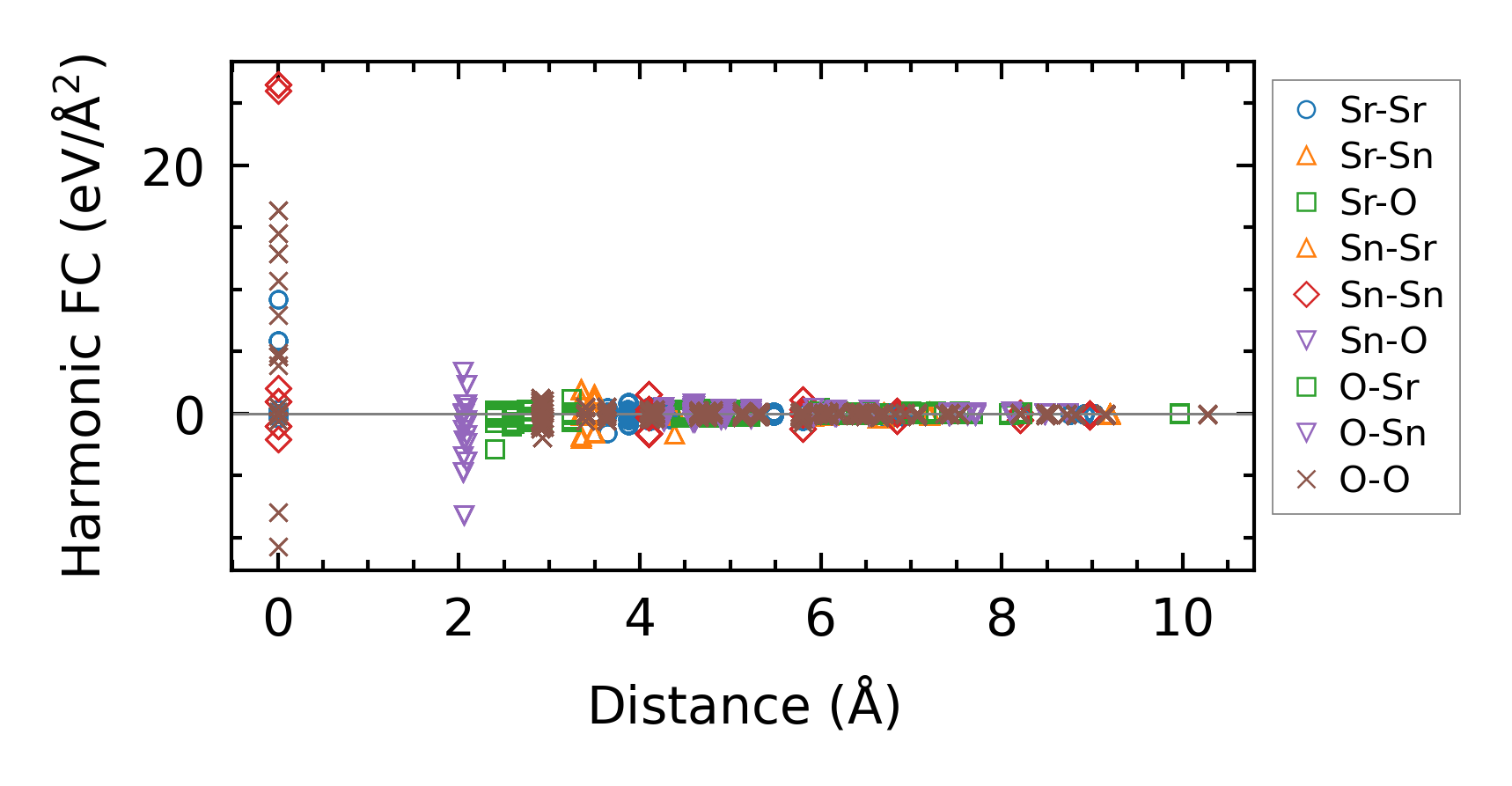

../../_images/fig_fc210117.png — (a) Force constants w.r.t atomic distance

Summary

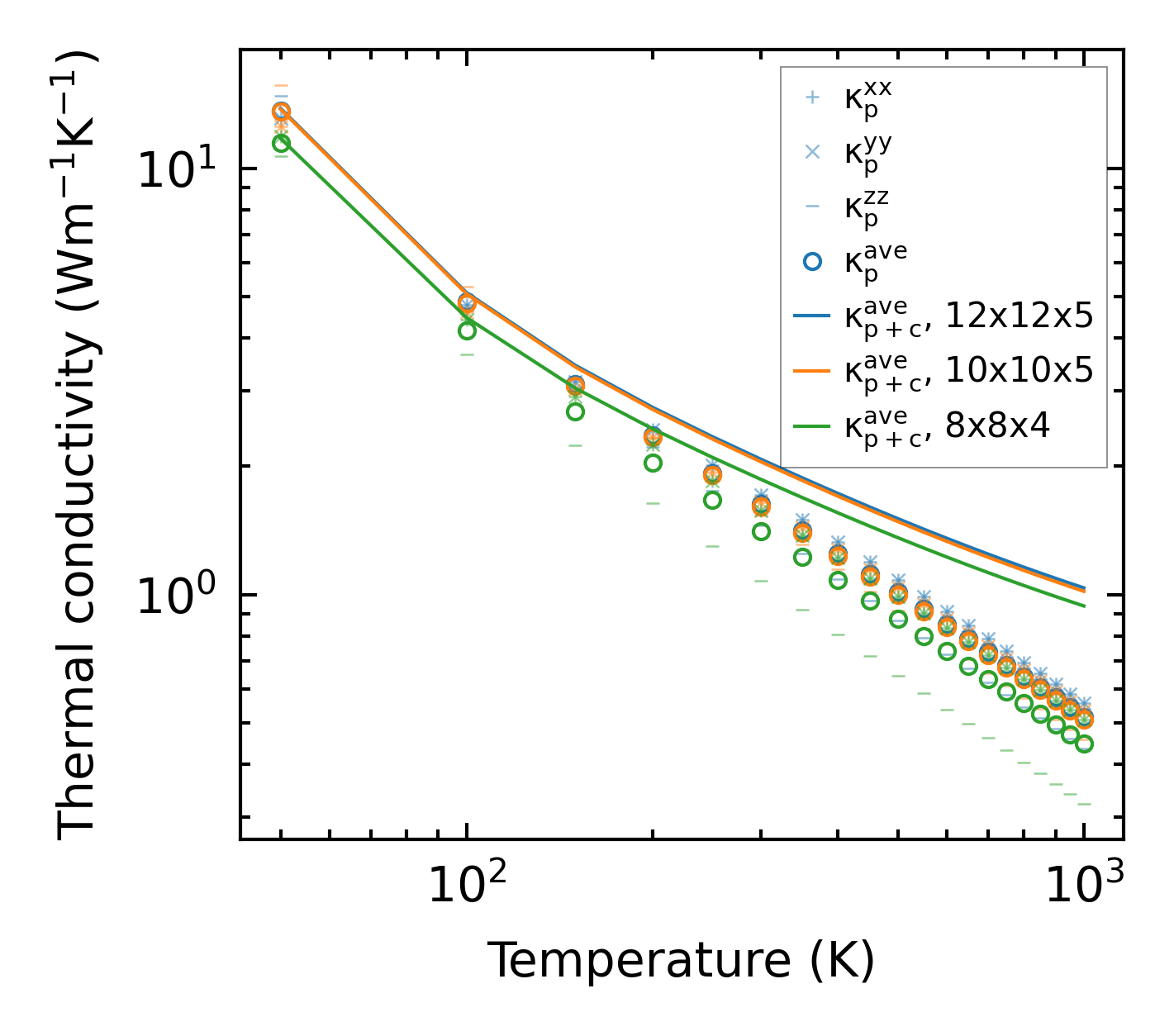

../../_images/fig_kappa7909.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times17904.png — (b) Computation time
