mp-4609/HfSiO4/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-4609.tar.gz

Harmonic properties

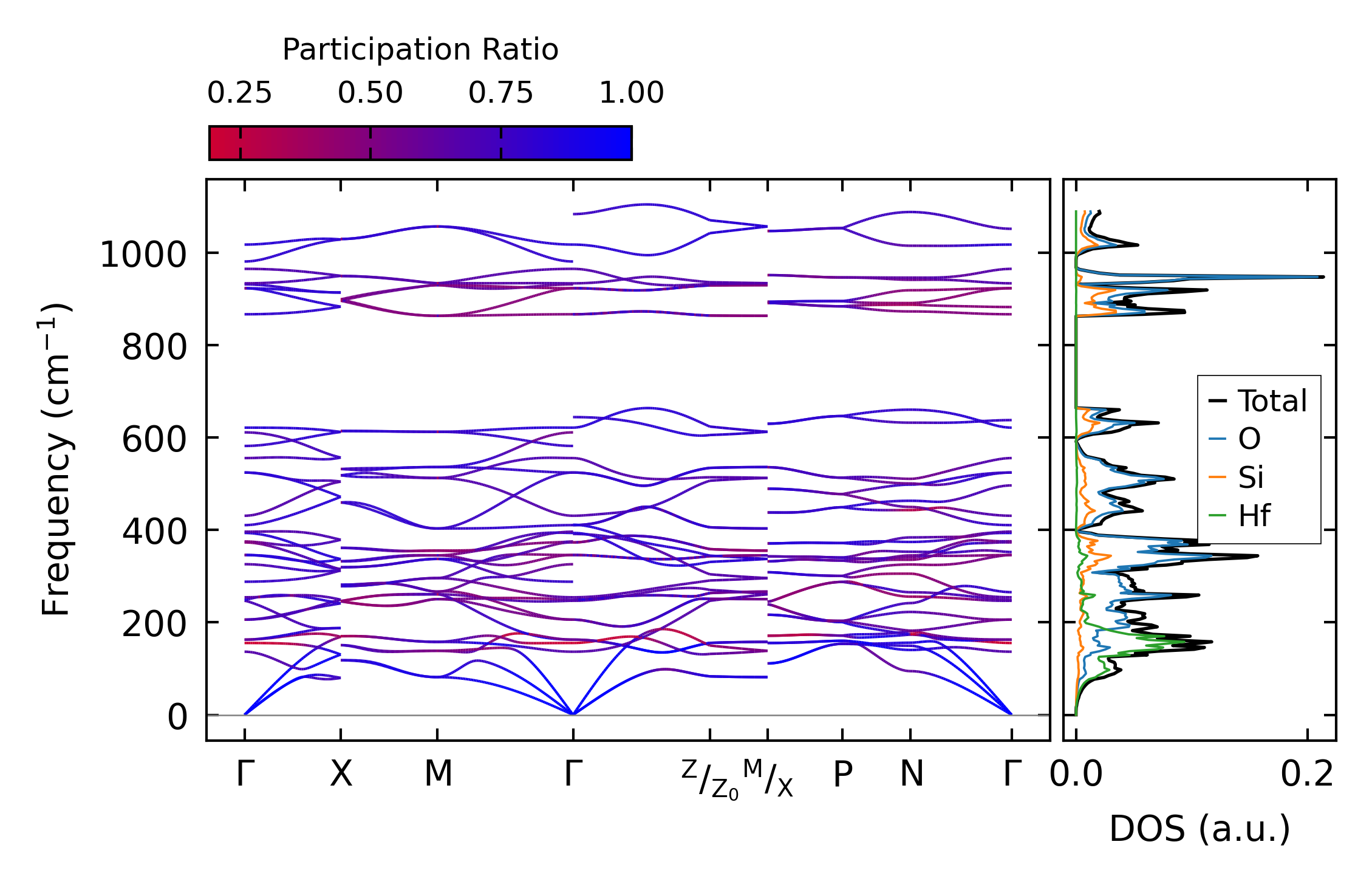

../../_images/fig_bandos_pr10090.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10090.png — (b) Thermodynamic properties

Grüneisen parameters

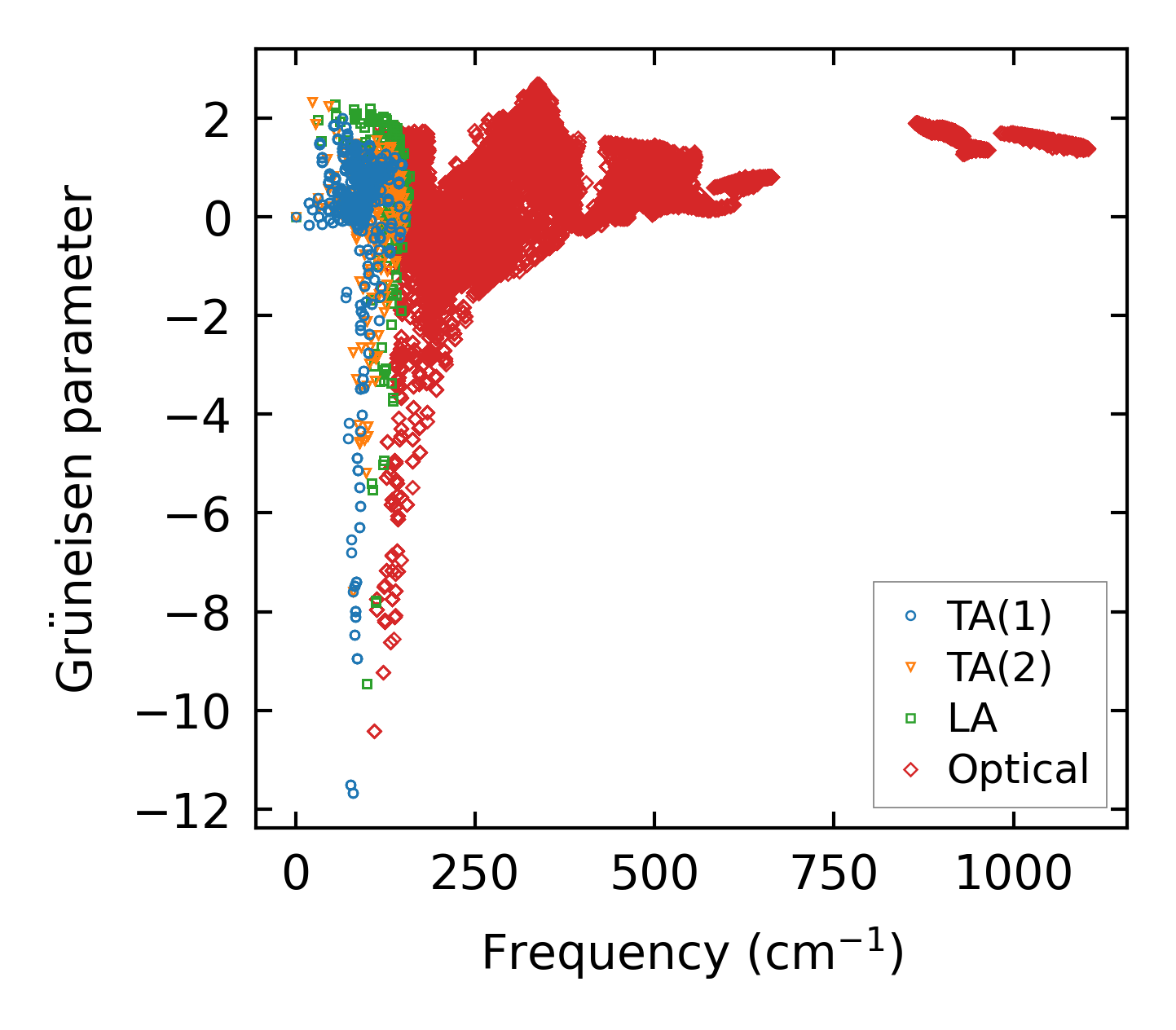

../../_images/fig_gru_all4061.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4061.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x2

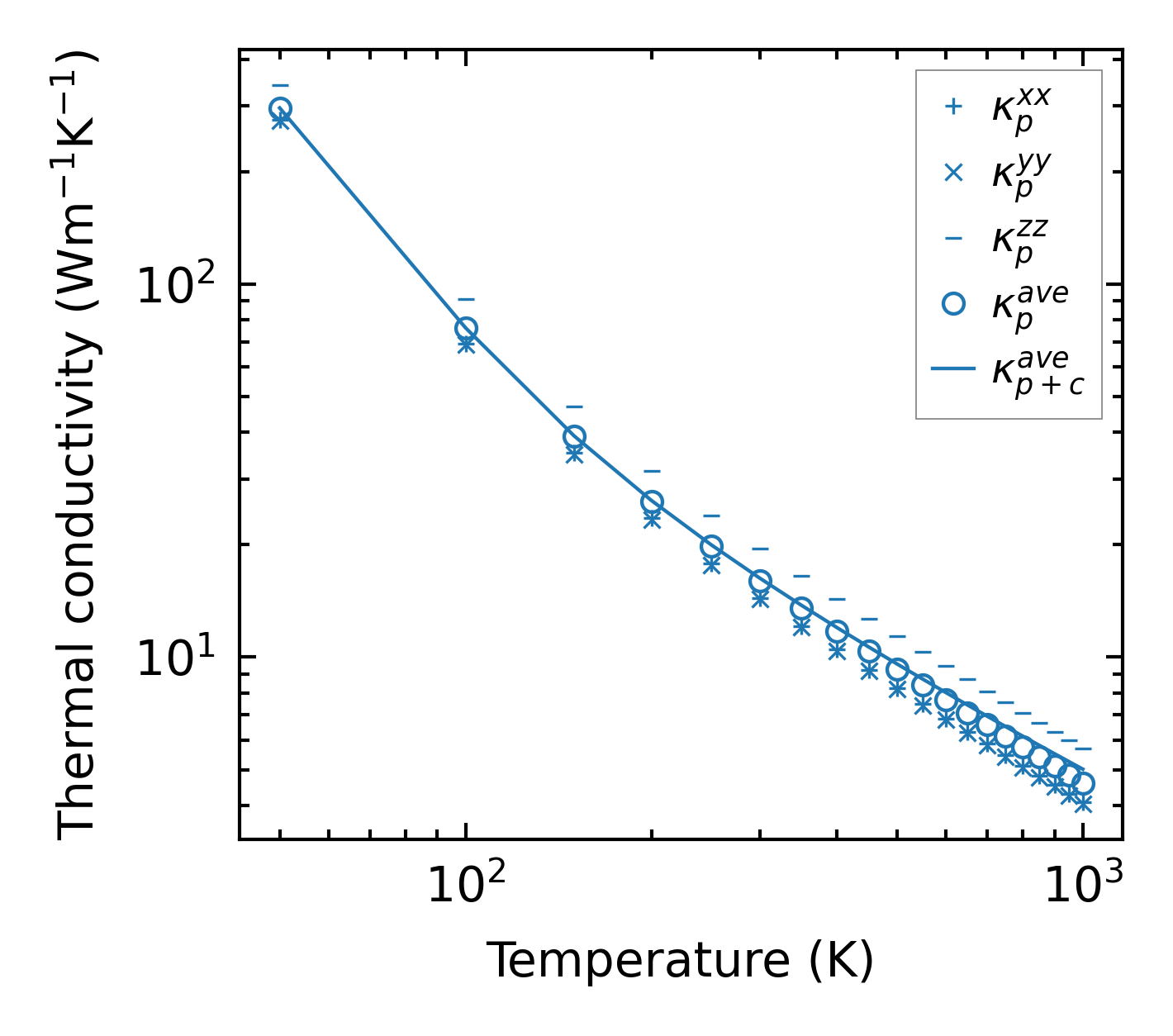

../../_images/fig_kappa7661.png — (a) Temperature-dependent lattice thermal conductivity

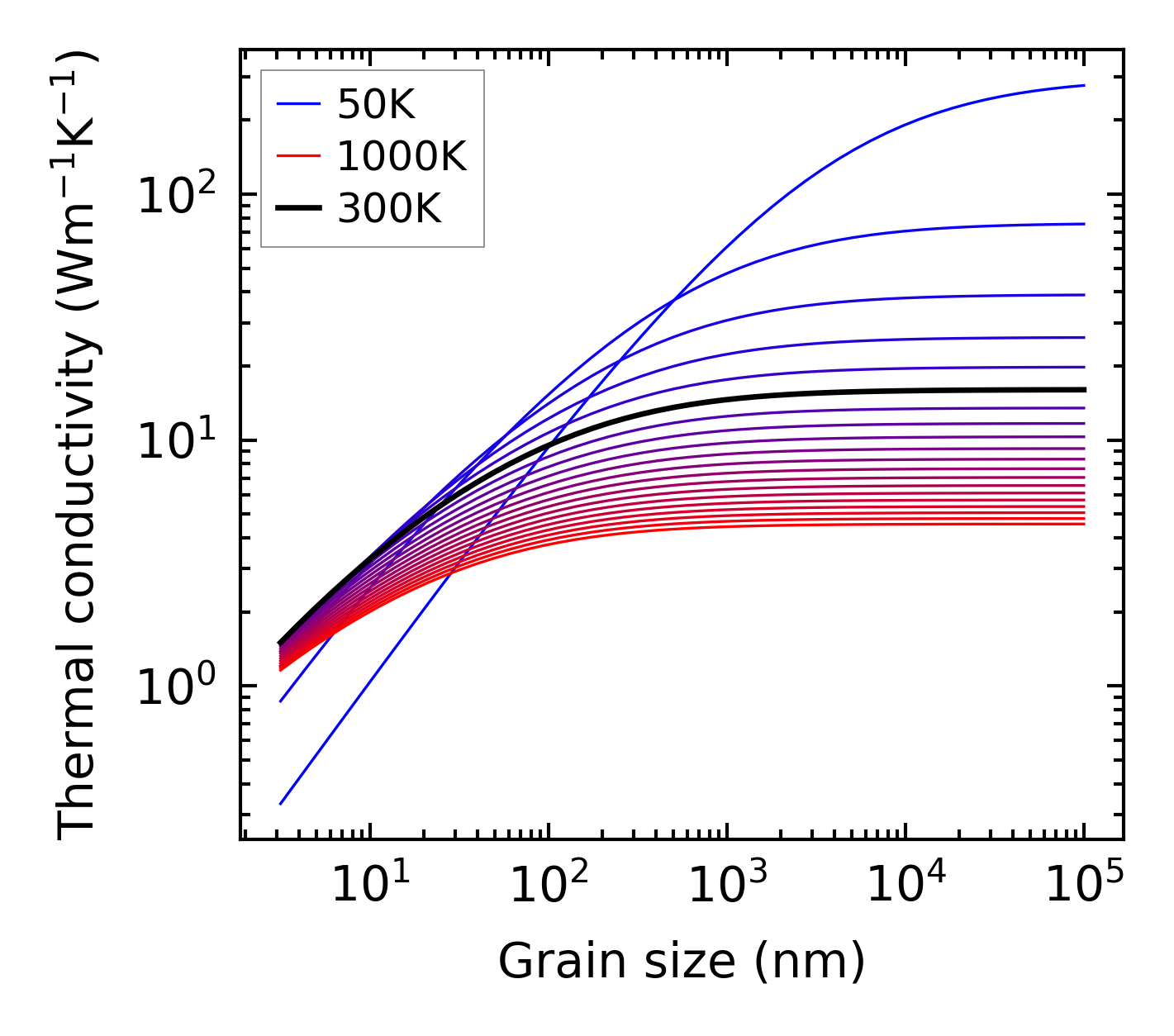

../../_images/fig_kappa_vs_grain_size4115.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

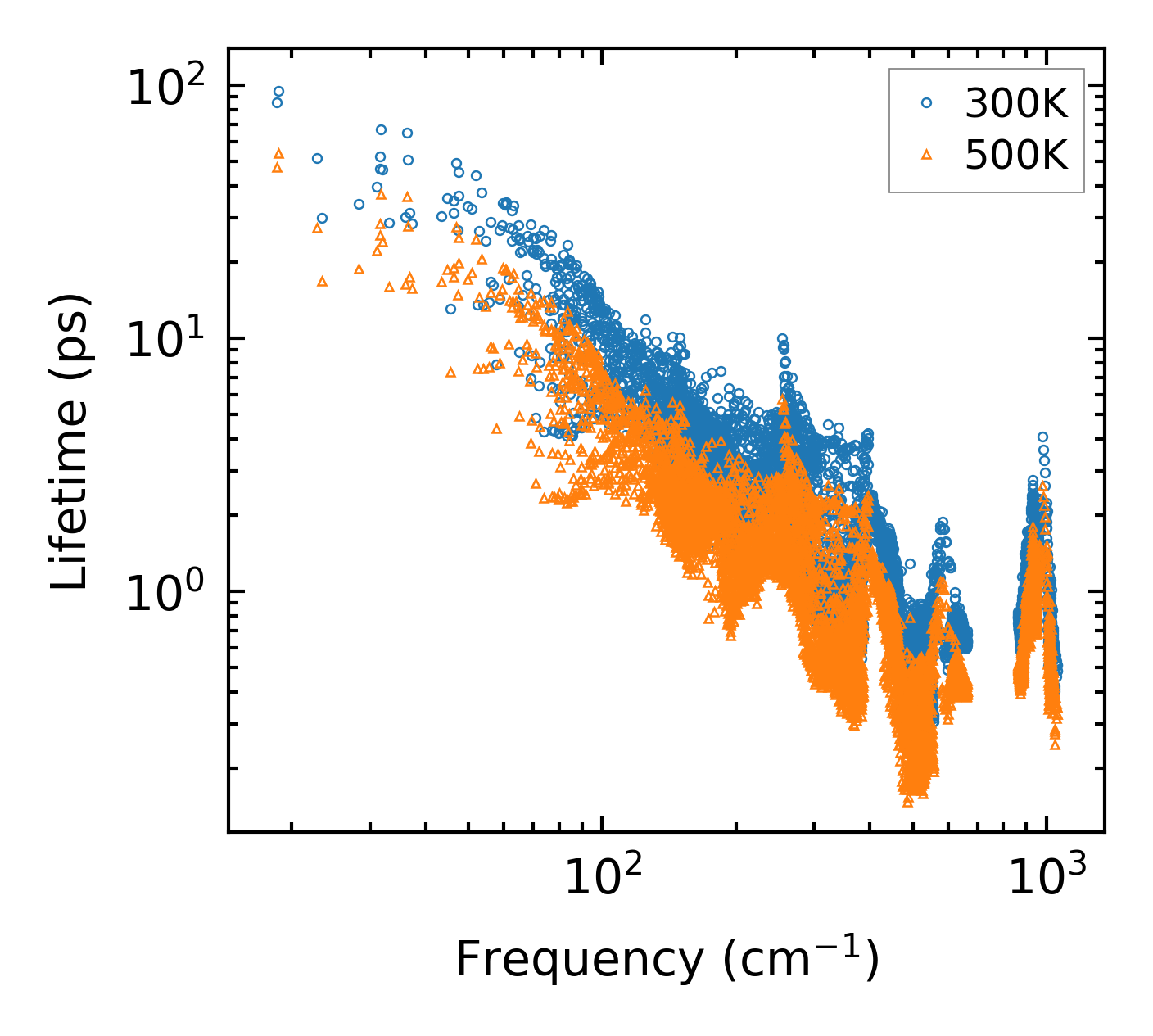

../../_images/fig_lifetime4023.png — (a) Phonon lifetime due to phonon-phonon scattering

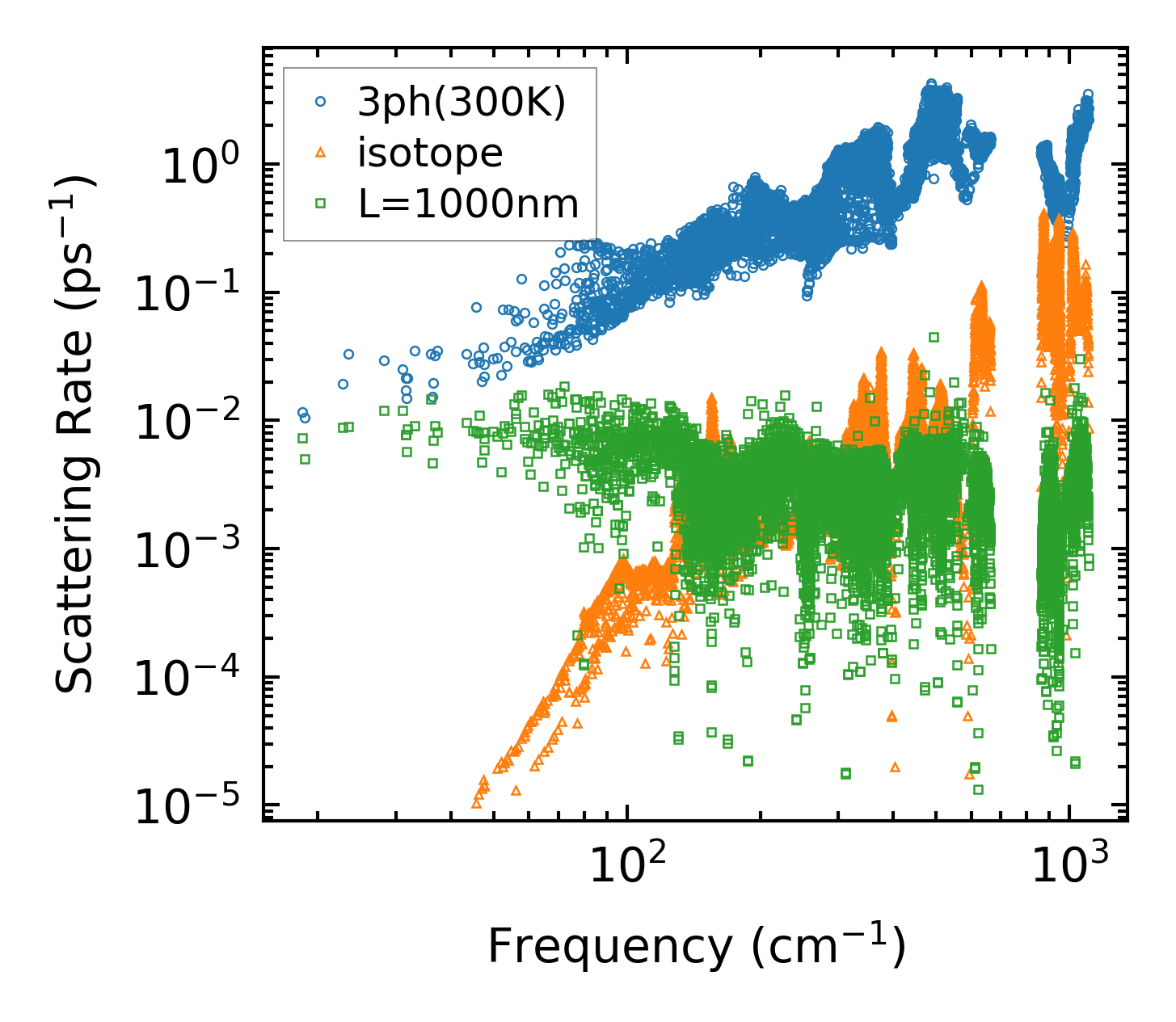

../../_images/fig_scat_rates4022.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

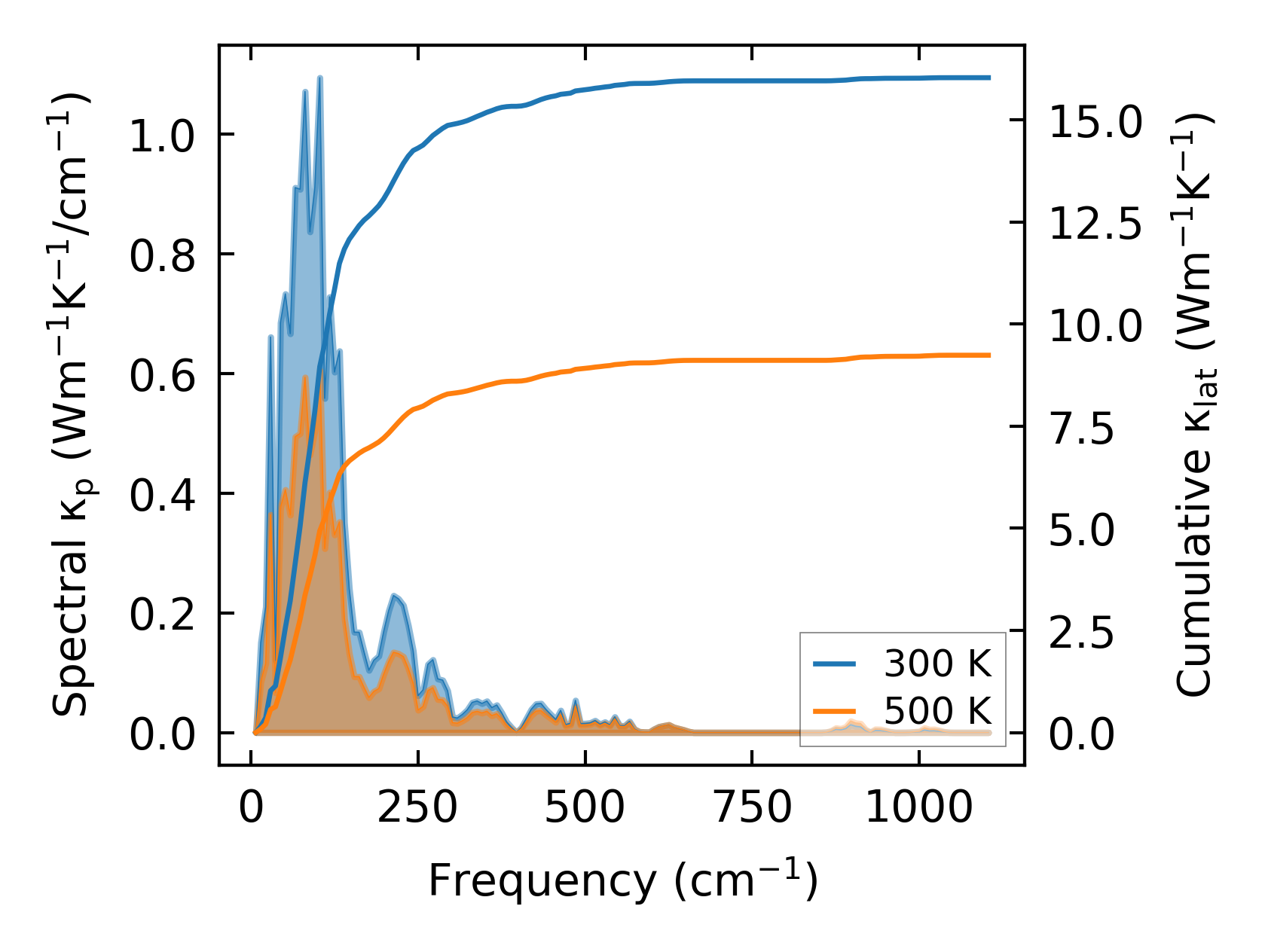

../../_images/fig_cumu_frequency4023.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

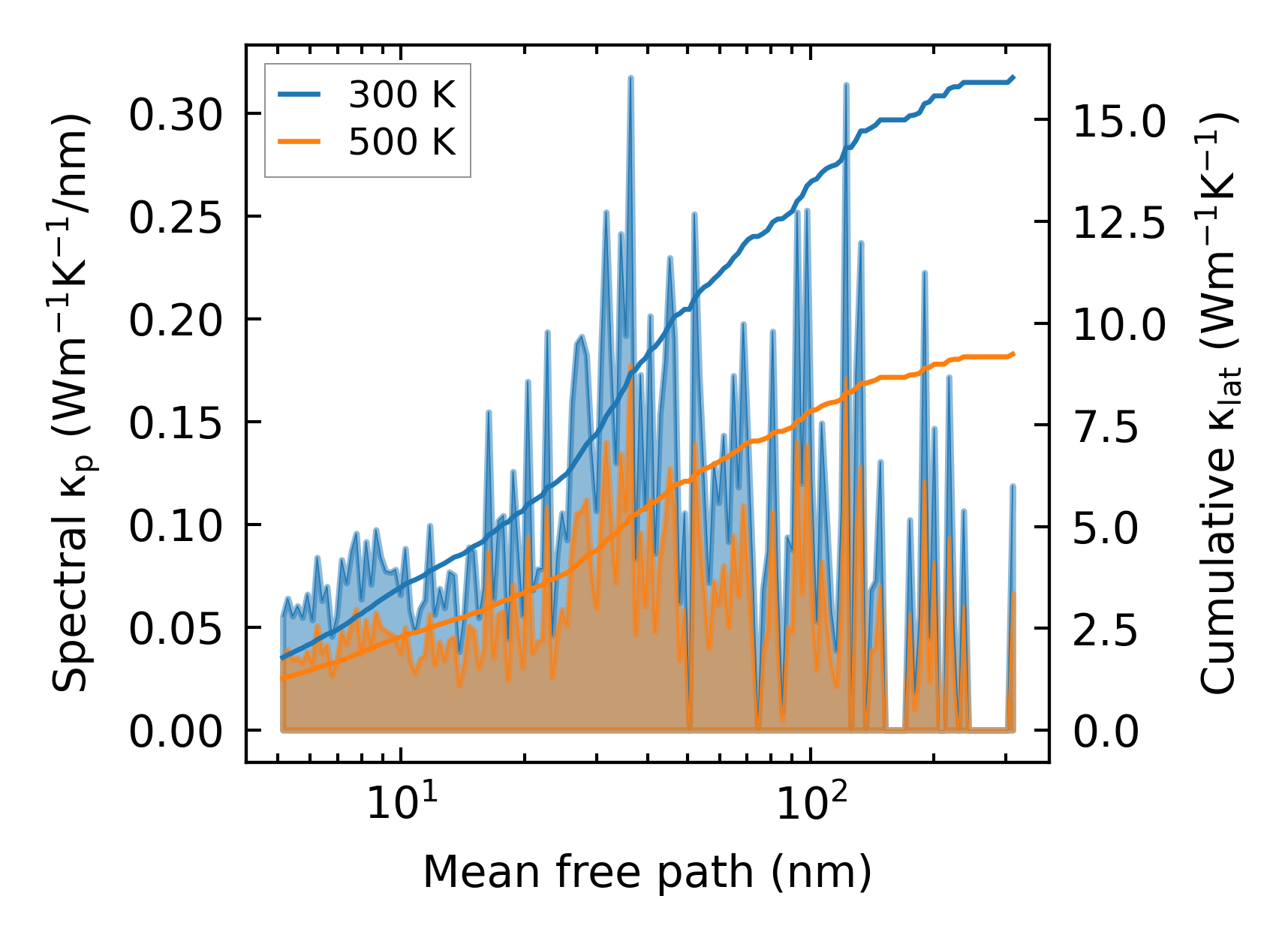

../../_images/fig_cumu_mfp4022.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

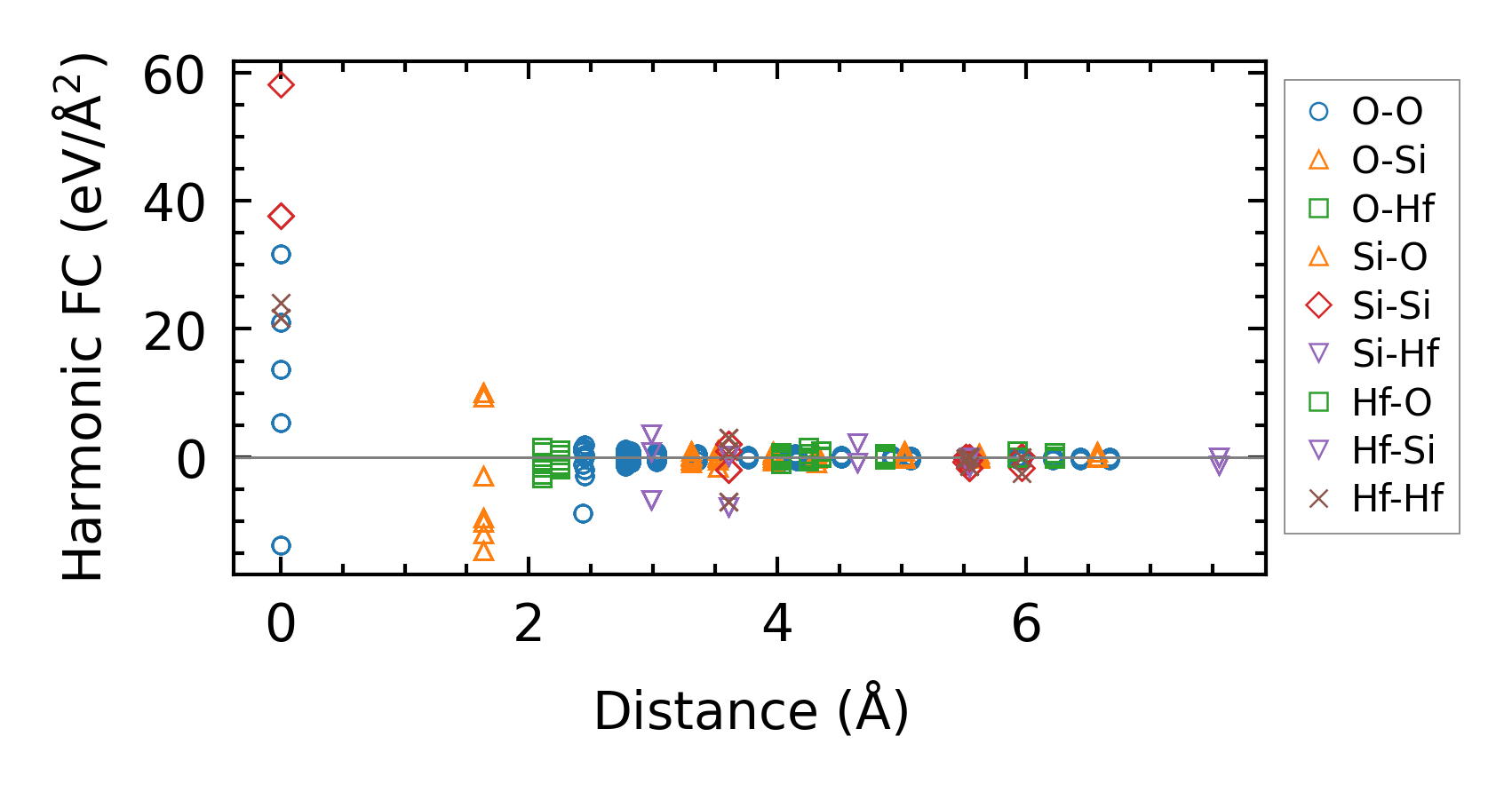

../../_images/fig_fc29842.png — (a) Force constants w.r.t atomic distance

Summary

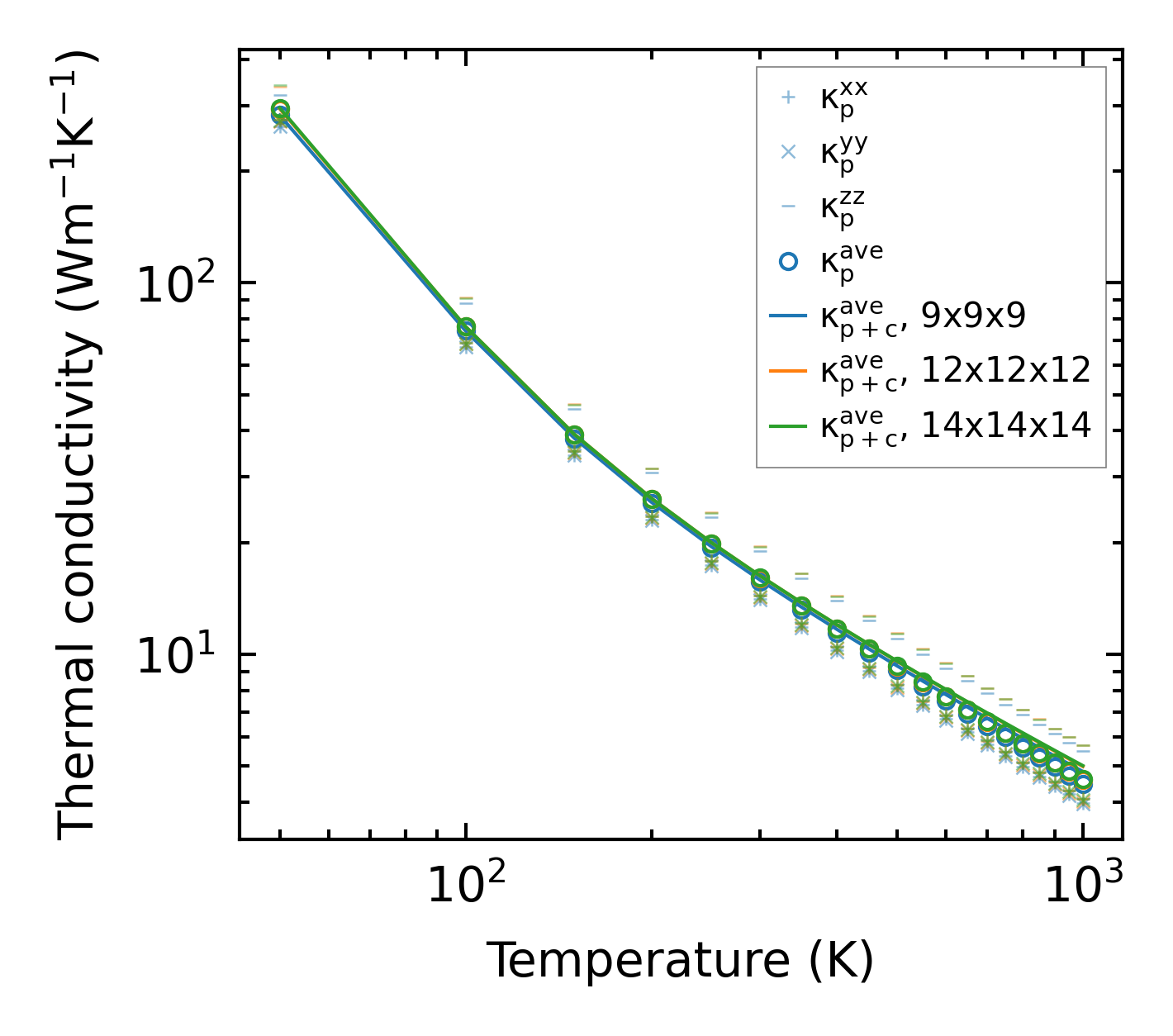

../../_images/fig_kappa7662.png — (a) Temperature-dependent lattice thermal conductivity

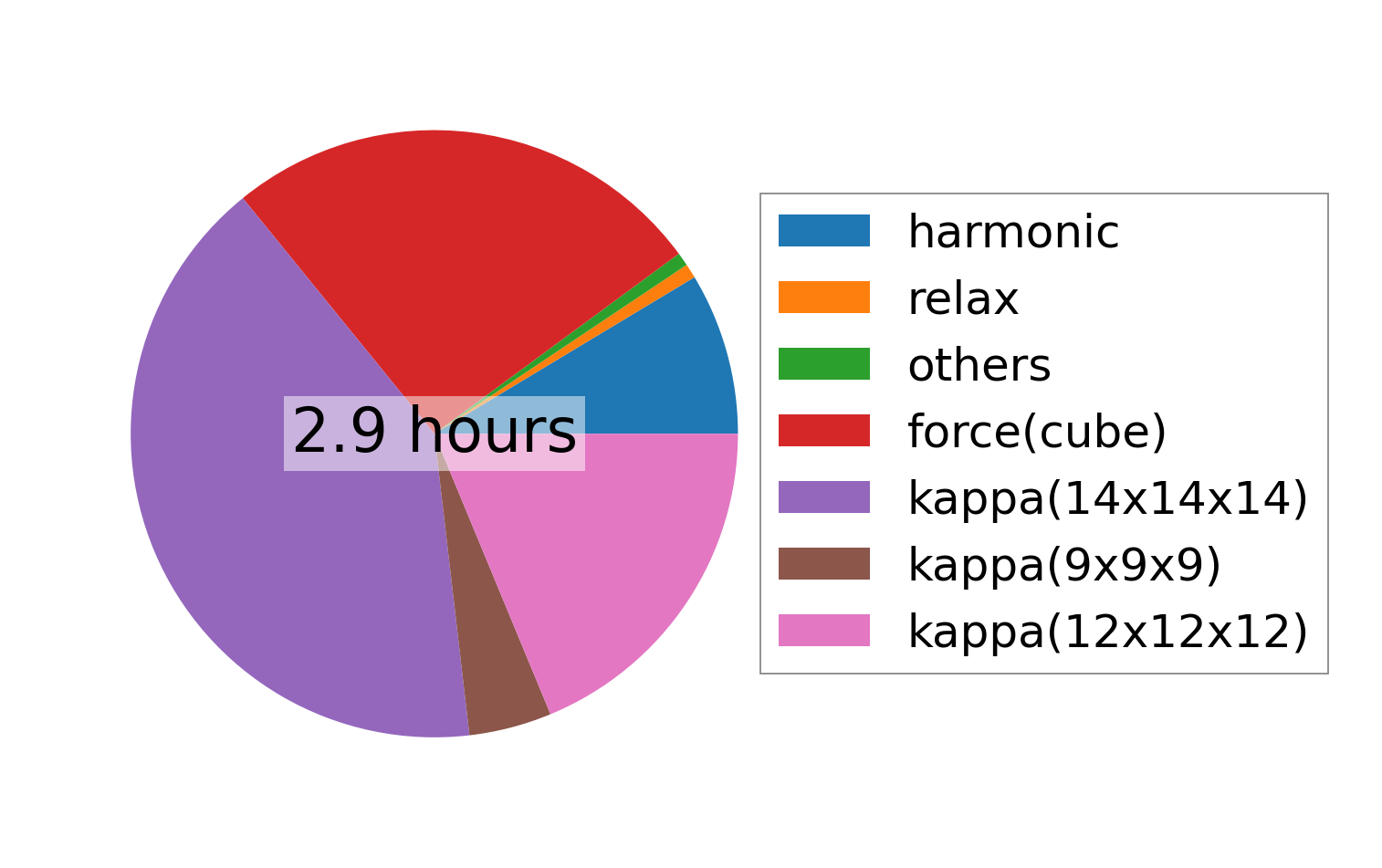

../../_images/fig_times17499.png — (b) Computation time
