mp-3919/KBO2/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-3919.tar.gz

Harmonic properties

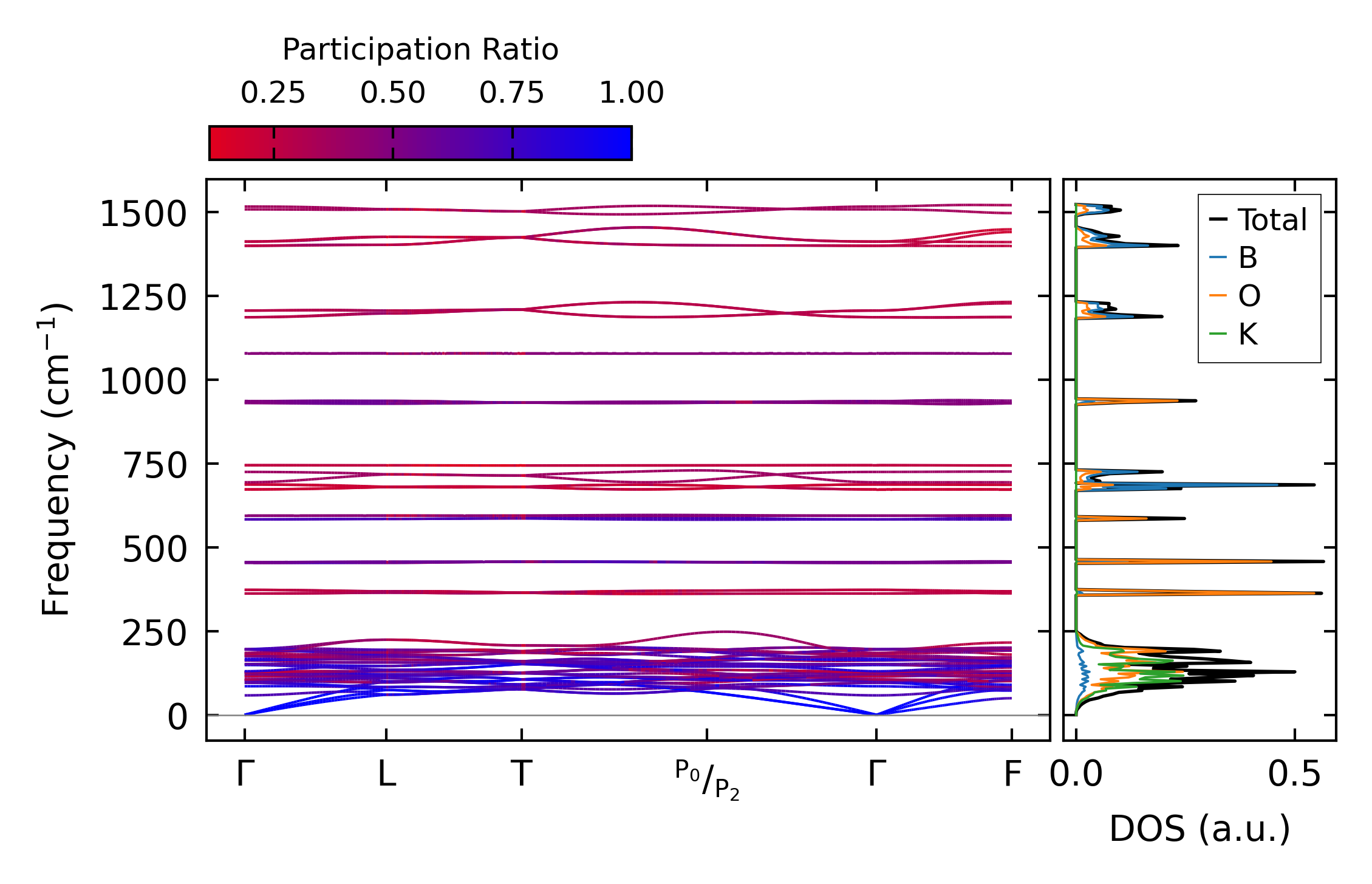

../../_images/fig_bandos_pr10673.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10673.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4343.png — (a) Grüneisen parameters

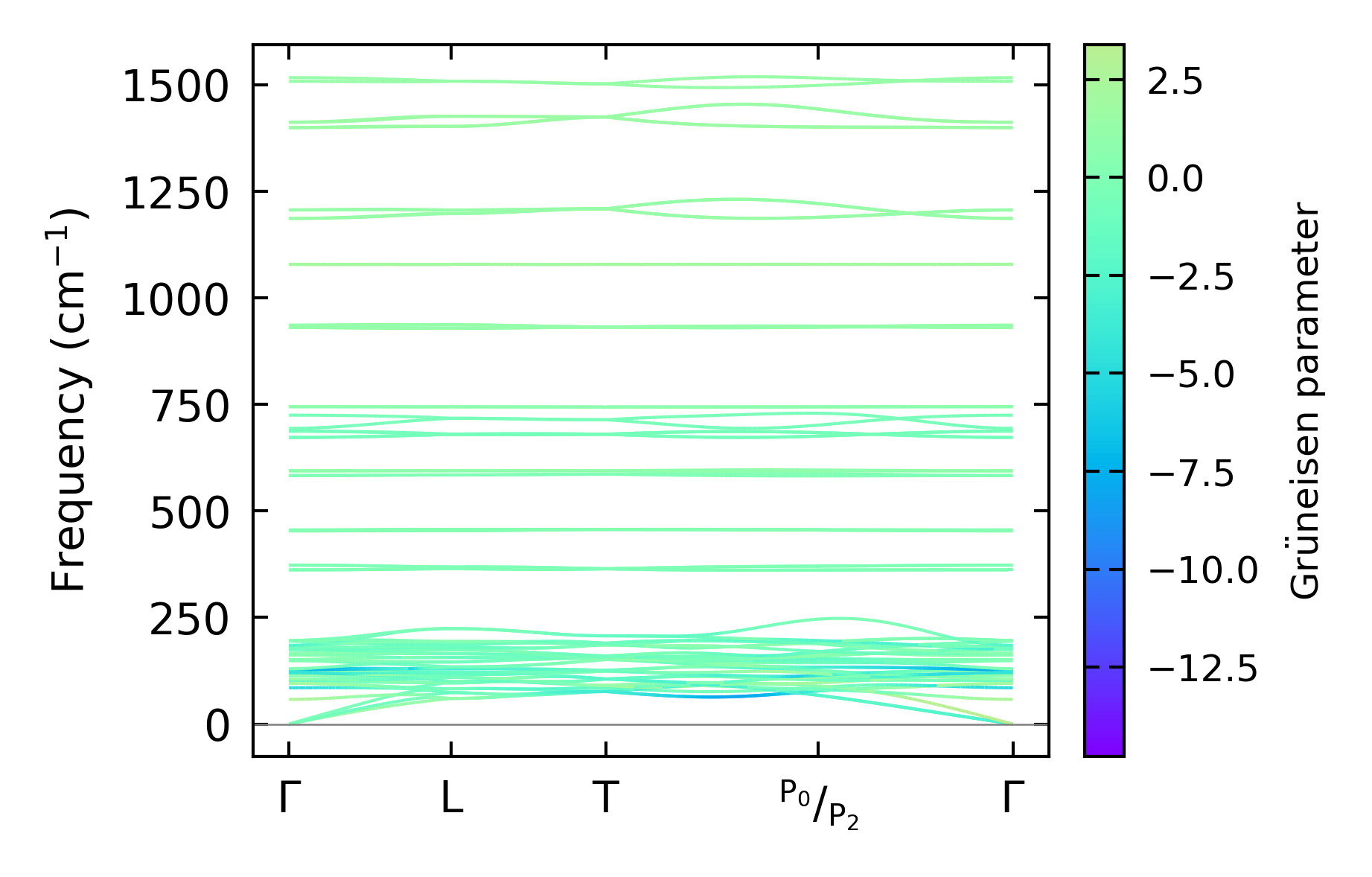

../../_images/fig_gruneisen4343.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x2

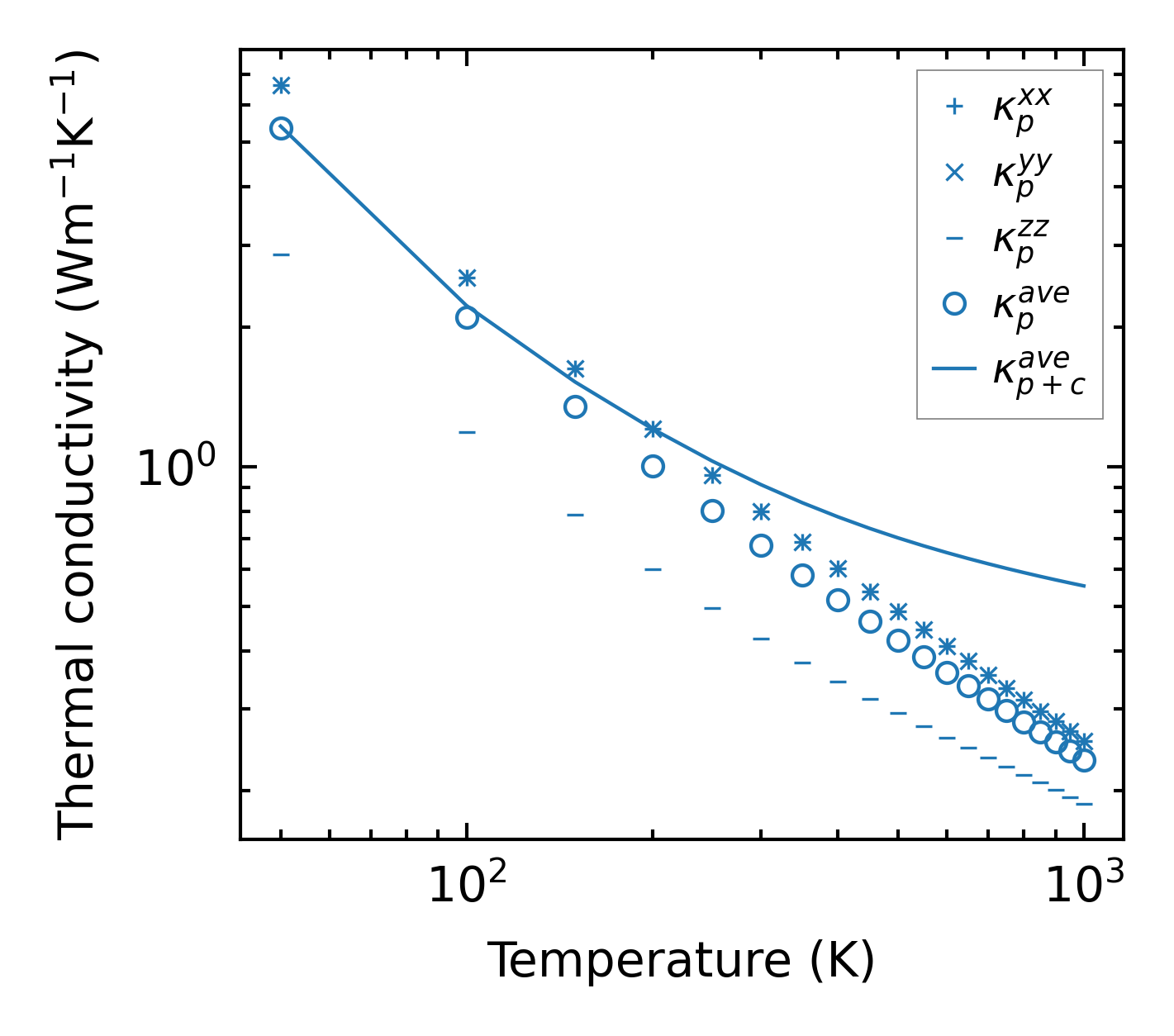

../../_images/fig_kappa8195.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4395.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

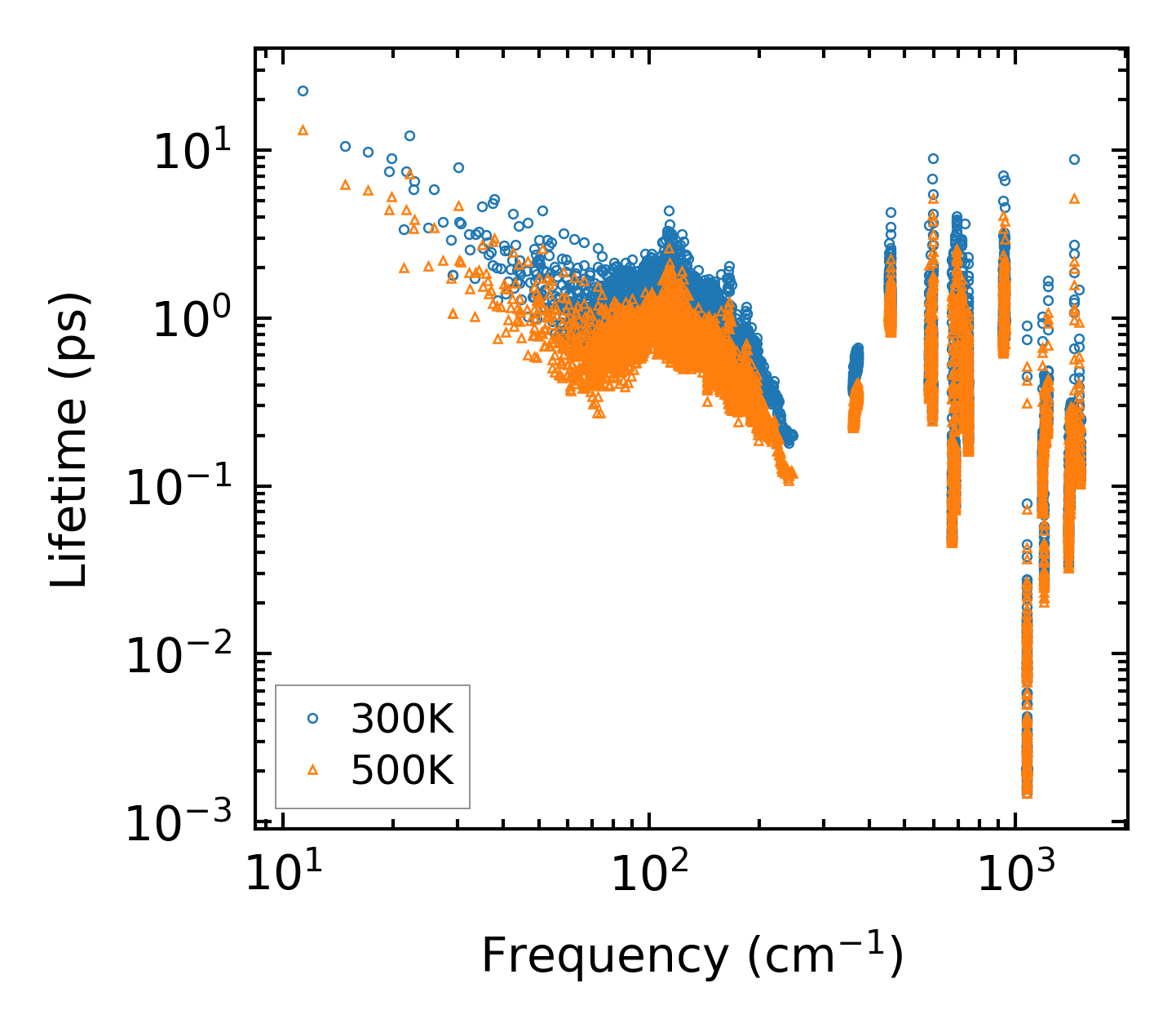

../../_images/fig_lifetime4300.png — (a) Phonon lifetime due to phonon-phonon scattering

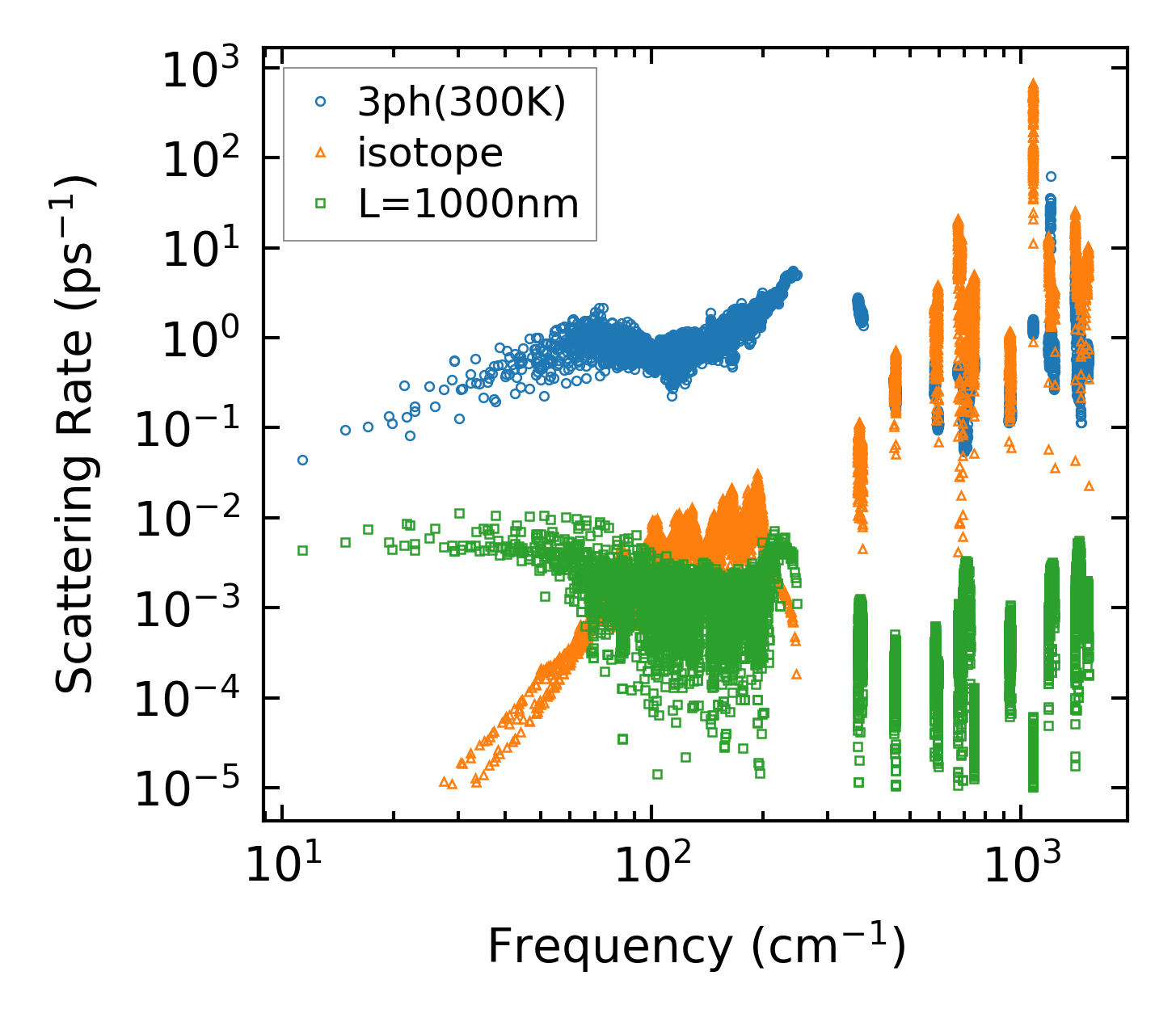

../../_images/fig_scat_rates4299.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

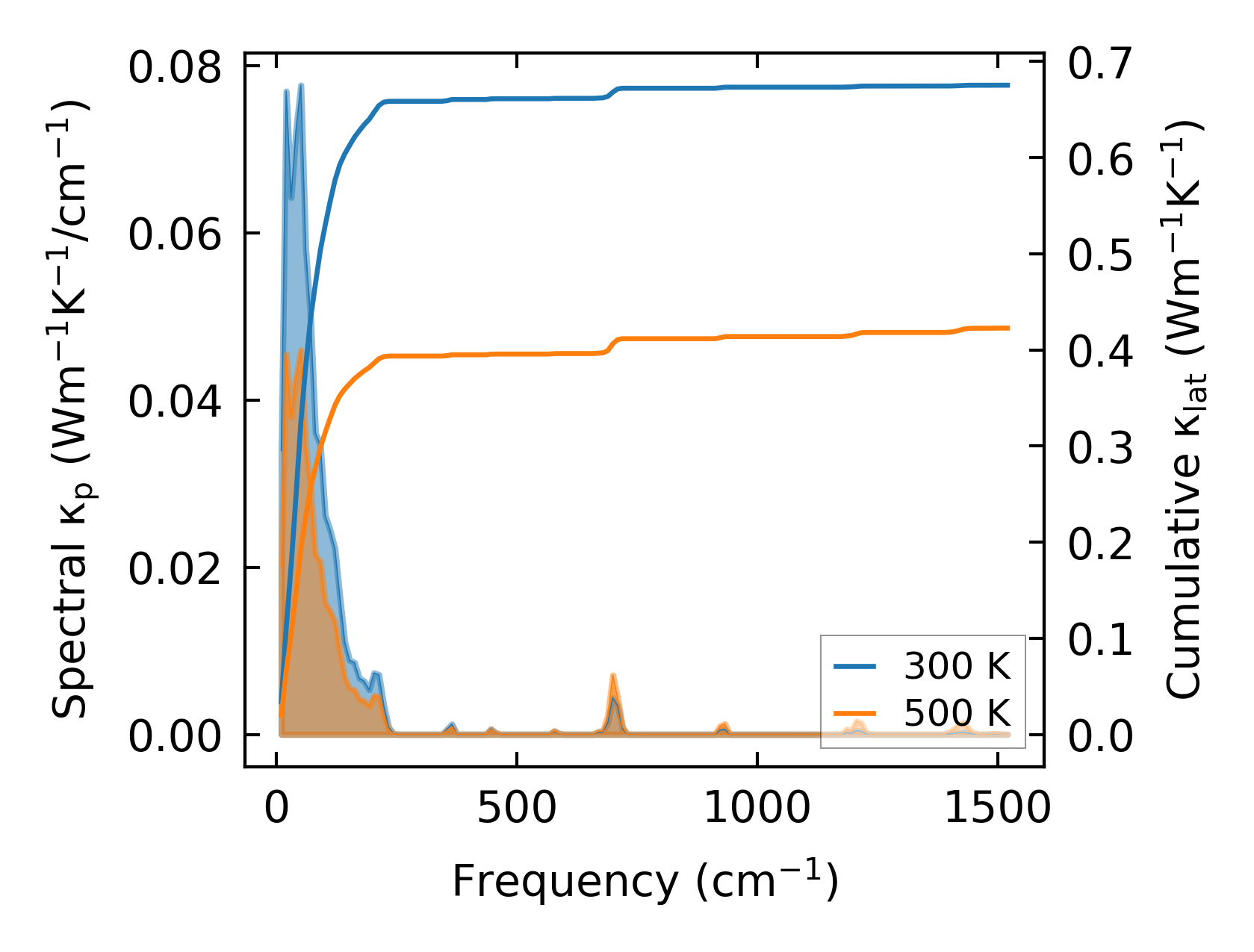

../../_images/fig_cumu_frequency4300.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4299.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

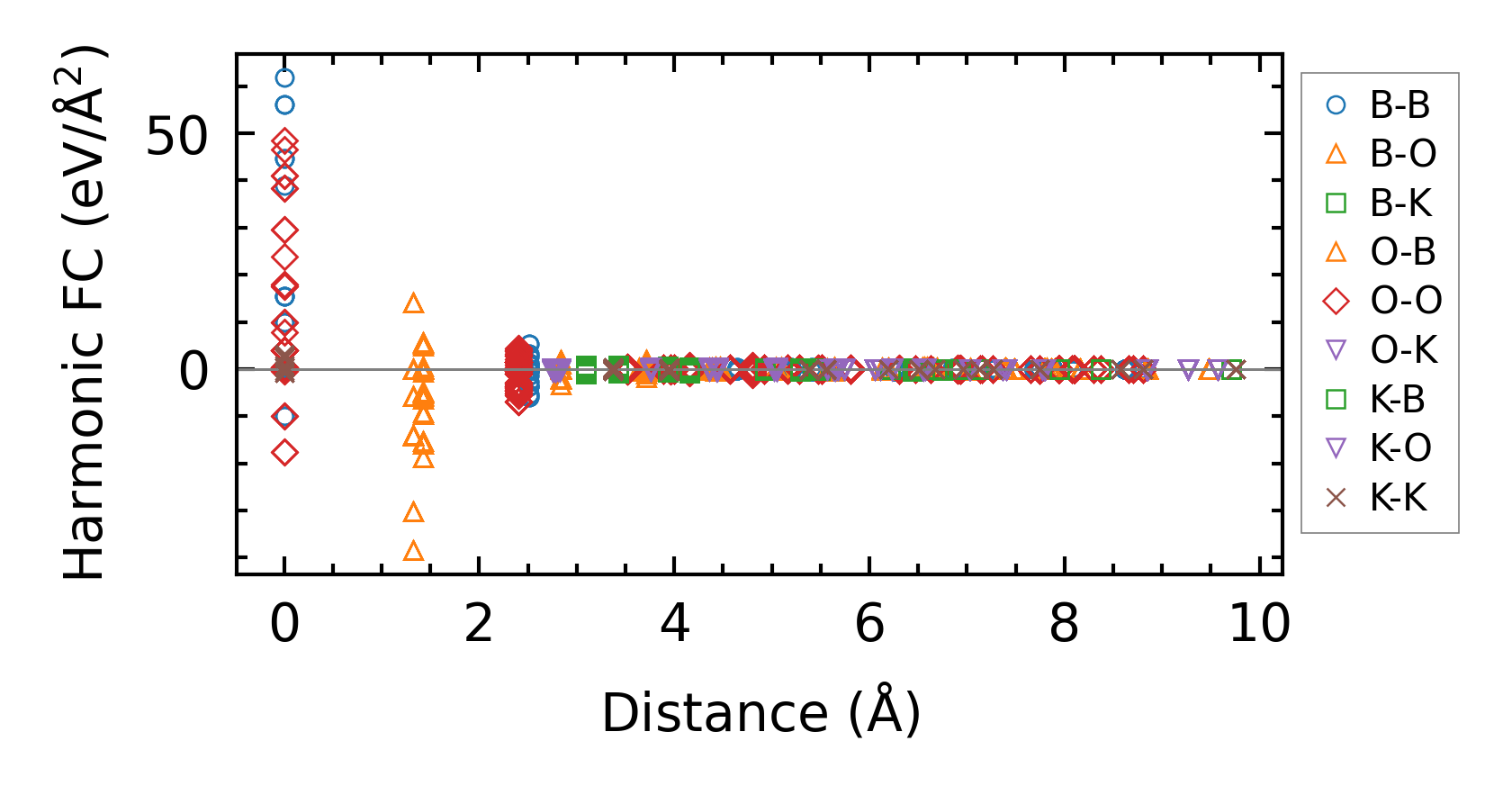

../../_images/fig_fc210406.png — (a) Force constants w.r.t atomic distance

Summary

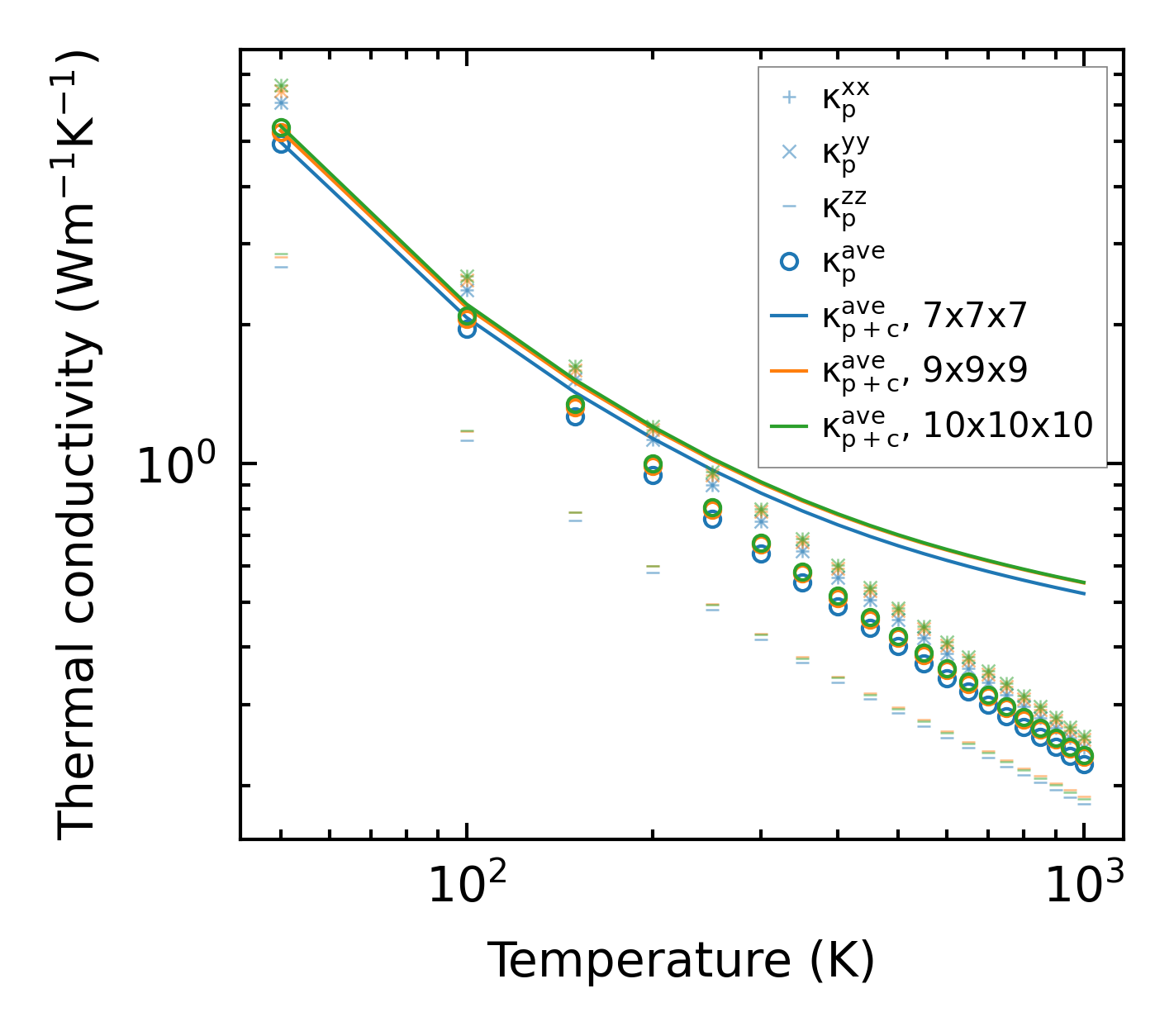

../../_images/fig_kappa8196.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times18317.png — (b) Computation time
