mp-3417/CaB2O4/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-3417.tar.gz

Harmonic properties

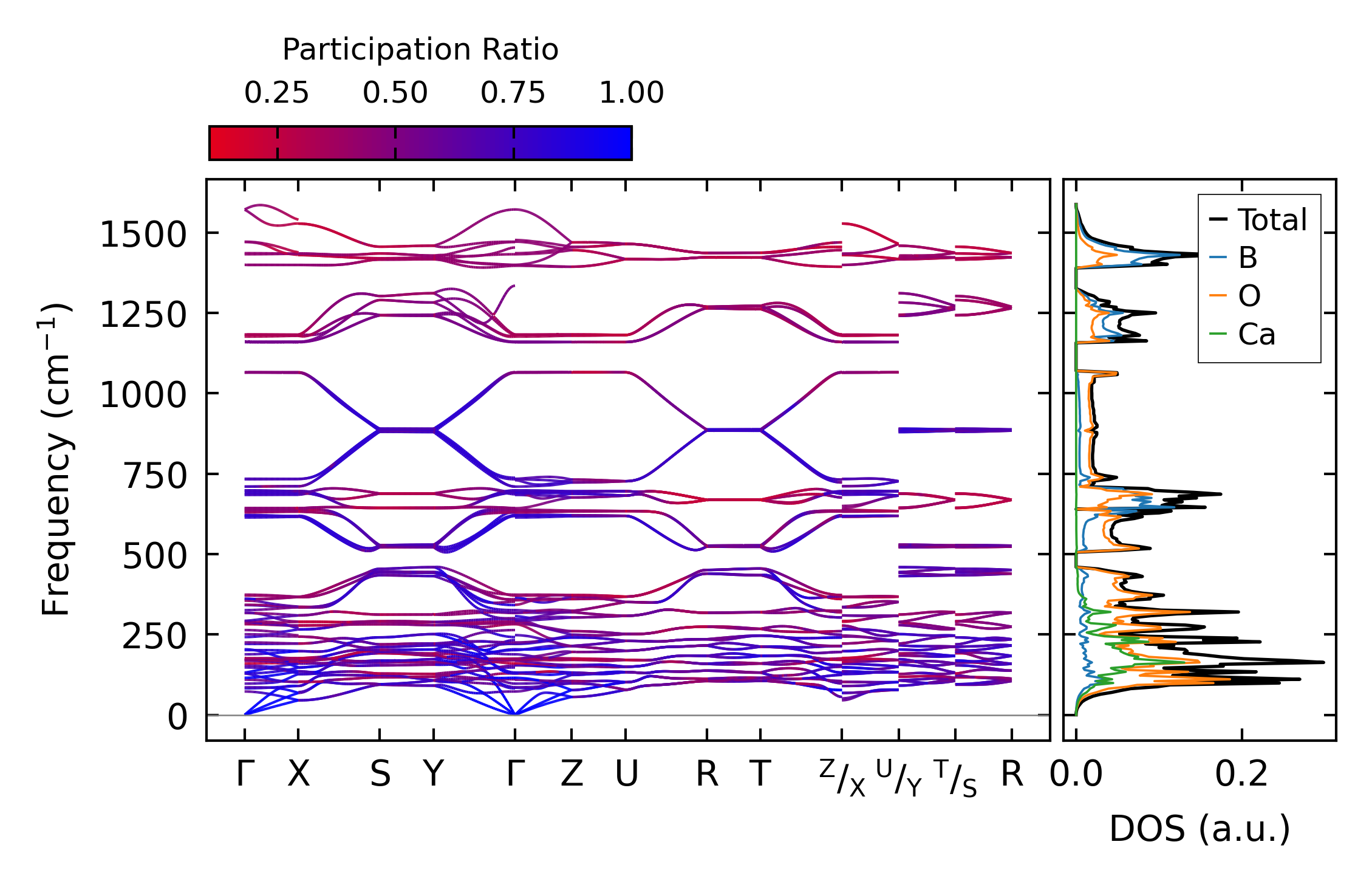

../../_images/fig_bandos_pr10917.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10917.png — (b) Thermodynamic properties

Grüneisen parameters

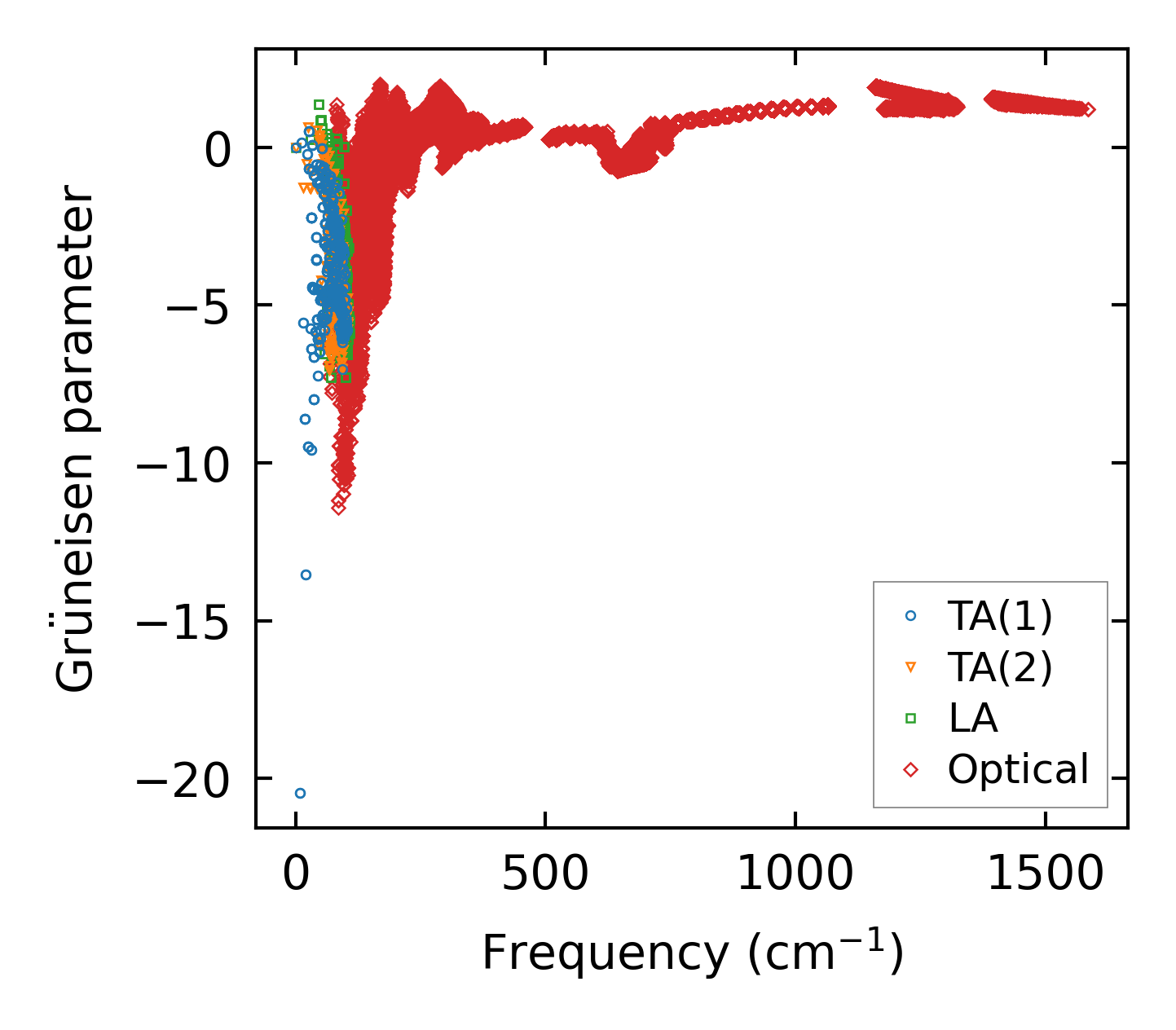

../../_images/fig_gru_all4462.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4462.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x16x11, supercell: 1x2x2

../../_images/fig_kappa8430.png — (a) Temperature-dependent lattice thermal conductivity

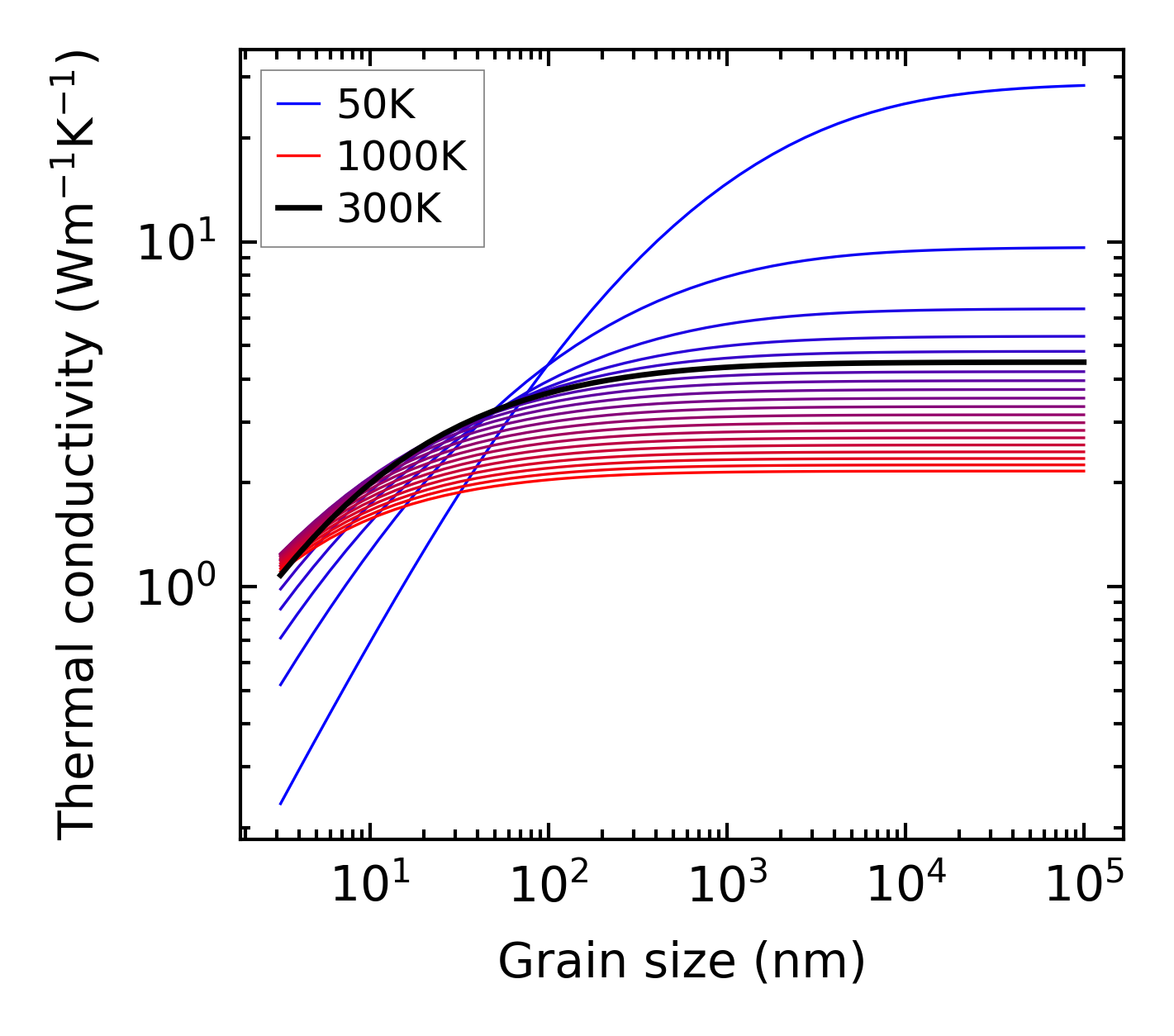

../../_images/fig_kappa_vs_grain_size4517.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

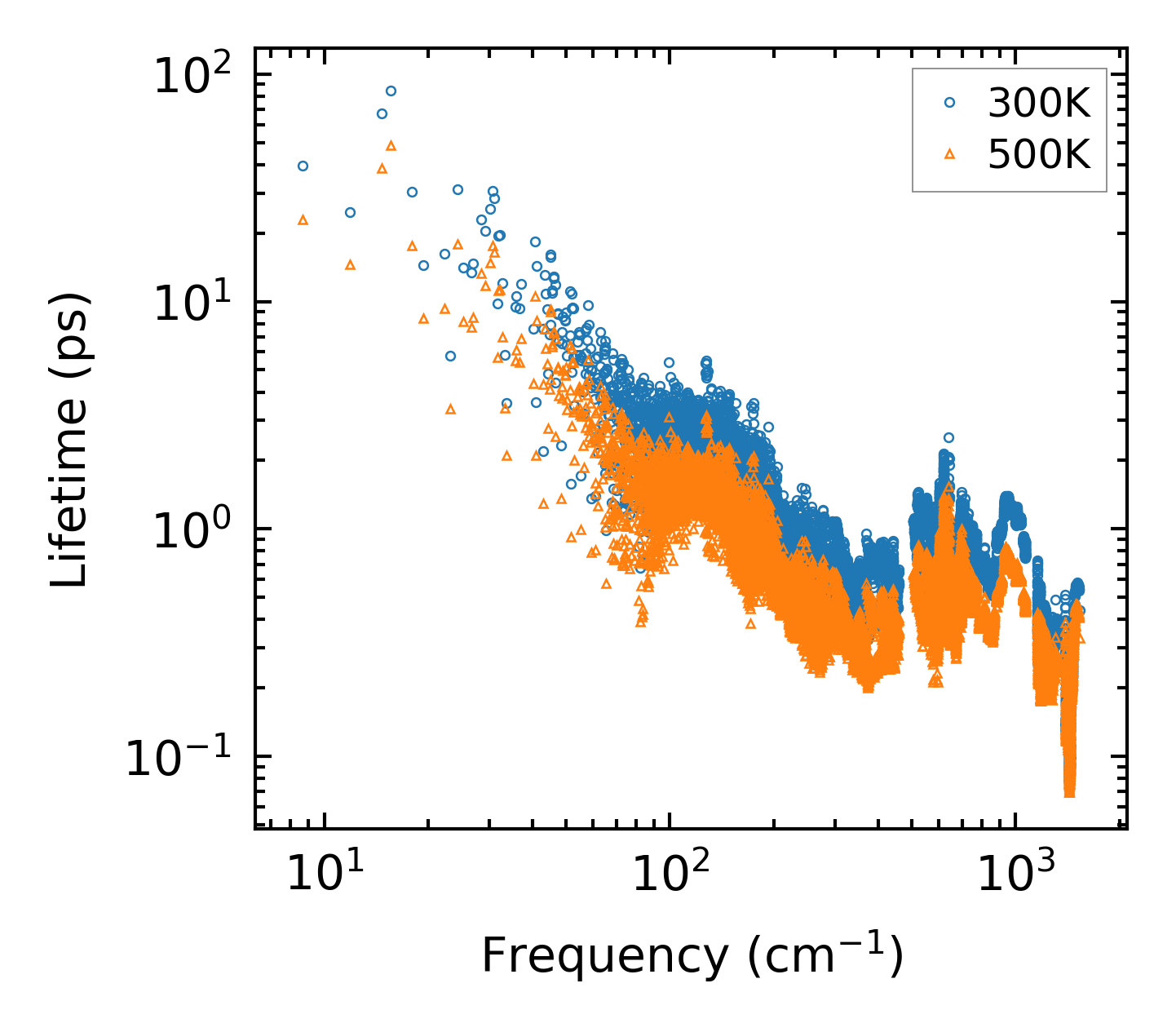

../../_images/fig_lifetime4419.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4418.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4419.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

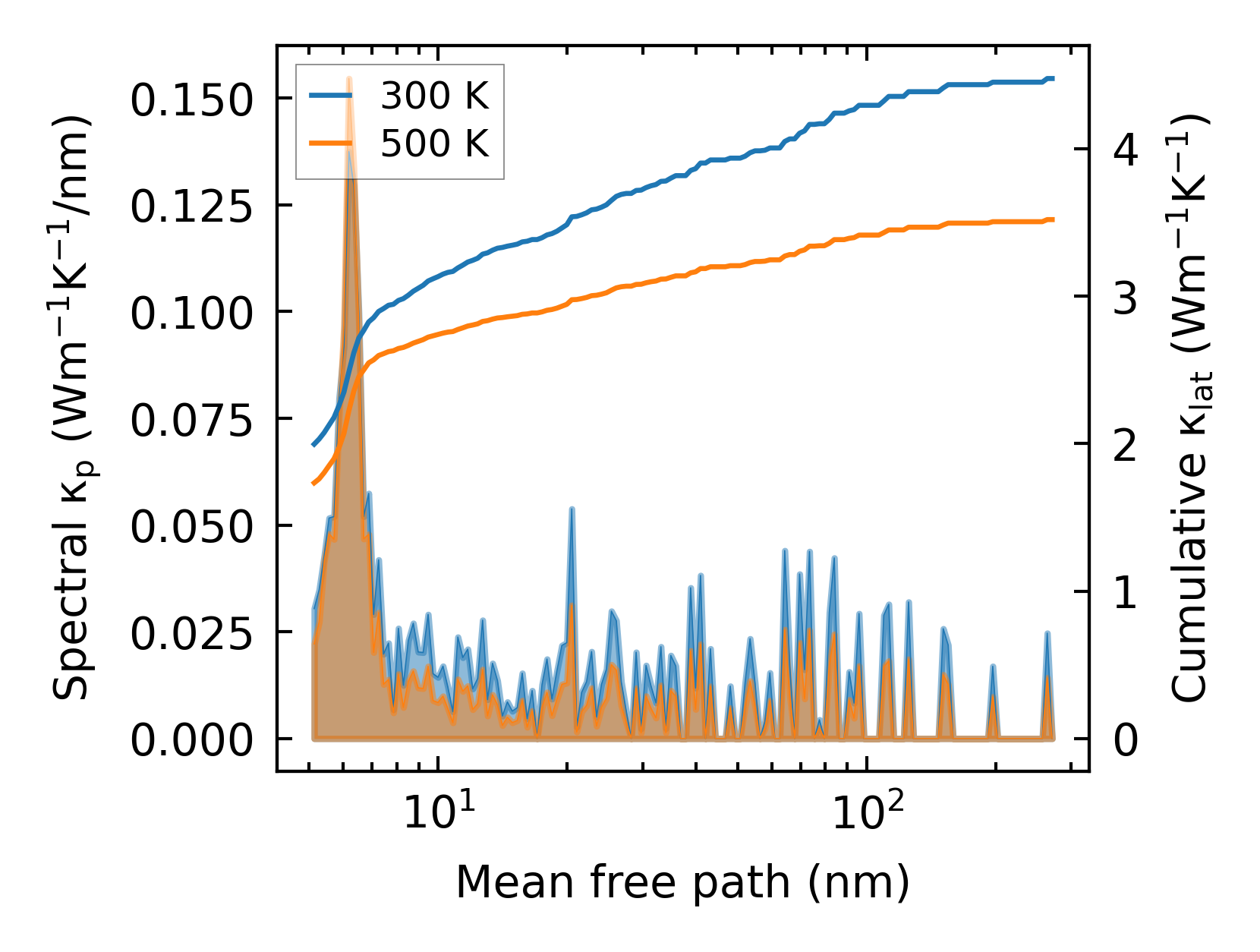

../../_images/fig_cumu_mfp4418.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

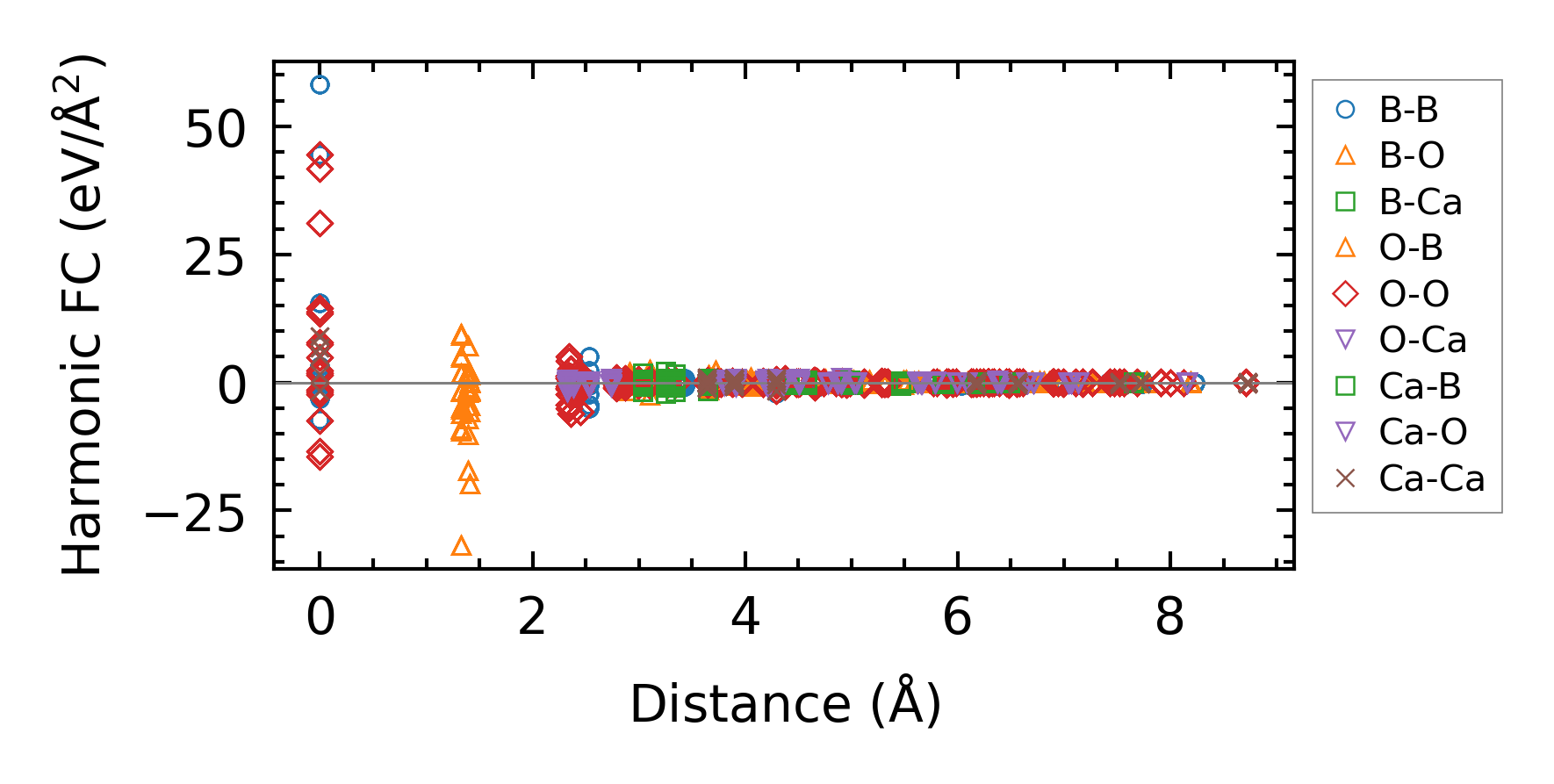

../../_images/fig_fc210643.png — (a) Force constants w.r.t atomic distance

Summary

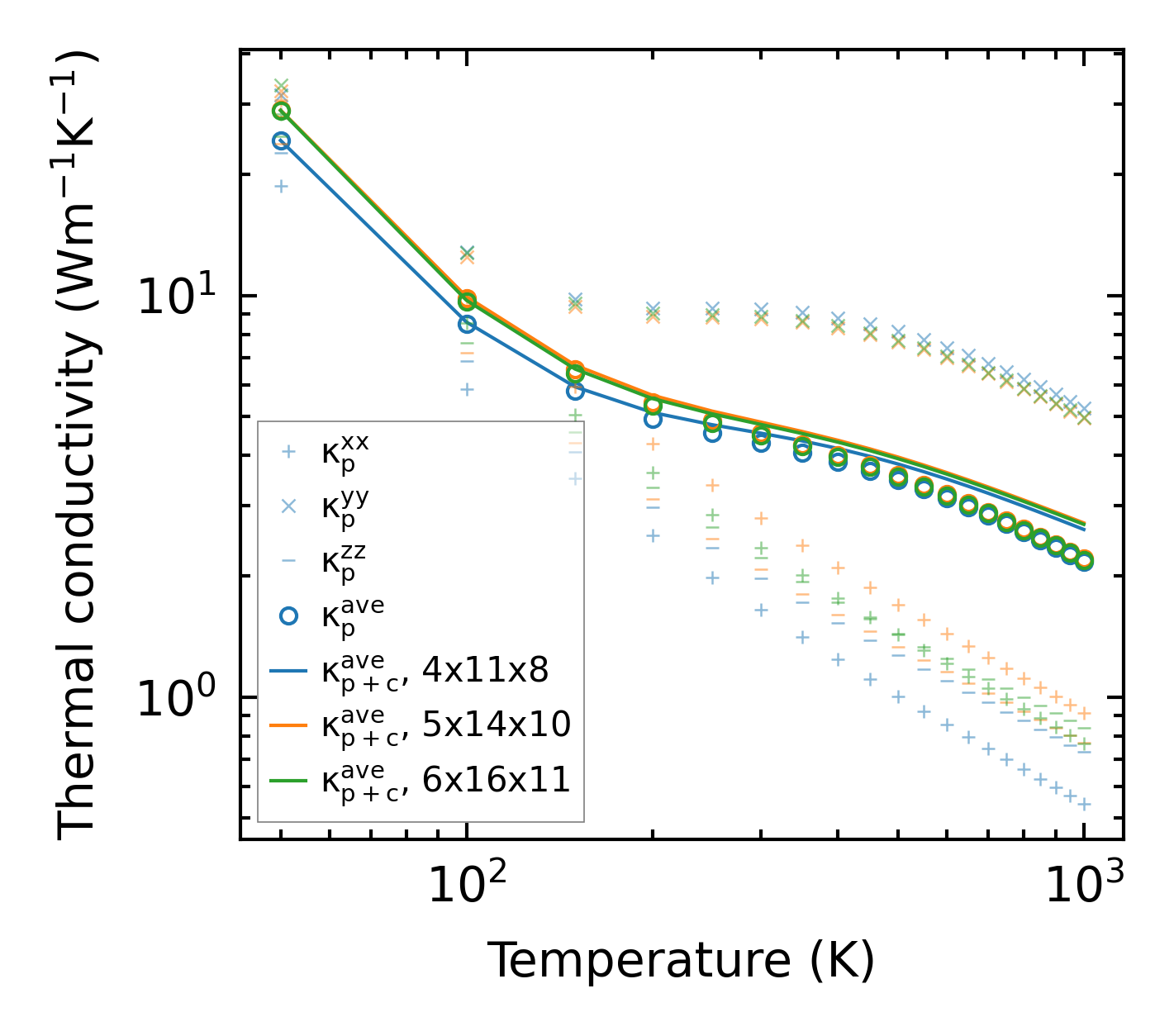

../../_images/fig_kappa8431.png — (a) Temperature-dependent lattice thermal conductivity

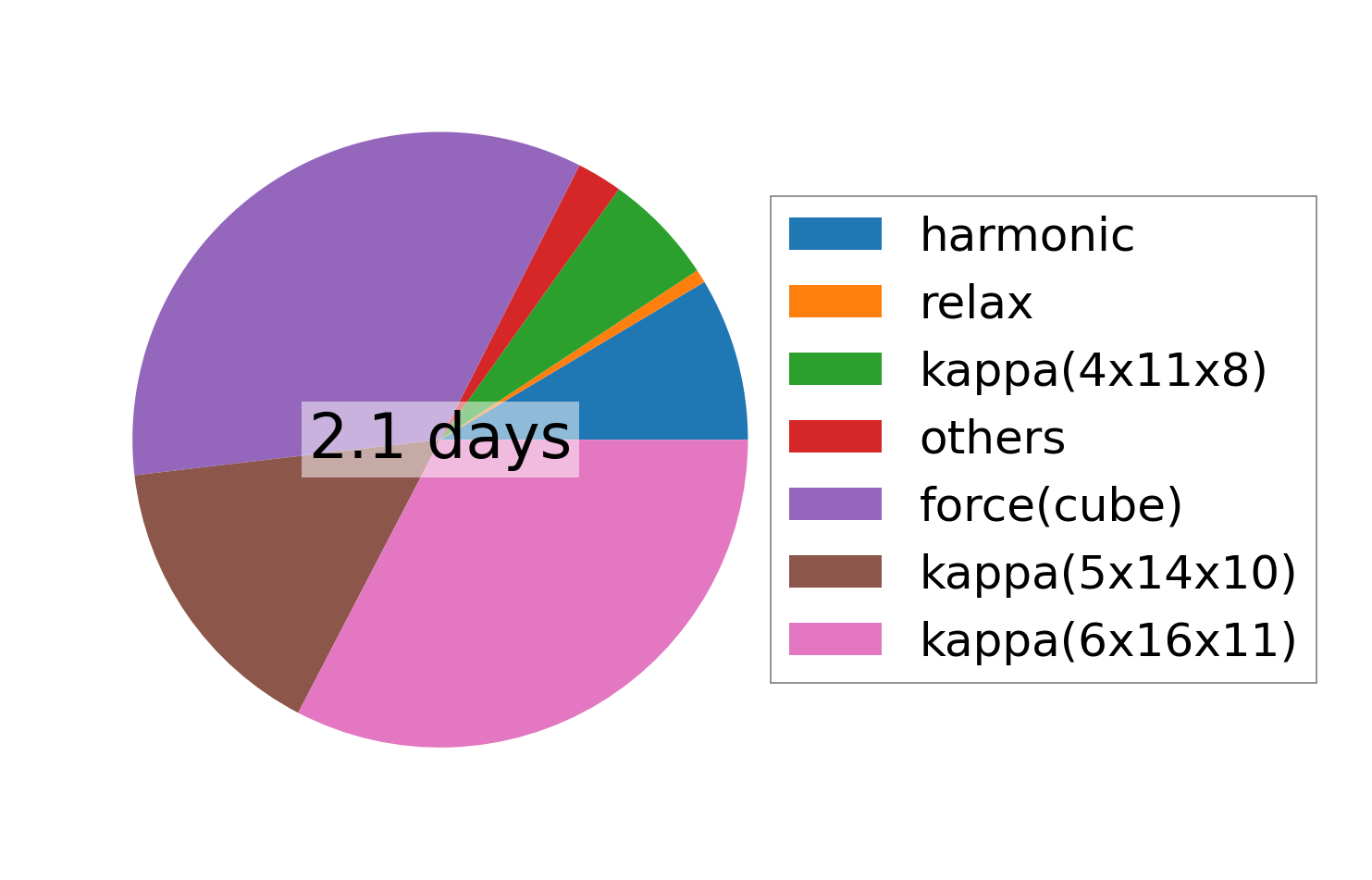

../../_images/fig_times18665.png — (b) Computation time
