mp-3653/MgSb2O6/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-3653.tar.gz

Harmonic properties

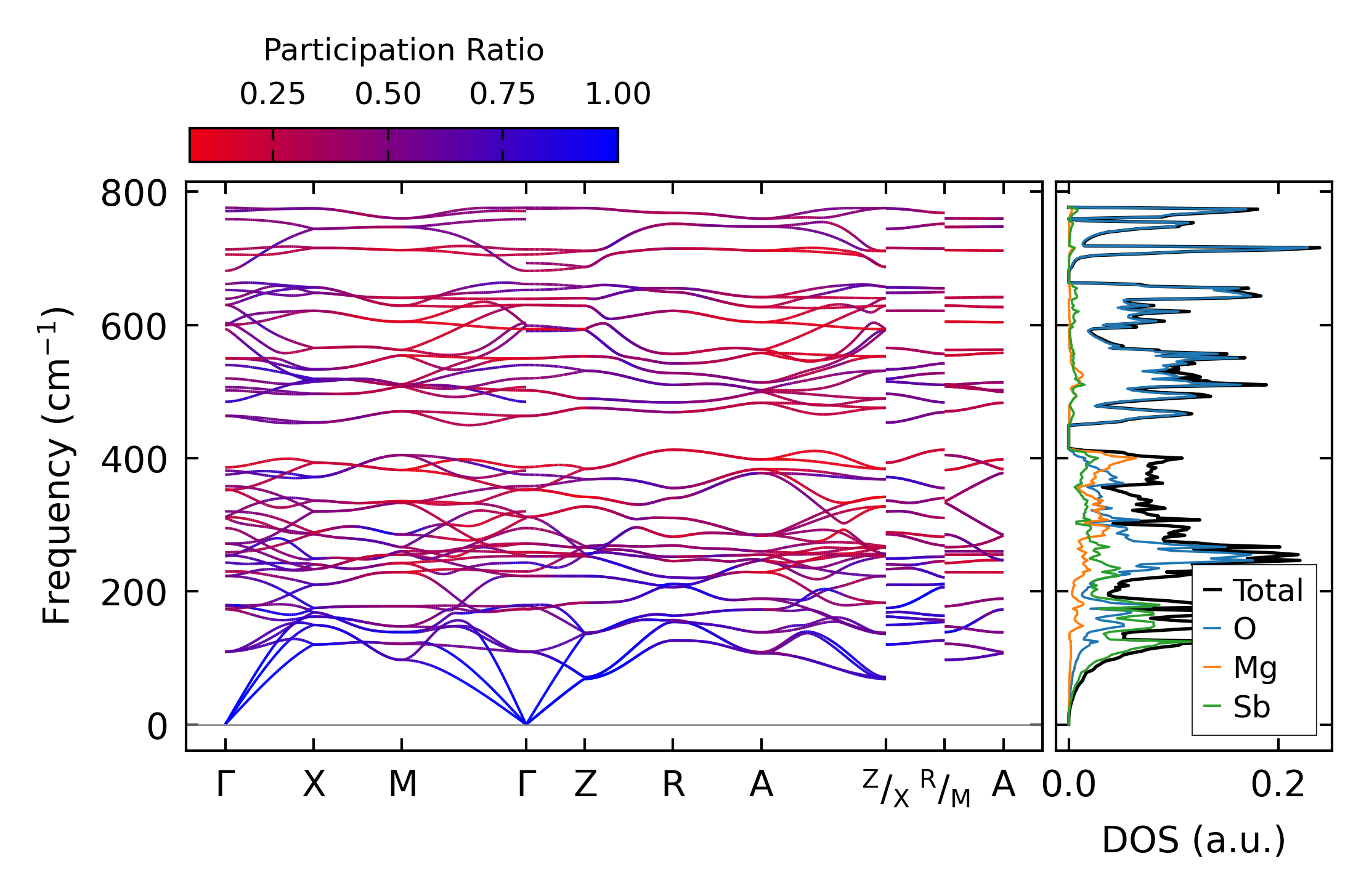

../../_images/fig_bandos_pr10968.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10968.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4494.png — (a) Grüneisen parameters

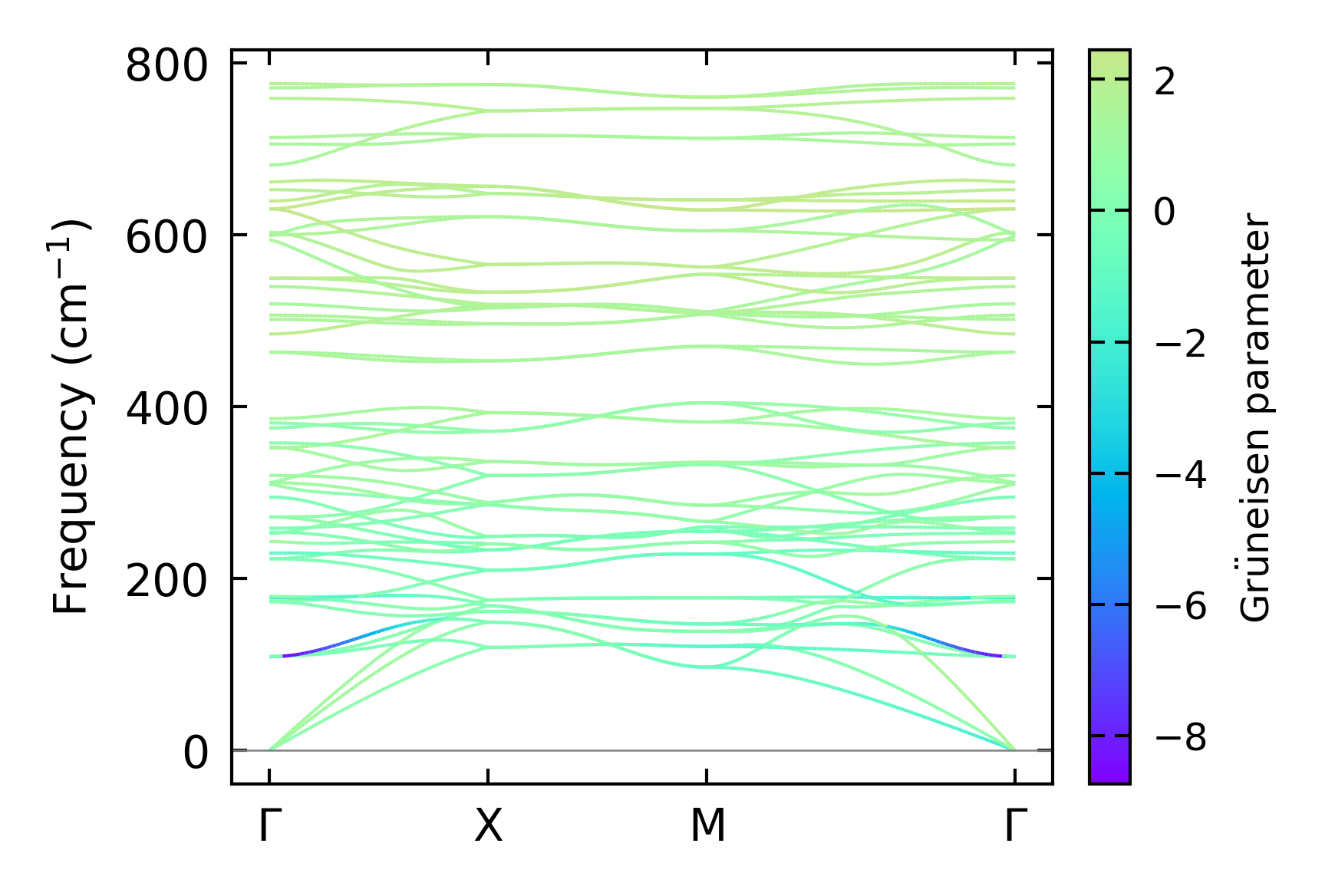

../../_images/fig_gruneisen4494.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 2x2x2

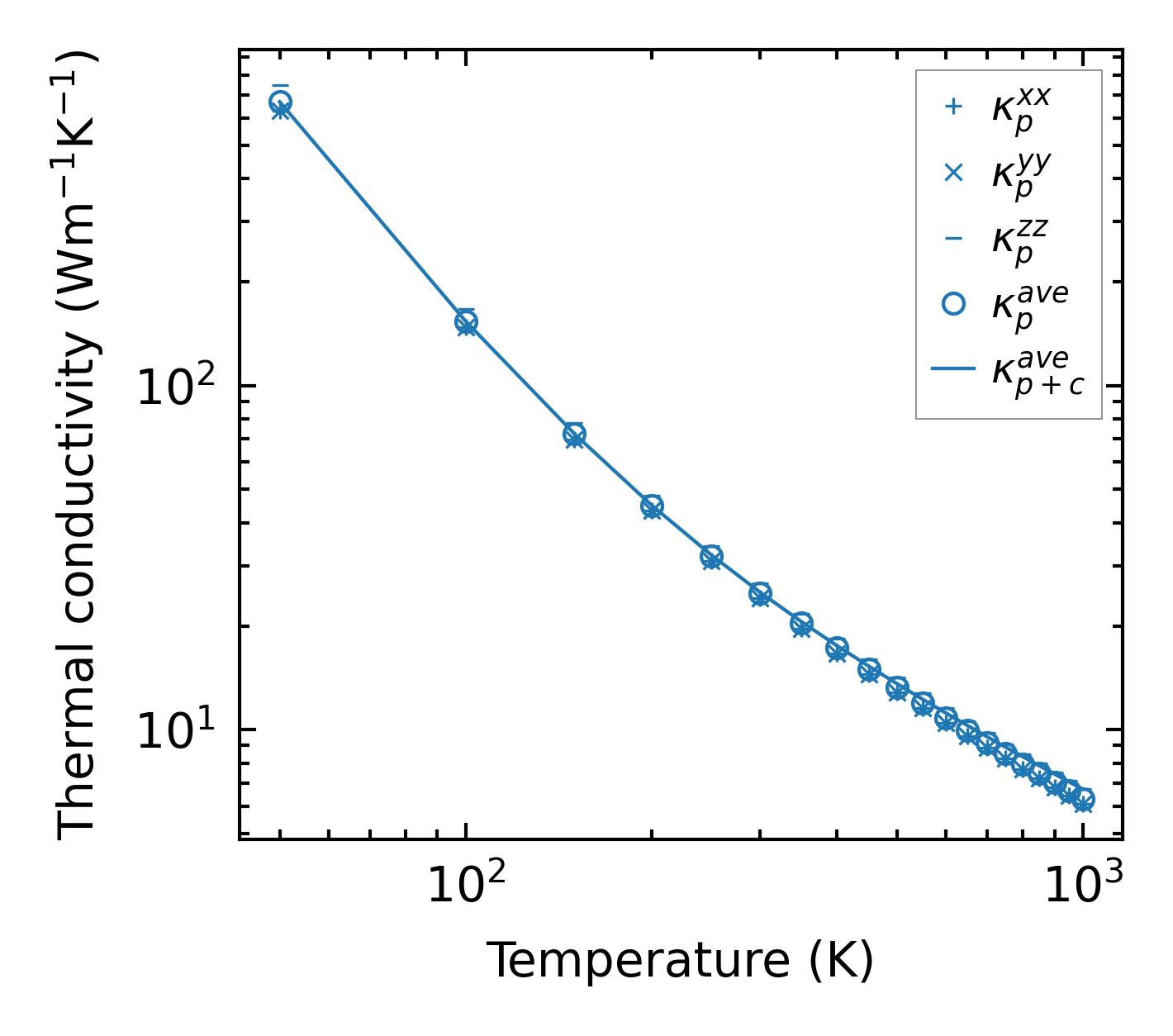

../../_images/fig_kappa8484.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4548.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

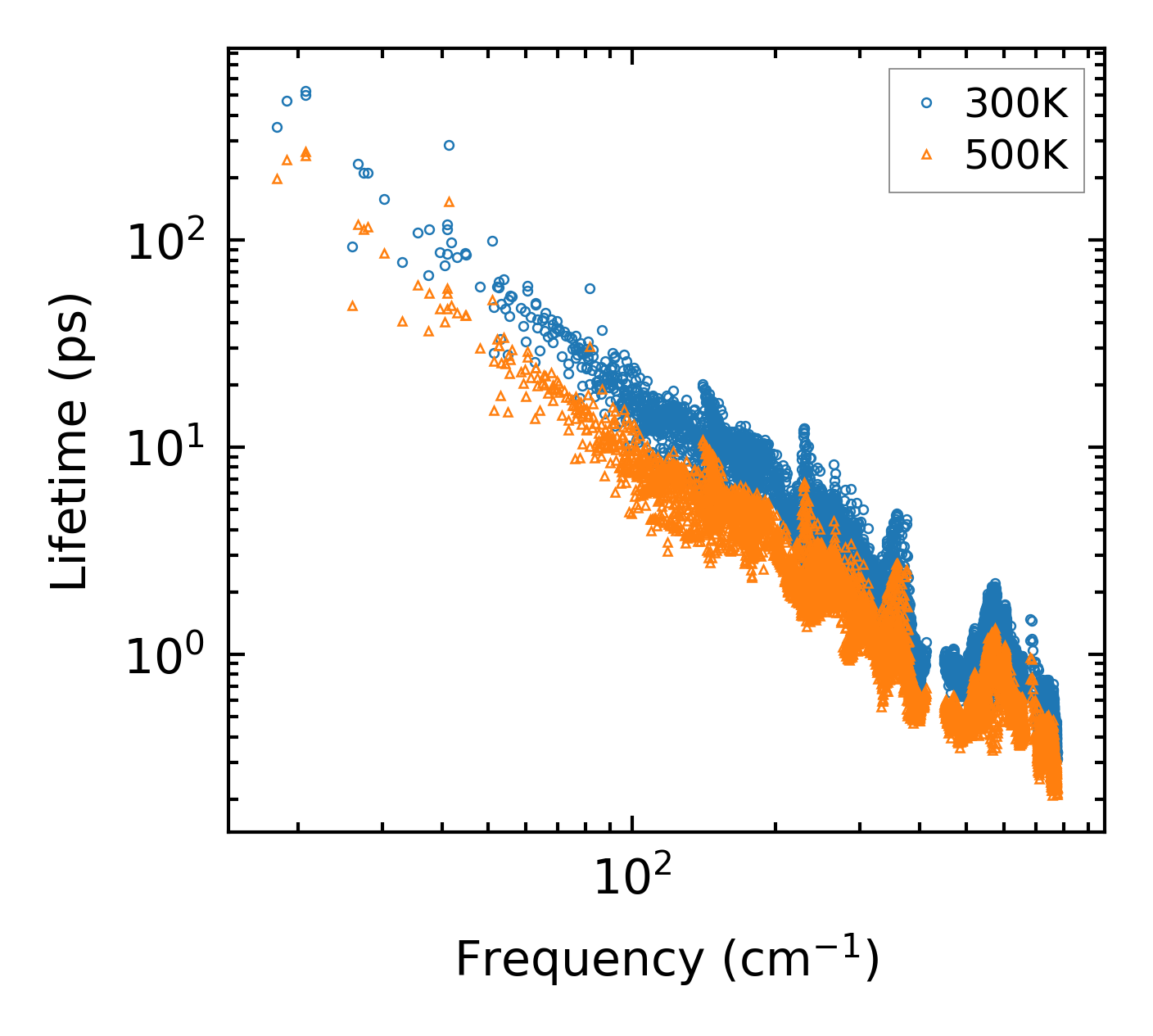

../../_images/fig_lifetime4450.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4449.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

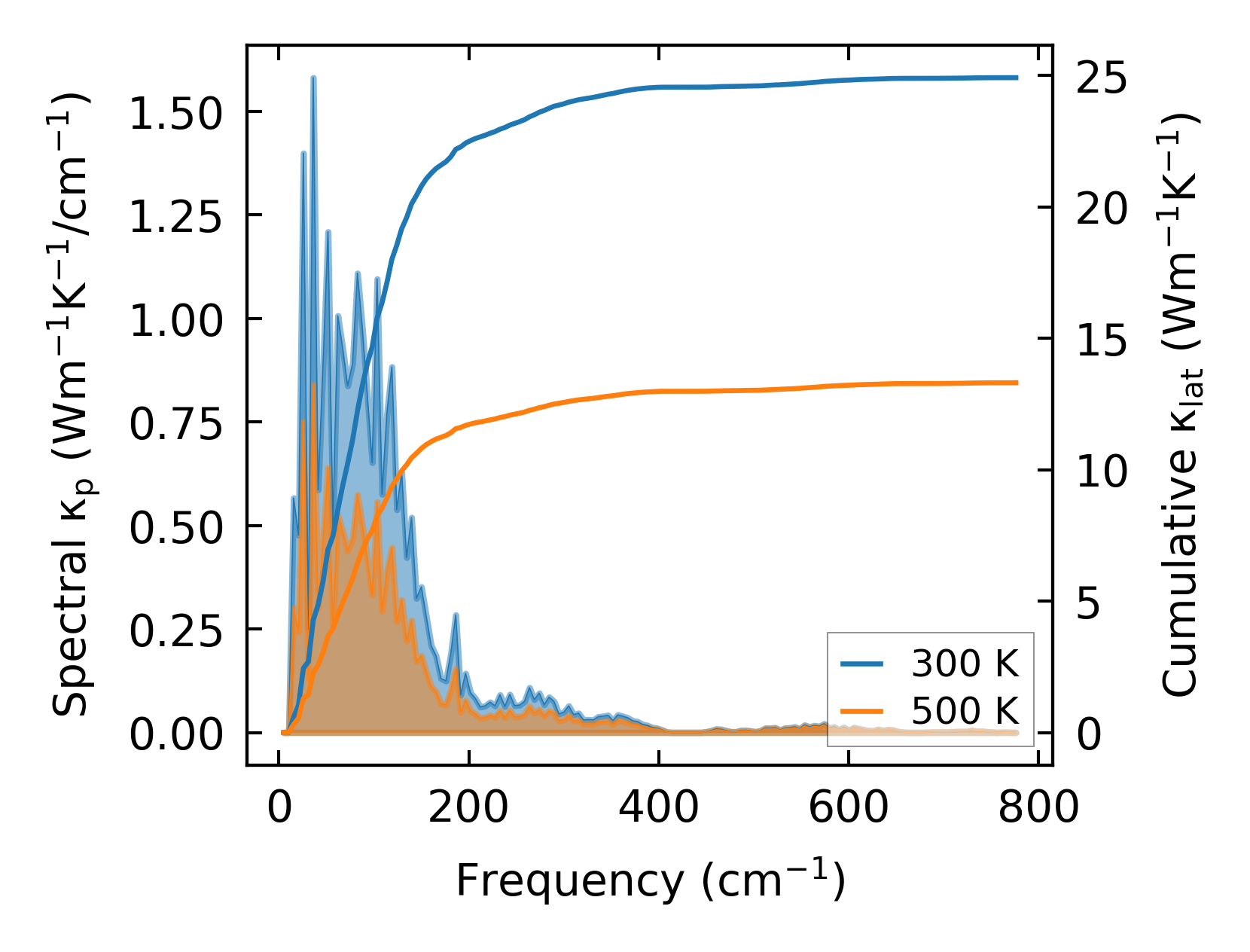

../../_images/fig_cumu_frequency4450.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4449.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

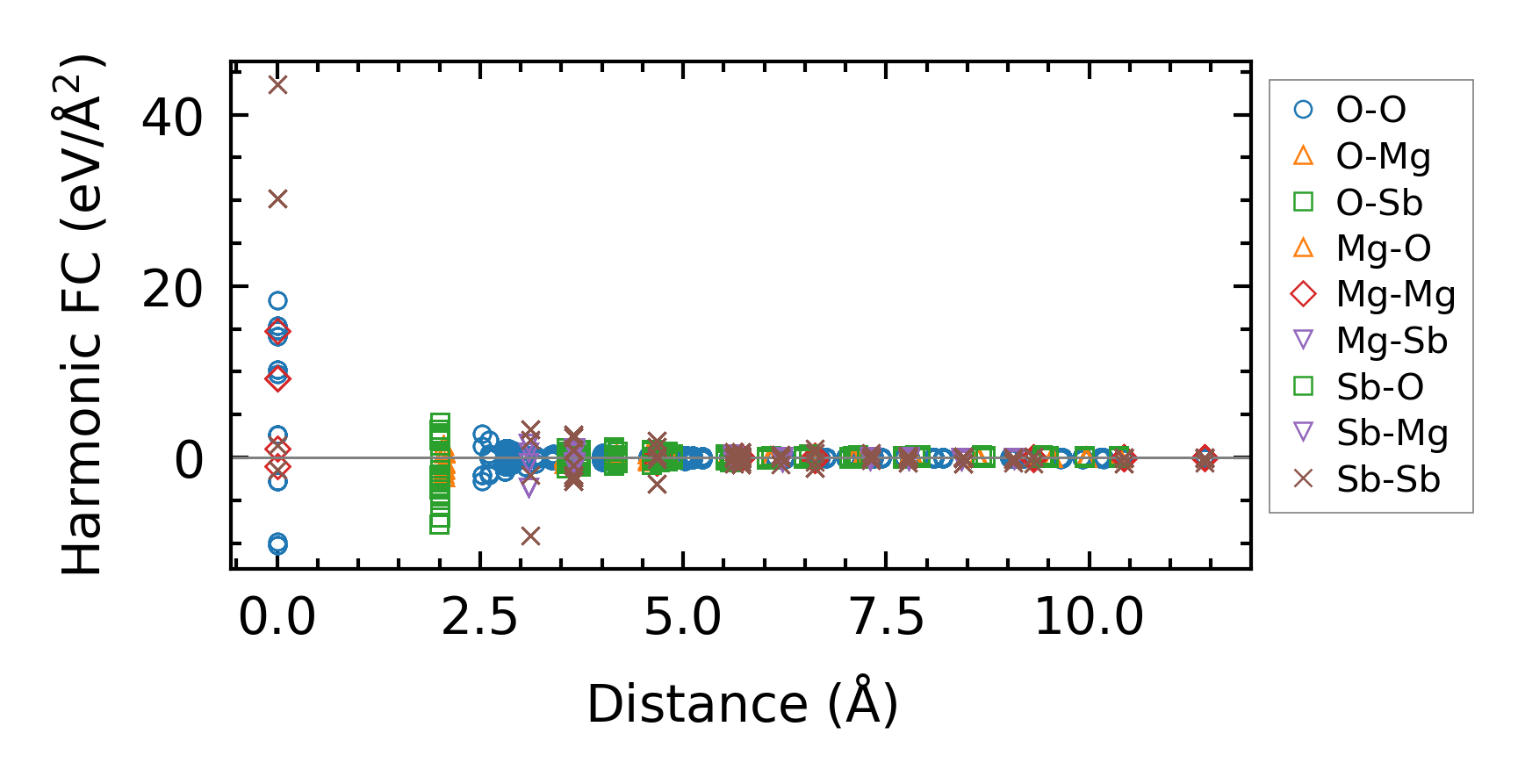

../../_images/fig_fc210693.png — (a) Force constants w.r.t atomic distance

Summary

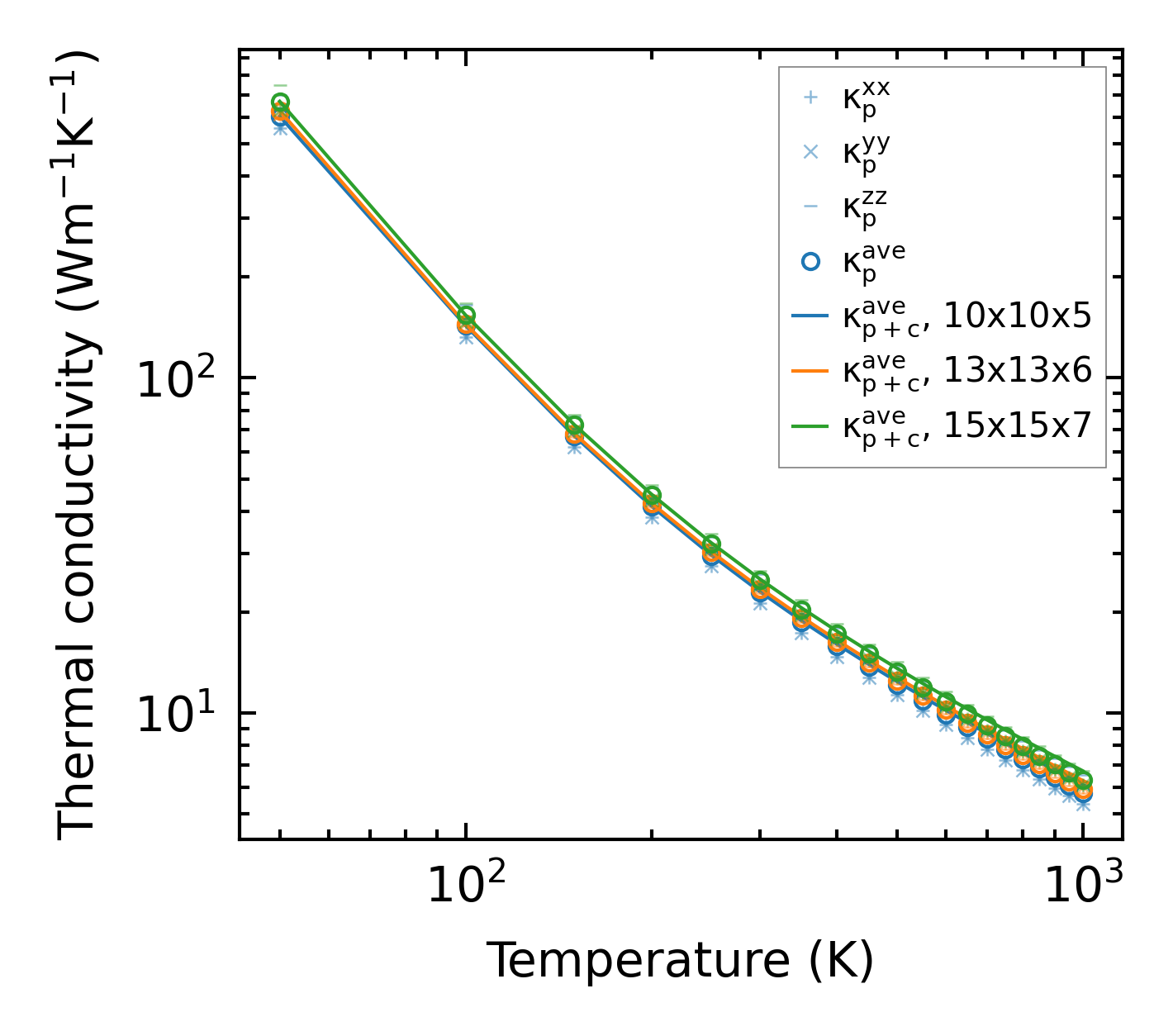

../../_images/fig_kappa8485.png — (a) Temperature-dependent lattice thermal conductivity

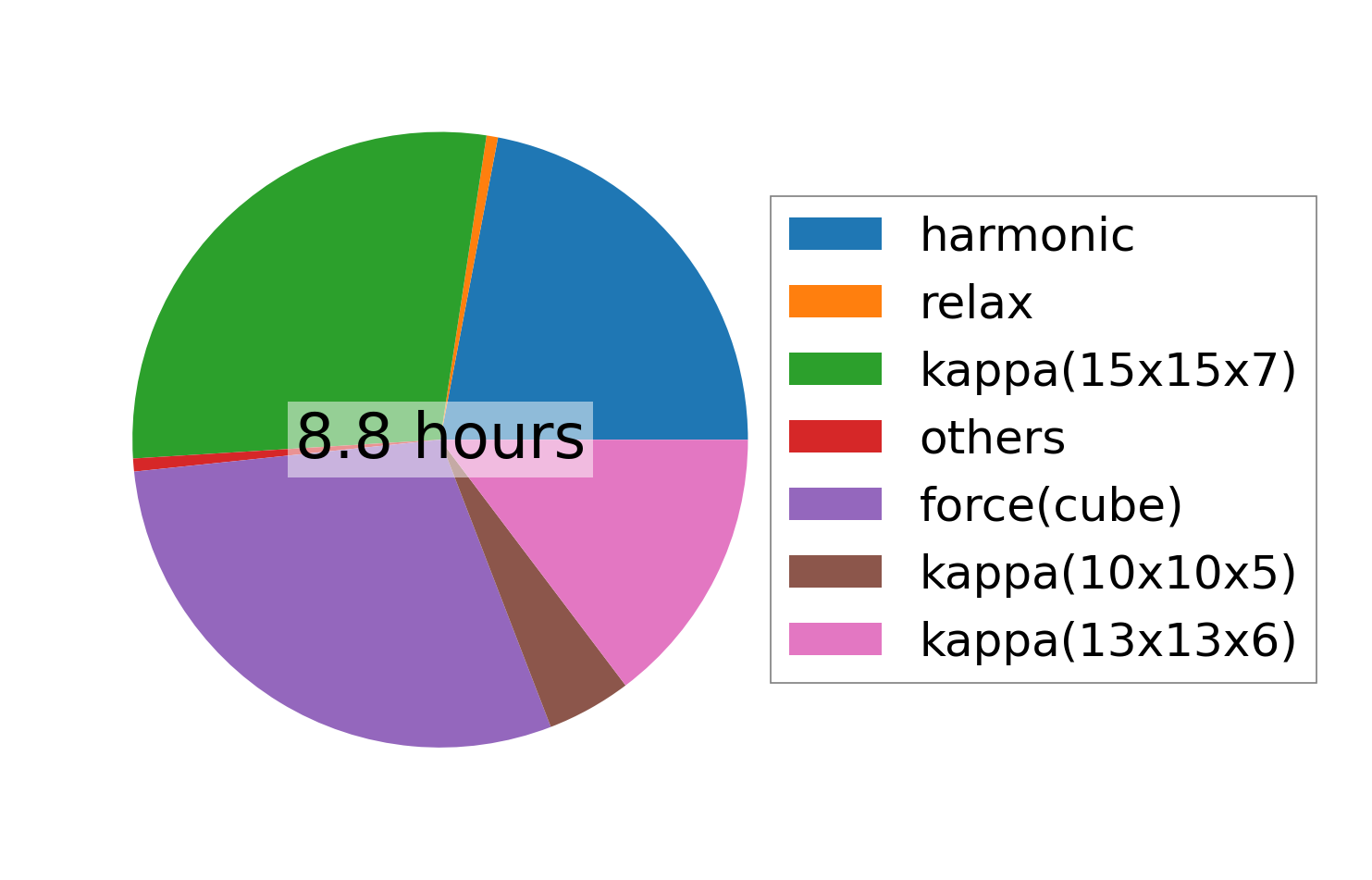

../../_images/fig_times18746.png — (b) Computation time
