mp-3031-2/BaSi2O5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-3031-2.tar.gz

Equation of state

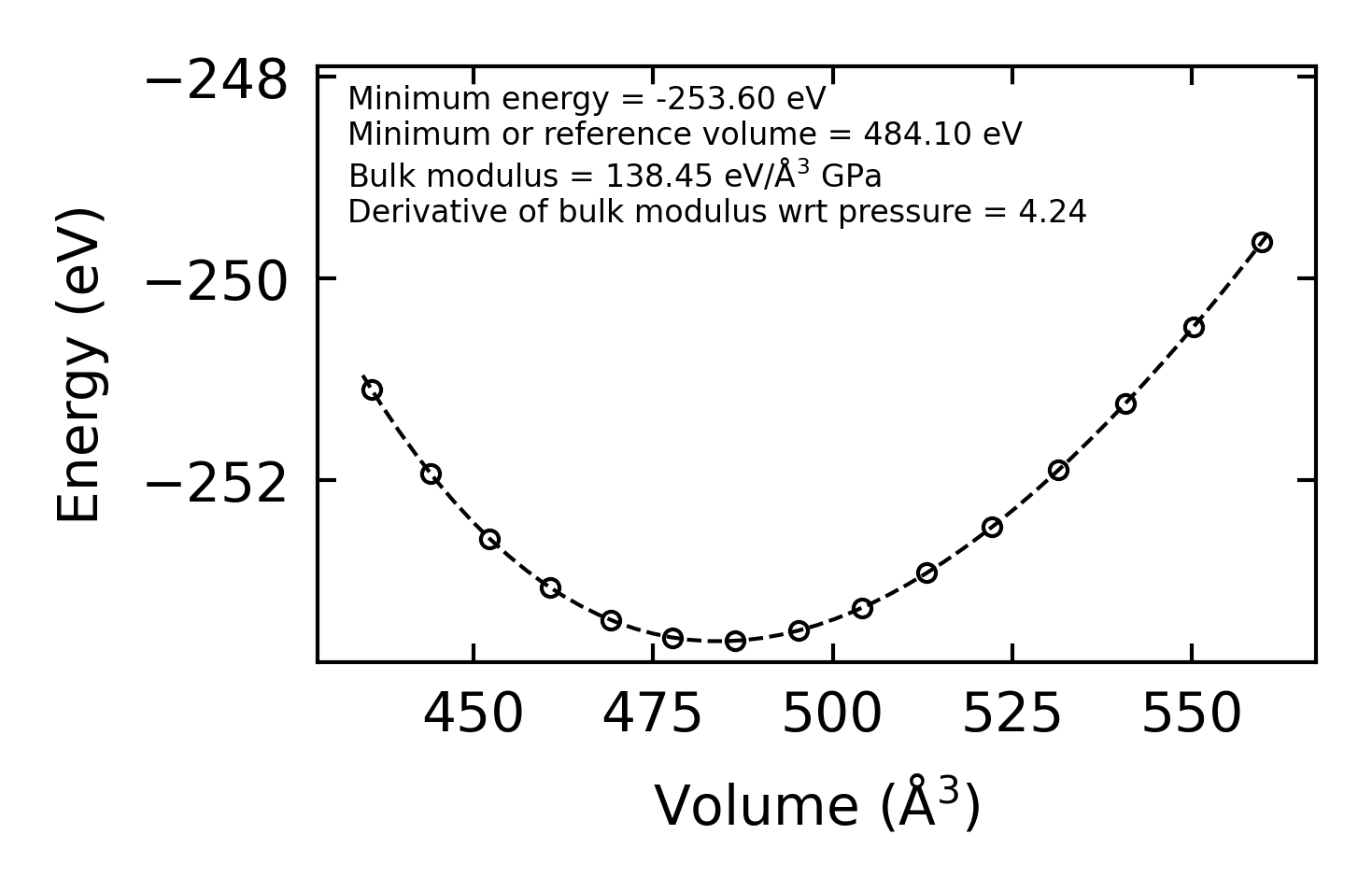

../../_images/fig_bm5448.png — (a) Equation of state

Harmonic properties

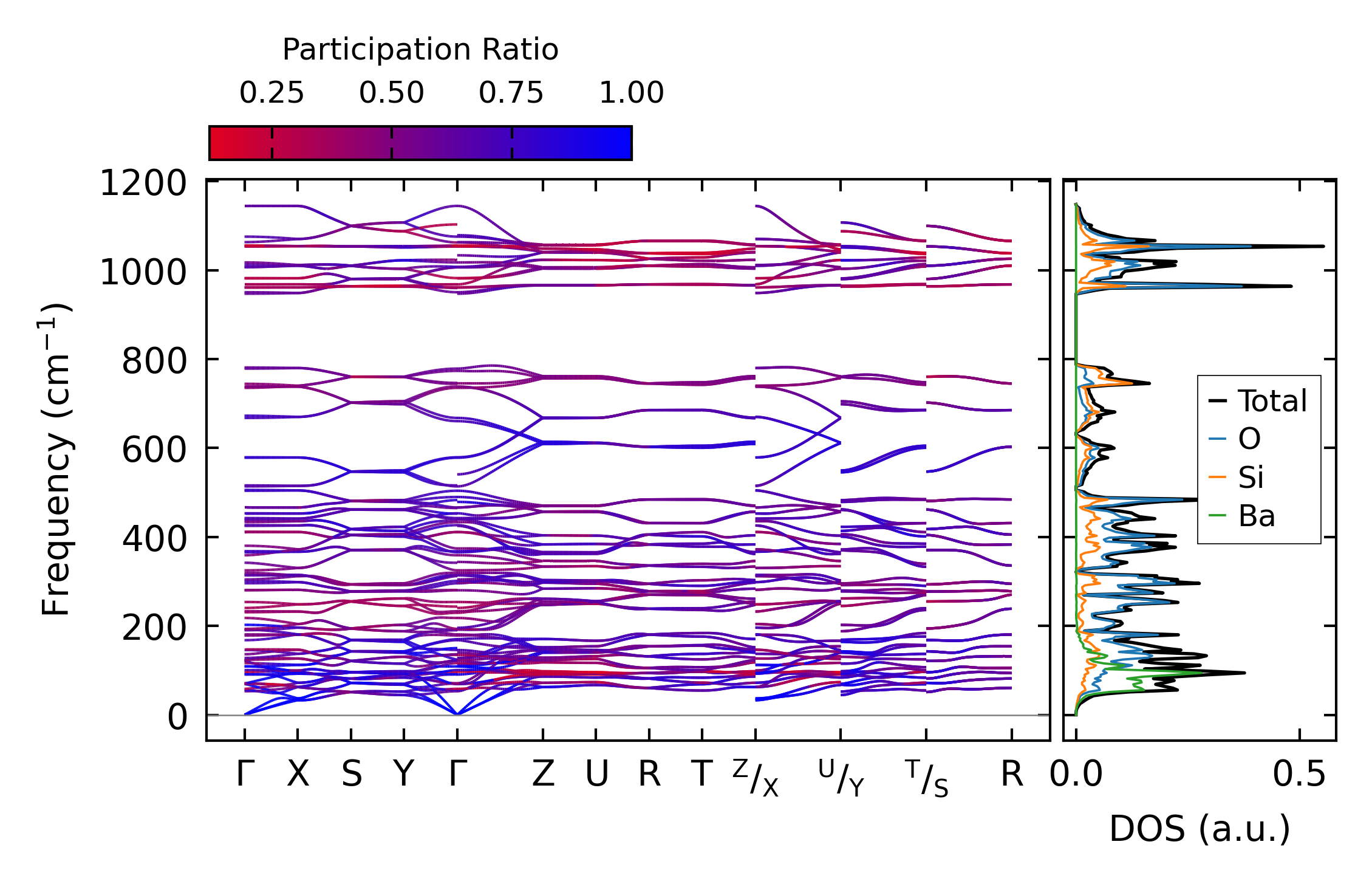

../../_images/fig_bandos_pr11145.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11145.png — (b) Thermodynamic properties

Grüneisen parameters

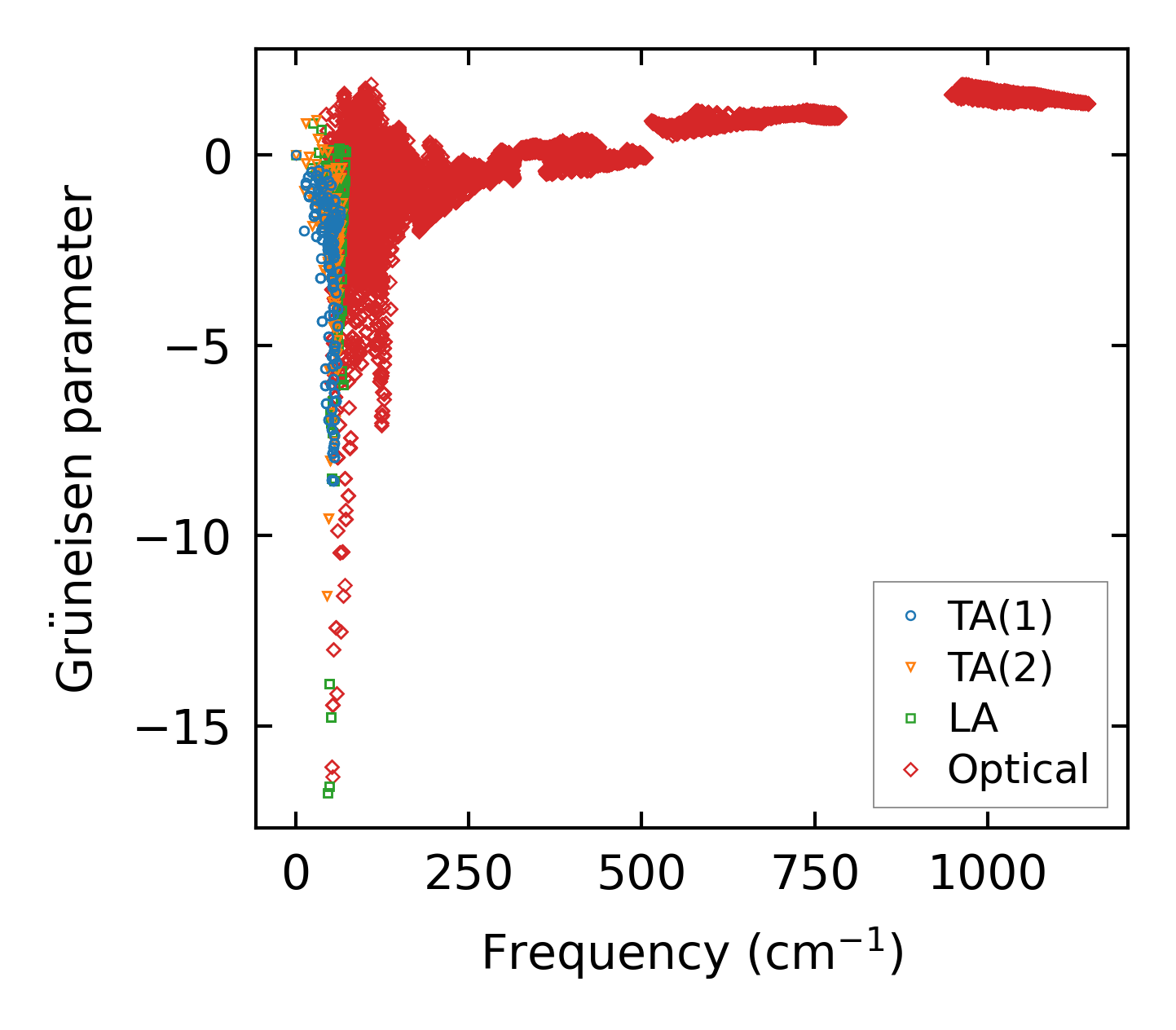

../../_images/fig_gru_all4591.png — (a) Grüneisen parameters

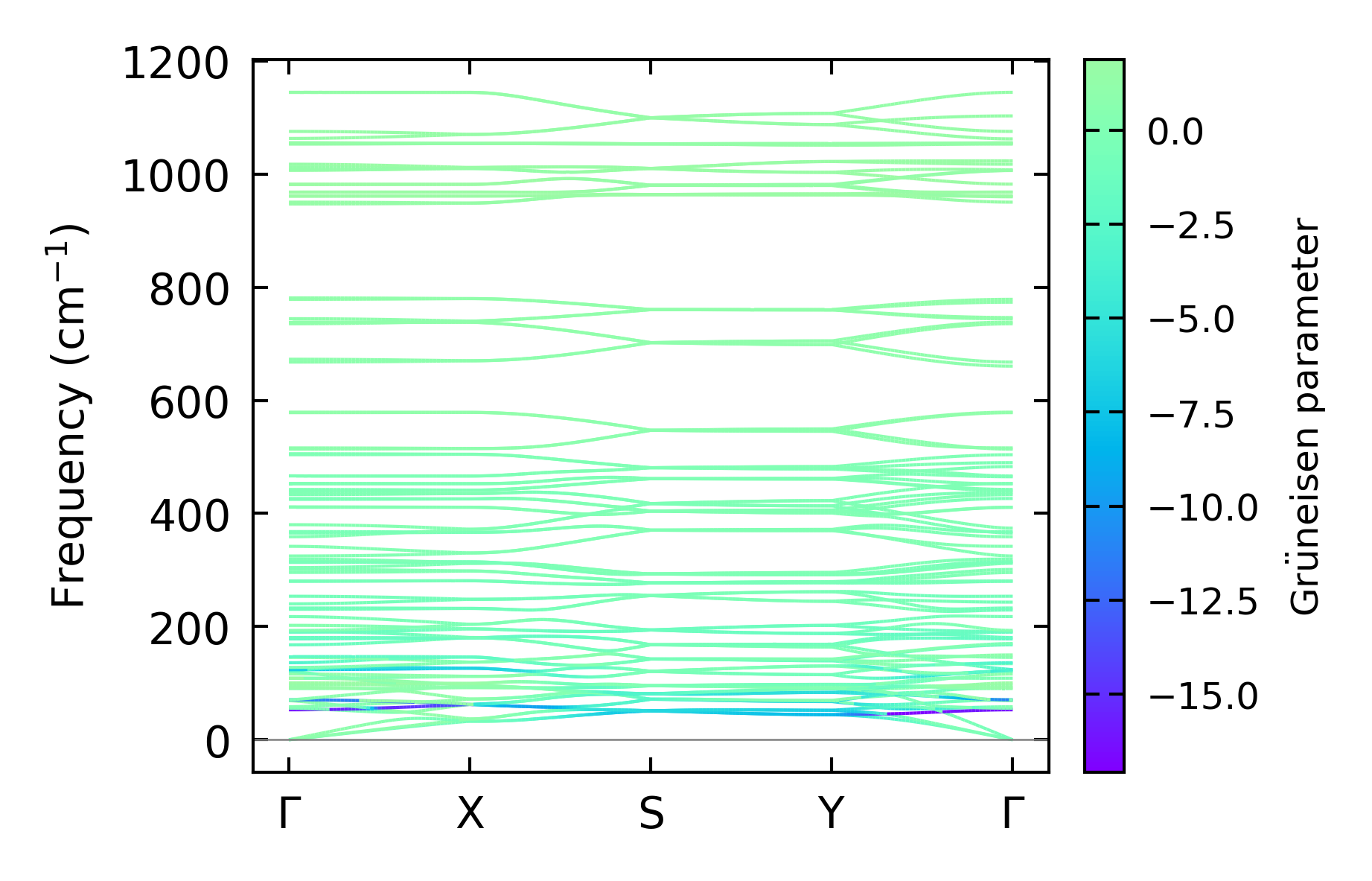

../../_images/fig_gruneisen4591.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x9x15, supercell: 1x2x2

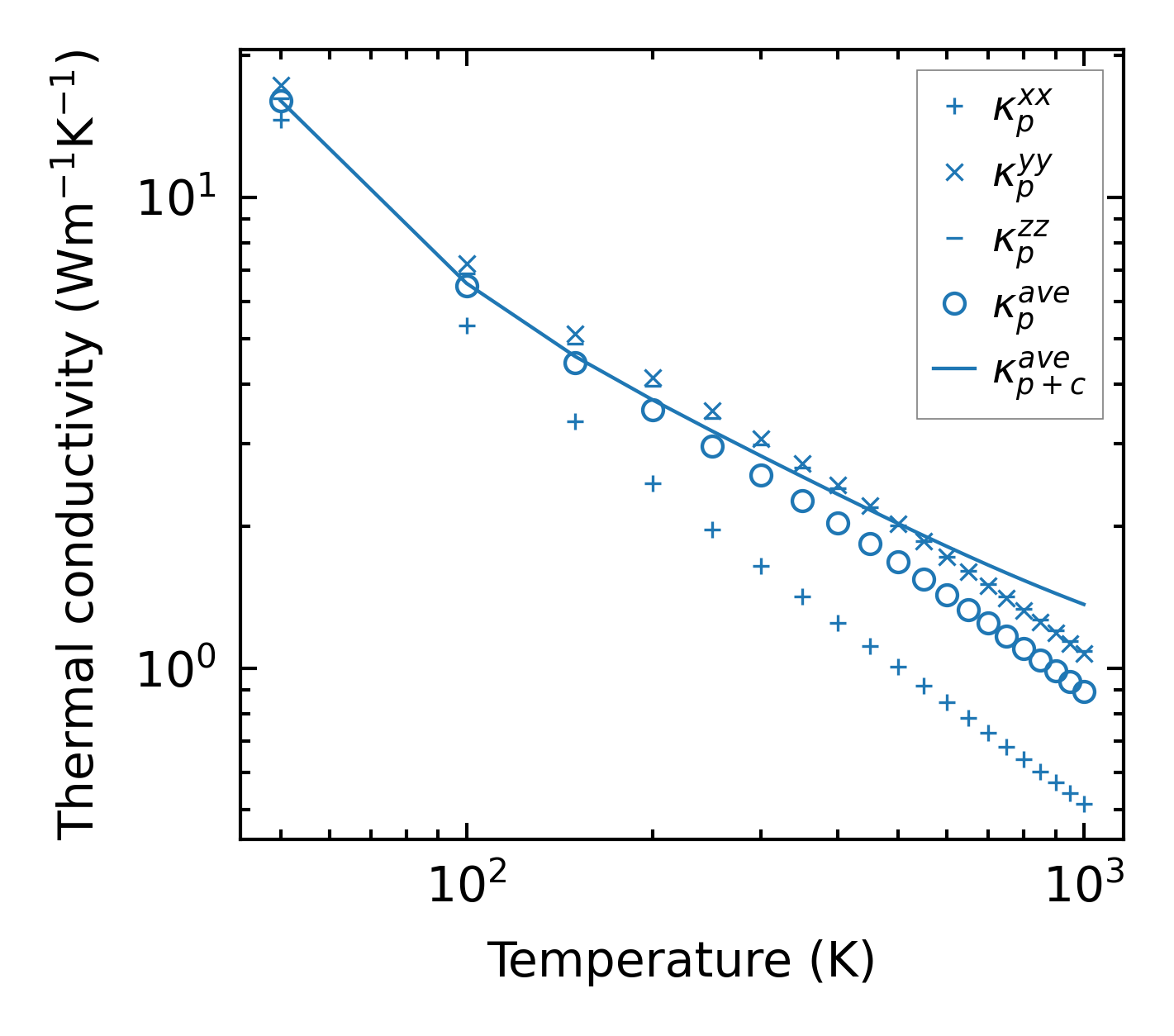

../../_images/fig_kappa8665.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4646.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 1x2x3 — q-mesh: 5x9x15, supercell: 1x2x3

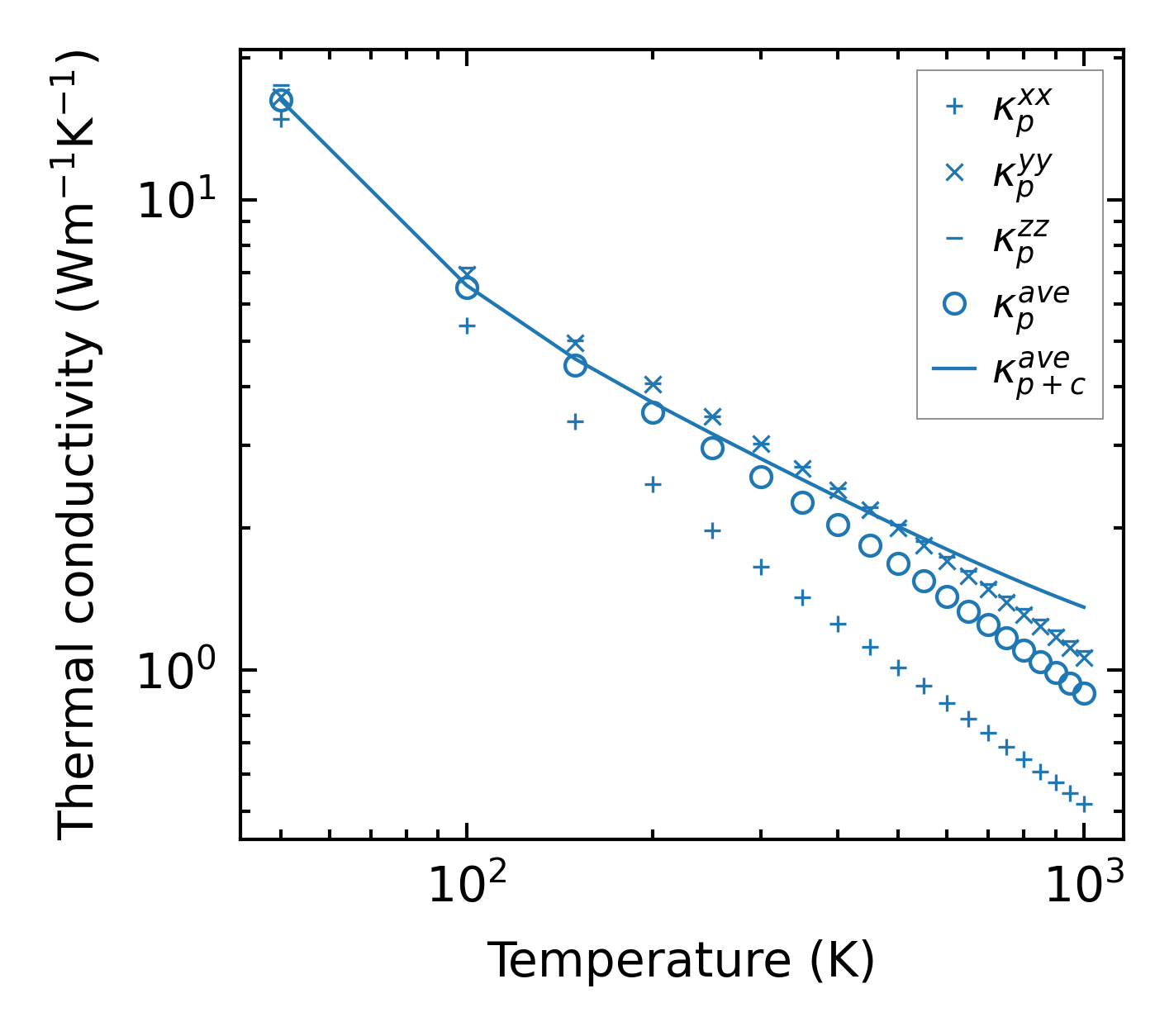

../../_images/fig_kappa8666.png — (a) Temperature-dependent lattice thermal conductivity

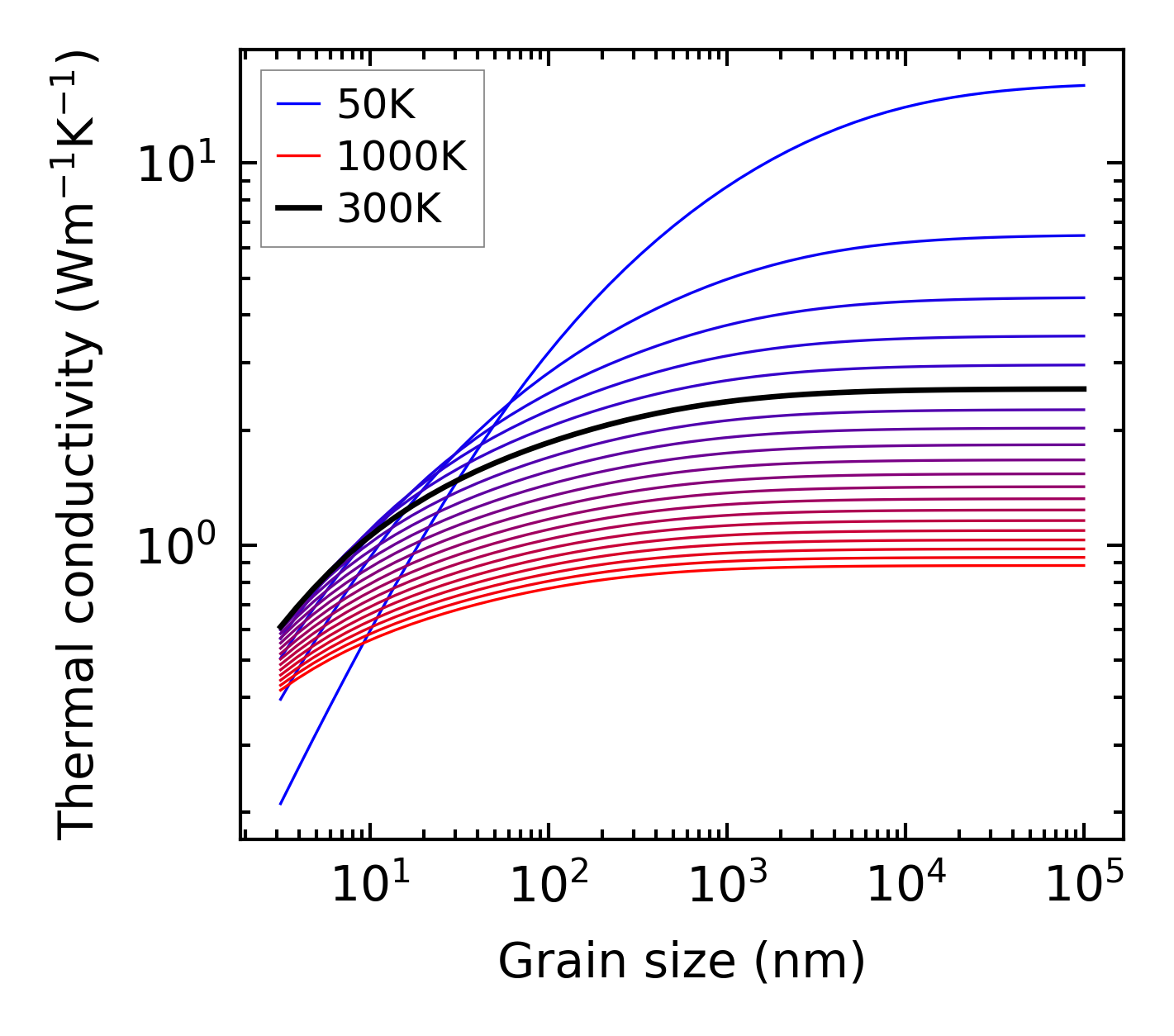

../../_images/fig_kappa_vs_grain_size4647.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

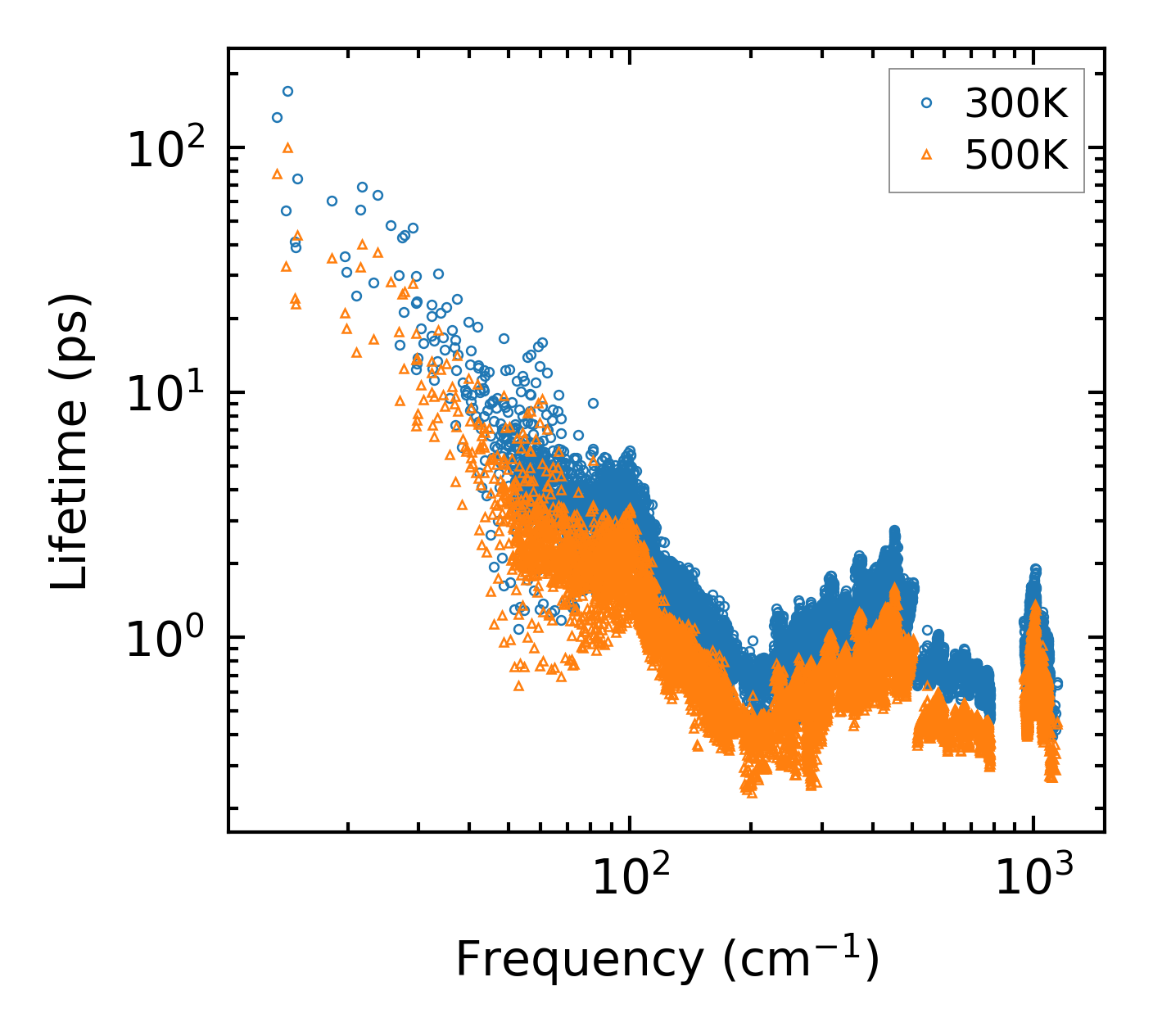

../../_images/fig_lifetime4547.png — (a) Phonon lifetime due to phonon-phonon scattering

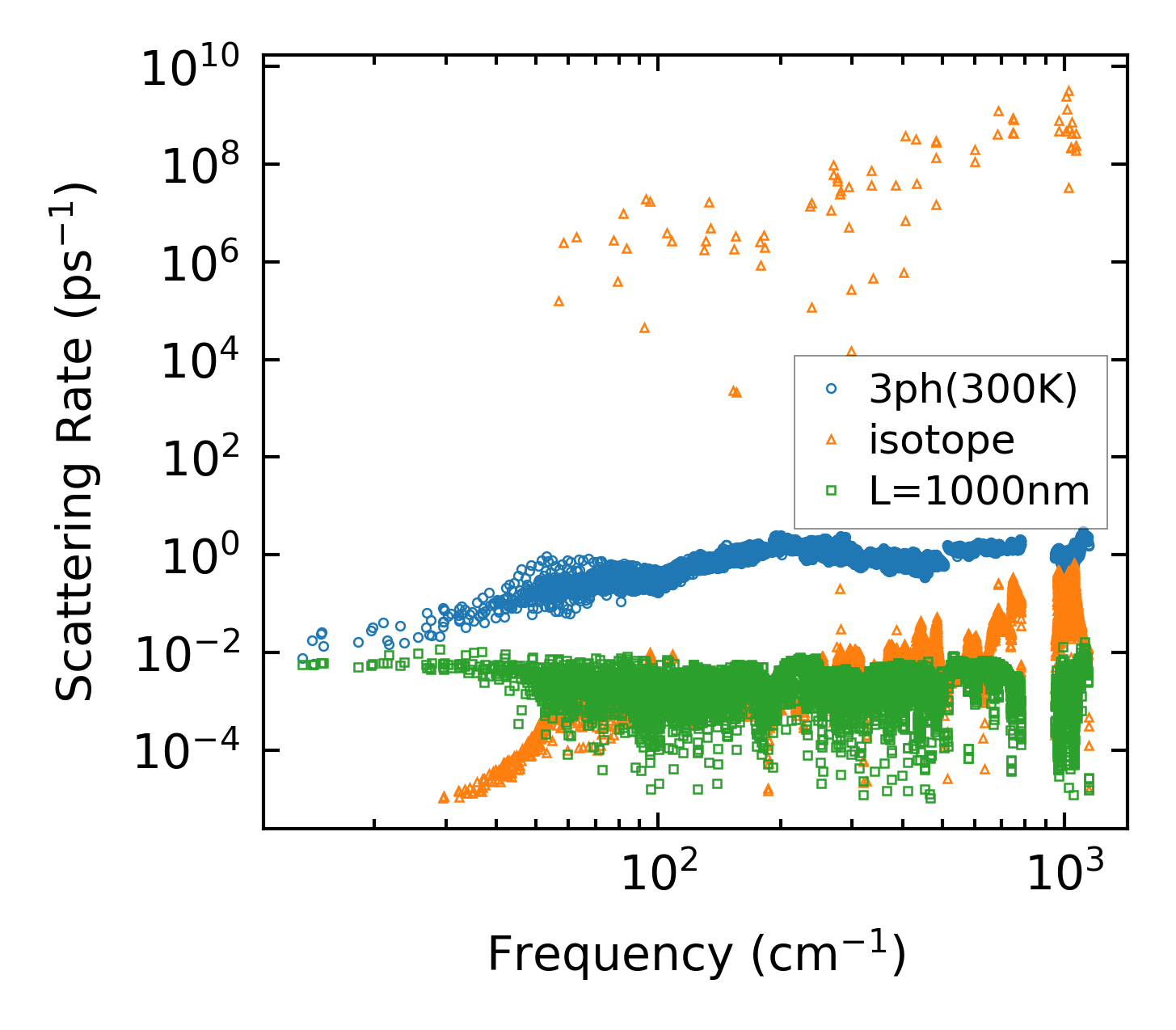

../../_images/fig_scat_rates4546.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

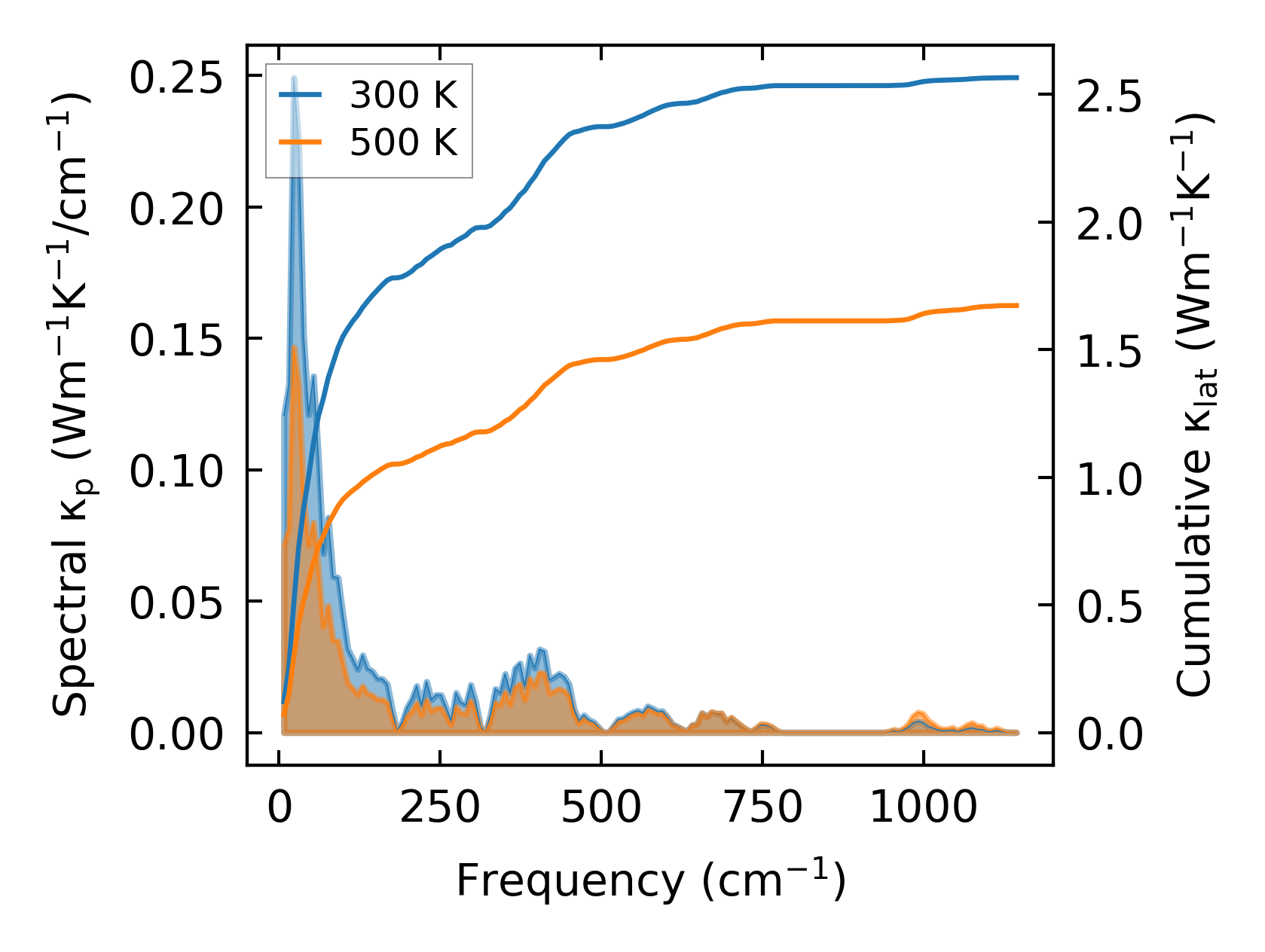

../../_images/fig_cumu_frequency4547.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

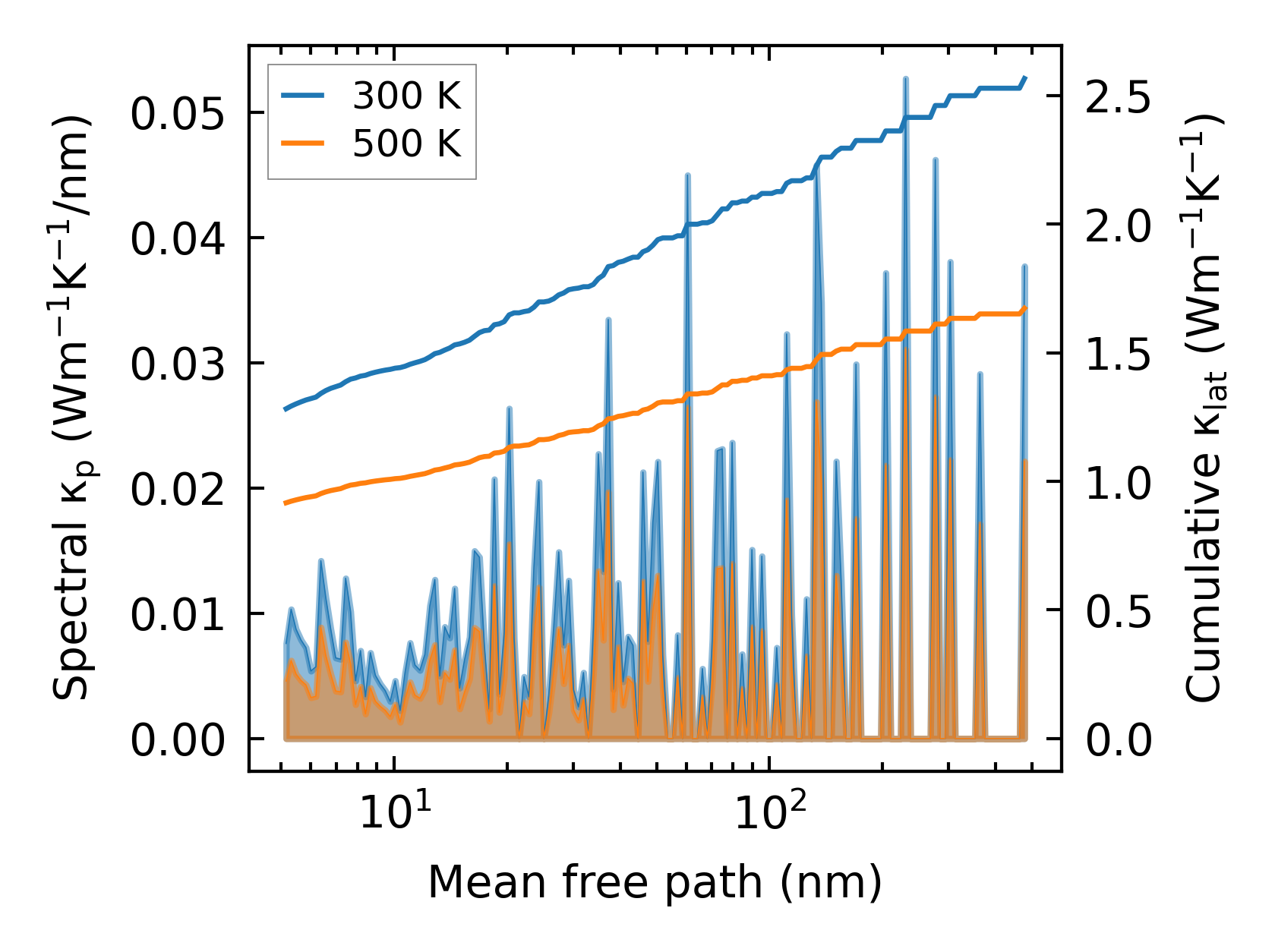

../../_images/fig_cumu_mfp4546.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

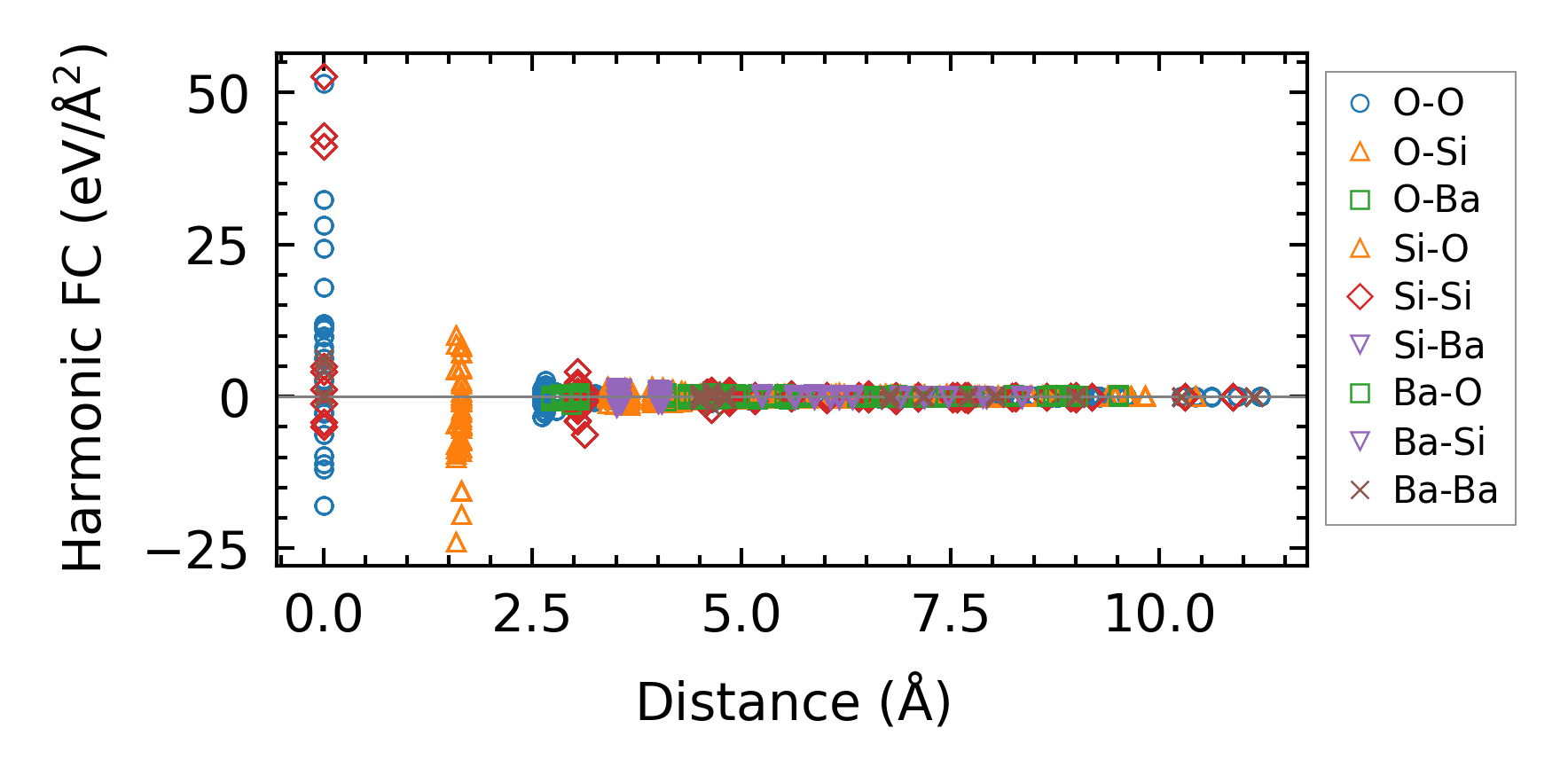

../../_images/fig_fc210862.png — (a) Force constants w.r.t atomic distance

Summary

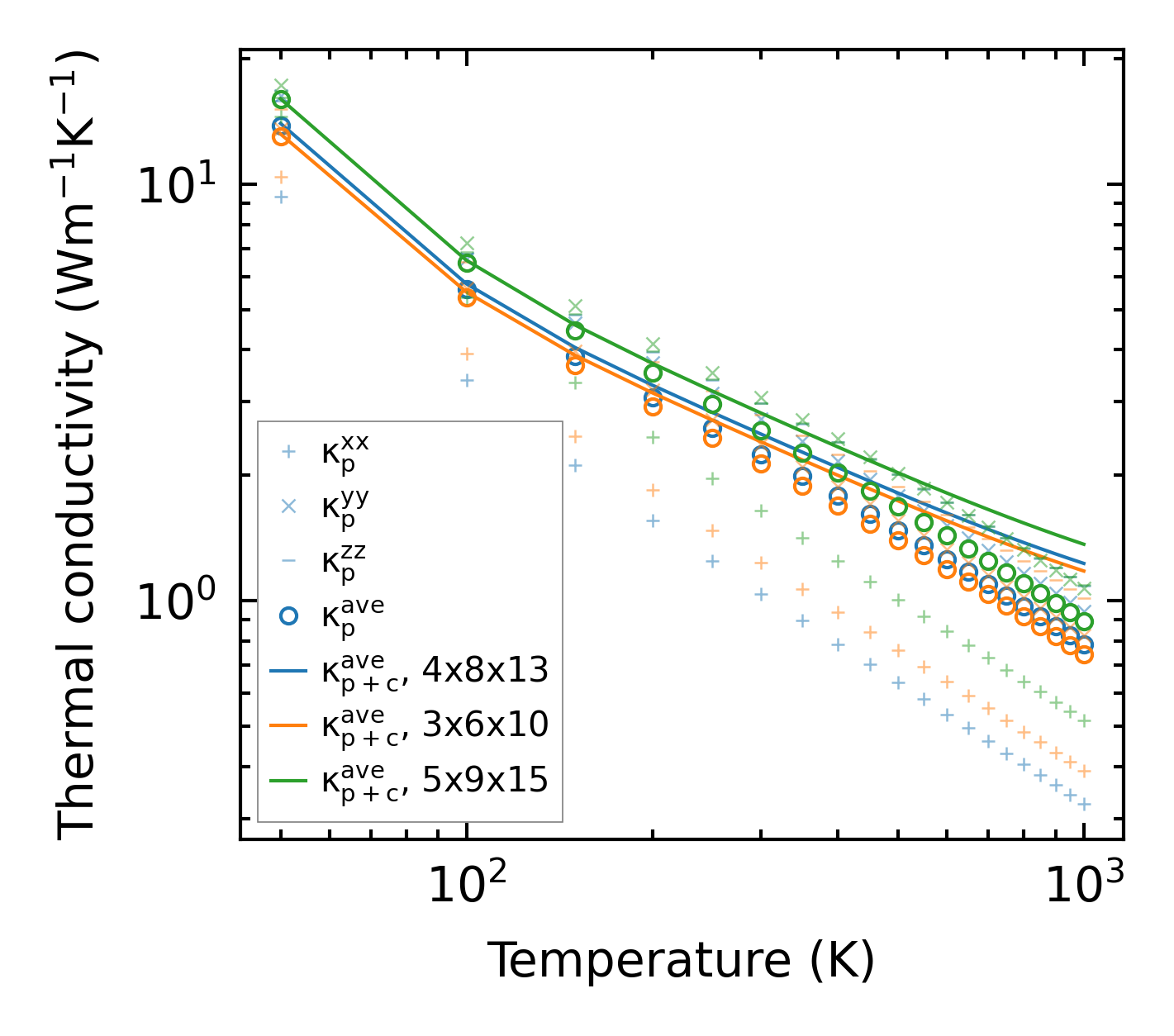

../../_images/fig_kappa8667.png — (a) Temperature-dependent lattice thermal conductivity

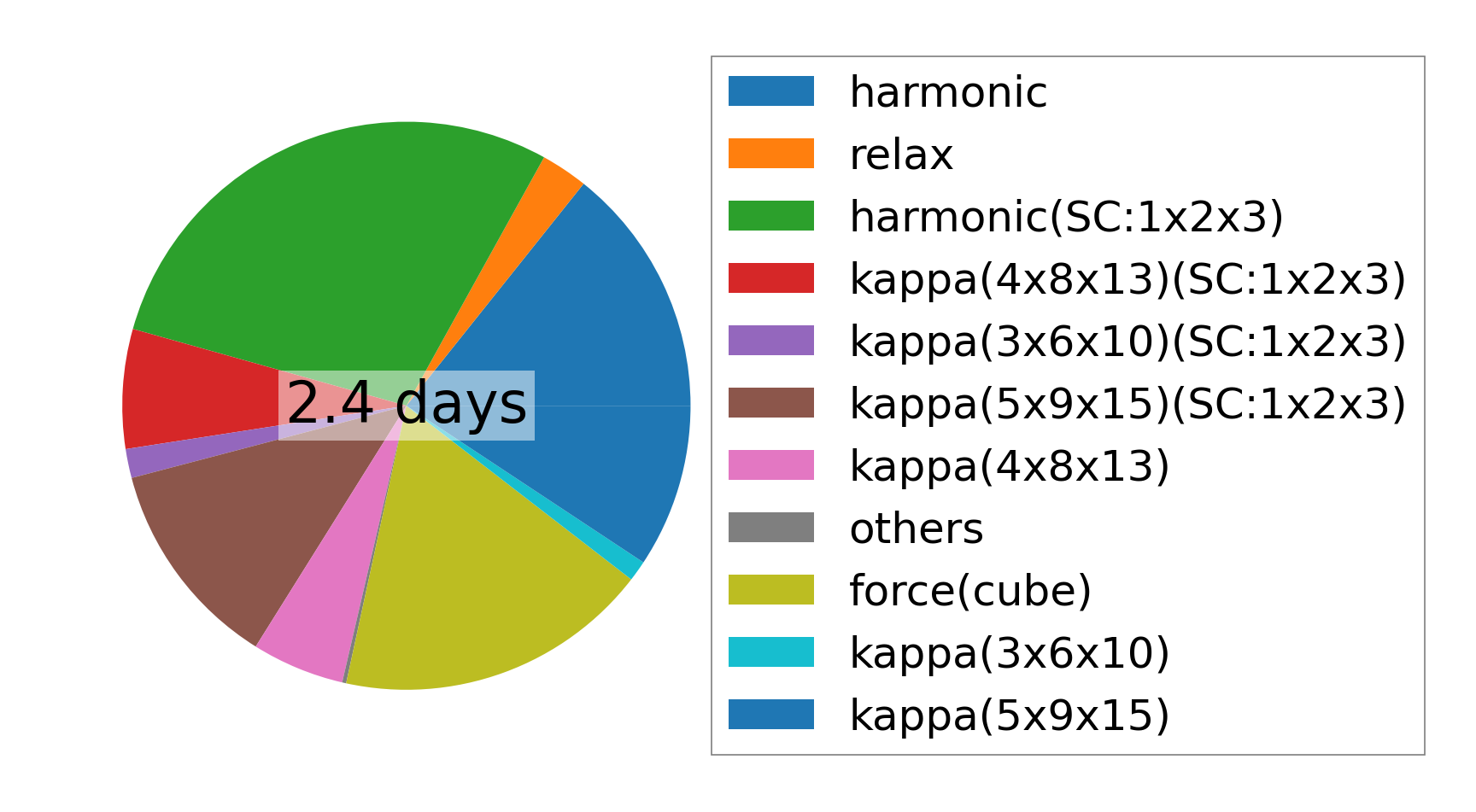

../../_images/fig_times19055.png — (b) Computation time
