mp-3536/MgAl2O4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-3536.tar.gz

Harmonic properties

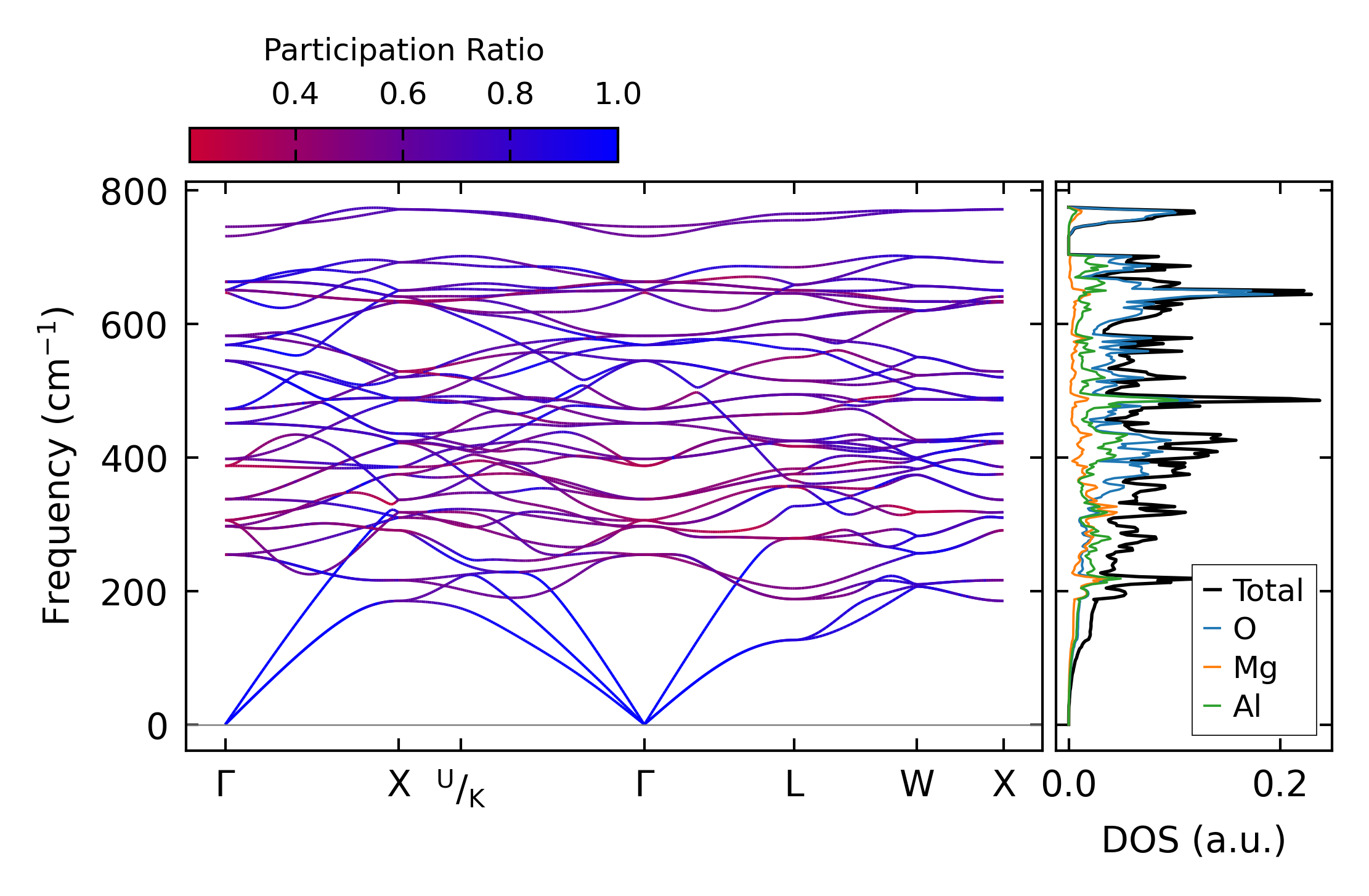

../../_images/fig_bandos_pr10943.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10943.png — (b) Thermodynamic properties

Grüneisen parameters

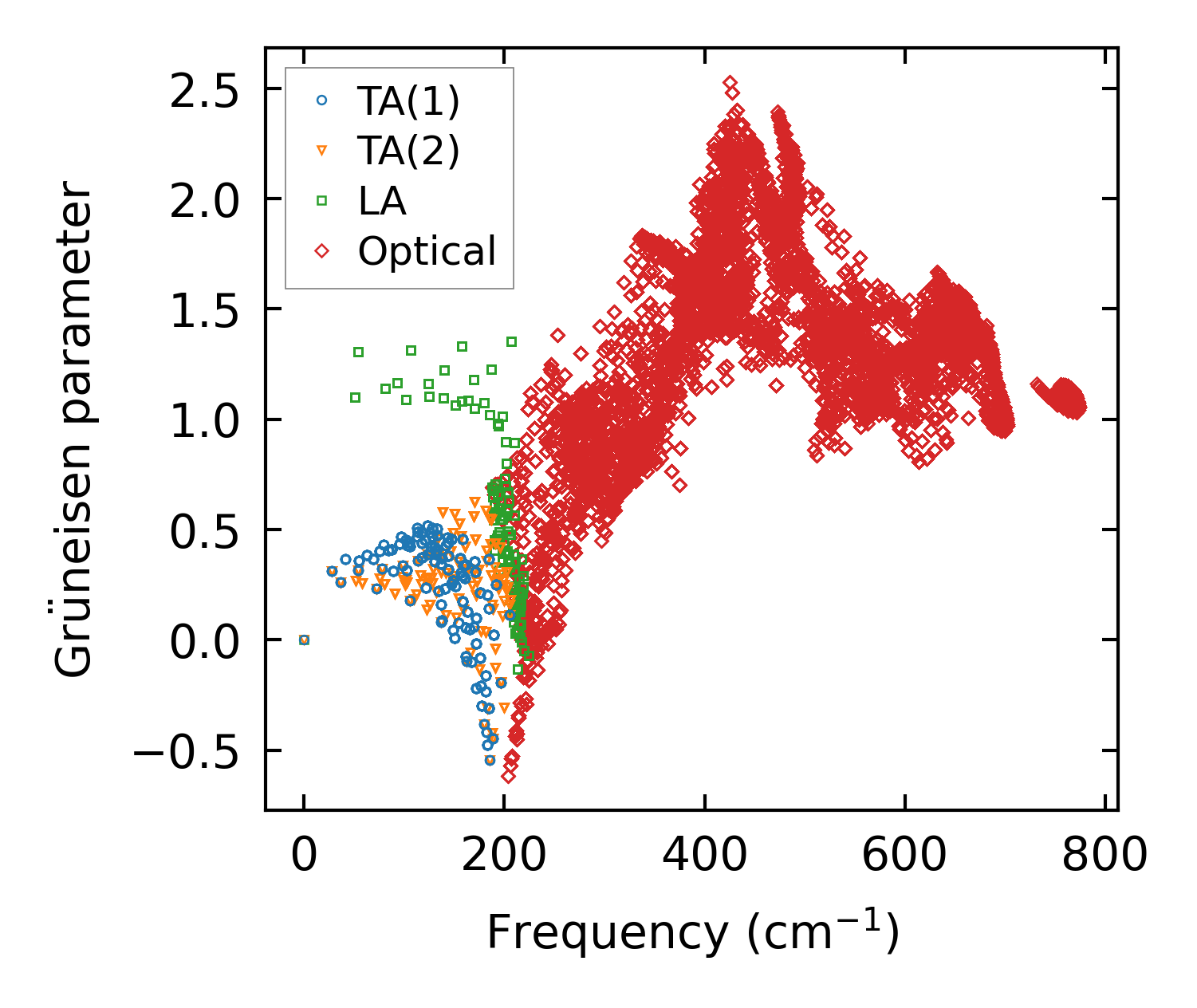

../../_images/fig_gru_all4479.png — (a) Grüneisen parameters

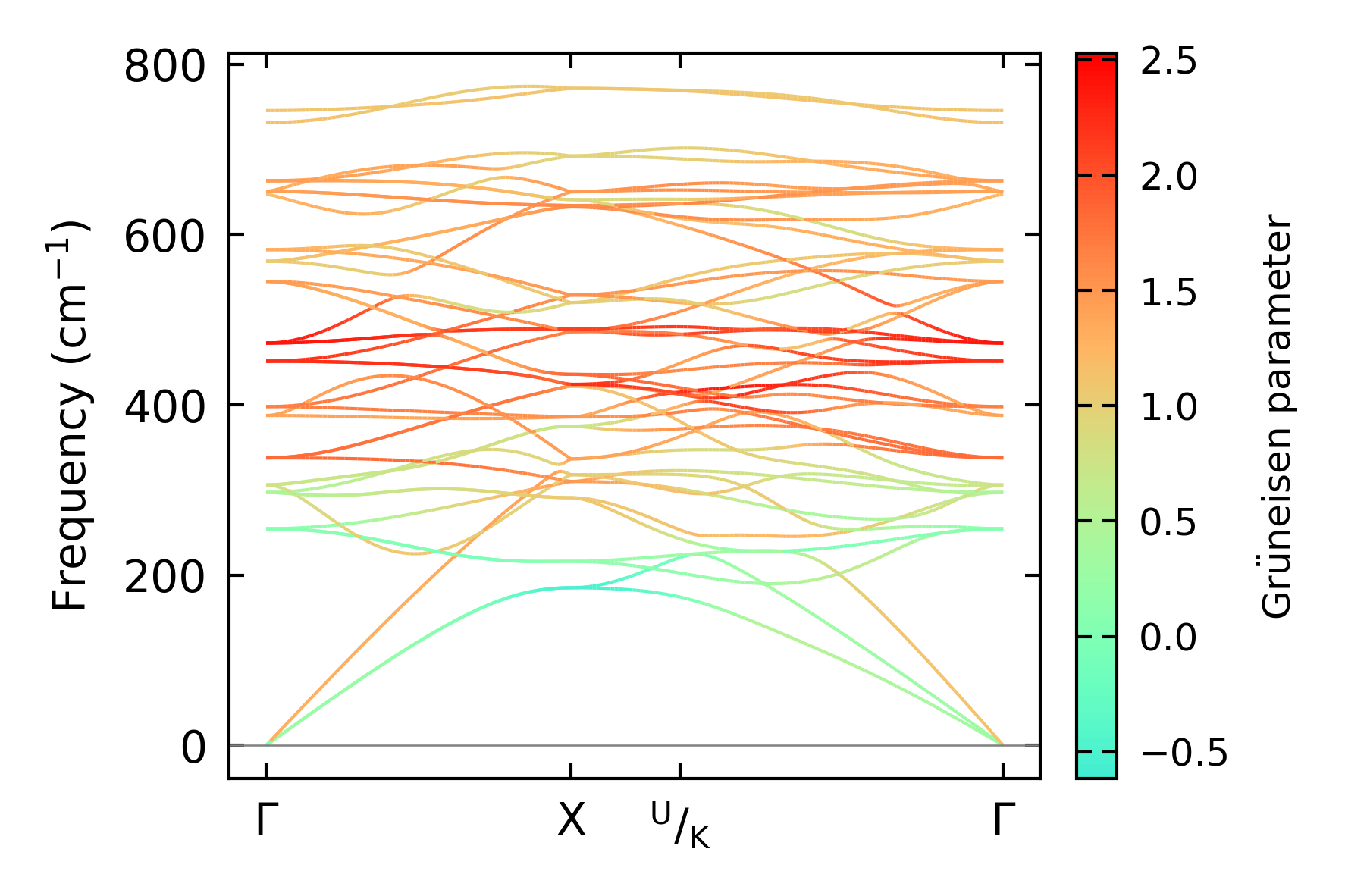

../../_images/fig_gruneisen4479.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

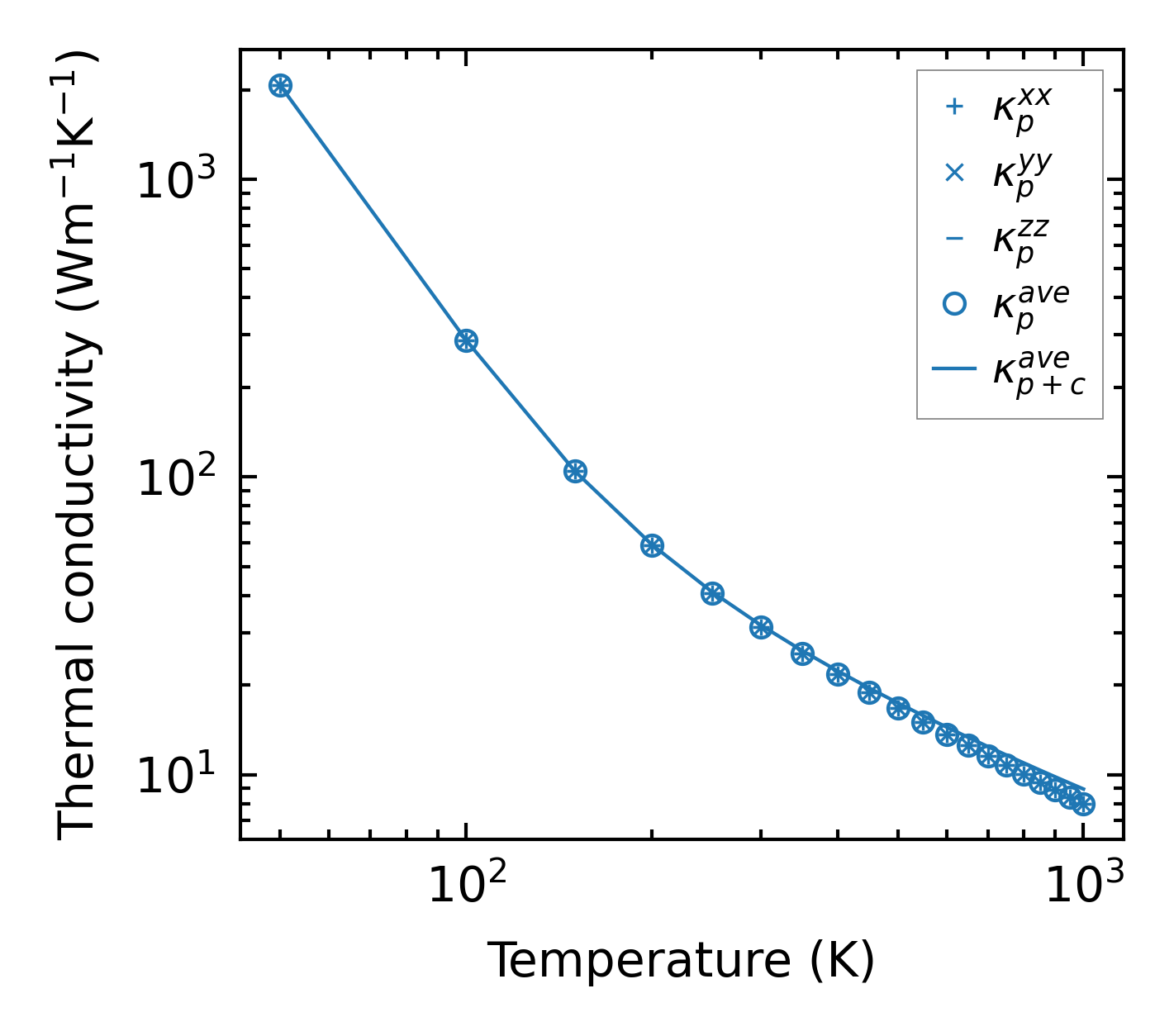

../../_images/fig_kappa8461.png — (a) Temperature-dependent lattice thermal conductivity

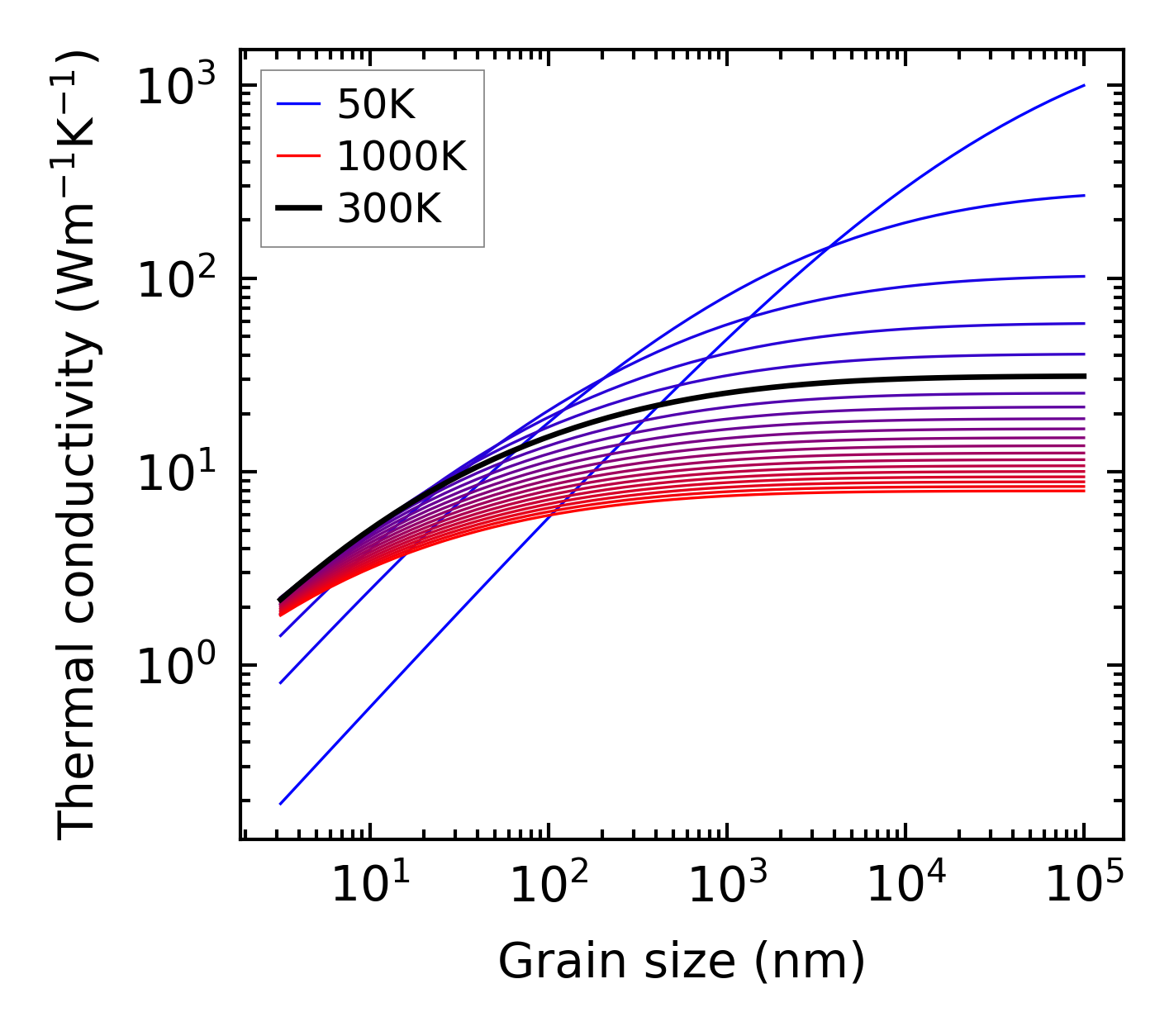

../../_images/fig_kappa_vs_grain_size4534.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

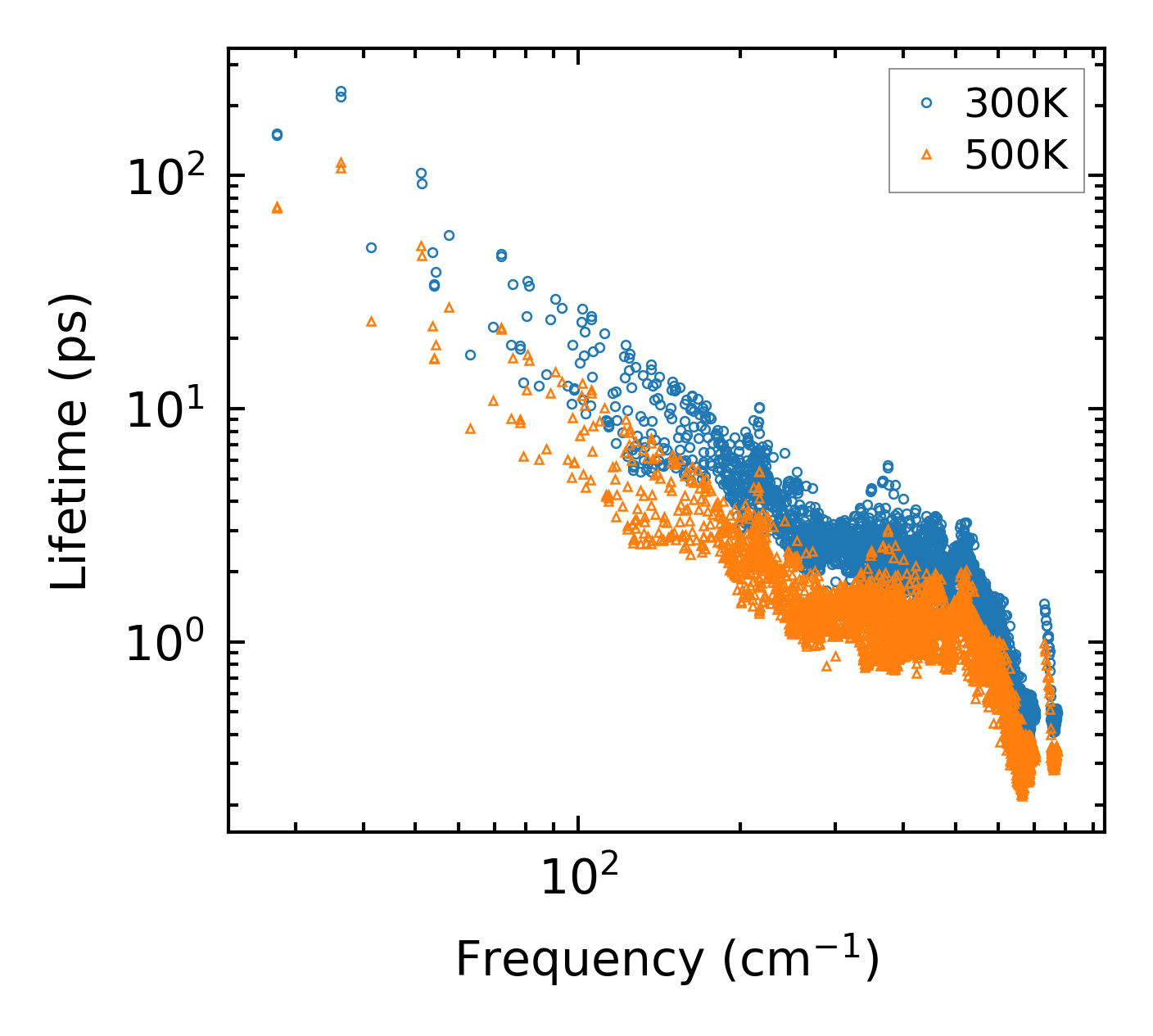

../../_images/fig_lifetime4436.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4435.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

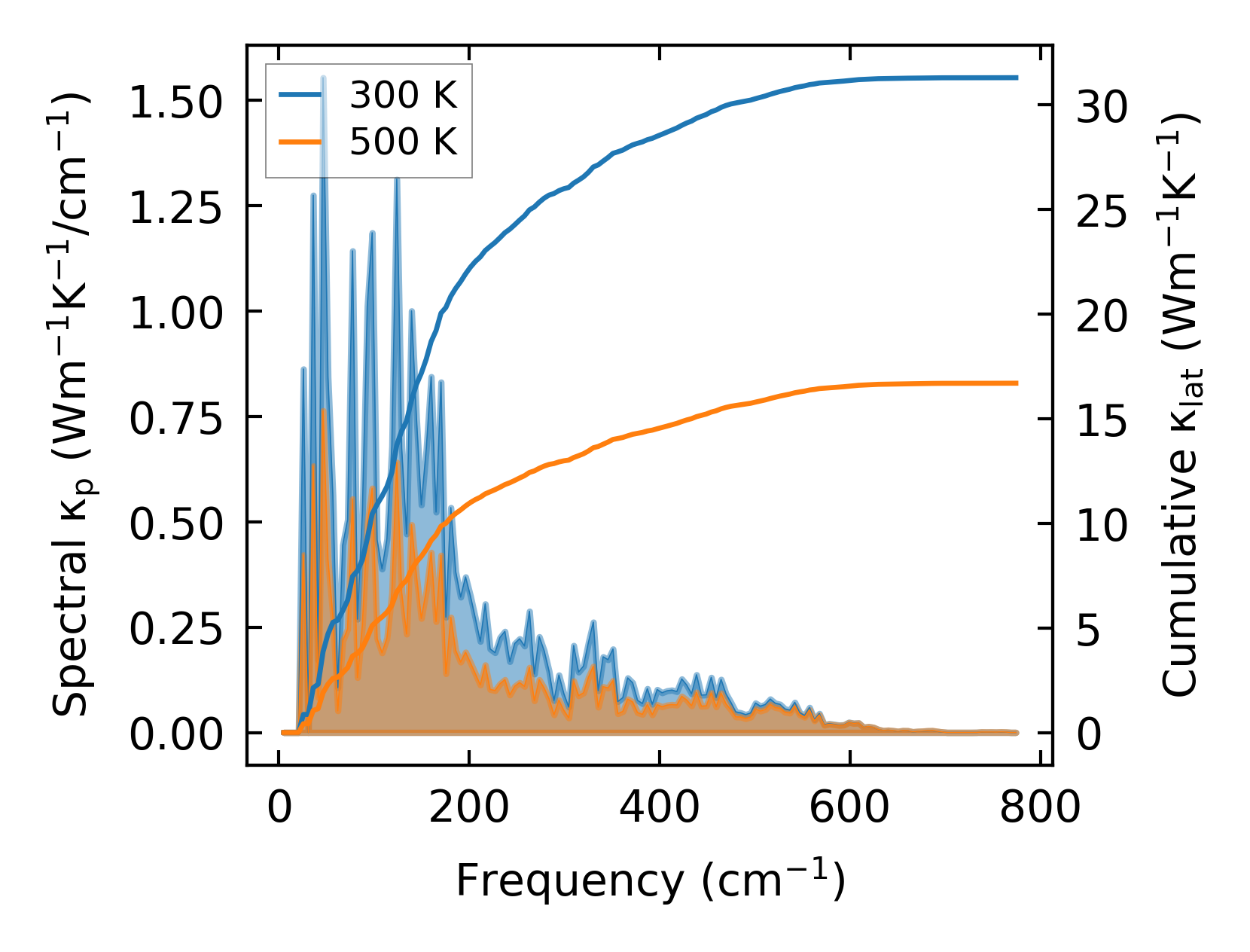

../../_images/fig_cumu_frequency4436.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

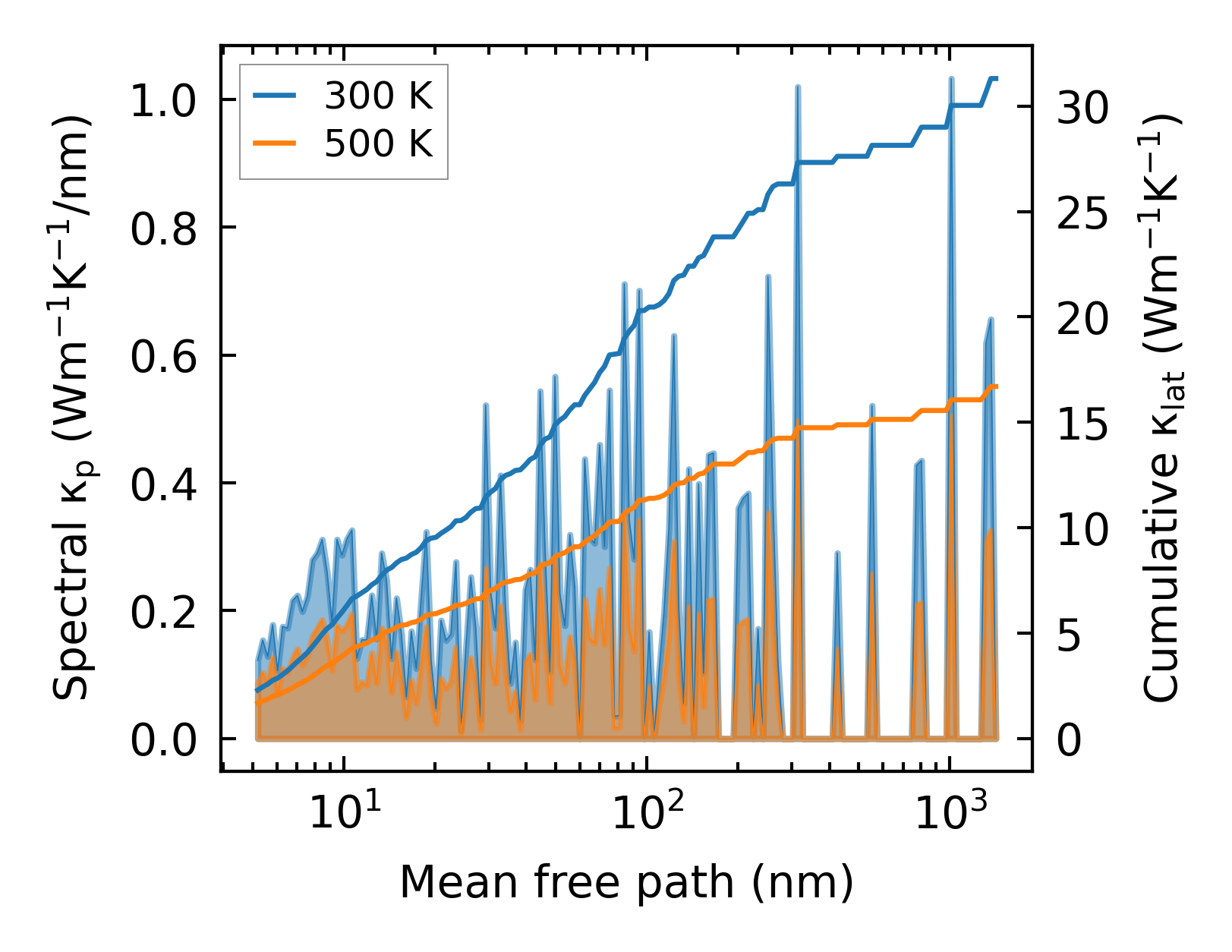

../../_images/fig_cumu_mfp4435.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

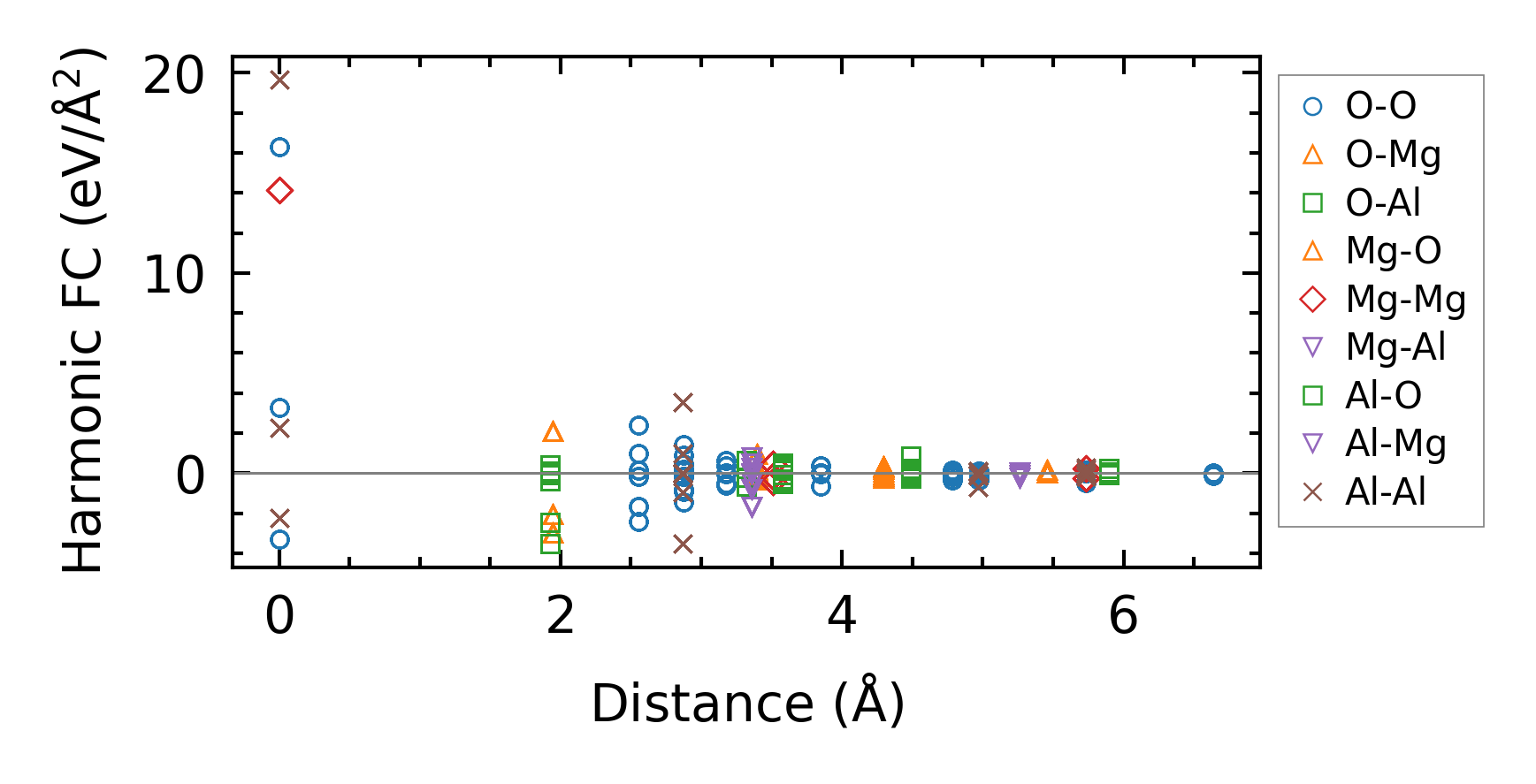

../../_images/fig_fc210668.png — (a) Force constants w.r.t atomic distance

Summary

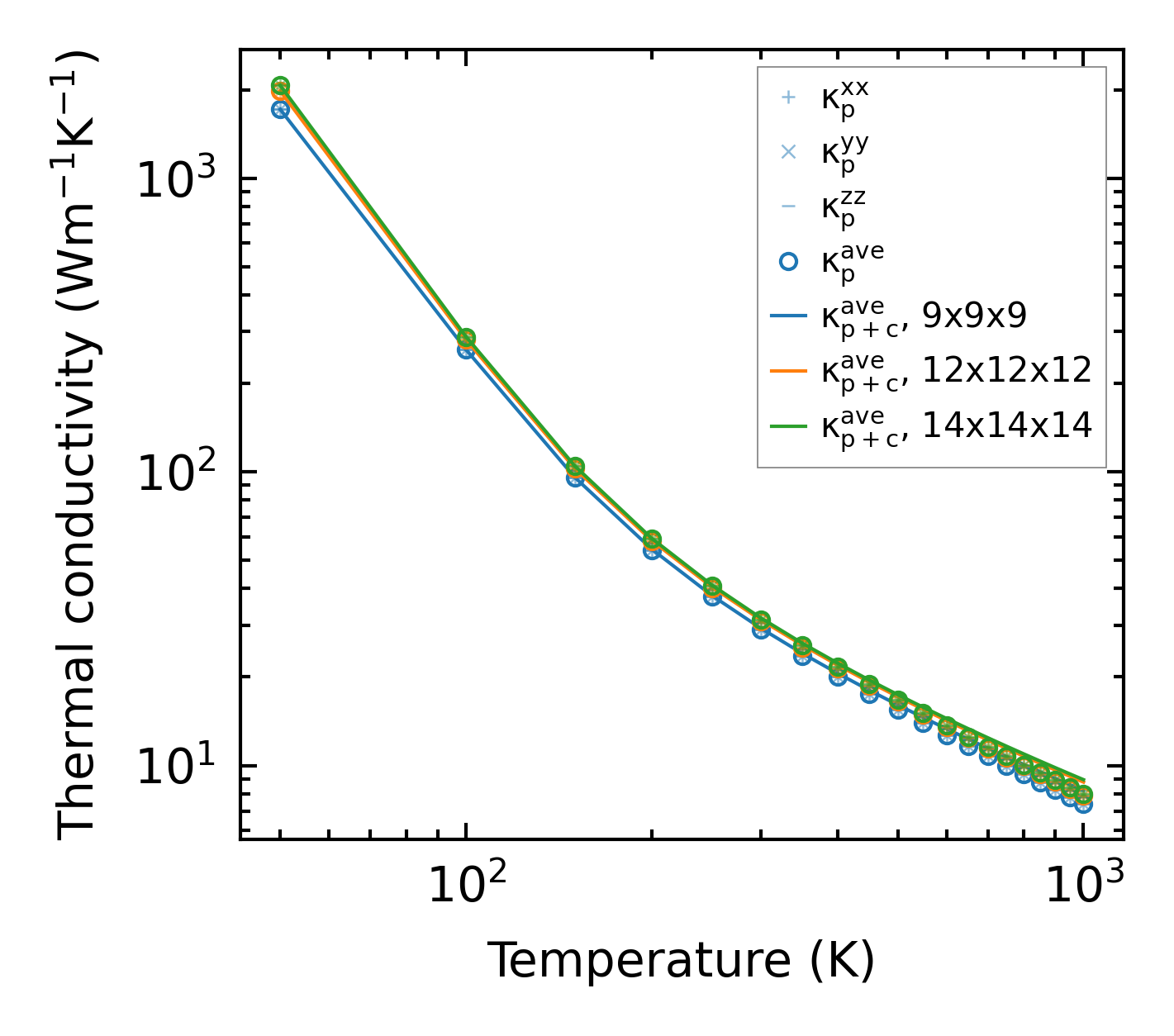

../../_images/fig_kappa8462.png — (a) Temperature-dependent lattice thermal conductivity

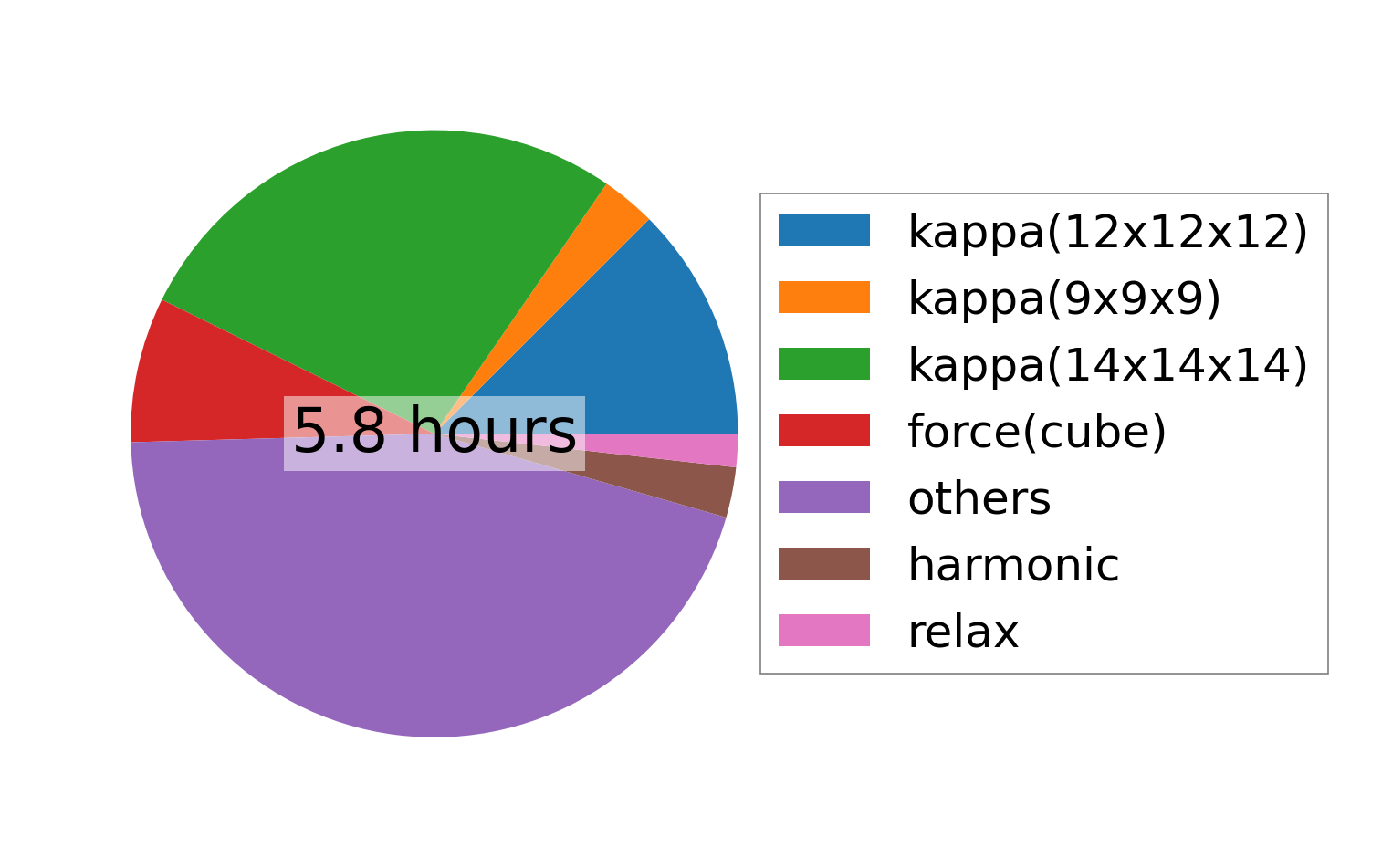

../../_images/fig_times18708.png — (b) Computation time
