mp-3777/BaSiN2/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-3777.tar.gz

Harmonic properties

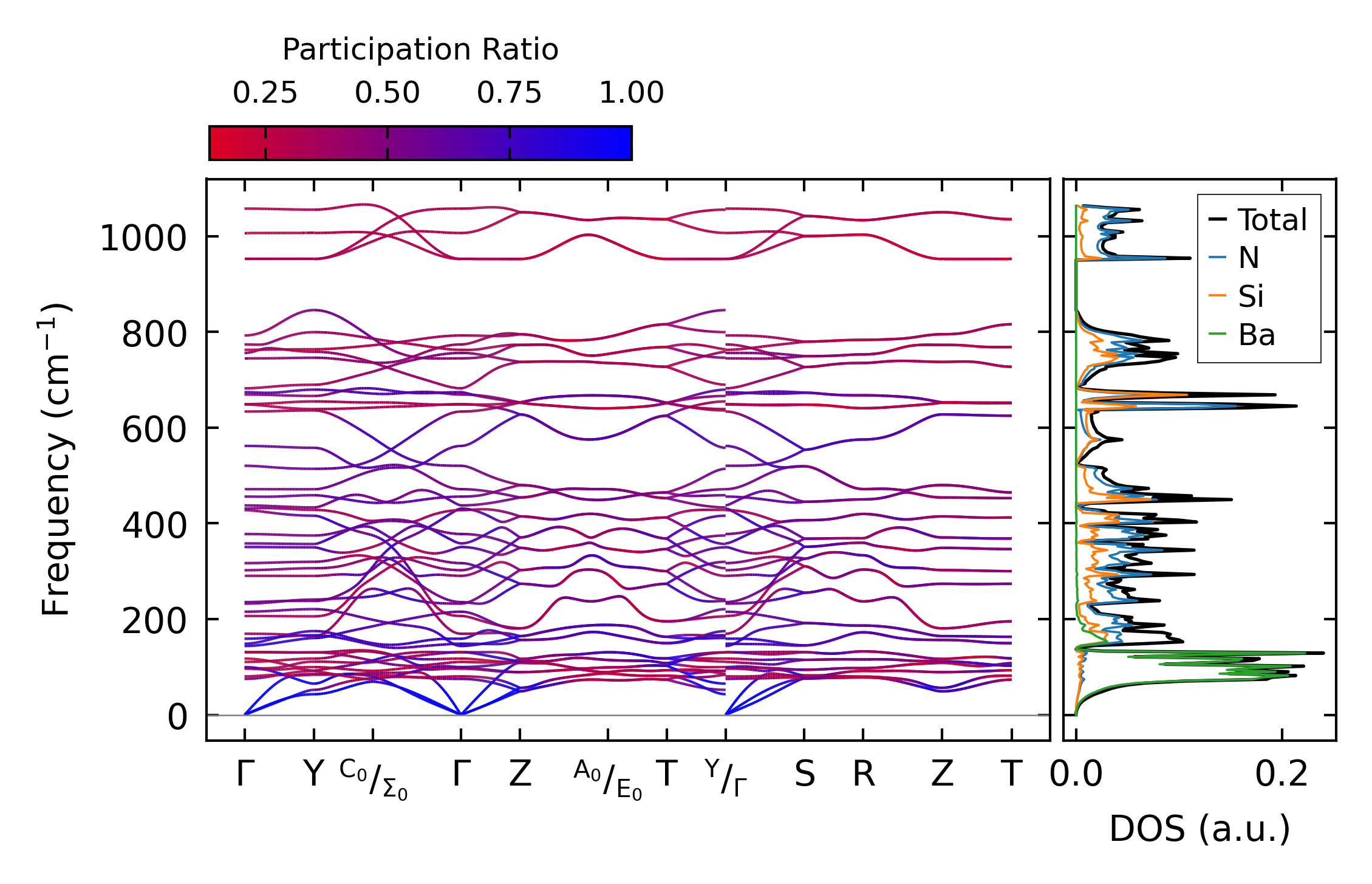

../../_images/fig_bandos_pr10633.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10633.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4317.png — (a) Grüneisen parameters

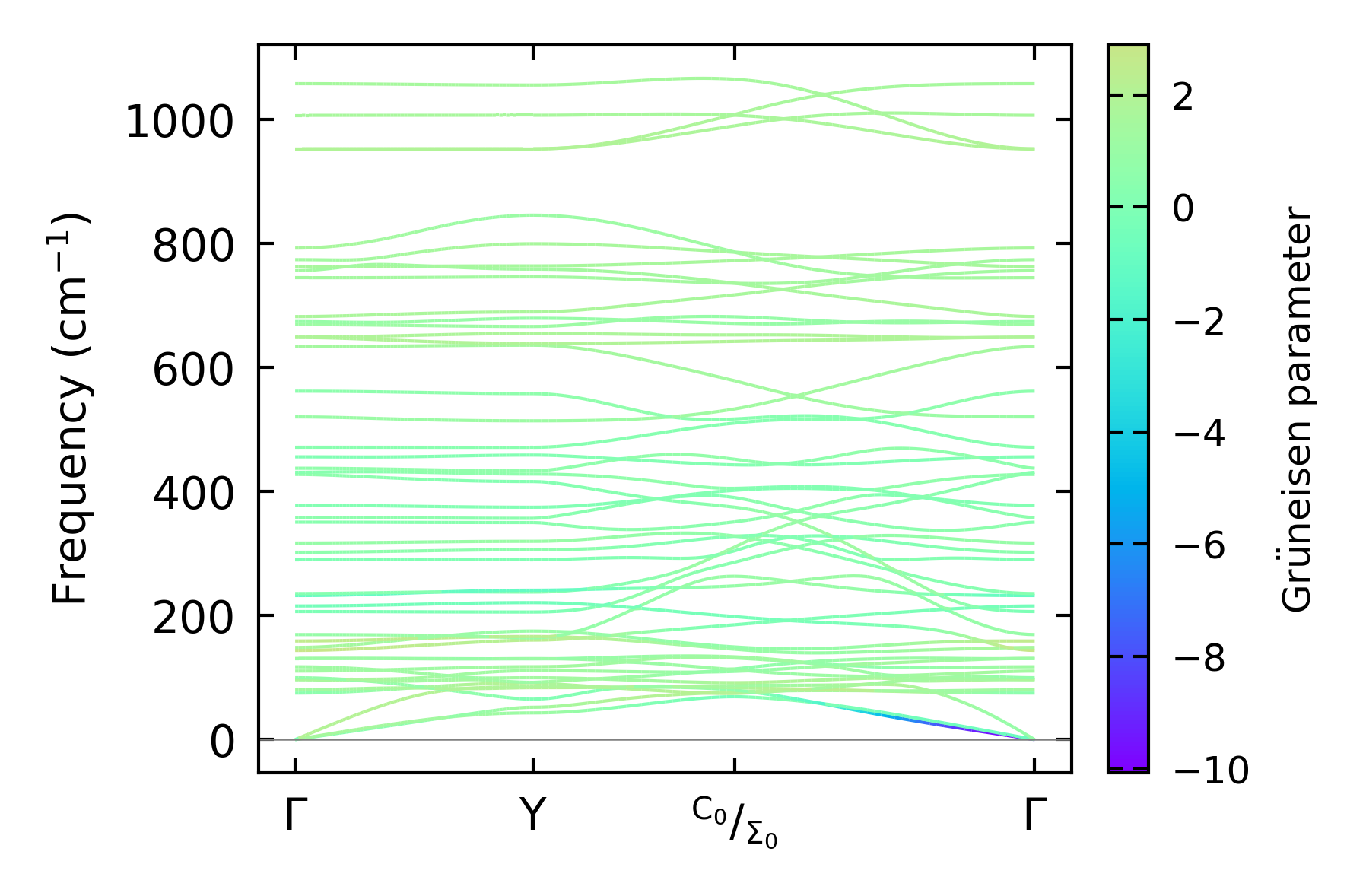

../../_images/fig_gruneisen4317.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x10, supercell: 2x1x2

../../_images/fig_kappa8142.png — (a) Temperature-dependent lattice thermal conductivity

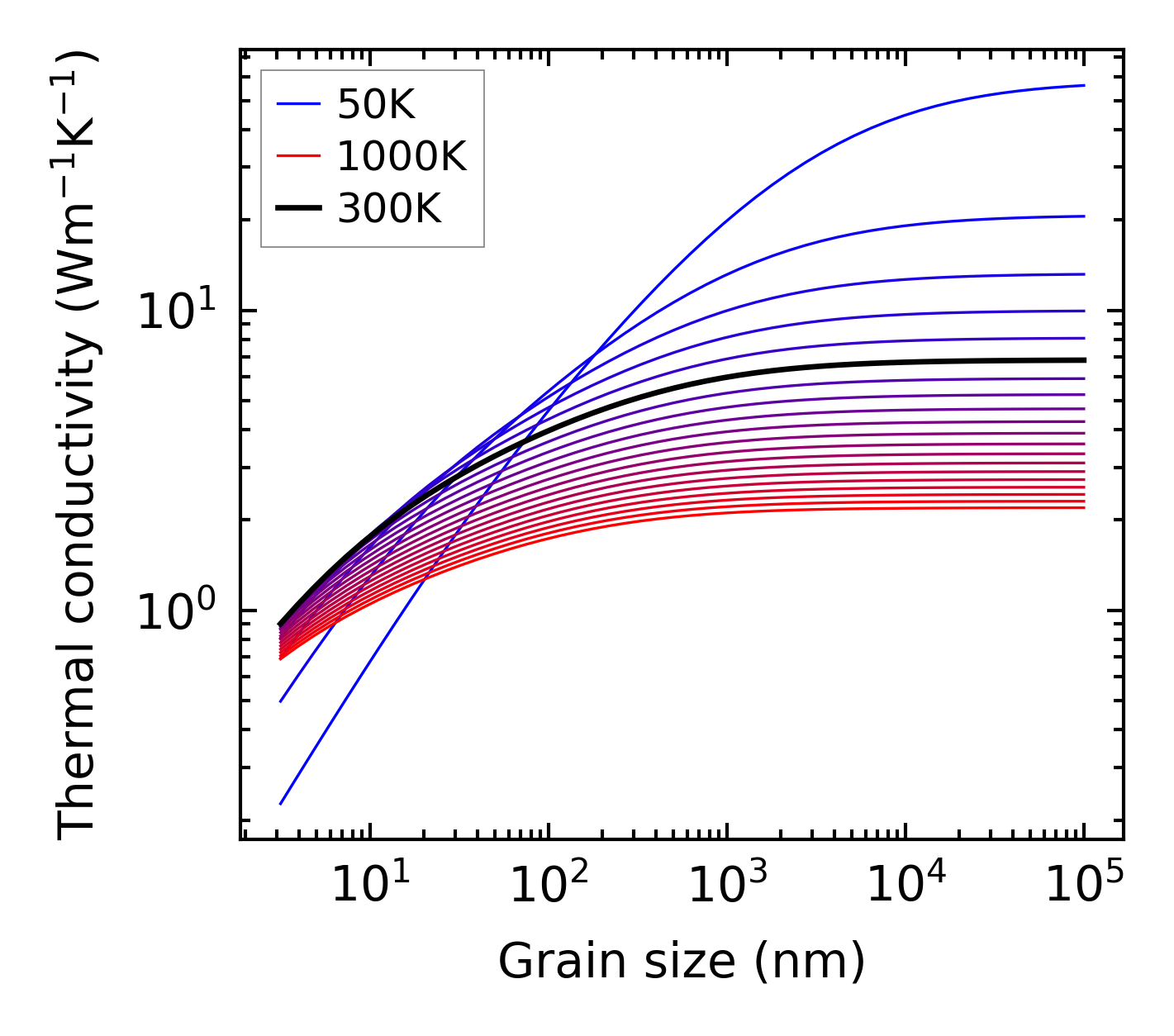

../../_images/fig_kappa_vs_grain_size4368.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

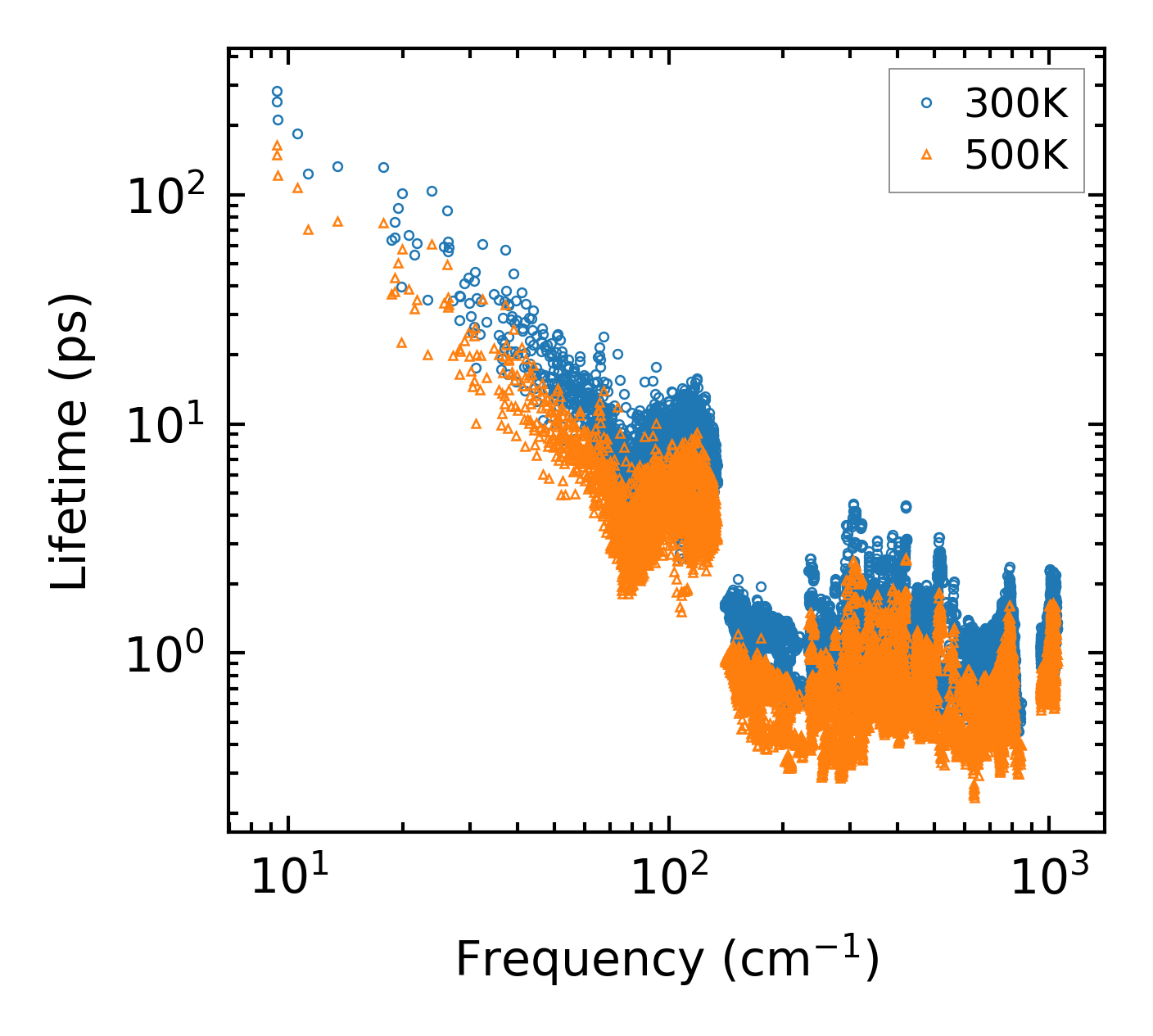

../../_images/fig_lifetime4274.png — (a) Phonon lifetime due to phonon-phonon scattering

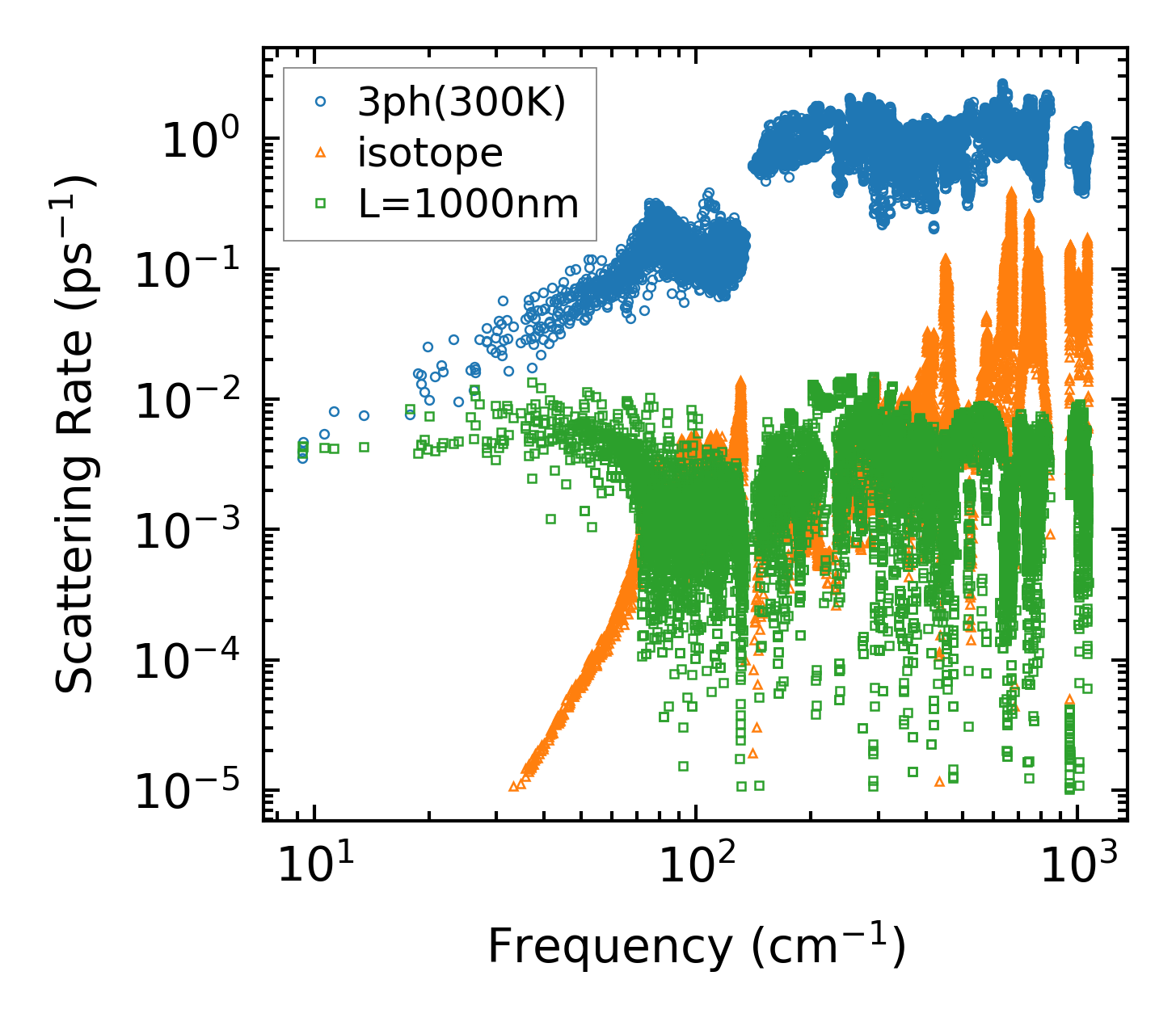

../../_images/fig_scat_rates4273.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

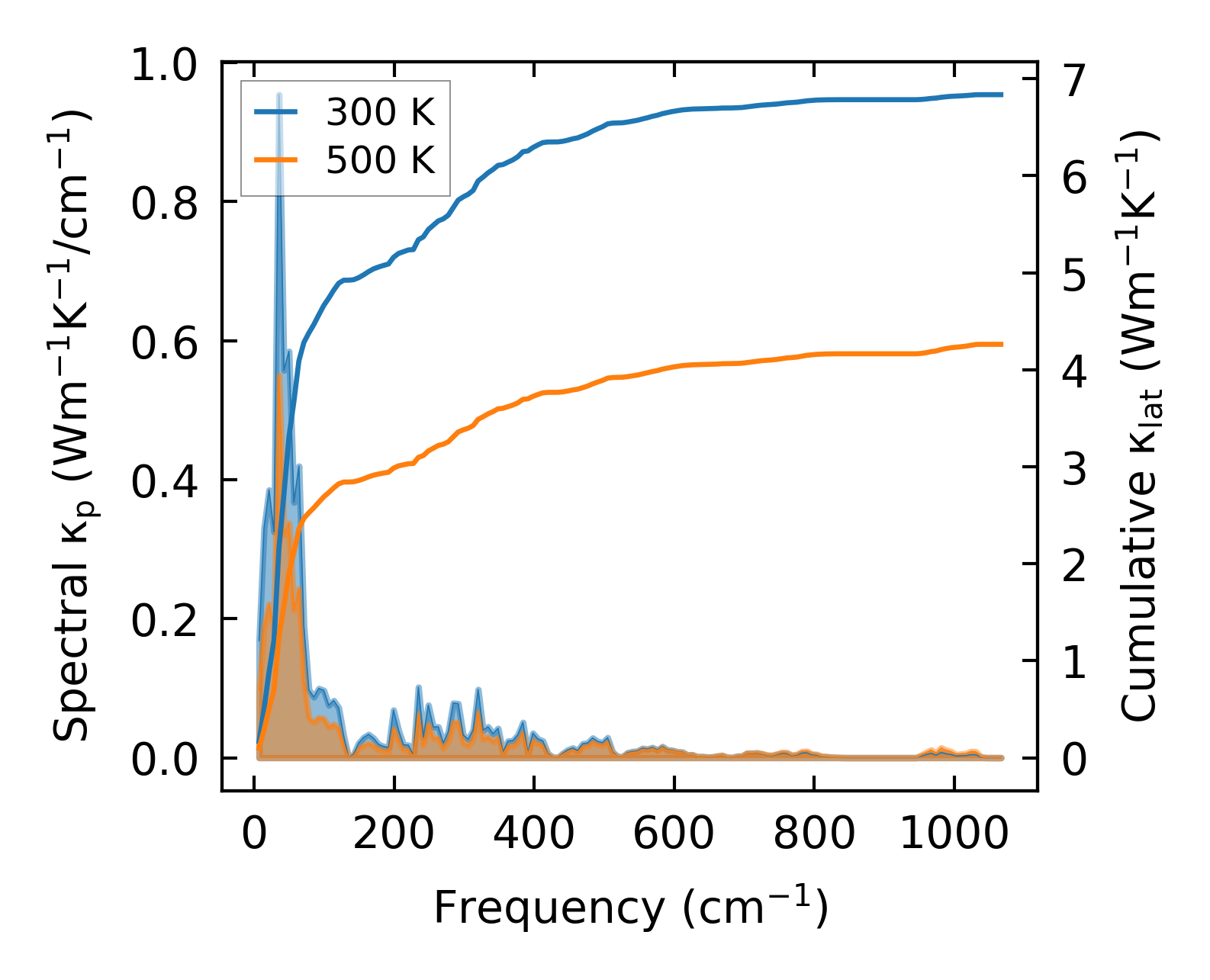

../../_images/fig_cumu_frequency4274.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4273.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

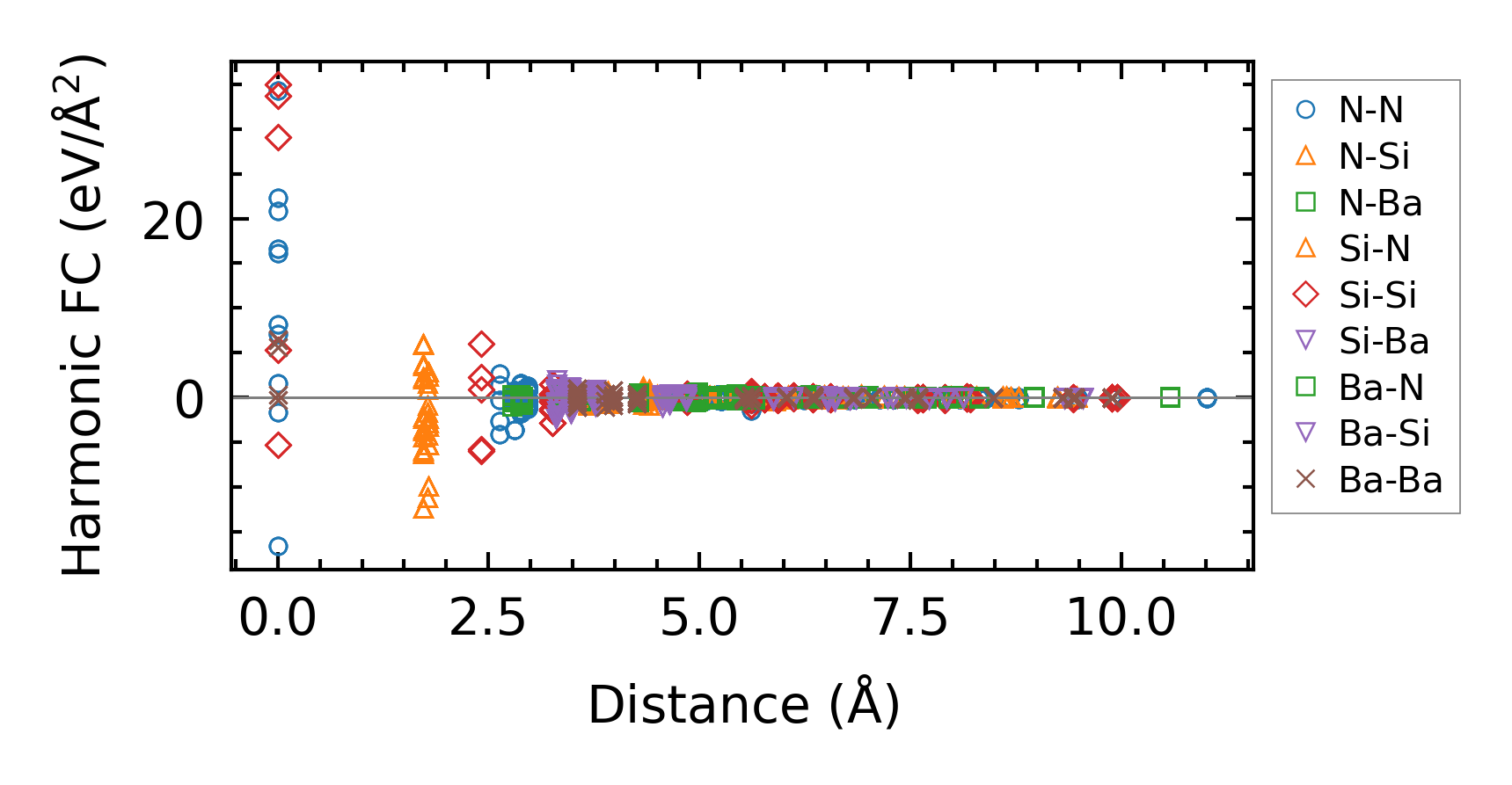

../../_images/fig_fc210367.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8143.png — (a) Temperature-dependent lattice thermal conductivity

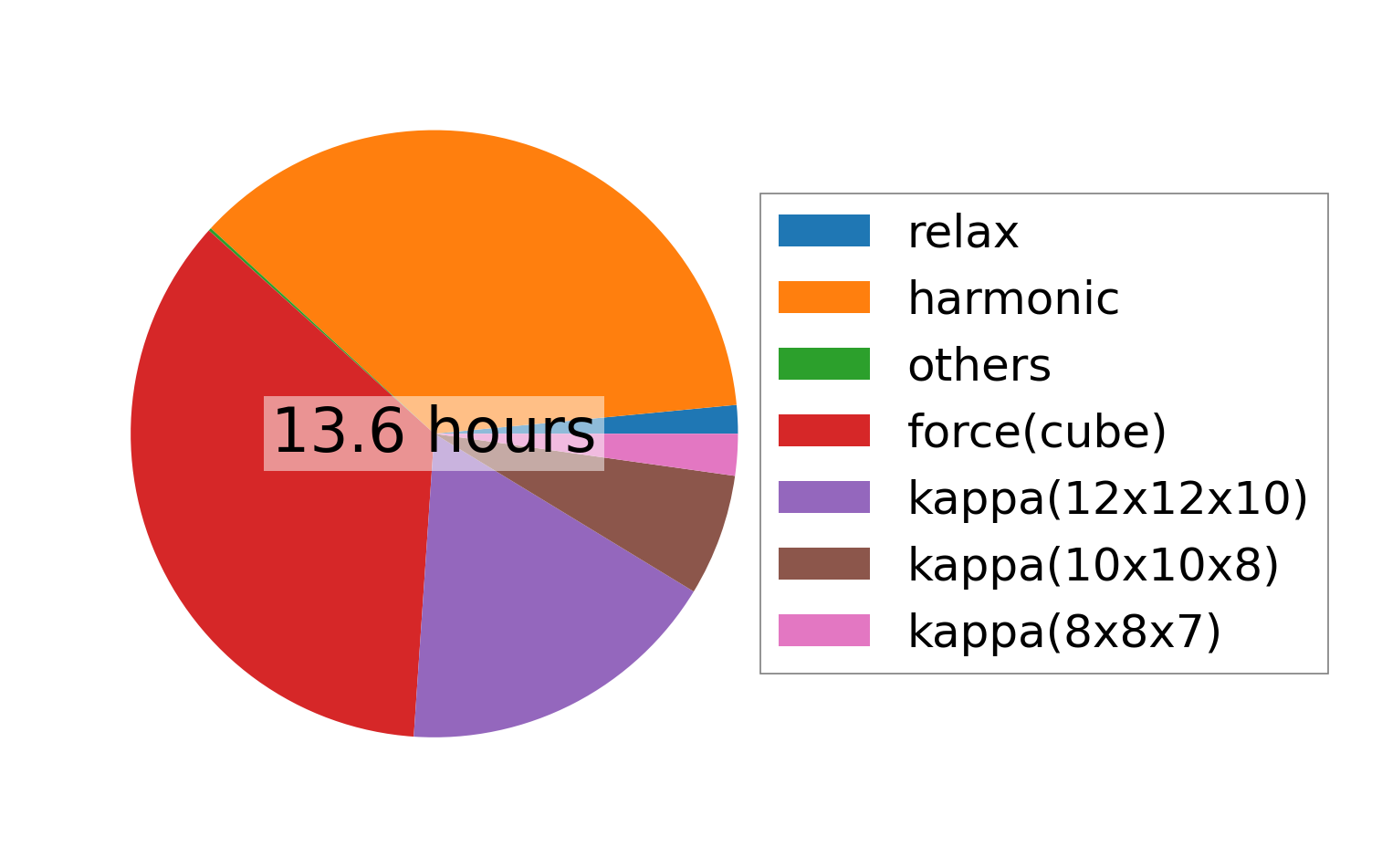

../../_images/fig_times18267.png — (b) Computation time
