mp-3216/Li2ZrN2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-3216.tar.gz

Harmonic properties

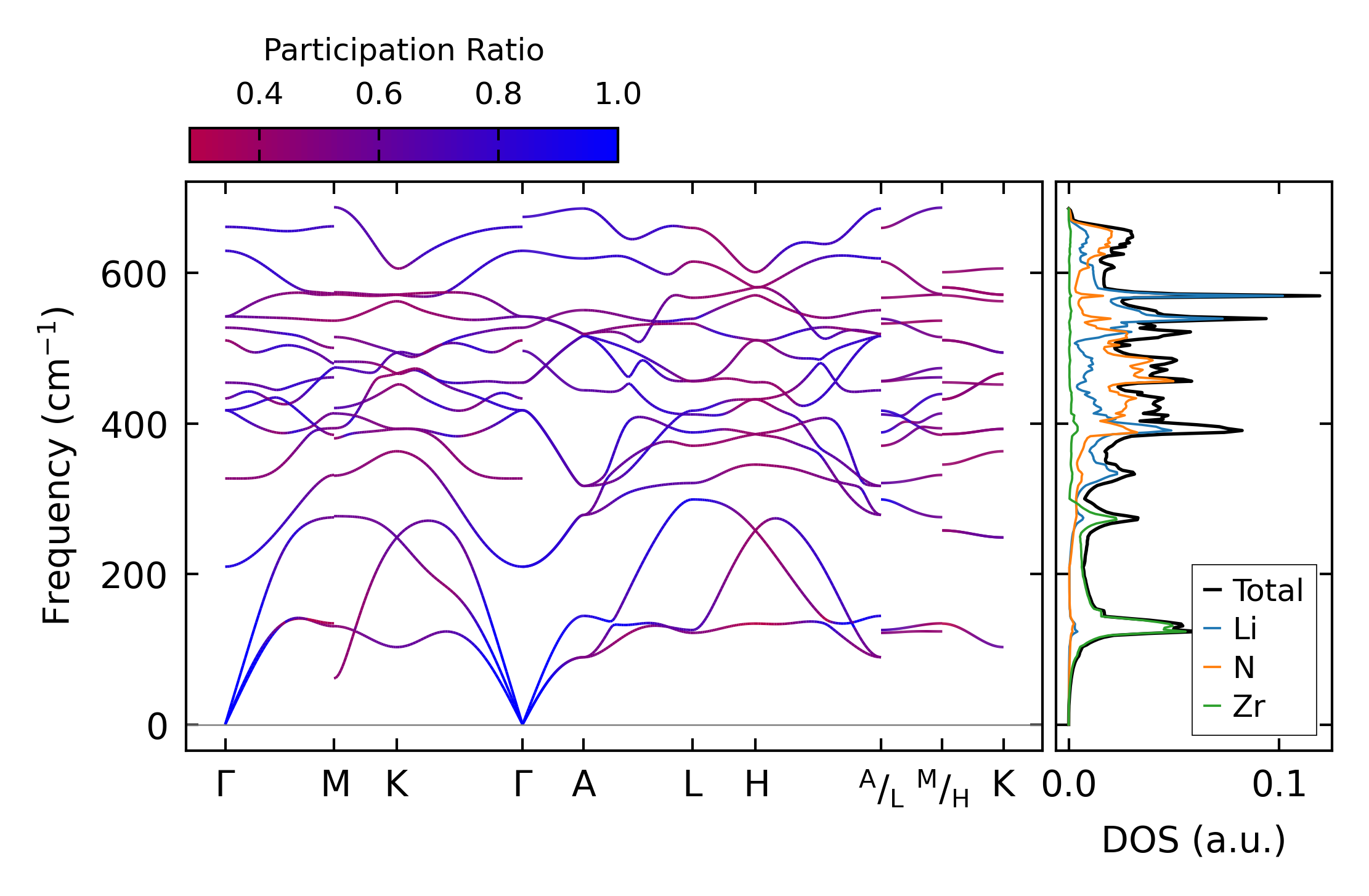

../../_images/fig_bandos_pr10861.png — (a) Phonon dispersion with participation ratio and DOS

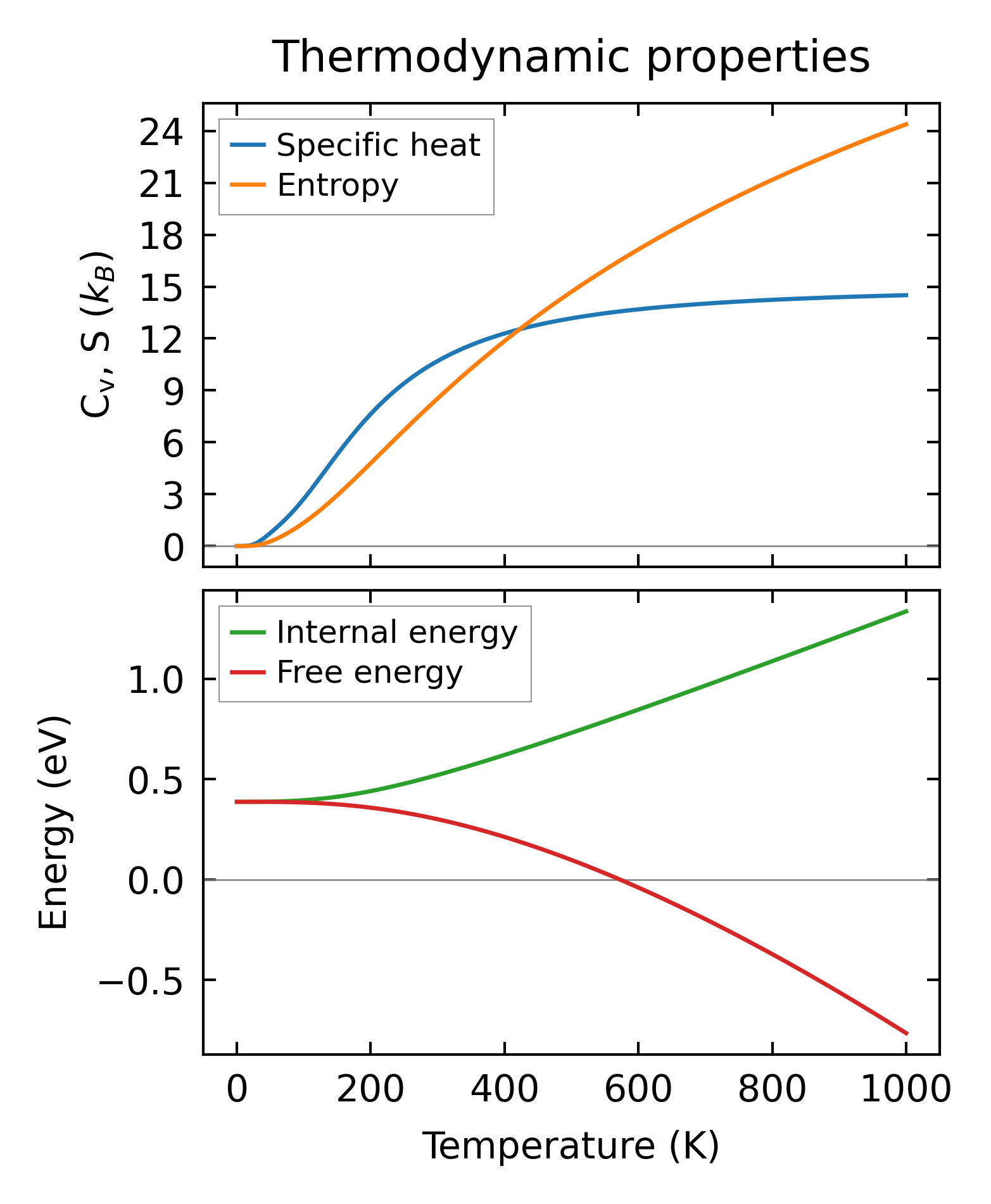

../../_images/fig_thermo10861.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4438.png — (a) Grüneisen parameters

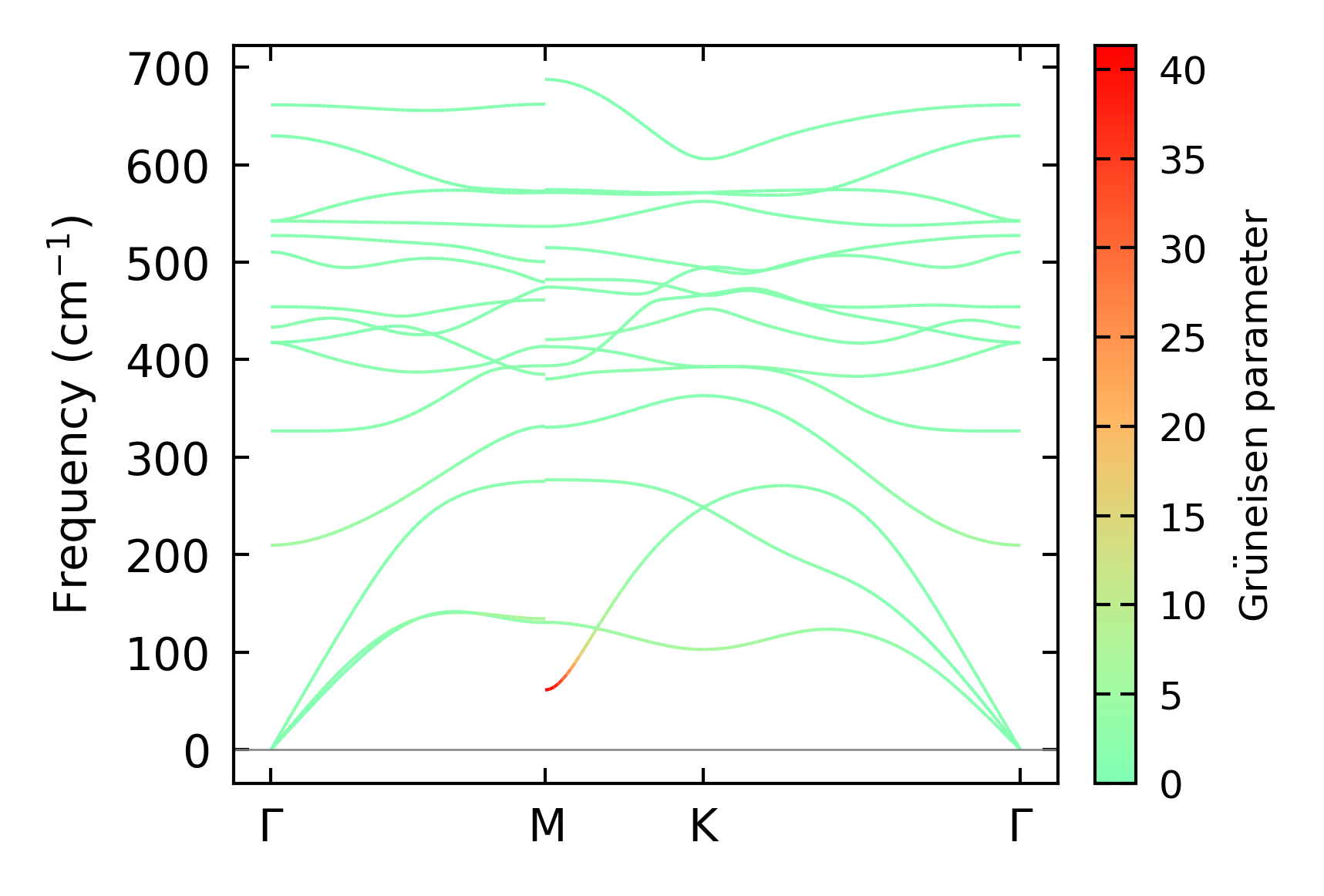

../../_images/fig_gruneisen4438.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 23x23x13, supercell: 3x3x2

../../_images/fig_kappa8383.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4493.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4395.png — (a) Phonon lifetime due to phonon-phonon scattering

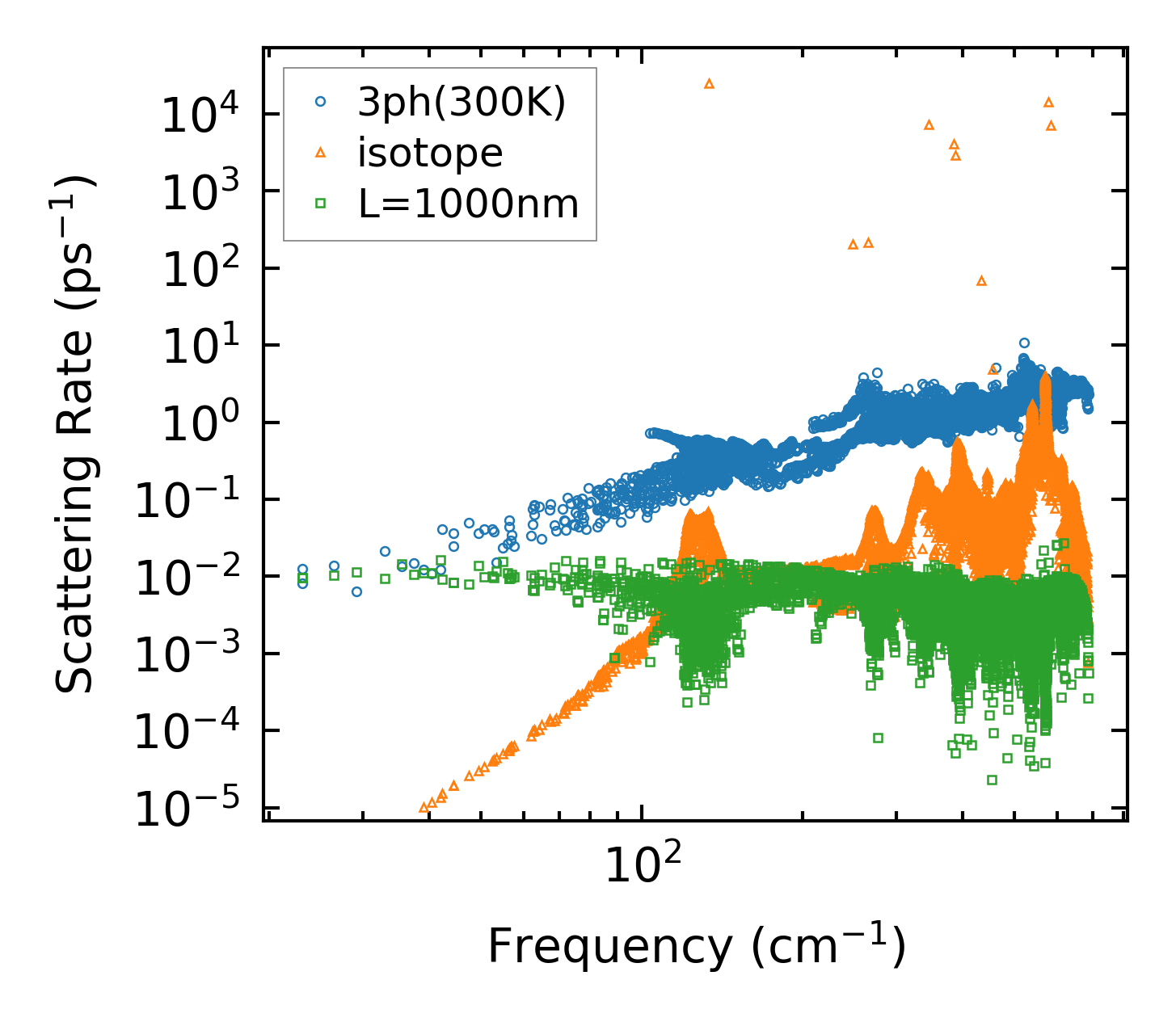

../../_images/fig_scat_rates4394.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

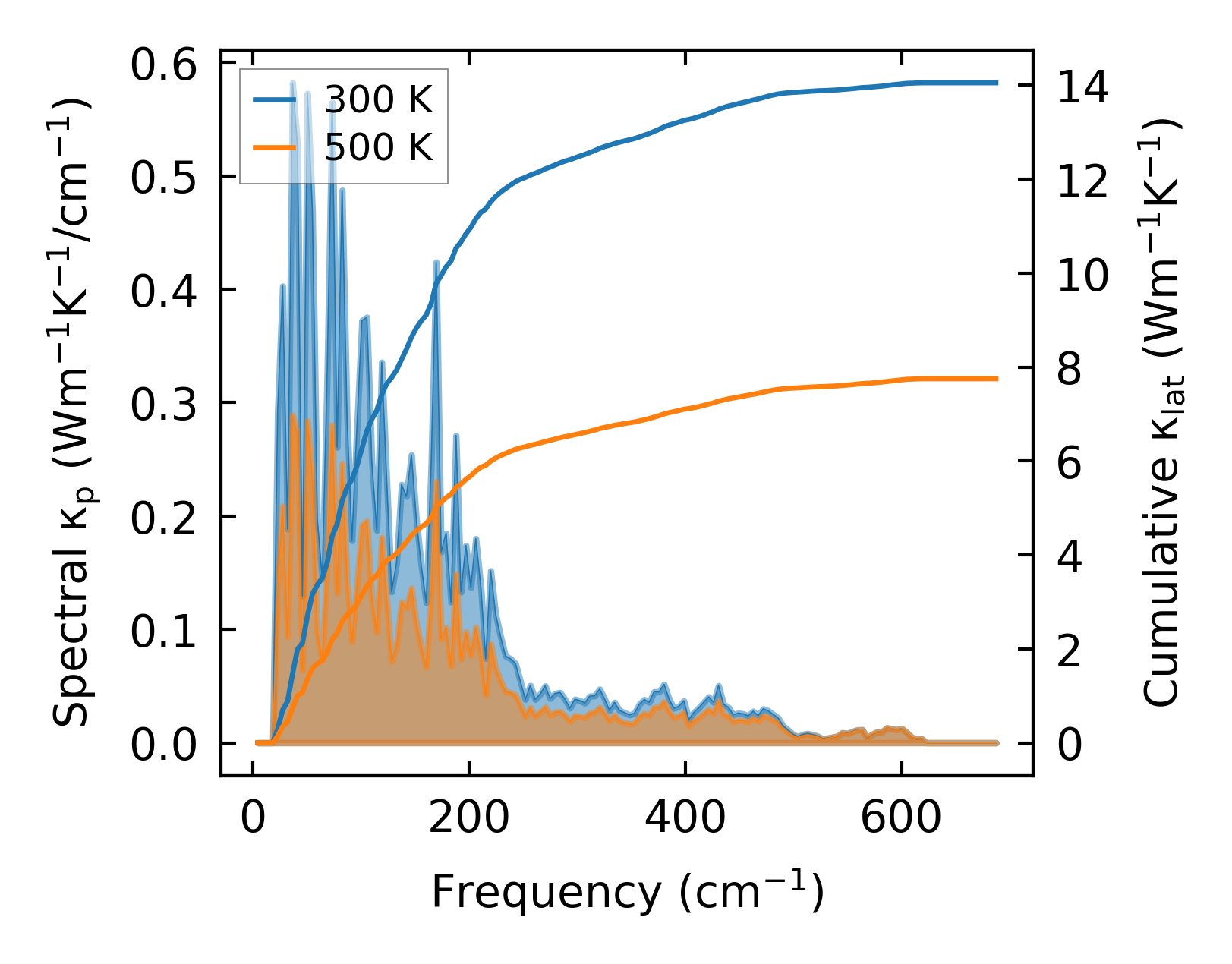

../../_images/fig_cumu_frequency4395.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

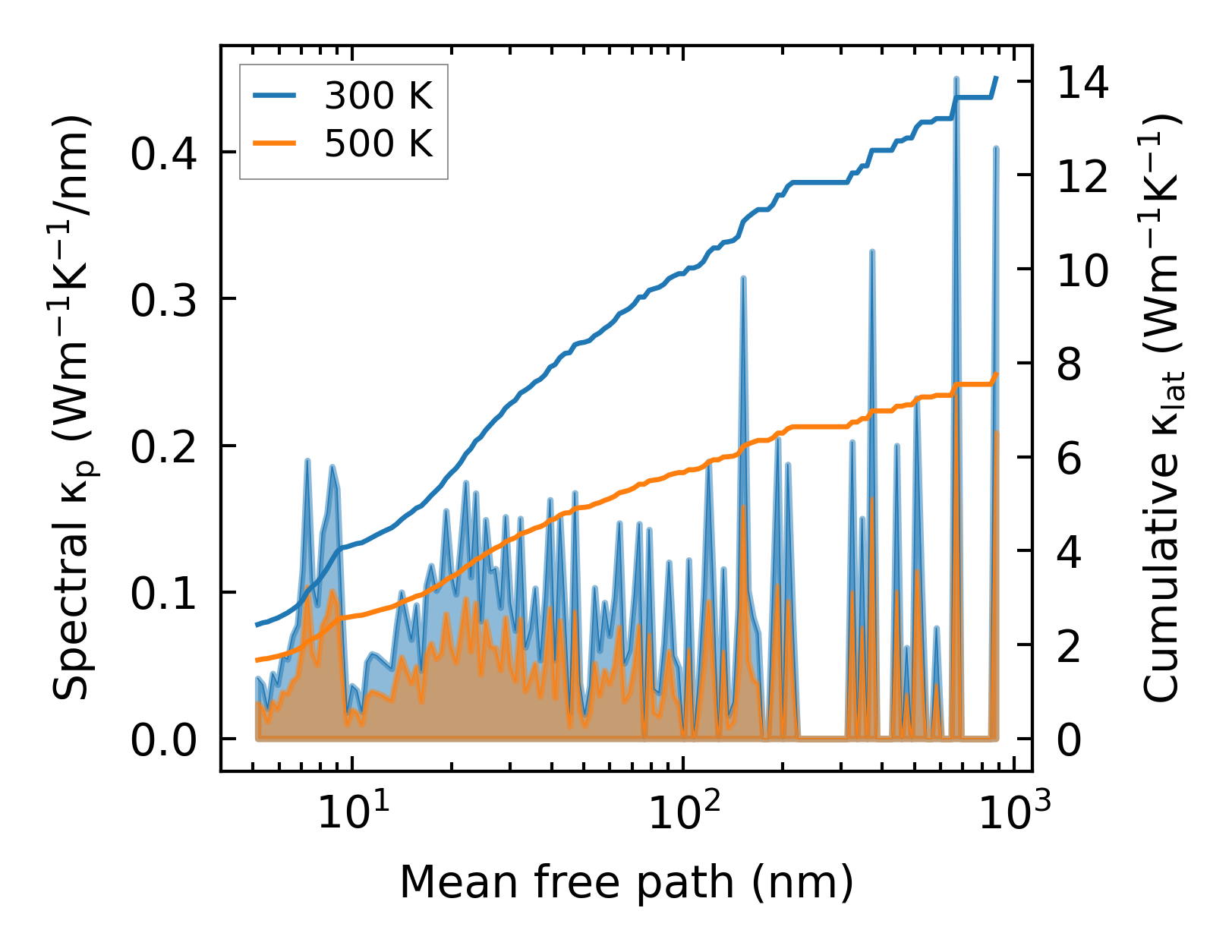

../../_images/fig_cumu_mfp4394.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

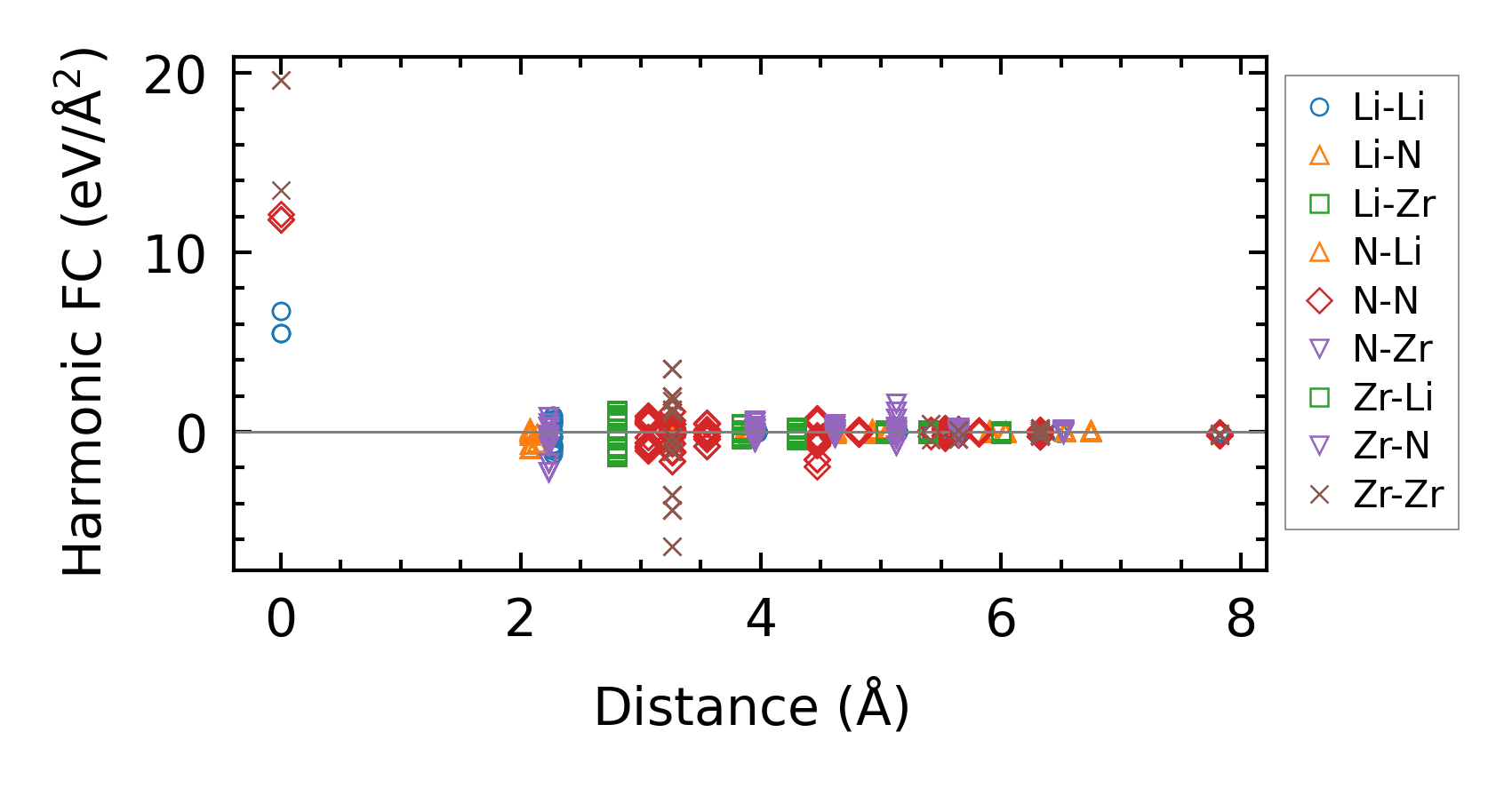

../../_images/fig_fc210587.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8384.png — (a) Temperature-dependent lattice thermal conductivity

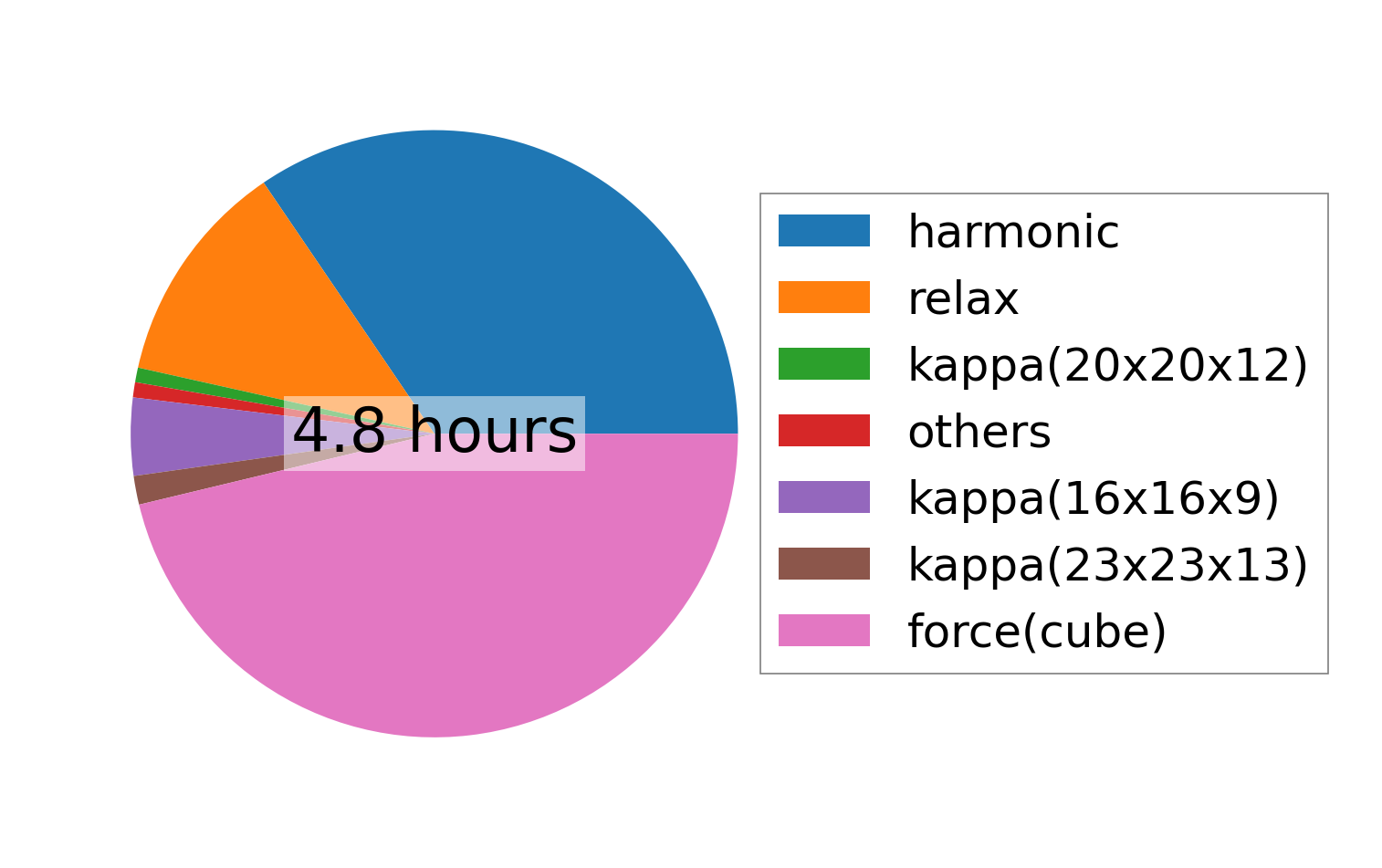

../../_images/fig_times18589.png — (b) Computation time
