mp-3807/Al2CdSe4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-3807.tar.gz

Harmonic properties

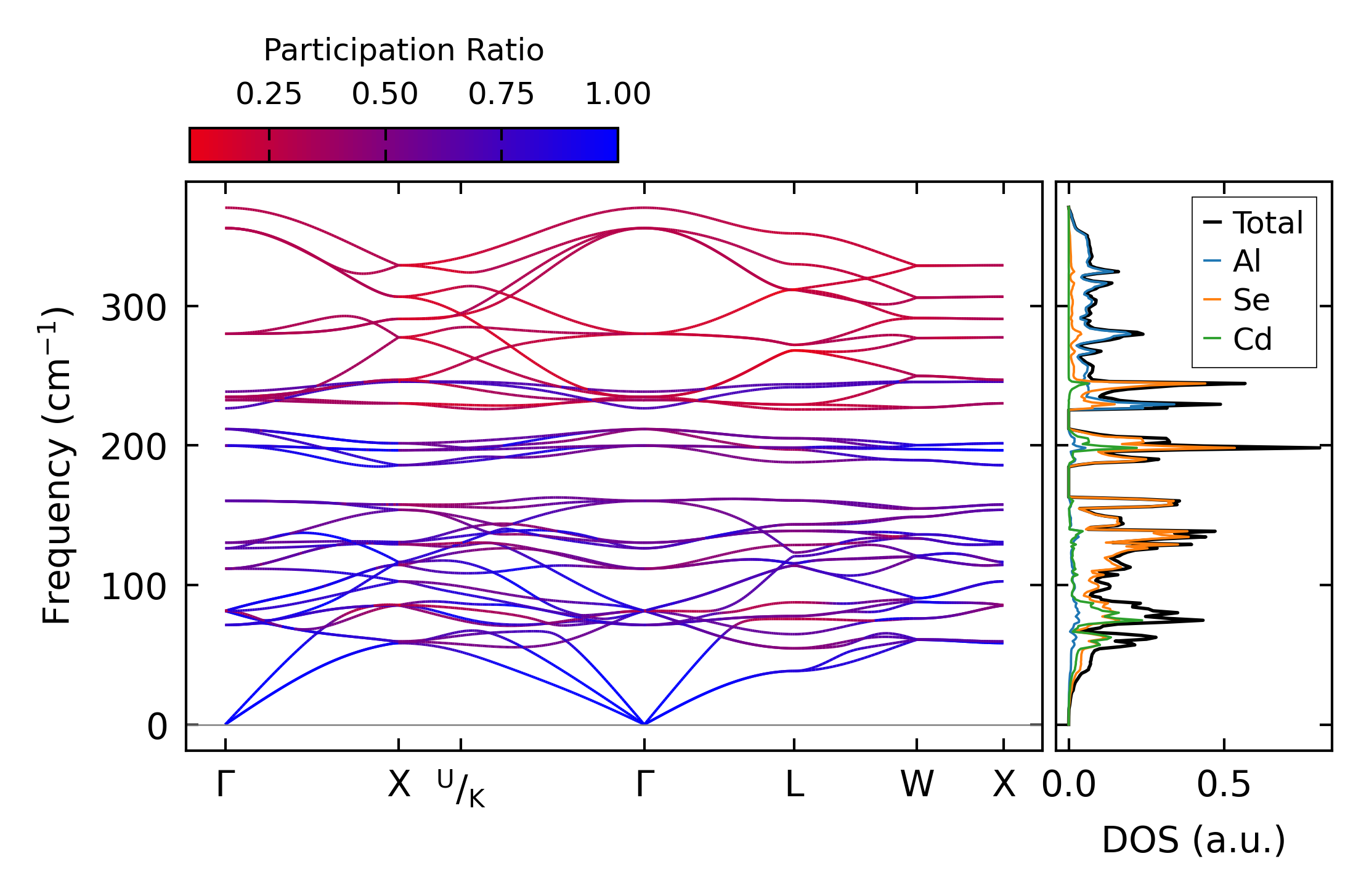

../../_images/fig_bandos_pr10642.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10642.png — (b) Thermodynamic properties

Grüneisen parameters

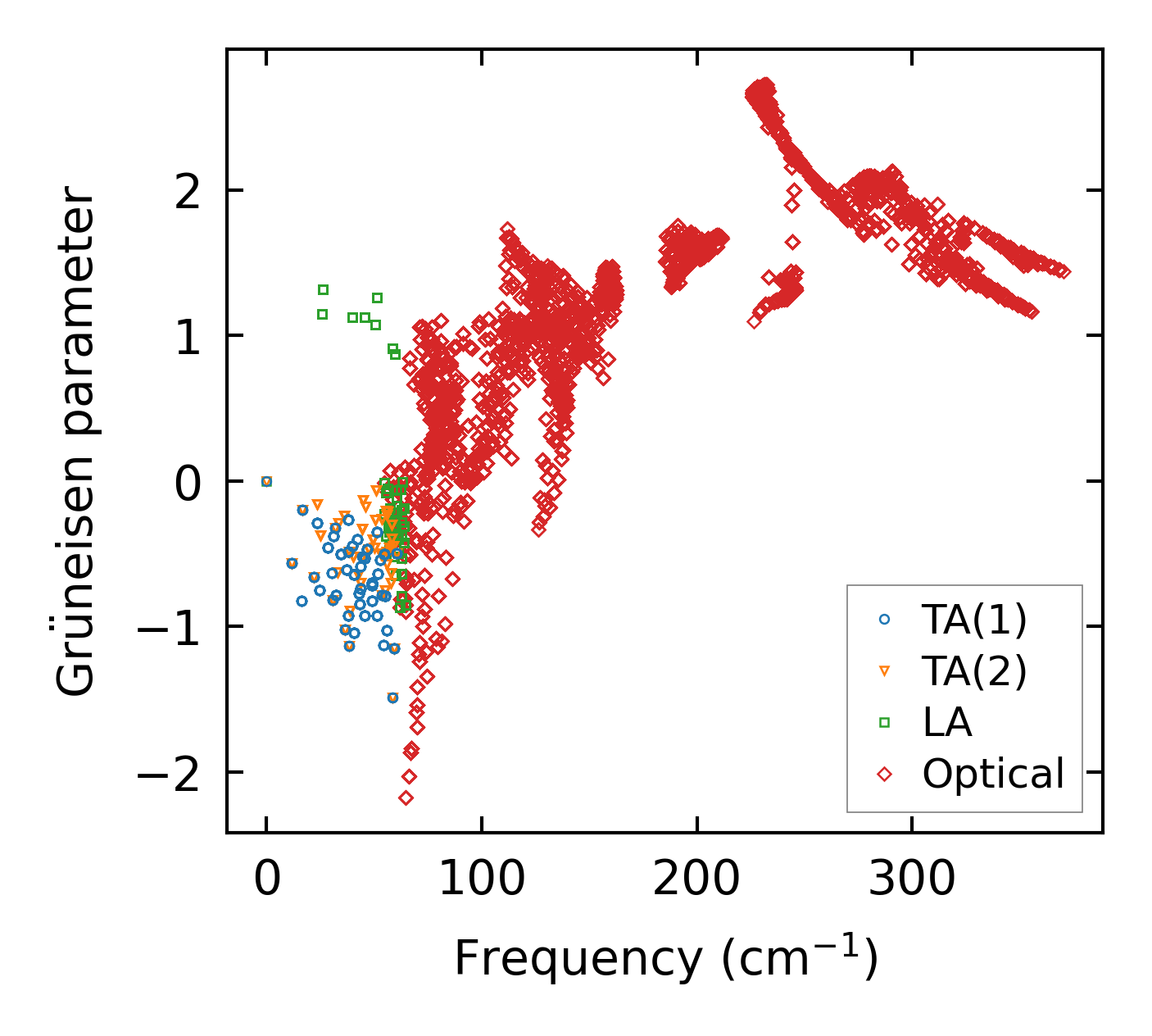

../../_images/fig_gru_all4324.png — (a) Grüneisen parameters

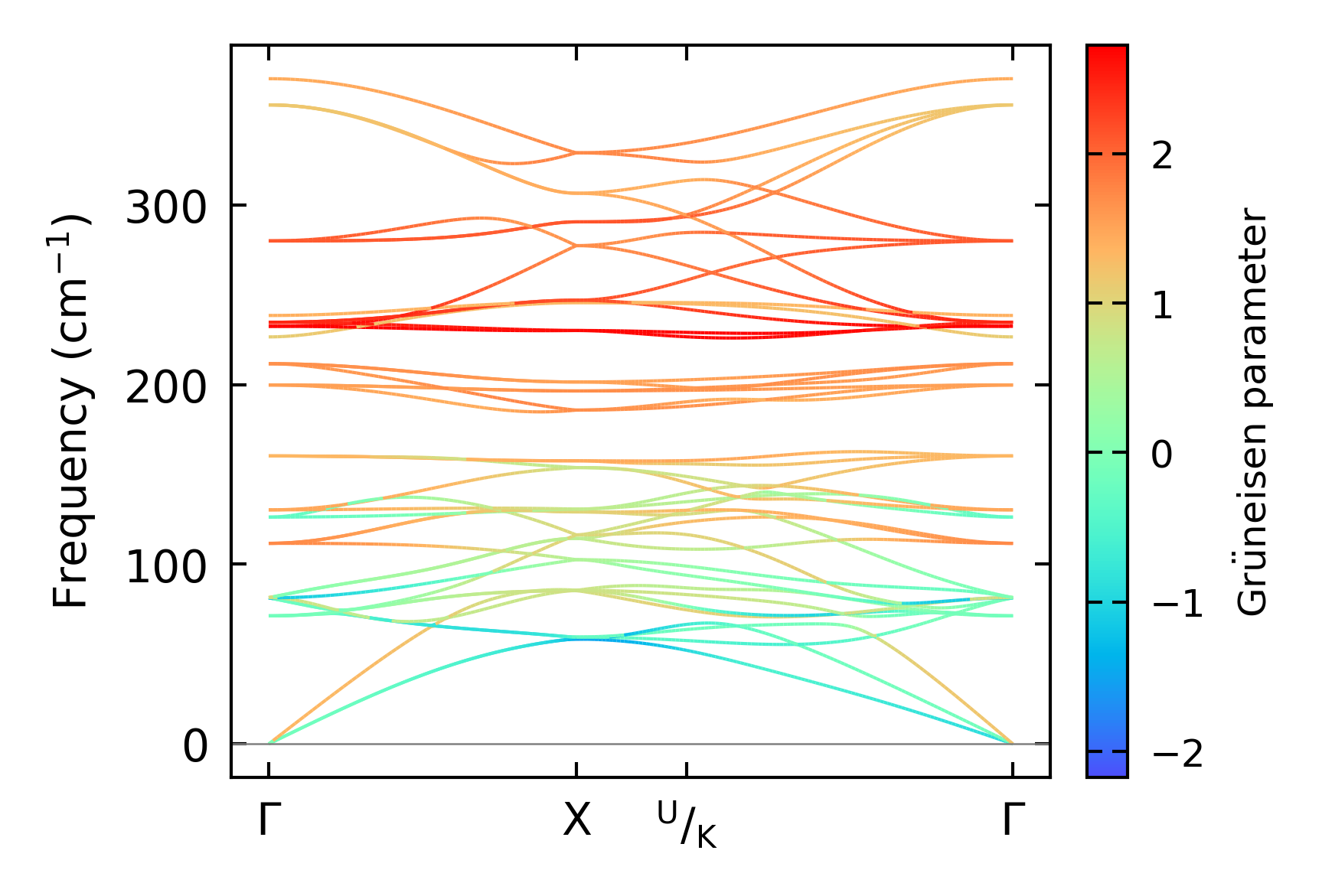

../../_images/fig_gruneisen4324.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 10x10x10, supercell: 1x1x1

../../_images/fig_kappa8156.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4375.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

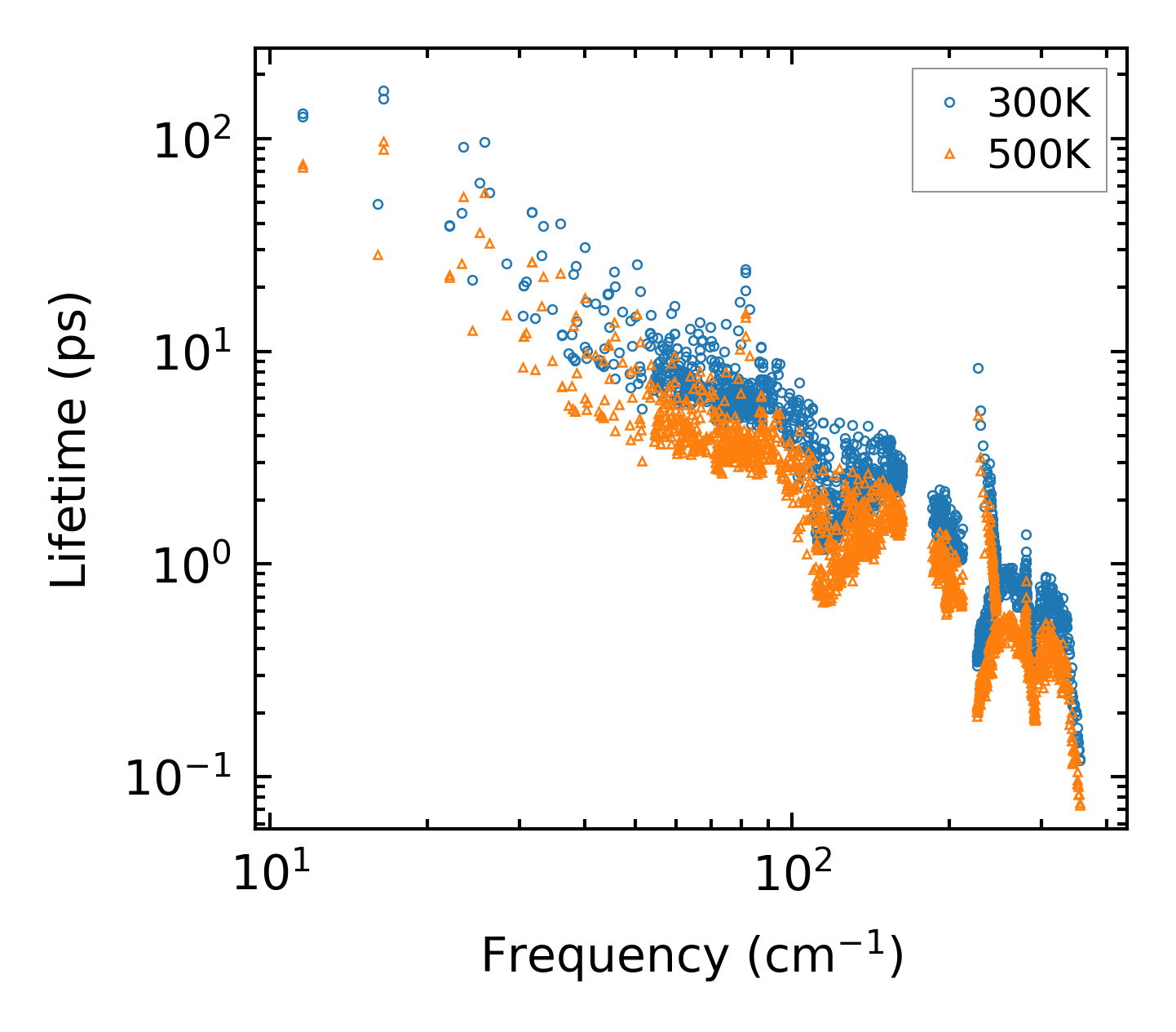

../../_images/fig_lifetime4281.png — (a) Phonon lifetime due to phonon-phonon scattering

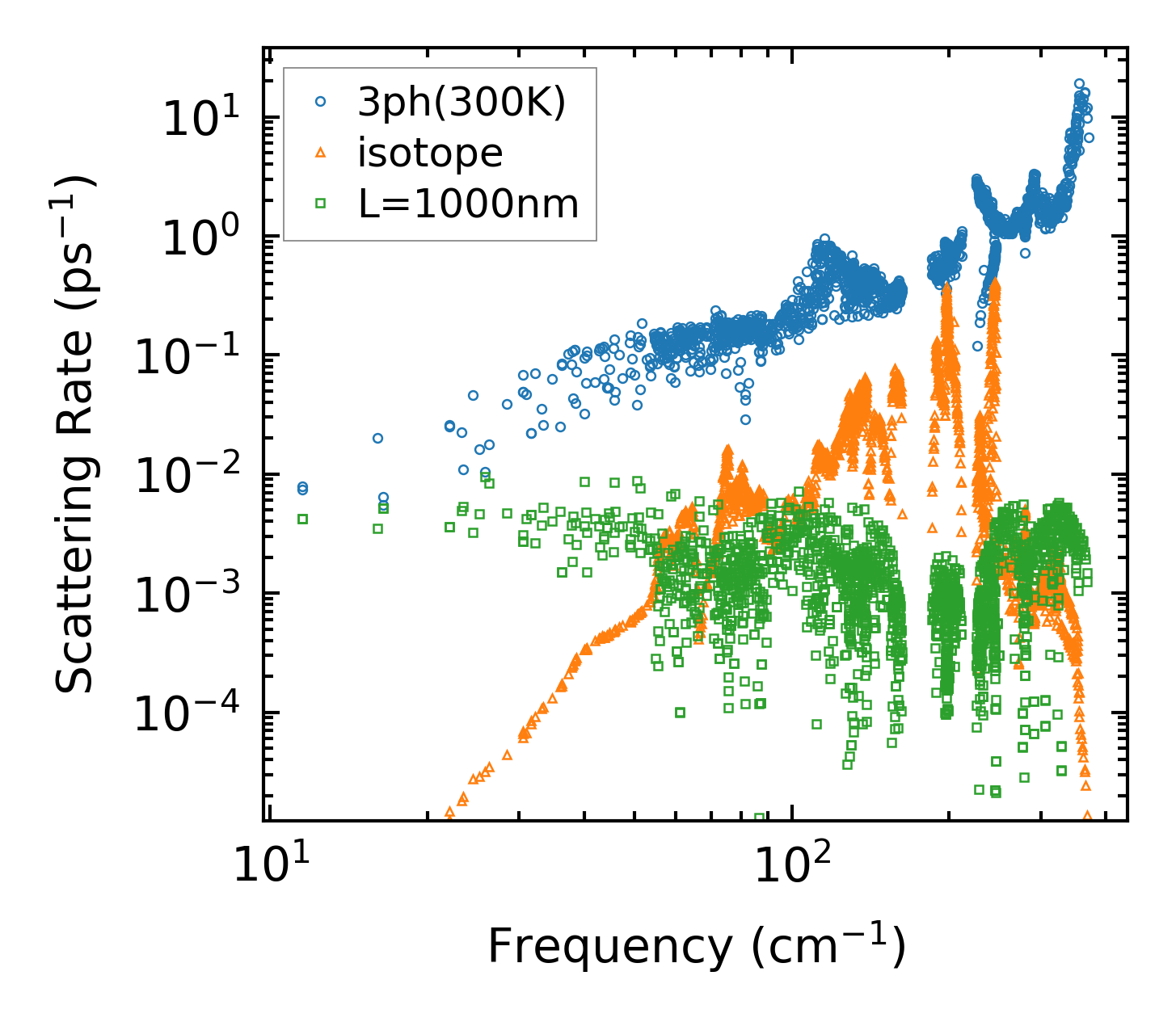

../../_images/fig_scat_rates4280.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

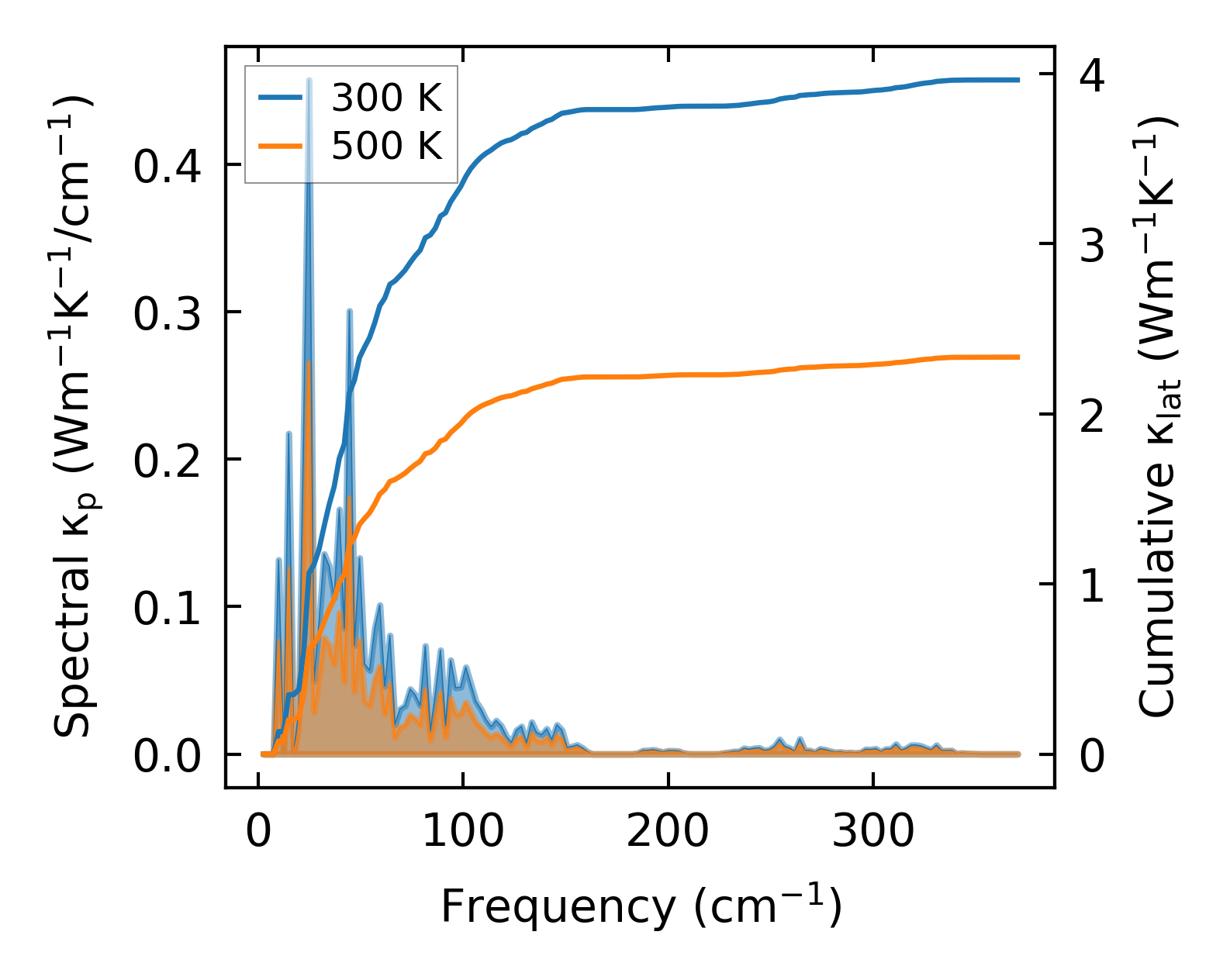

../../_images/fig_cumu_frequency4281.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

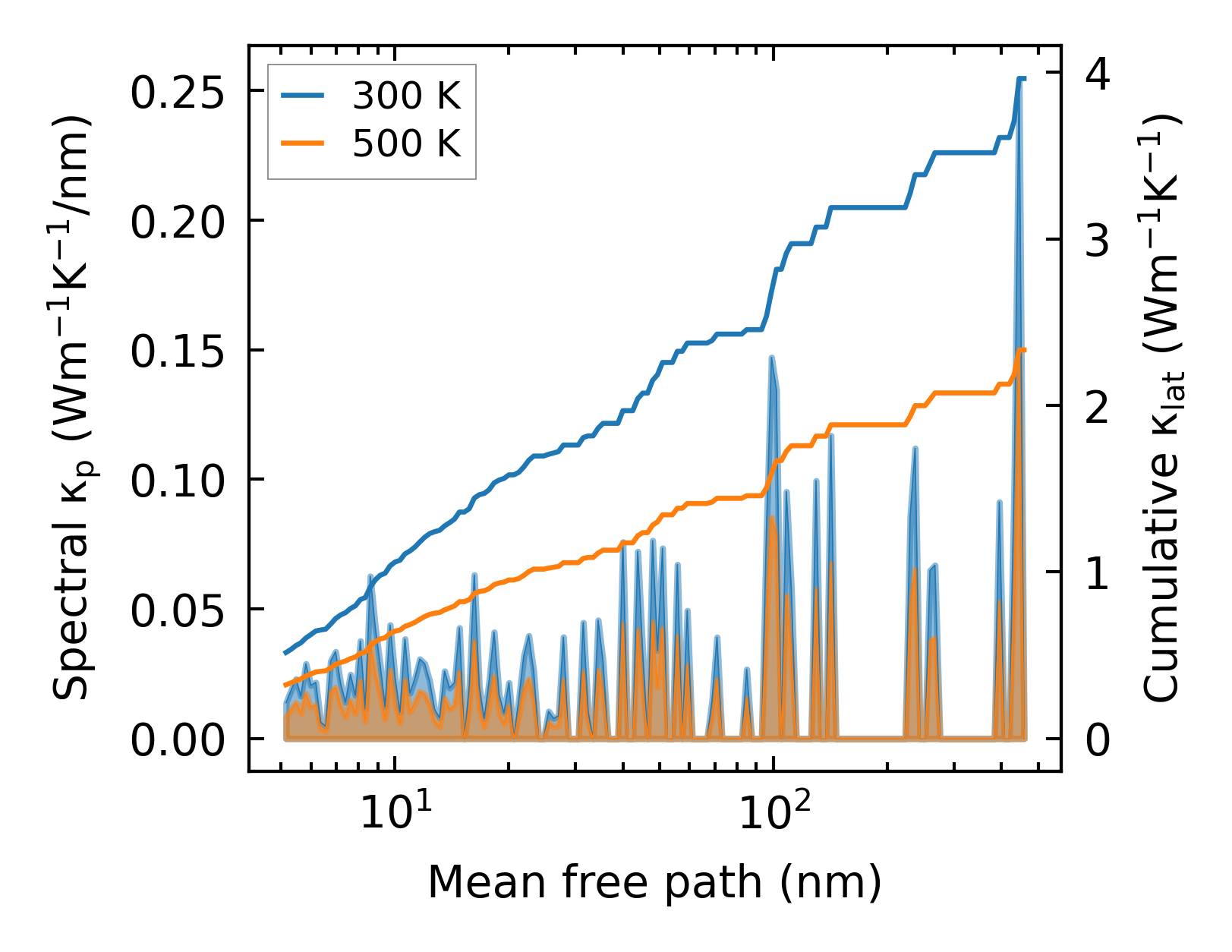

../../_images/fig_cumu_mfp4280.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

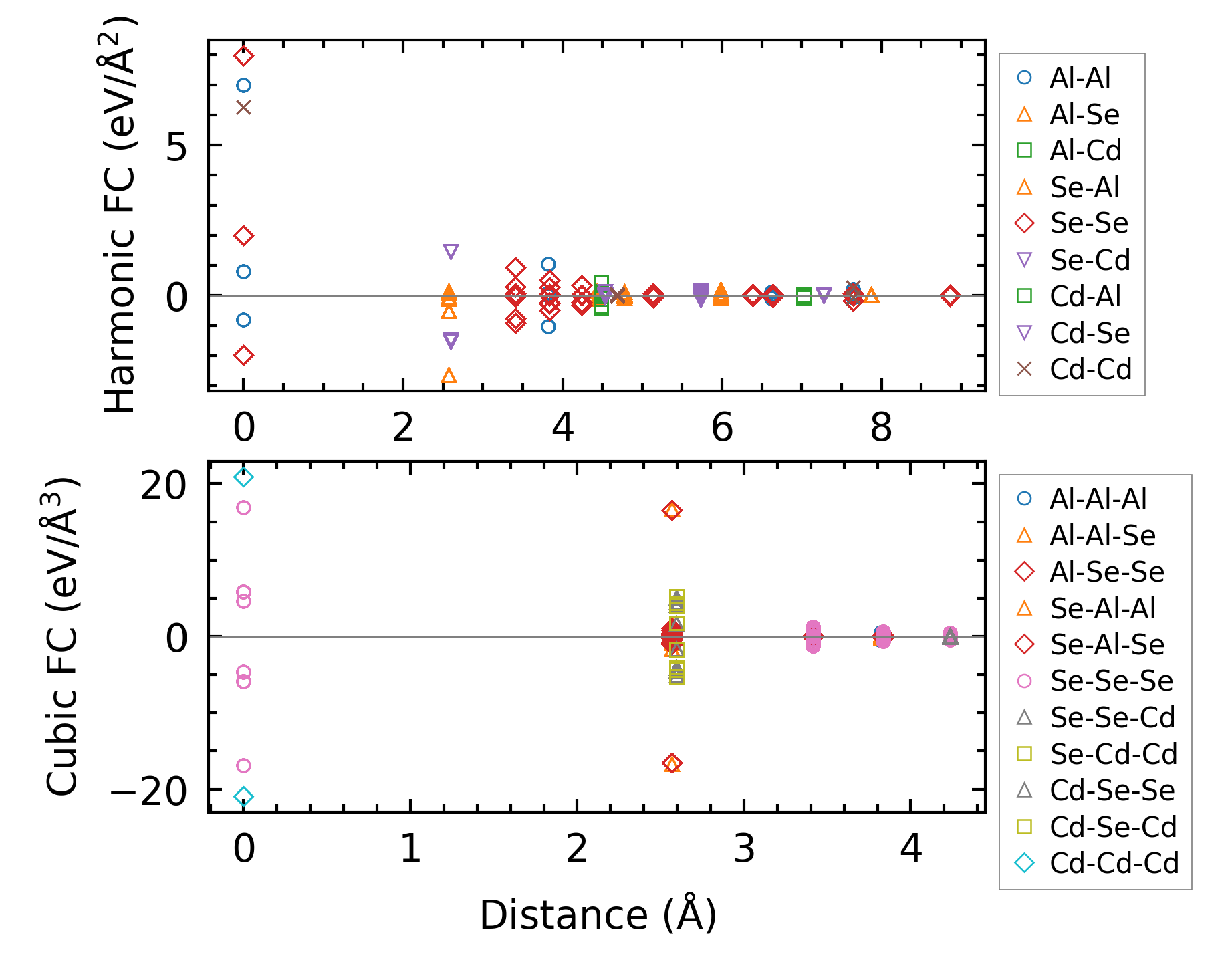

../../_images/fig_fc3267.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8157.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times18277.png — (b) Computation time
