mp-3211/Nd2SO2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-3211.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10860.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10860.png — (b) Thermodynamic properties

Grüneisen parameters

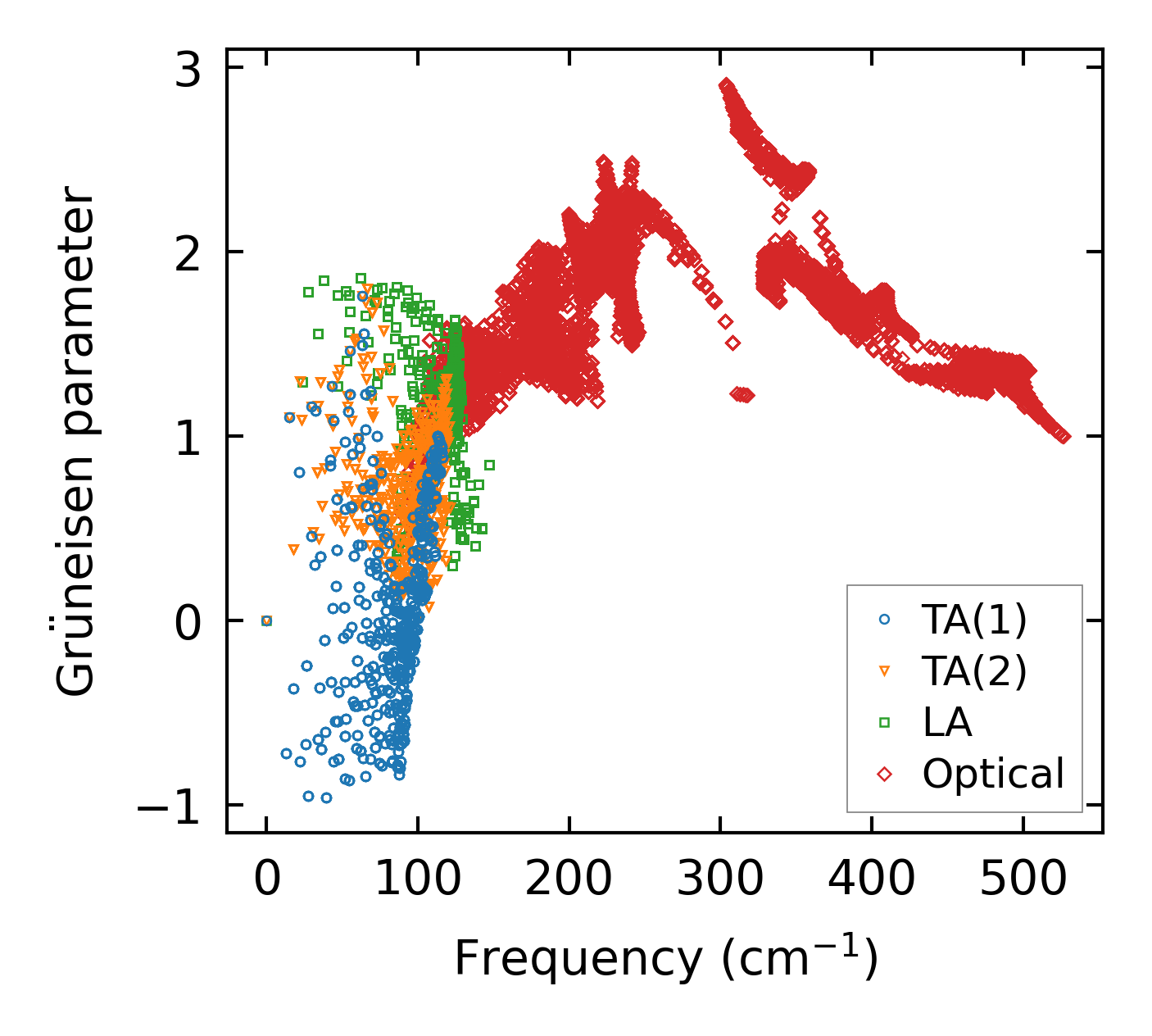

../../_images/fig_gru_all4437.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4437.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x11, supercell: 3x3x2

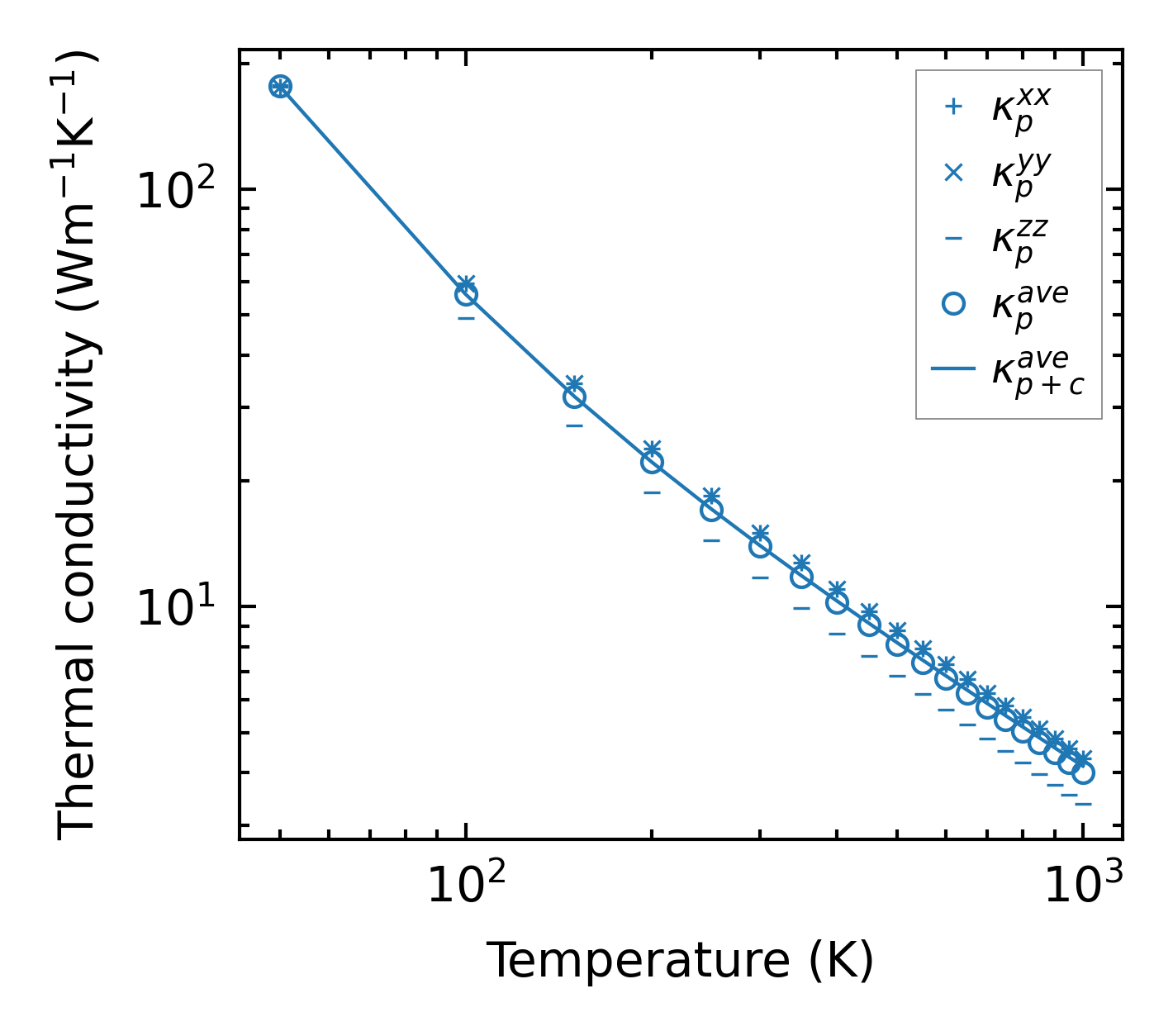

../../_images/fig_kappa8381.png — (a) Temperature-dependent lattice thermal conductivity

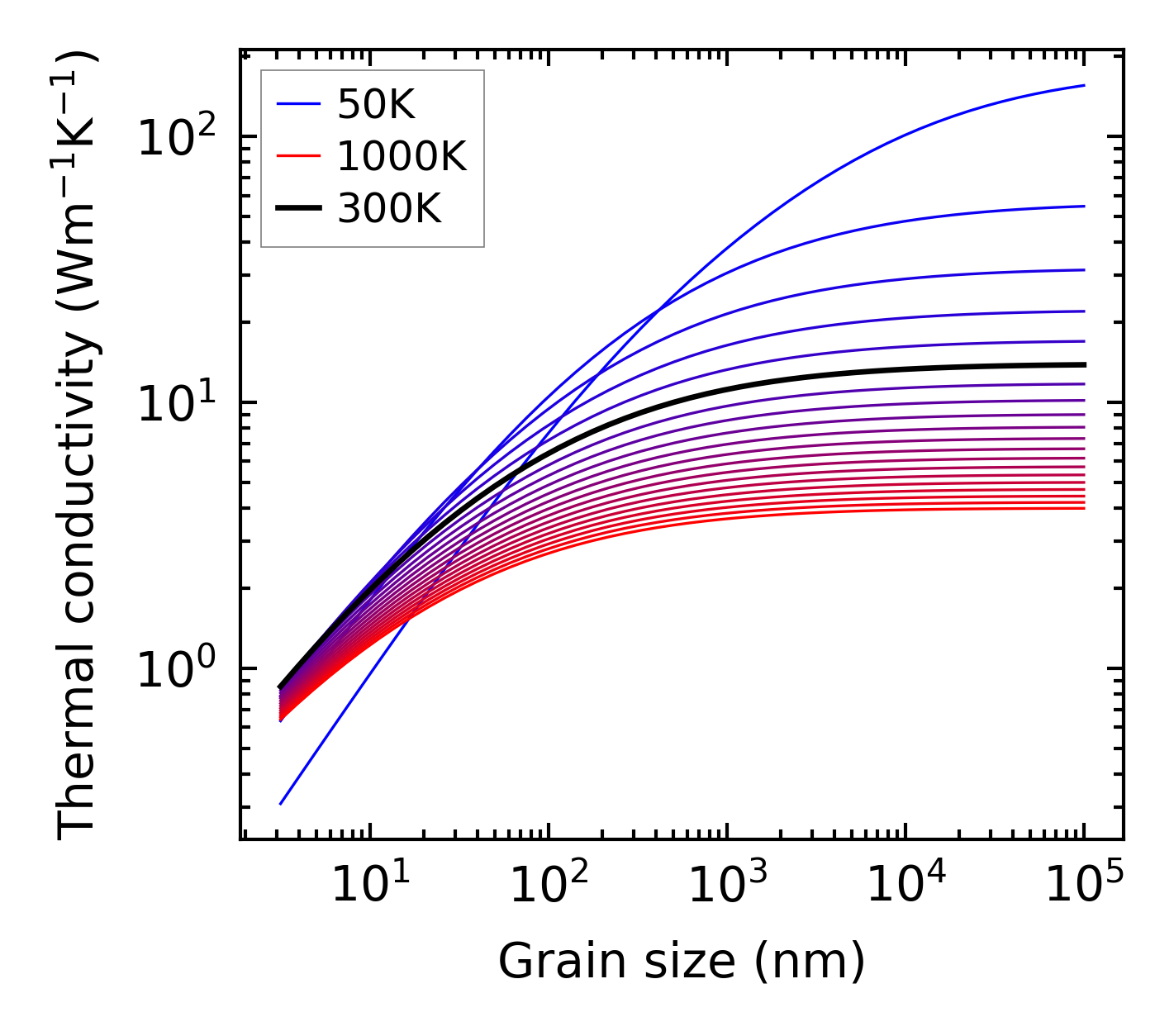

../../_images/fig_kappa_vs_grain_size4492.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4394.png — (a) Phonon lifetime due to phonon-phonon scattering

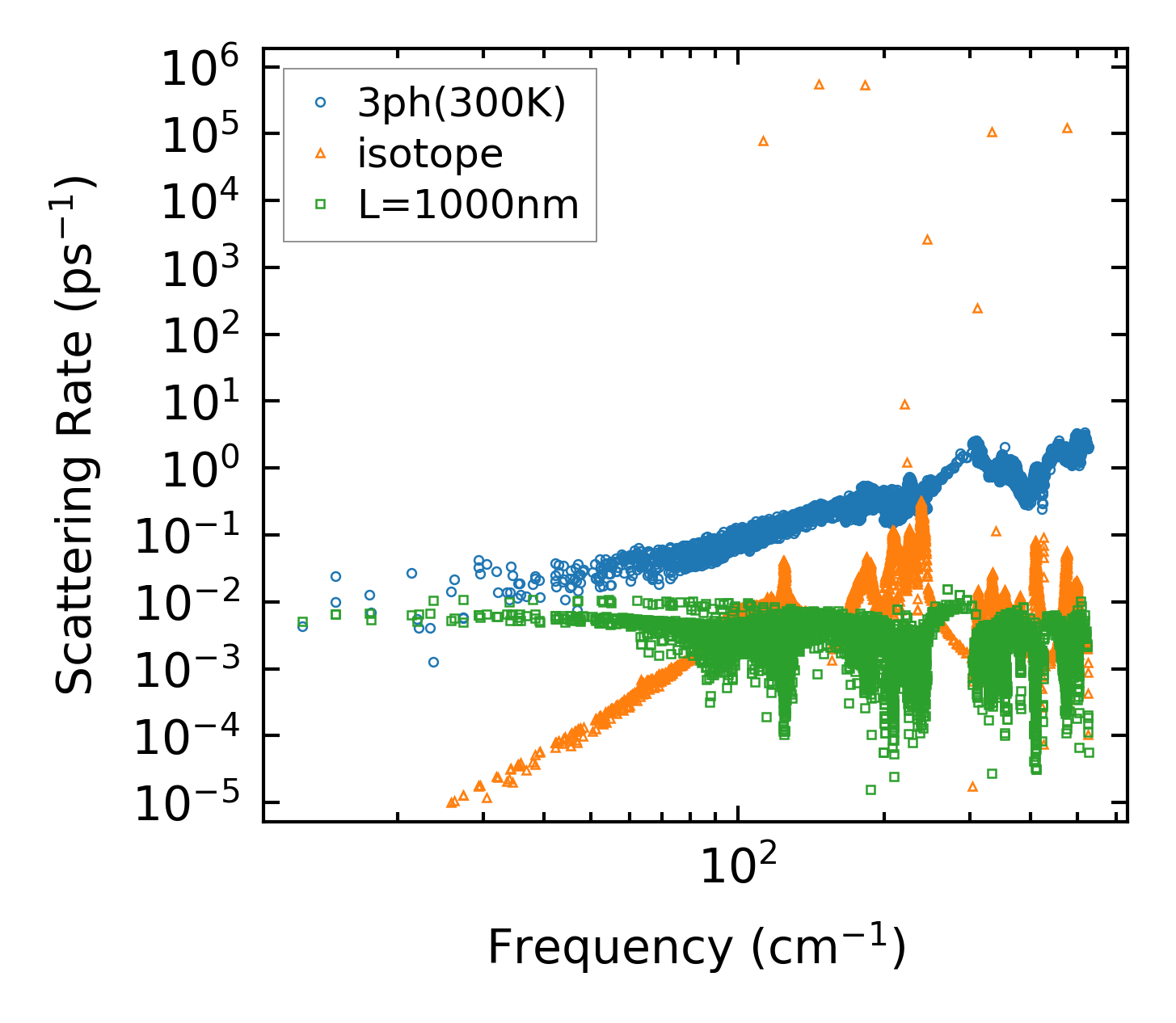

../../_images/fig_scat_rates4393.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

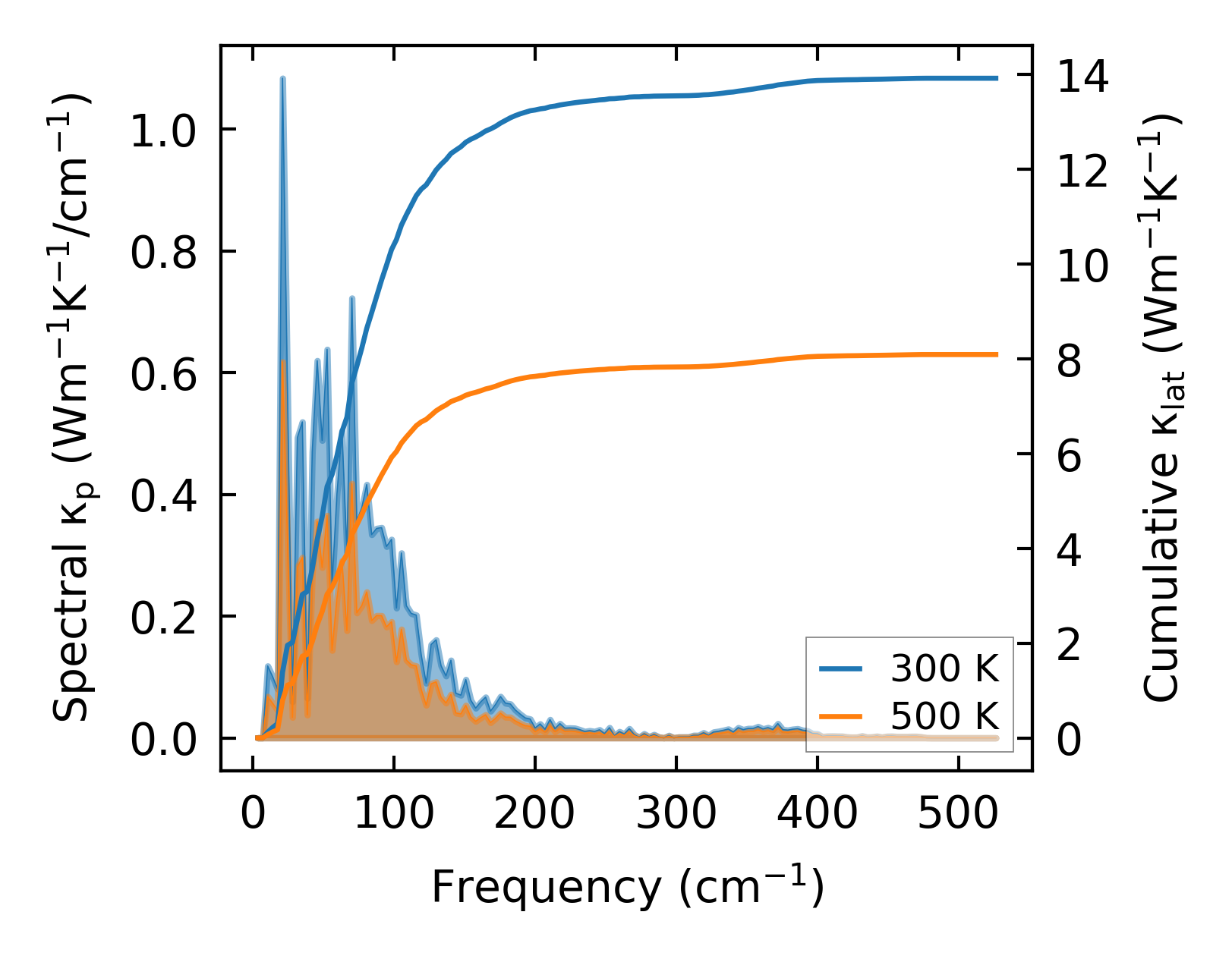

../../_images/fig_cumu_frequency4394.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

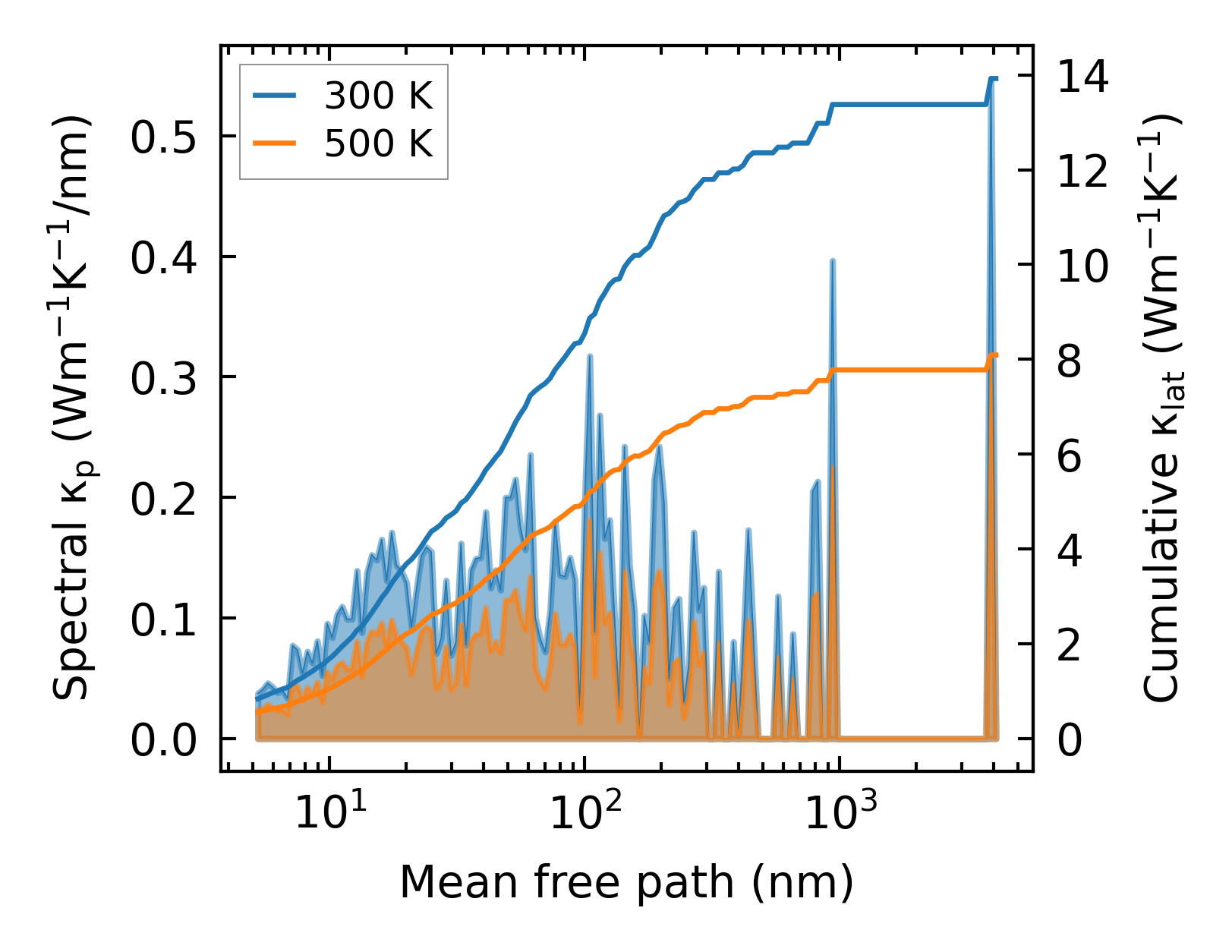

../../_images/fig_cumu_mfp4393.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

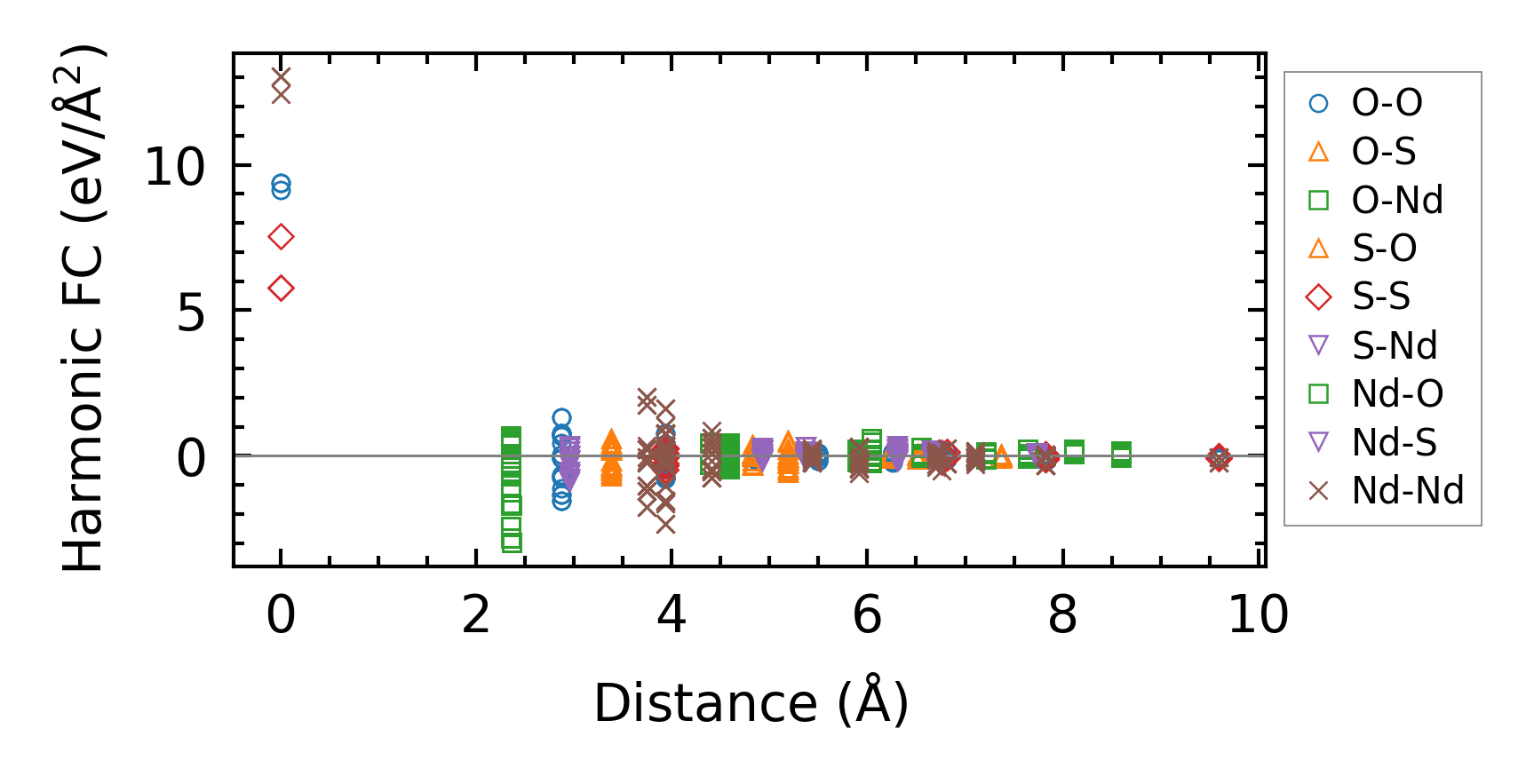

../../_images/fig_fc210586.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8382.png — (a) Temperature-dependent lattice thermal conductivity

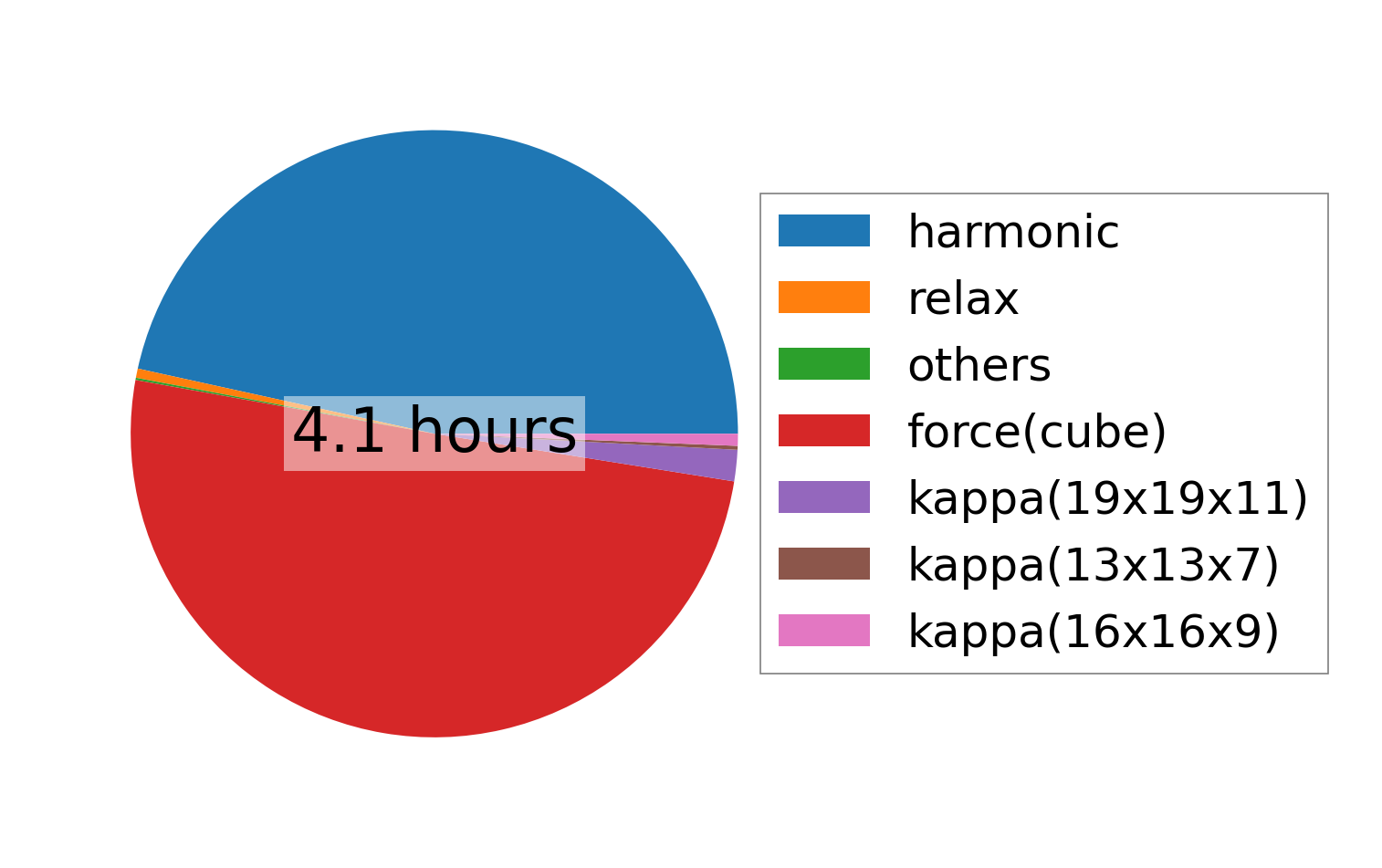

../../_images/fig_times18588.png — (b) Computation time
