mp-3154/Sm3Sb5O12/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-3154.tar.gz

Harmonic properties

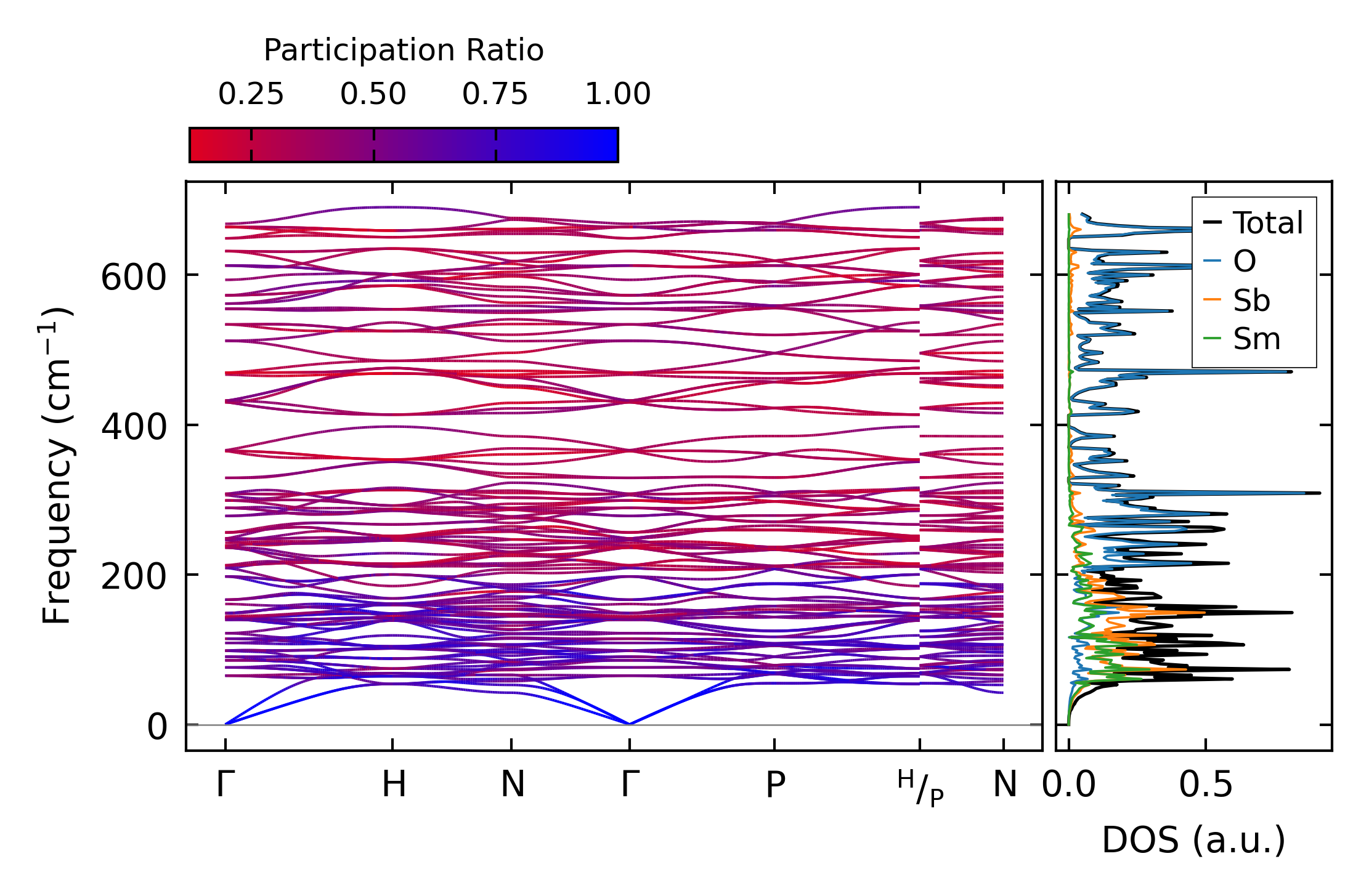

../../_images/fig_bandos_pr10850.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10850.png — (b) Thermodynamic properties

Grüneisen parameters

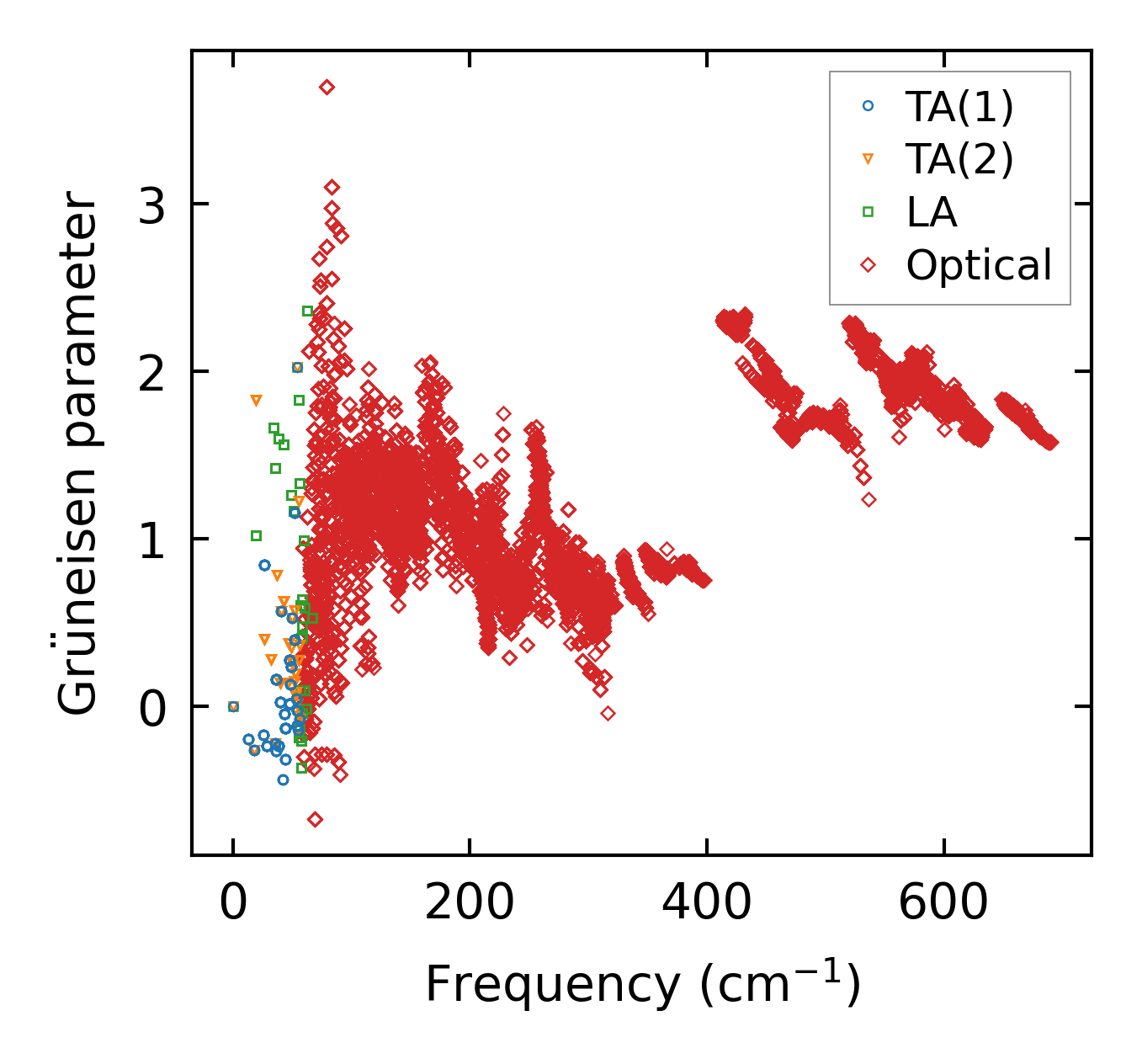

../../_images/fig_gru_all4431.png — (a) Grüneisen parameters

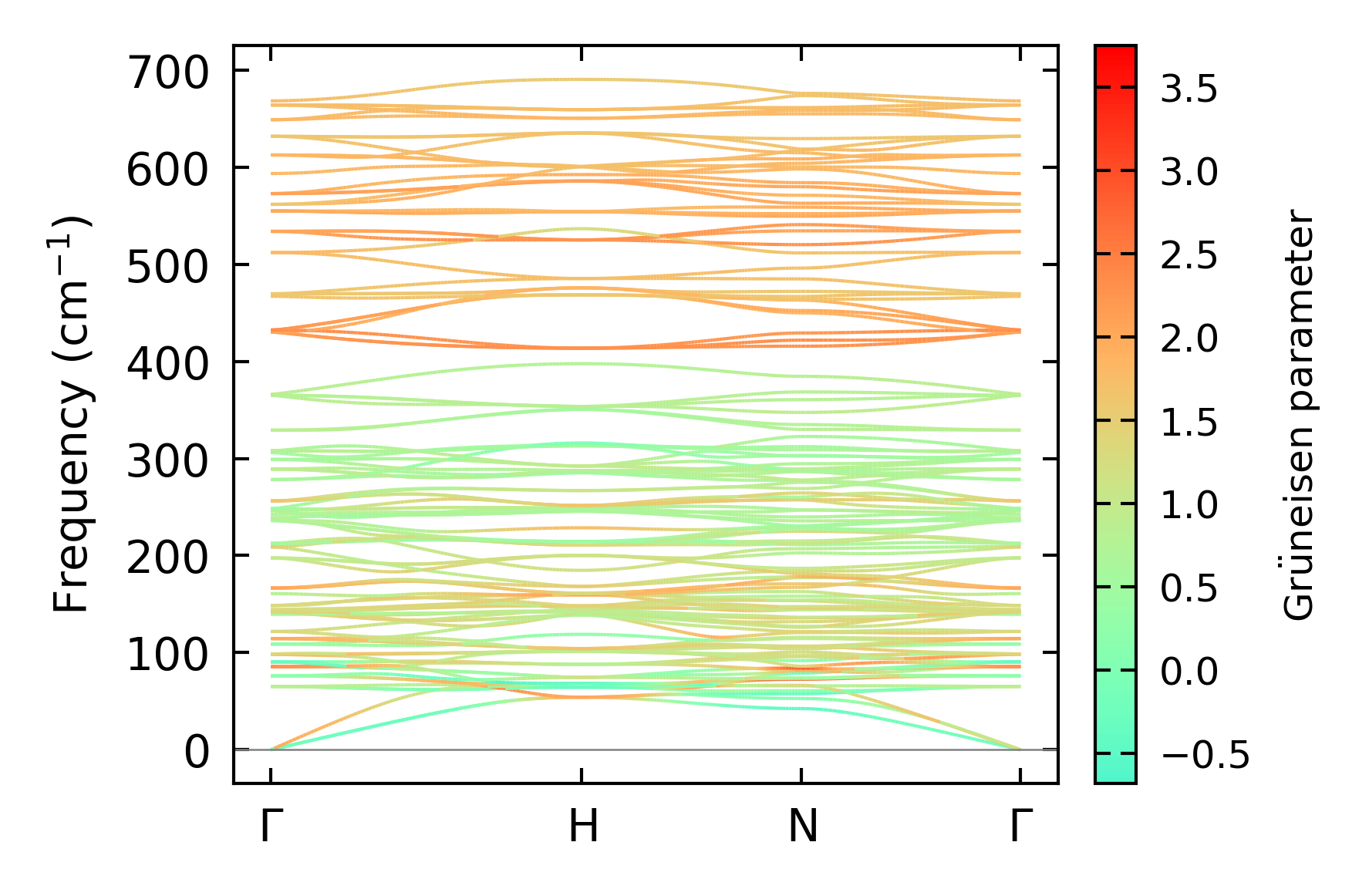

../../_images/fig_gruneisen4431.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

../../_images/fig_kappa8368.png — (a) Temperature-dependent lattice thermal conductivity

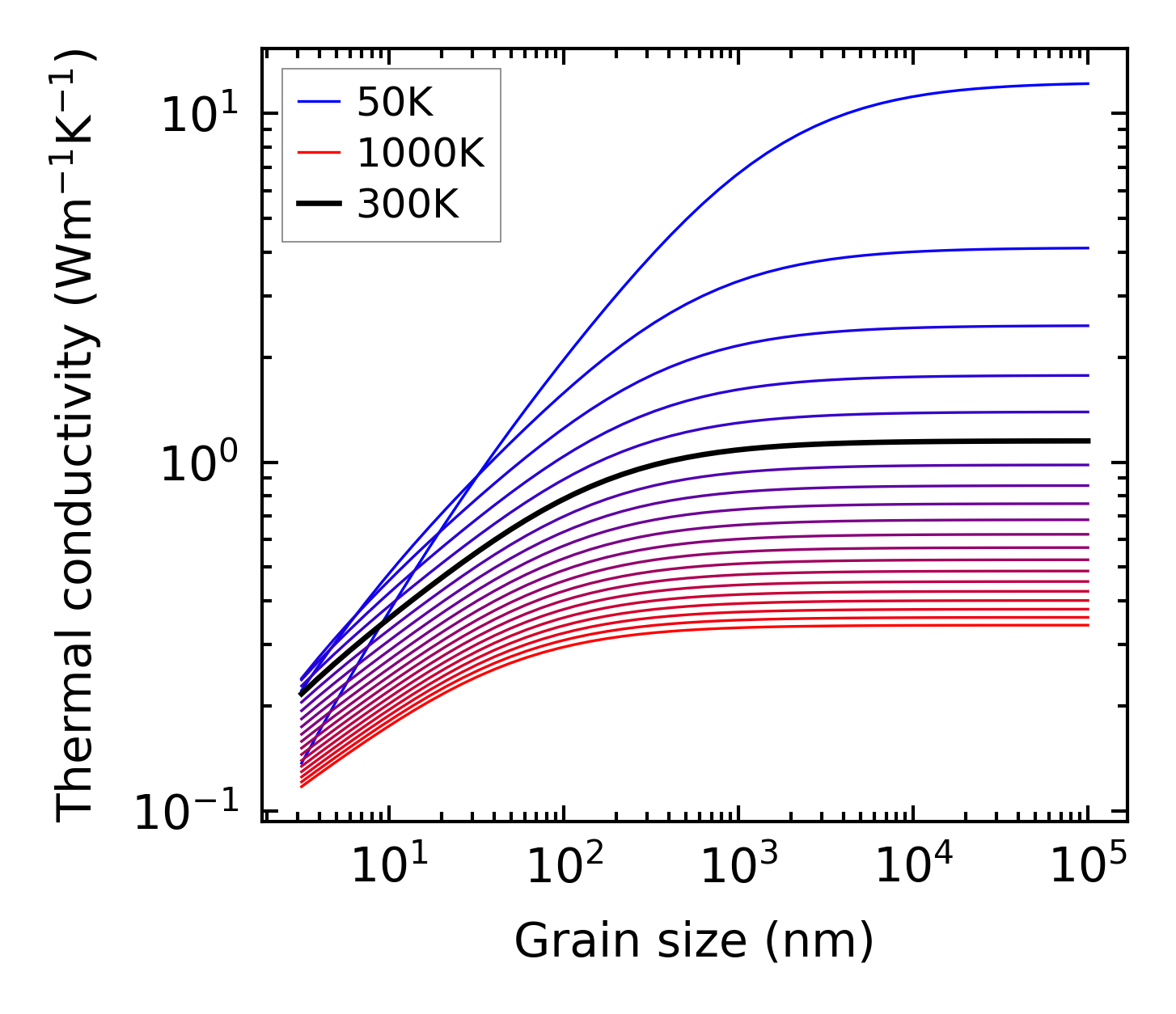

../../_images/fig_kappa_vs_grain_size4485.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

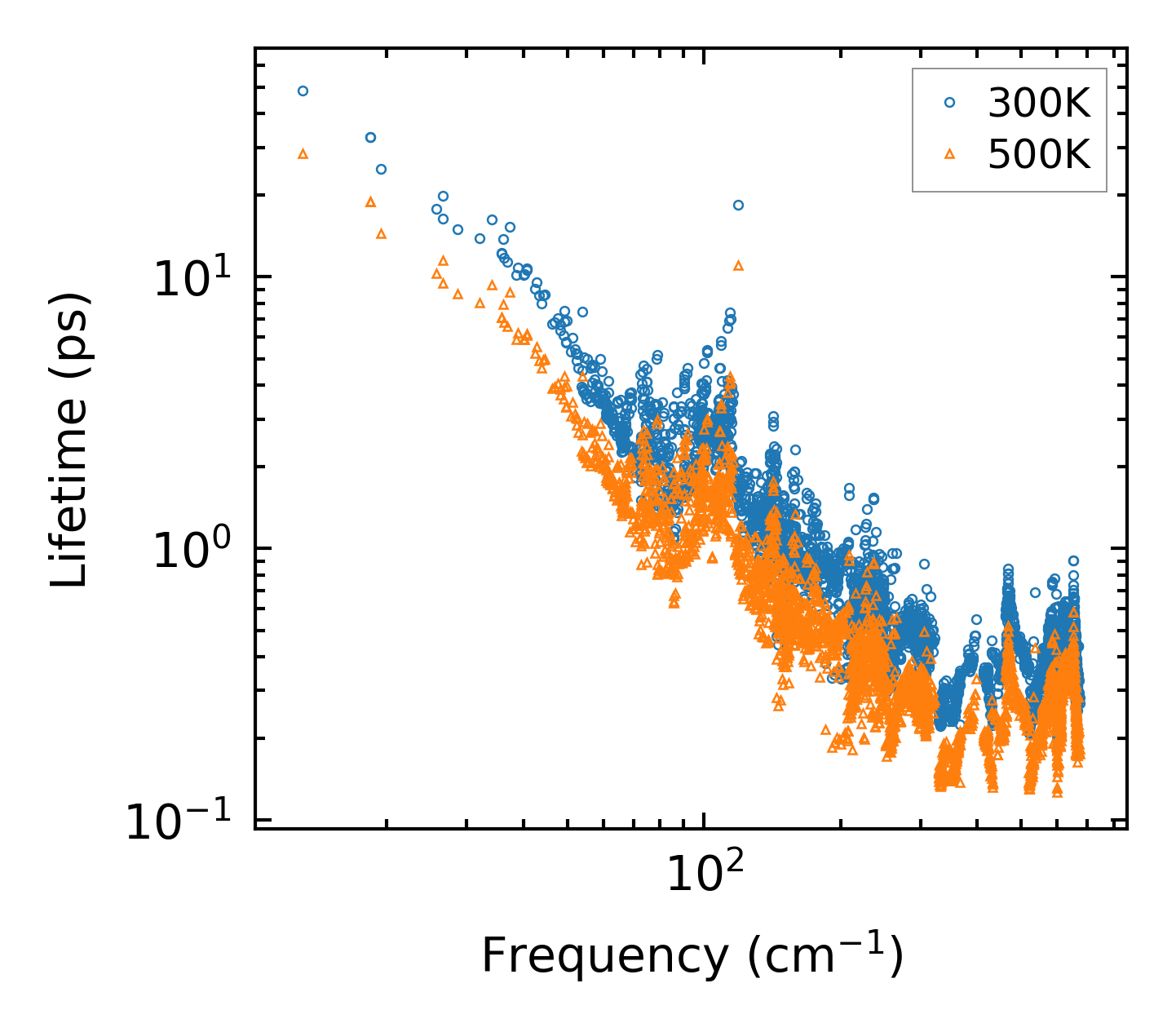

../../_images/fig_lifetime4388.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4387.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

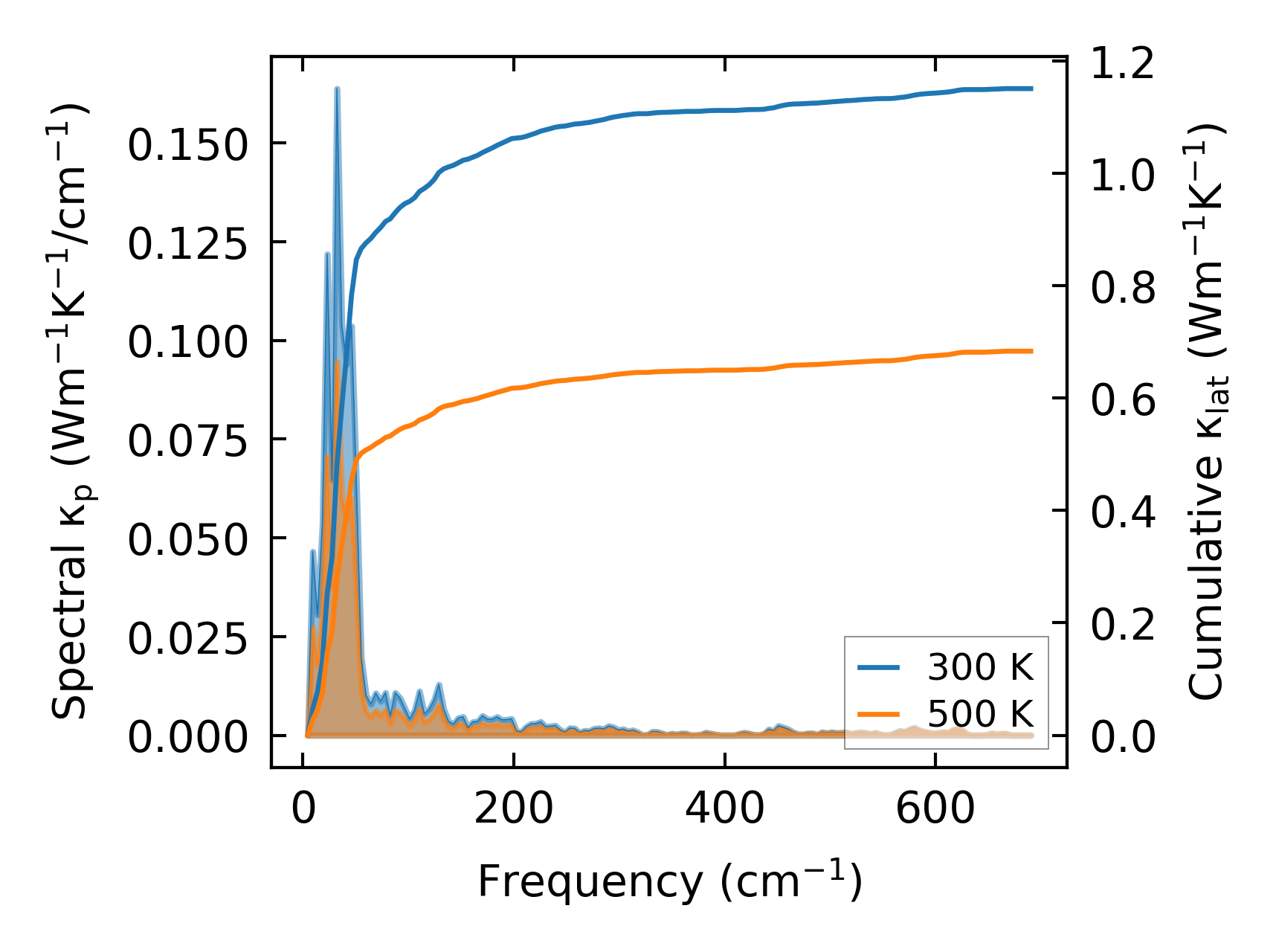

../../_images/fig_cumu_frequency4388.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4387.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc210577.png — (a) Force constants w.r.t atomic distance

Summary

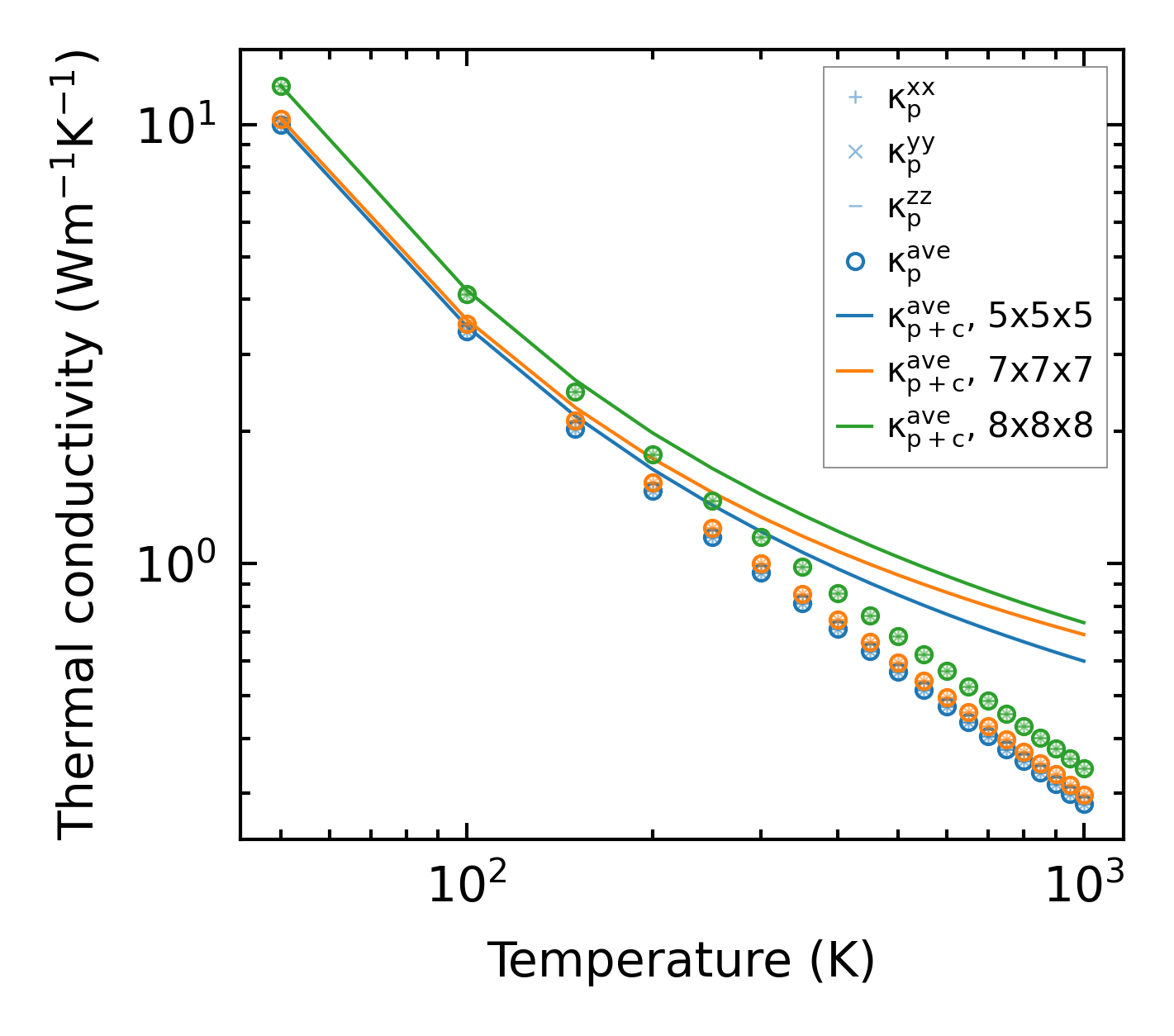

../../_images/fig_kappa8369.png — (a) Temperature-dependent lattice thermal conductivity

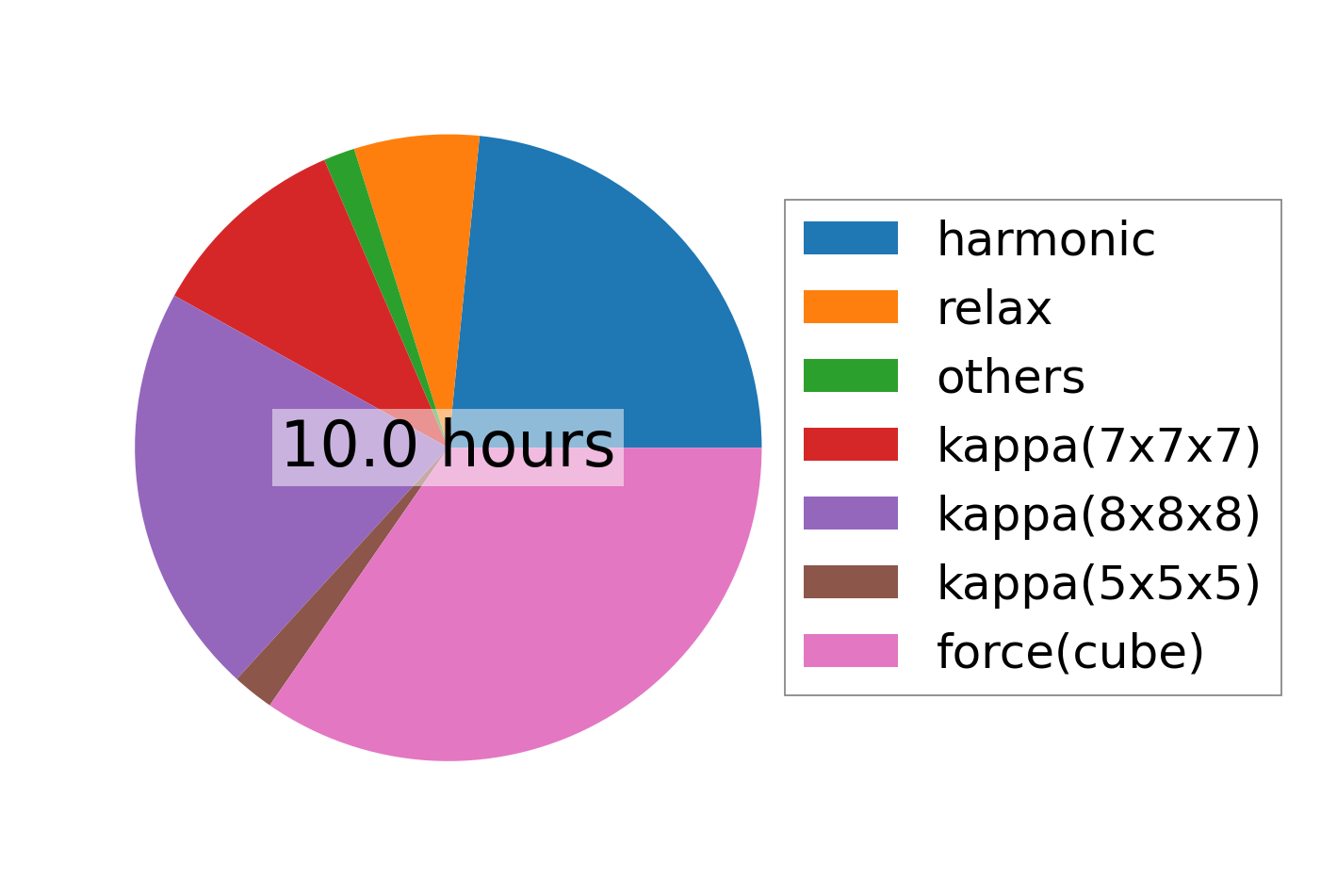

../../_images/fig_times18570.png — (b) Computation time
