mp-3810-2/HgAs2O6/anharm

Space group: P-31m (162)
Link: Materials Project
Download: mp-3810-2.tar.gz

Equation of state

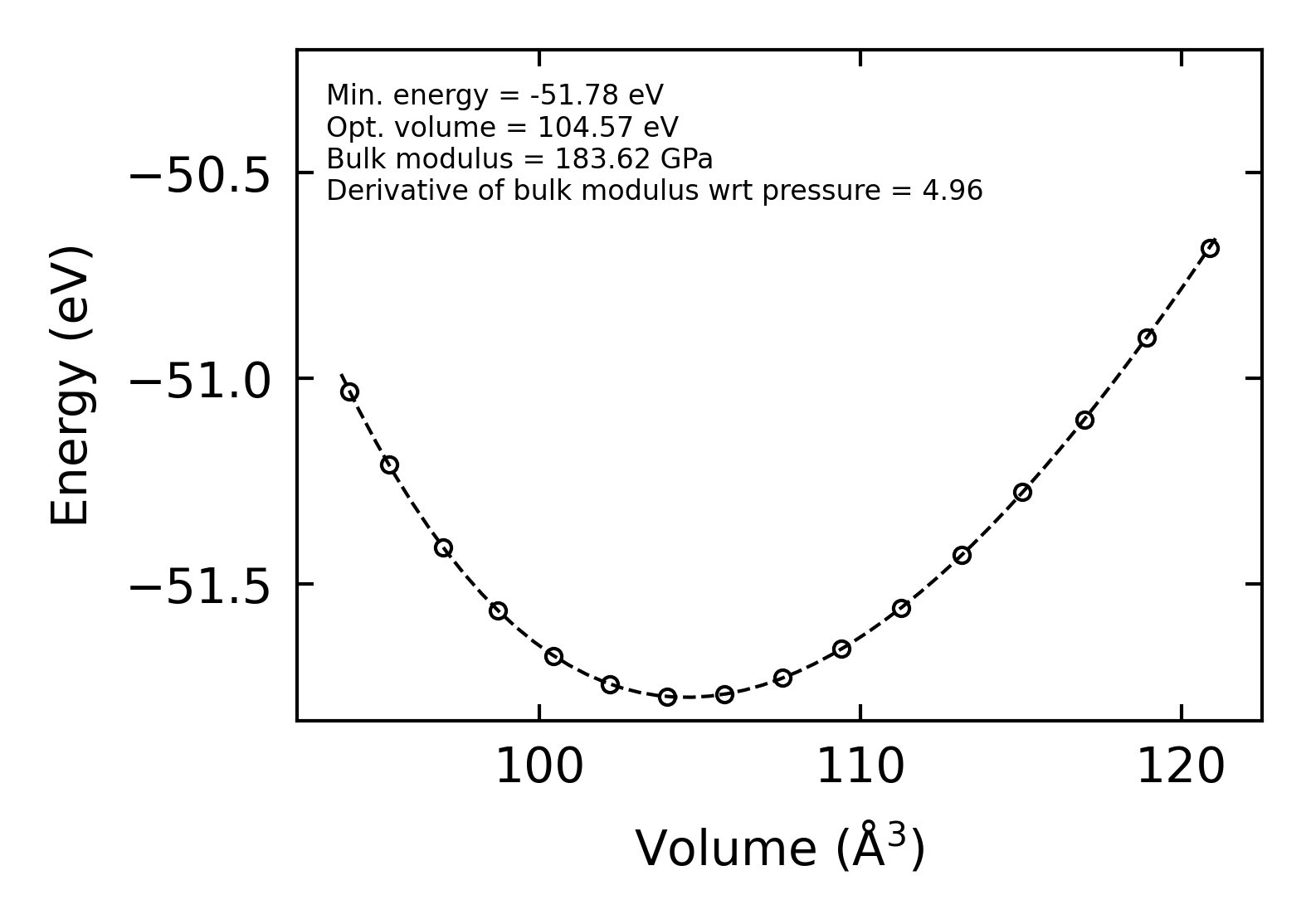

../../_images/fig_bm5280.png — (a) Equation of state

Harmonic properties

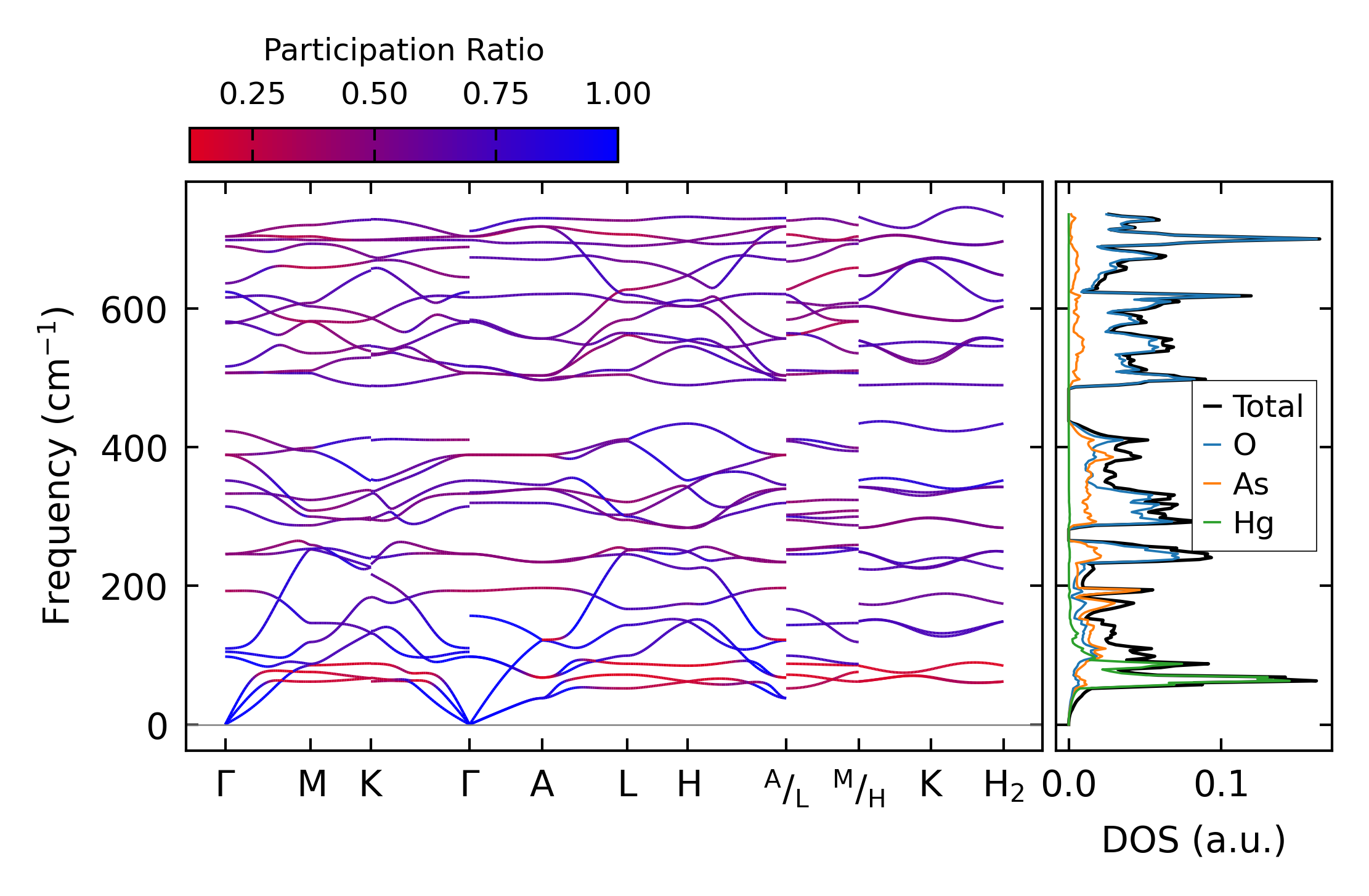

../../_images/fig_bandos_pr10646.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10646.png — (b) Thermodynamic properties

Grüneisen parameters

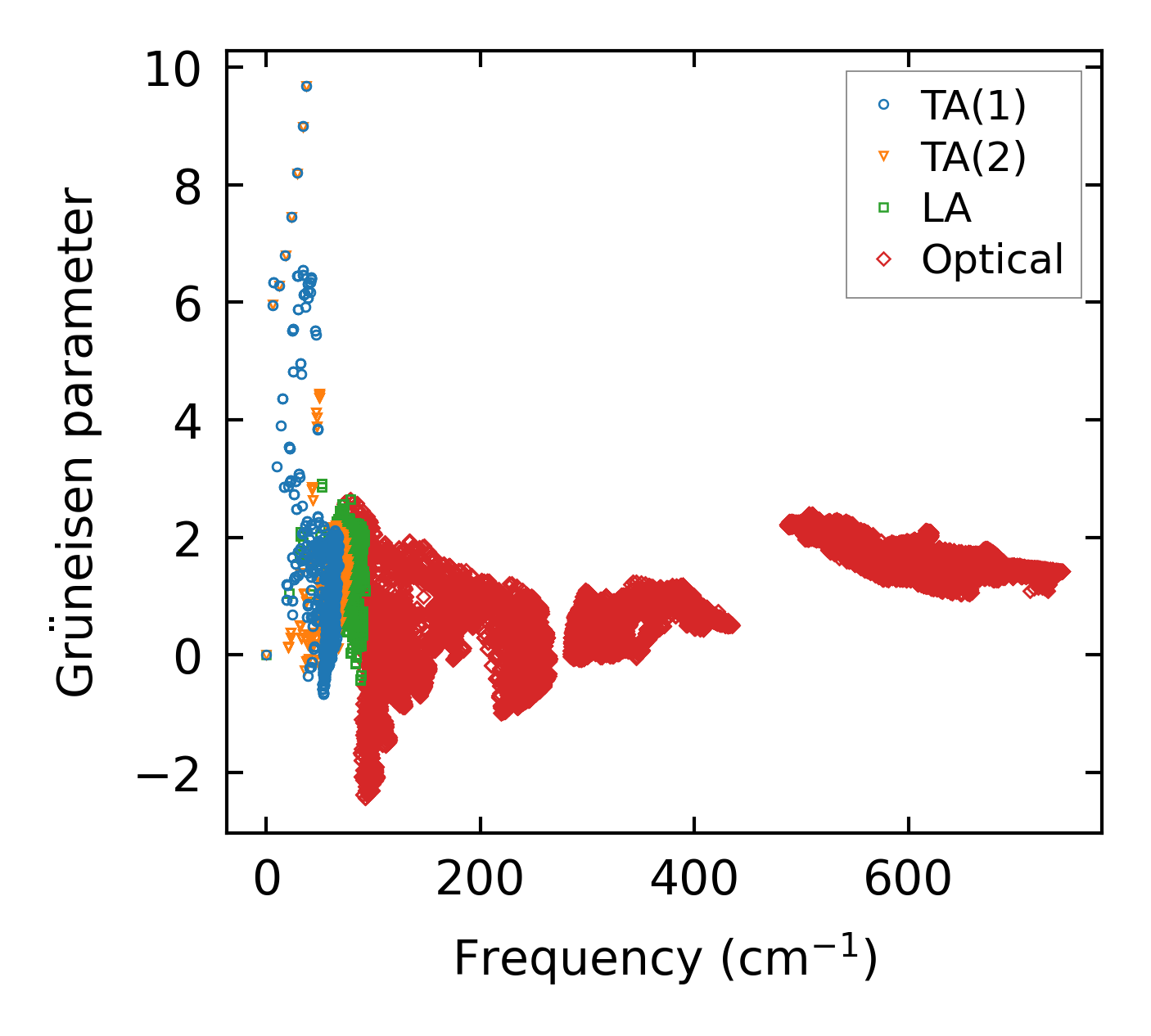

../../_images/fig_gru_all4326.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4326.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x2

../../_images/fig_kappa8160.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4377.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

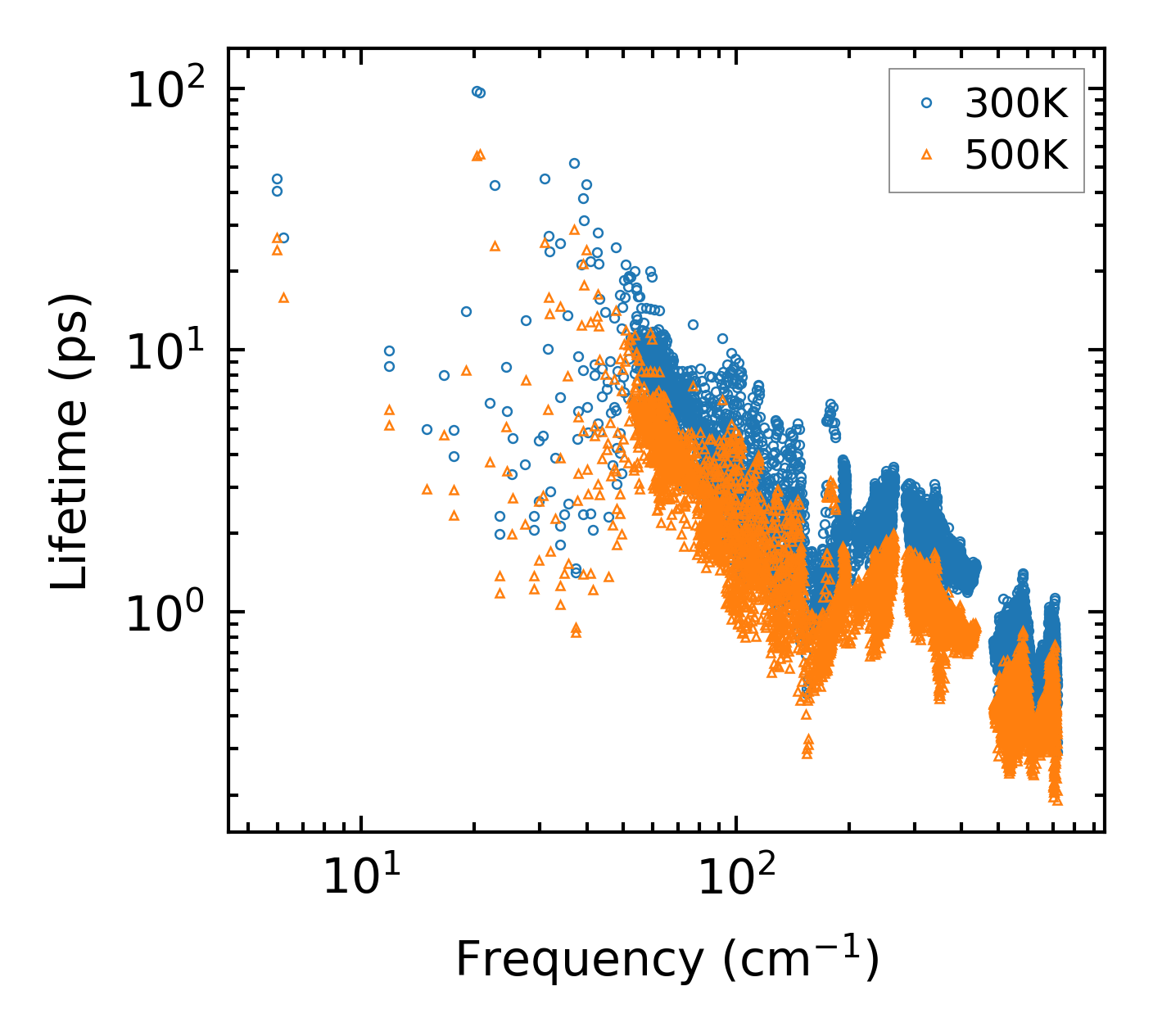

../../_images/fig_lifetime4283.png — (a) Phonon lifetime due to phonon-phonon scattering

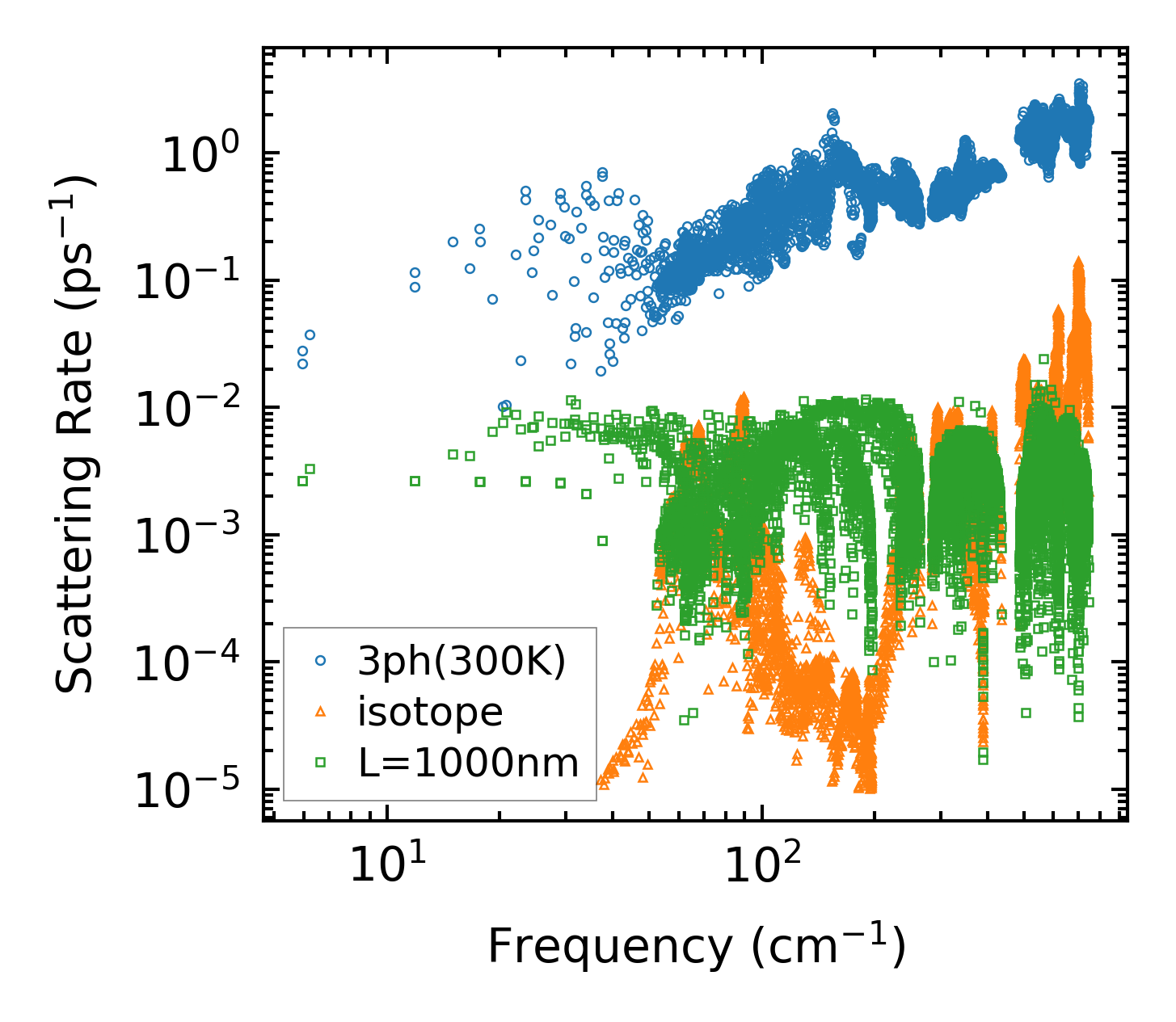

../../_images/fig_scat_rates4282.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

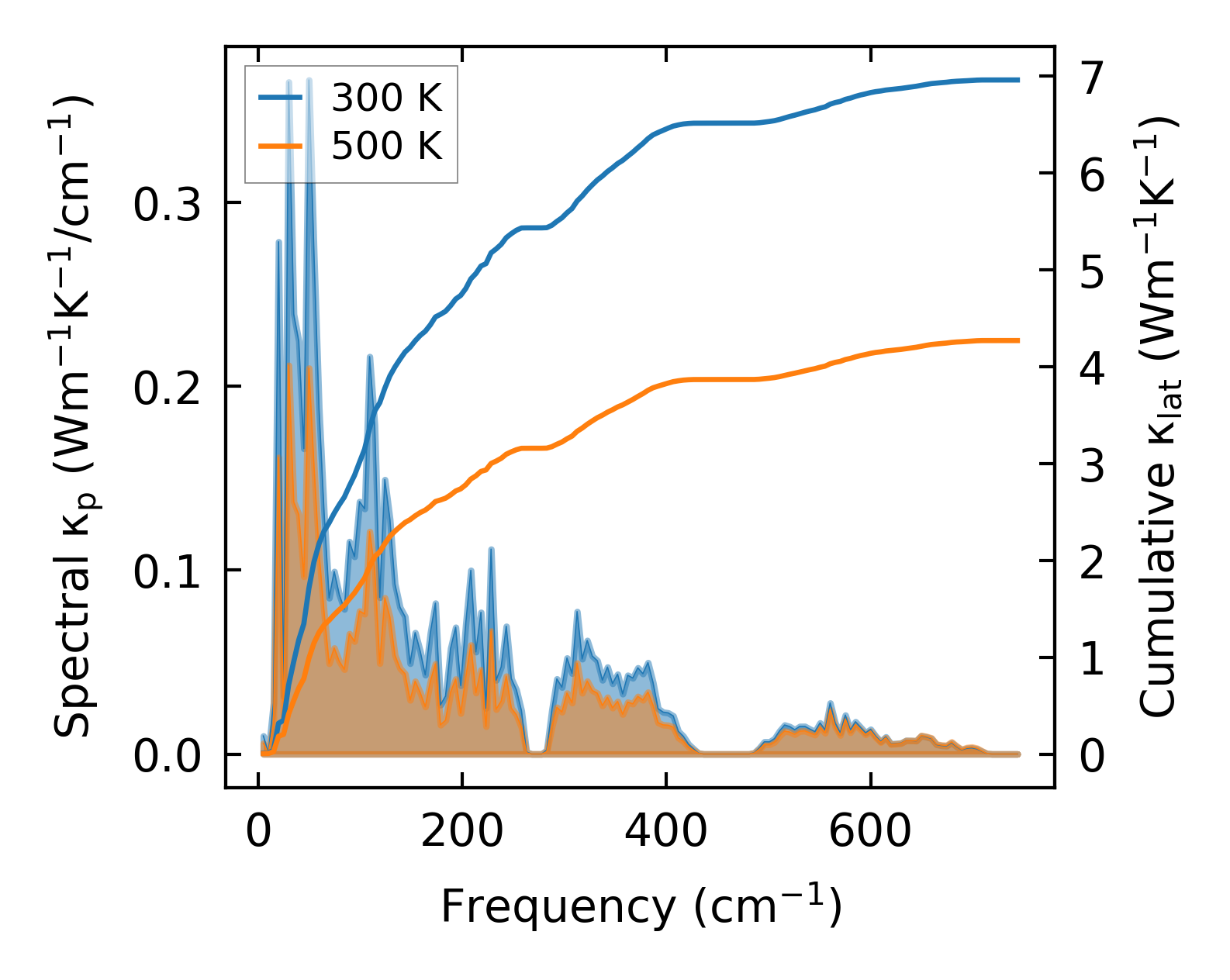

../../_images/fig_cumu_frequency4283.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

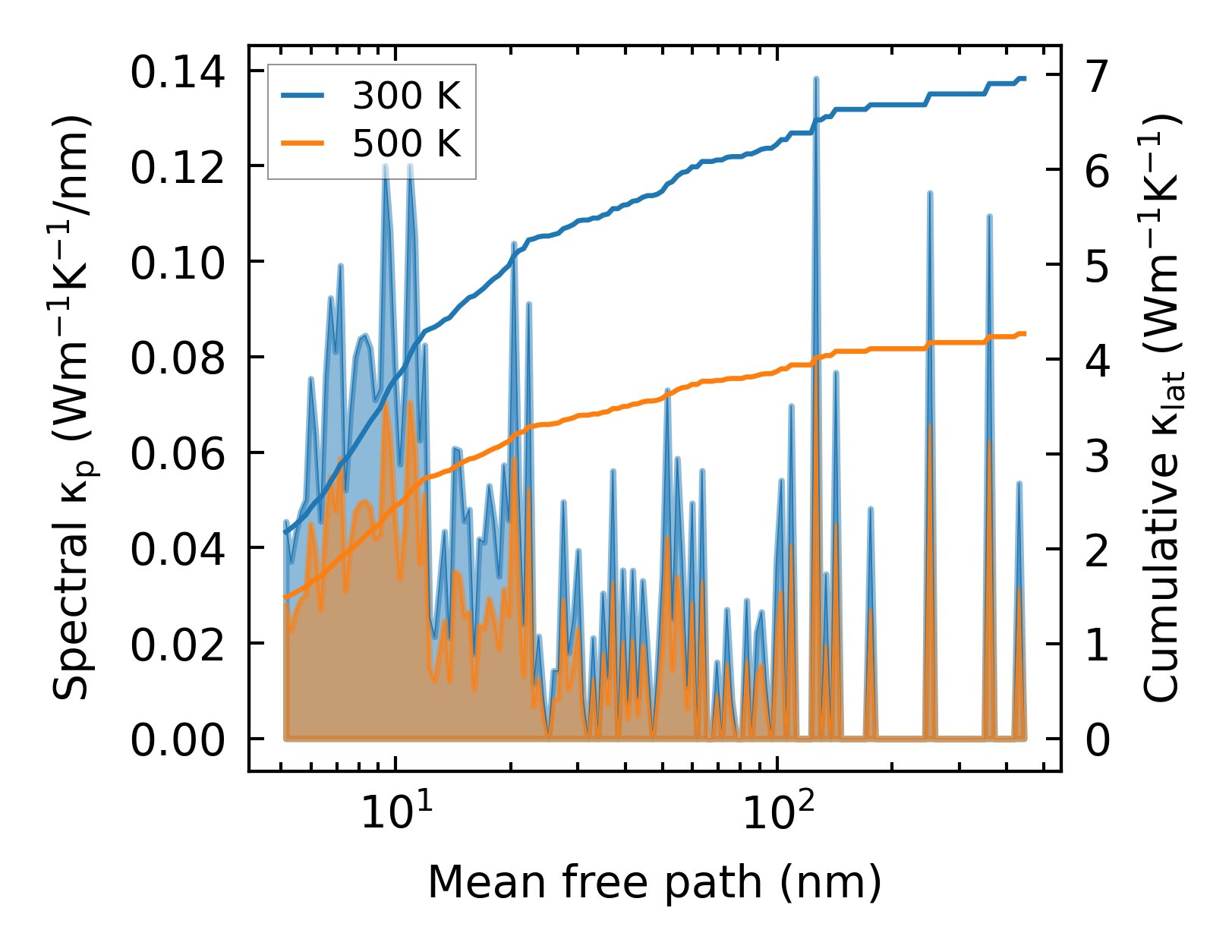

../../_images/fig_cumu_mfp4282.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc210379.png — (a) Force constants w.r.t atomic distance

Summary

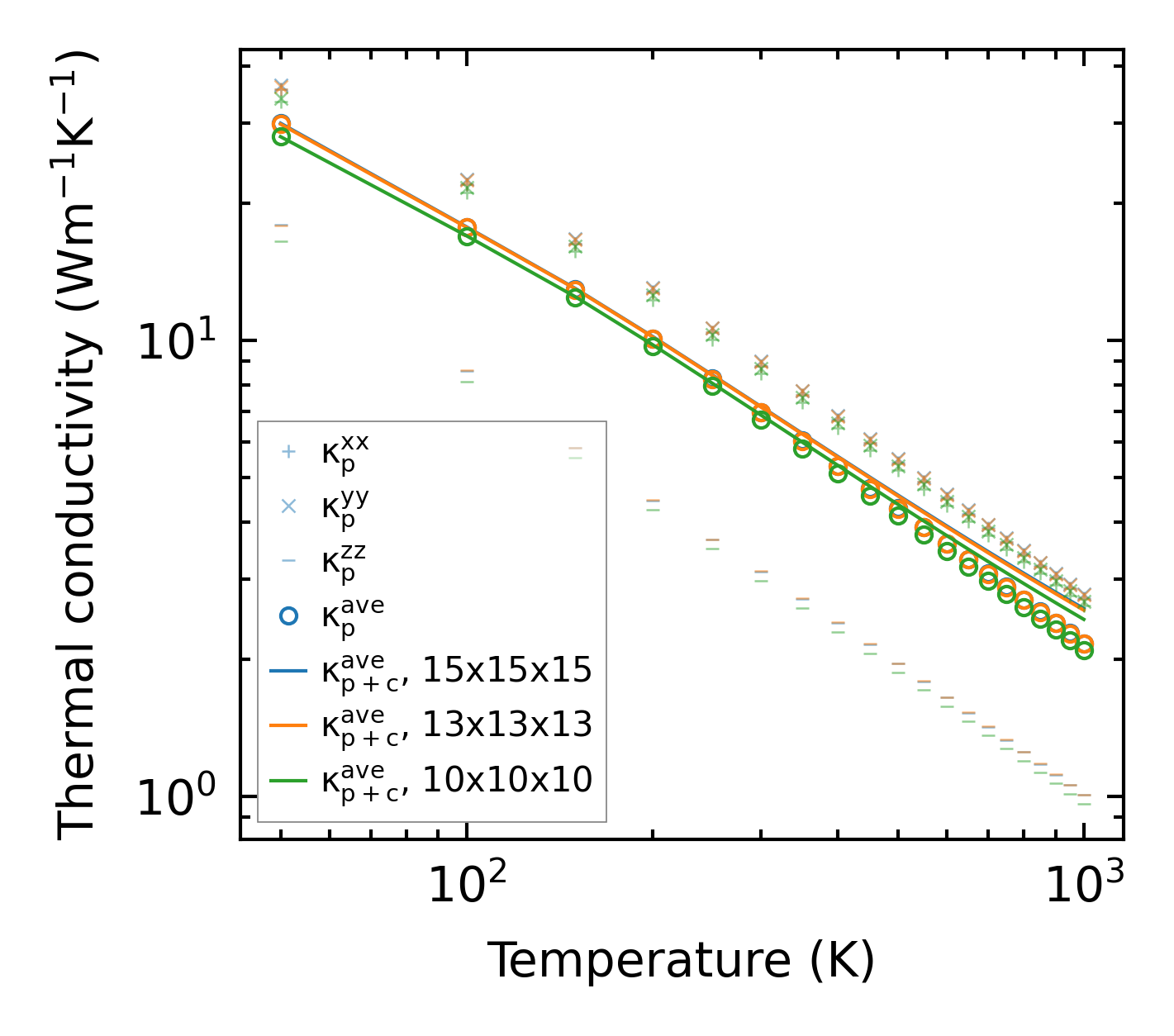

../../_images/fig_kappa8161.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times18281.png — (b) Computation time
