mp-3359/Ba2SnO4/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-3359.tar.gz

Harmonic properties

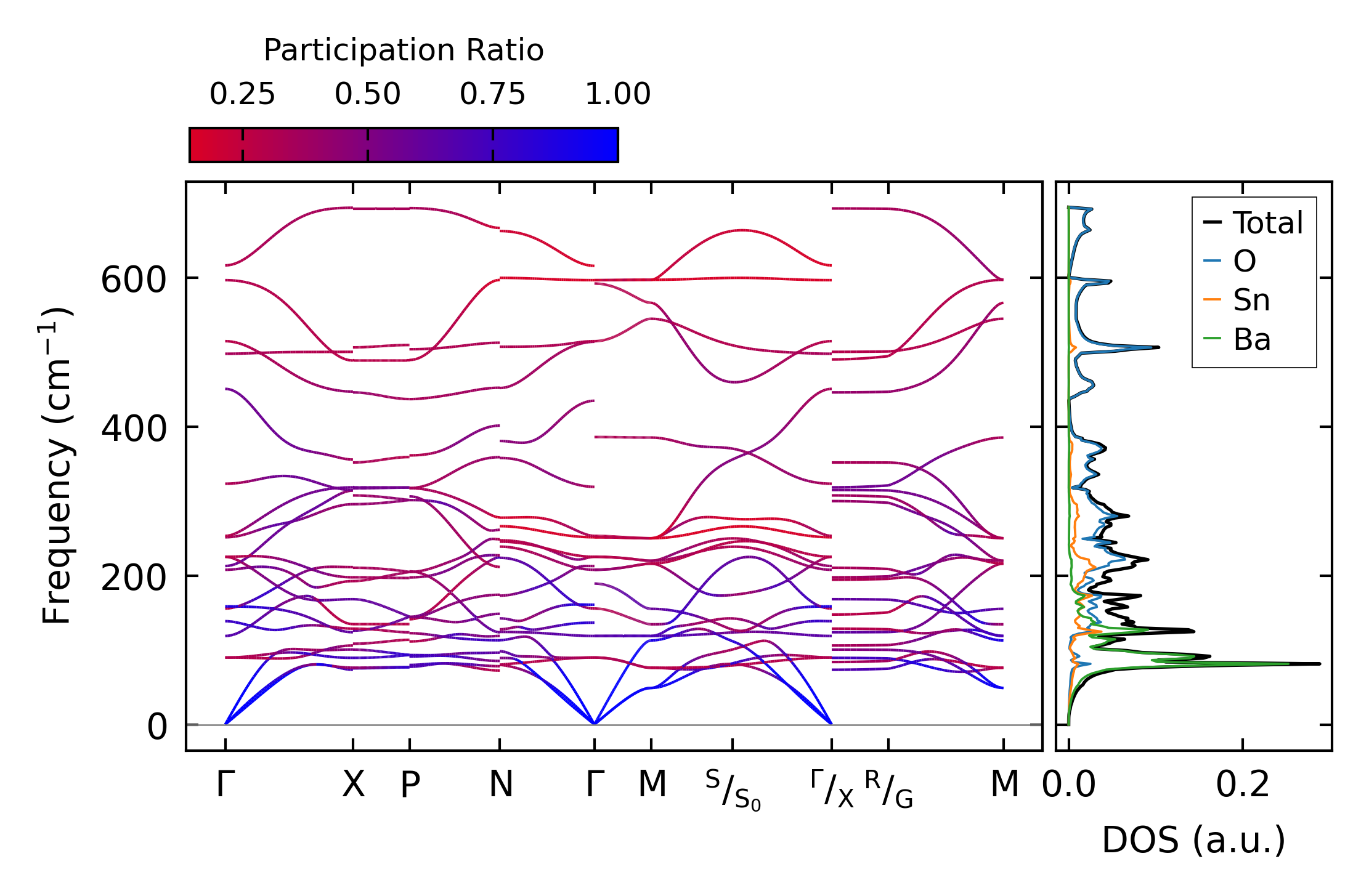

../../_images/fig_bandos_pr10897.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10897.png — (b) Thermodynamic properties

Grüneisen parameters

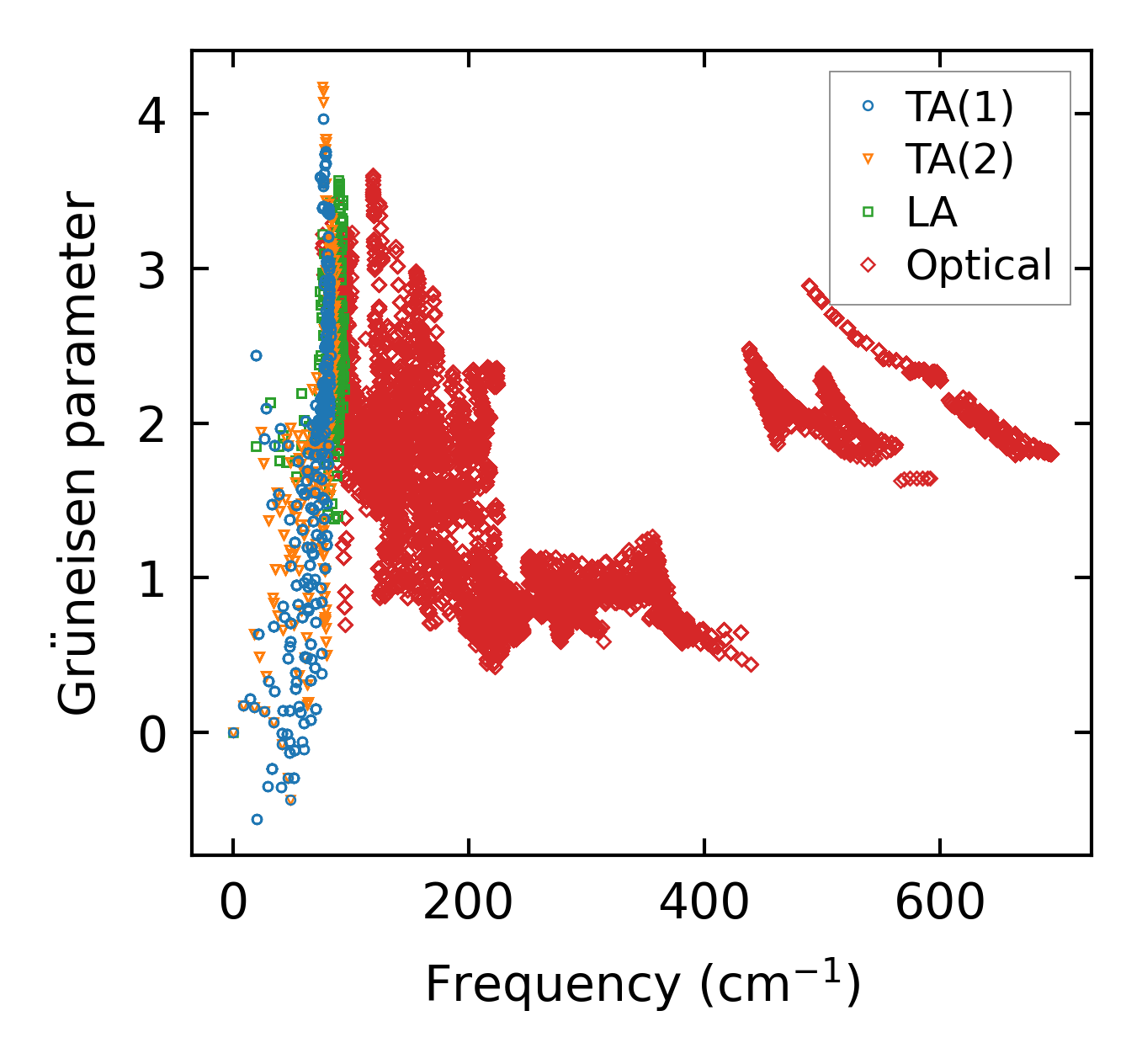

../../_images/fig_gru_all4453.png — (a) Grüneisen parameters

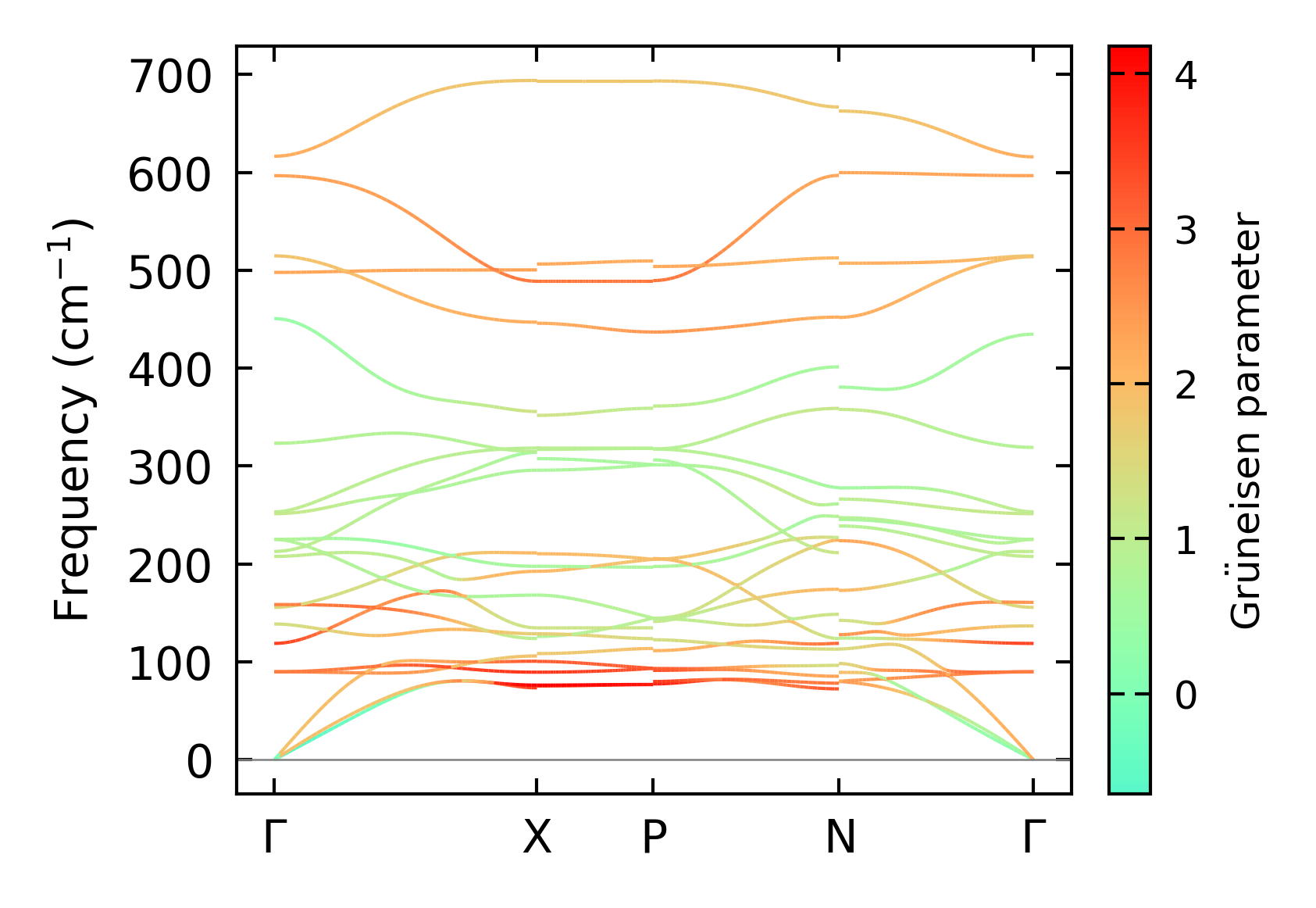

../../_images/fig_gruneisen4453.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x3x1

../../_images/fig_kappa8412.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4508.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

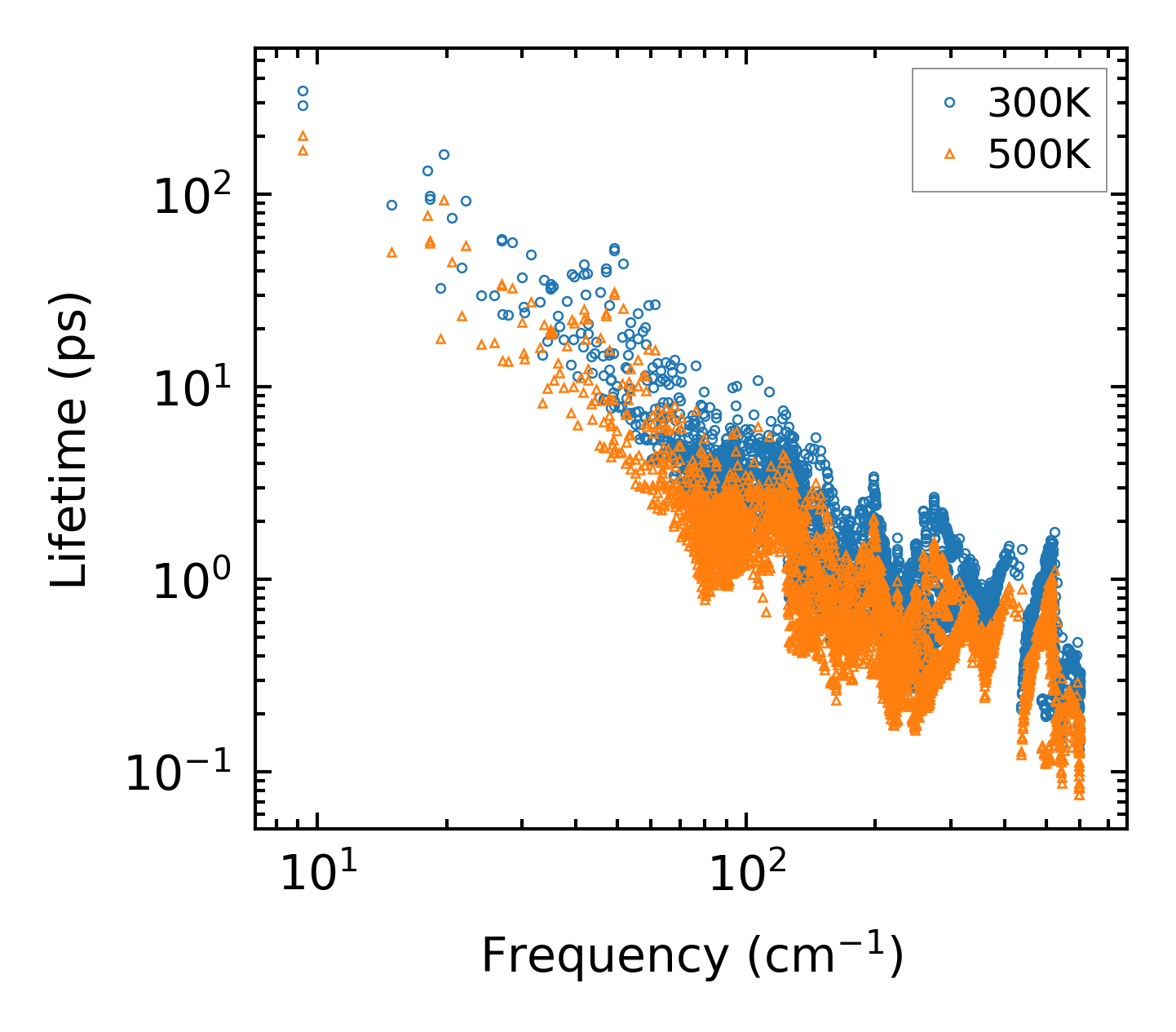

../../_images/fig_lifetime4410.png — (a) Phonon lifetime due to phonon-phonon scattering

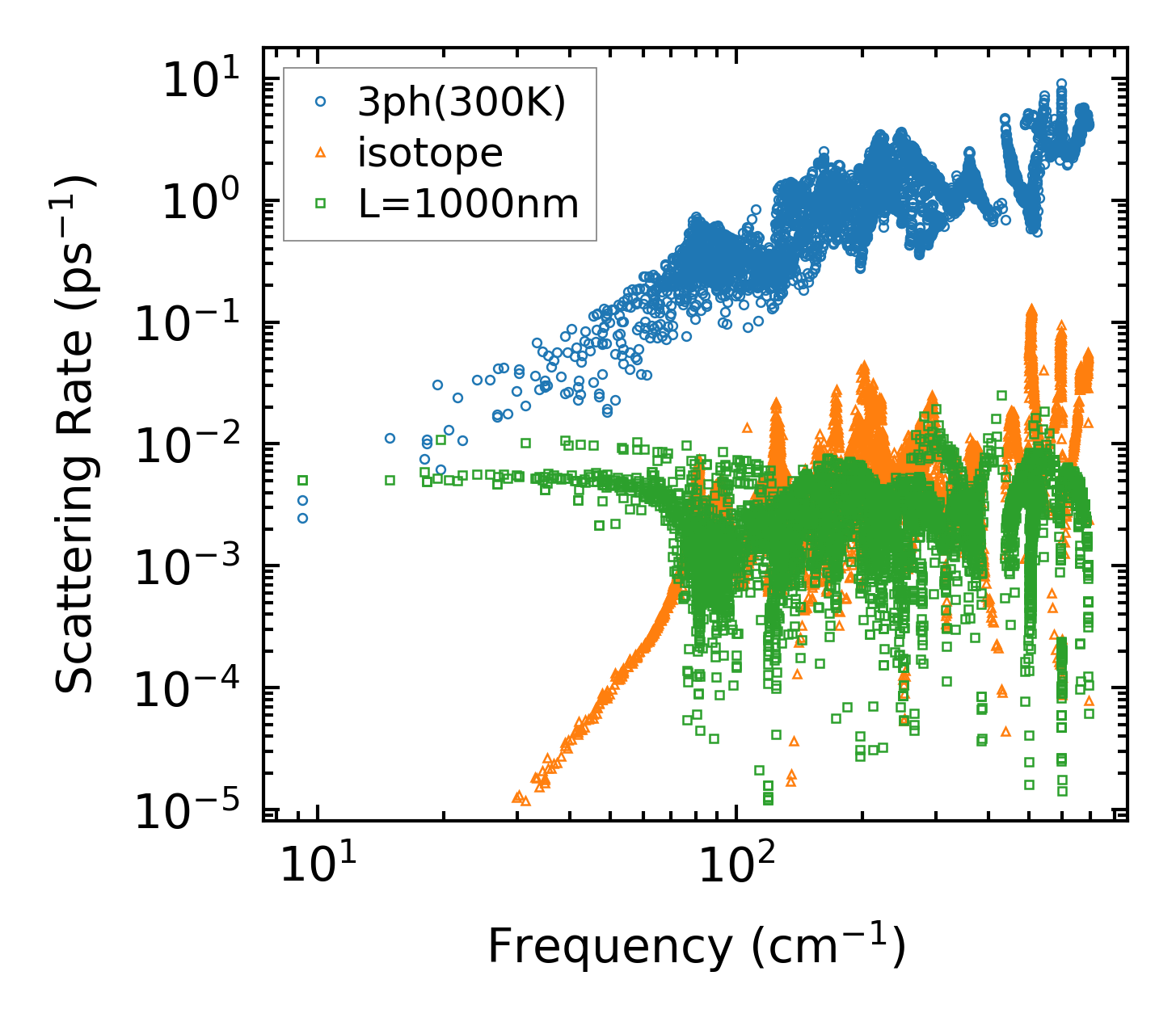

../../_images/fig_scat_rates4409.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

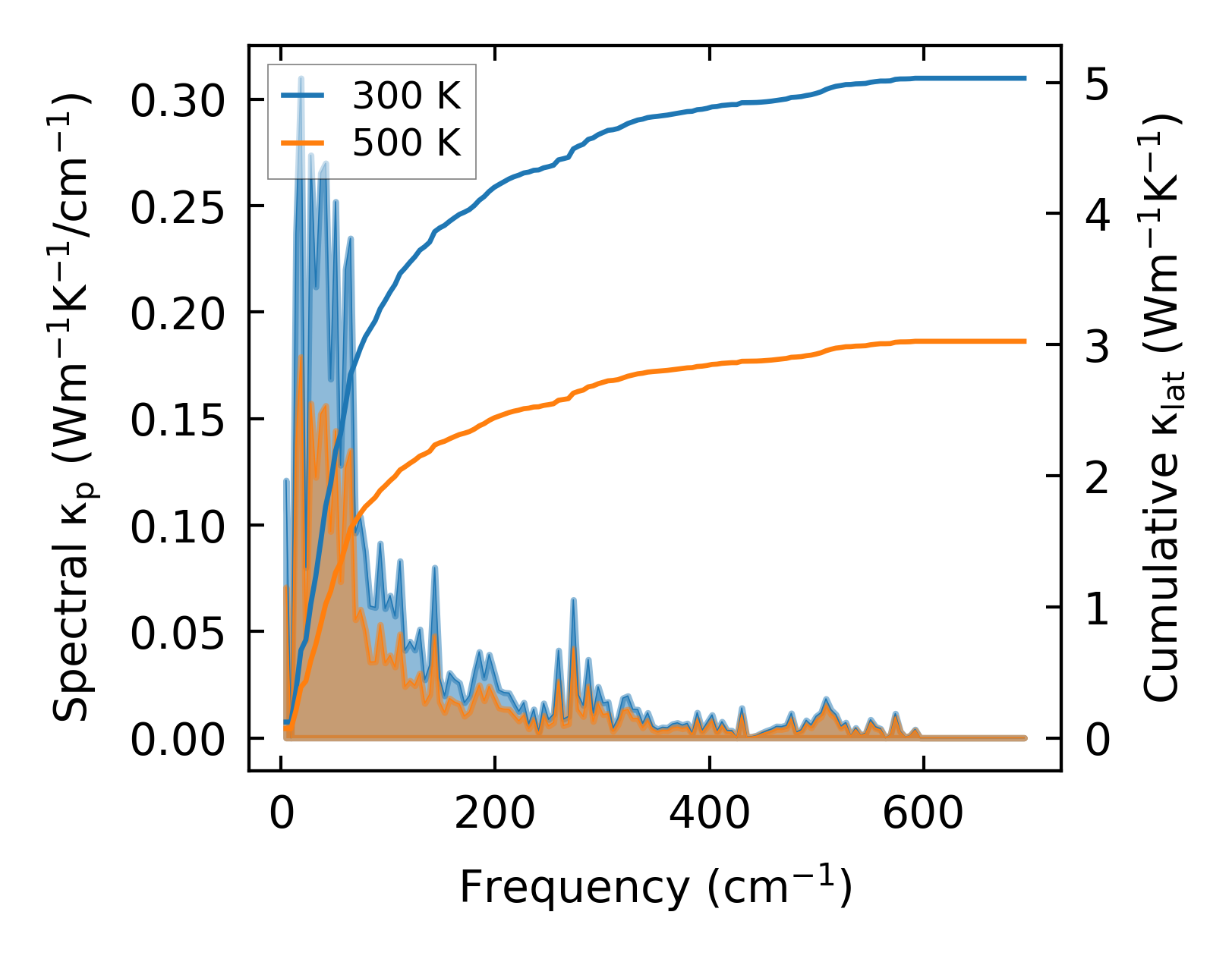

../../_images/fig_cumu_frequency4410.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

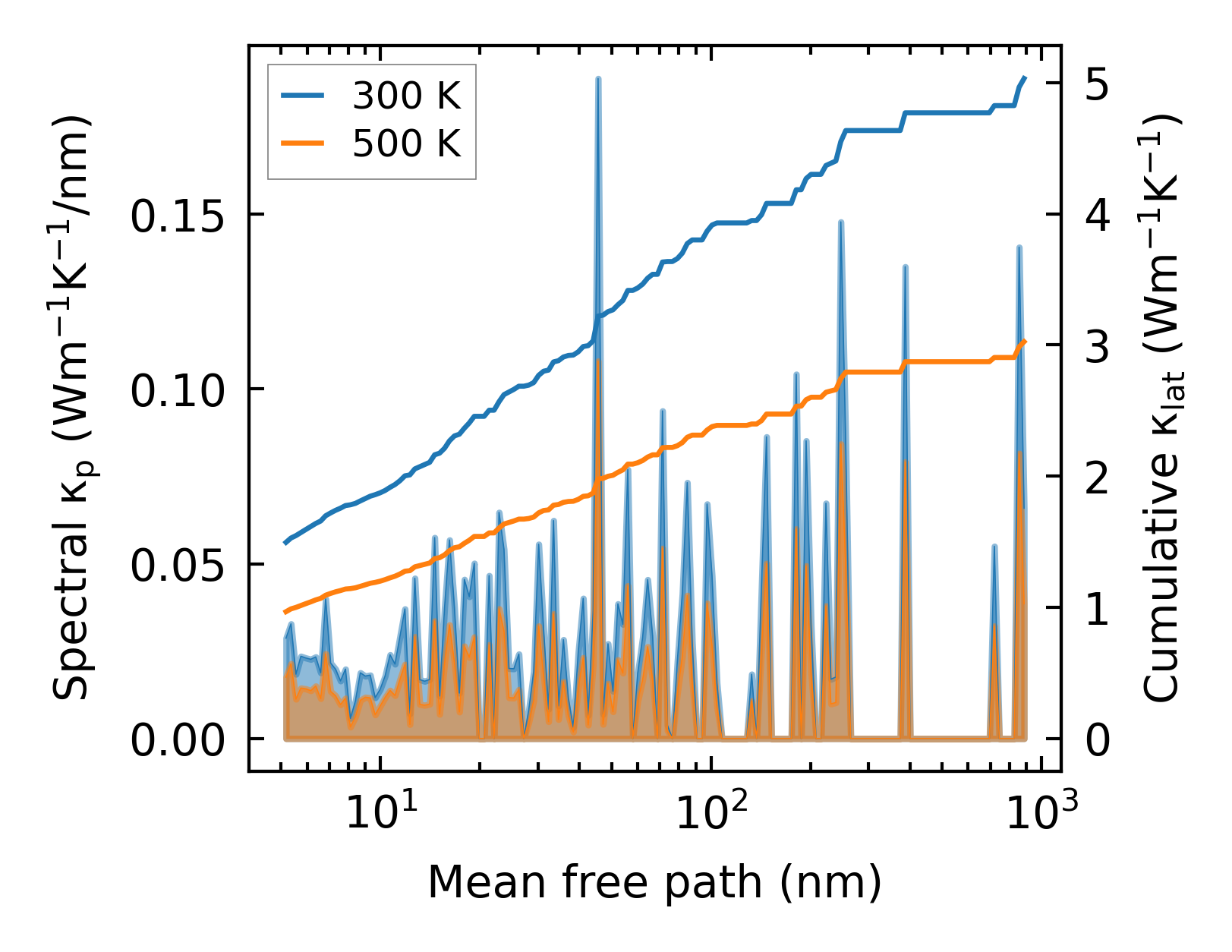

../../_images/fig_cumu_mfp4409.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc210623.png — (a) Force constants w.r.t atomic distance

Summary

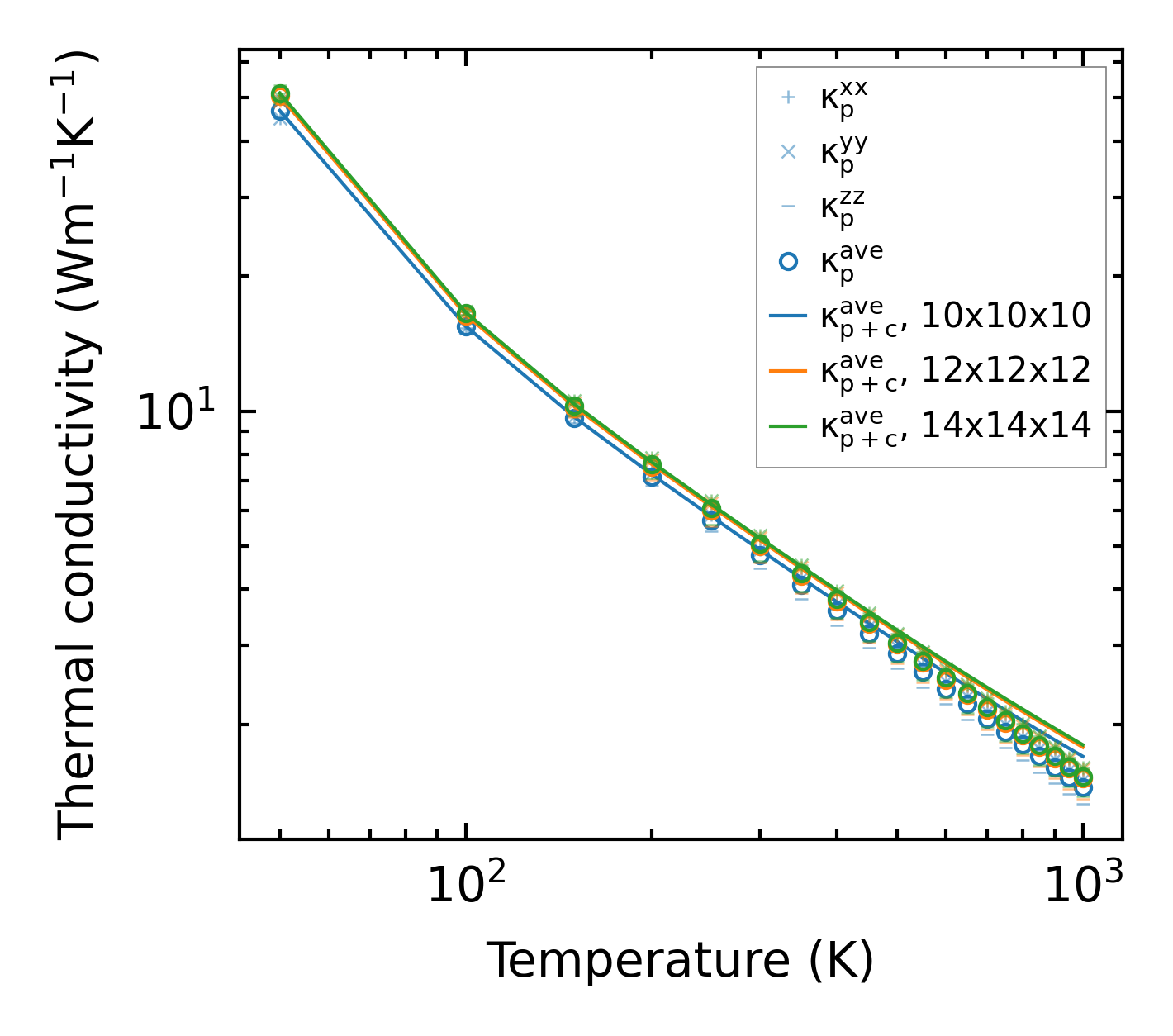

../../_images/fig_kappa8413.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times18639.png — (b) Computation time
