mp-3261/DyB3O6/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-3261.tar.gz

Harmonic properties

../../_images/fig_bandos_pr10868.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10868.png — (b) Thermodynamic properties

Grüneisen parameters

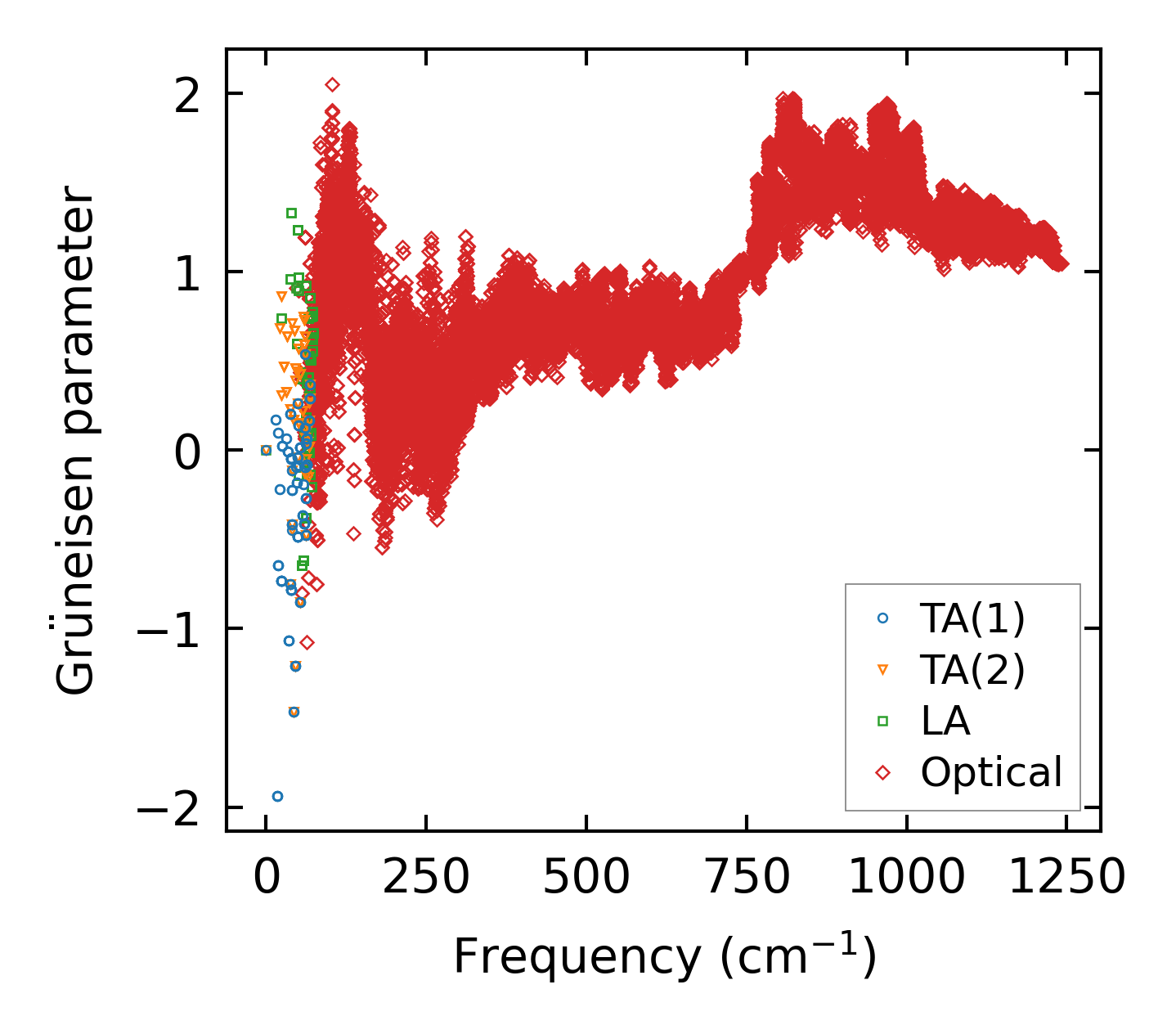

../../_images/fig_gru_all4443.png — (a) Grüneisen parameters

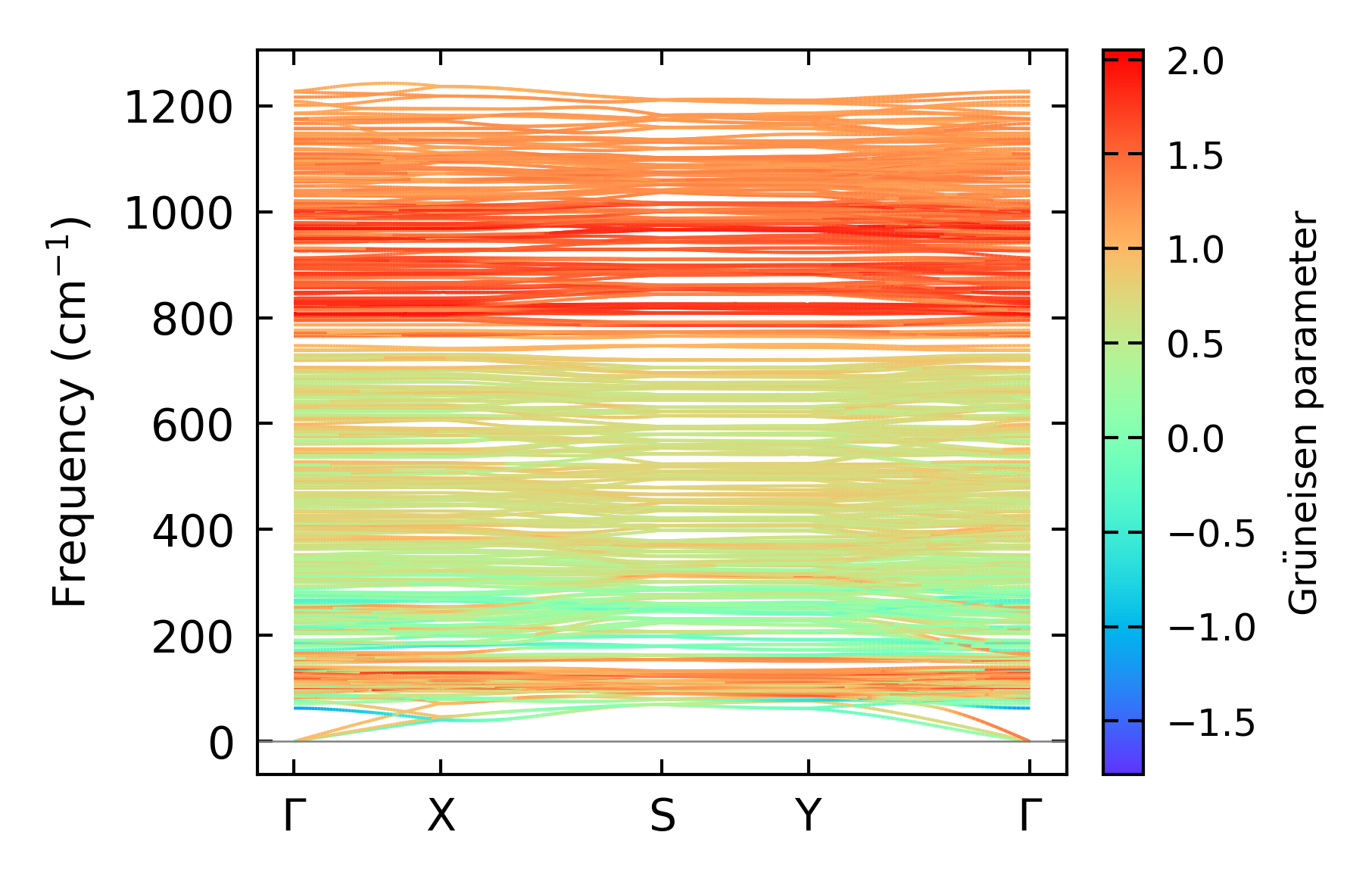

../../_images/fig_gruneisen4443.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x9x5, supercell: 1x1x1

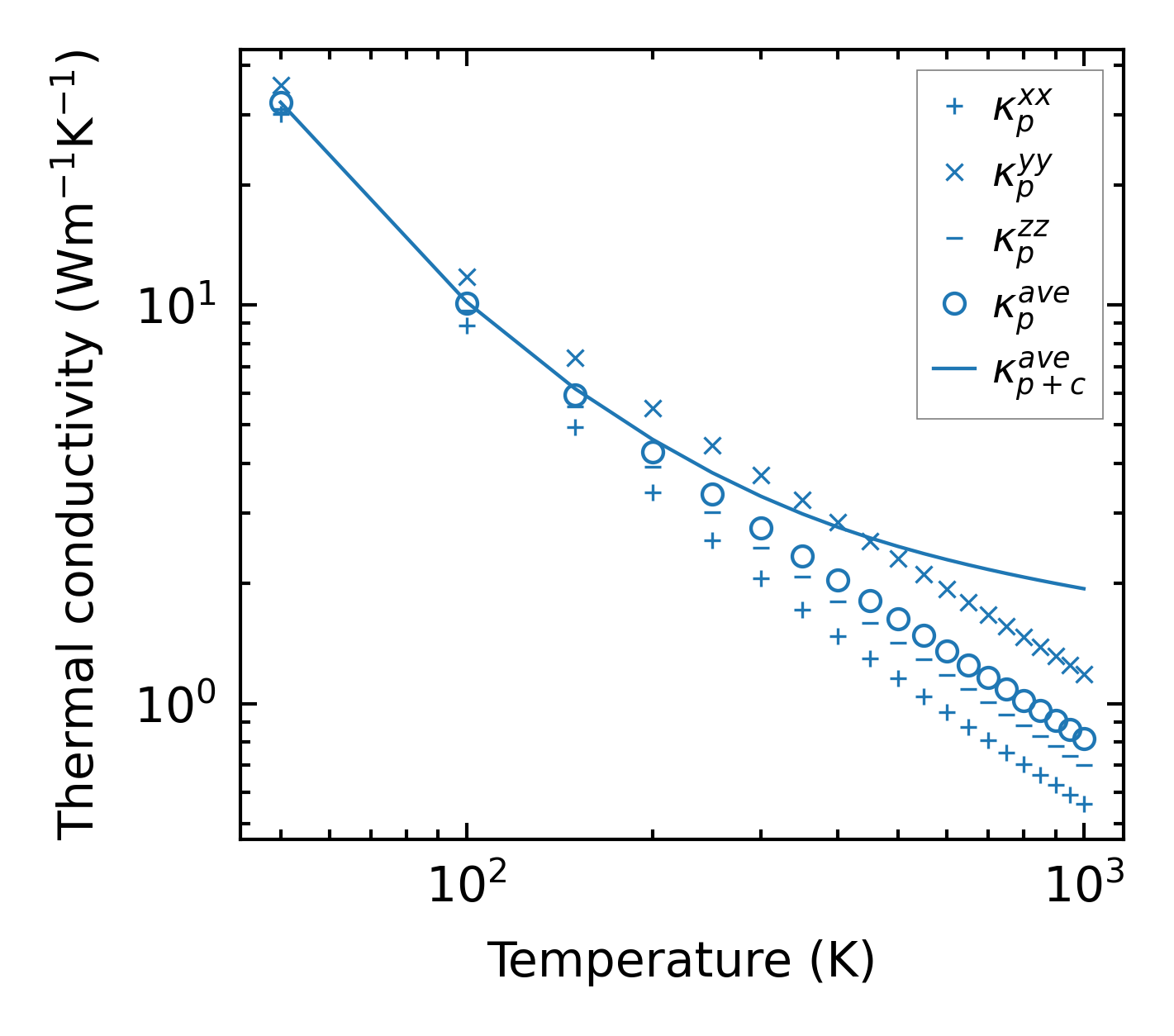

../../_images/fig_kappa8393.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4498.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

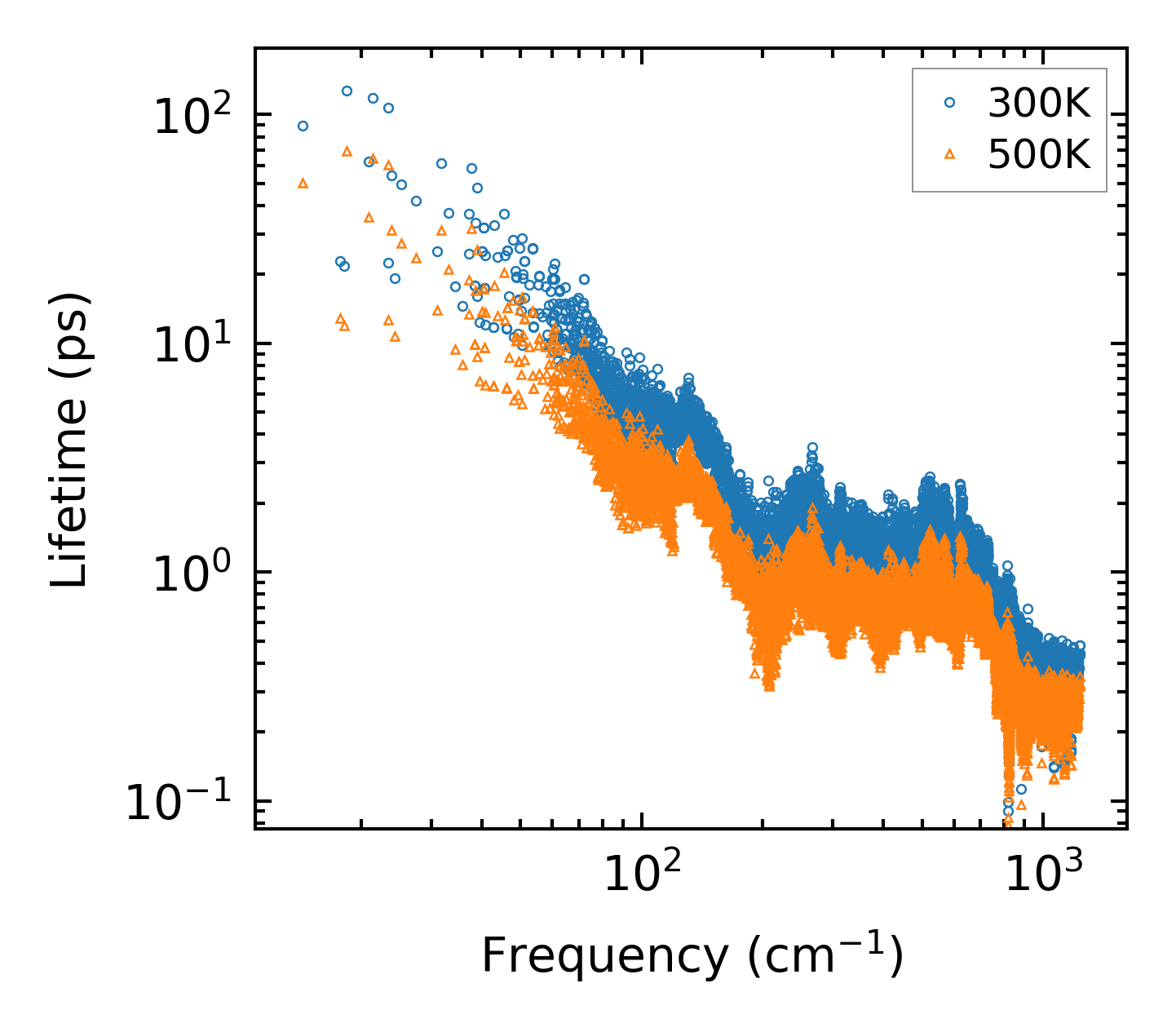

../../_images/fig_lifetime4400.png — (a) Phonon lifetime due to phonon-phonon scattering

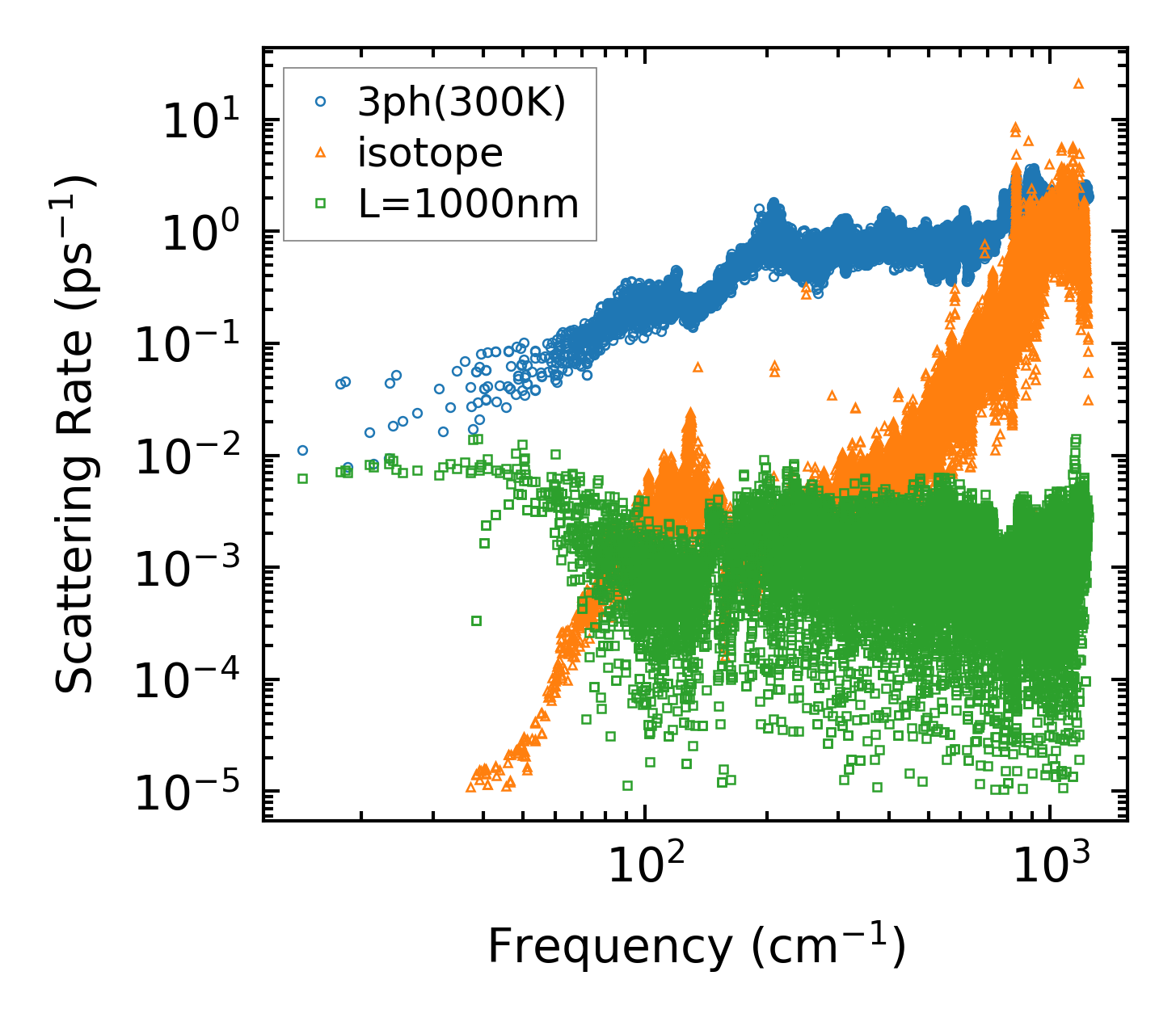

../../_images/fig_scat_rates4399.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4400.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4399.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

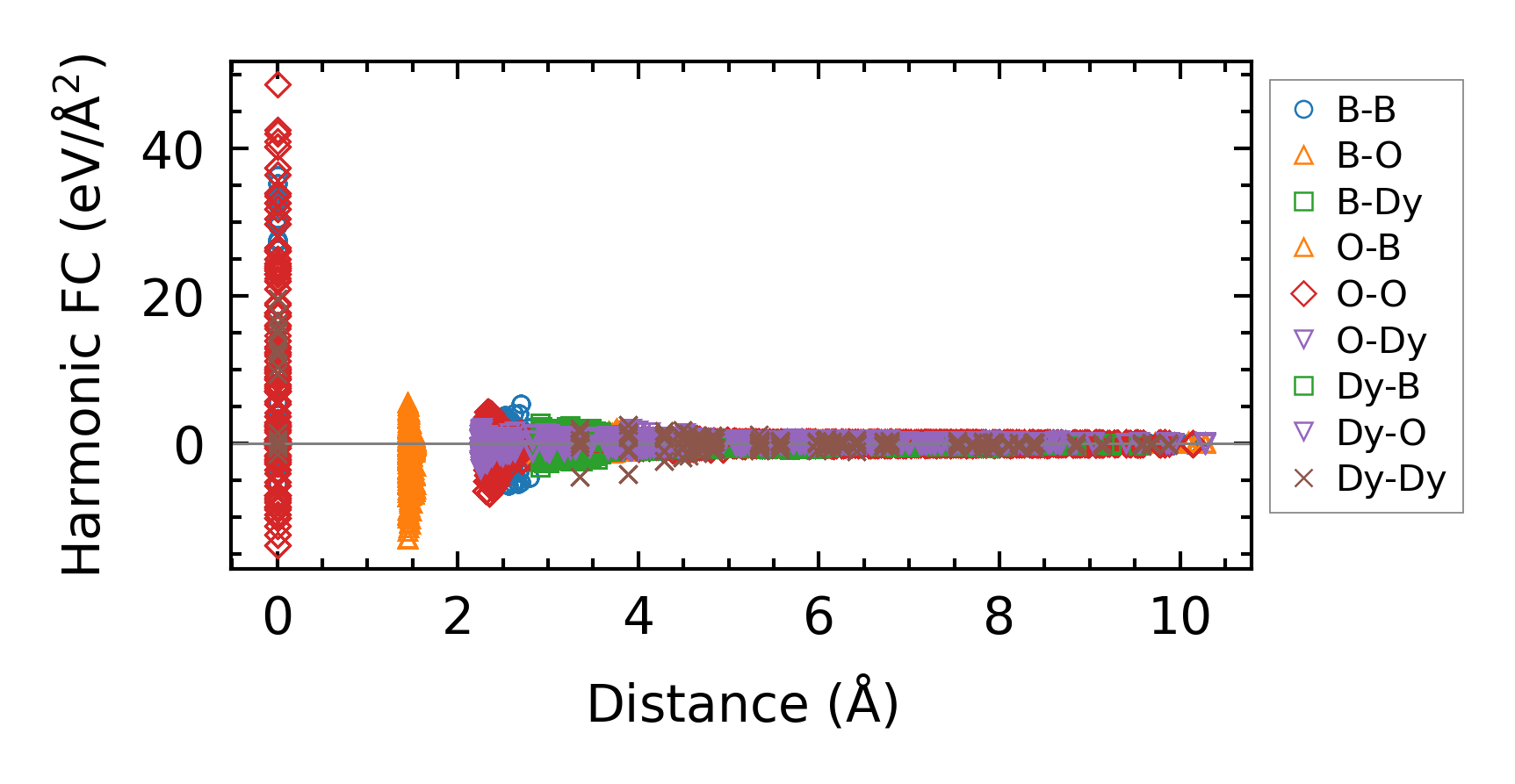

../../_images/fig_fc210594.png — (a) Force constants w.r.t atomic distance

Summary

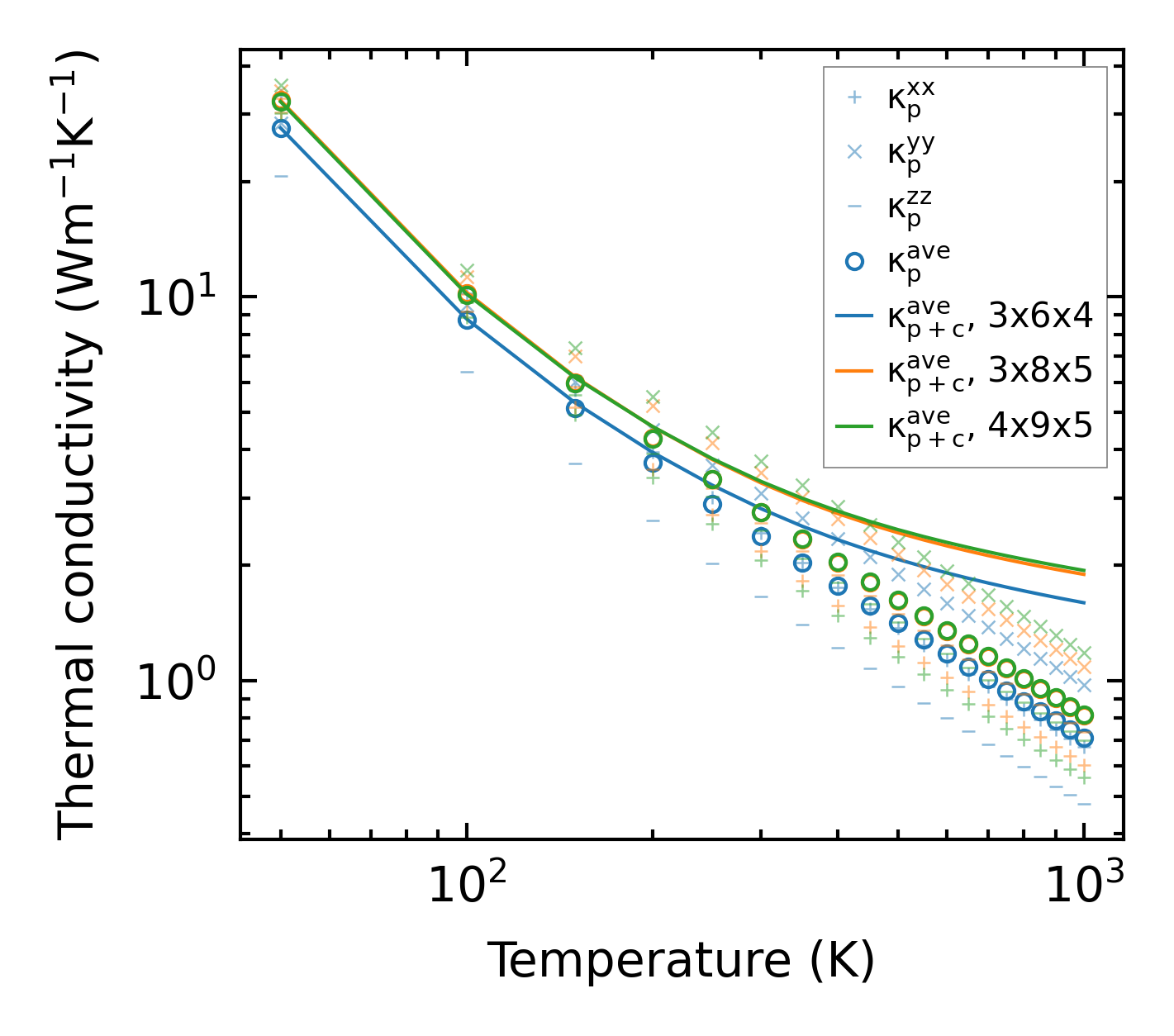

../../_images/fig_kappa8394.png — (a) Temperature-dependent lattice thermal conductivity

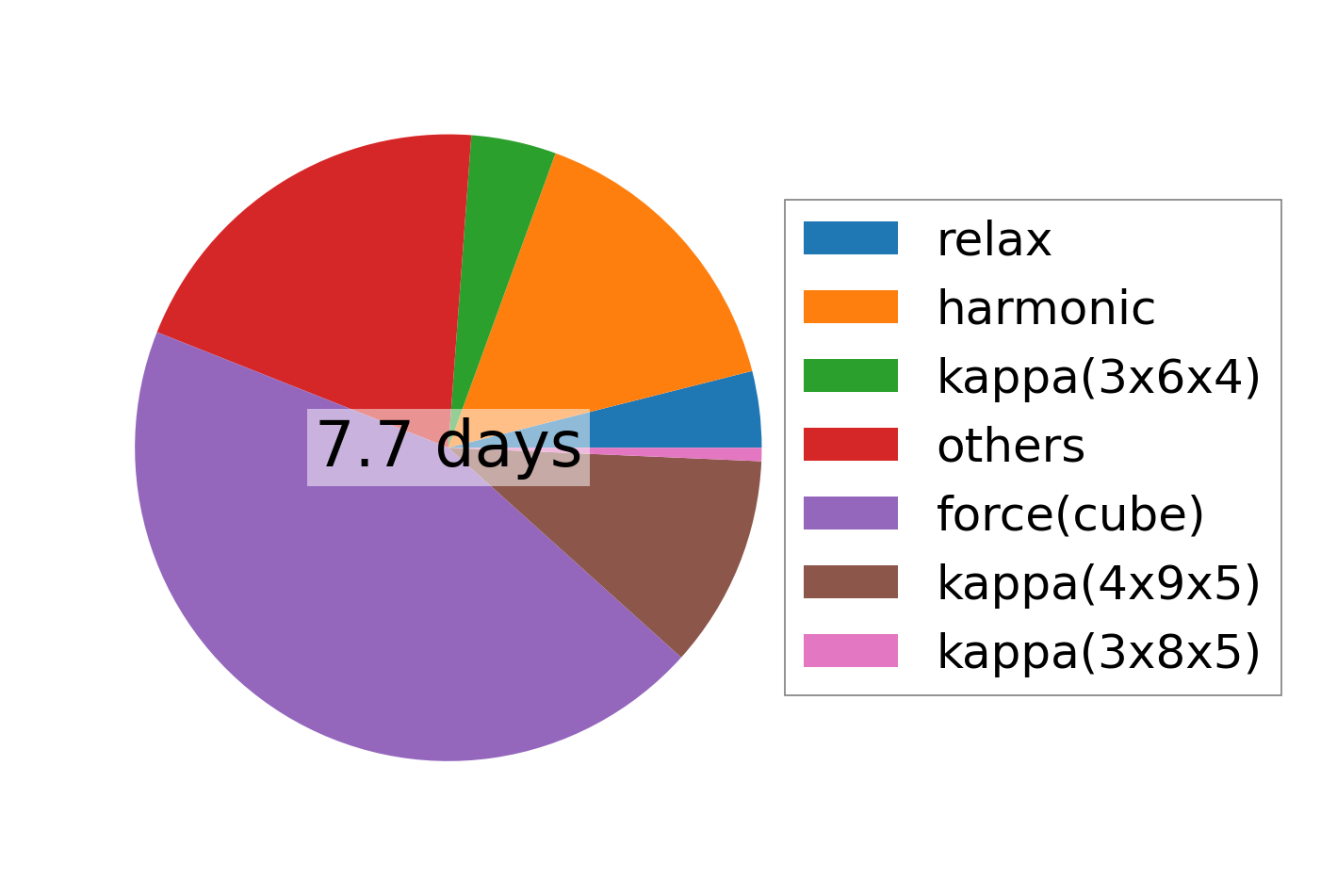

../../_images/fig_times18599.png — (b) Computation time
