mp-560993/CaAl12Si4O27/anharm

Space group: P-3 (147)
Link: Materials Project
Download: mp-560993.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7615.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7615.png — (b) Thermodynamic properties

Grüneisen parameters

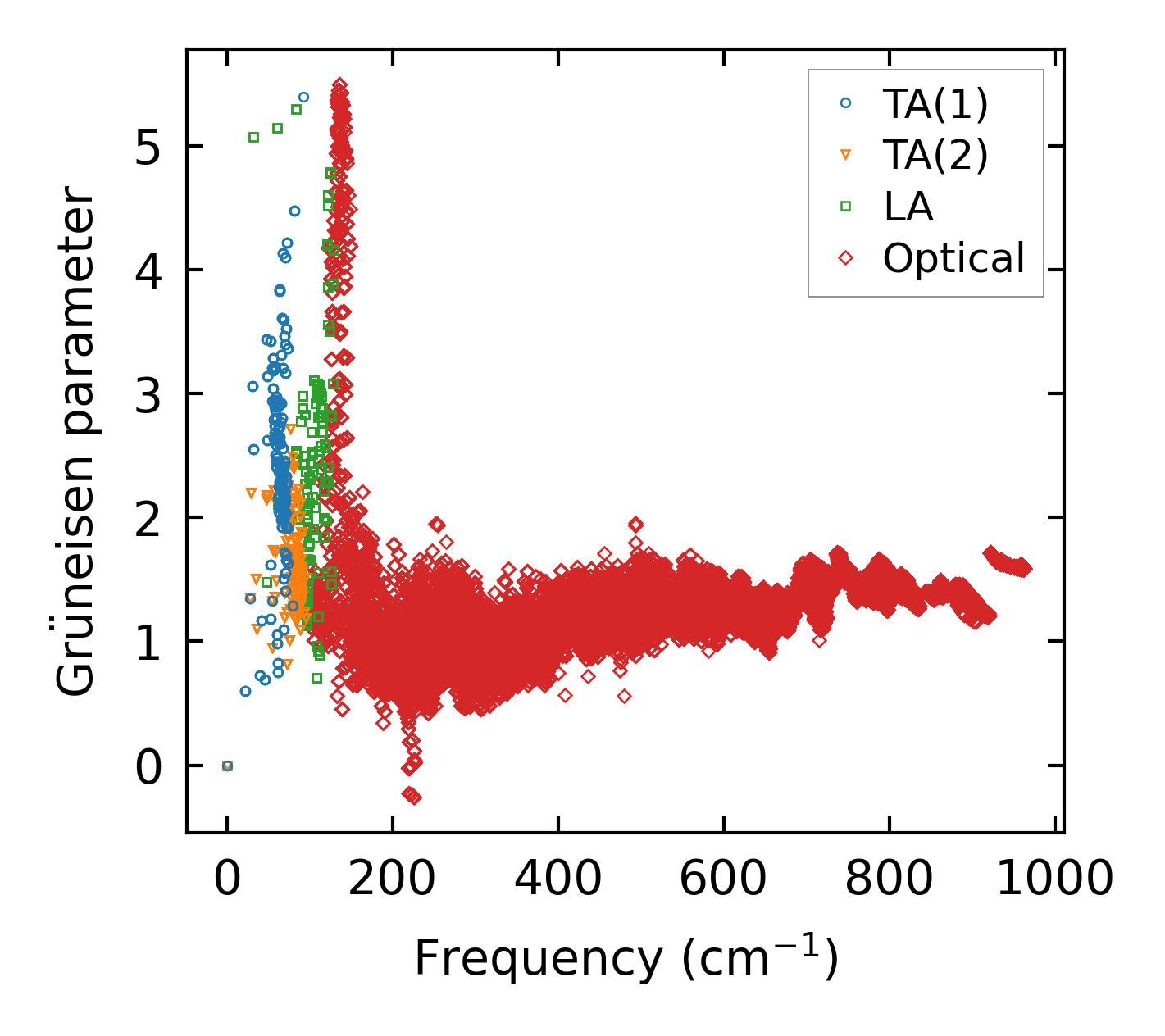

../../_images/fig_gru_all3192.png — (a) Grüneisen parameters

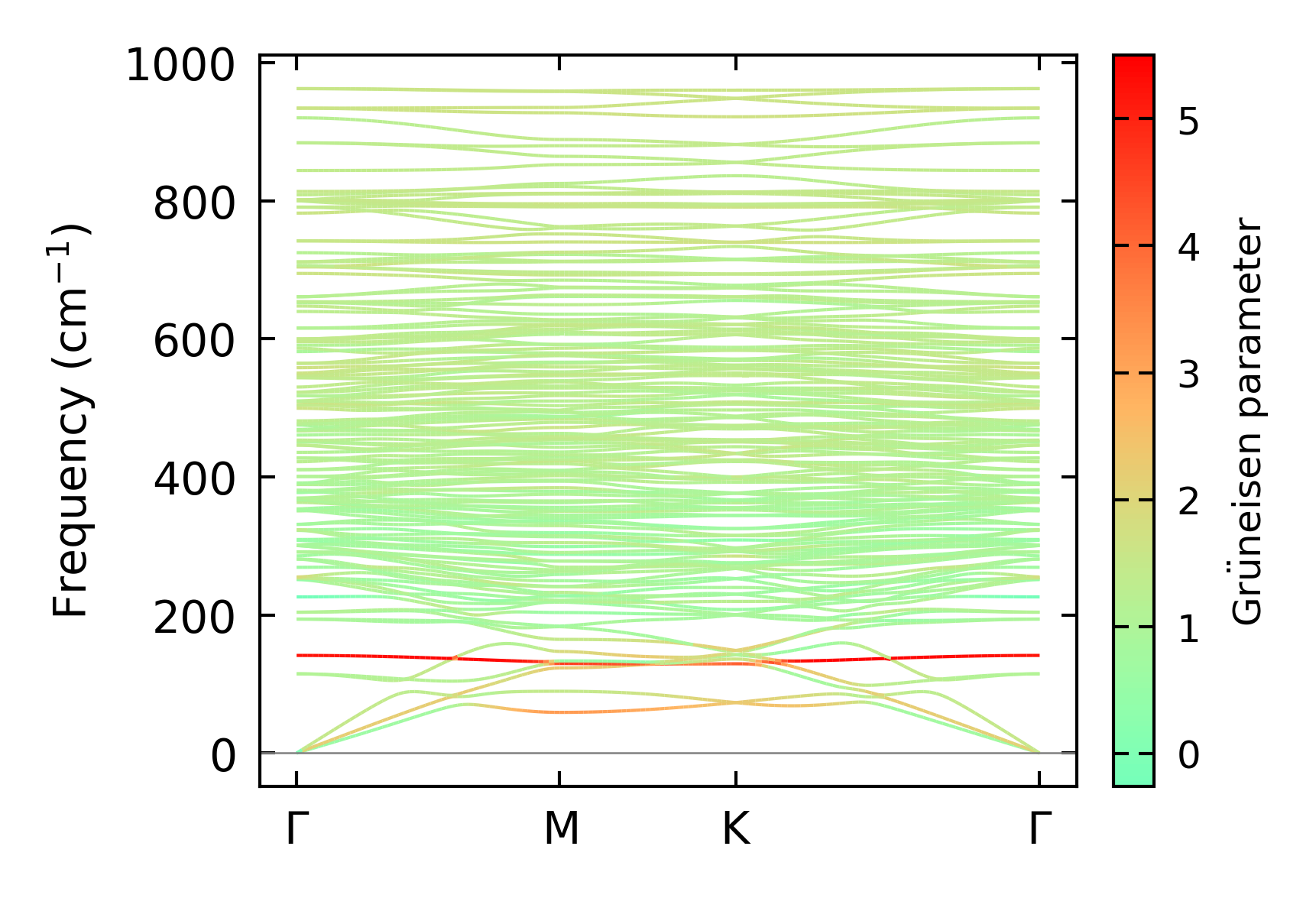

../../_images/fig_gruneisen3192.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x8, supercell: 1x1x1

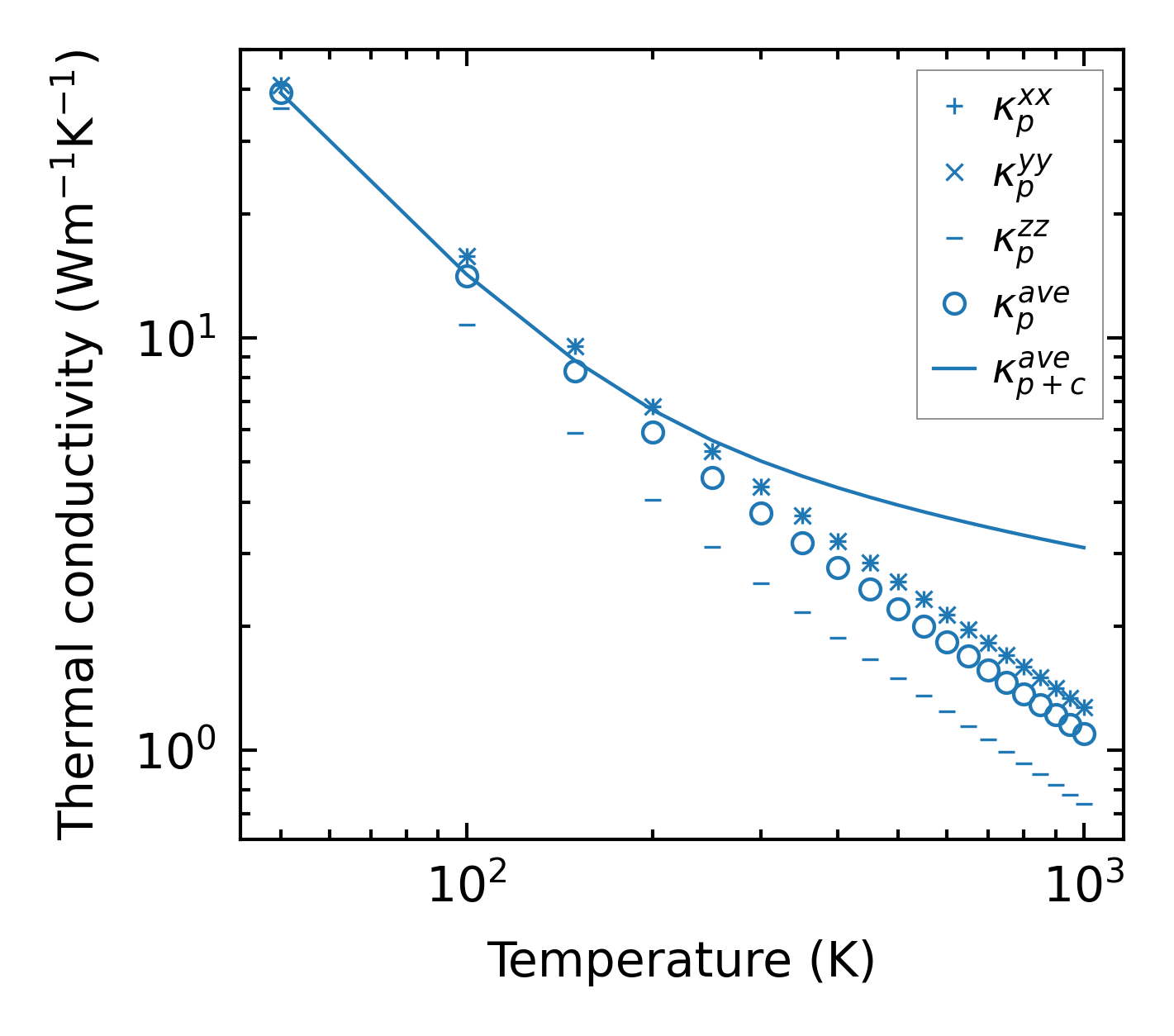

../../_images/fig_kappa6043.png — (a) Temperature-dependent lattice thermal conductivity

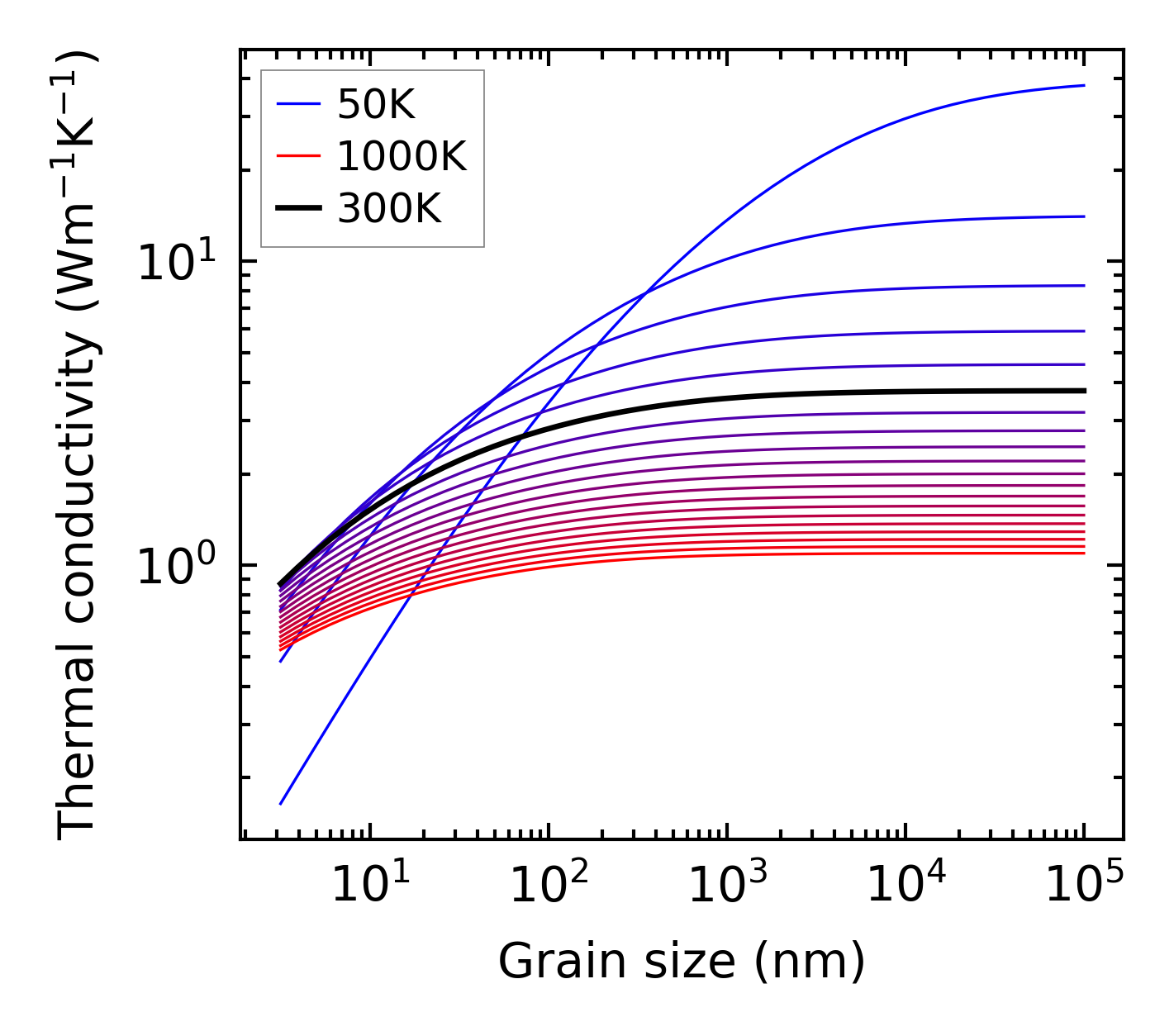

../../_images/fig_kappa_vs_grain_size3233.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

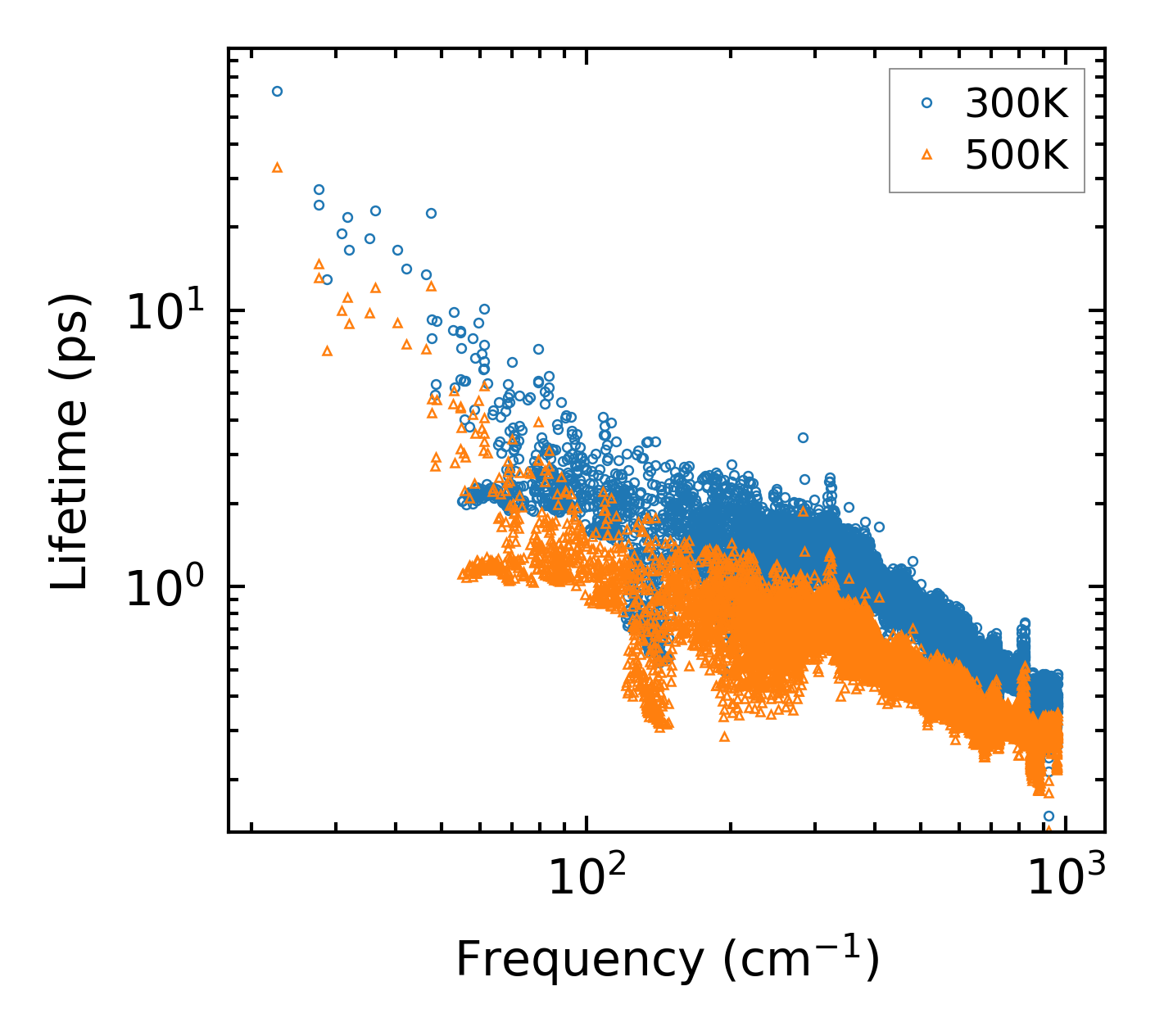

../../_images/fig_lifetime3164.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3163.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

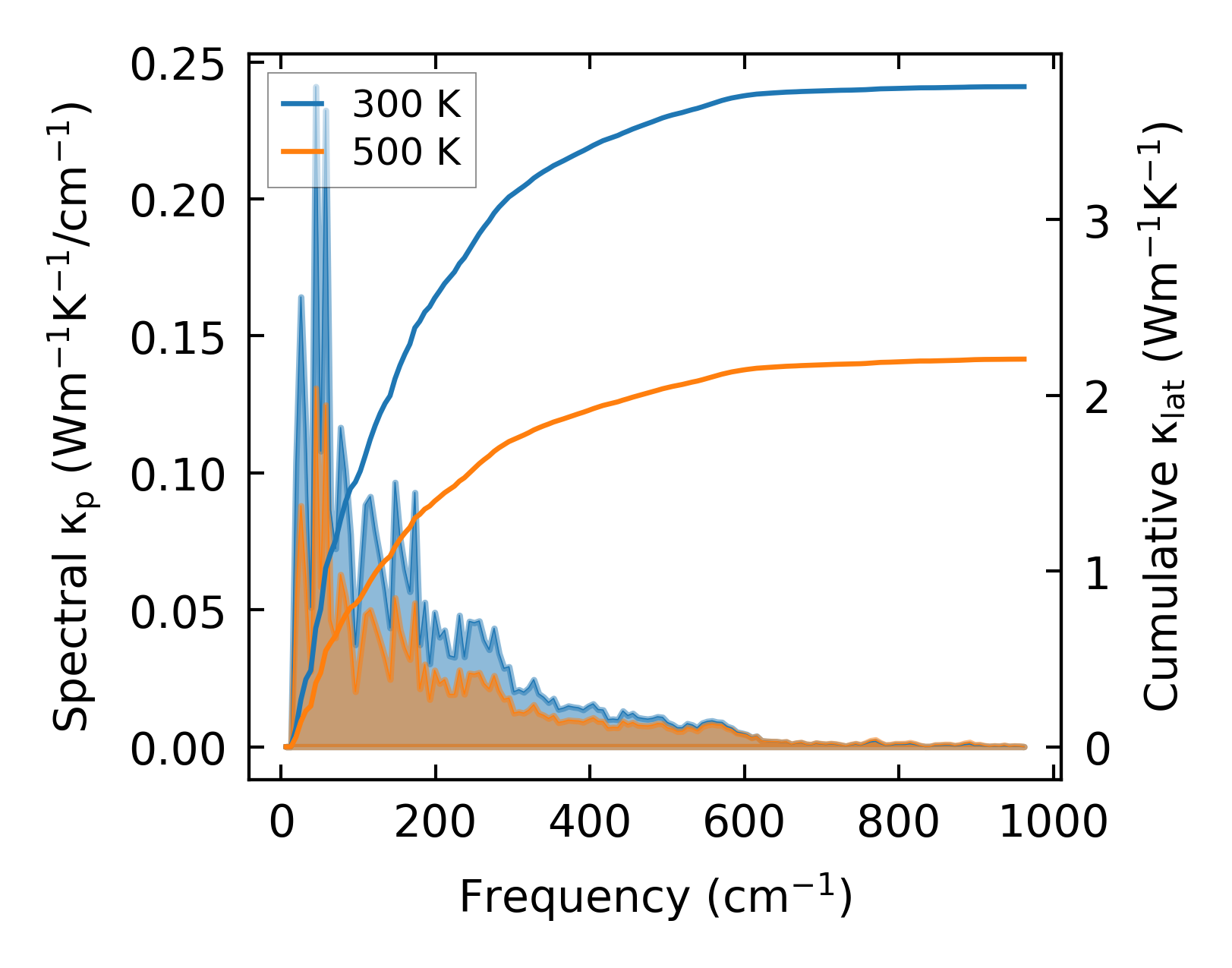

../../_images/fig_cumu_frequency3164.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3163.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27378.png — (a) Force constants w.r.t atomic distance

Summary

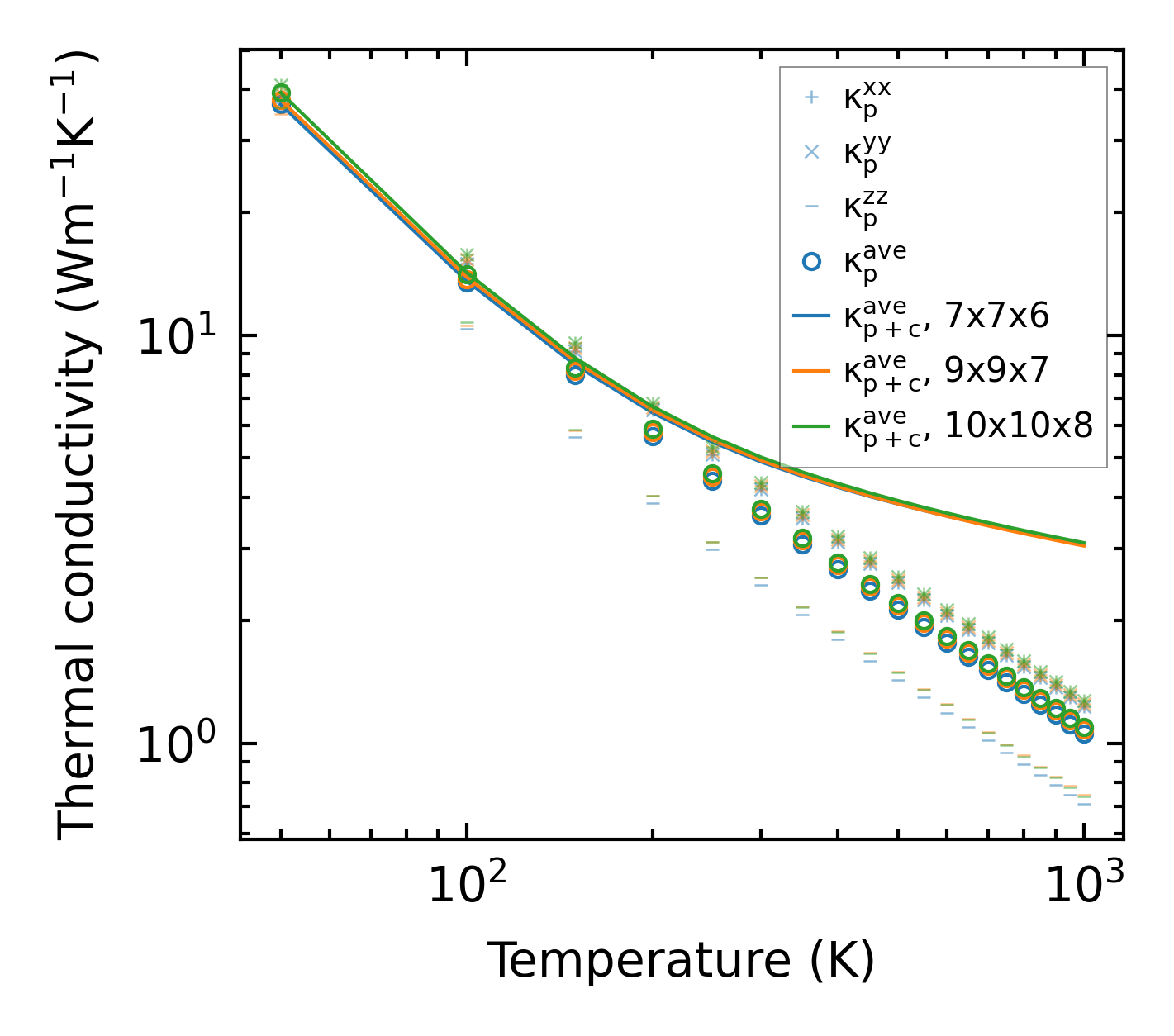

../../_images/fig_kappa6044.png — (a) Temperature-dependent lattice thermal conductivity

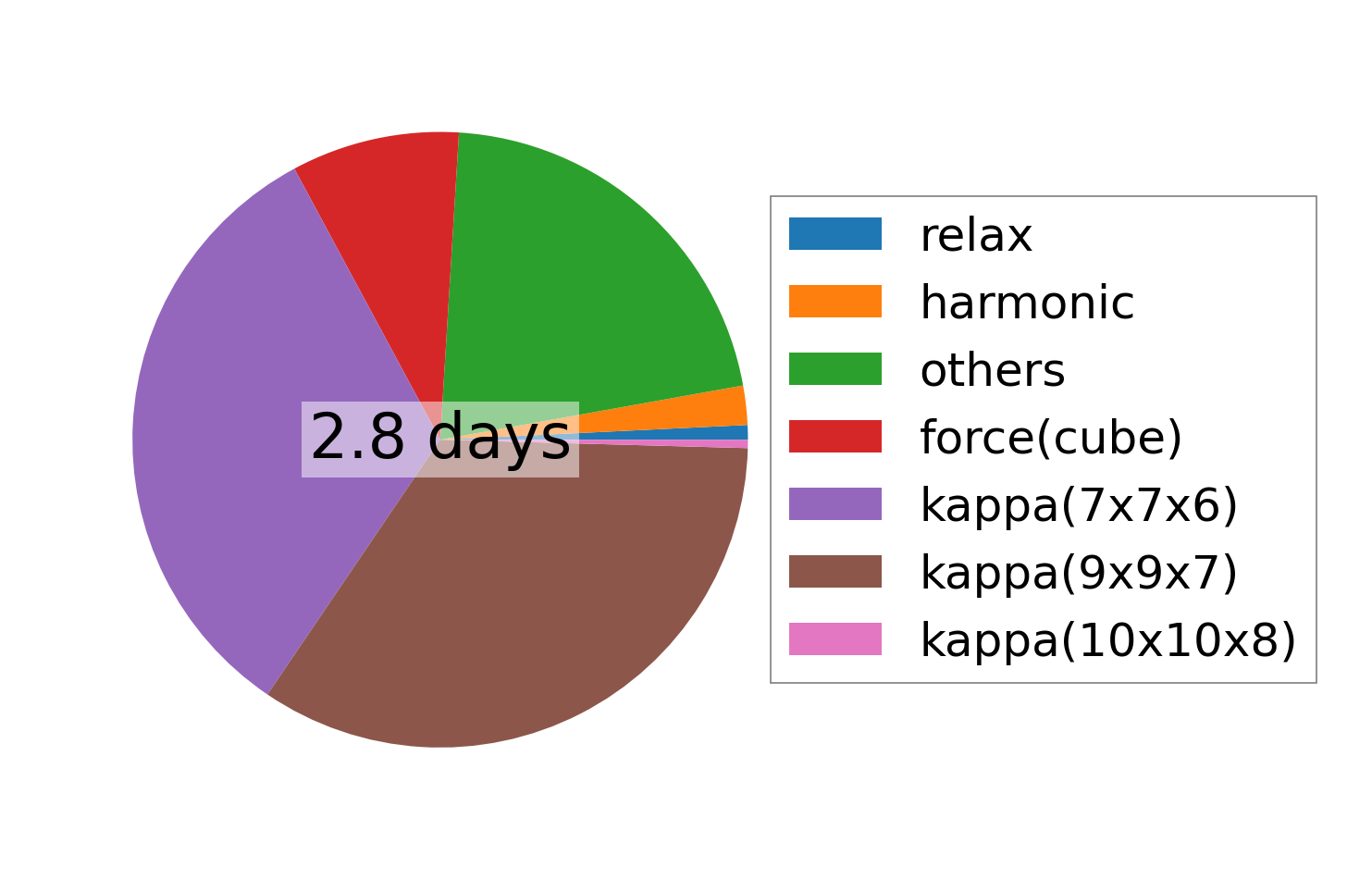

../../_images/fig_times13466.png — (b) Computation time
