mp-560886/SrSi2O5/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-560886.tar.gz

Harmonic properties

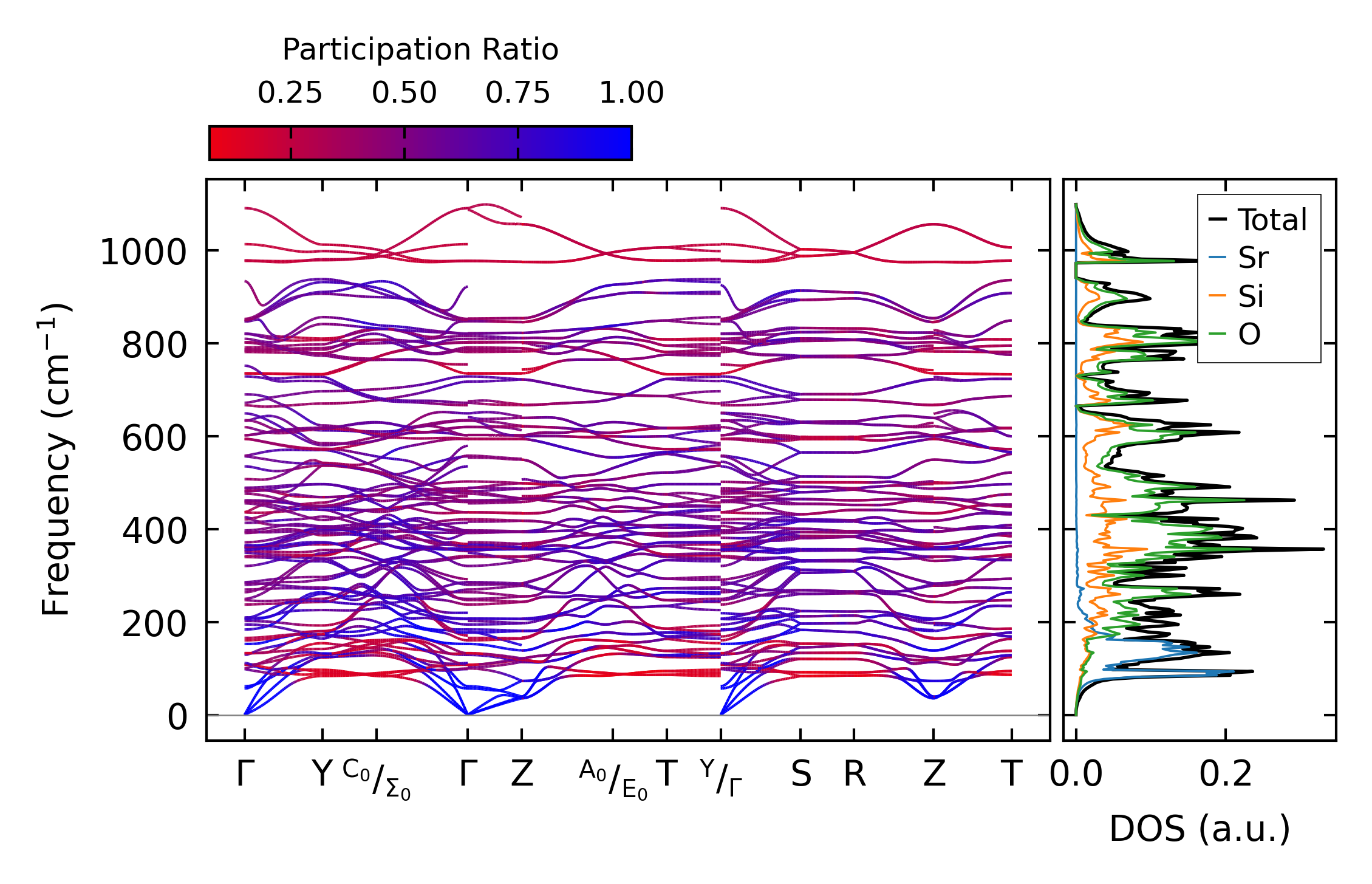

../../_images/fig_bandos_pr7598.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7598.png — (b) Thermodynamic properties

Grüneisen parameters

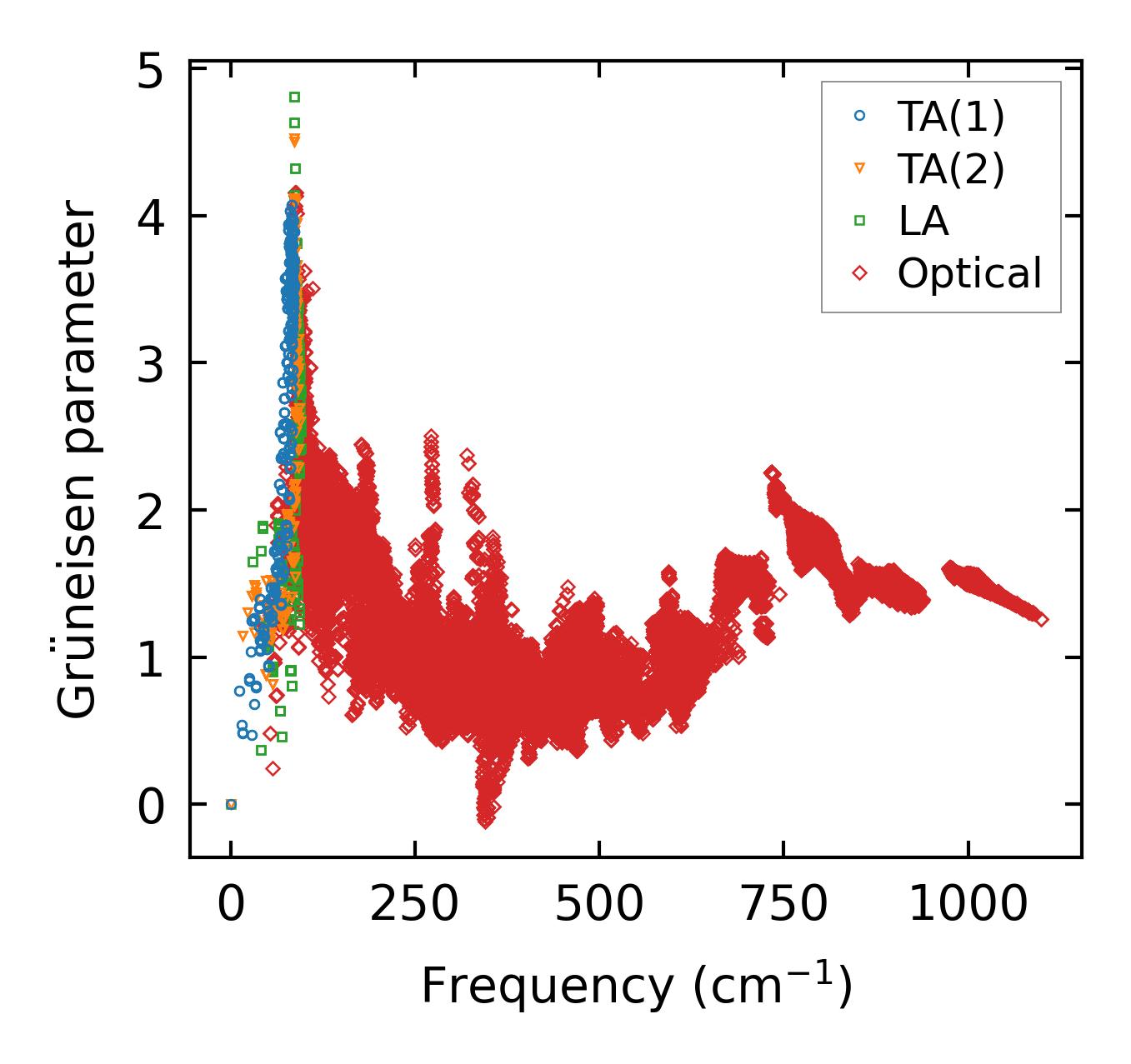

../../_images/fig_gru_all3186.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3186.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x5, supercell: 2x1x1

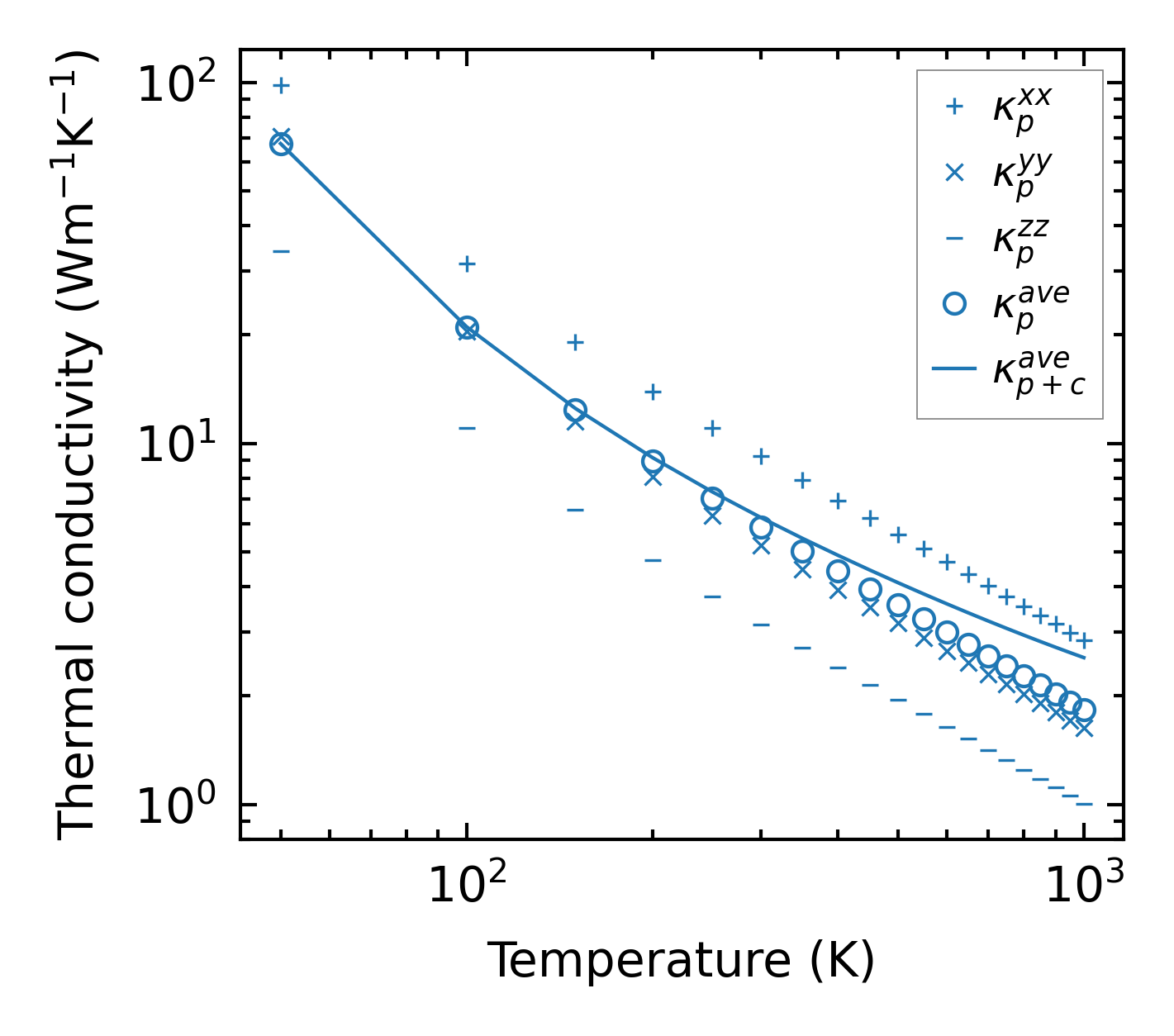

../../_images/fig_kappa6032.png — (a) Temperature-dependent lattice thermal conductivity

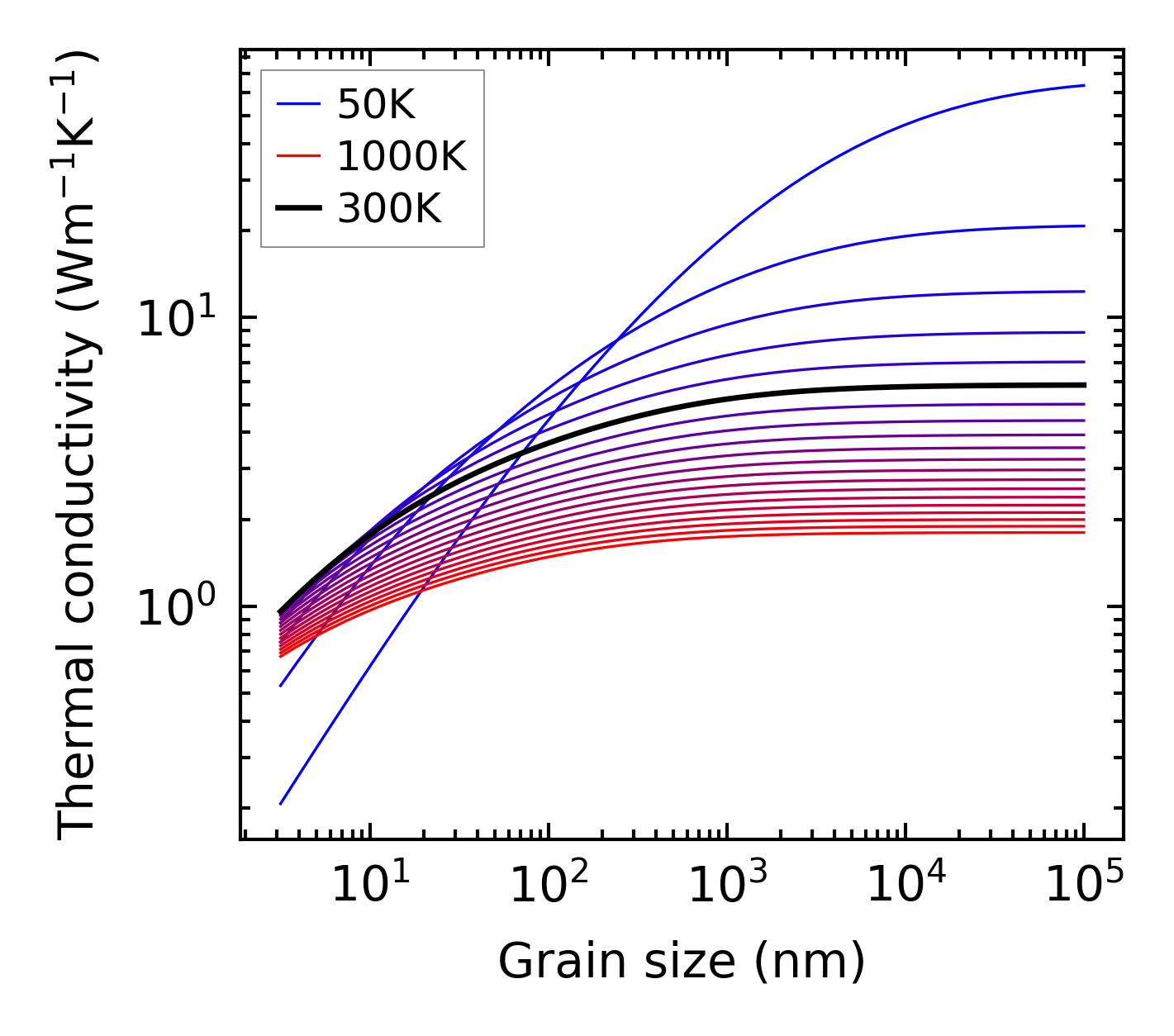

../../_images/fig_kappa_vs_grain_size3227.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

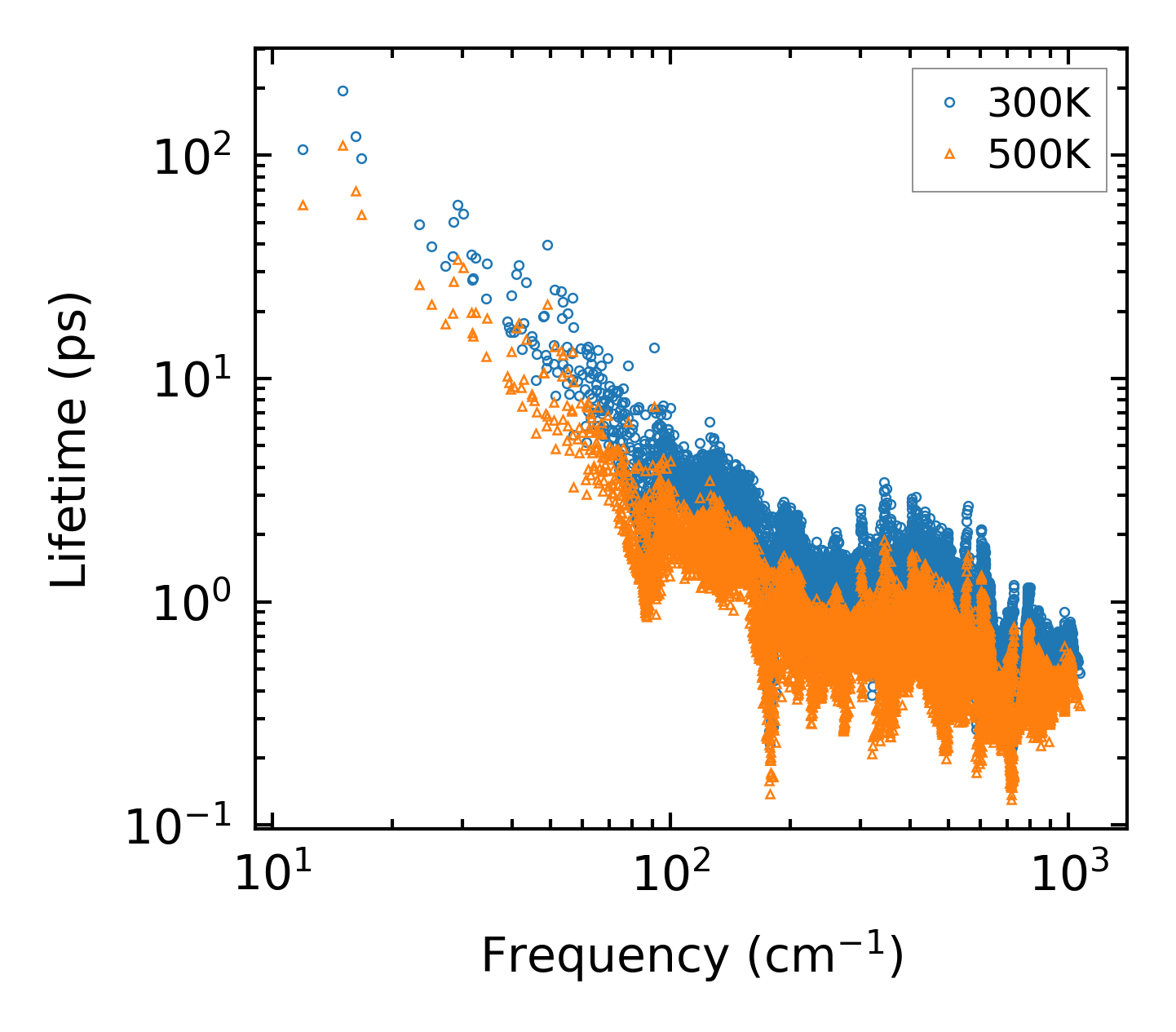

../../_images/fig_lifetime3158.png — (a) Phonon lifetime due to phonon-phonon scattering

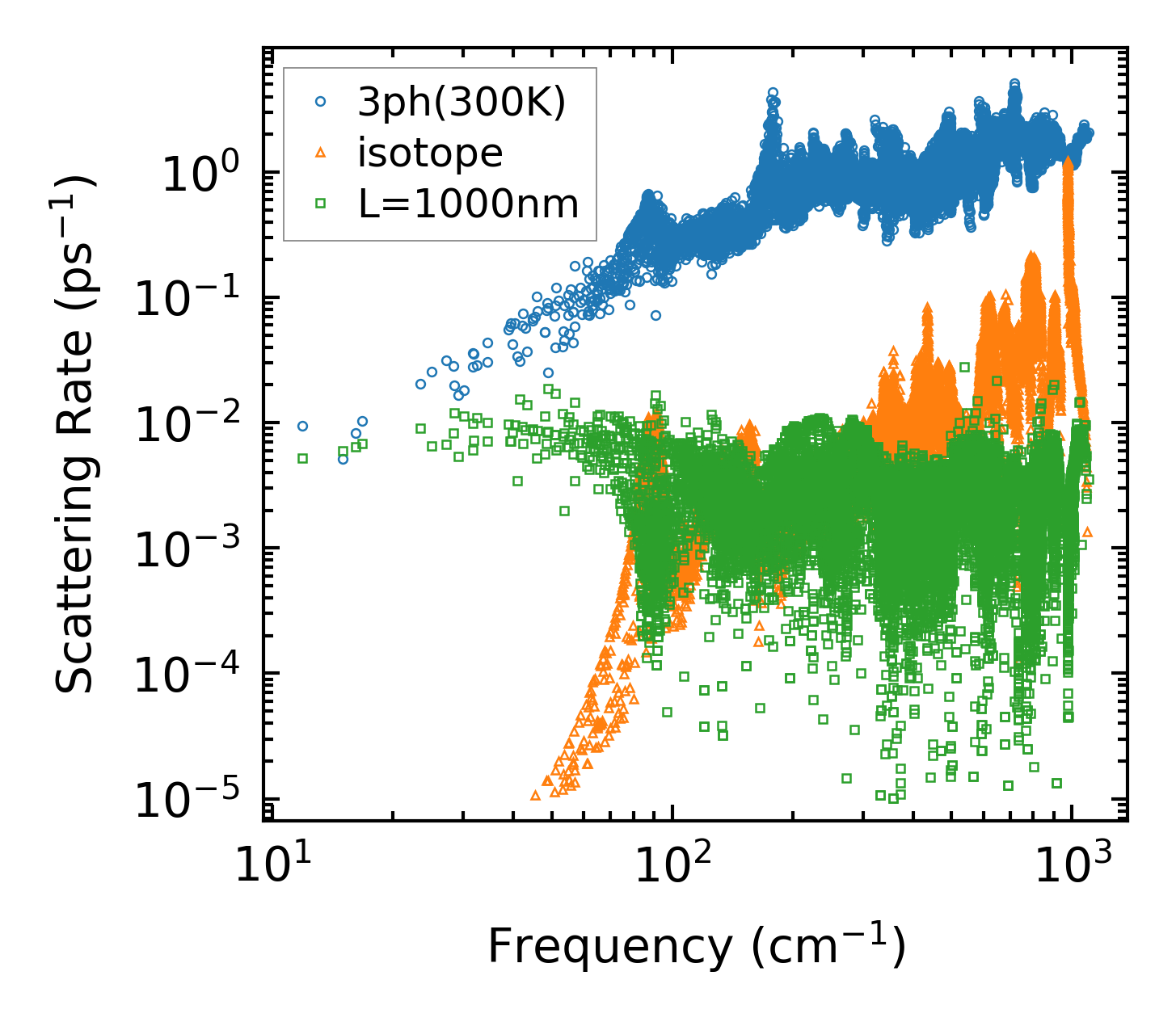

../../_images/fig_scat_rates3157.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3158.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

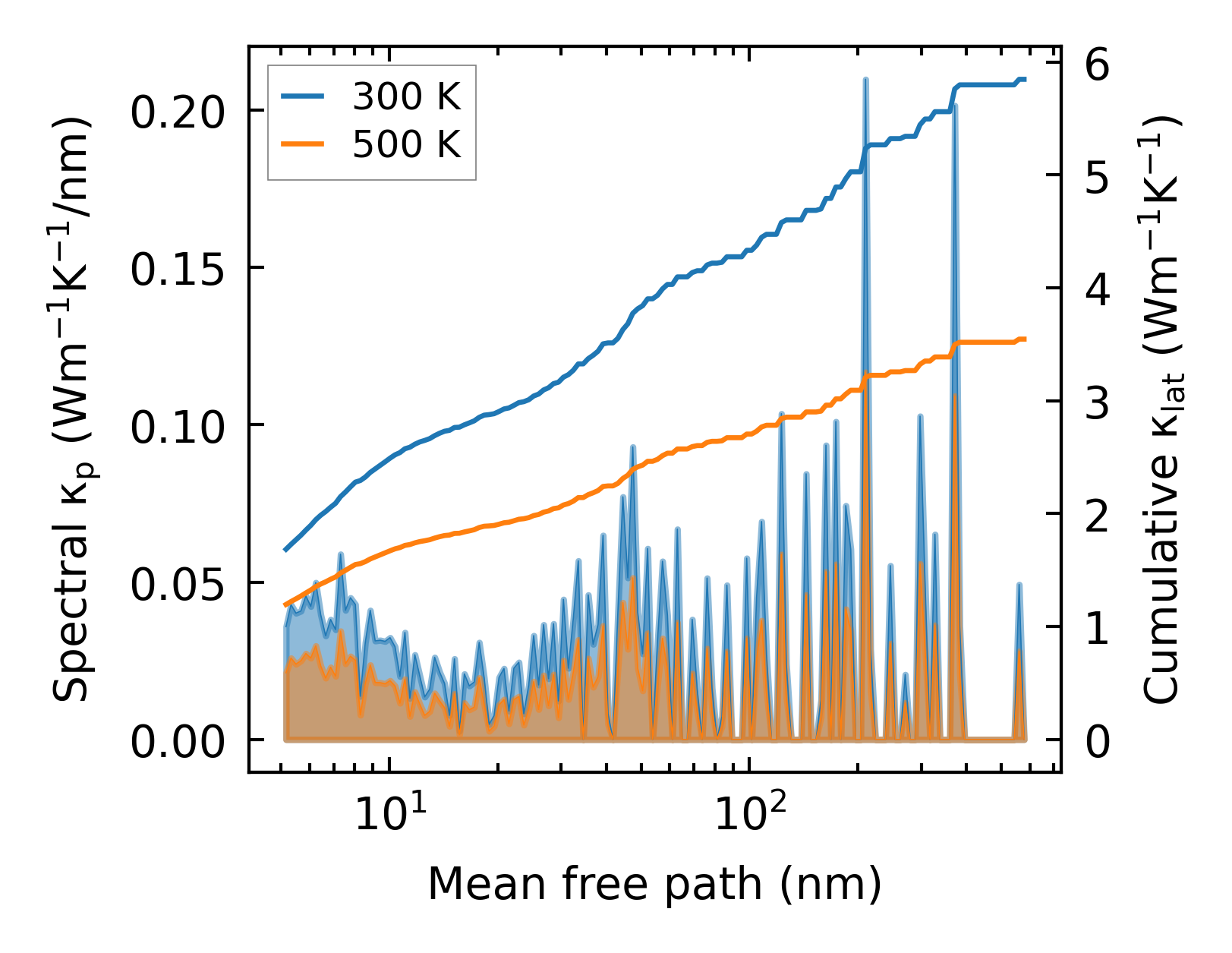

../../_images/fig_cumu_mfp3157.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

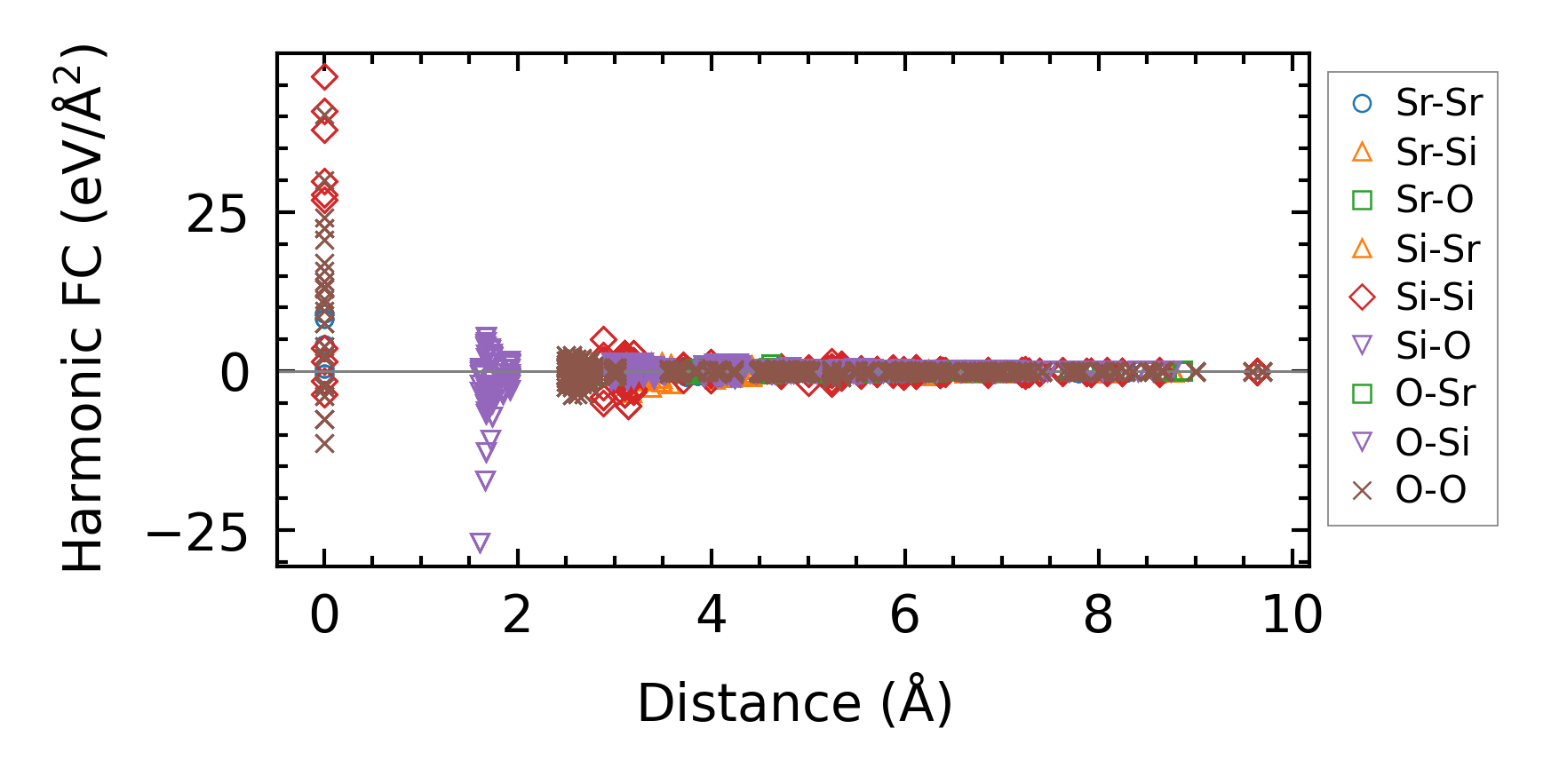

../../_images/fig_fc27361.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6033.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times13436.png — (b) Computation time
