mp-560872/Mg10Ge3H4O18/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-560872.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7593.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7593.png — (b) Thermodynamic properties

Grüneisen parameters

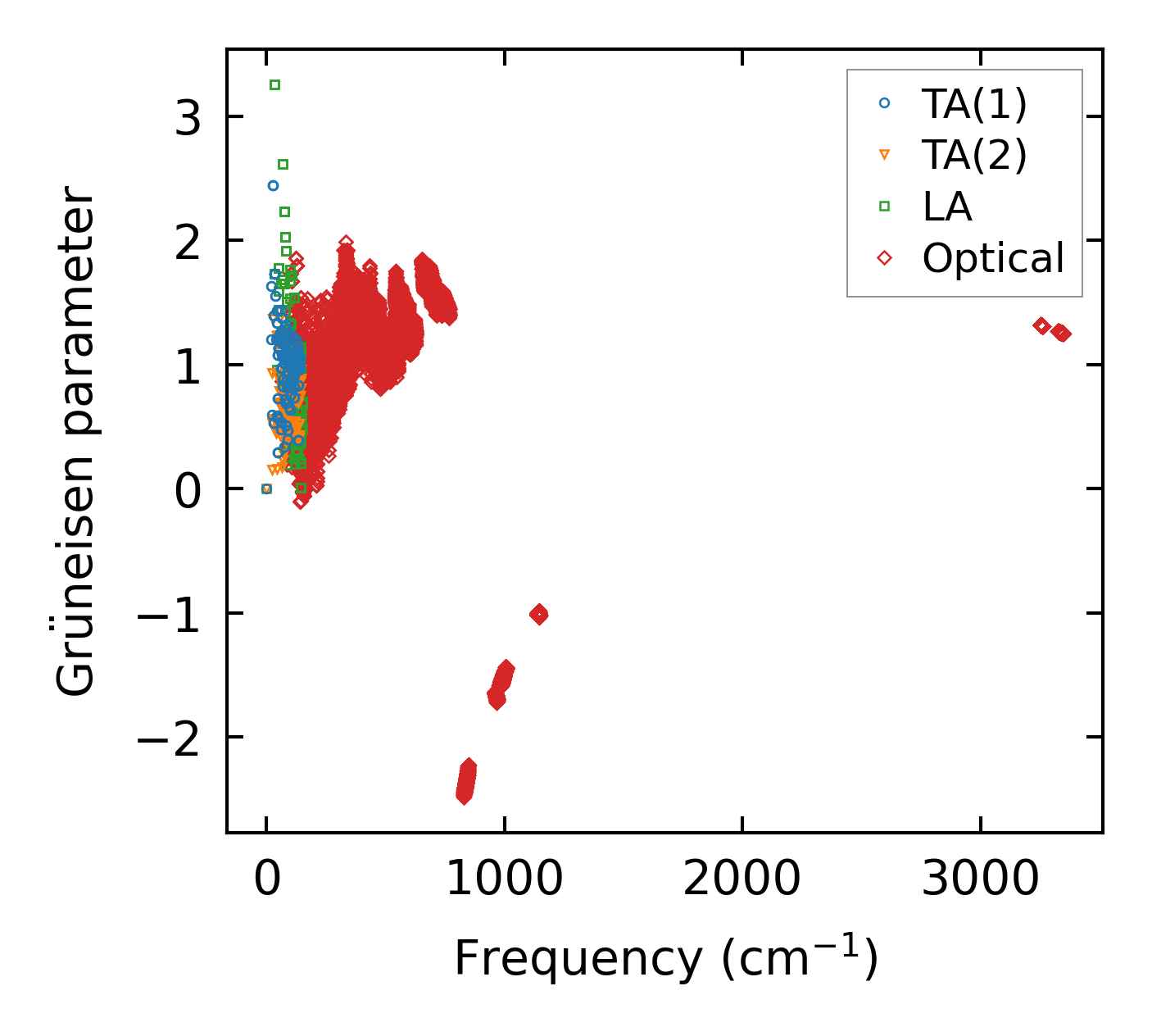

../../_images/fig_gru_all3184.png — (a) Grüneisen parameters

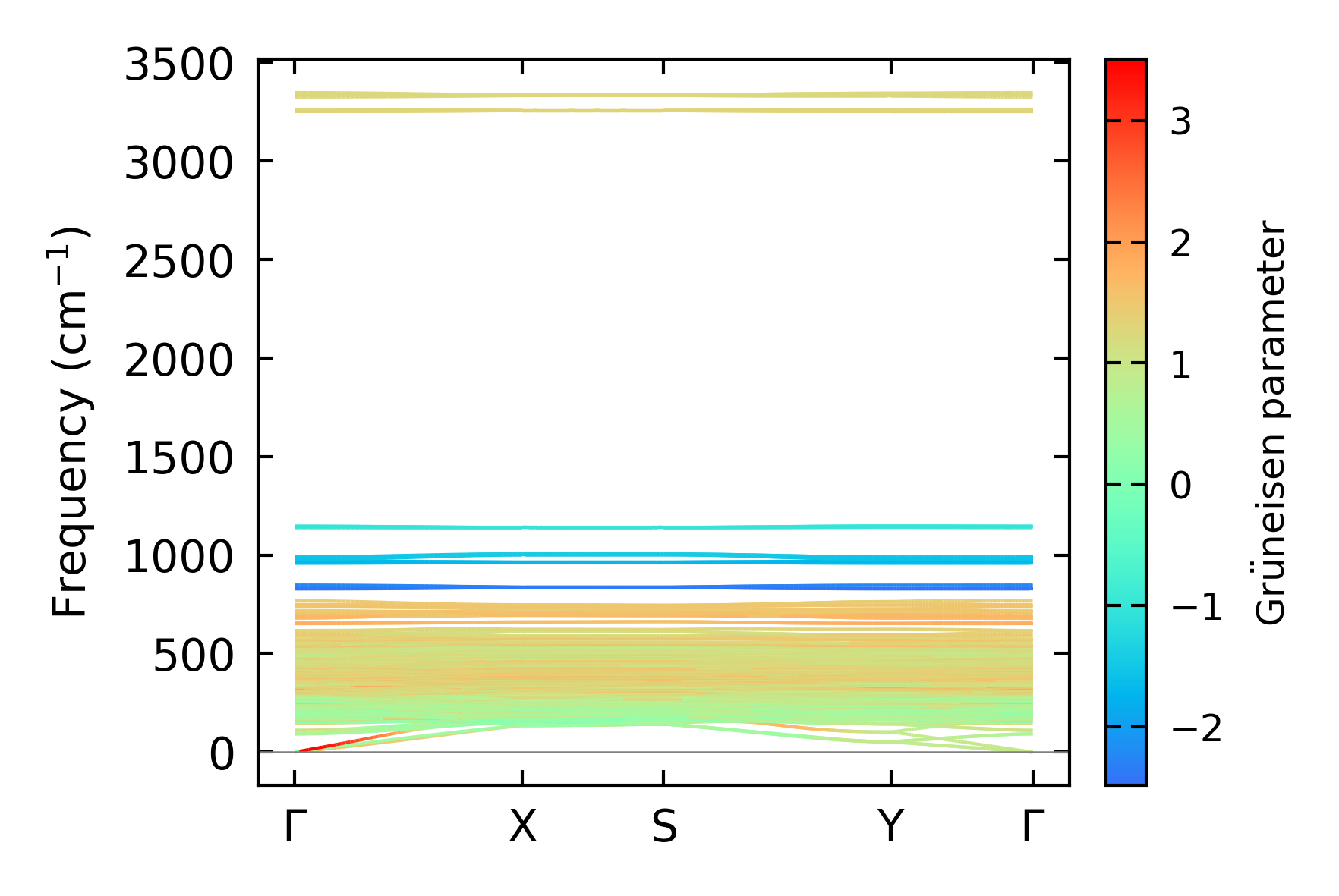

../../_images/fig_gruneisen3184.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x5x8, supercell: 2x1x1

../../_images/fig_kappa6028.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3225.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

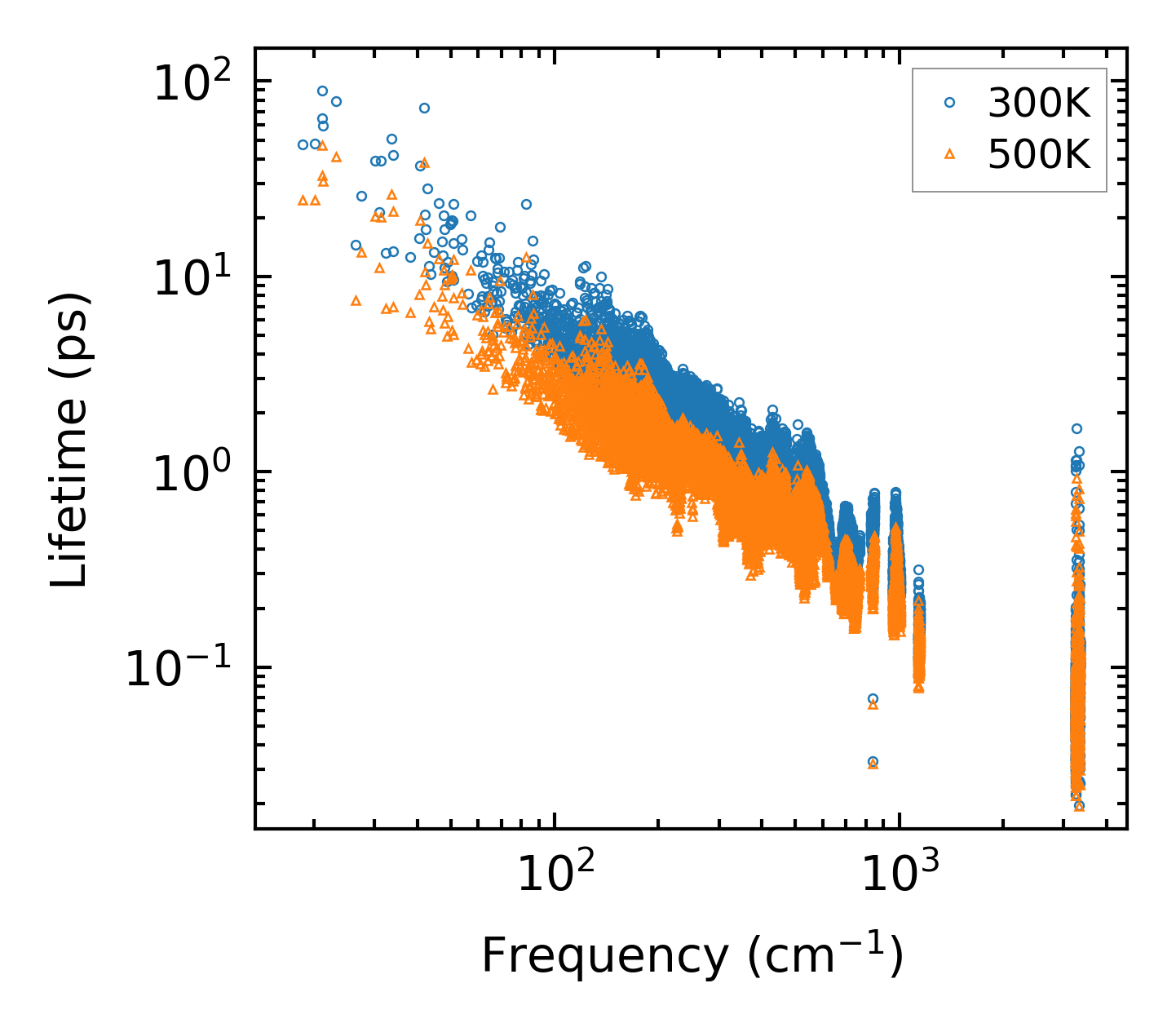

../../_images/fig_lifetime3156.png — (a) Phonon lifetime due to phonon-phonon scattering

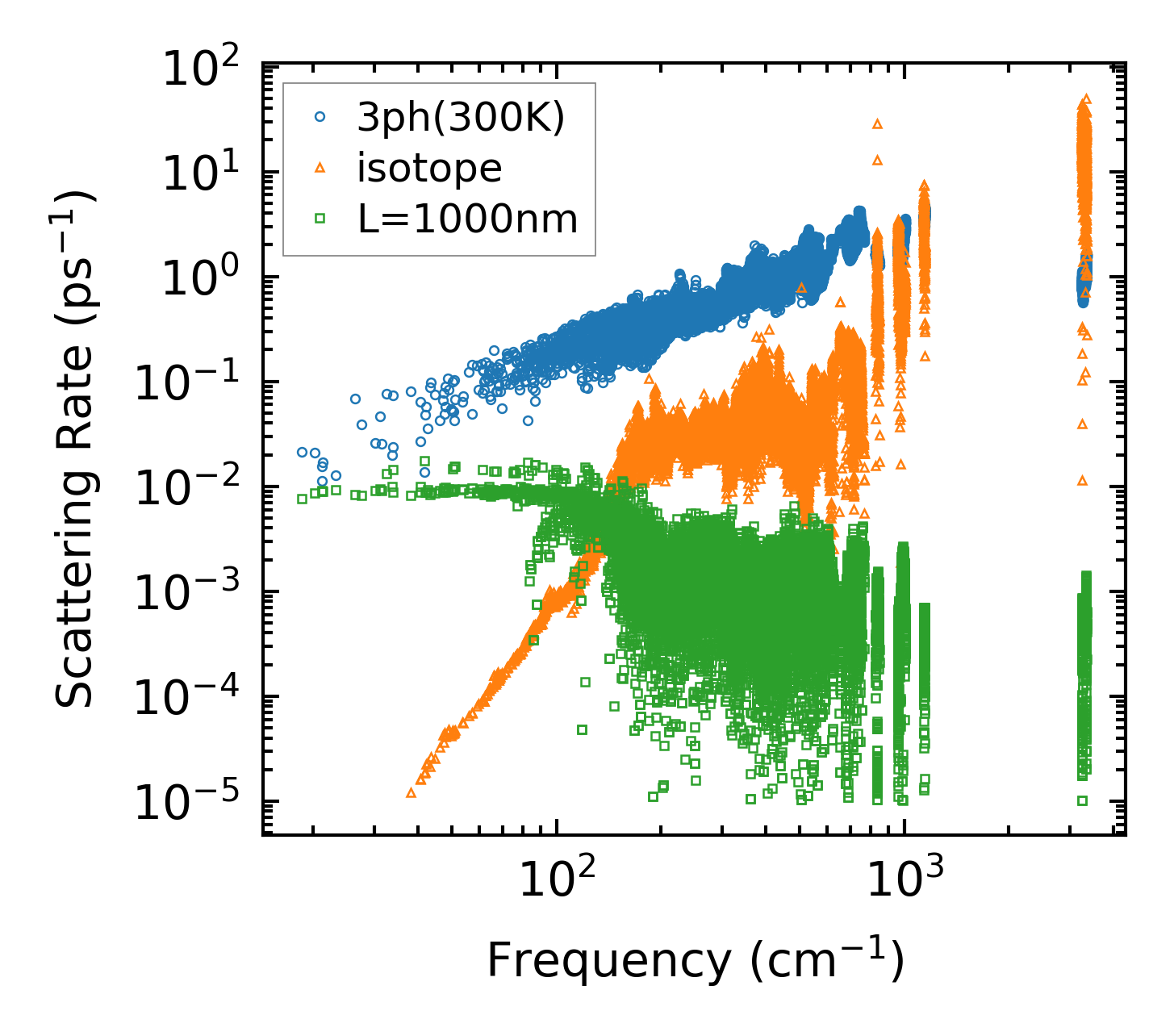

../../_images/fig_scat_rates3155.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

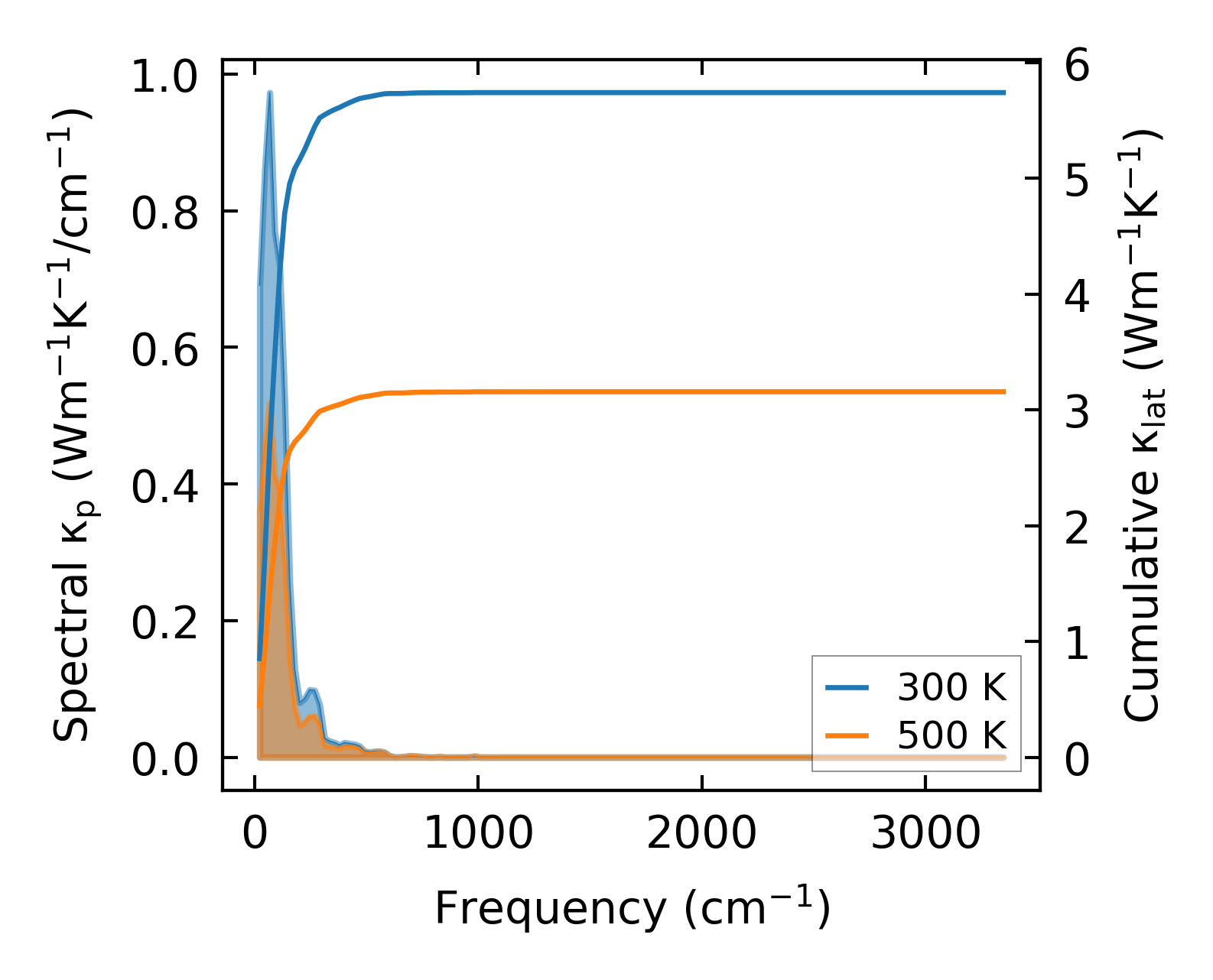

../../_images/fig_cumu_frequency3156.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

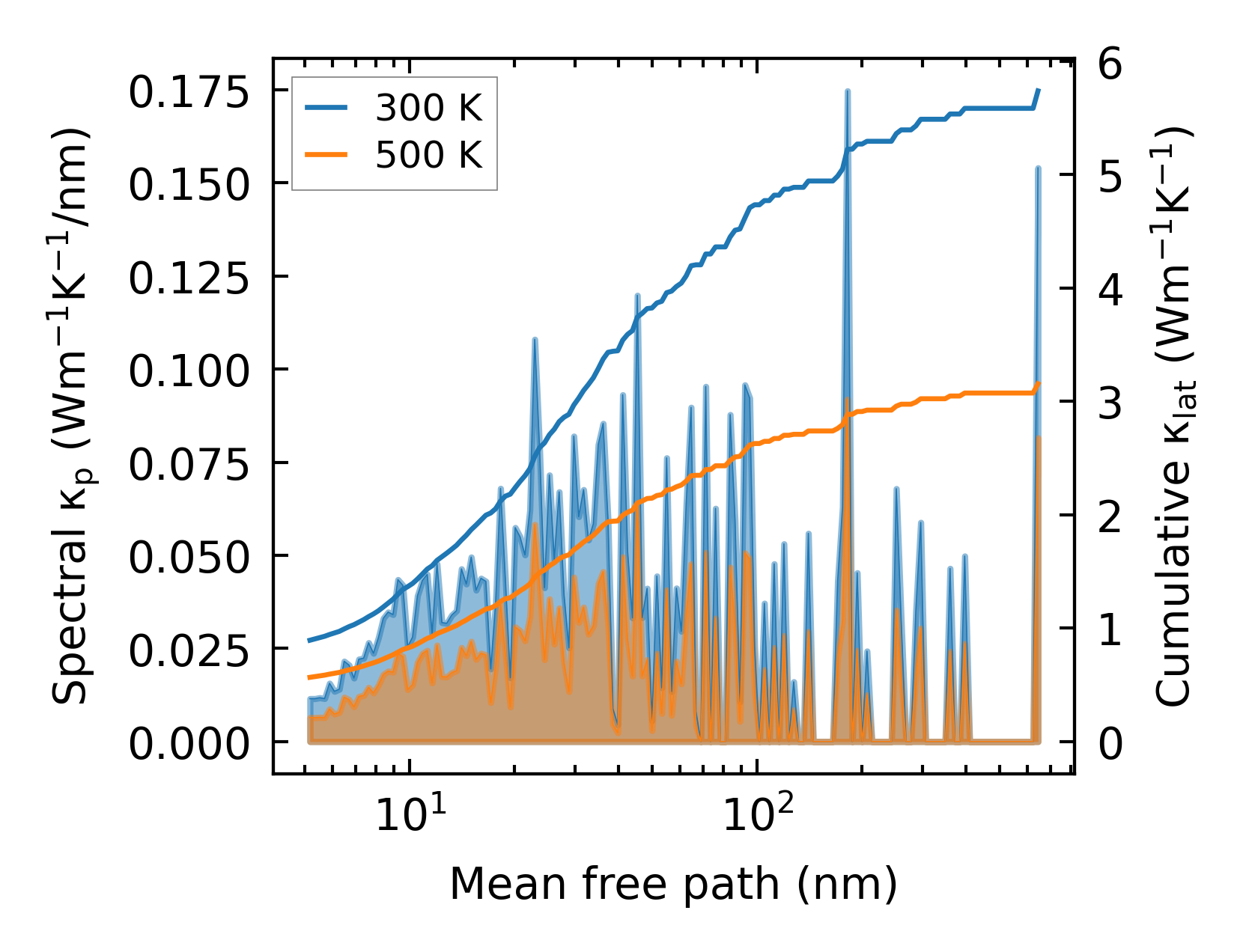

../../_images/fig_cumu_mfp3155.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27356.png — (a) Force constants w.r.t atomic distance

Summary

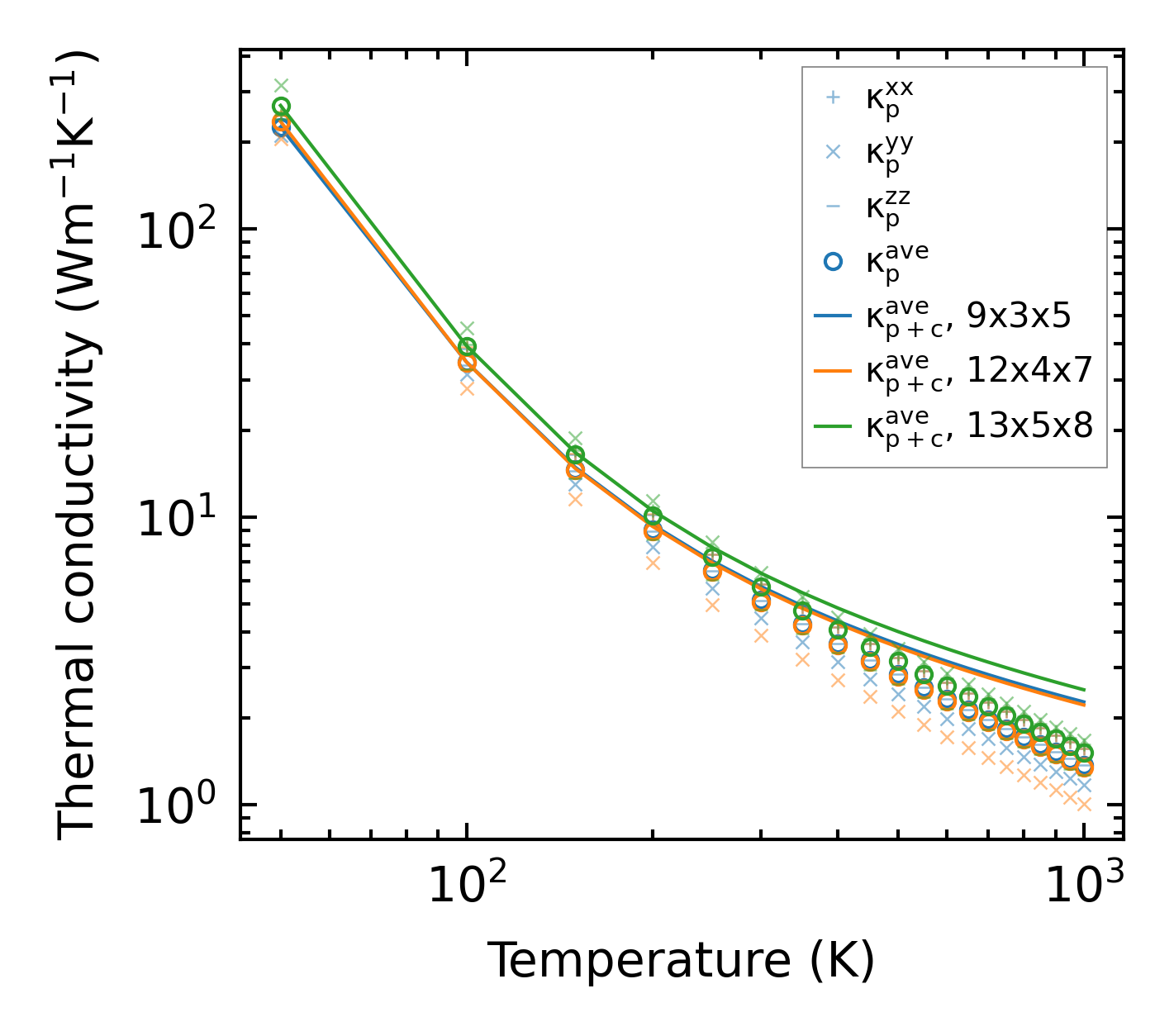

../../_images/fig_kappa6029.png — (a) Temperature-dependent lattice thermal conductivity

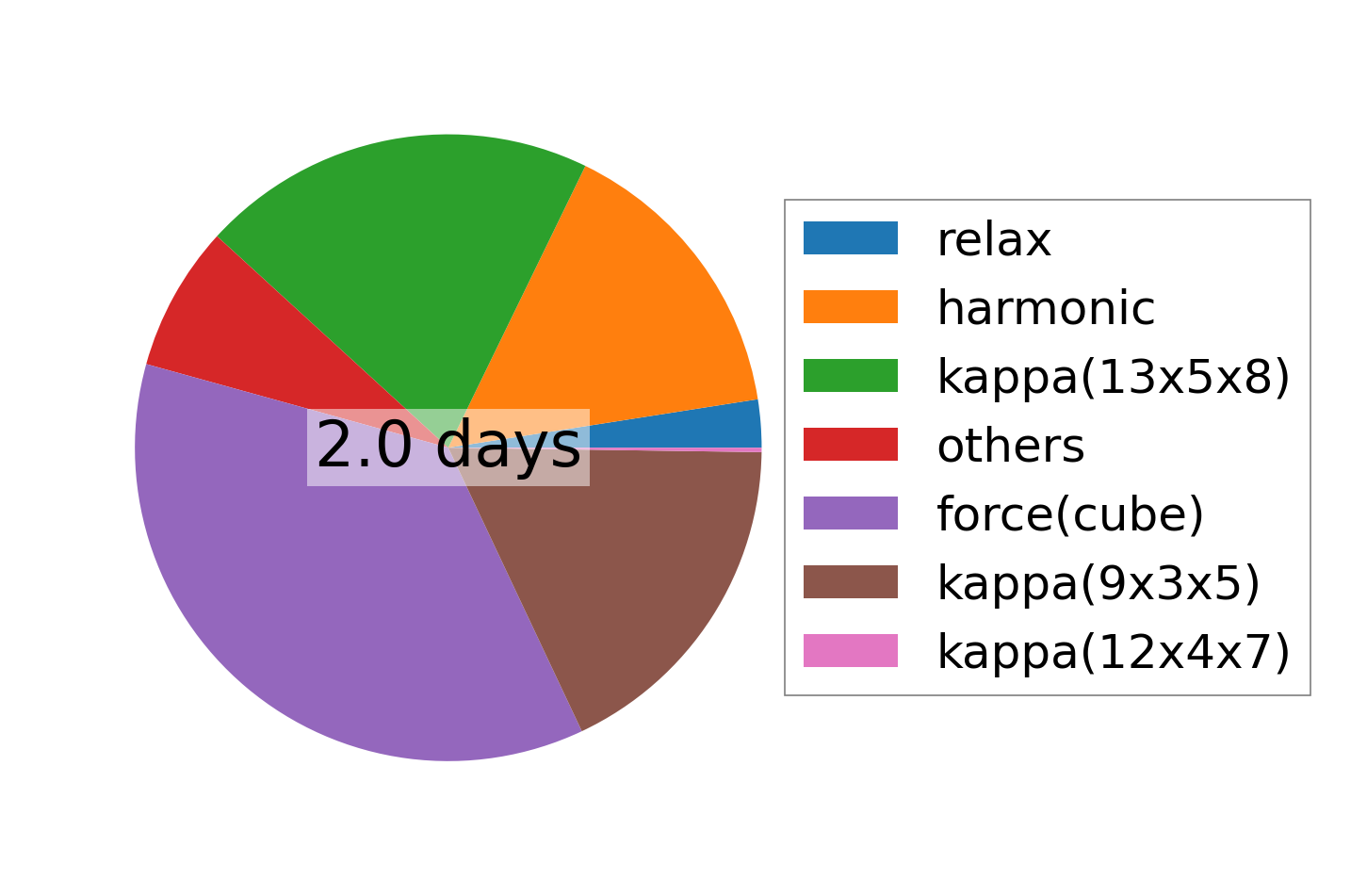

../../_images/fig_times13430.png — (b) Computation time
