mp-560014-2/Pr3CuSnS7/anharm

Space group: P6_3 (173)
Link: Materials Project
Download: mp-560014-2.tar.gz

Equation of state

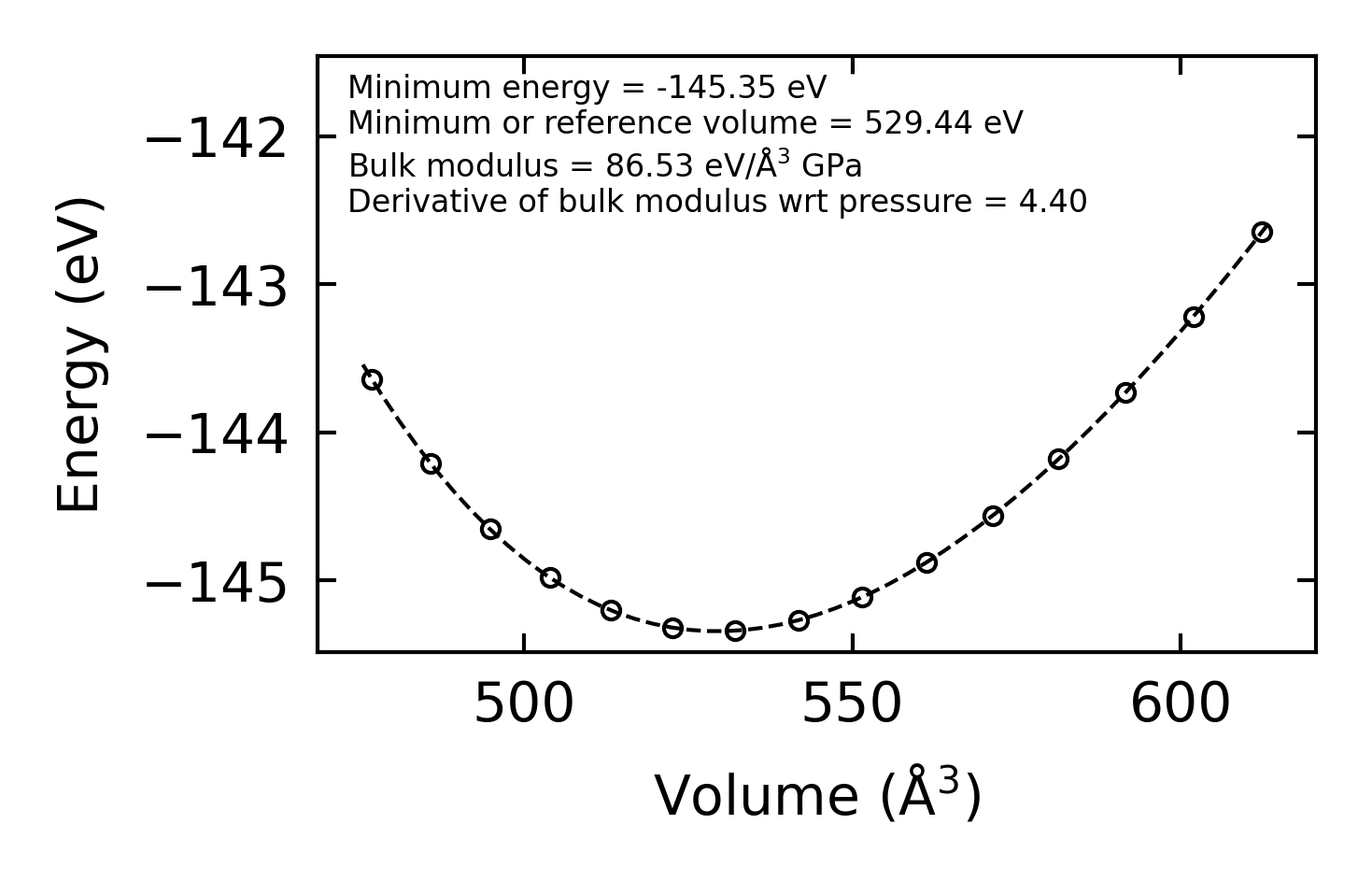

../../_images/fig_bm4002.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr7731.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos10850.png — (b) Phonon dispersion and DOS

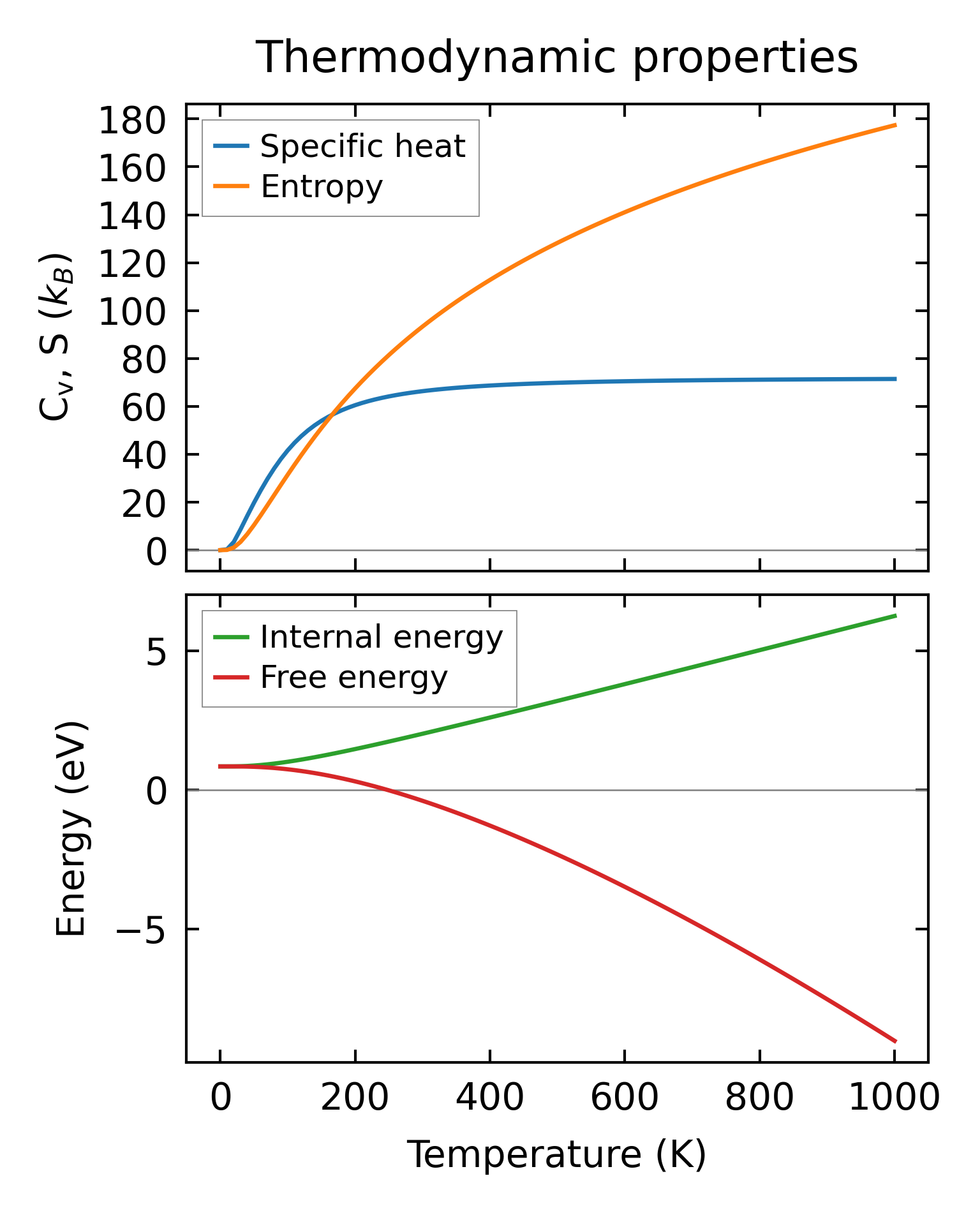

../../_images/fig_thermo7731.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3228.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3228.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 7x7x12, supercell: 2x2x2

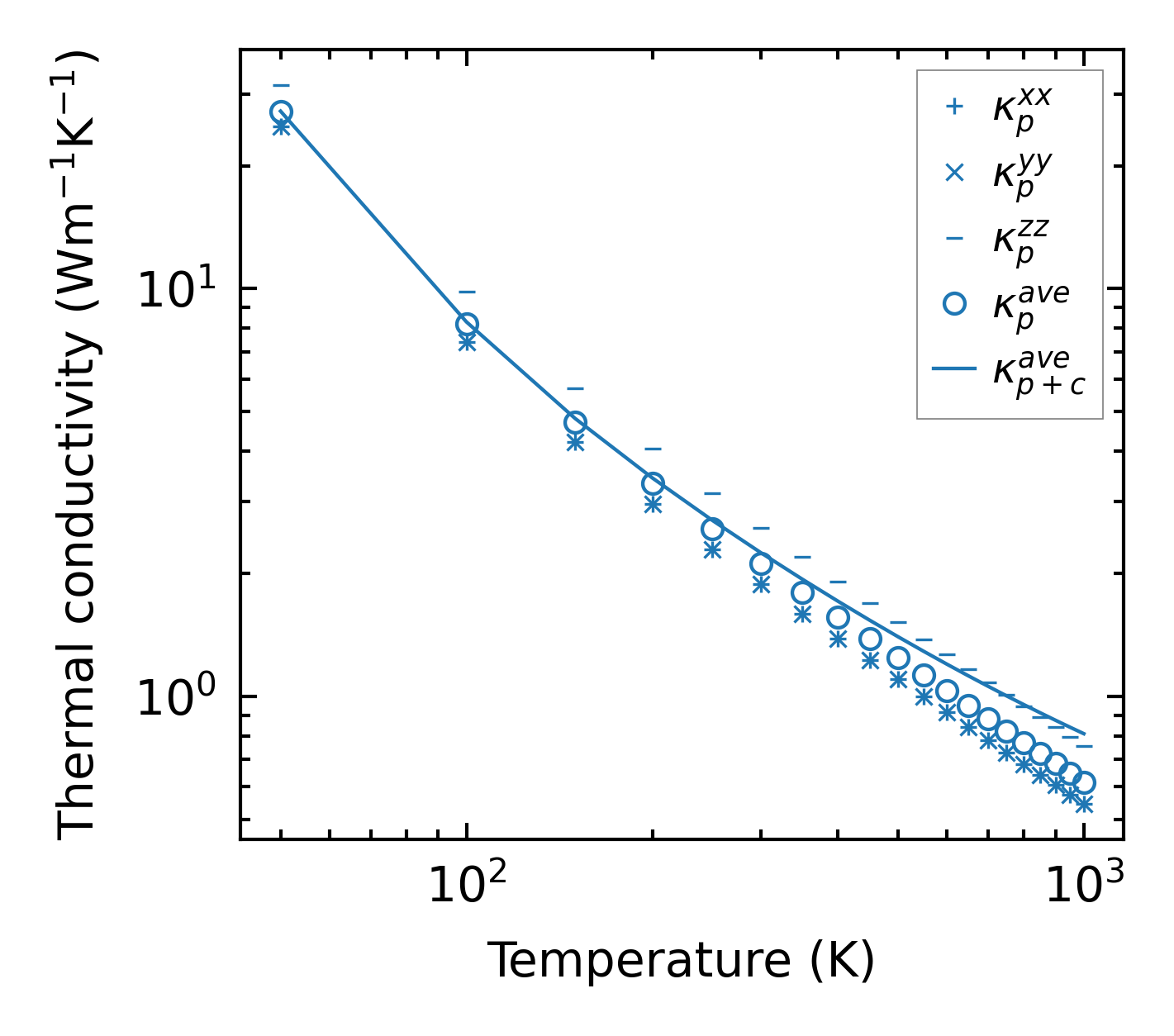

../../_images/fig_kappa6114.png — (a) Temperature-dependent lattice thermal conductivity

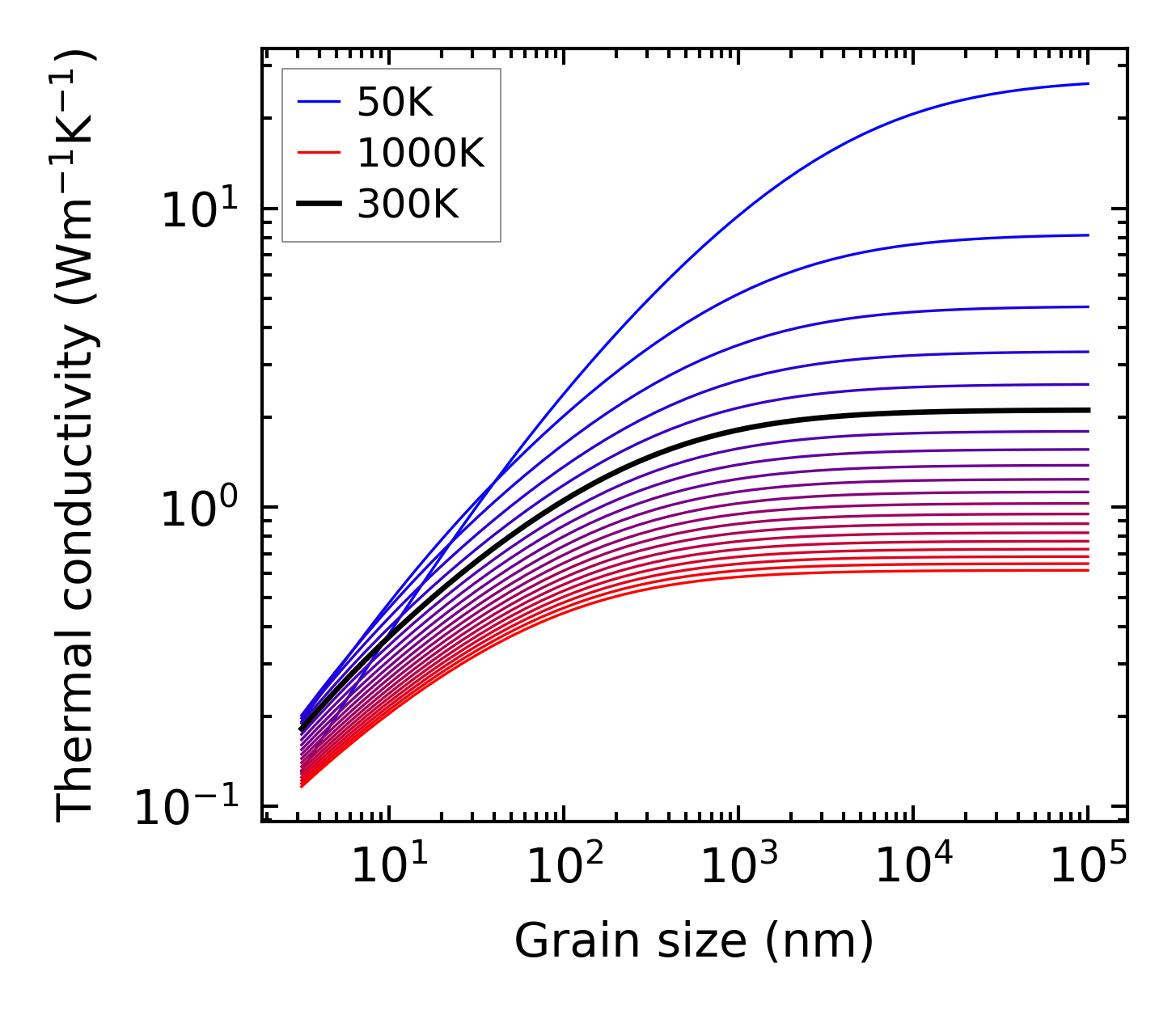

../../_images/fig_kappa_vs_grain_size3270.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3200.png — (a) Phonon lifetime due to phonon-phonon scattering

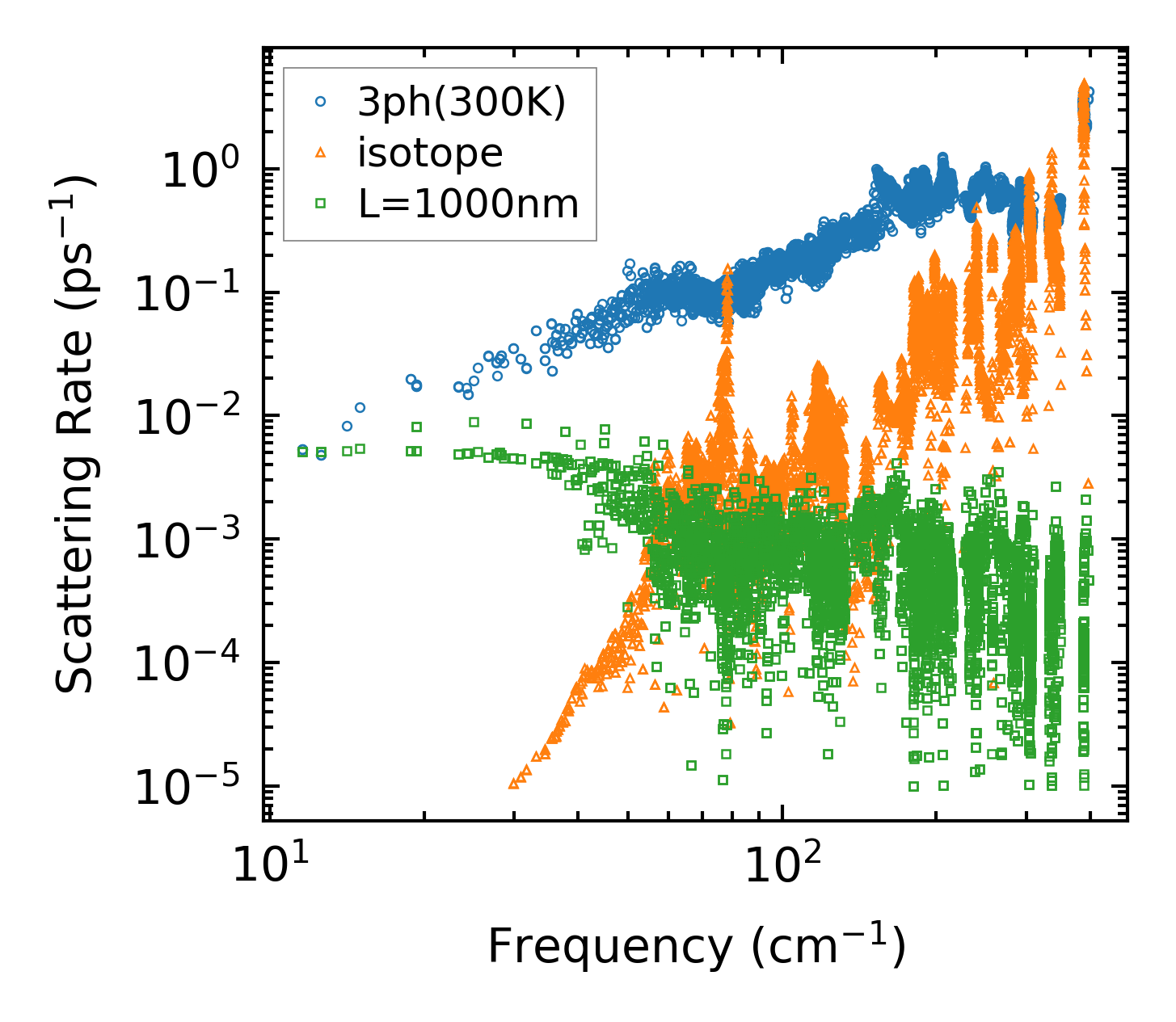

../../_images/fig_scat_rates3199.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3200.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

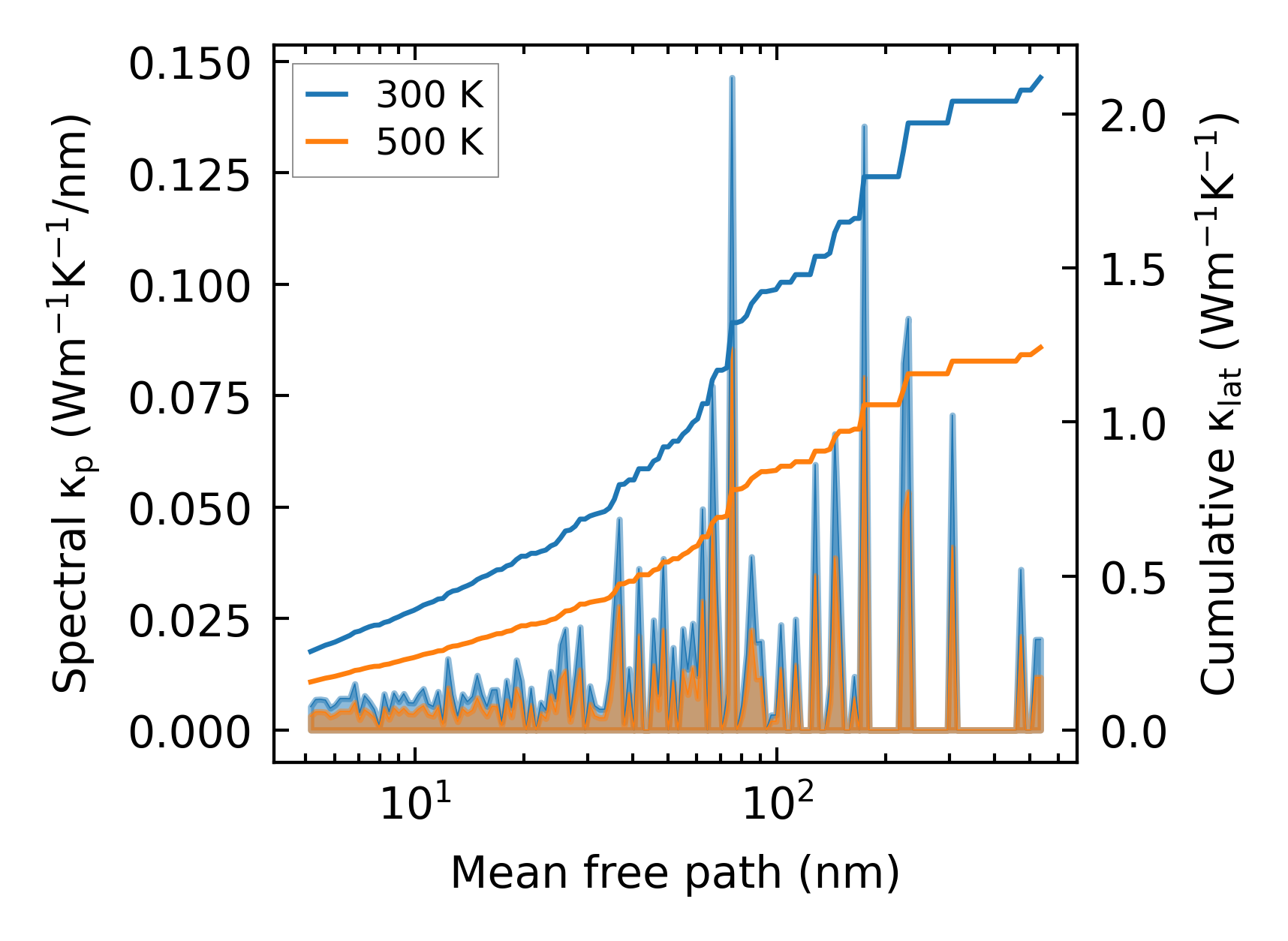

../../_images/fig_cumu_mfp3199.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

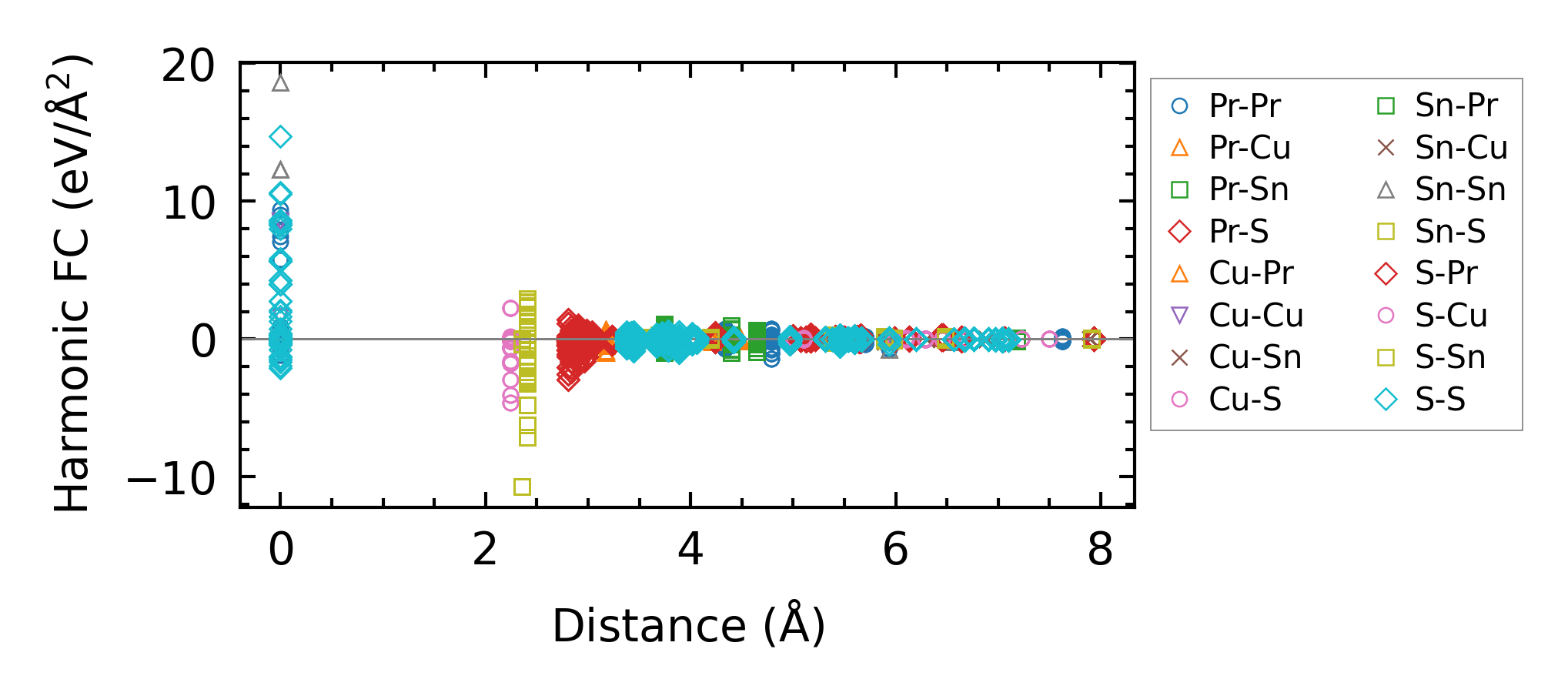

../../_images/fig_fc27494.png — (a) Force constants w.r.t atomic distance

Summary

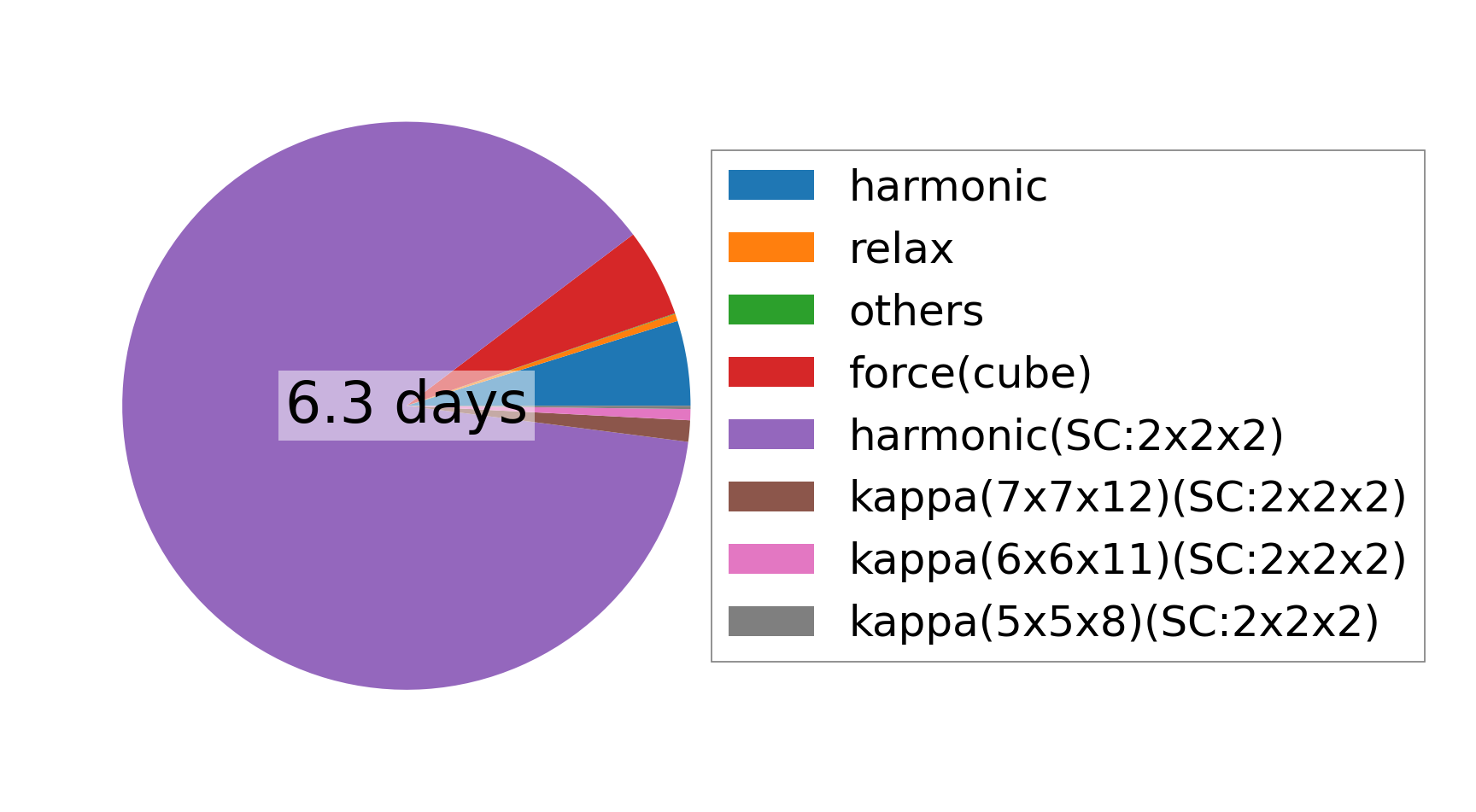

../../_images/fig_times13642.png — (a) Computation time
