mp-560026/Mg5B3O9F/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-560026.tar.gz

Harmonic properties

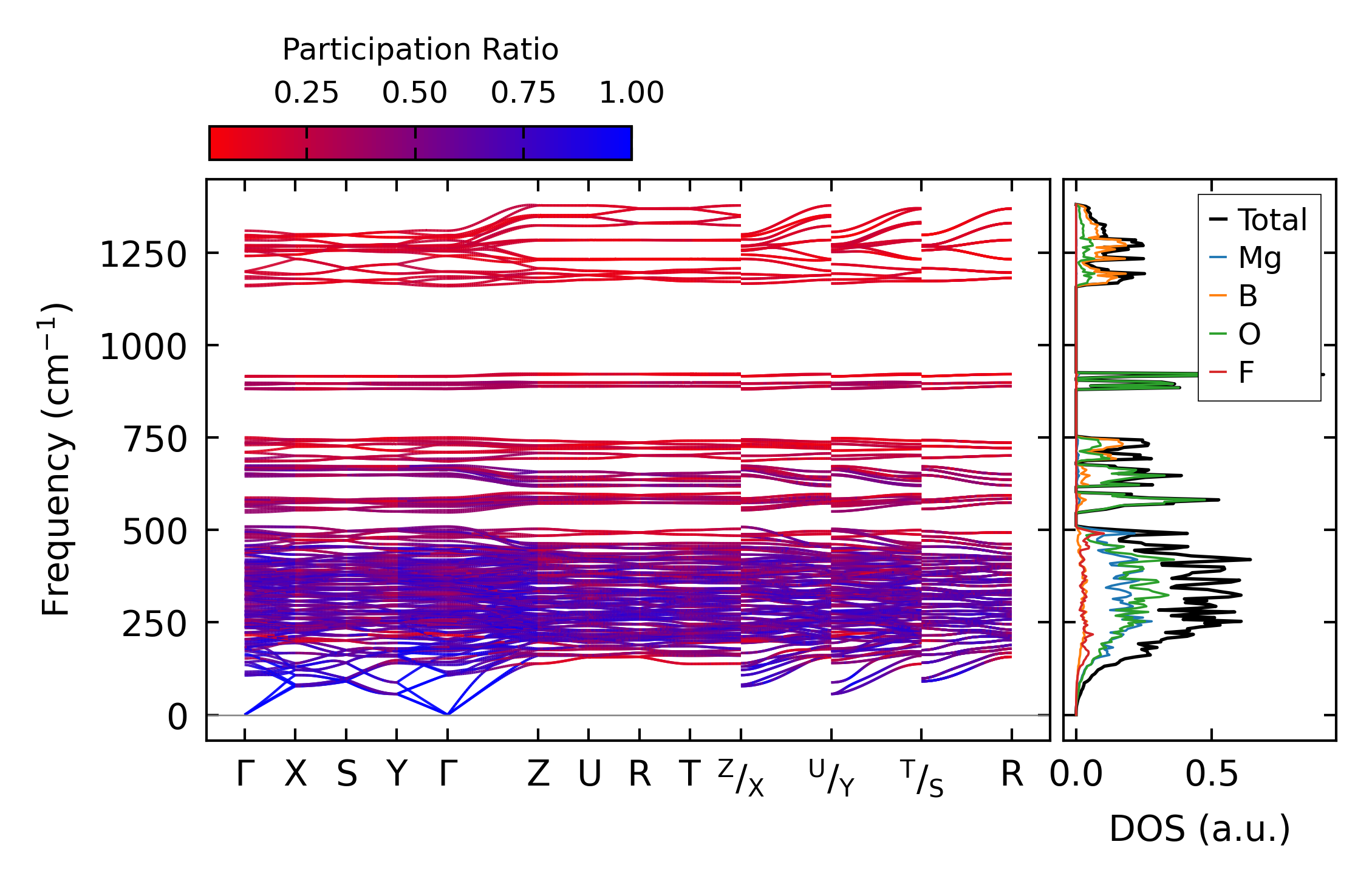

../../_images/fig_bandos_pr7736.png — (a) Phonon dispersion with participation ratio and DOS

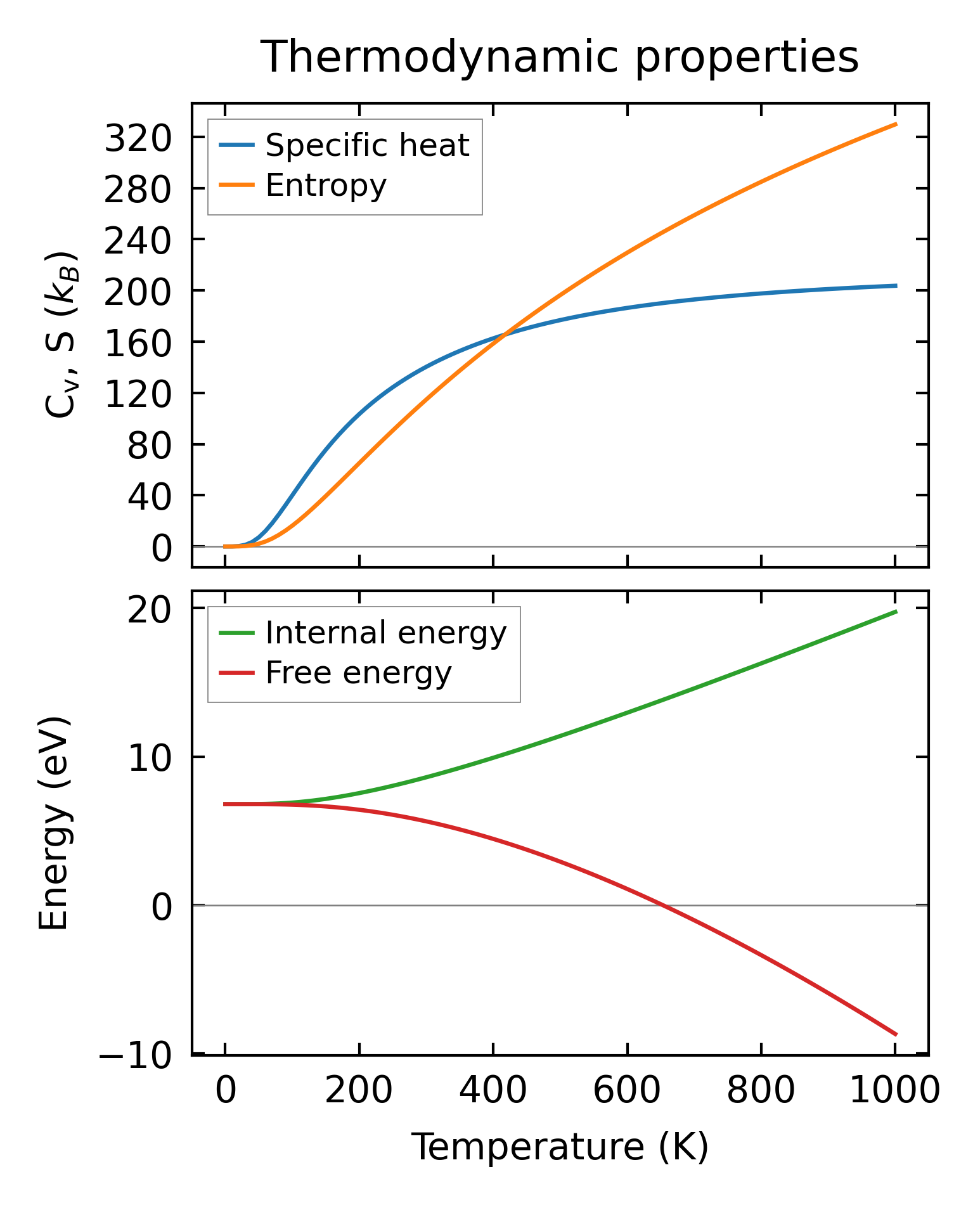

../../_images/fig_thermo7736.png — (b) Thermodynamic properties

Grüneisen parameters

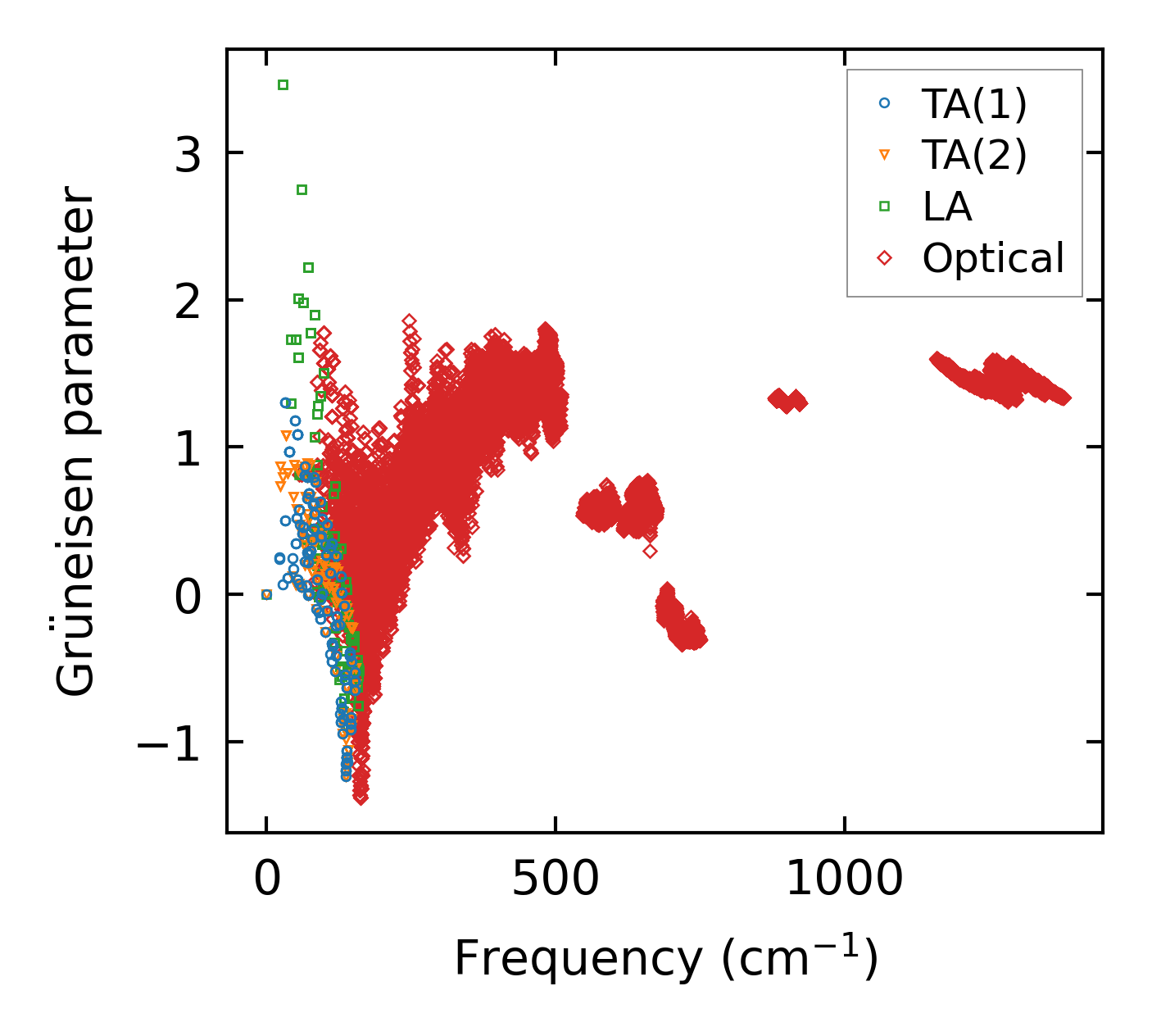

../../_images/fig_gru_all3229.png — (a) Grüneisen parameters

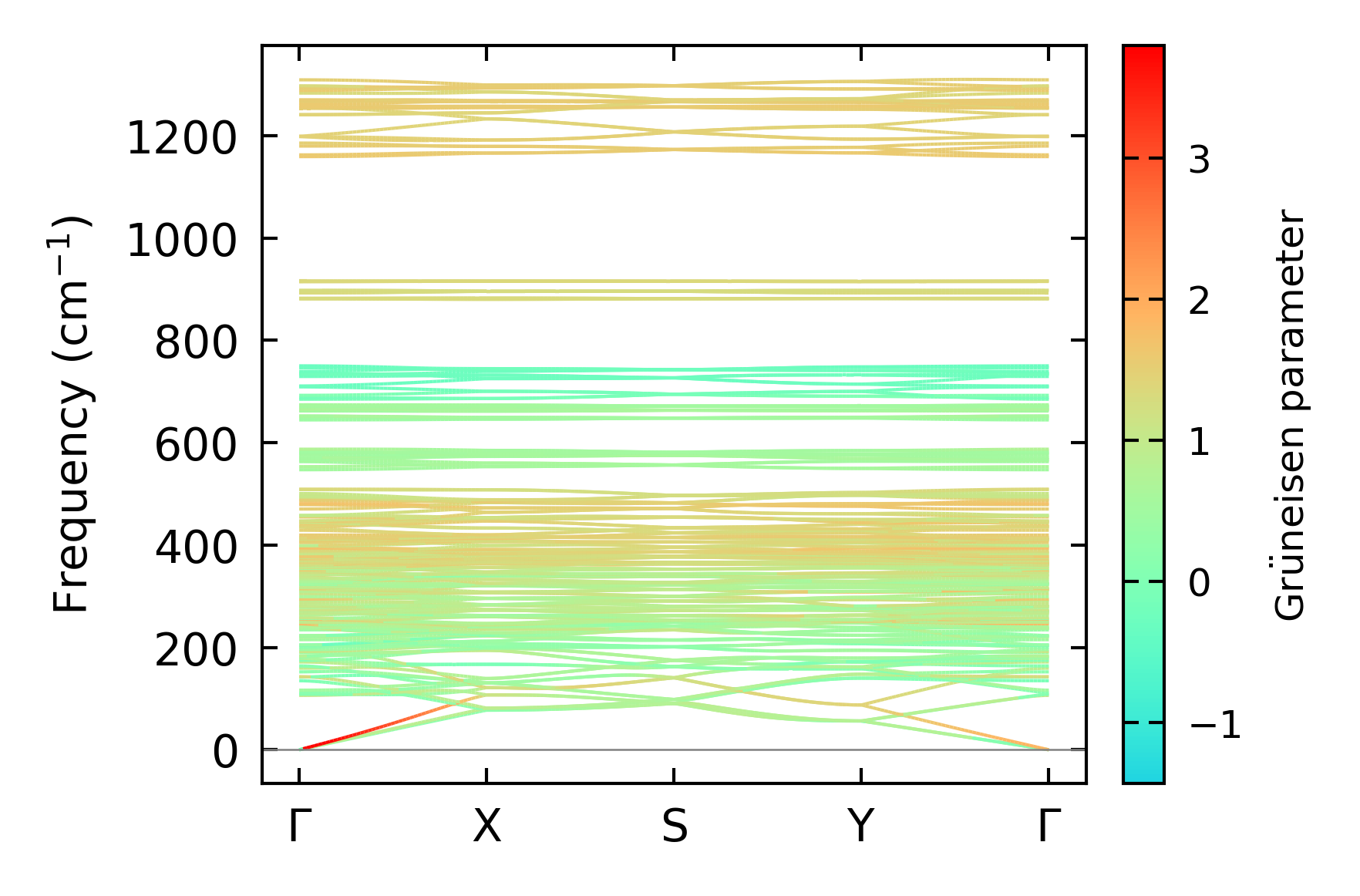

../../_images/fig_gruneisen3229.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x4x15, supercell: 1x1x2

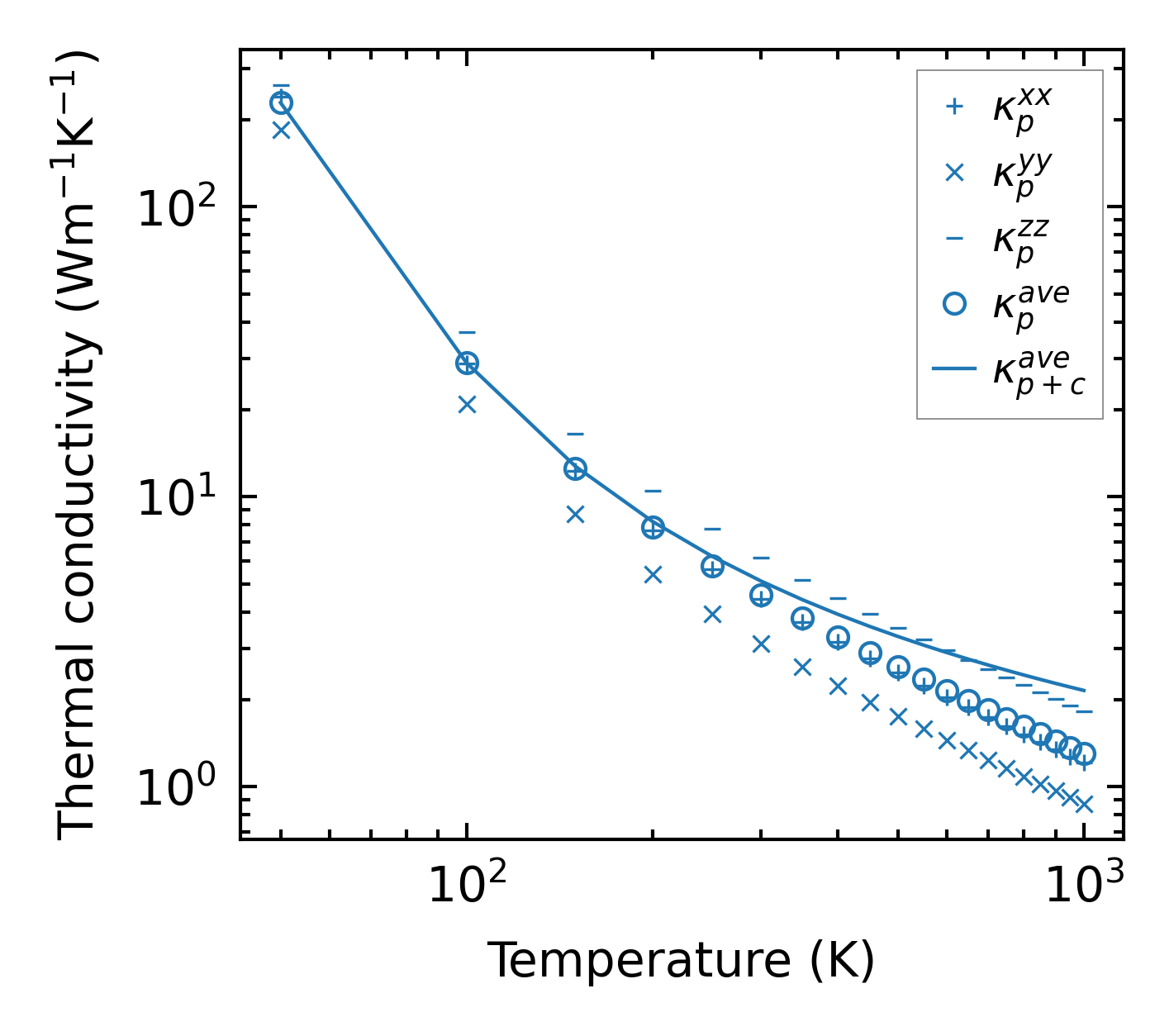

../../_images/fig_kappa6115.png — (a) Temperature-dependent lattice thermal conductivity

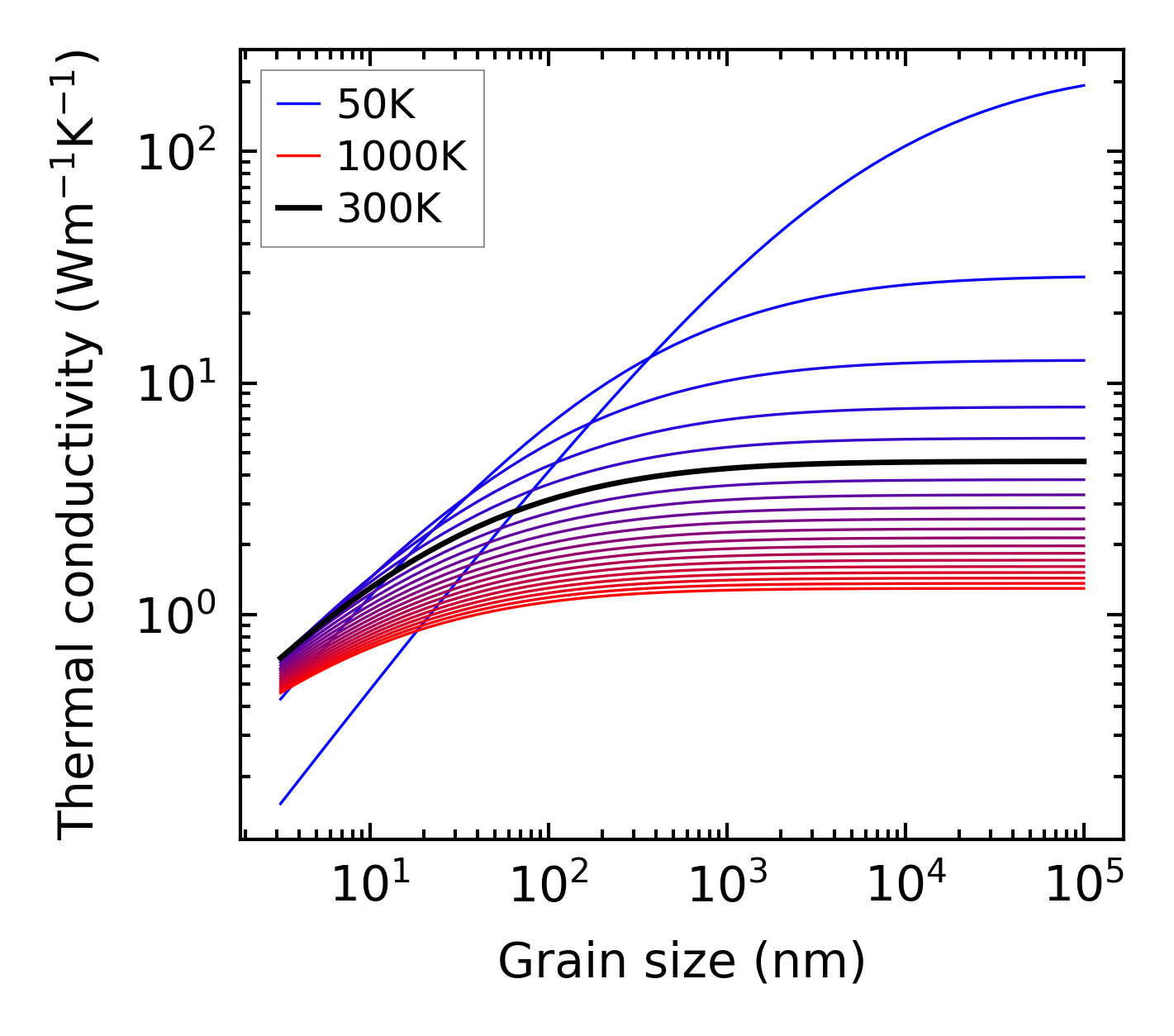

../../_images/fig_kappa_vs_grain_size3271.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

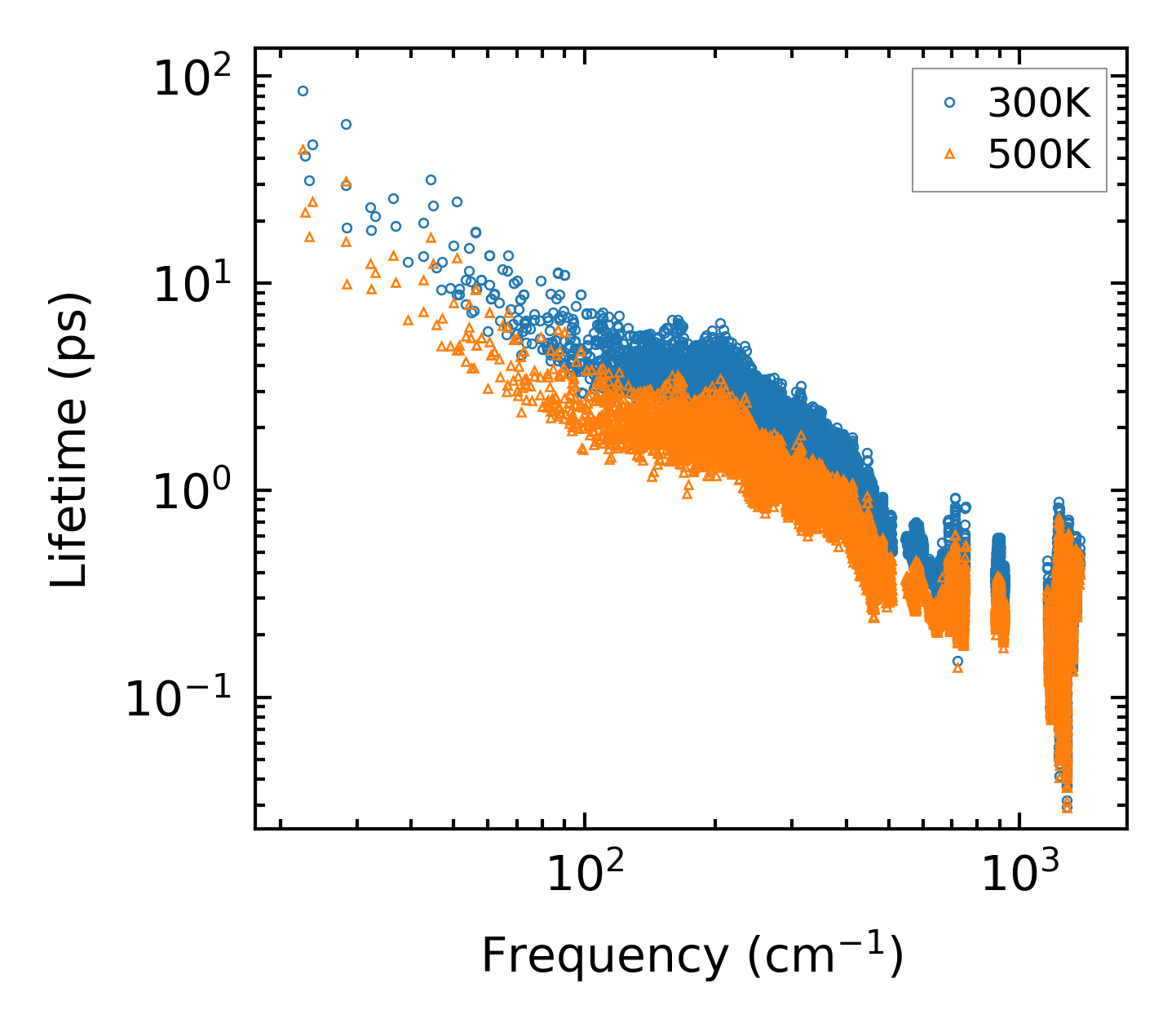

../../_images/fig_lifetime3201.png — (a) Phonon lifetime due to phonon-phonon scattering

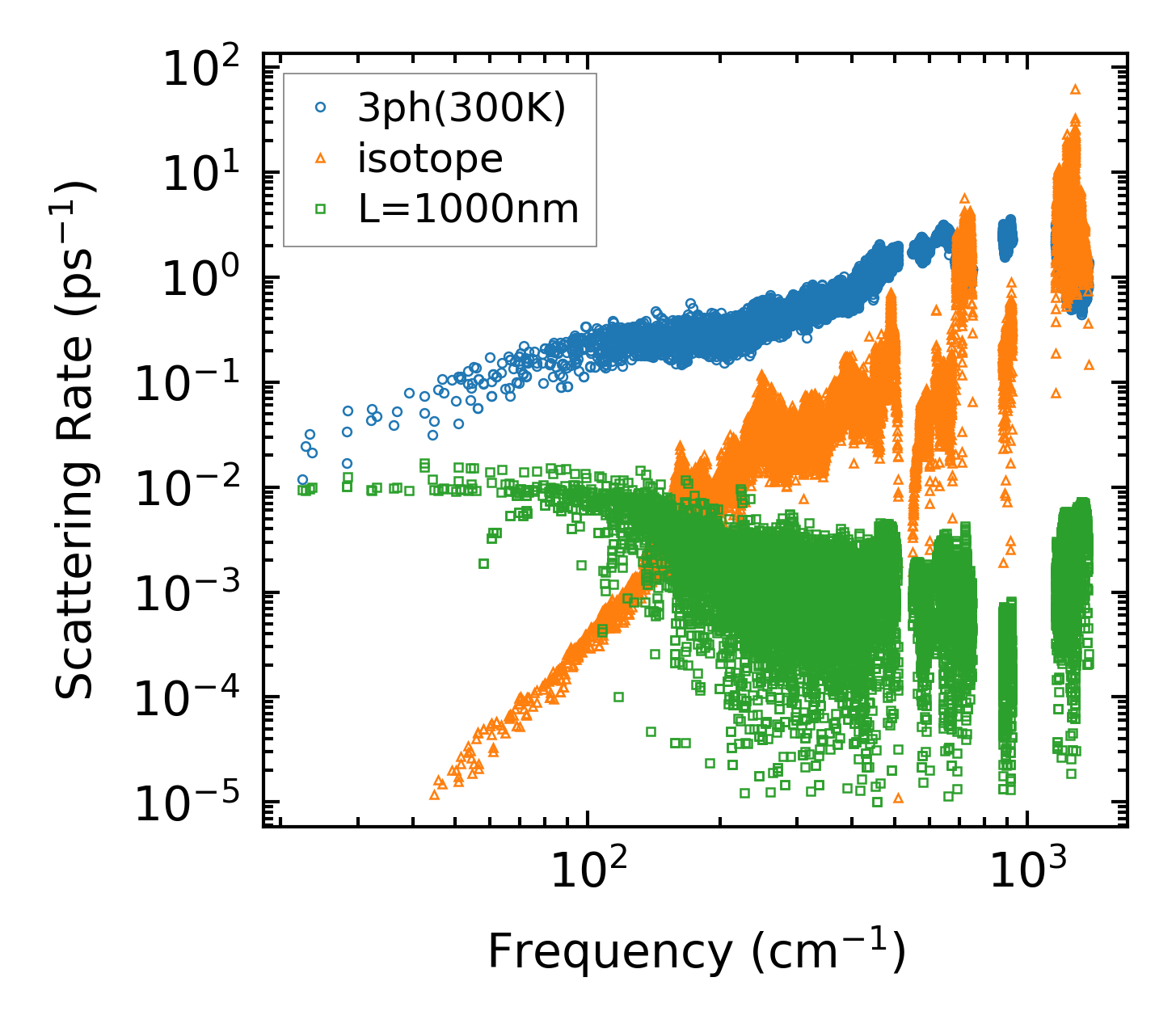

../../_images/fig_scat_rates3200.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

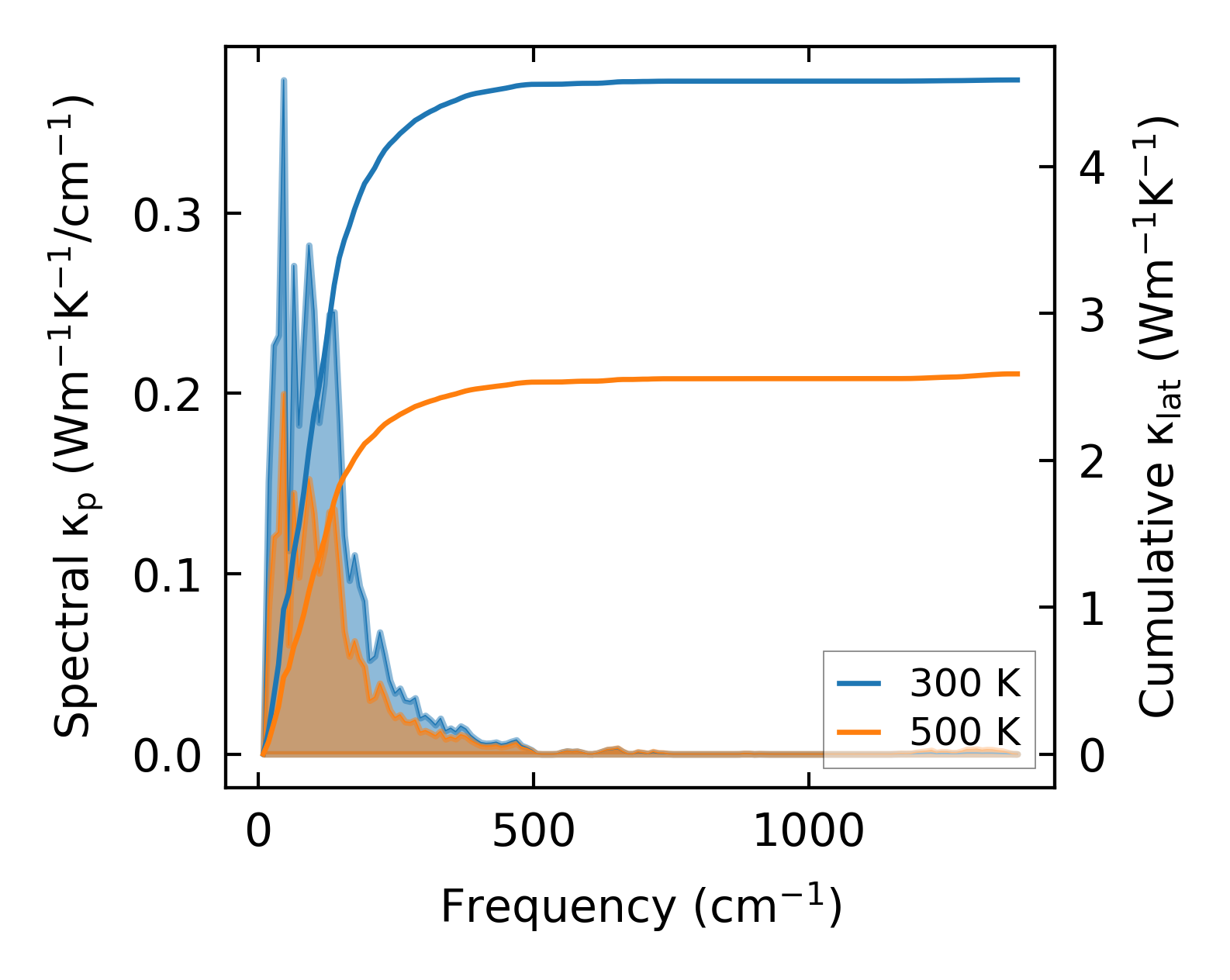

../../_images/fig_cumu_frequency3201.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

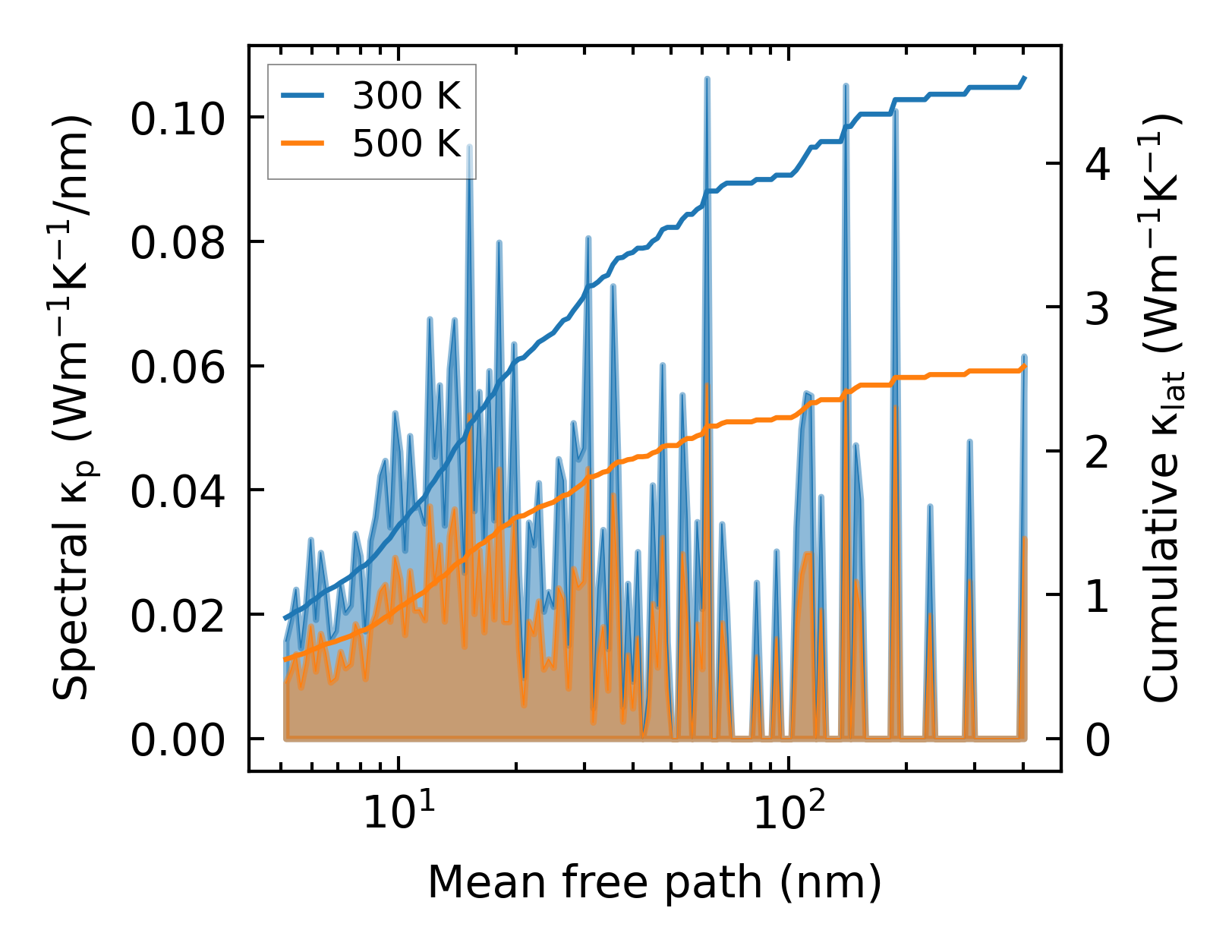

../../_images/fig_cumu_mfp3200.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

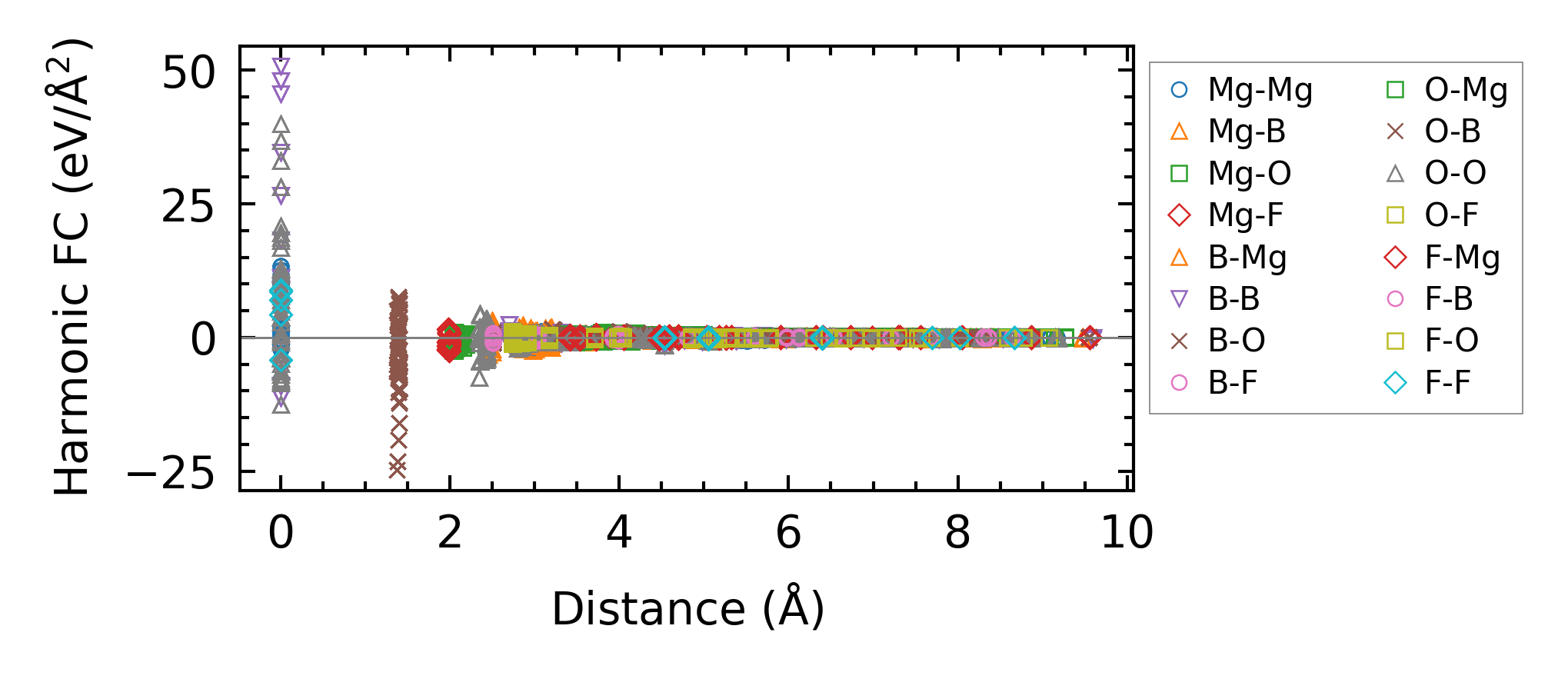

../../_images/fig_fc27499.png — (a) Force constants w.r.t atomic distance

Summary

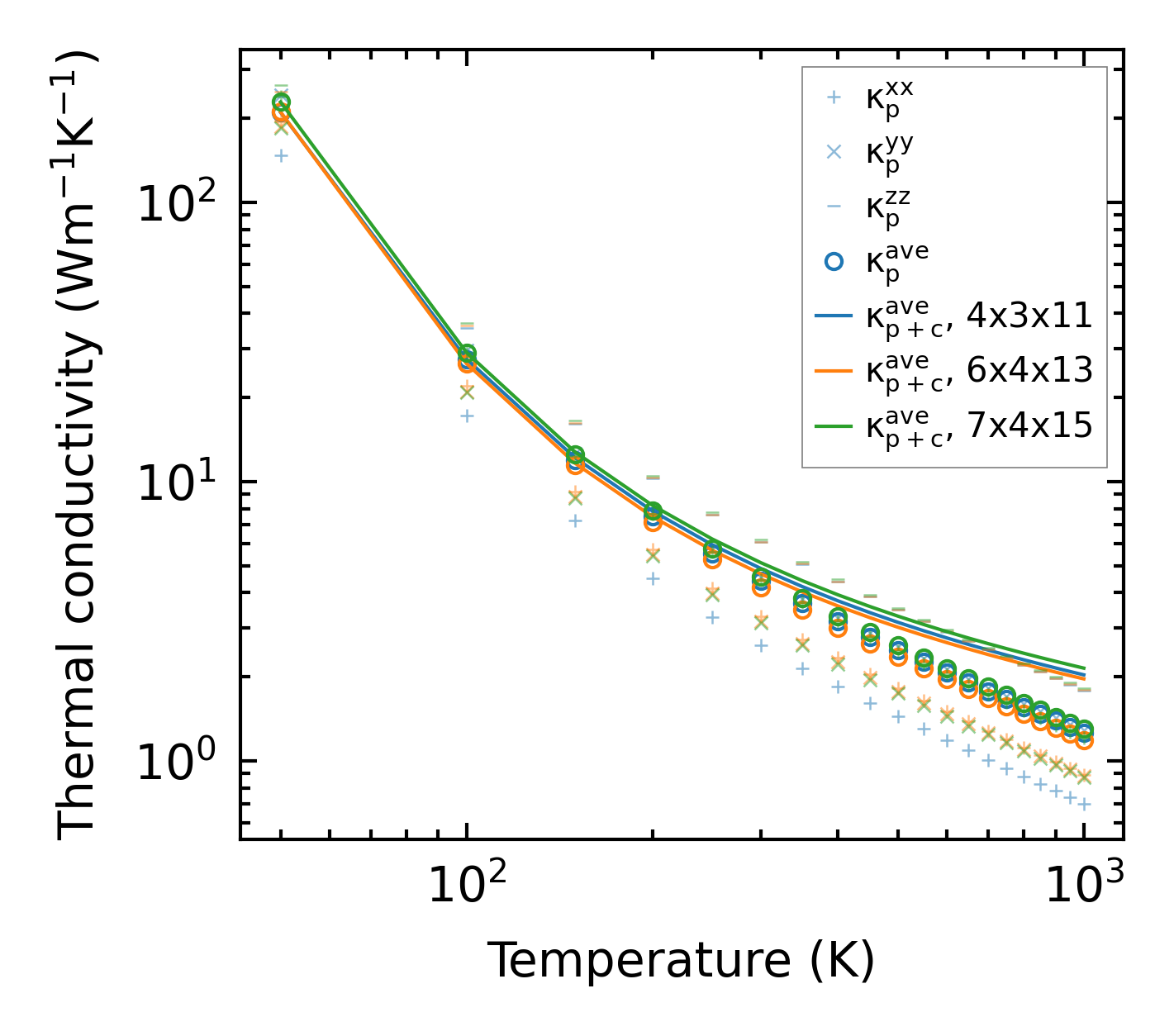

../../_images/fig_kappa6116.png — (a) Temperature-dependent lattice thermal conductivity

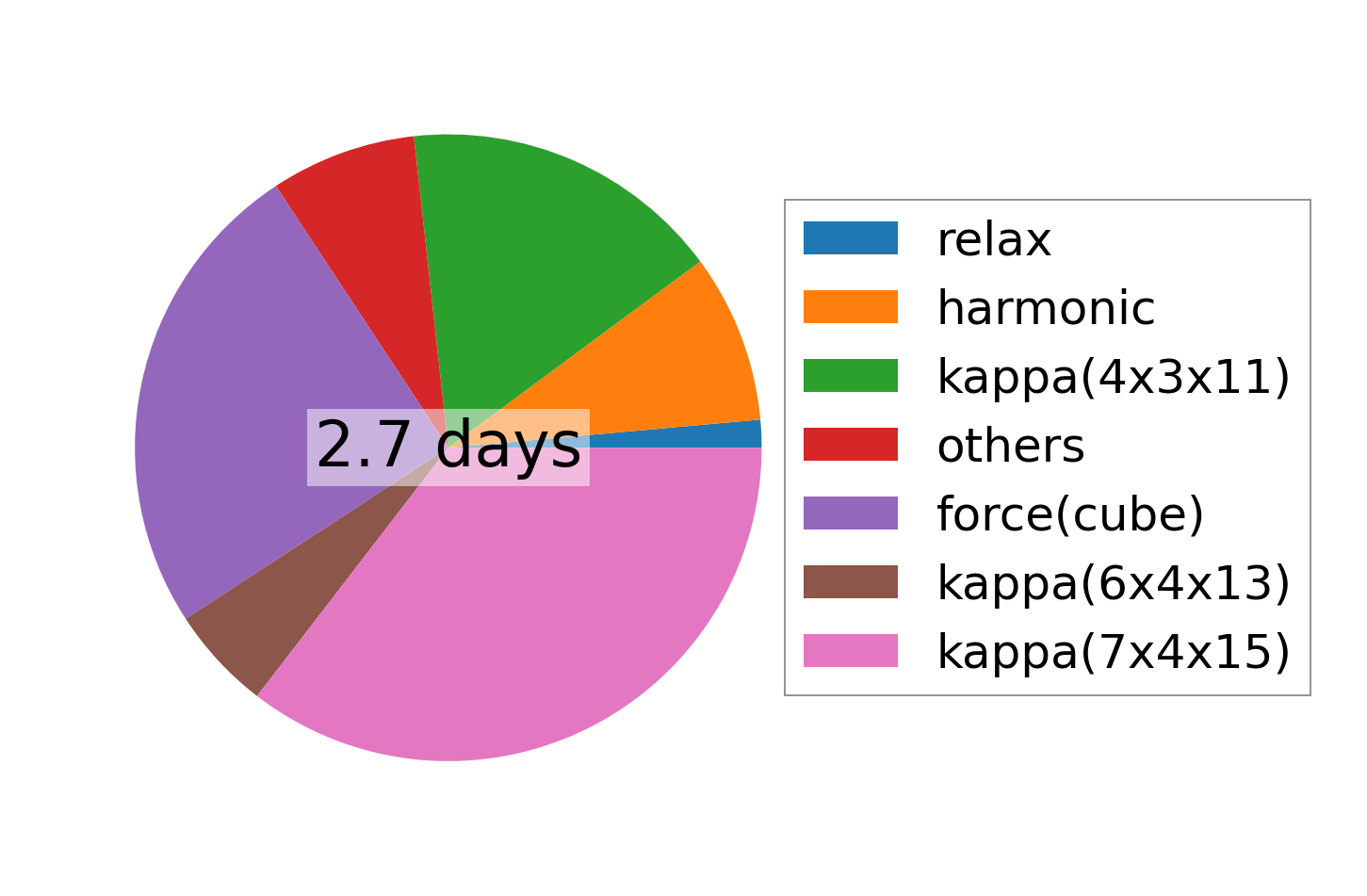

../../_images/fig_times13648.png — (b) Computation time
