mp-560641/Ba12Cl5F19/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-560641.tar.gz

Harmonic properties

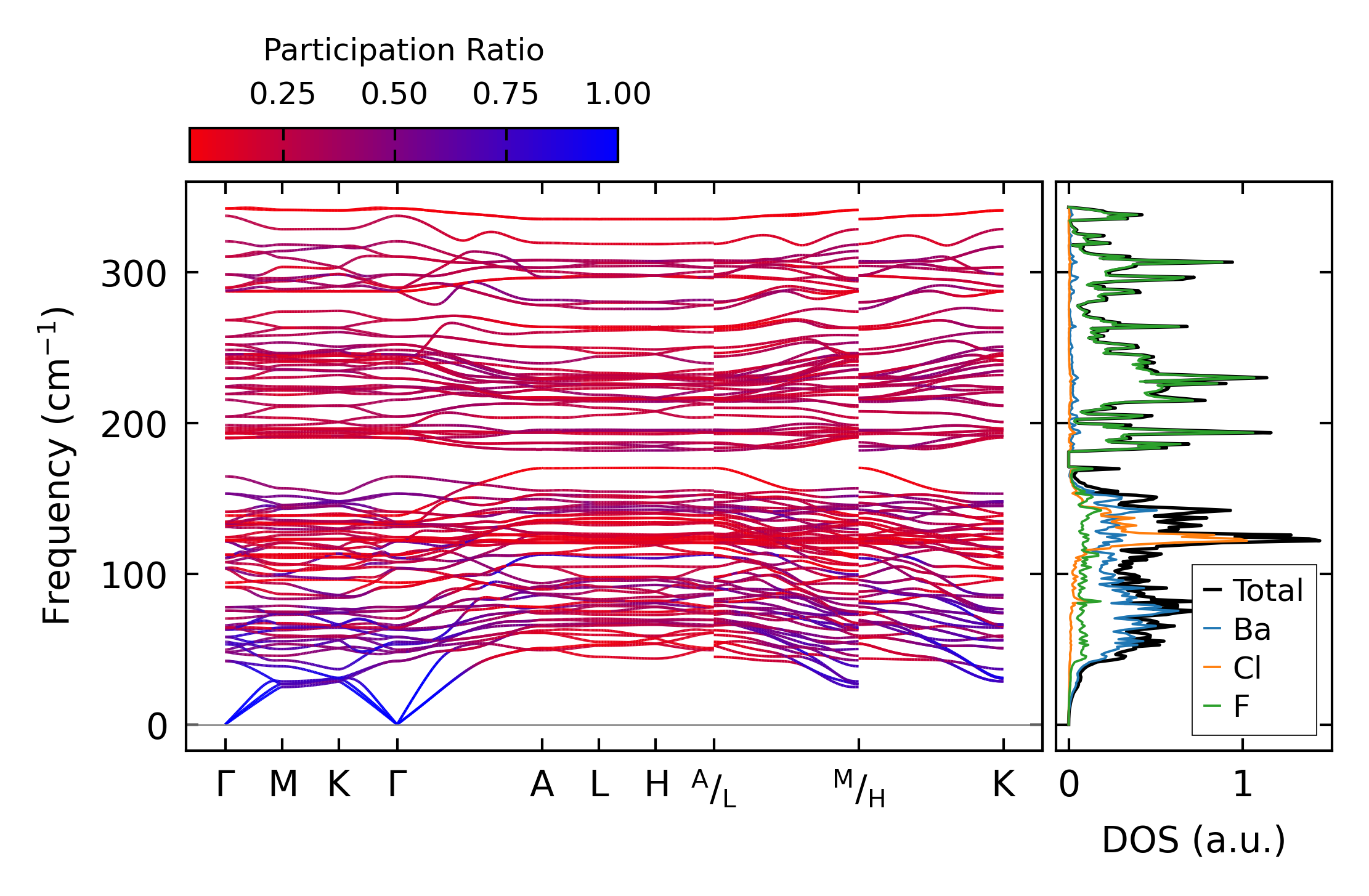

../../_images/fig_bandos_pr7541.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7541.png — (b) Thermodynamic properties

Grüneisen parameters

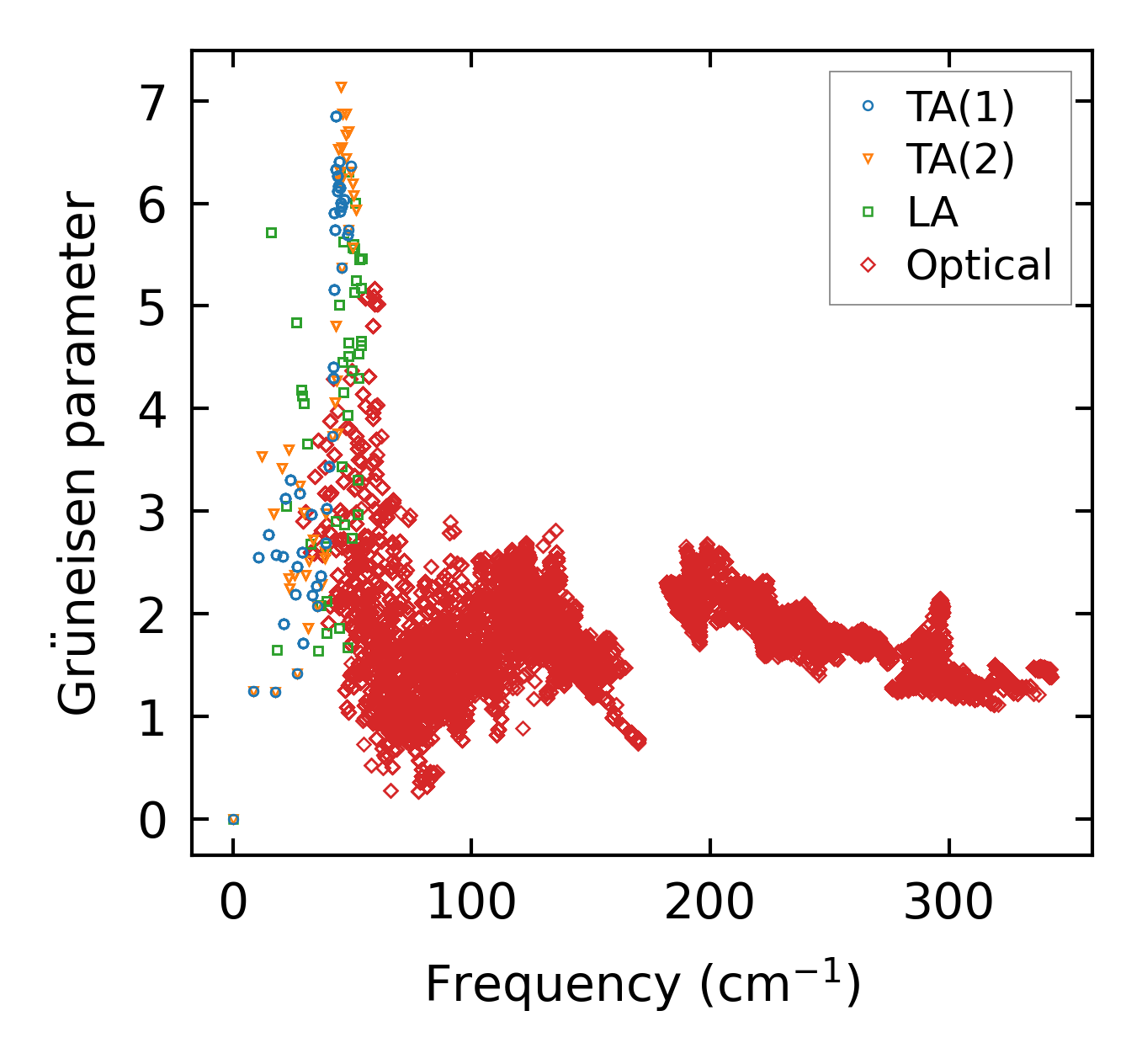

../../_images/fig_gru_all3164.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3164.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x5x17, supercell: 1x1x4

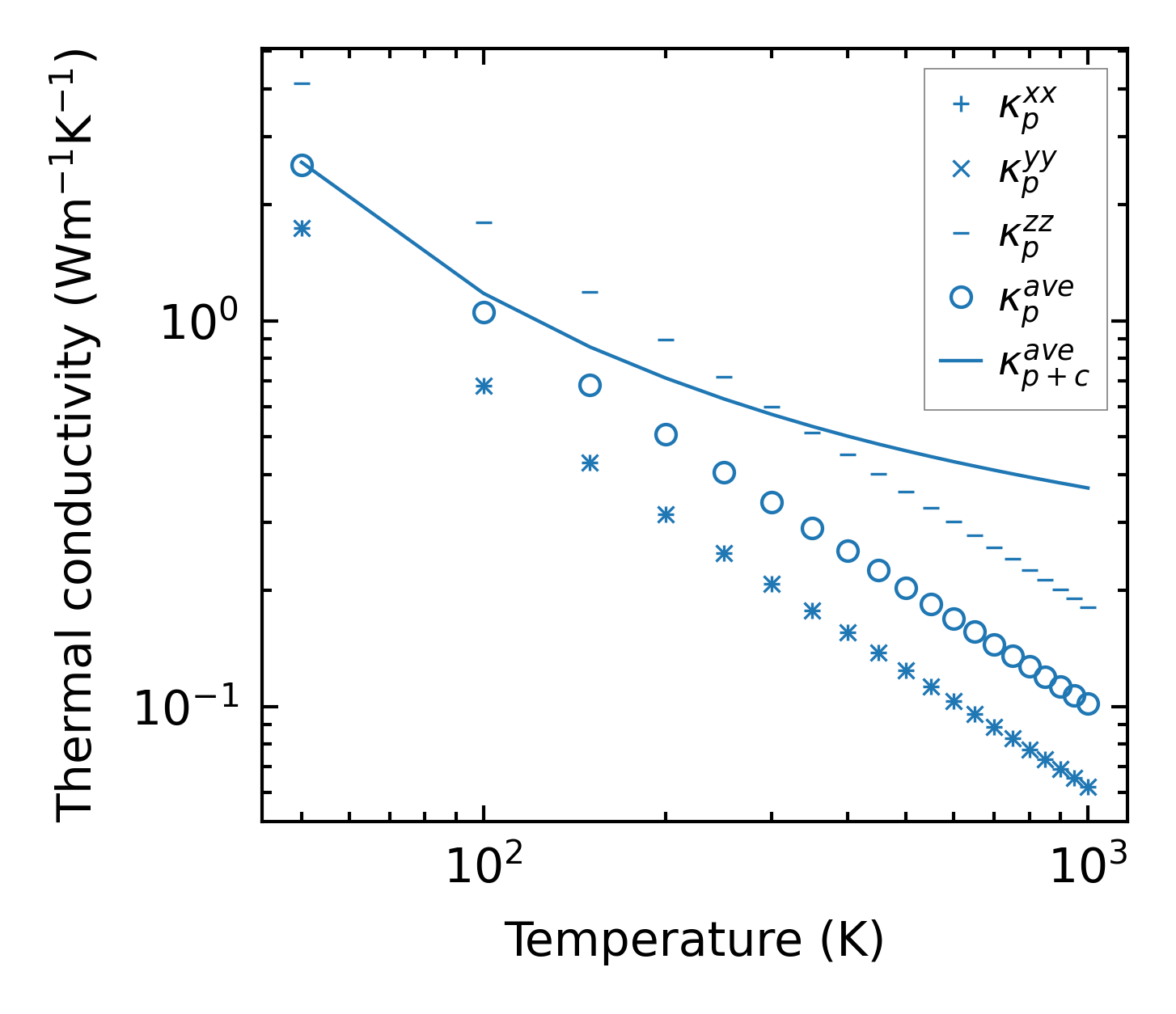

../../_images/fig_kappa5991.png — (a) Temperature-dependent lattice thermal conductivity

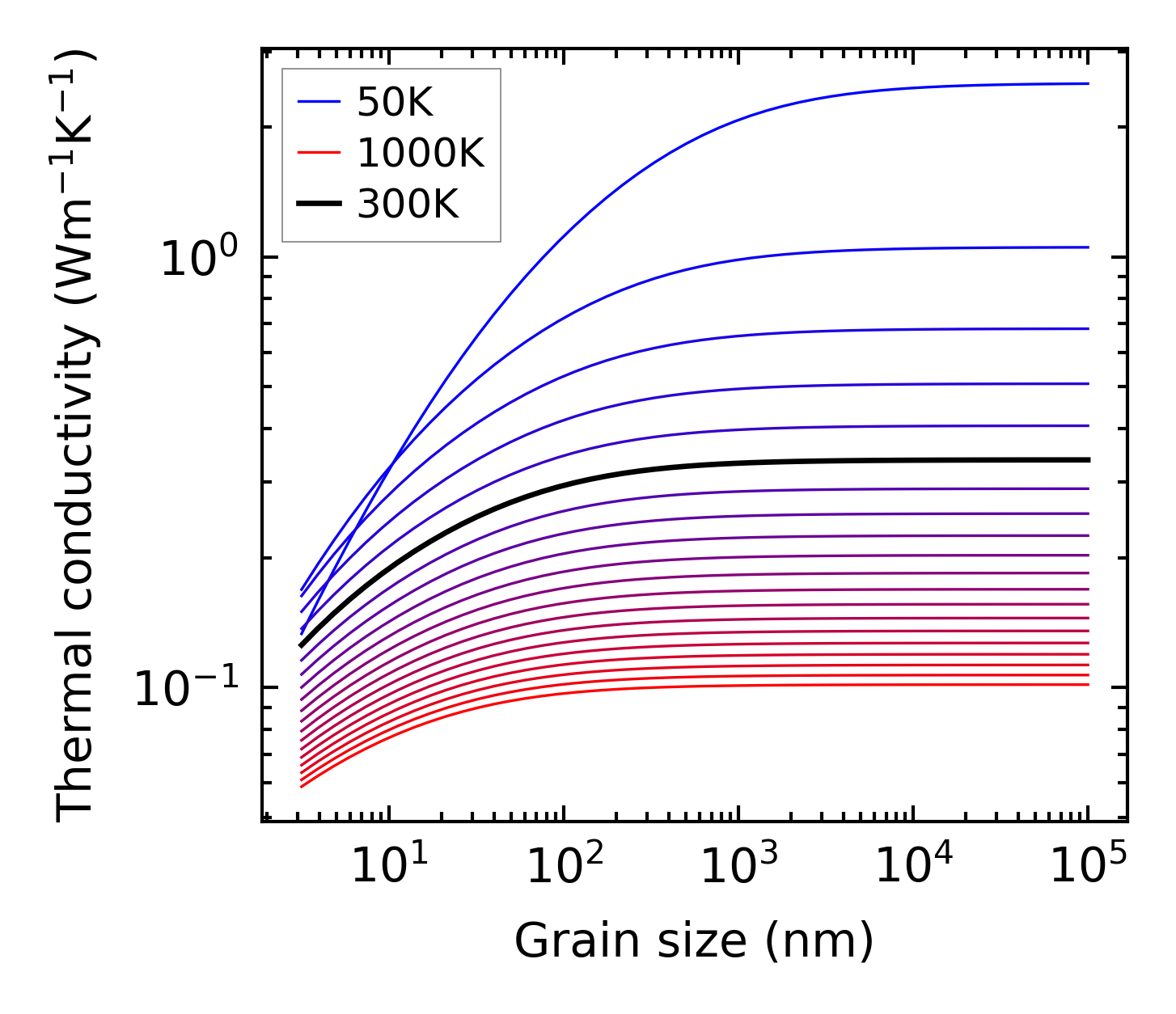

../../_images/fig_kappa_vs_grain_size3205.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3136.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3135.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

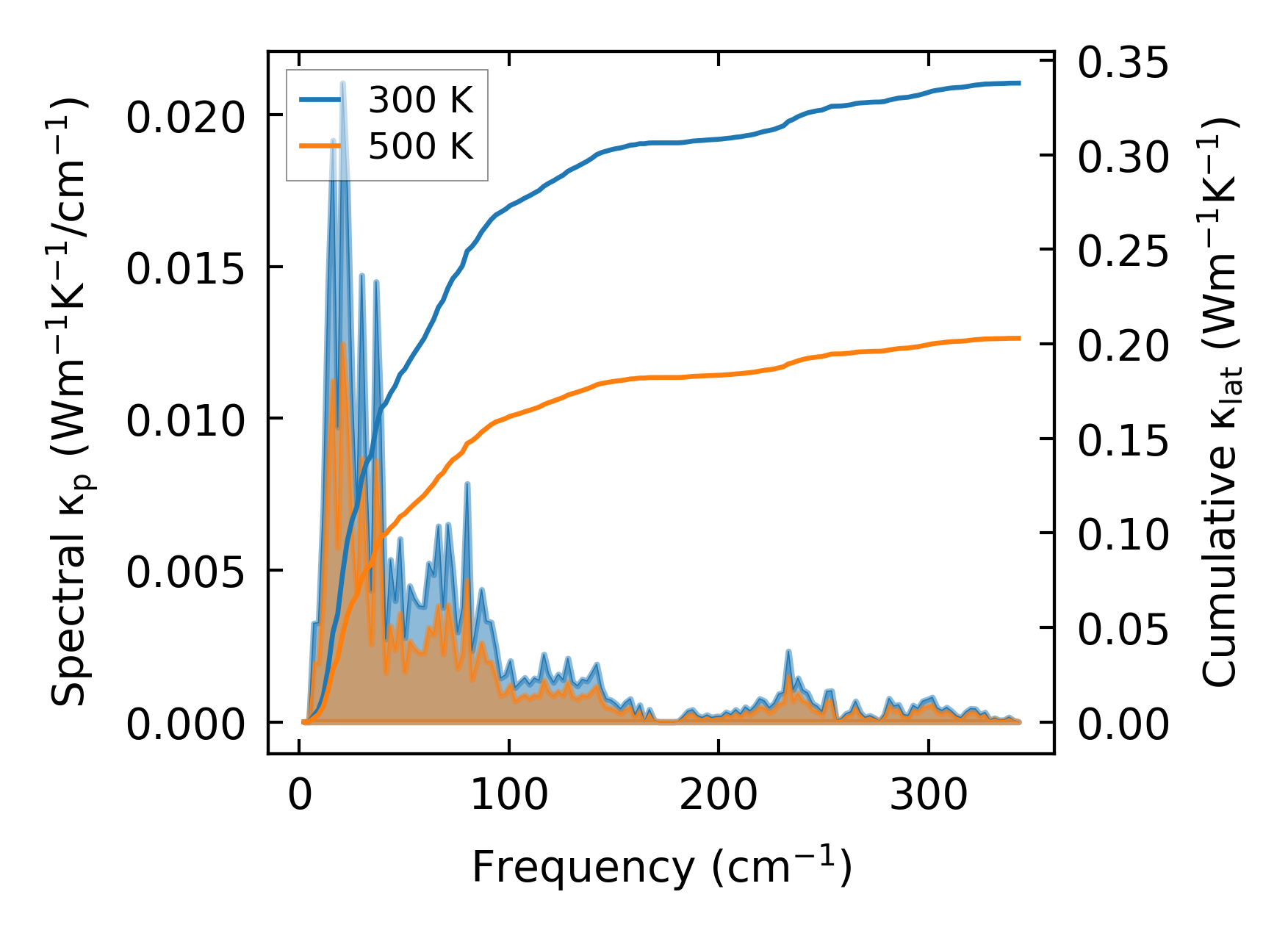

../../_images/fig_cumu_frequency3136.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3135.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

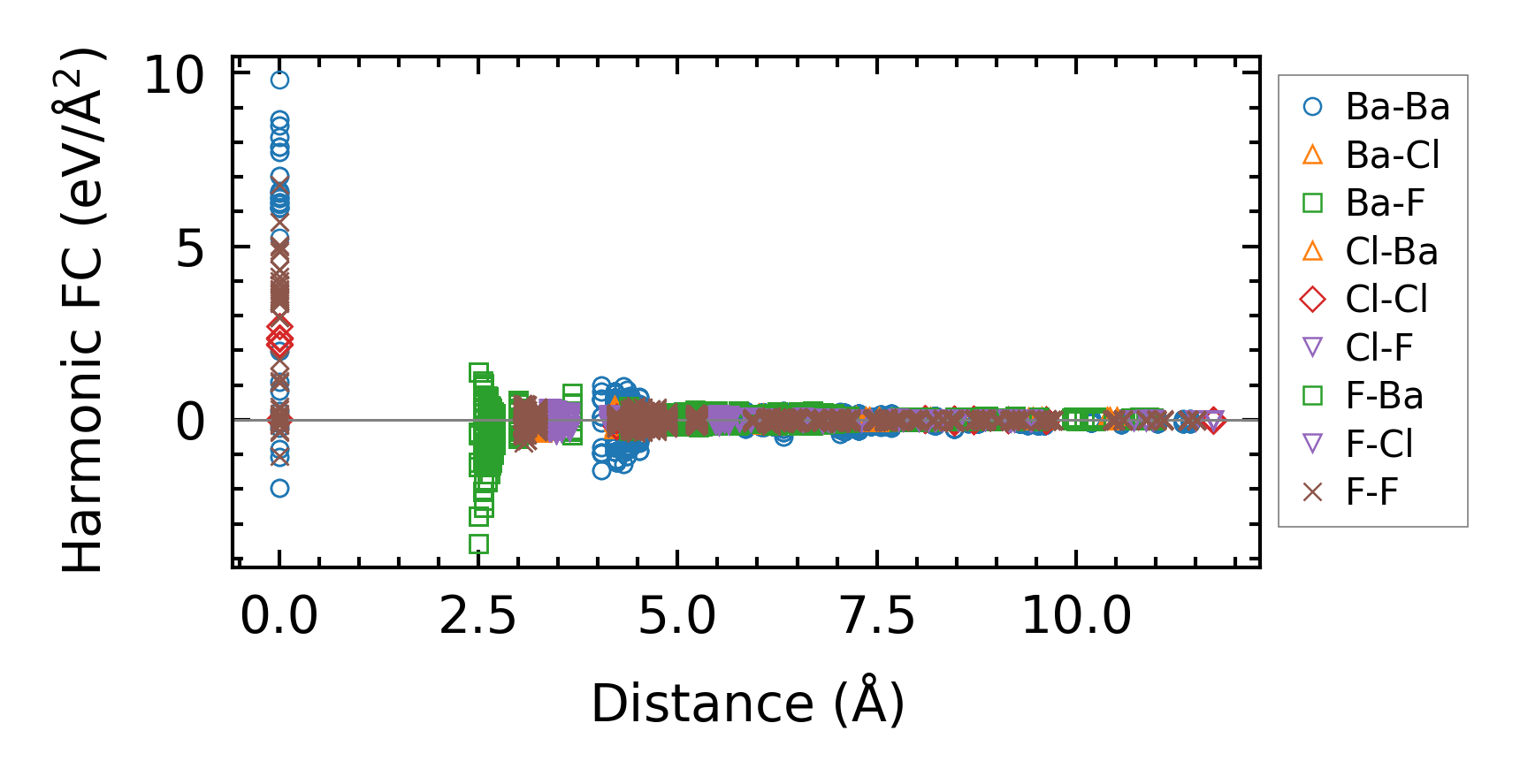

../../_images/fig_fc27305.png — (a) Force constants w.r.t atomic distance

Summary

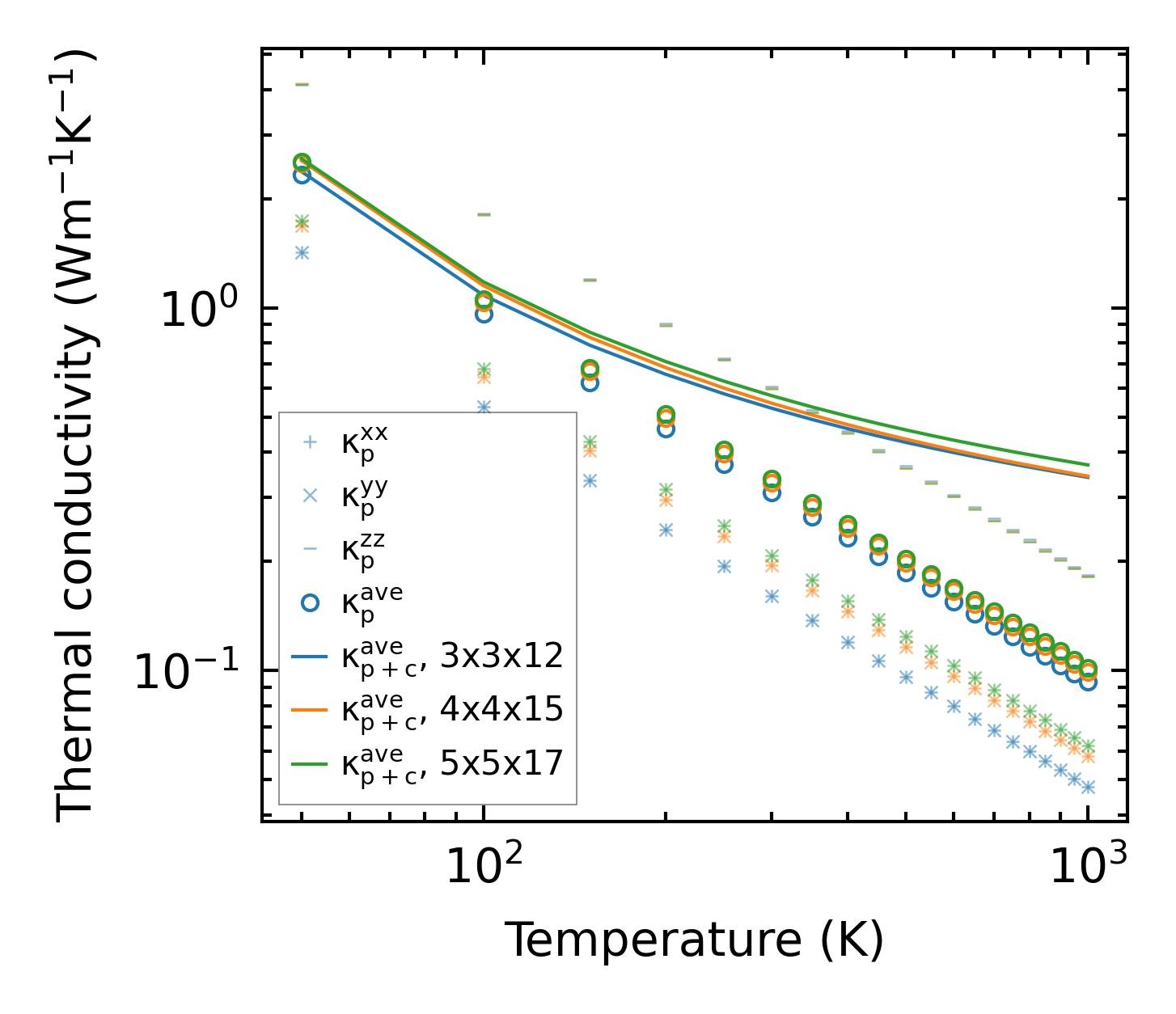

../../_images/fig_kappa5992.png — (a) Temperature-dependent lattice thermal conductivity

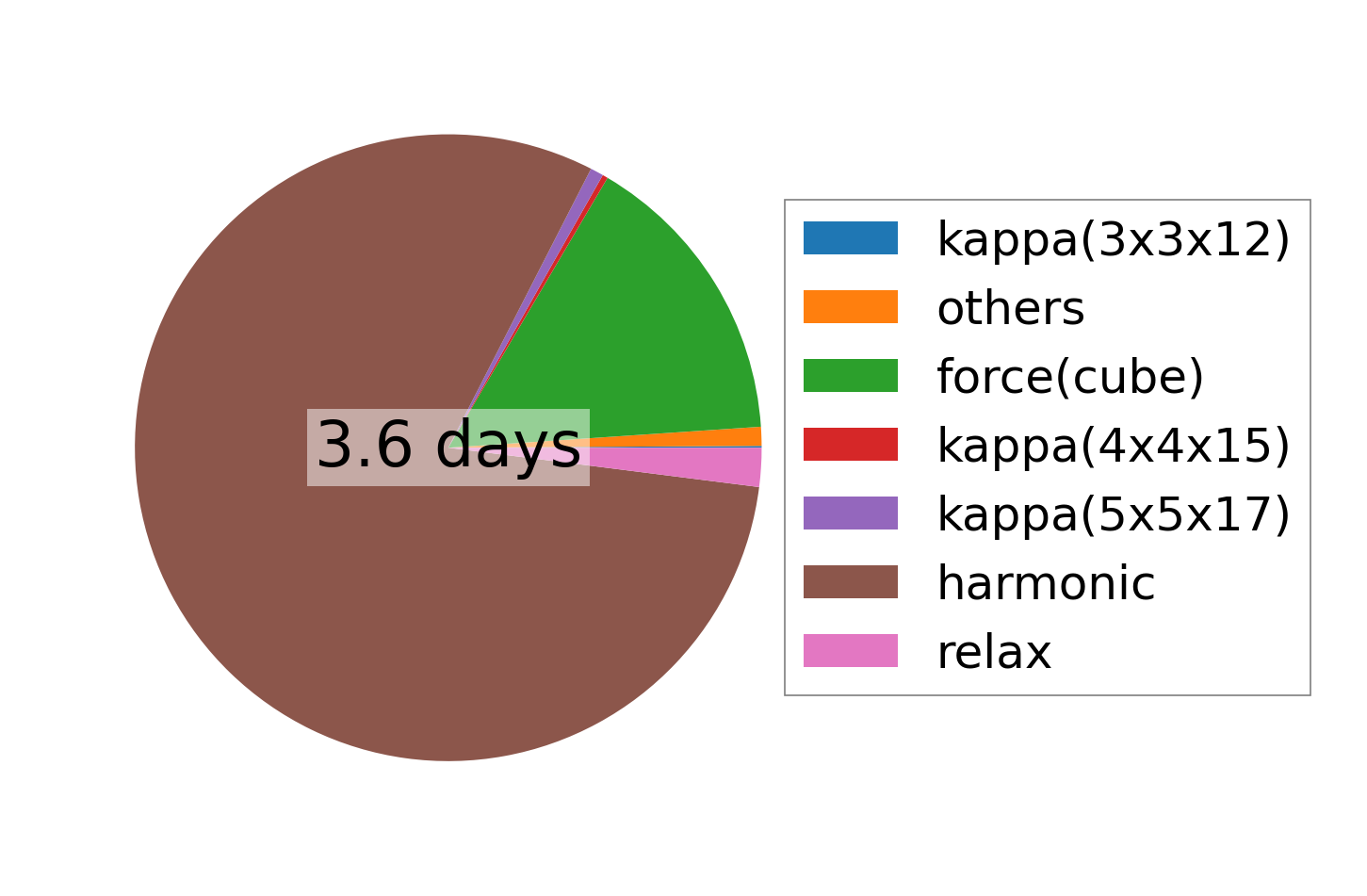

../../_images/fig_times13349.png — (b) Computation time
