mp-560635/Cs2MoS4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-560635.tar.gz

Harmonic properties

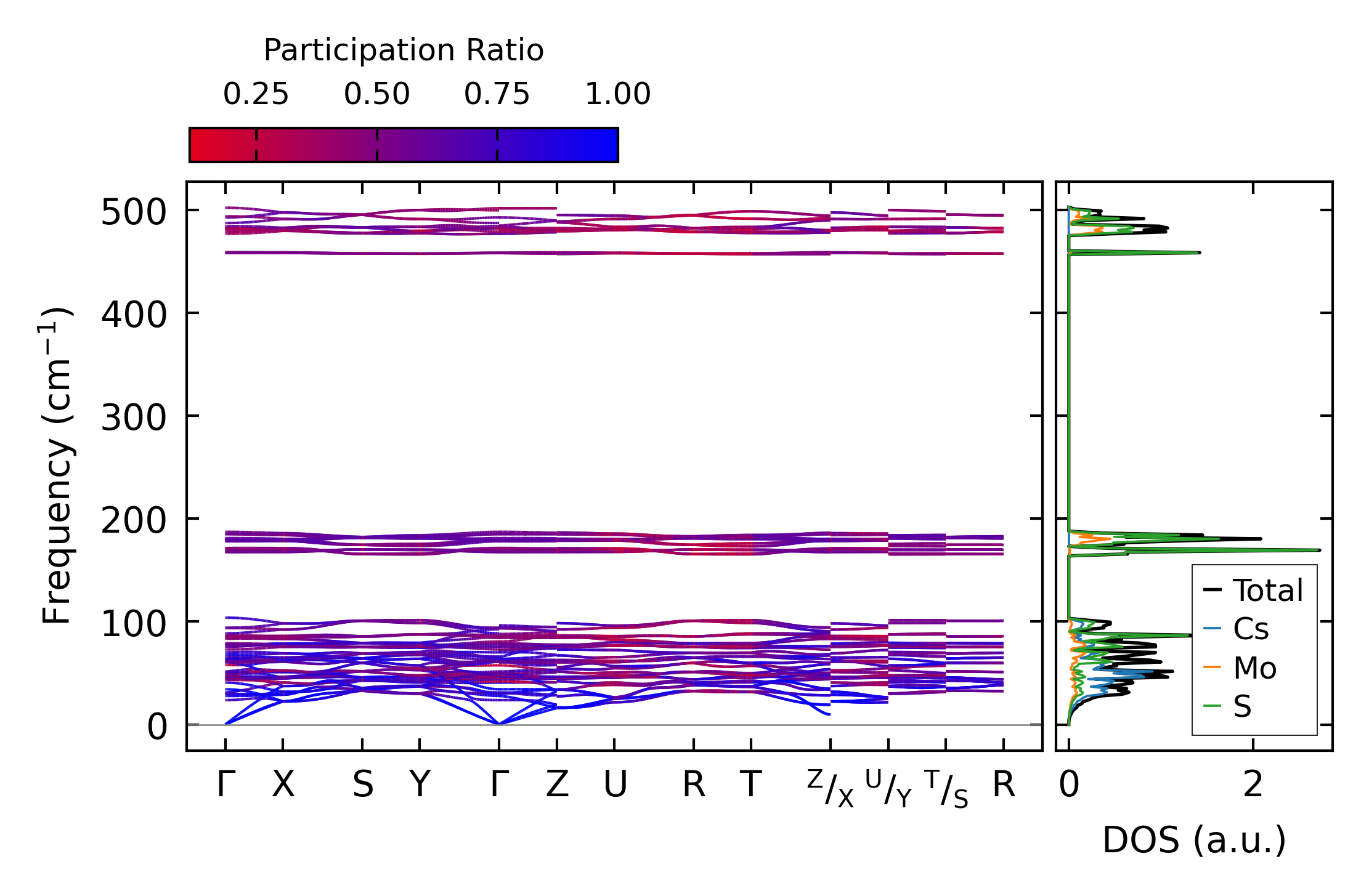

../../_images/fig_bandos_pr7538.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7538.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3162.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3162.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x10x5, supercell: 2x2x1

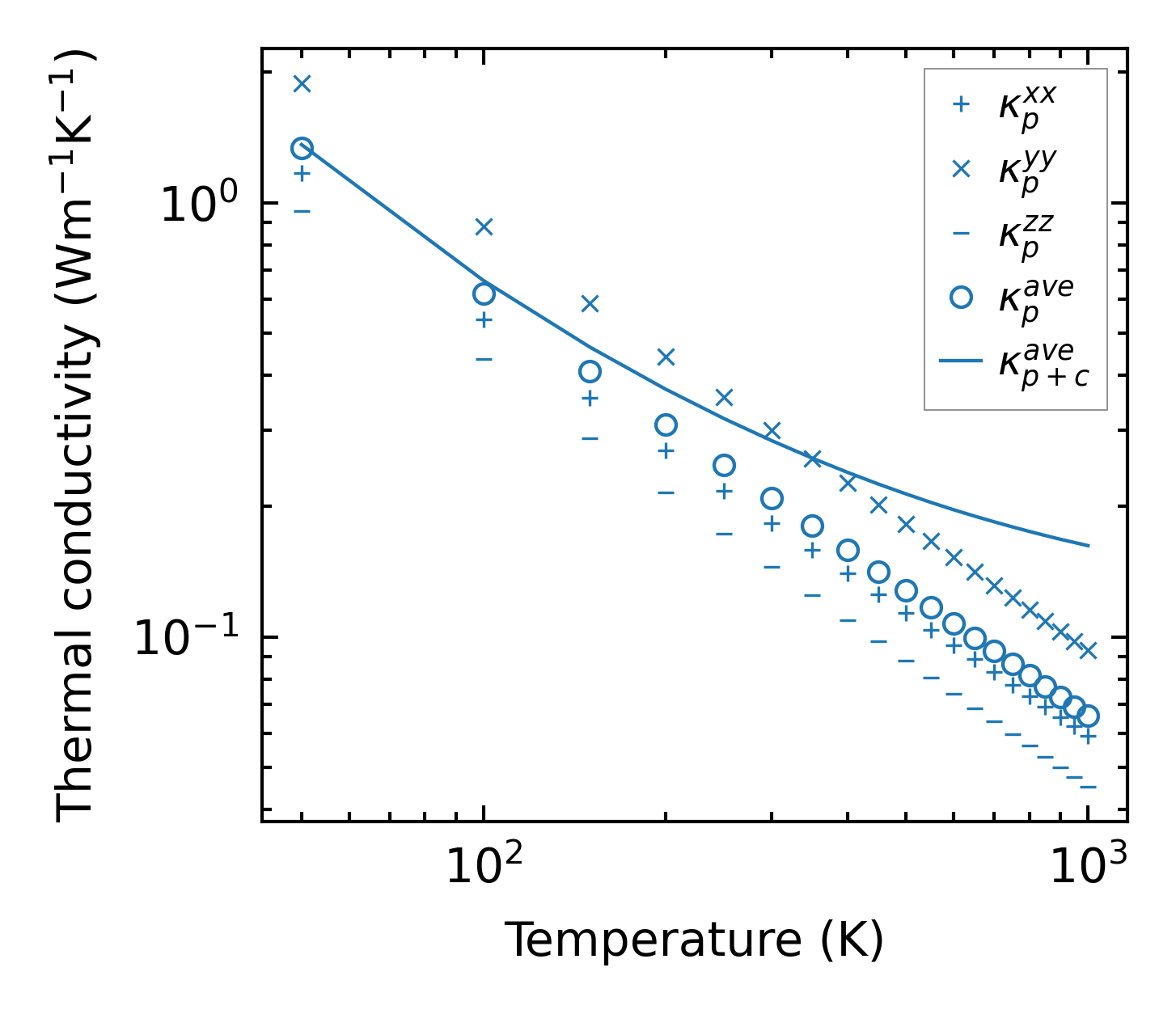

../../_images/fig_kappa5988.png — (a) Temperature-dependent lattice thermal conductivity

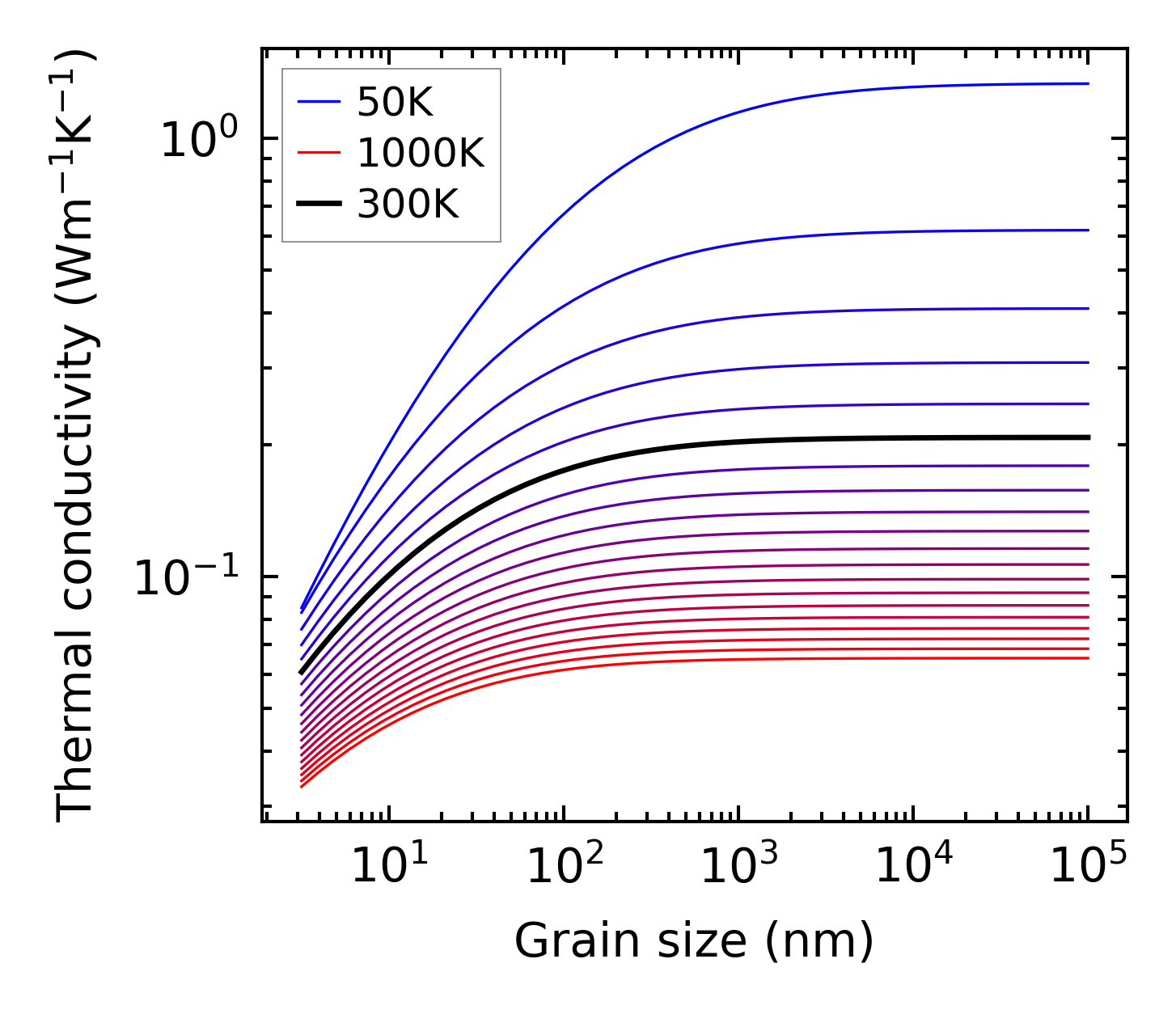

../../_images/fig_kappa_vs_grain_size3203.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

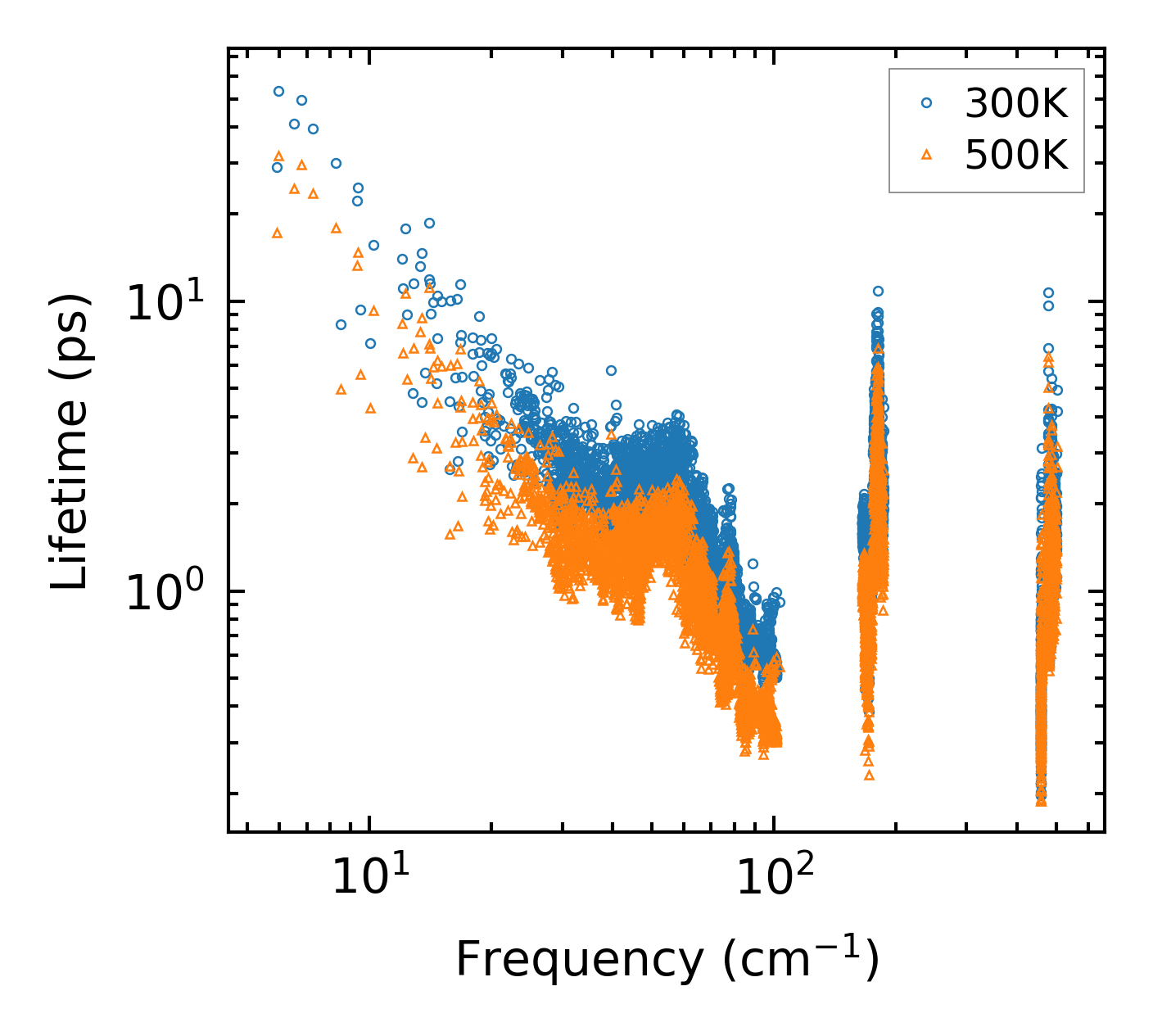

../../_images/fig_lifetime3134.png — (a) Phonon lifetime due to phonon-phonon scattering

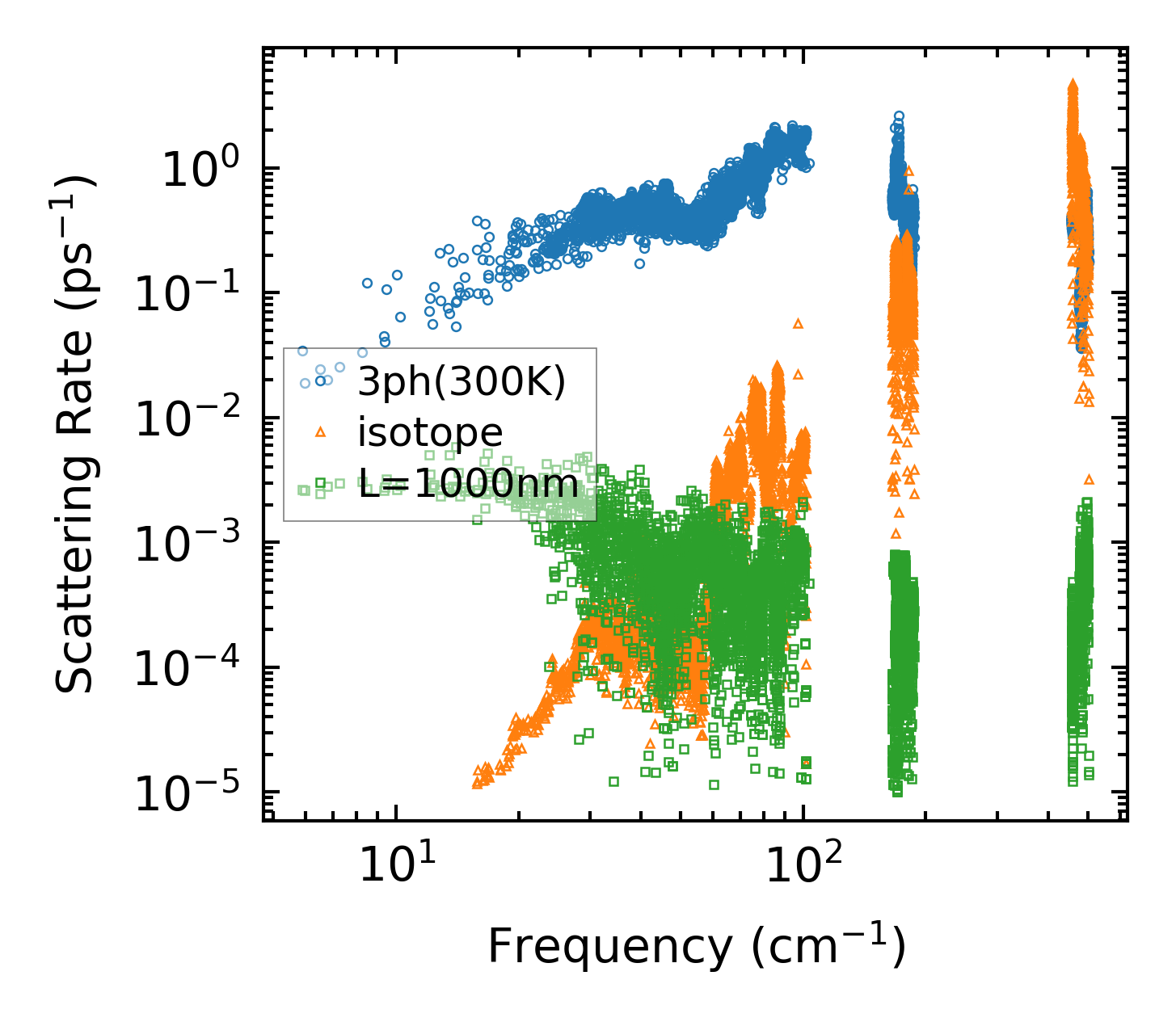

../../_images/fig_scat_rates3133.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

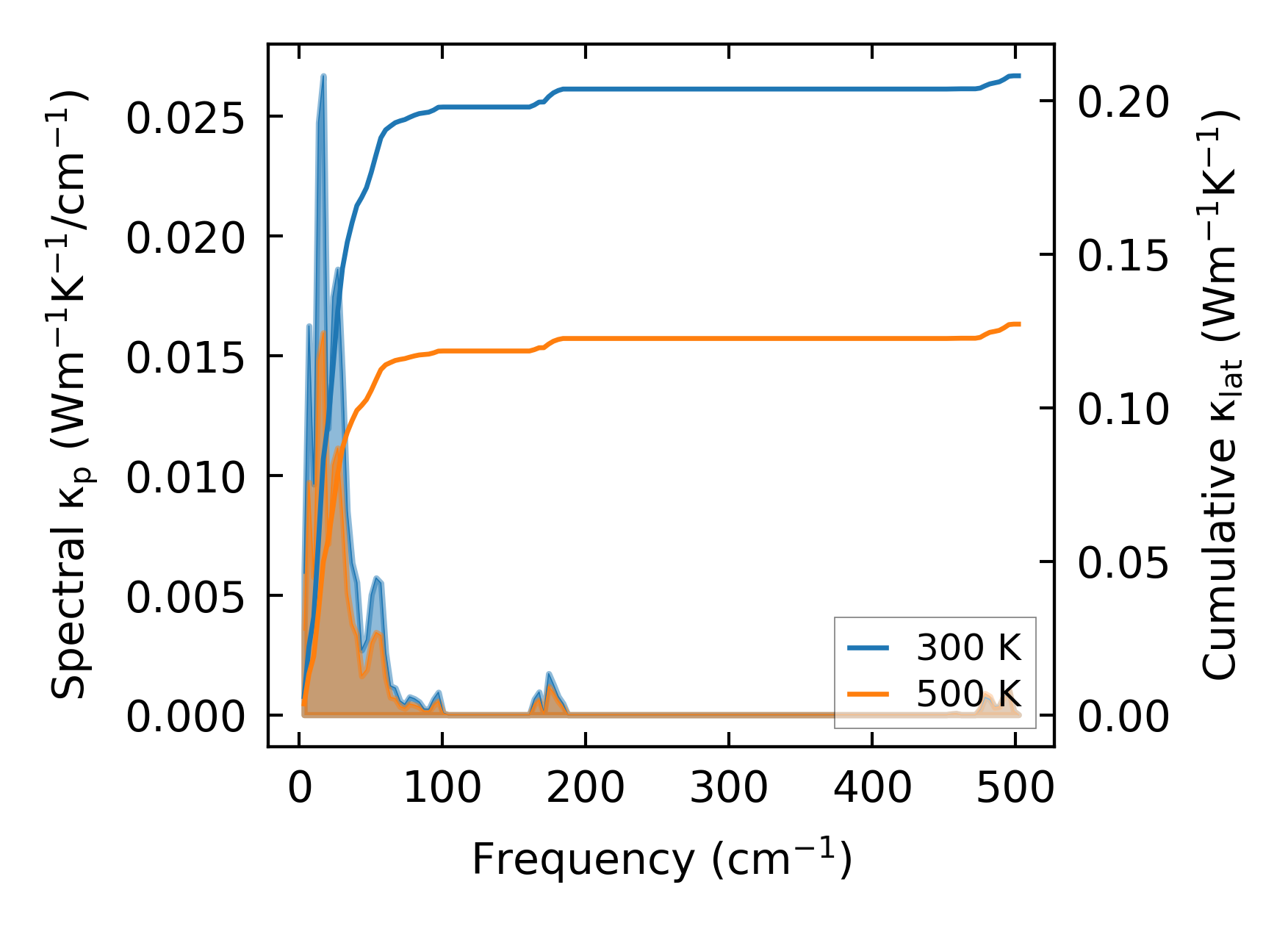

../../_images/fig_cumu_frequency3134.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3133.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

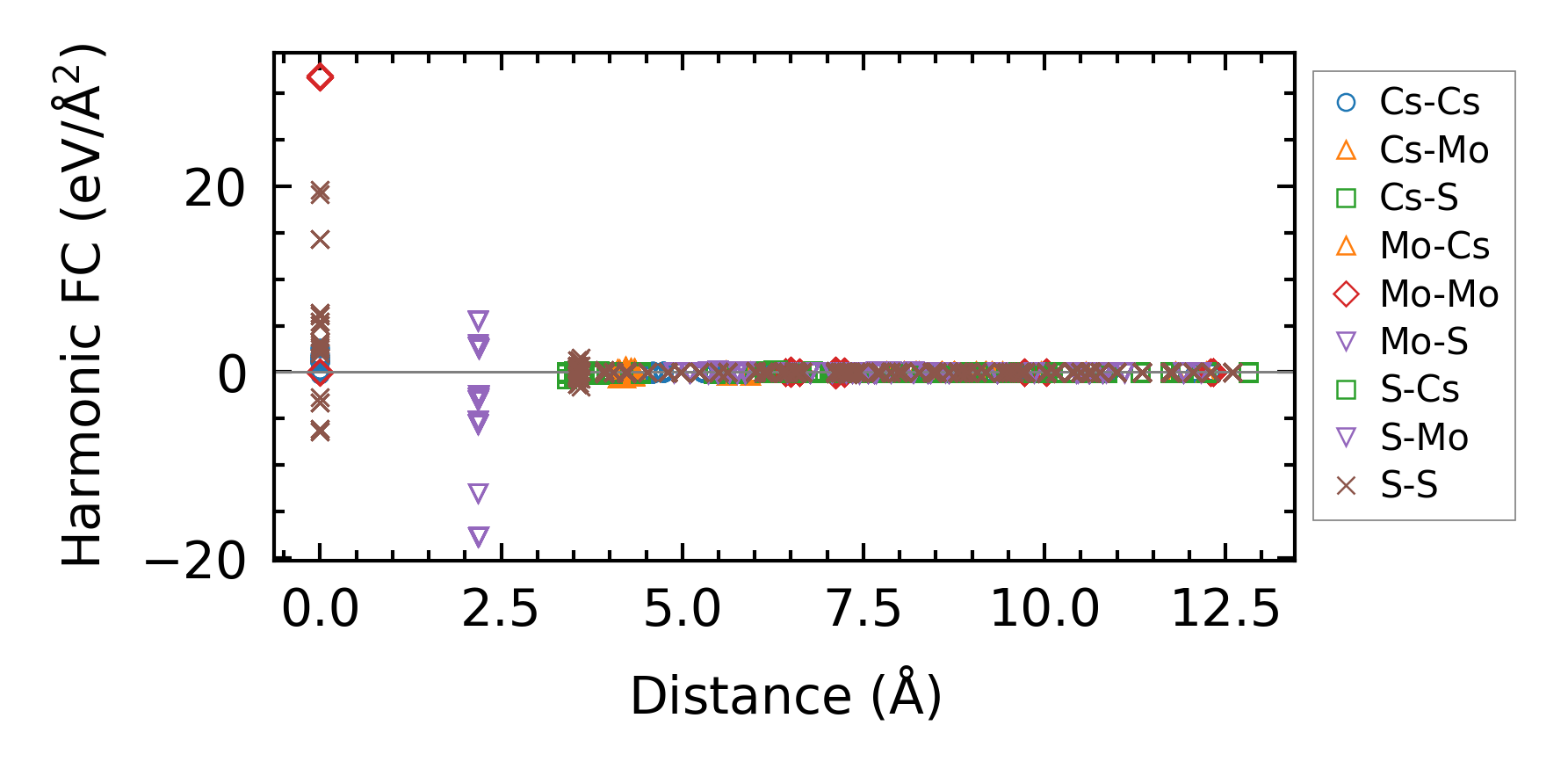

../../_images/fig_fc27302.png — (a) Force constants w.r.t atomic distance

Summary

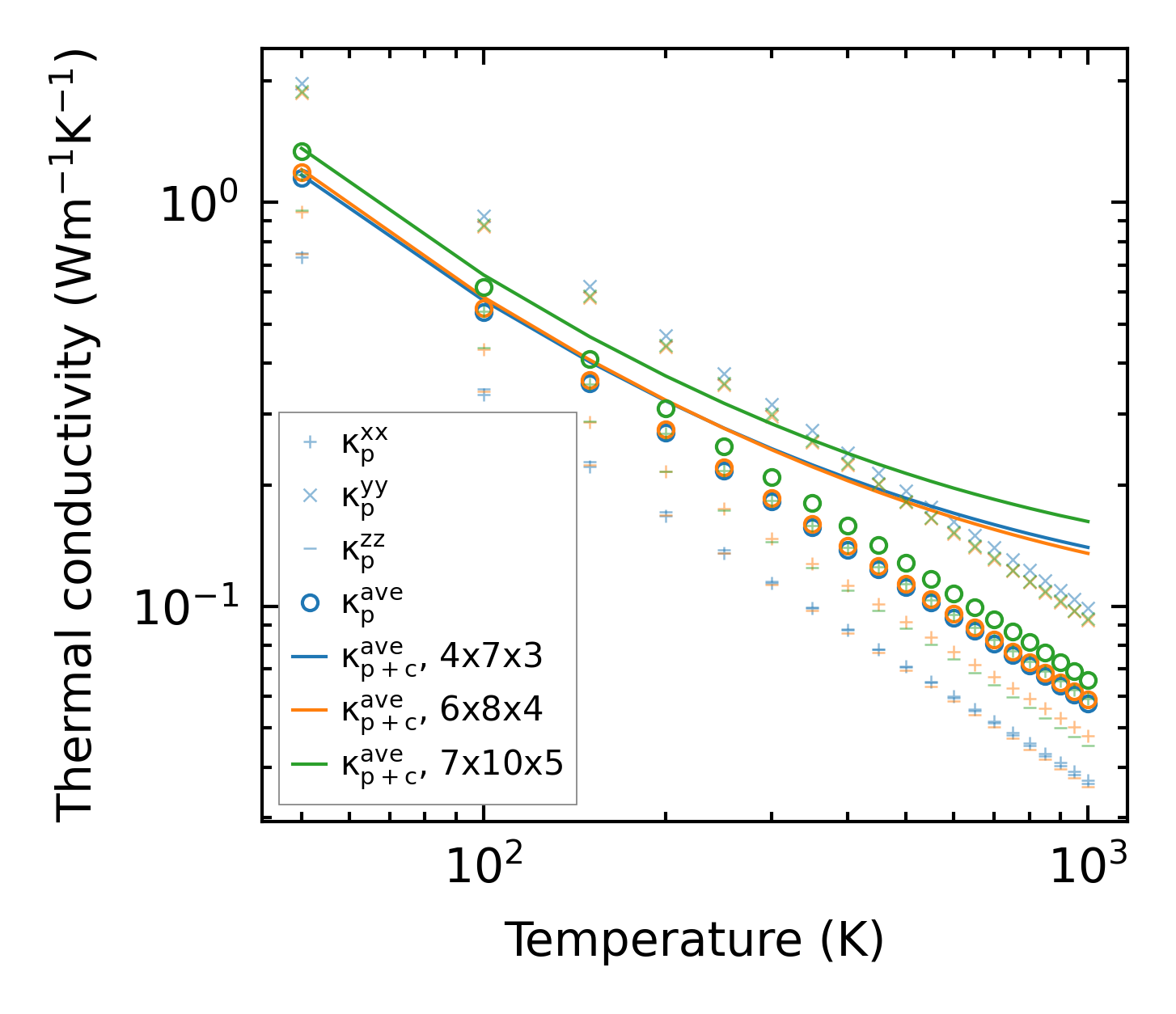

../../_images/fig_kappa5989.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times13346.png — (b) Computation time
