mp-560068-2/Na3NO4/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-560068-2.tar.gz

Equation of state

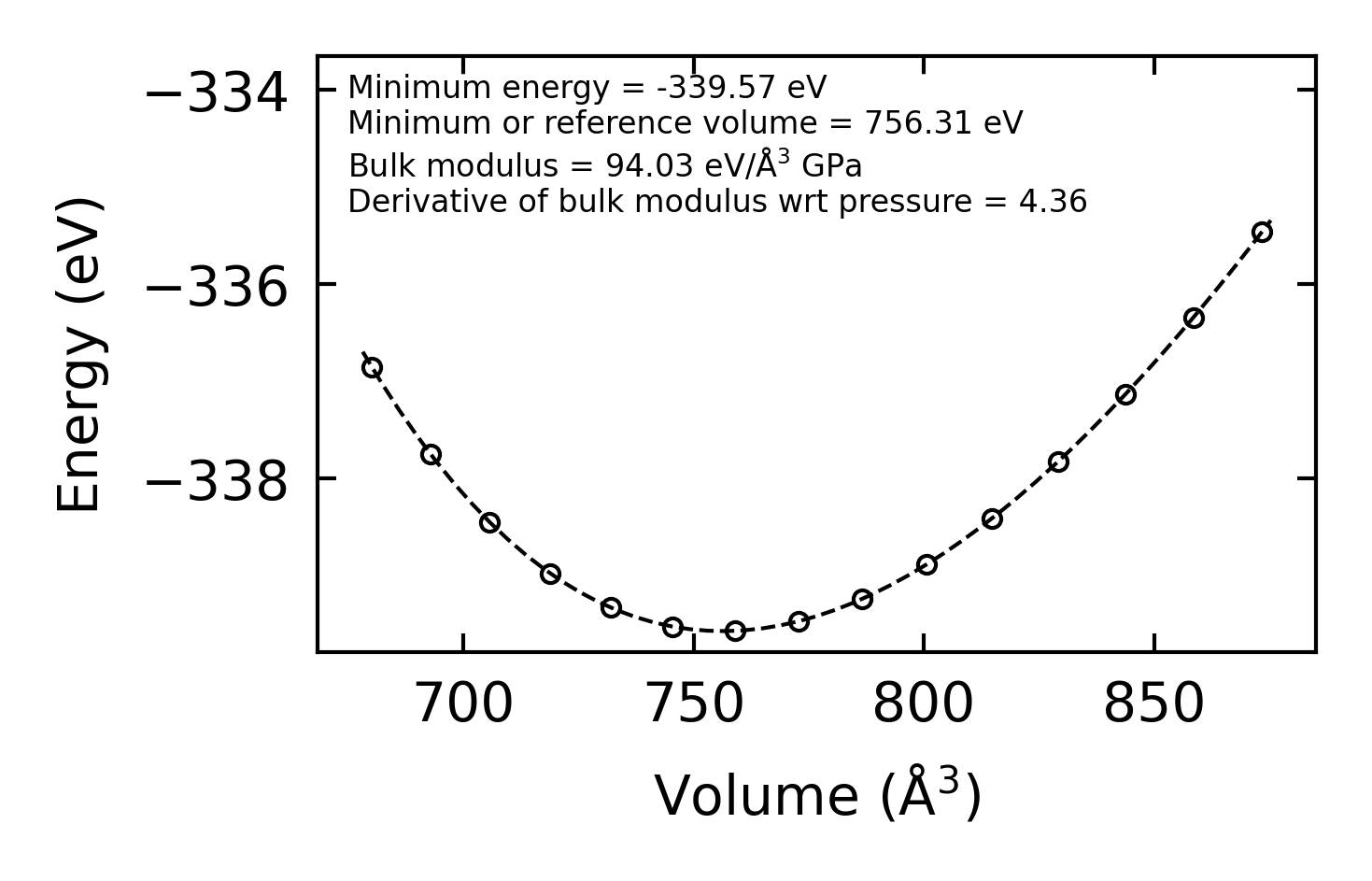

../../_images/fig_bm4009.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr7751.png — (a) Phonon dispersion with participation ratio and DOS

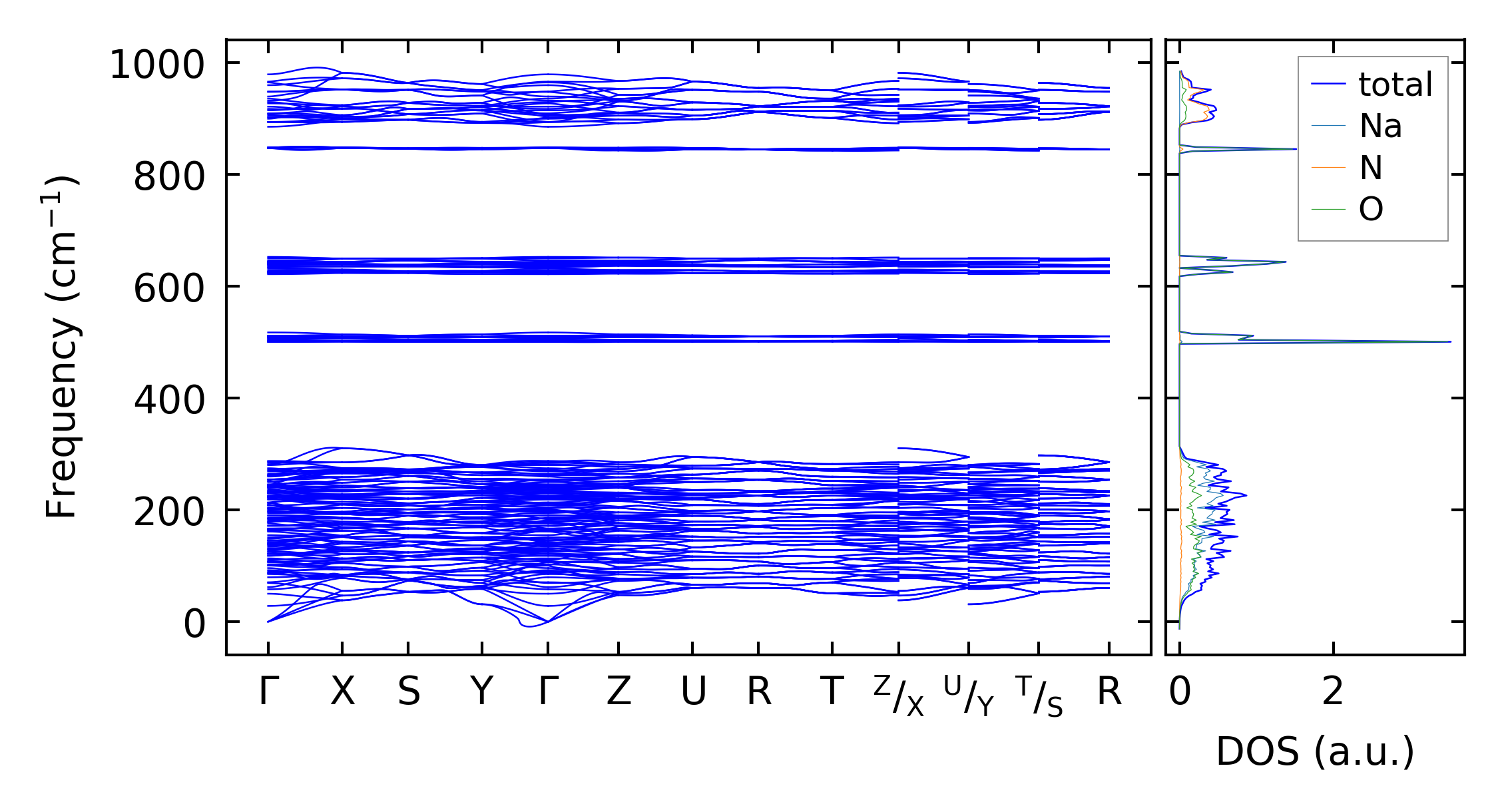

../../_images/fig_bandos10871.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7751.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3237.png — (a) Grüneisen parameters

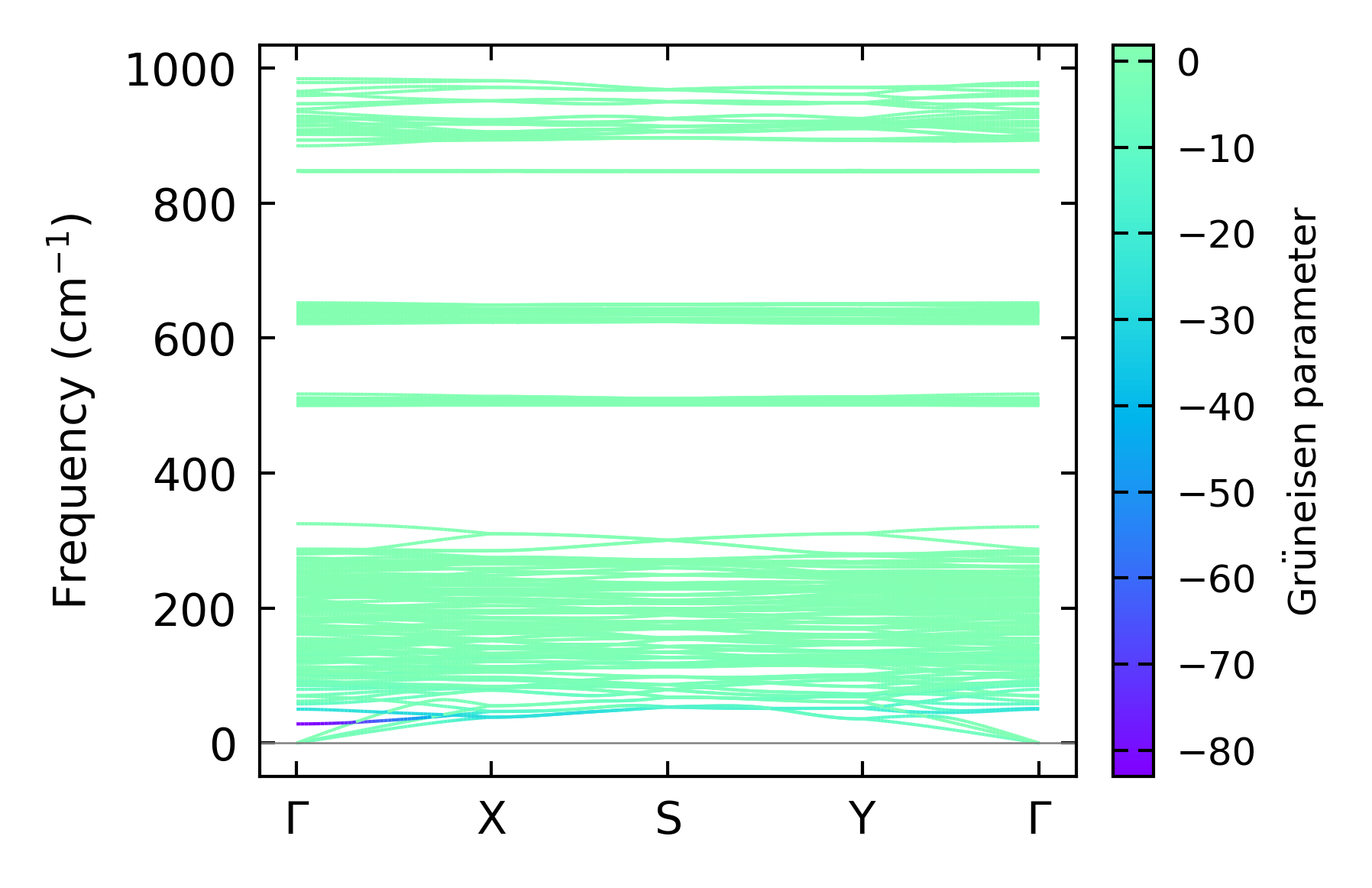

../../_images/fig_gruneisen3237.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x7x7, supercell: 2x1x1

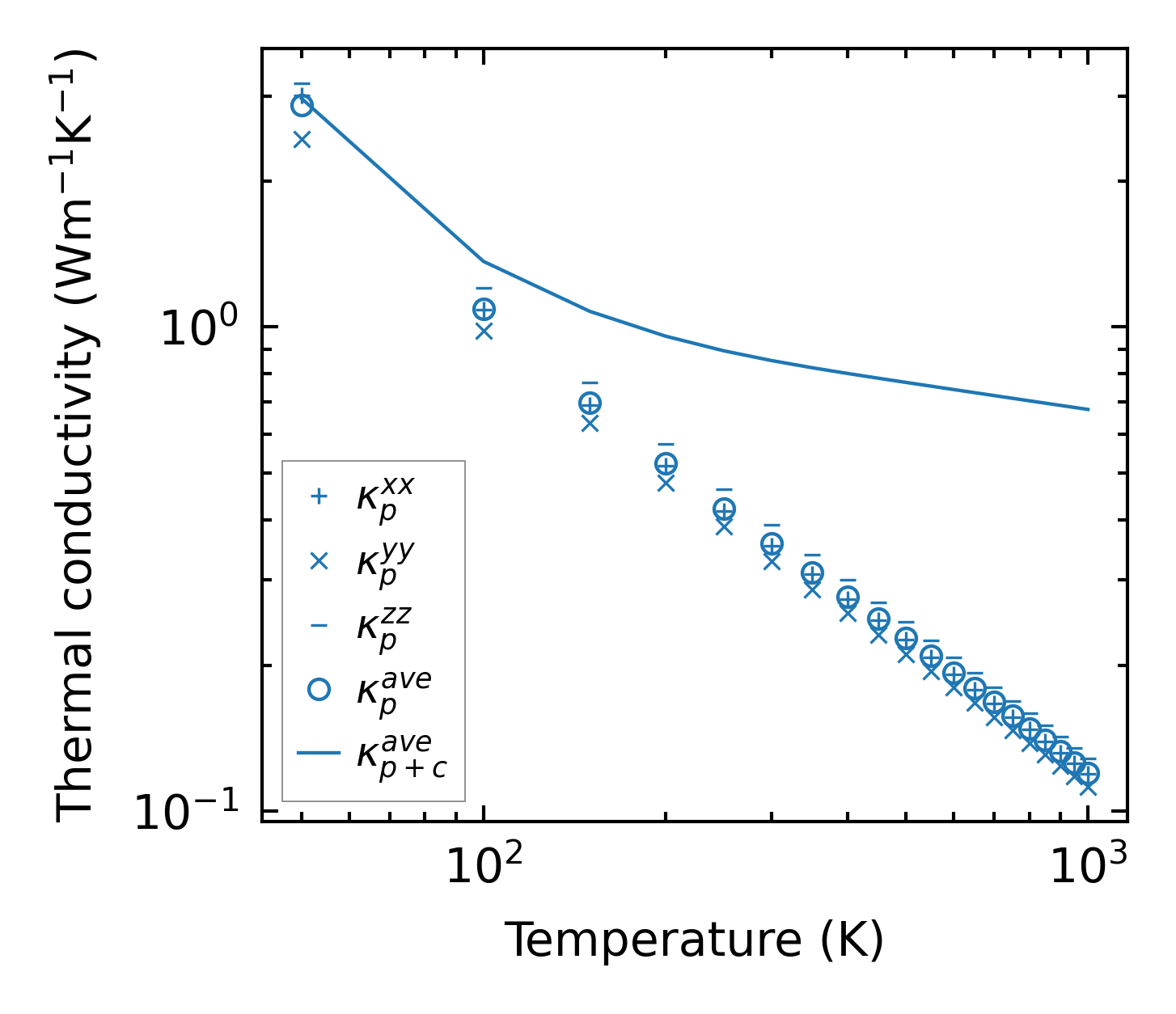

../../_images/fig_kappa6131.png — (a) Temperature-dependent lattice thermal conductivity

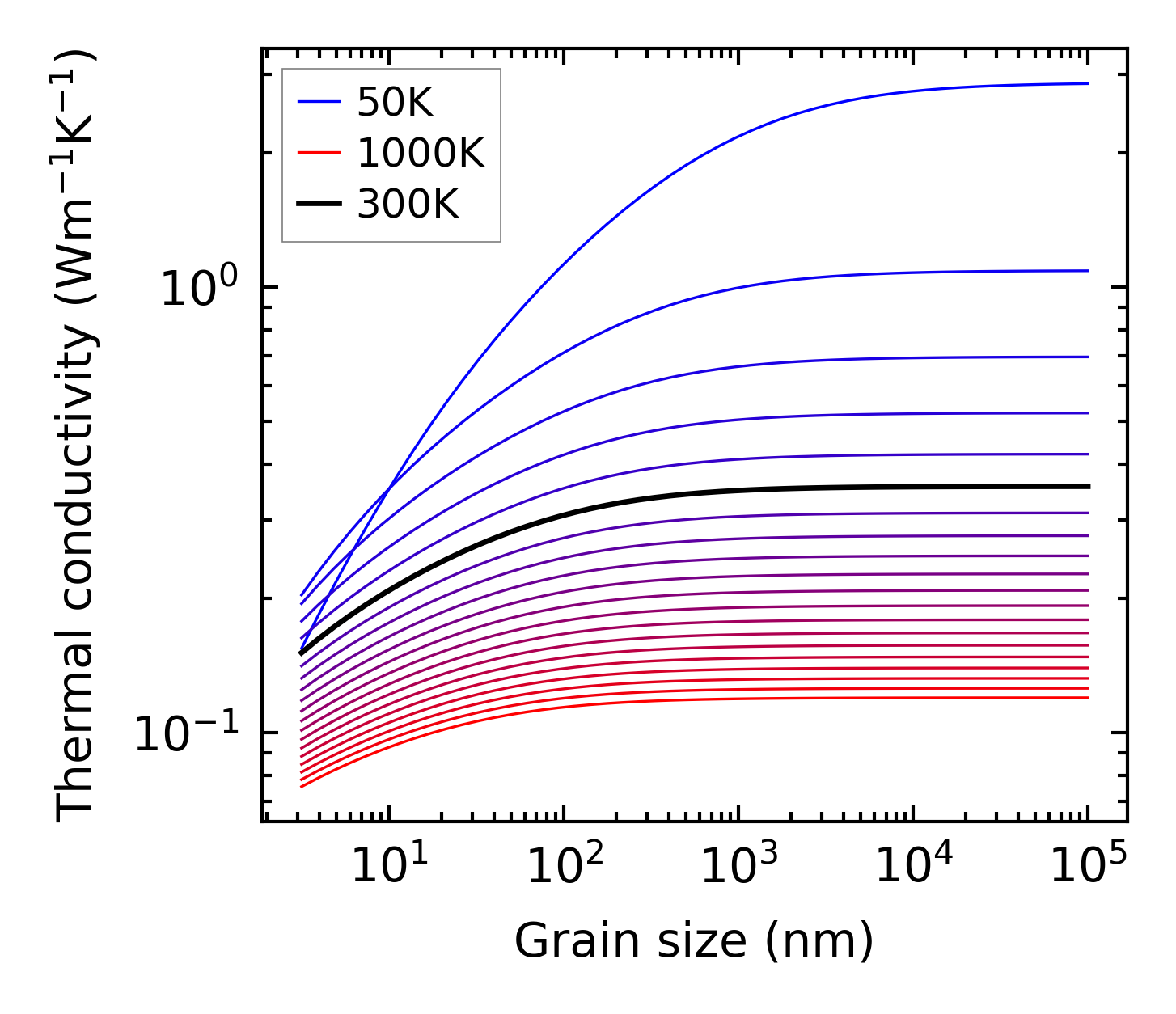

../../_images/fig_kappa_vs_grain_size3279.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3209.png — (a) Phonon lifetime due to phonon-phonon scattering

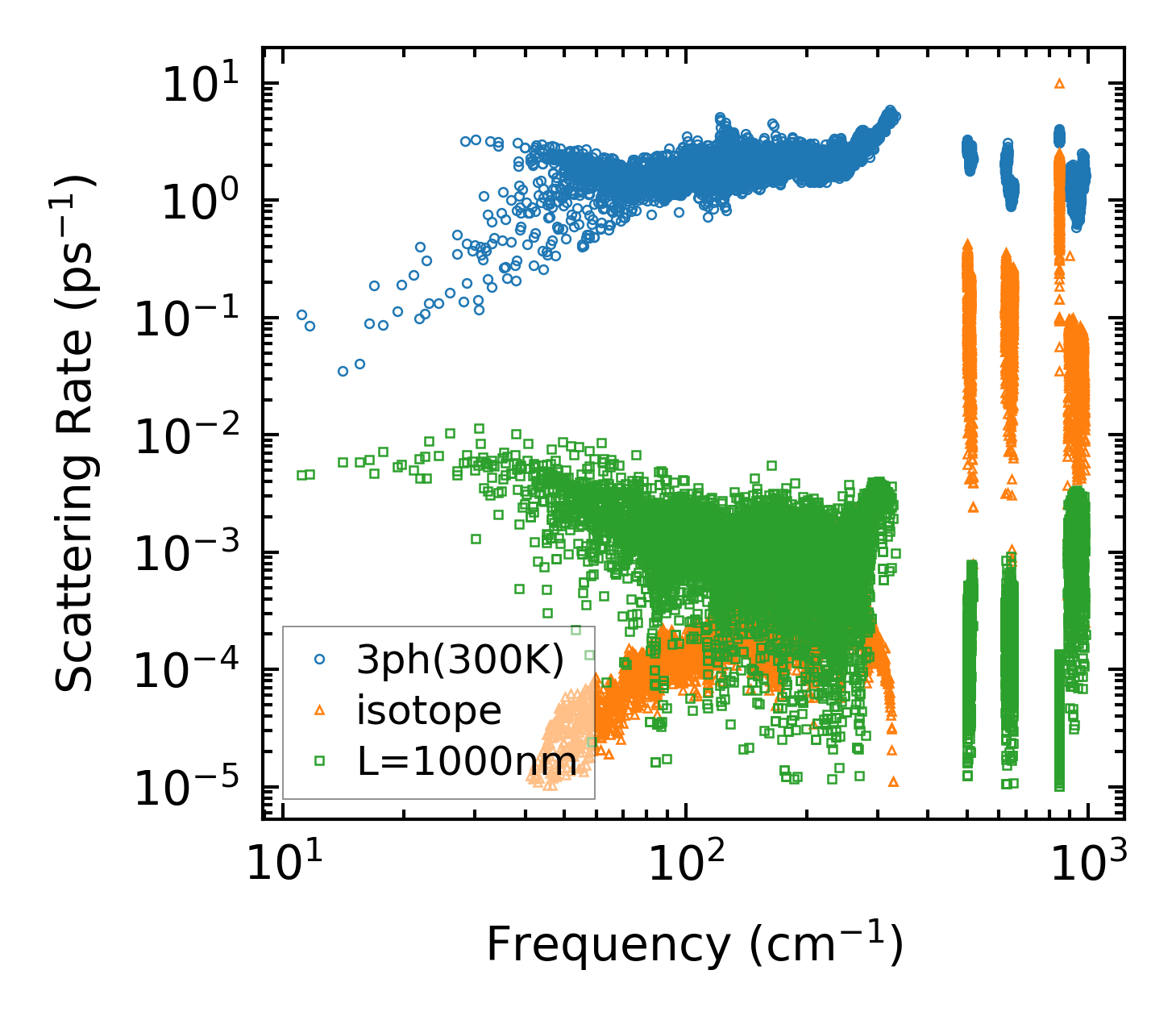

../../_images/fig_scat_rates3208.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

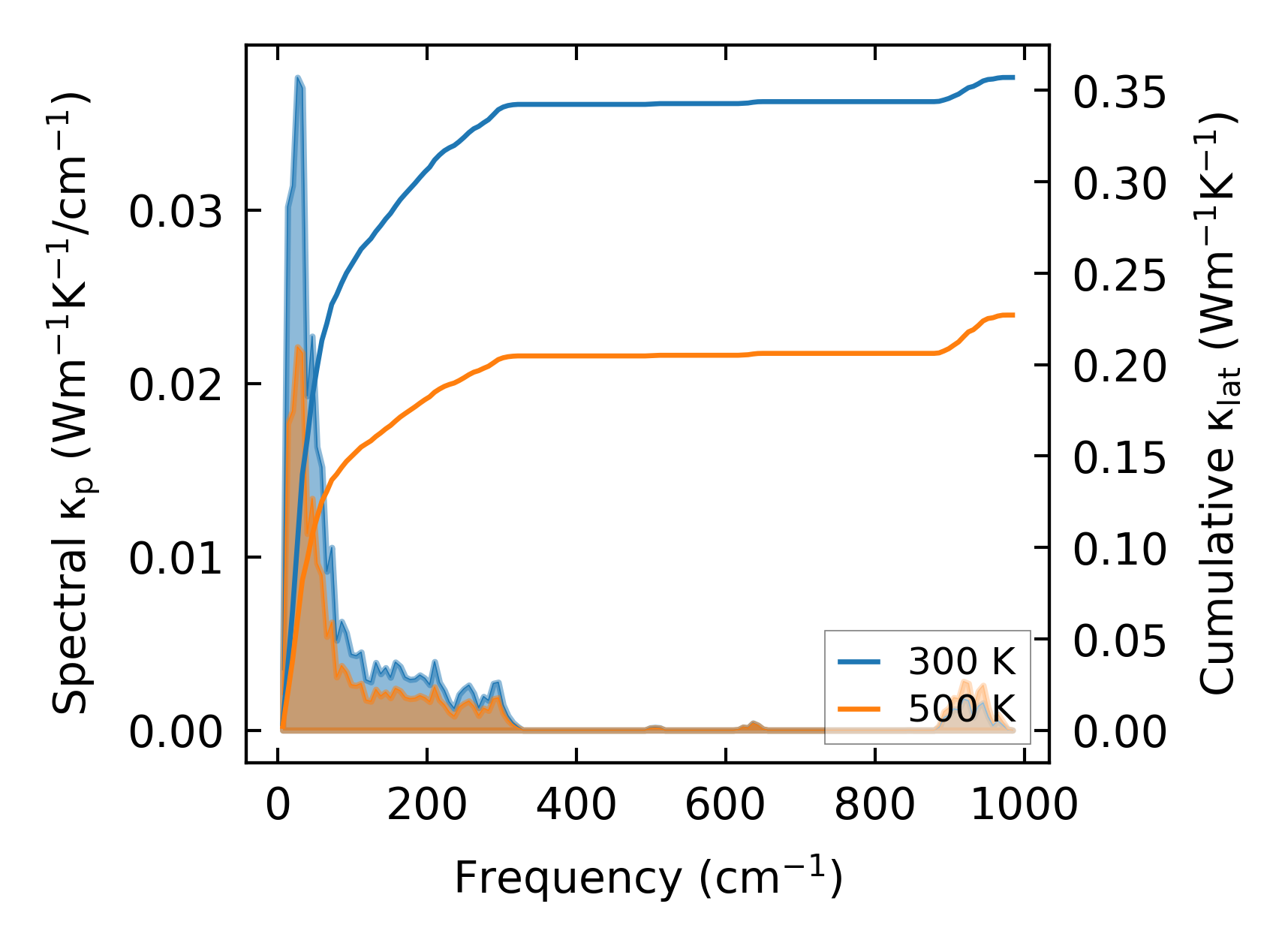

../../_images/fig_cumu_frequency3209.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3208.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

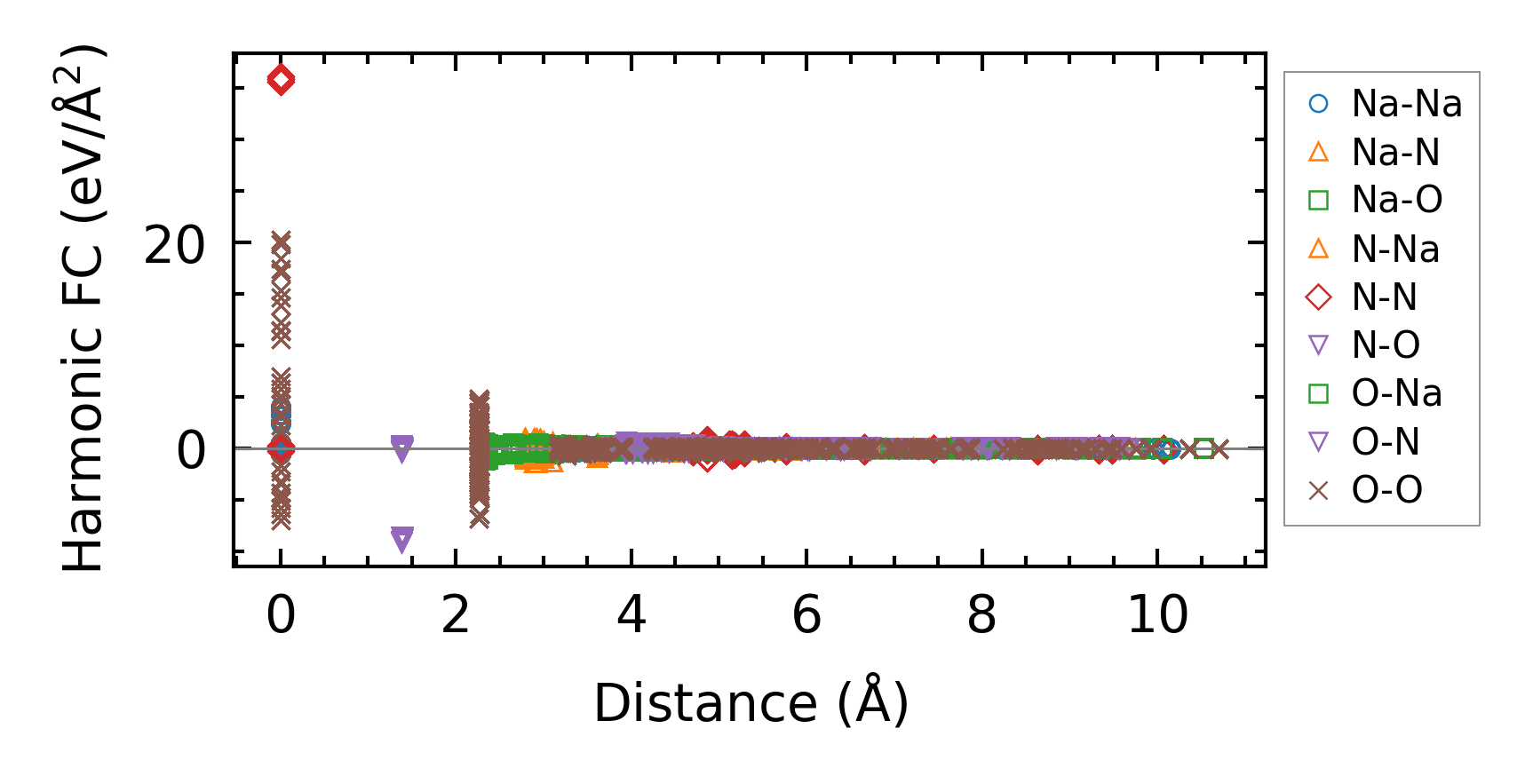

../../_images/fig_fc27514.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6132.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times13671.png — (b) Computation time
