mp-560588/ZnS/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-560588.tar.gz

Harmonic properties

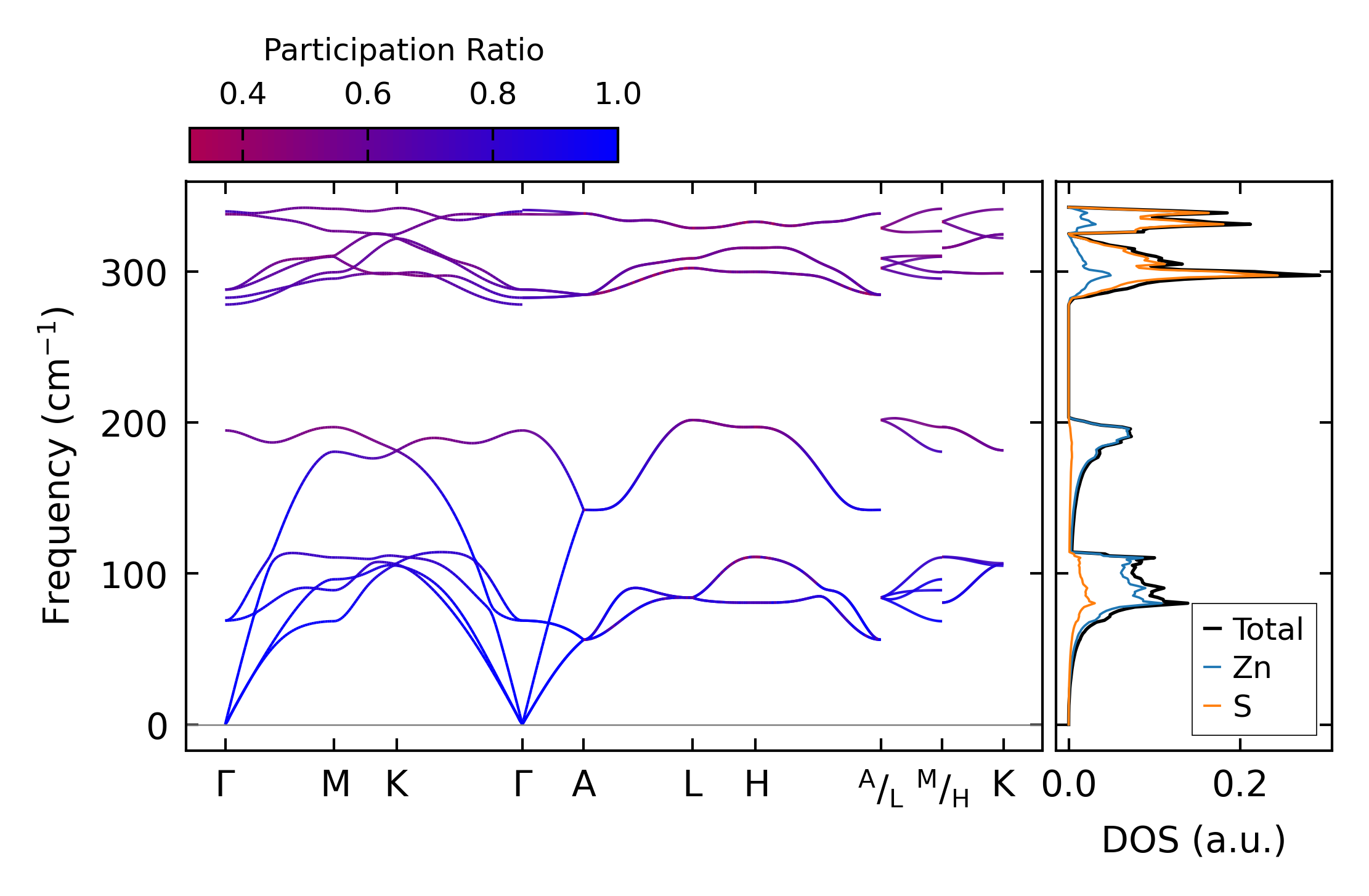

../../_images/fig_bandos_pr7525.png — (a) Phonon dispersion with participation ratio and DOS

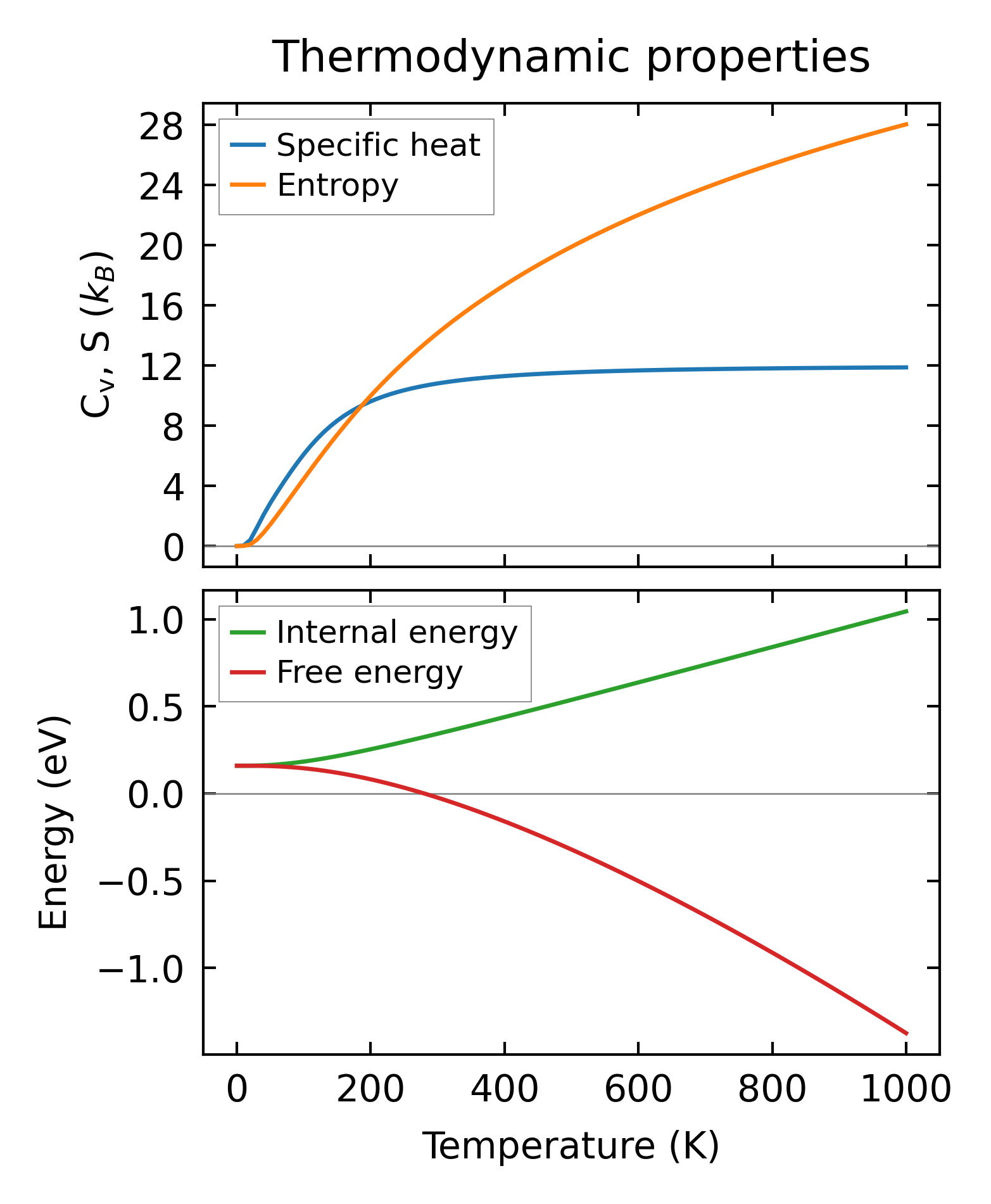

../../_images/fig_thermo7525.png — (b) Thermodynamic properties

Grüneisen parameters

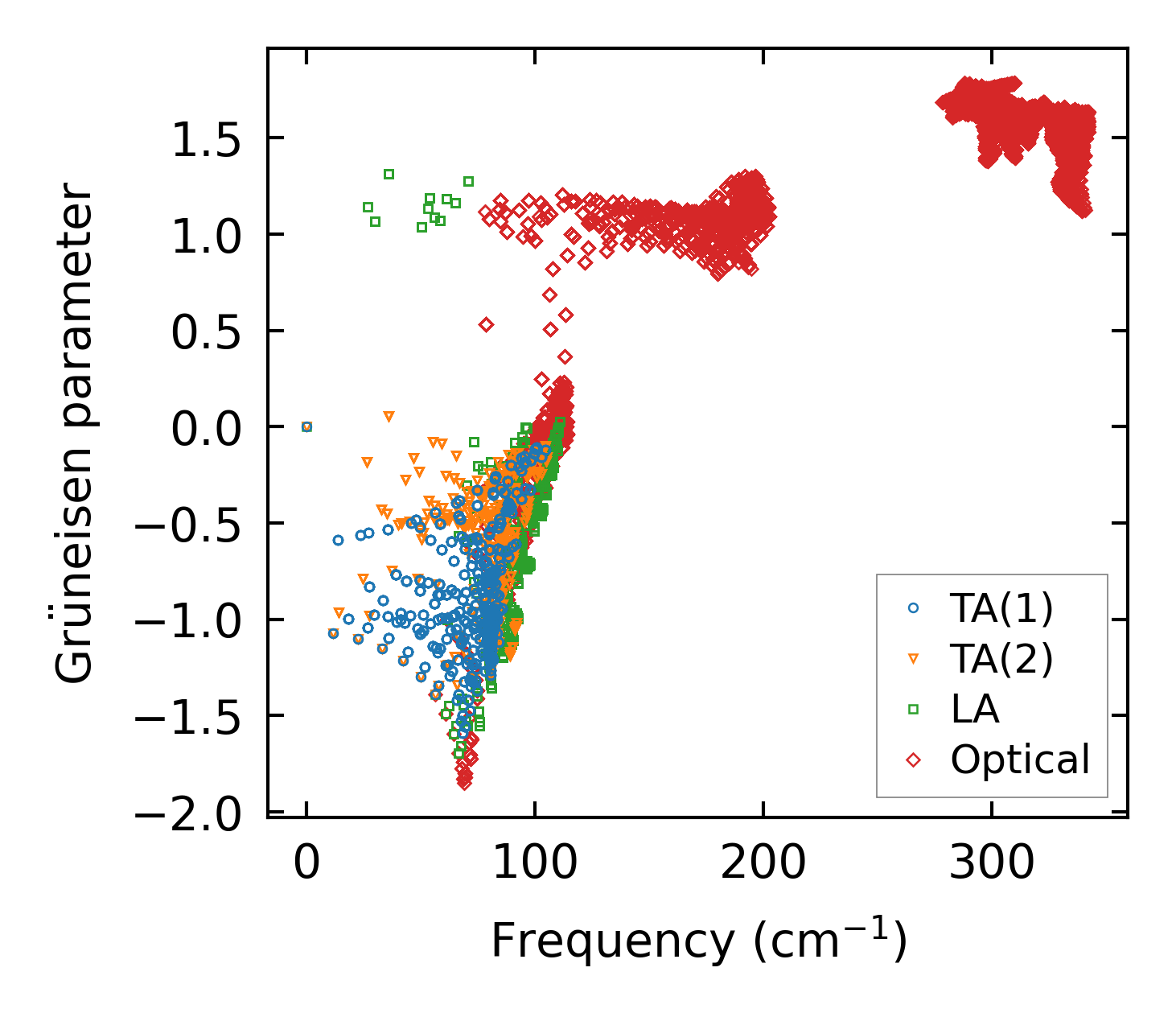

../../_images/fig_gru_all3155.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3155.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x12, supercell: 4x4x2

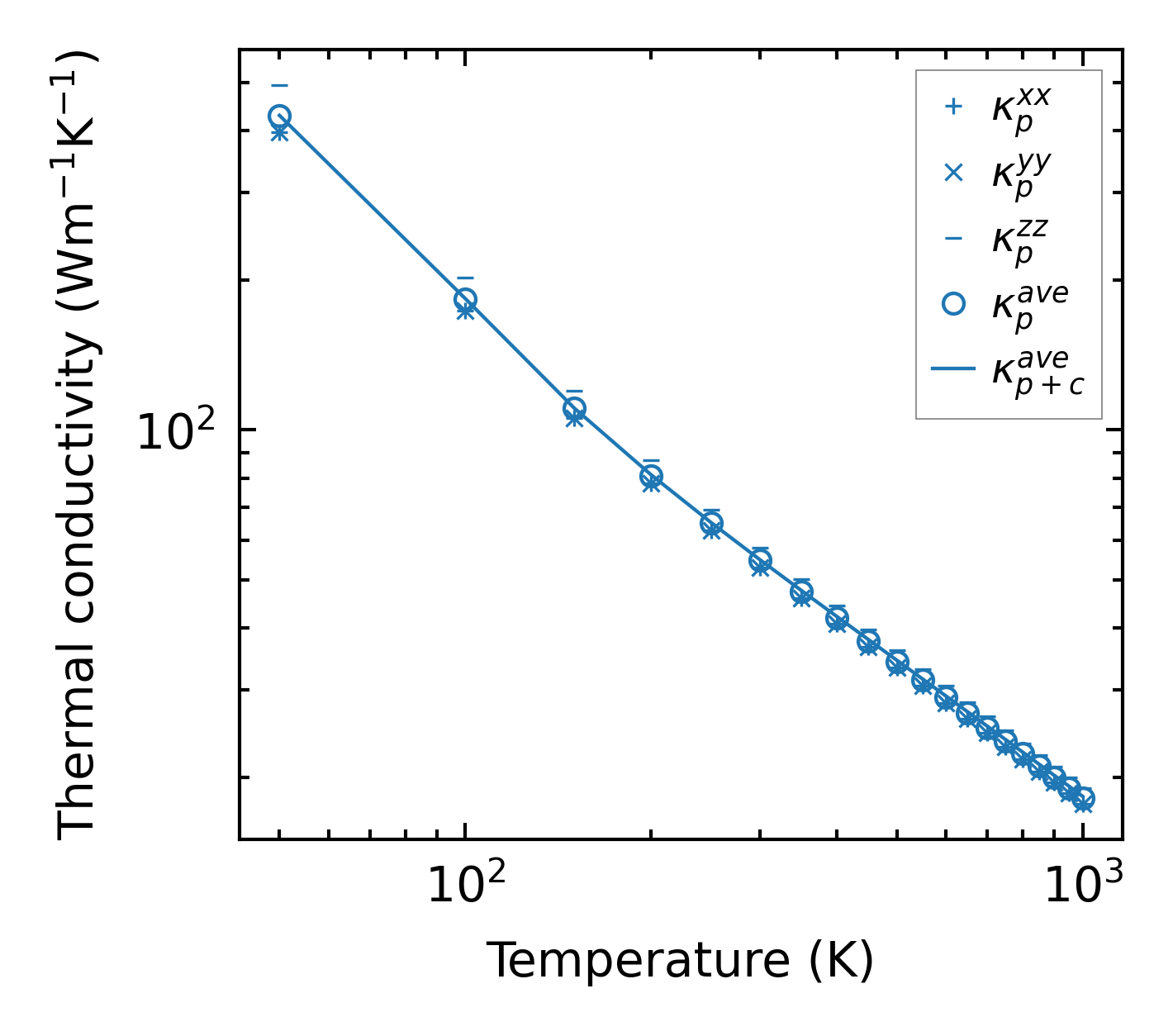

../../_images/fig_kappa5974.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3196.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

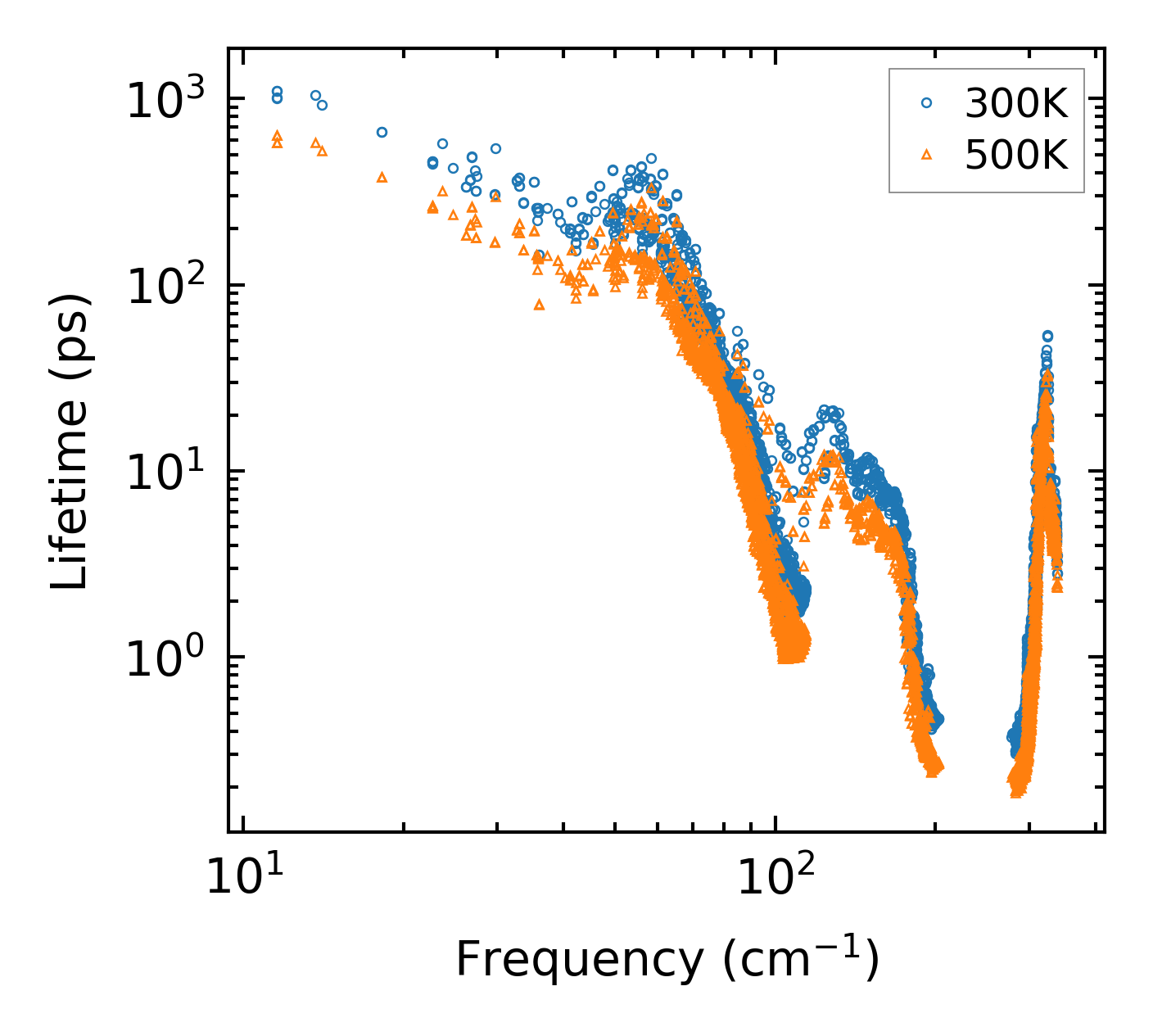

../../_images/fig_lifetime3127.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3126.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

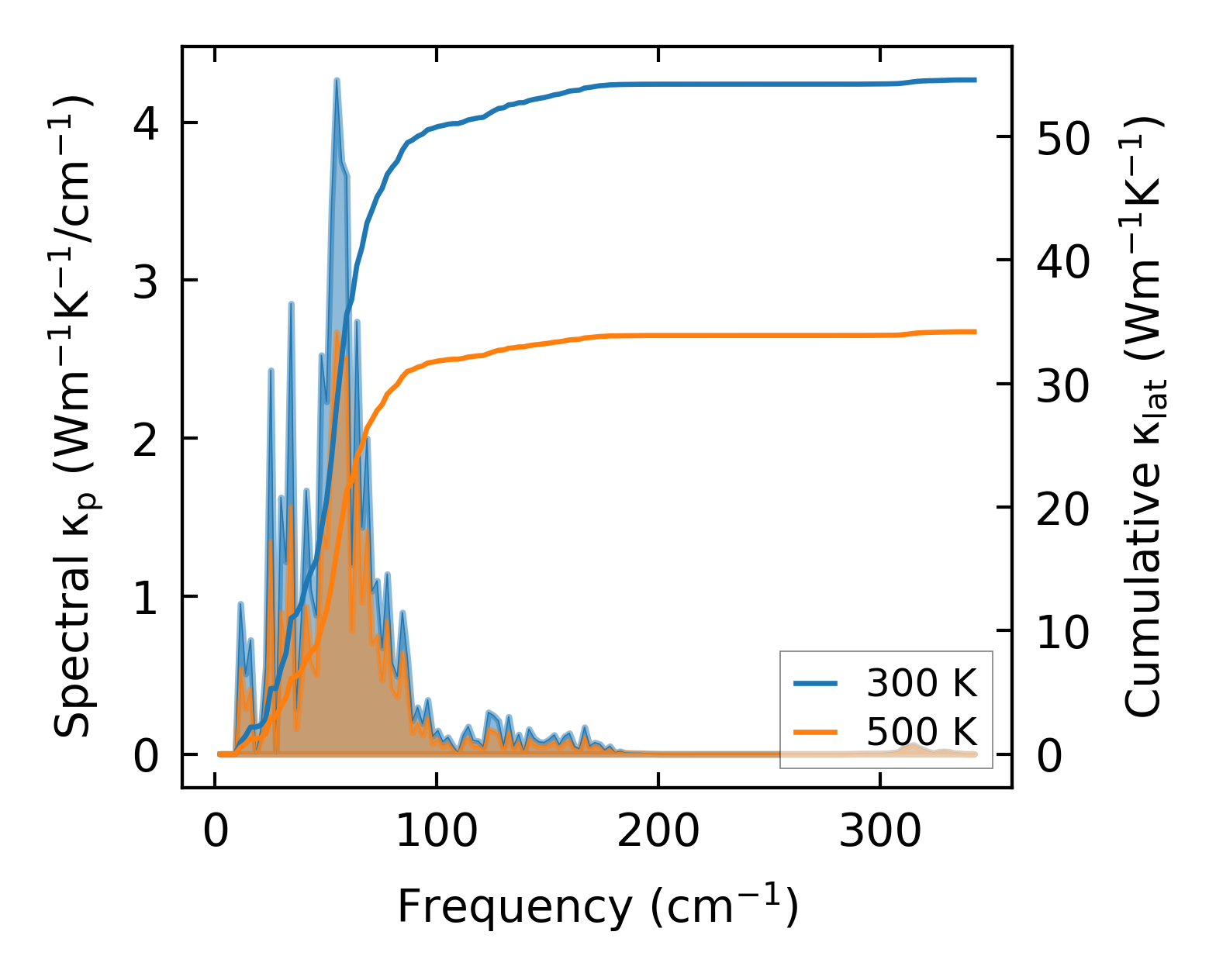

../../_images/fig_cumu_frequency3127.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3126.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27289.png — (a) Force constants w.r.t atomic distance

Summary

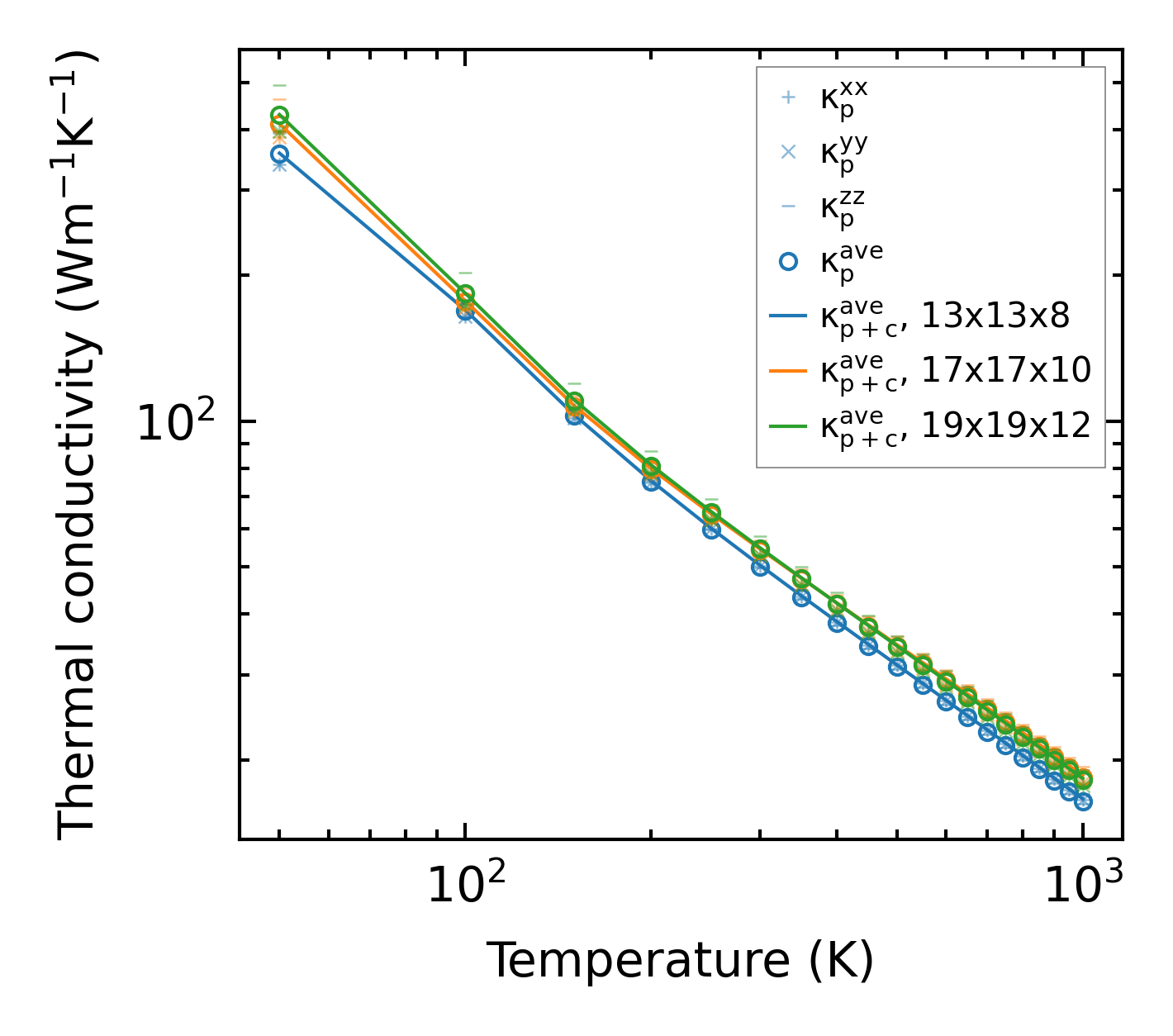

../../_images/fig_kappa5975.png — (a) Temperature-dependent lattice thermal conductivity

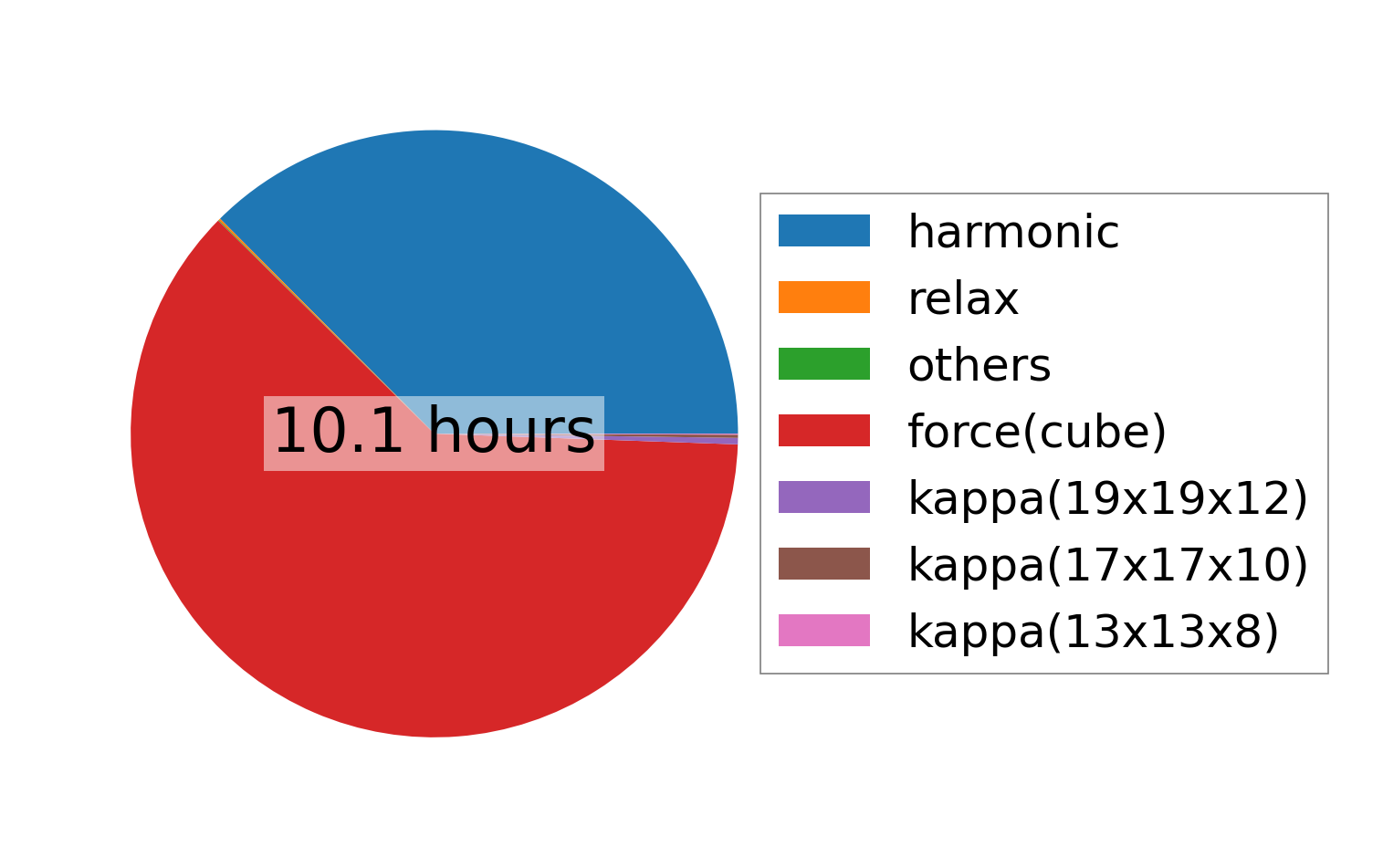

../../_images/fig_times13325.png — (b) Computation time
