mp-560555/Li8Bi2PdO10/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-560555.tar.gz

Harmonic properties

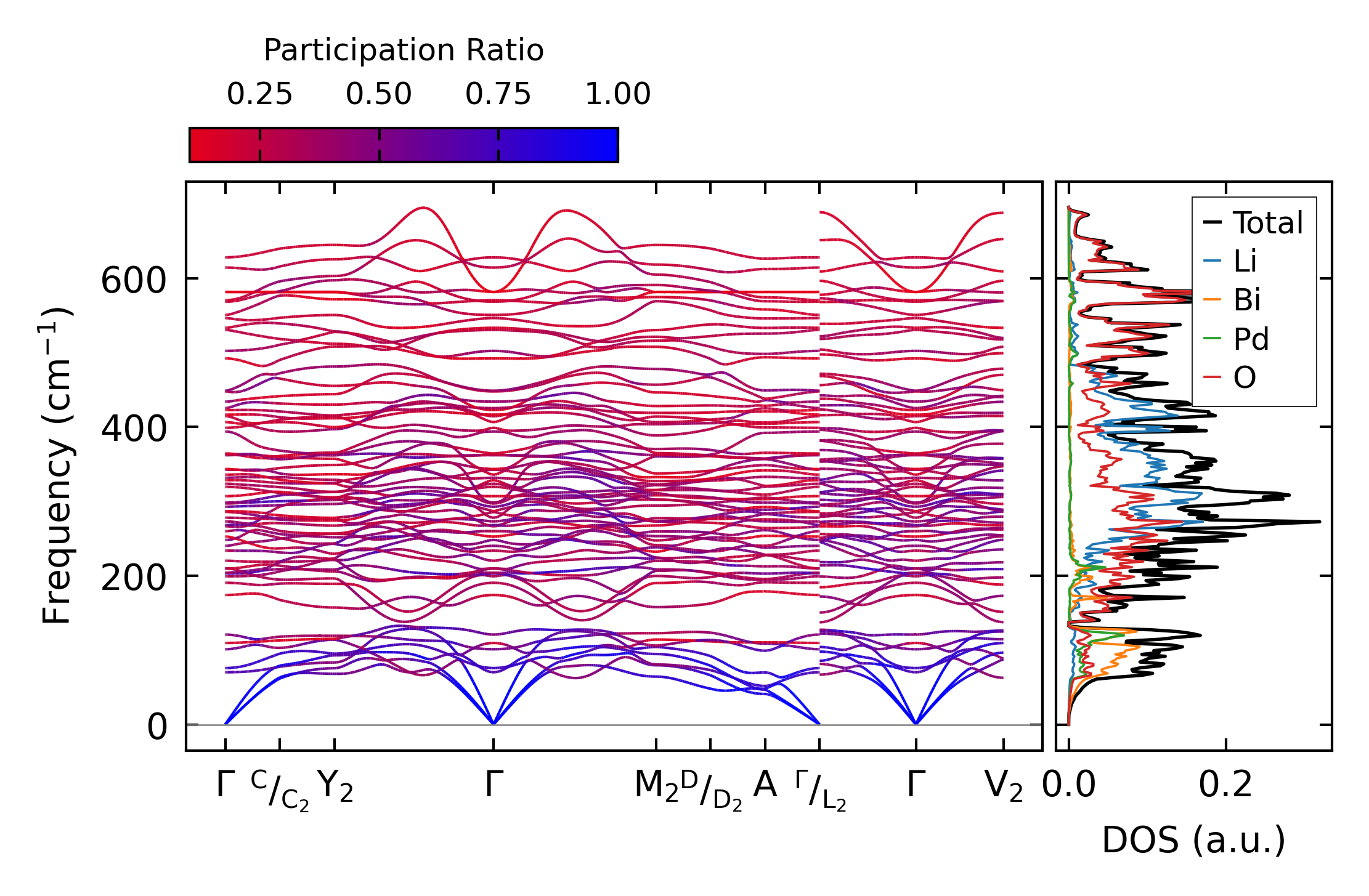

../../_images/fig_bandos_pr7515.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7515.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3148.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3148.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 1x3x1

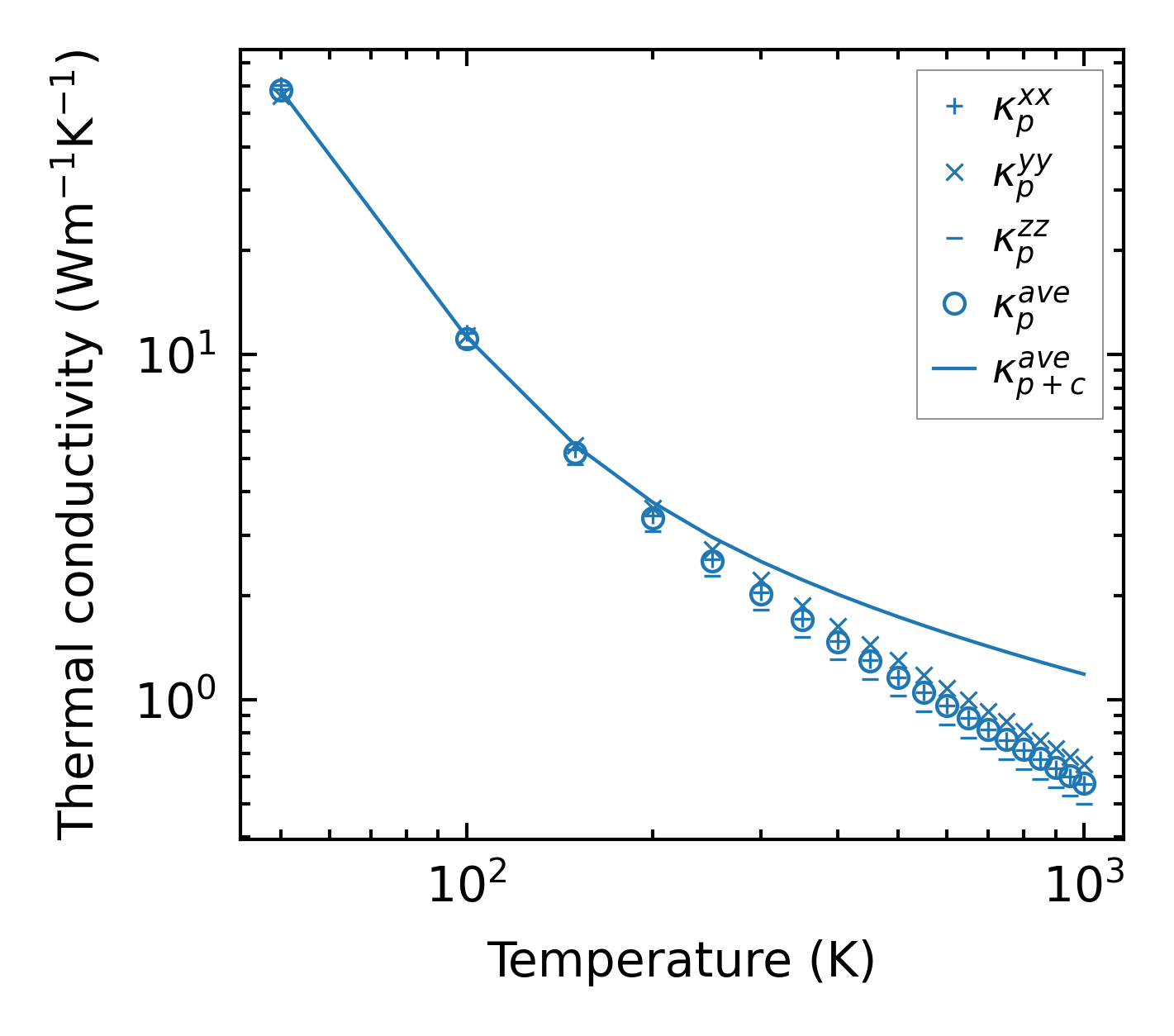

../../_images/fig_kappa5960.png — (a) Temperature-dependent lattice thermal conductivity

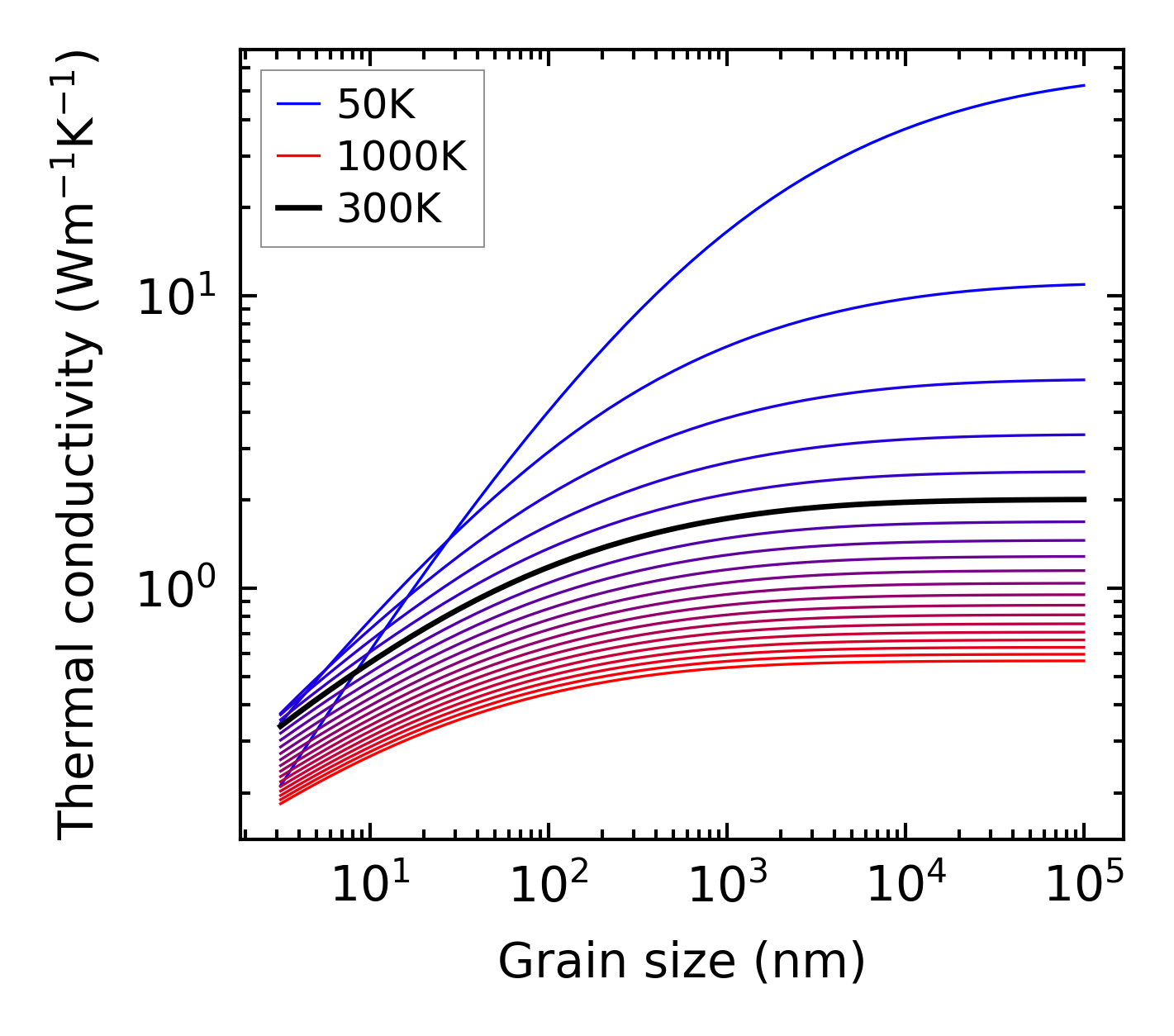

../../_images/fig_kappa_vs_grain_size3189.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3120.png — (a) Phonon lifetime due to phonon-phonon scattering

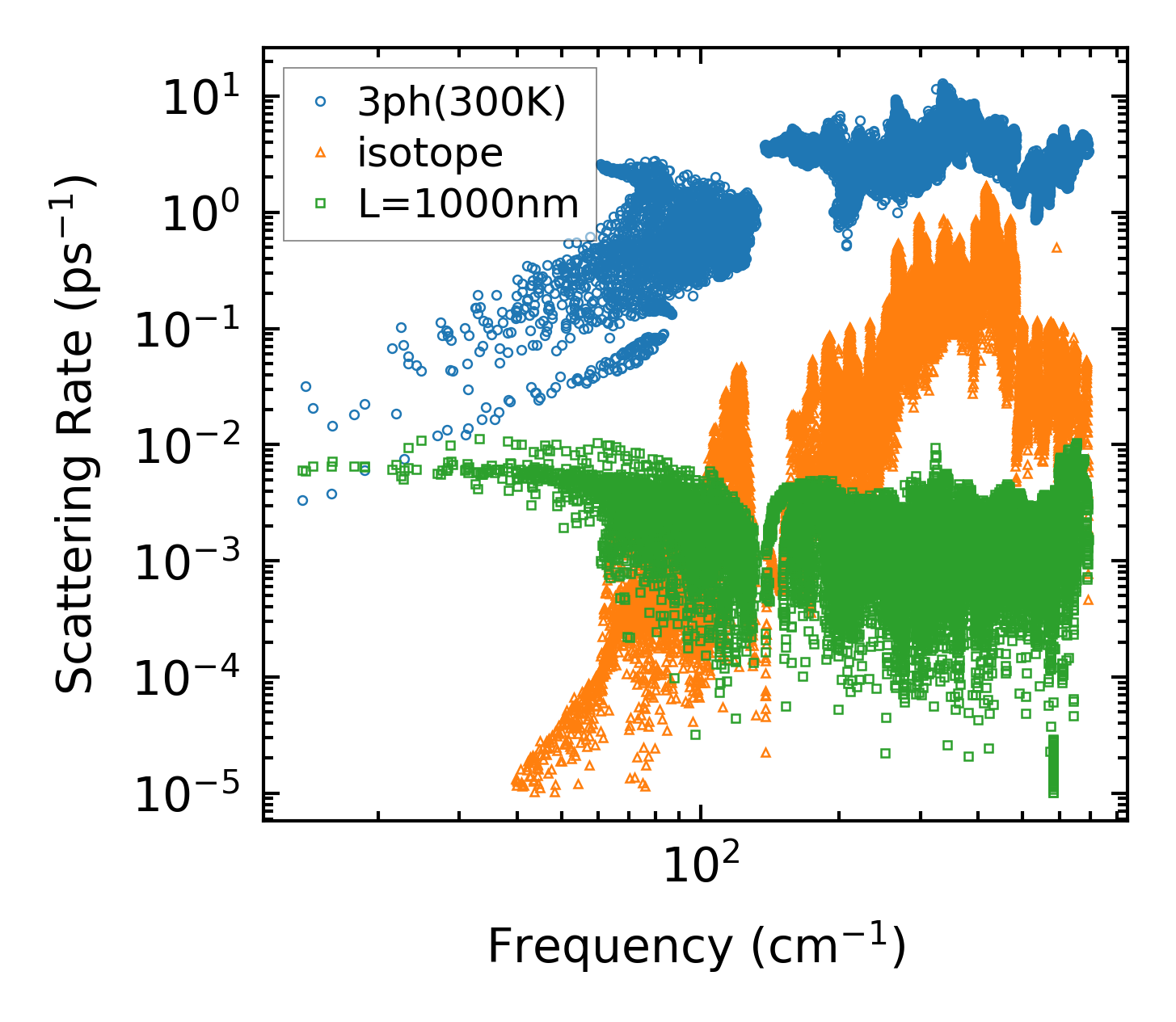

../../_images/fig_scat_rates3119.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

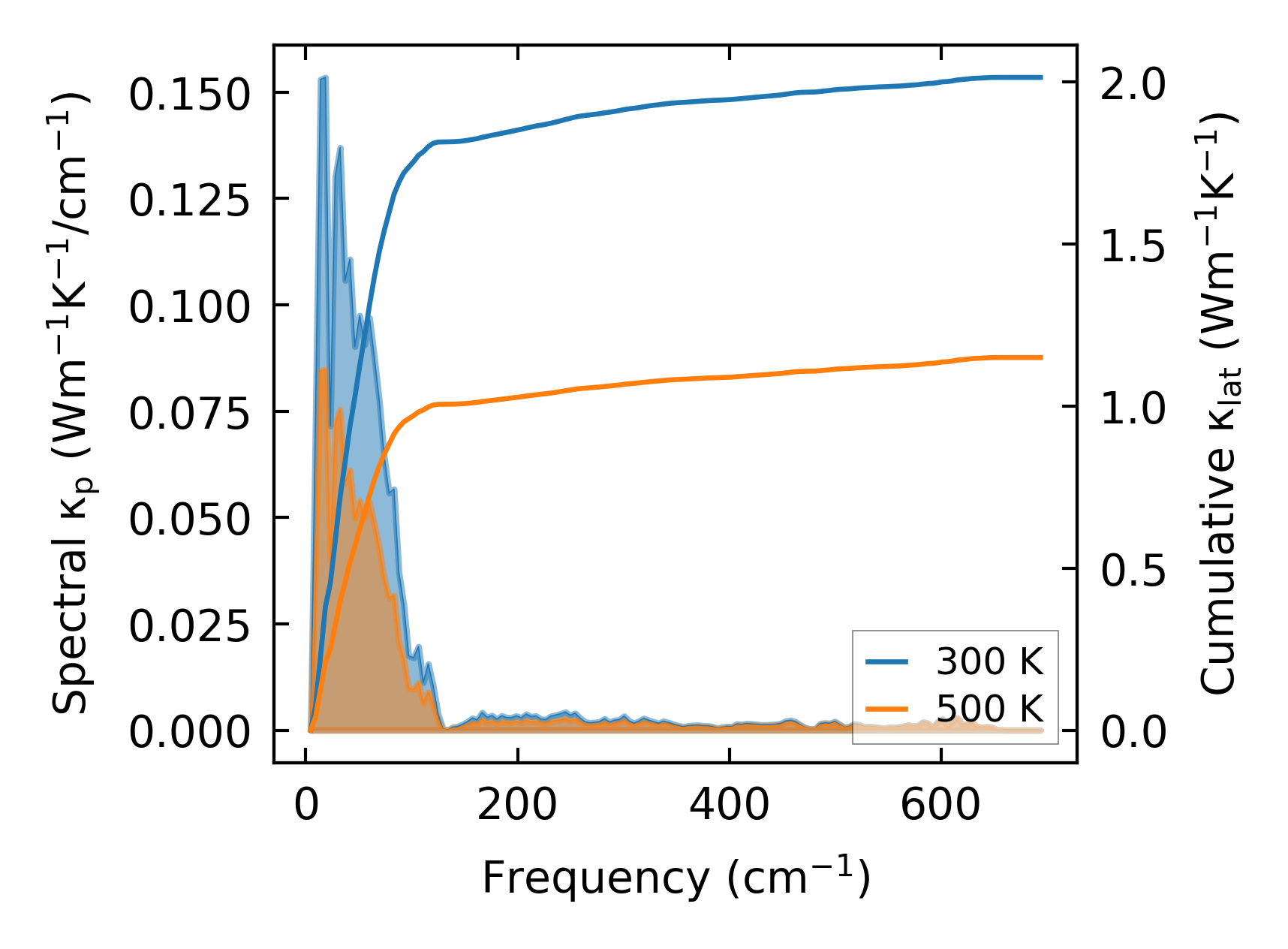

../../_images/fig_cumu_frequency3120.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

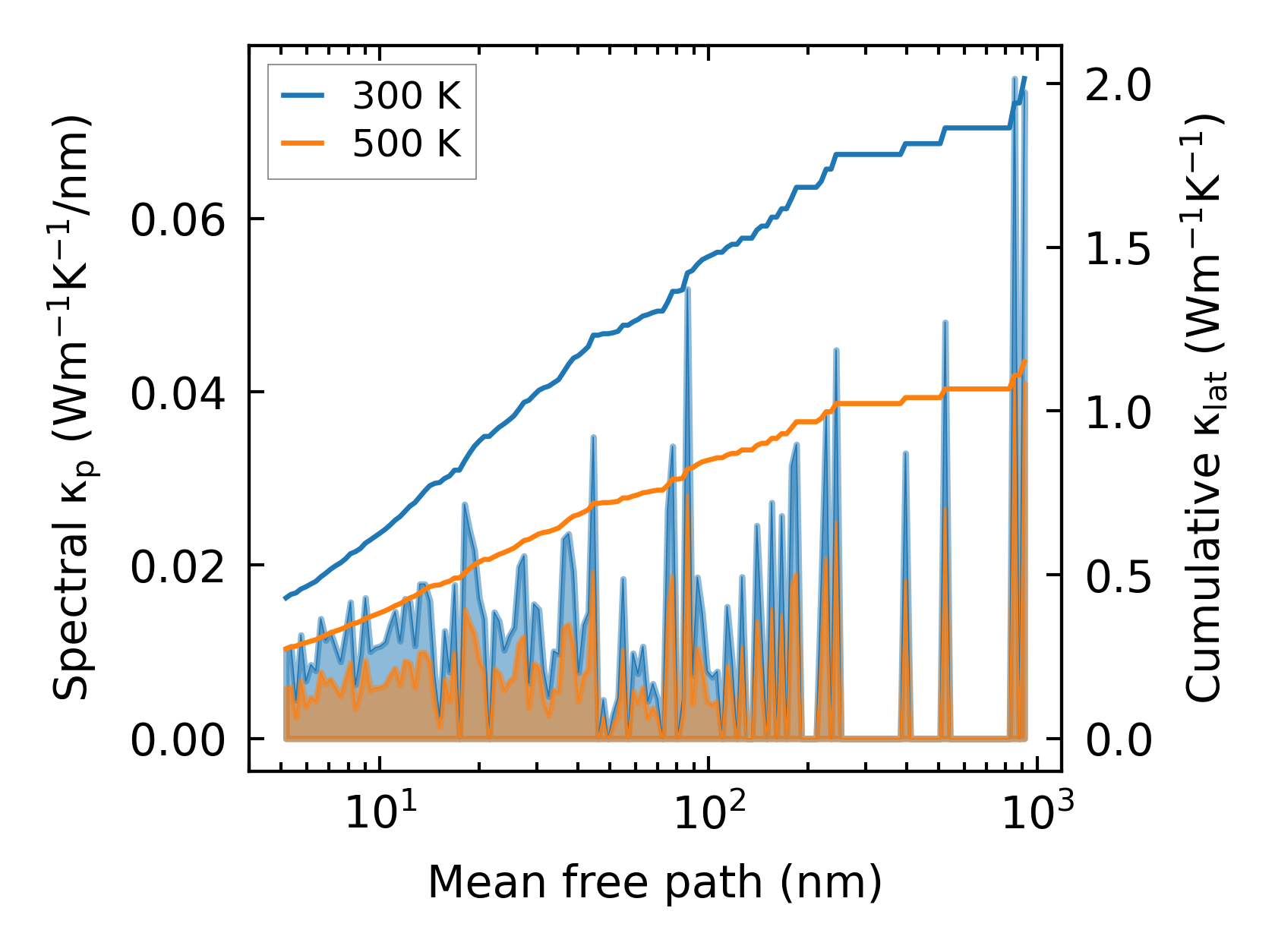

../../_images/fig_cumu_mfp3119.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

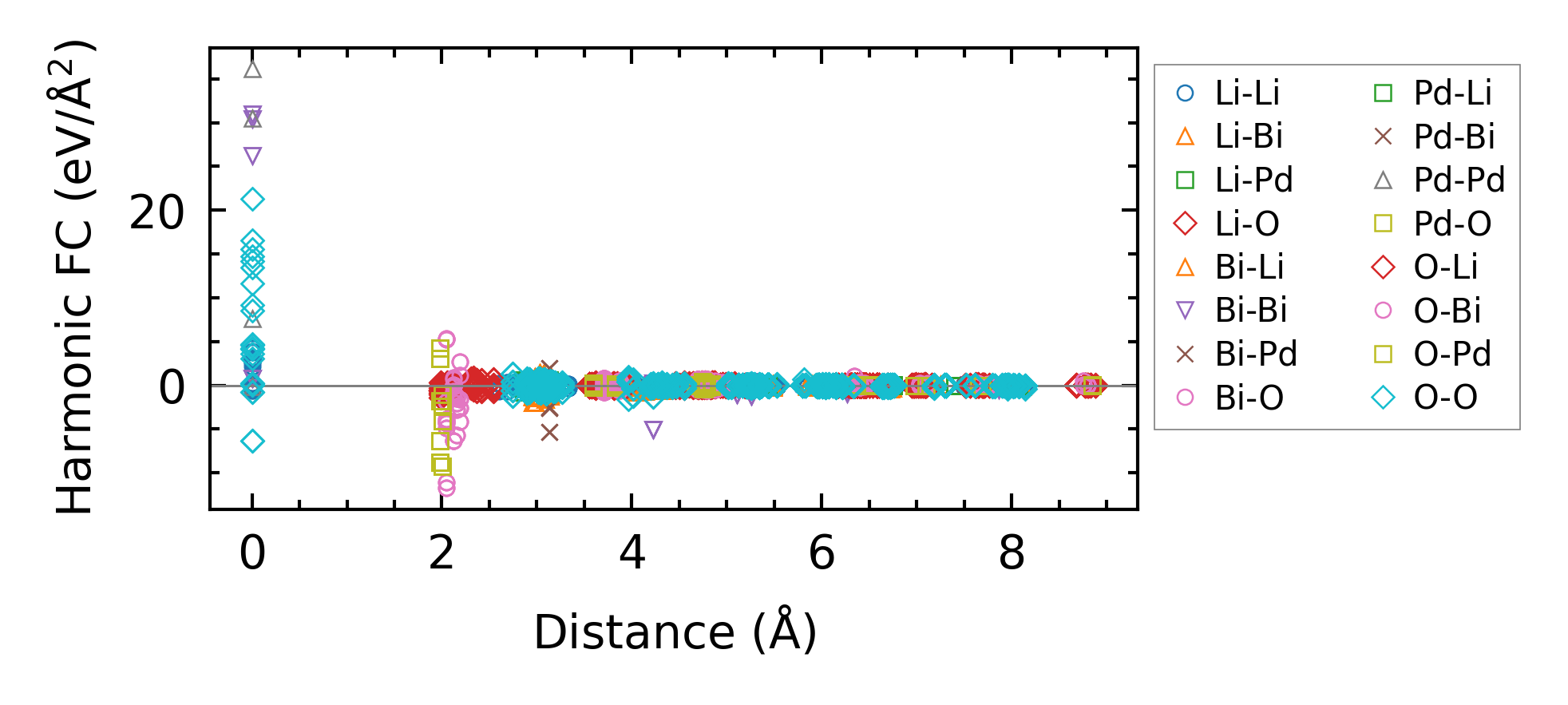

../../_images/fig_fc27279.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5961.png — (a) Temperature-dependent lattice thermal conductivity

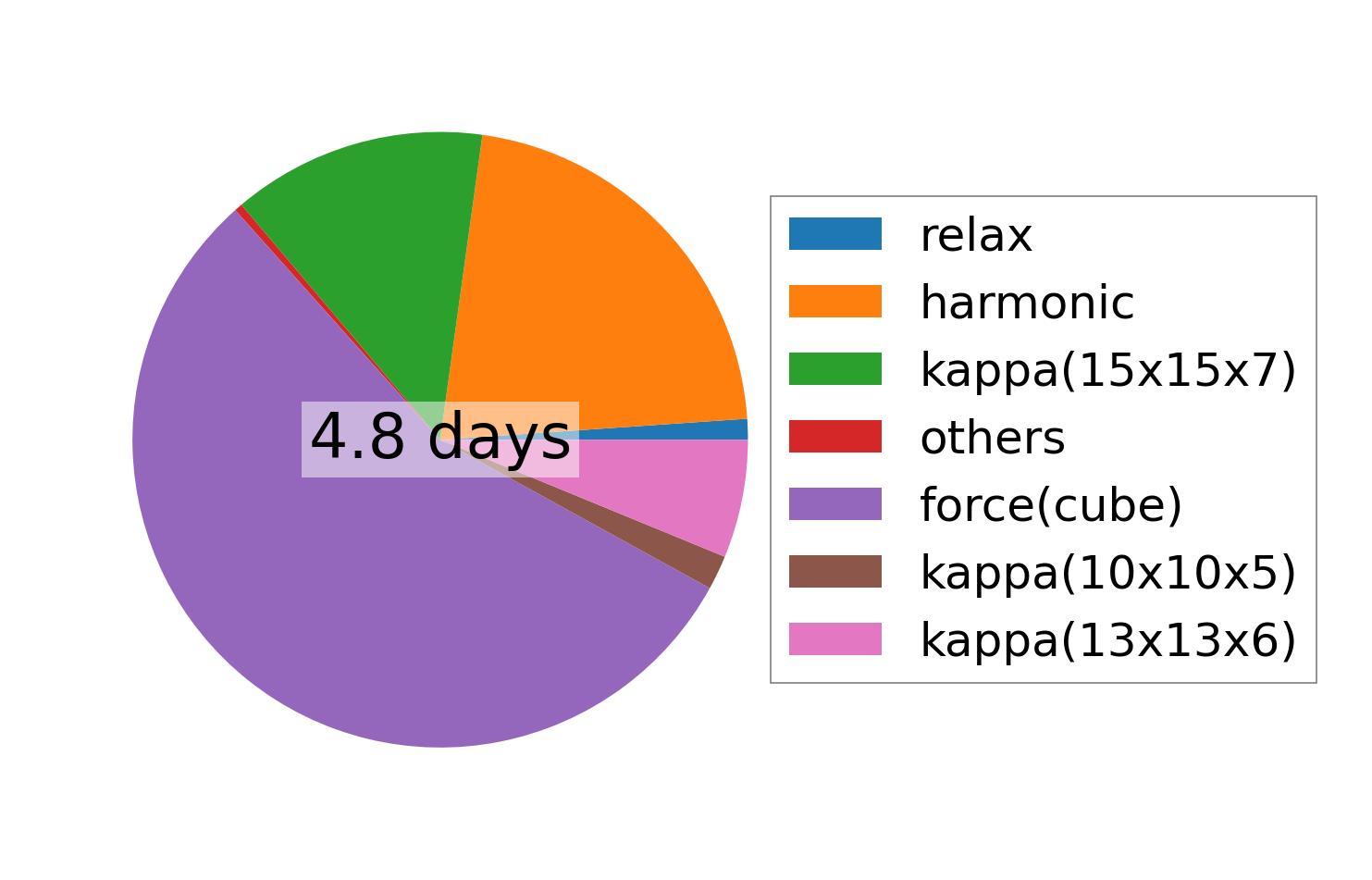

../../_images/fig_times13307.png — (b) Computation time
