mp-14972-3/Ba3ScB3O9/anharm

Space group: P6_3cm (185)
Link: Materials Project
Download: mp-14972-3.tar.gz

Equation of state

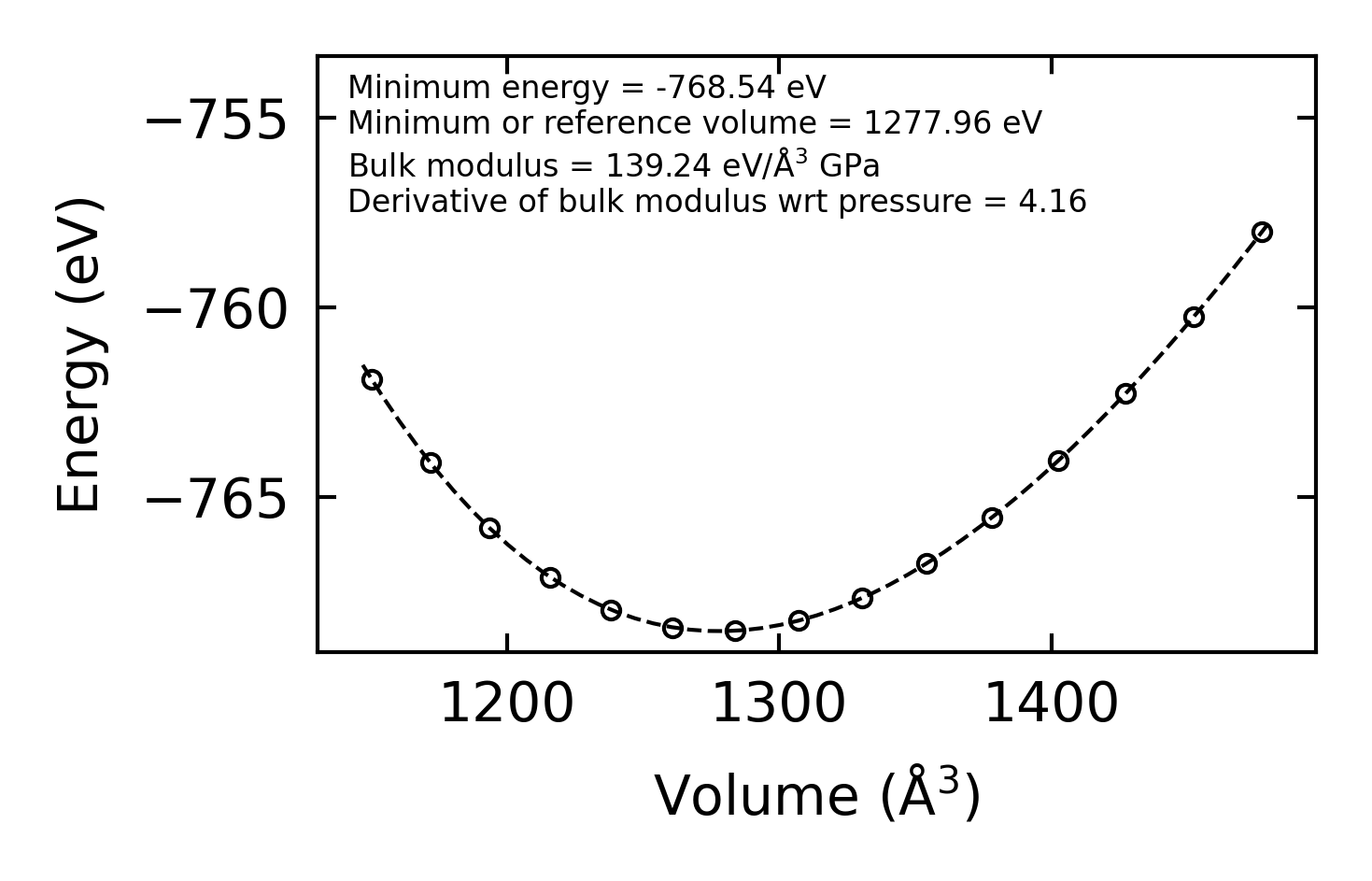

../../_images/fig_bm7286.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14563.png — (a) Phonon dispersion with participation ratio and DOS

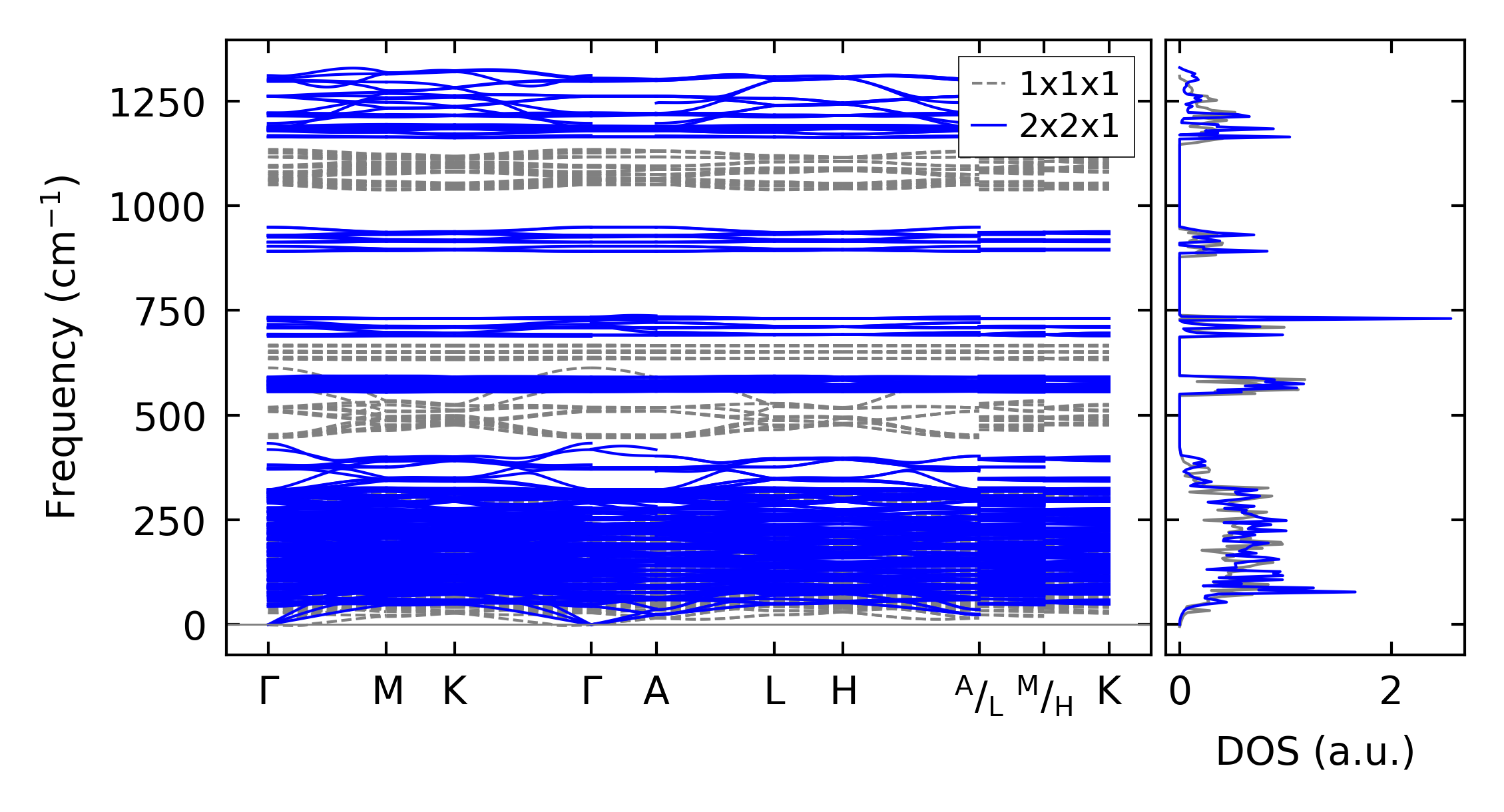

../../_images/fig_bandos18922.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14563.png — (c) Thermodynamic properties

Grüneisen parameters

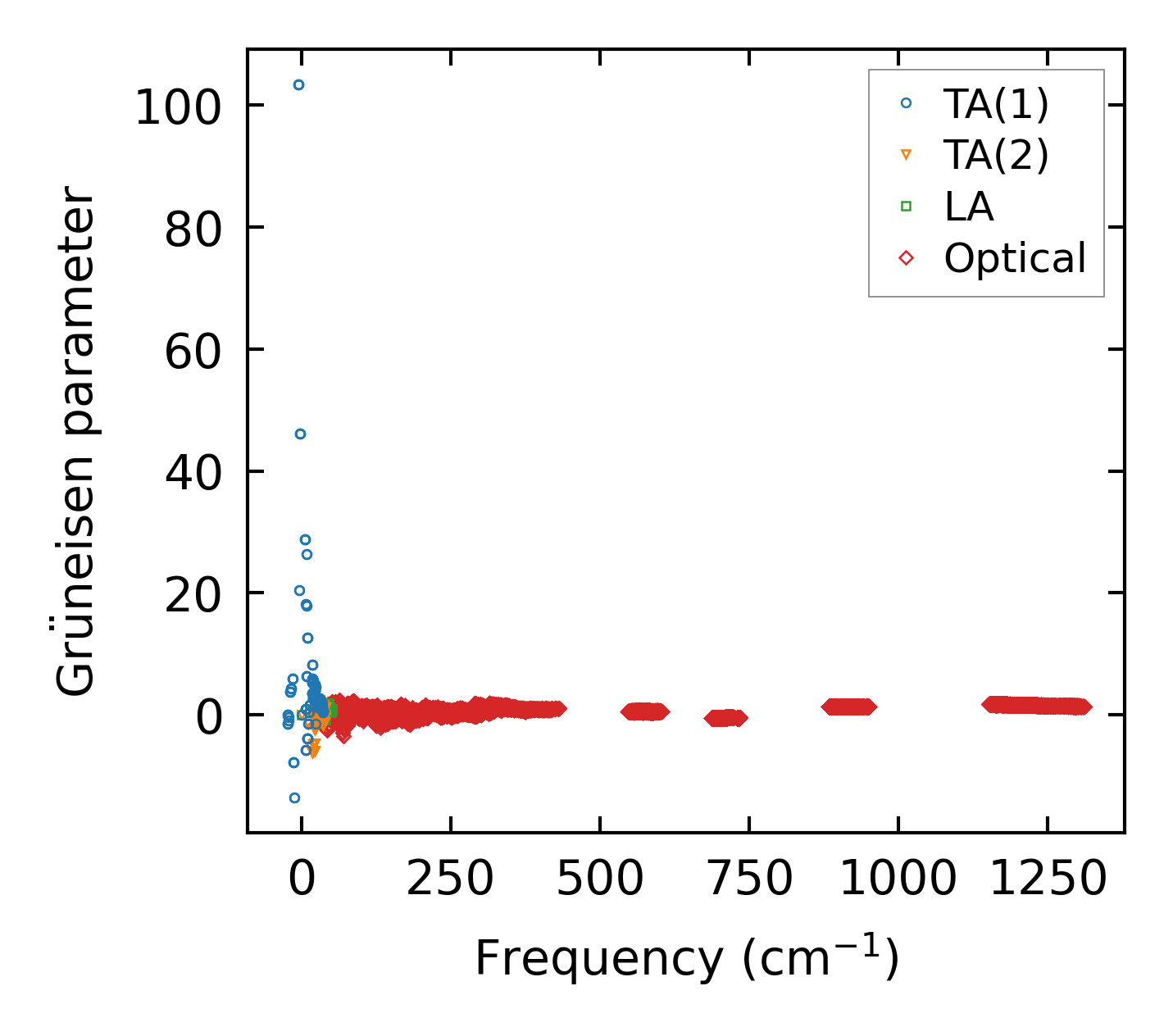

../../_images/fig_gru_all6234.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6234.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 8x8x4, supercell: 2x2x1

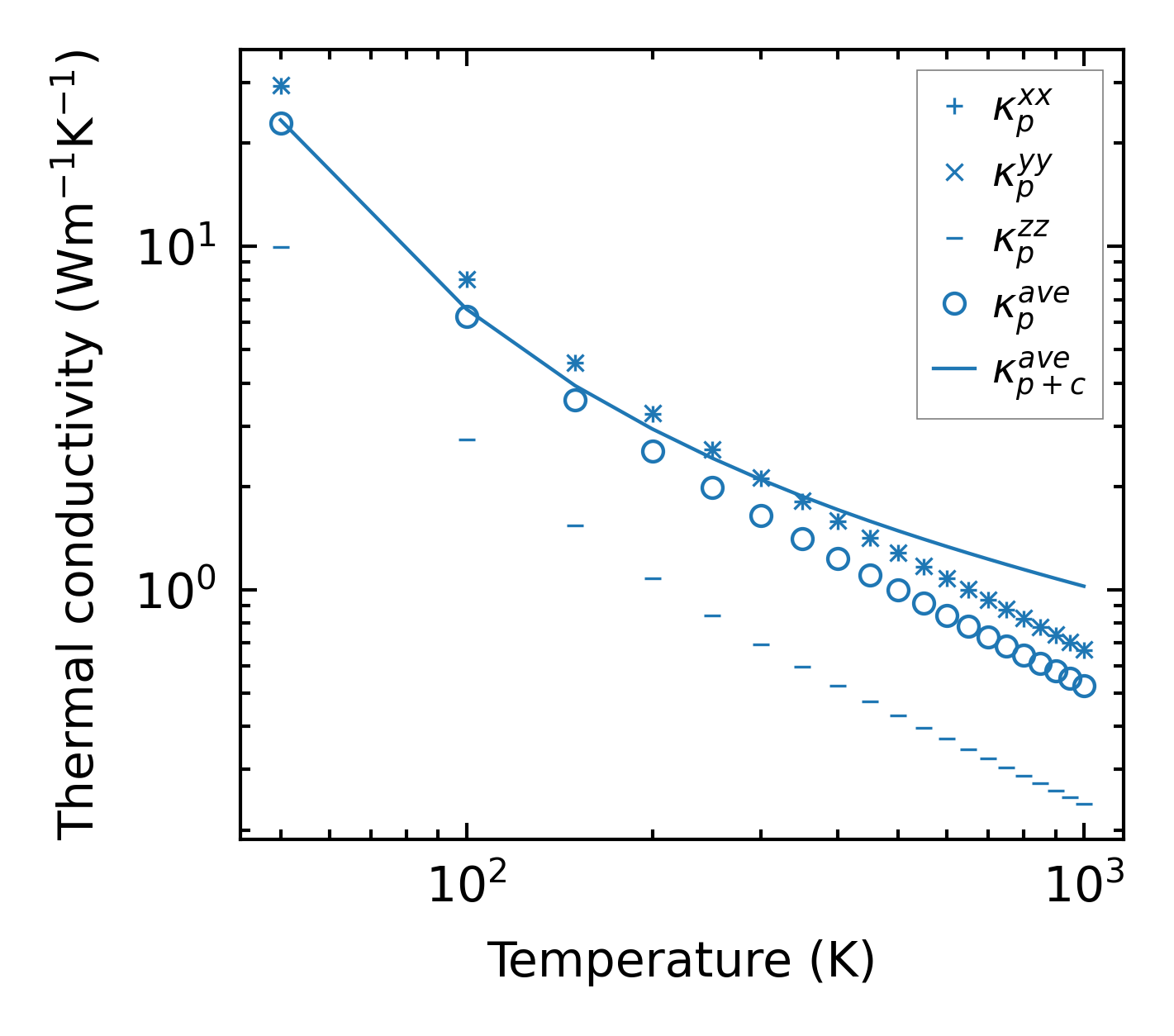

../../_images/fig_kappa11728.png — (a) Temperature-dependent lattice thermal conductivity

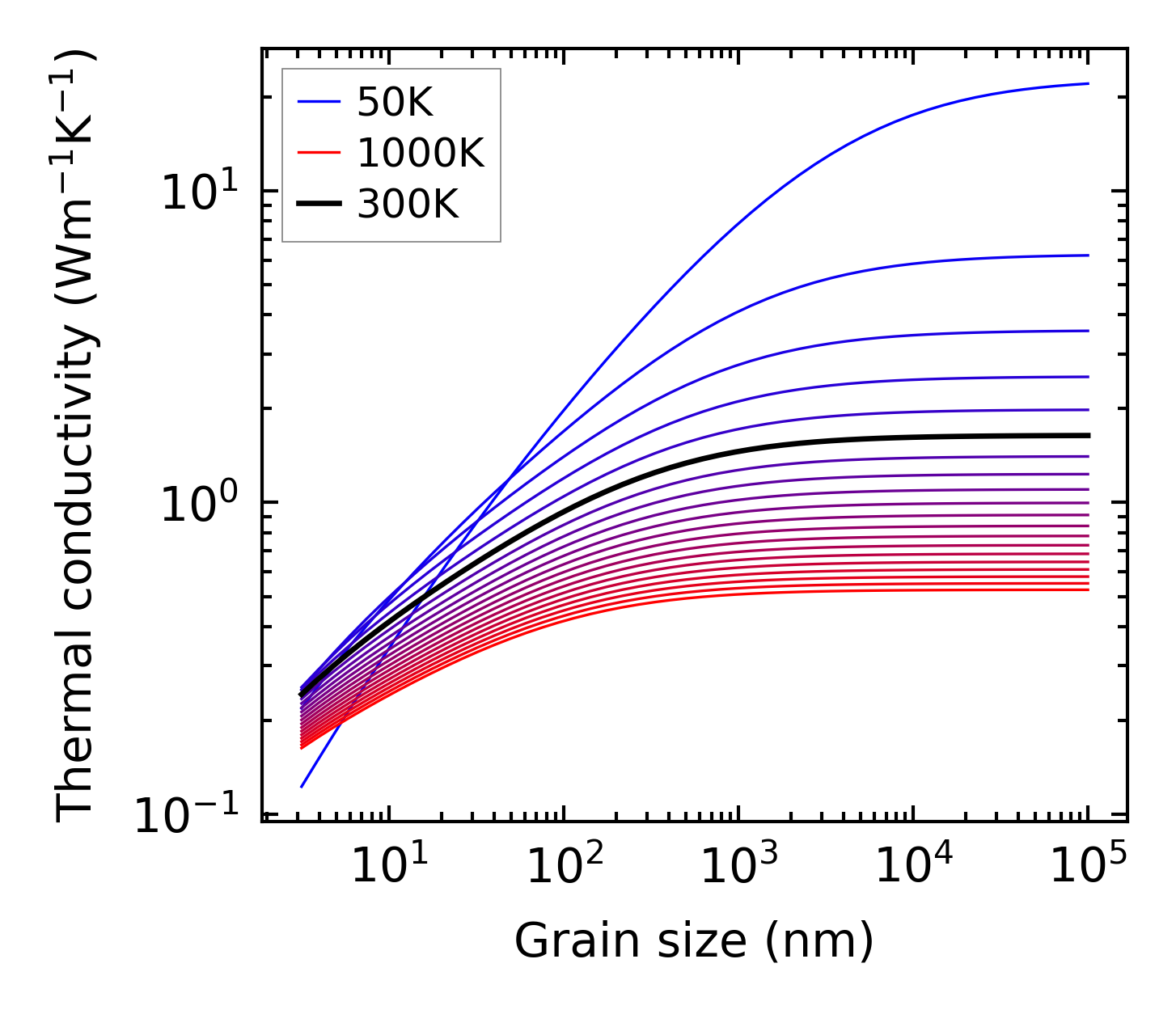

../../_images/fig_kappa_vs_grain_size6311.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

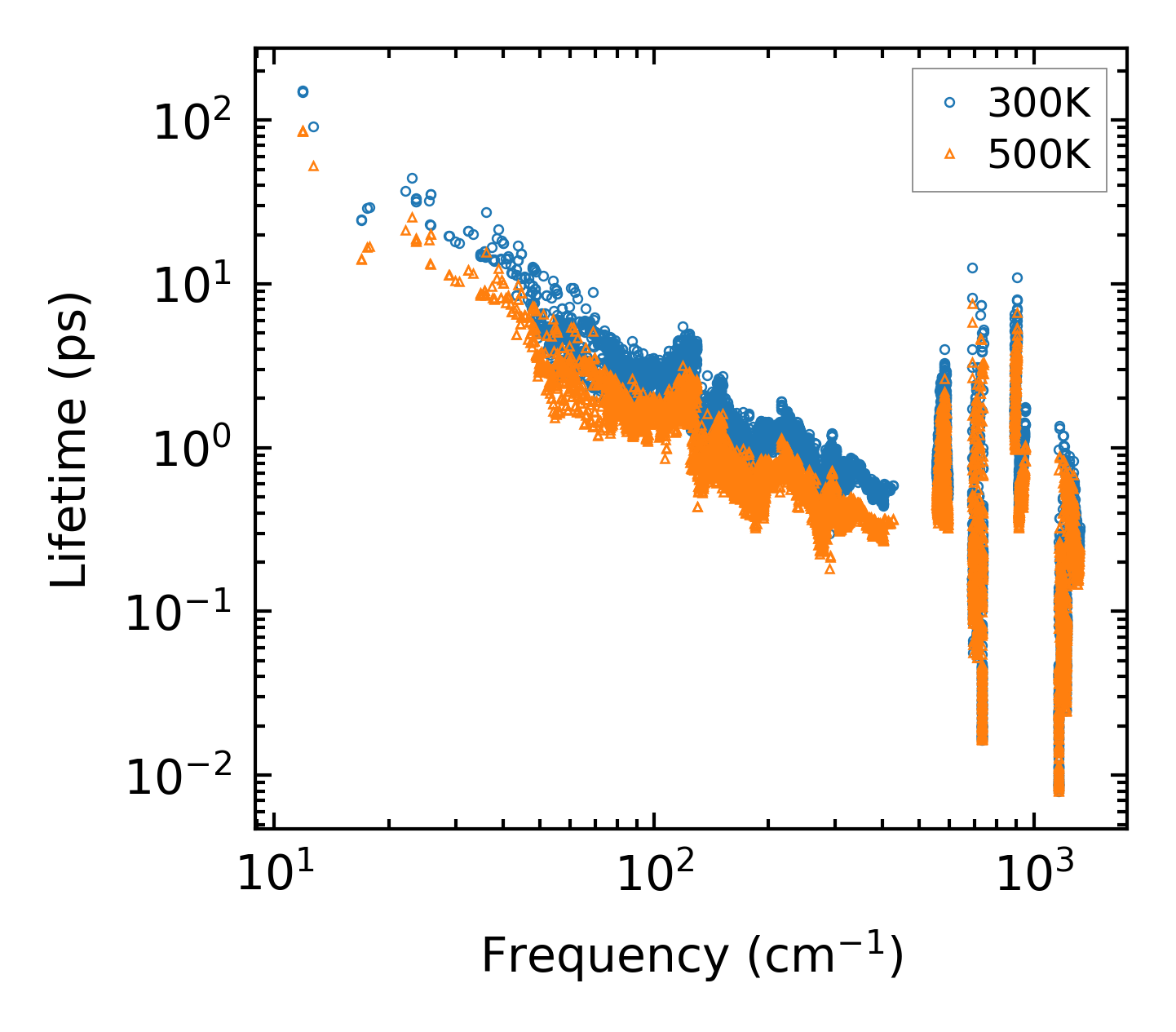

../../_images/fig_lifetime6172.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6171.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

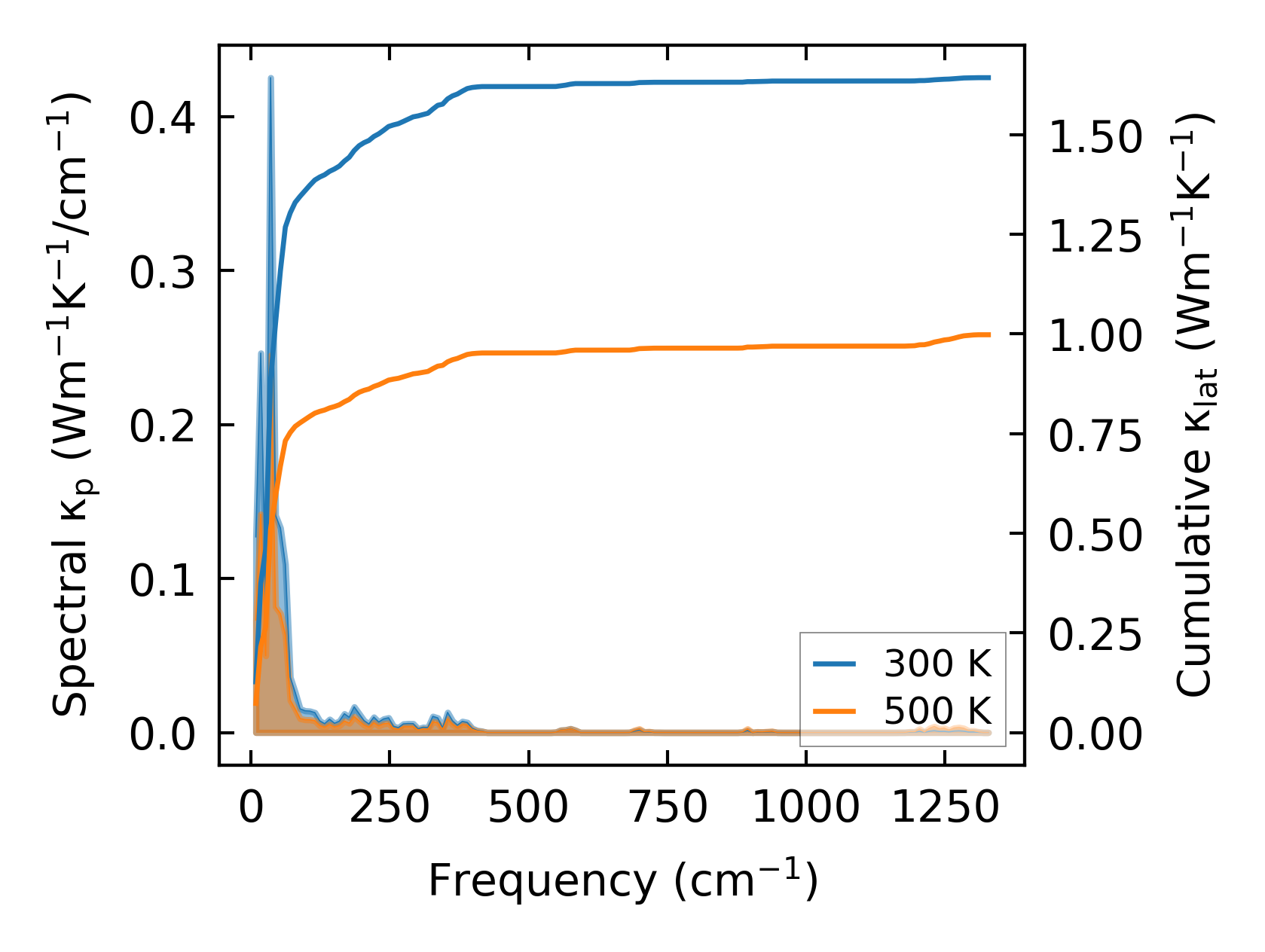

../../_images/fig_cumu_frequency6172.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6171.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

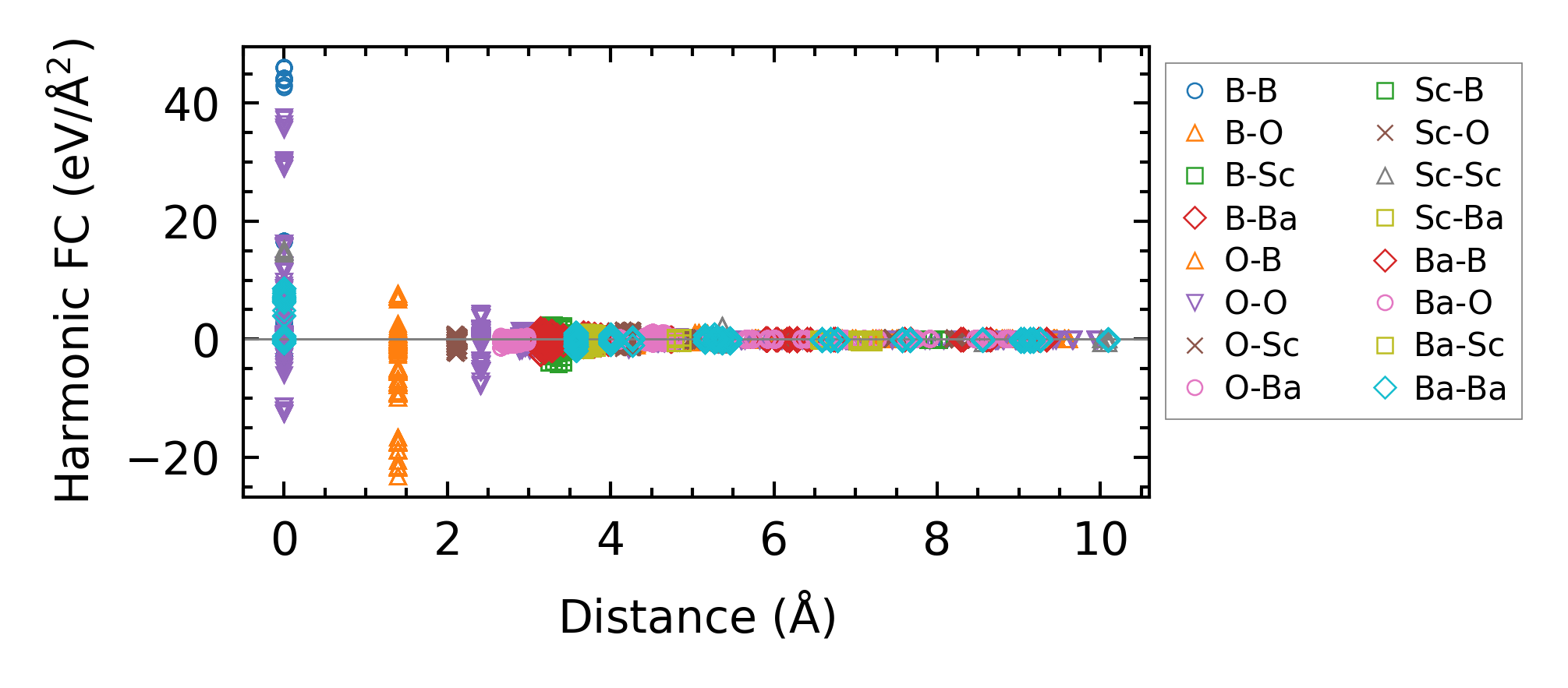

../../_images/fig_fc214182.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times24231.png — (a) Computation time
