mp-14912-2/La4Si2Se3O7/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-14912-2.tar.gz

Equation of state

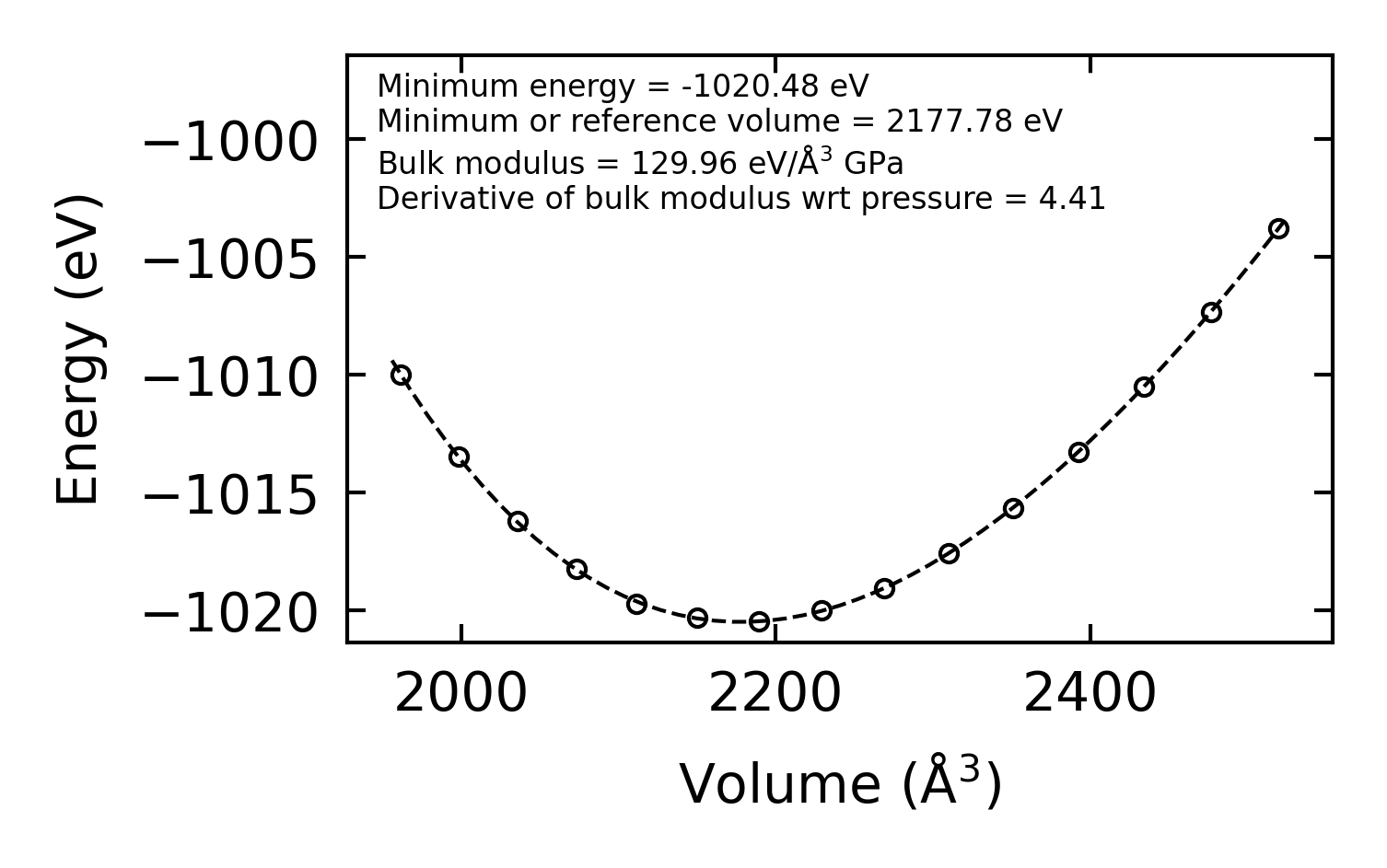

../../_images/fig_bm7278.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr14551.png — (a) Phonon dispersion with participation ratio and DOS

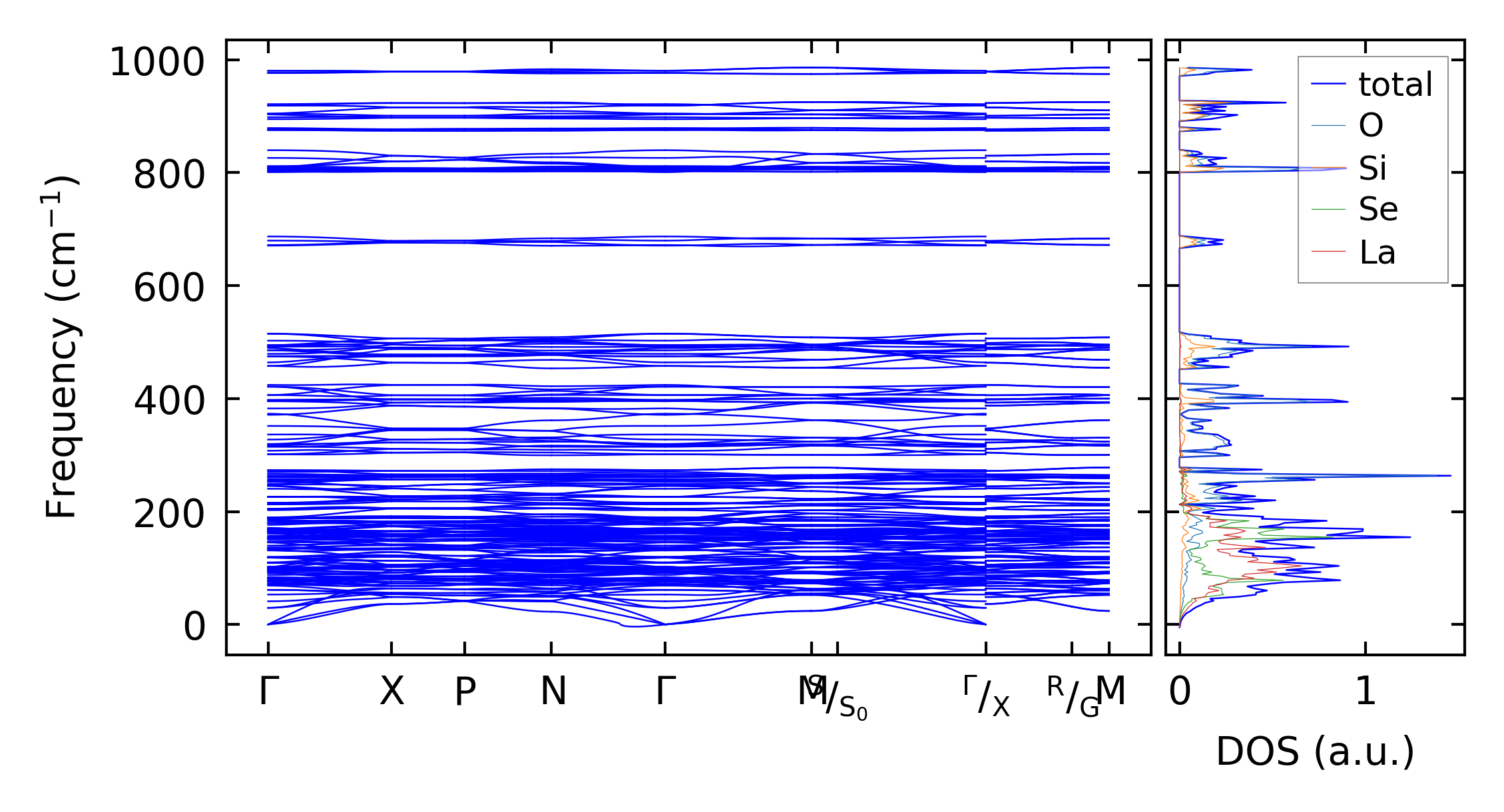

../../_images/fig_bandos18907.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14551.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6230.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6230.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

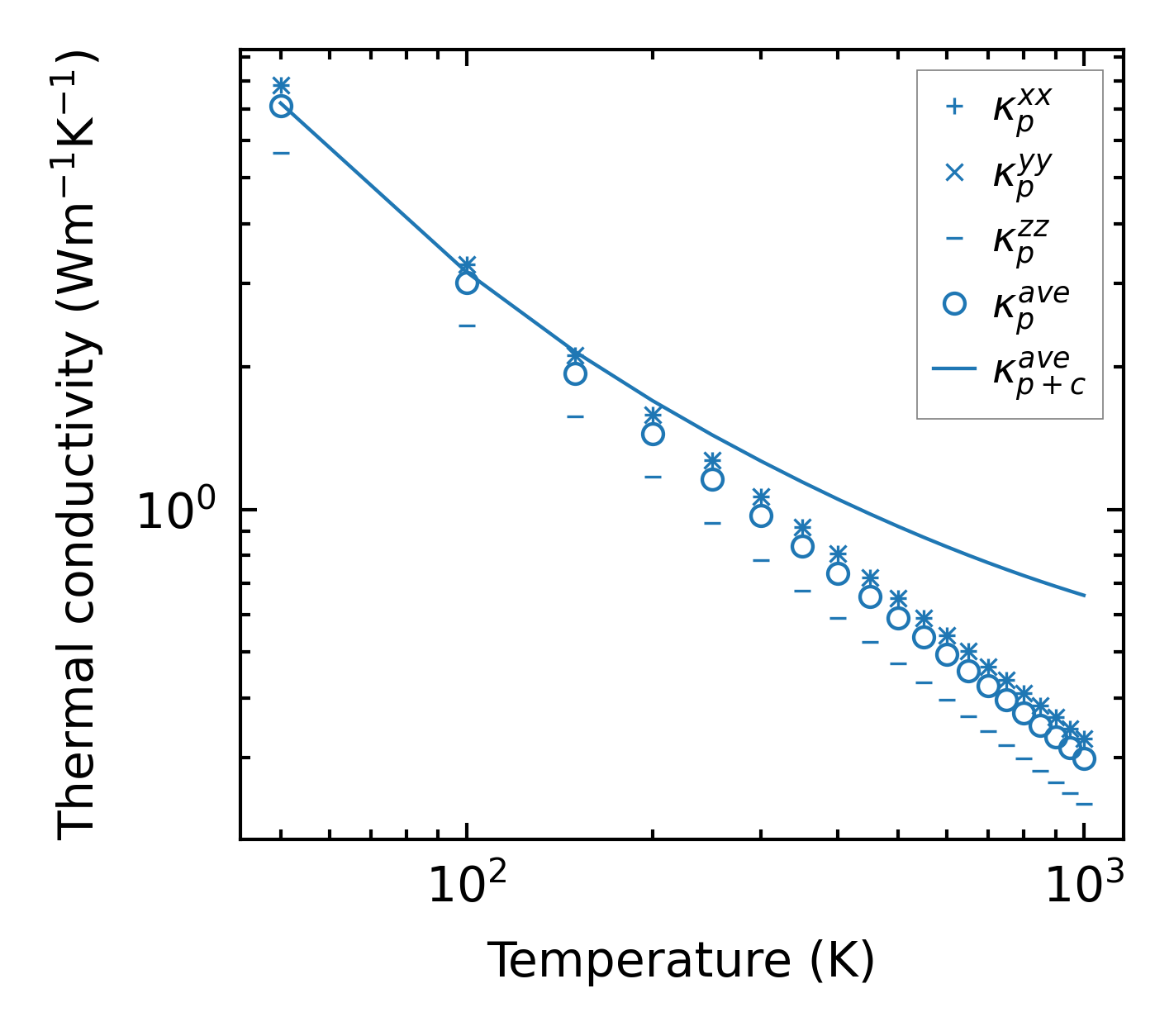

../../_images/fig_kappa11722.png — (a) Temperature-dependent lattice thermal conductivity

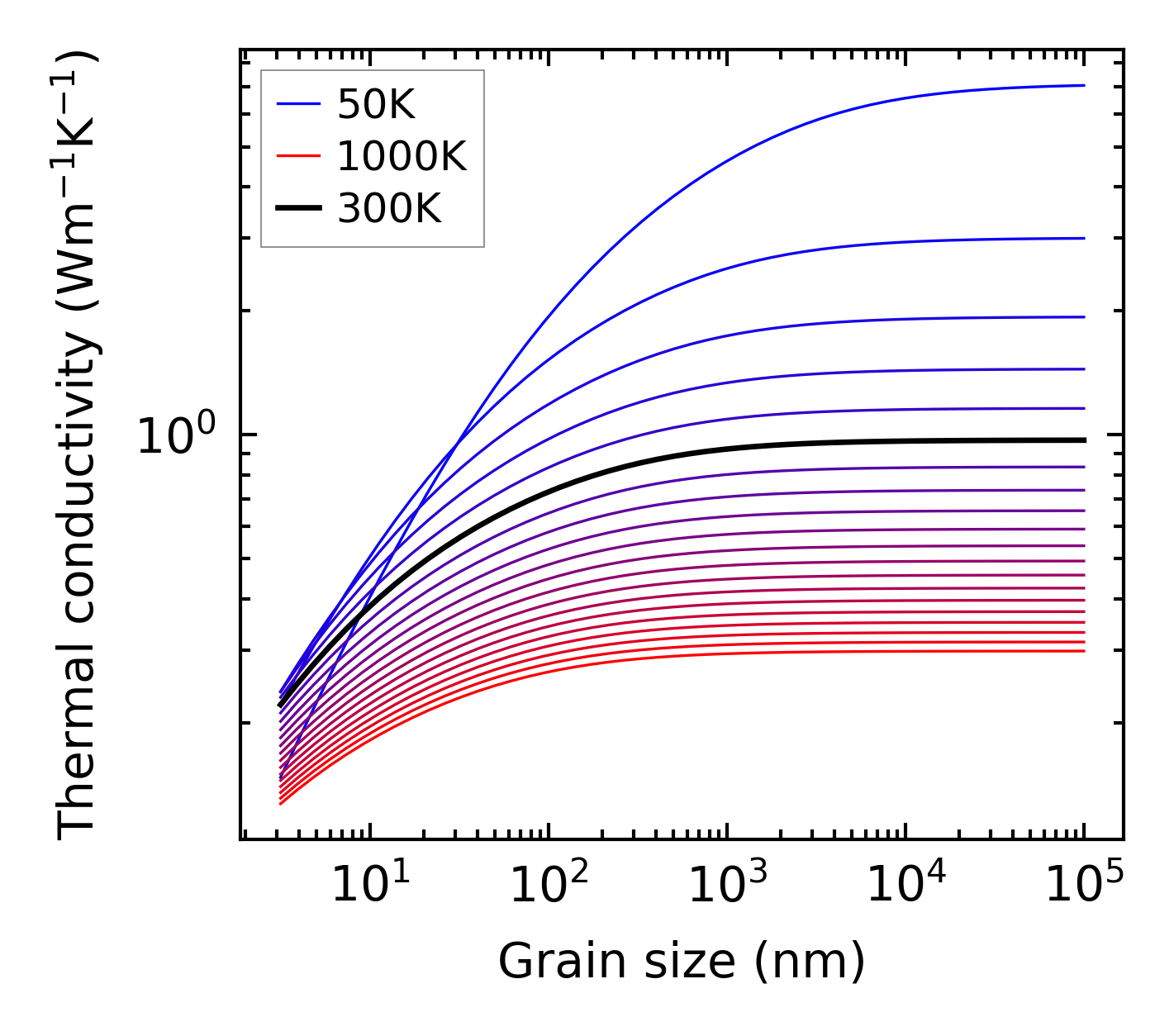

../../_images/fig_kappa_vs_grain_size6308.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

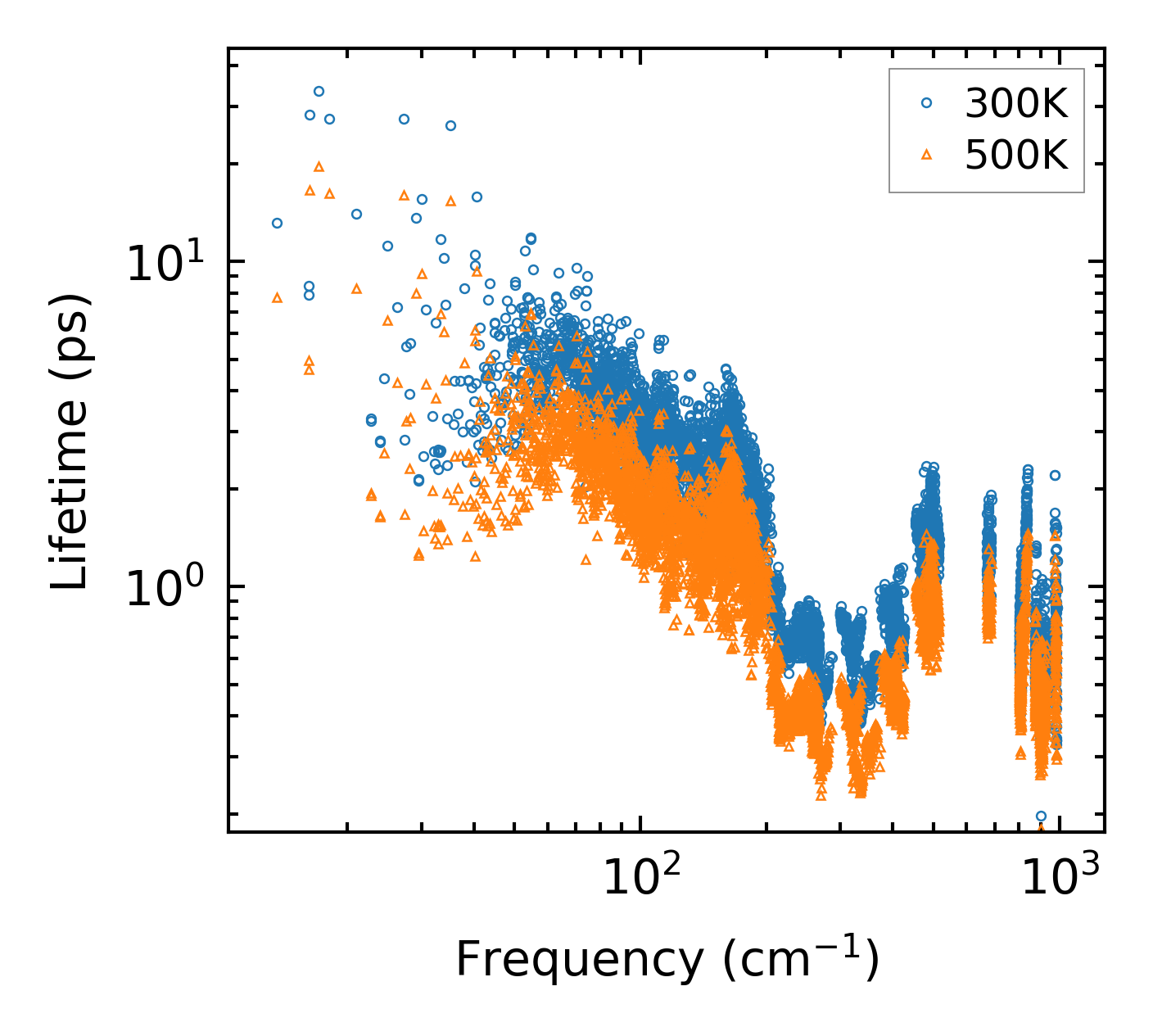

../../_images/fig_lifetime6169.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6168.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

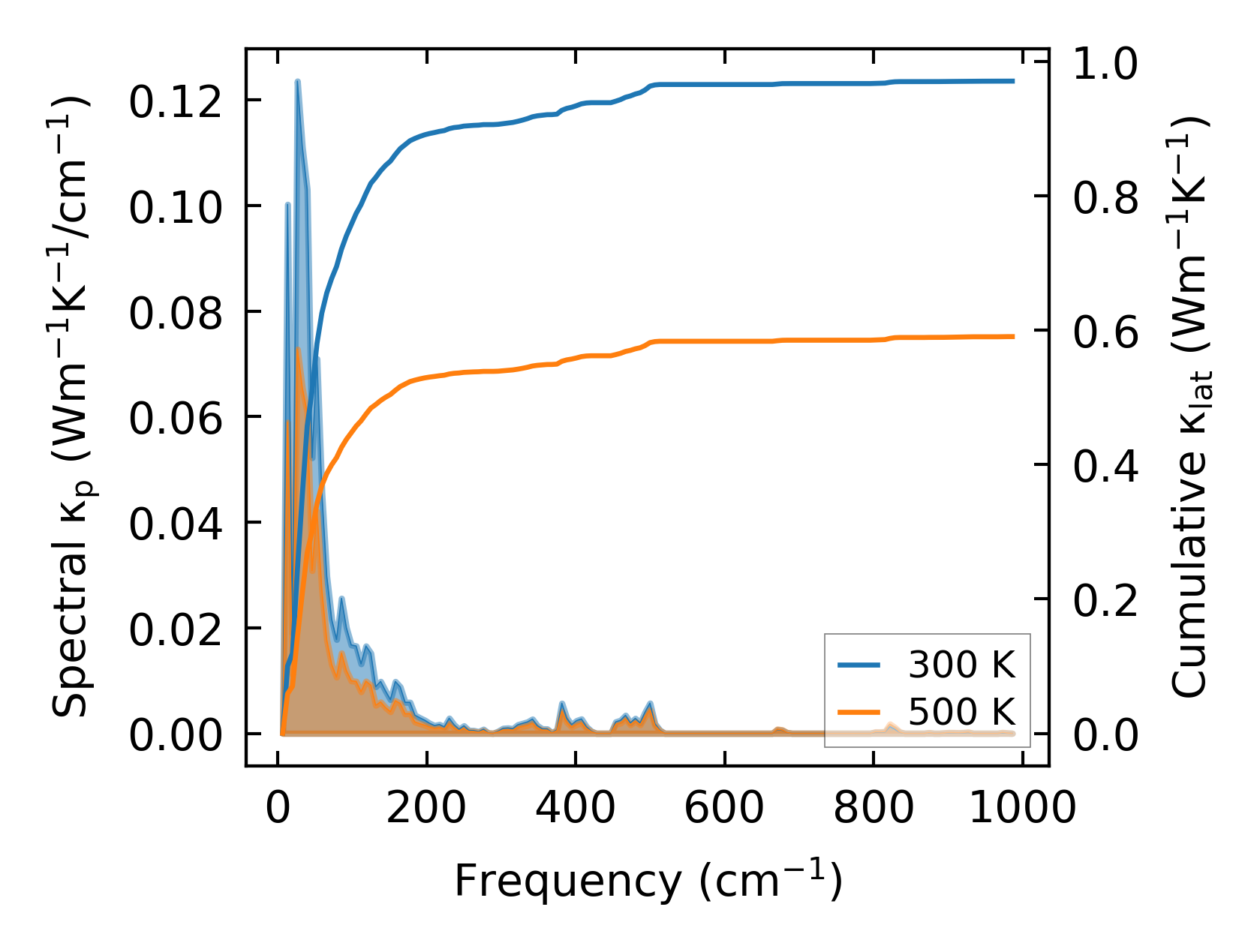

../../_images/fig_cumu_frequency6169.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

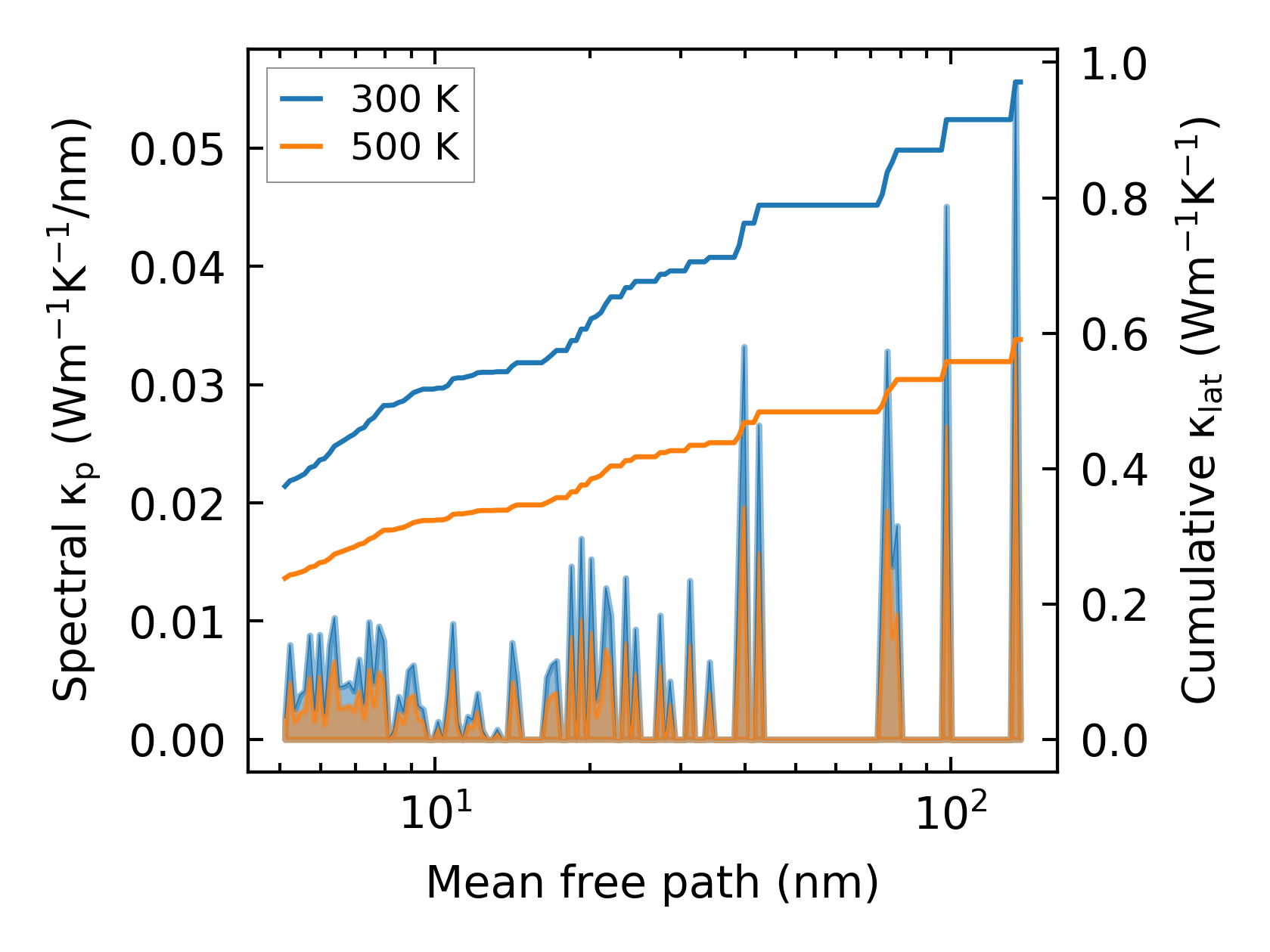

../../_images/fig_cumu_mfp6168.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

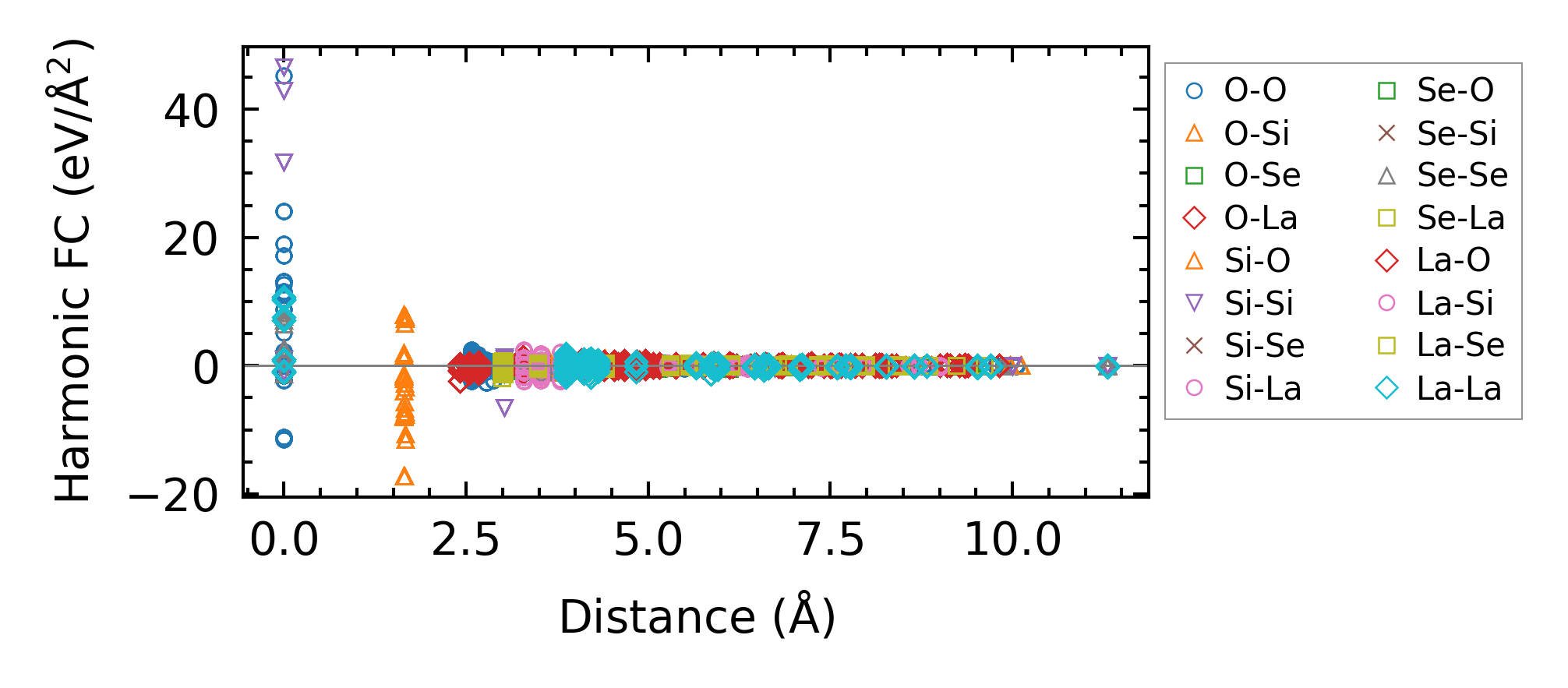

../../_images/fig_fc214170.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11723.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times24214.png — (b) Computation time
