mp-14871/Li16Ta2N8O/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-14871.tar.gz

Harmonic properties

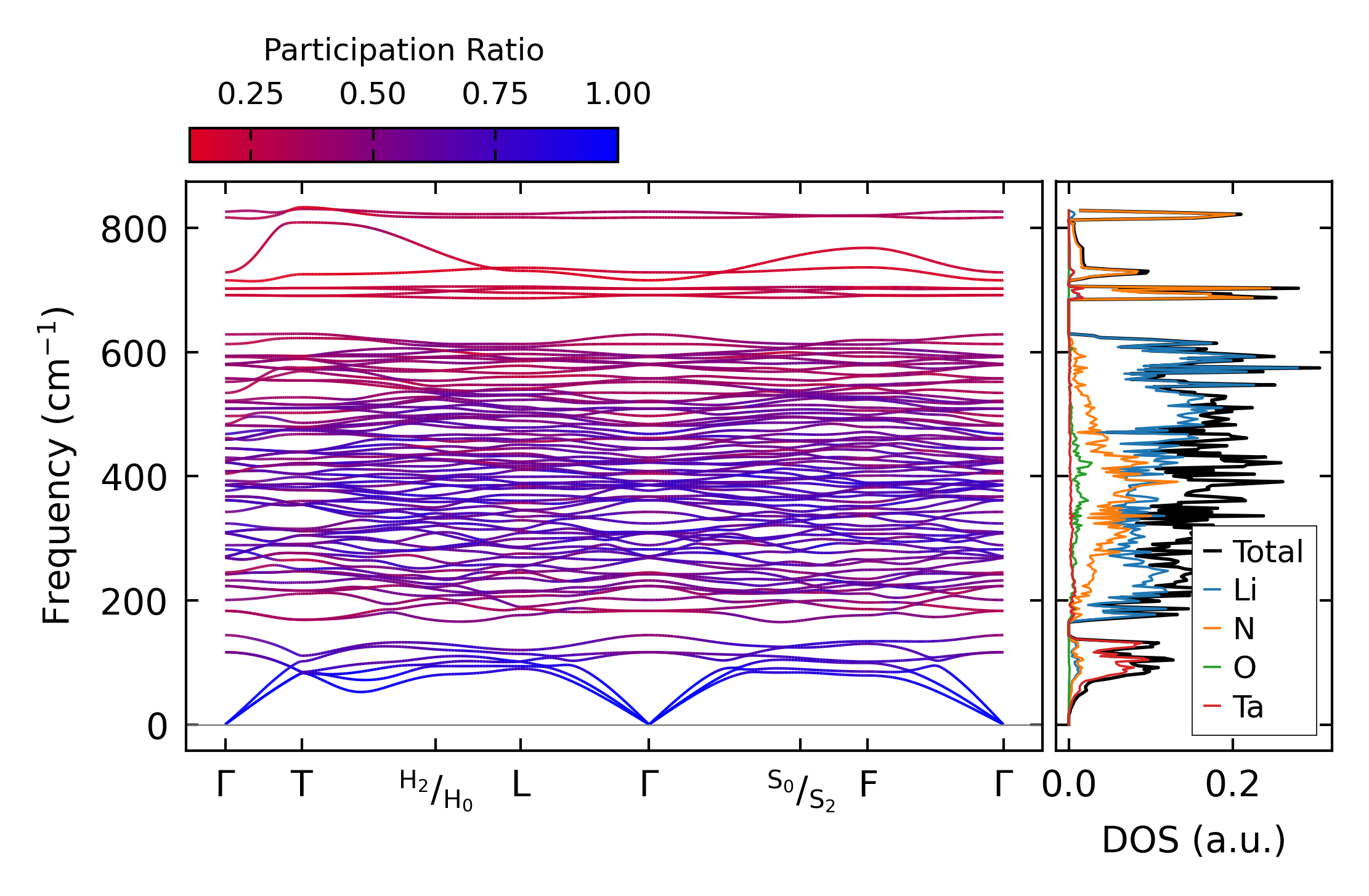

../../_images/fig_bandos_pr14542.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14542.png — (b) Thermodynamic properties

Grüneisen parameters

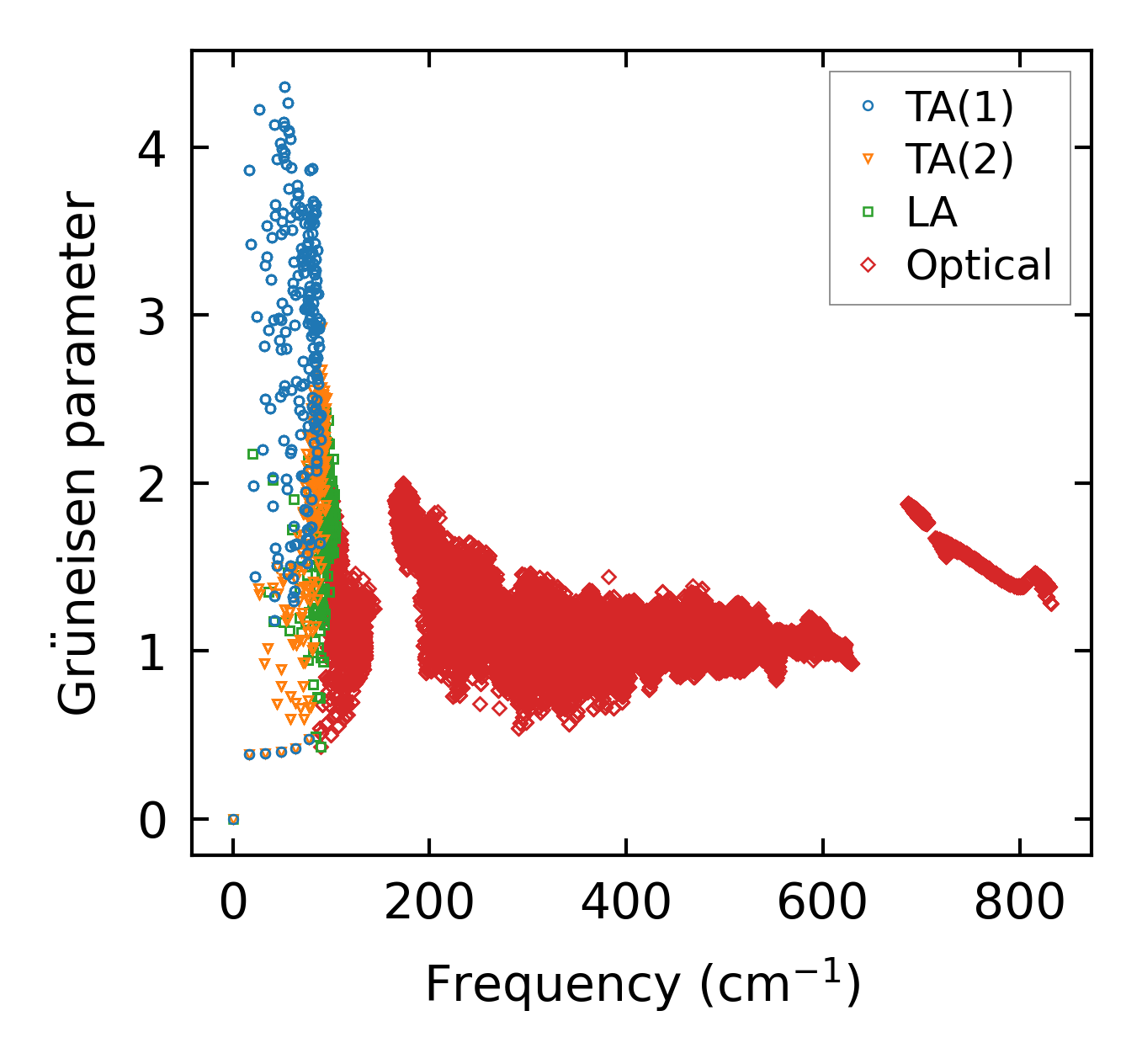

../../_images/fig_gru_all6229.png — (a) Grüneisen parameters

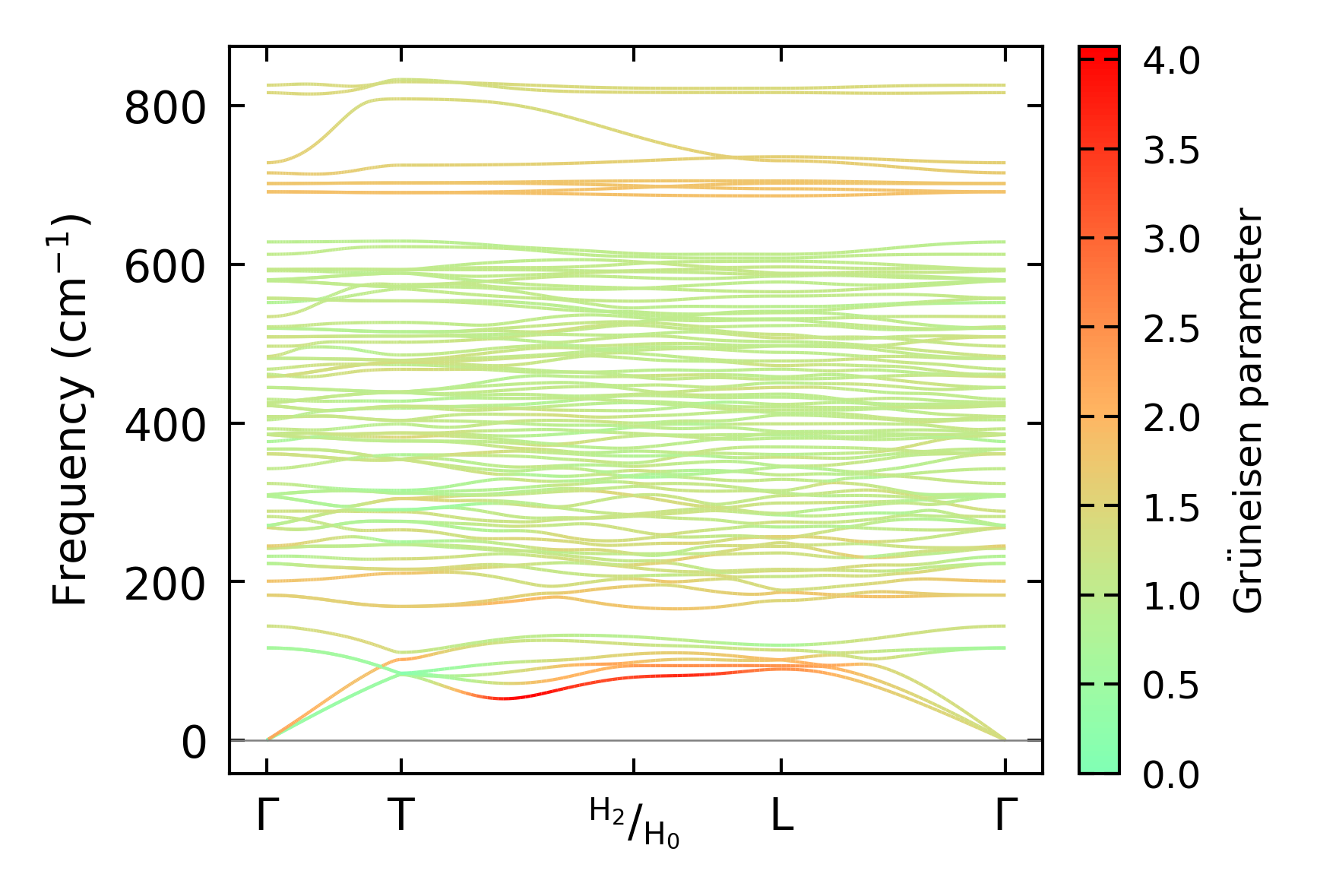

../../_images/fig_gruneisen6229.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

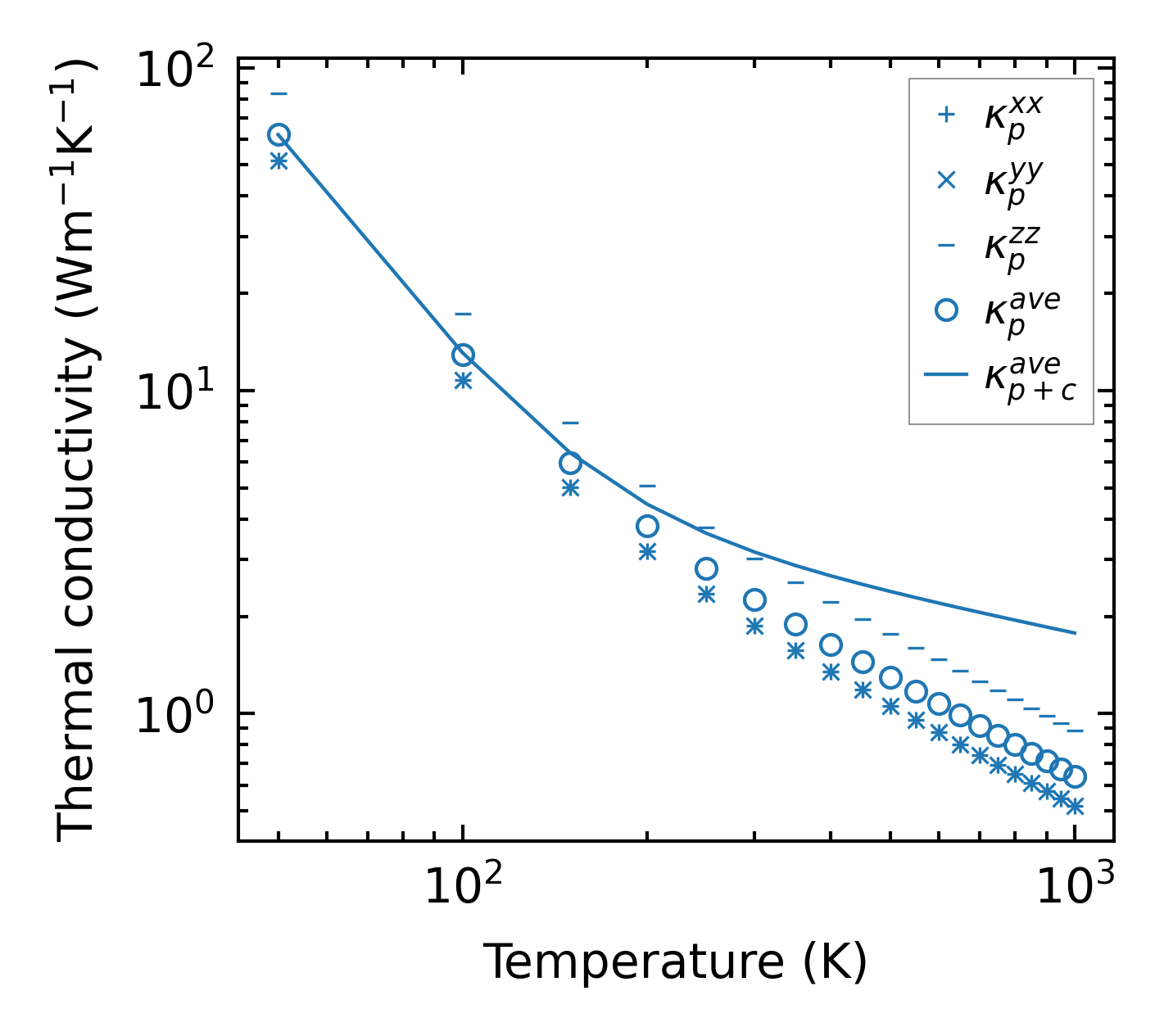

../../_images/fig_kappa11720.png — (a) Temperature-dependent lattice thermal conductivity

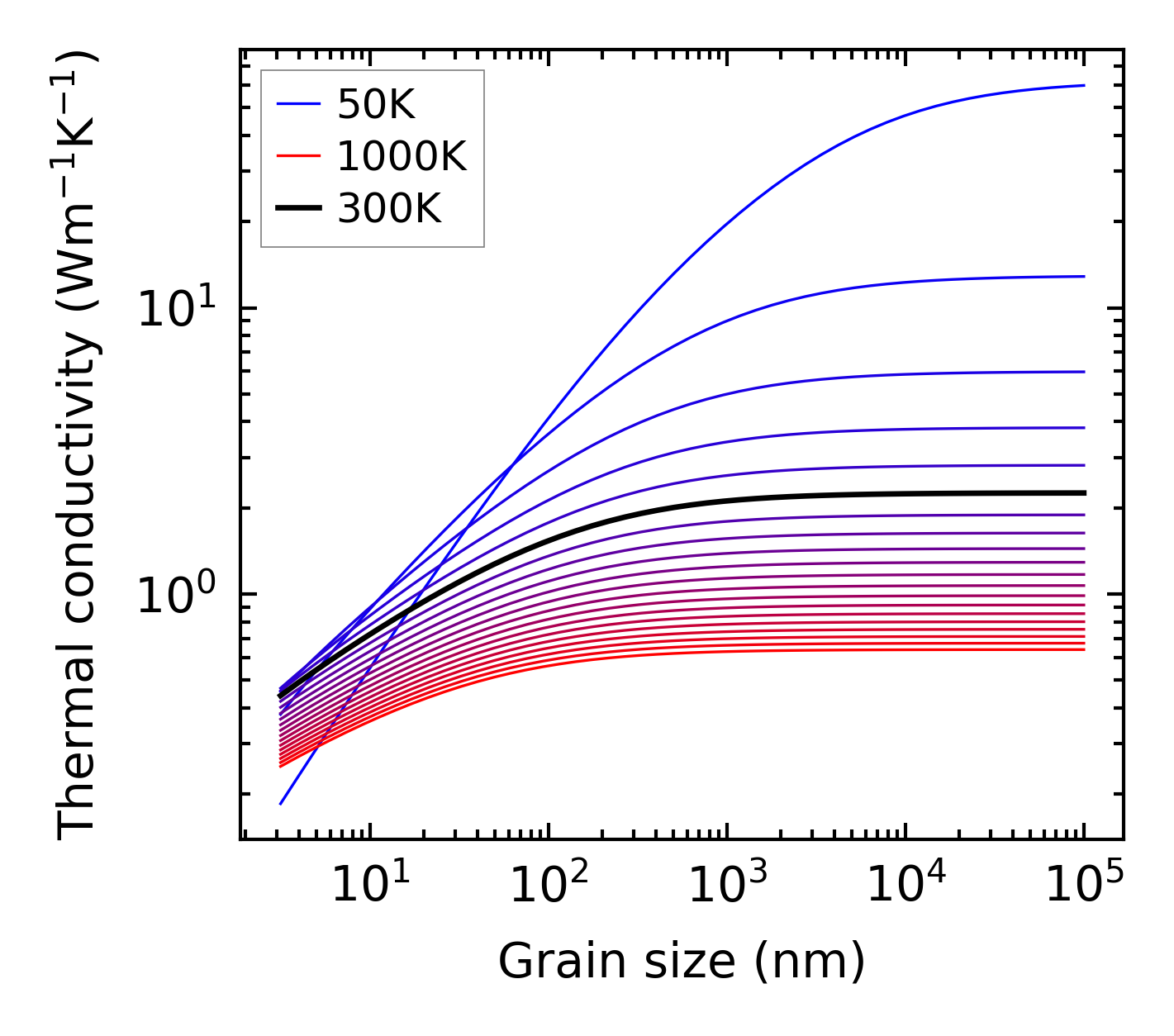

../../_images/fig_kappa_vs_grain_size6307.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

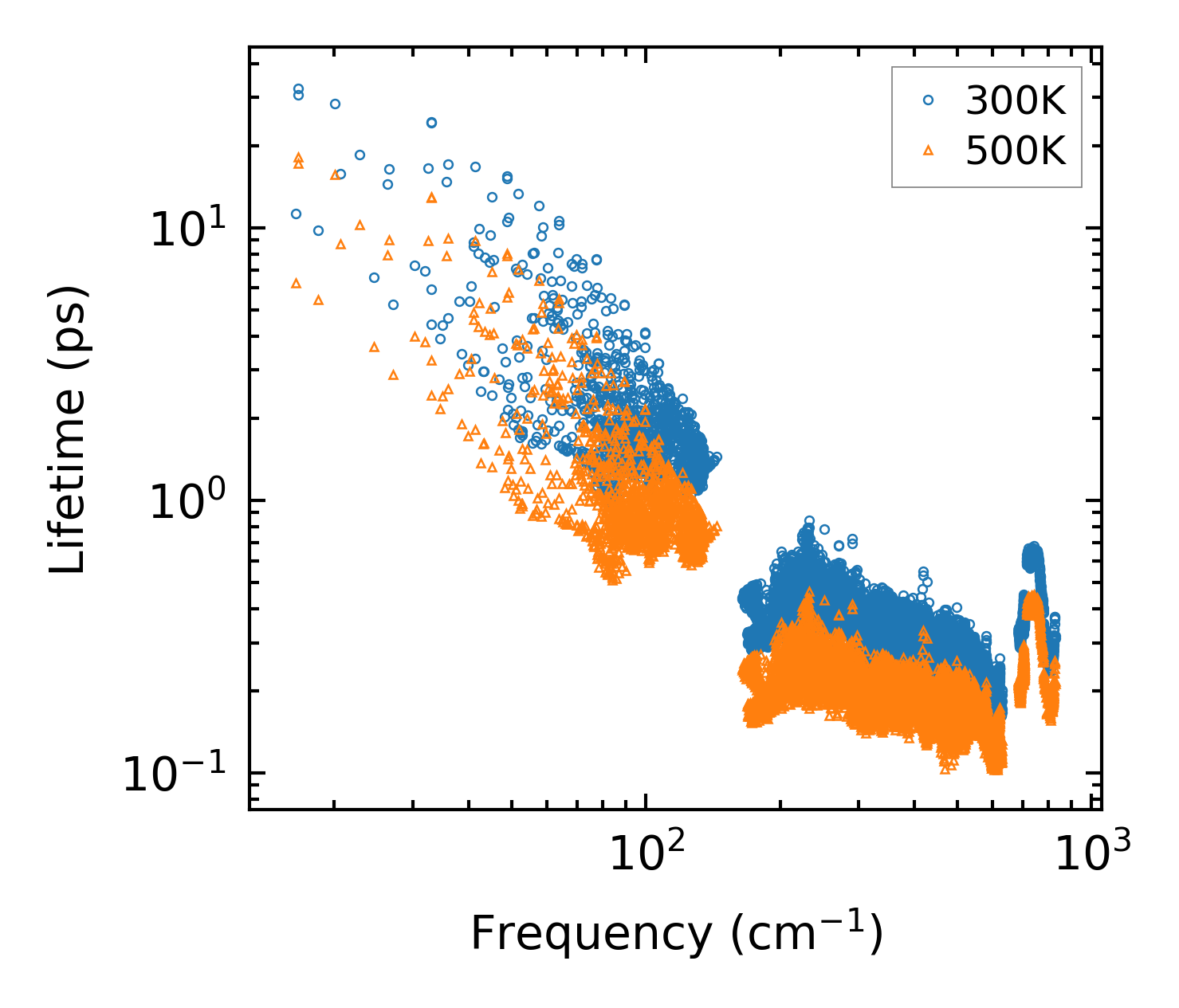

../../_images/fig_lifetime6168.png — (a) Phonon lifetime due to phonon-phonon scattering

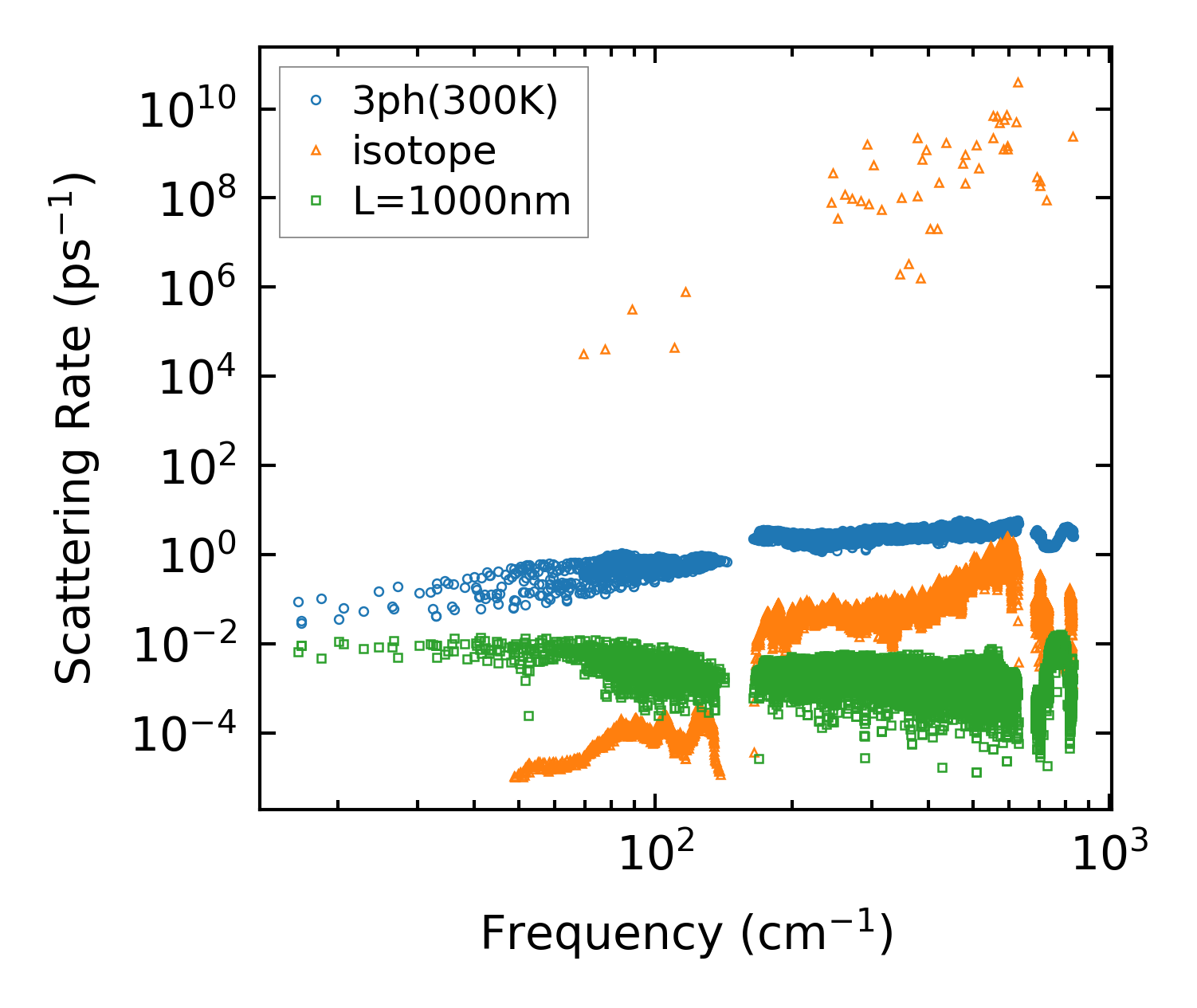

../../_images/fig_scat_rates6167.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

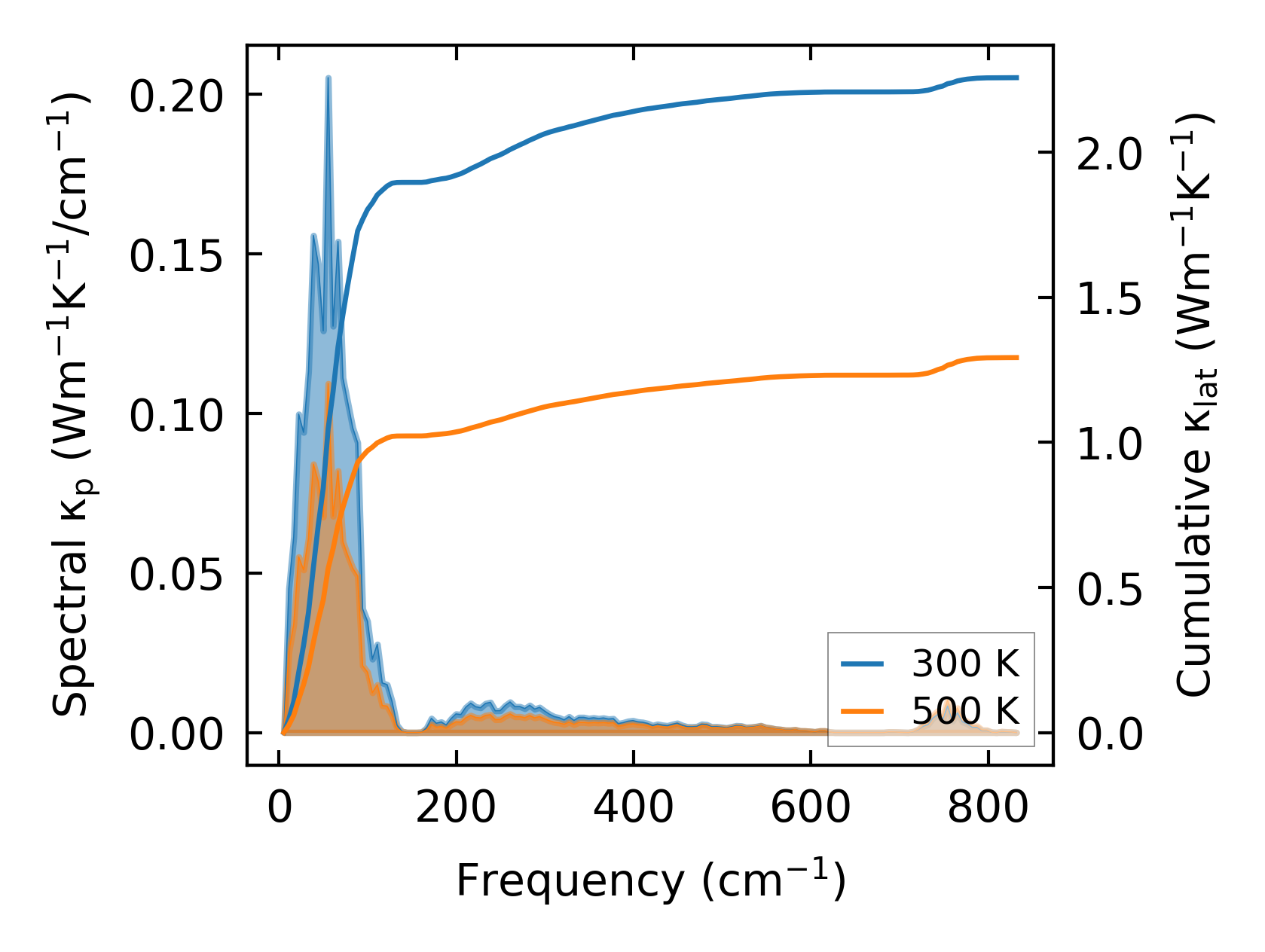

../../_images/fig_cumu_frequency6168.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

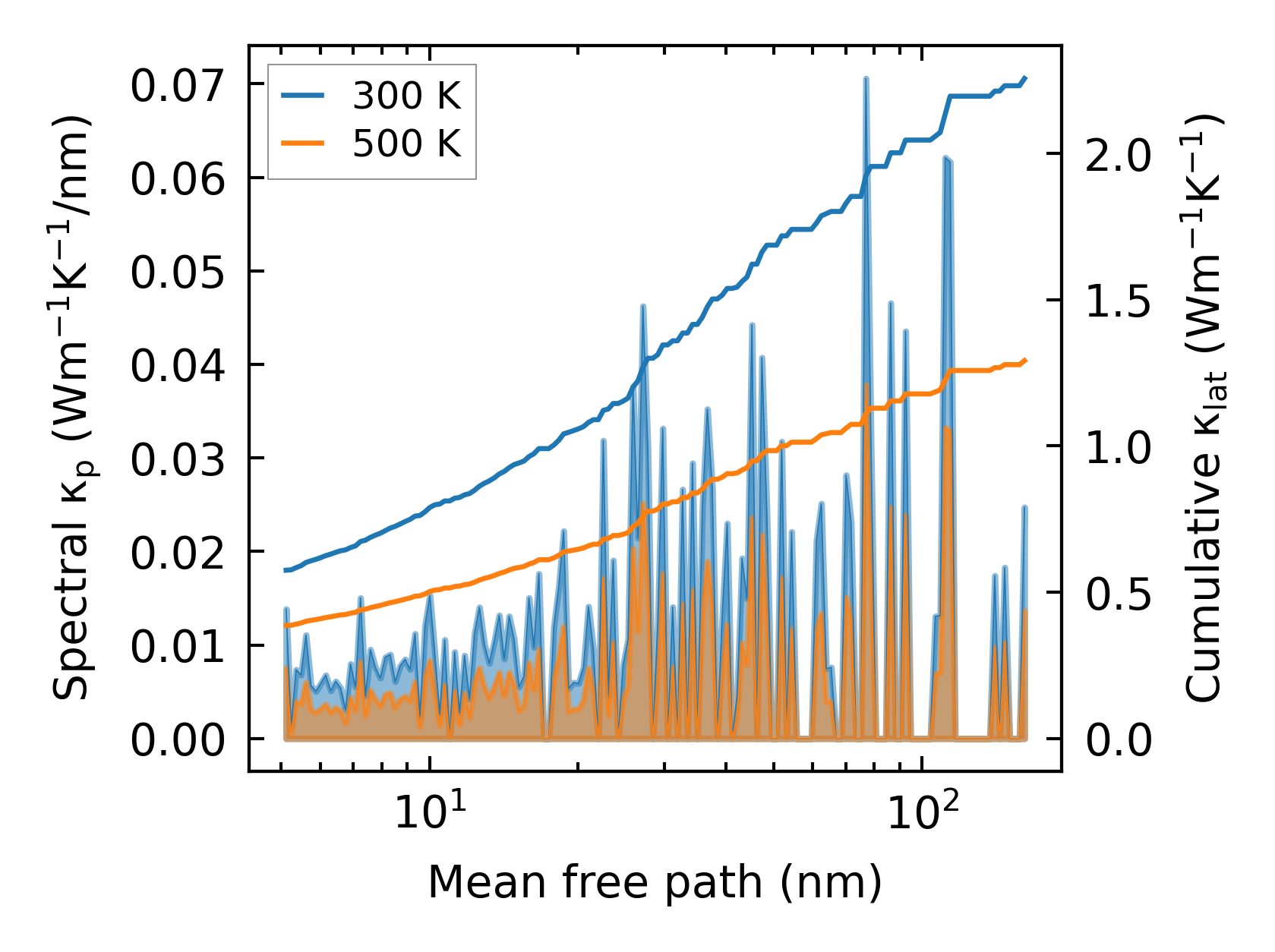

../../_images/fig_cumu_mfp6167.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

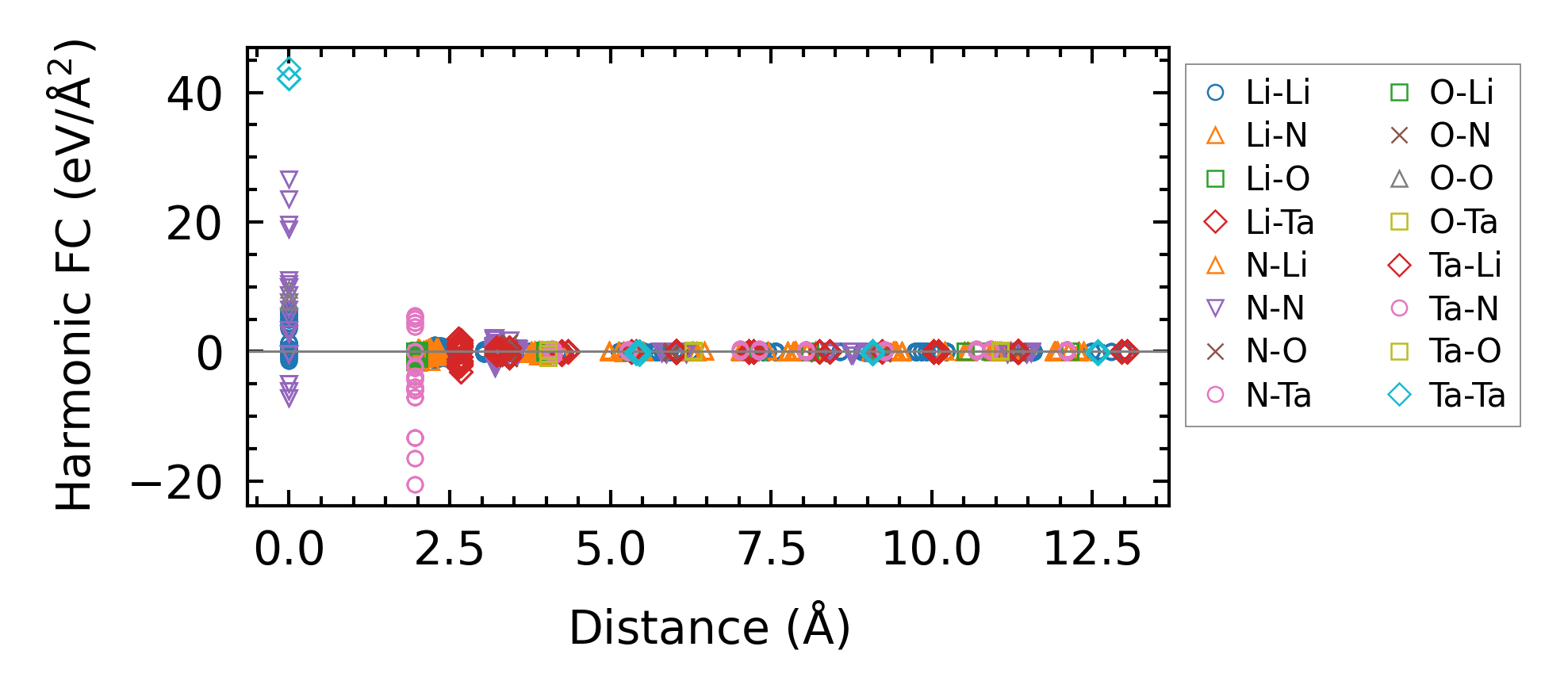

../../_images/fig_fc214161.png — (a) Force constants w.r.t atomic distance

Summary

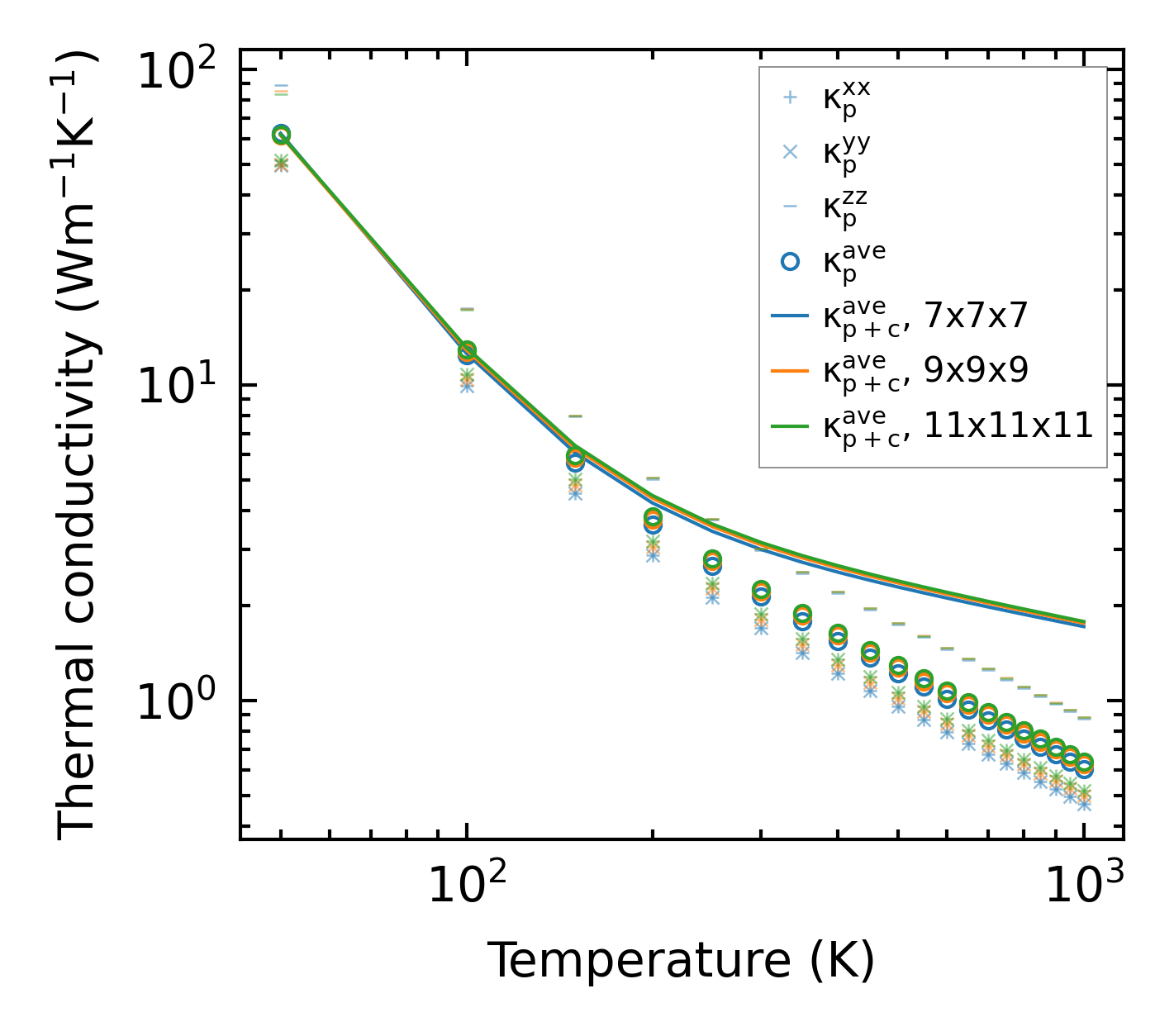

../../_images/fig_kappa11721.png — (a) Temperature-dependent lattice thermal conductivity

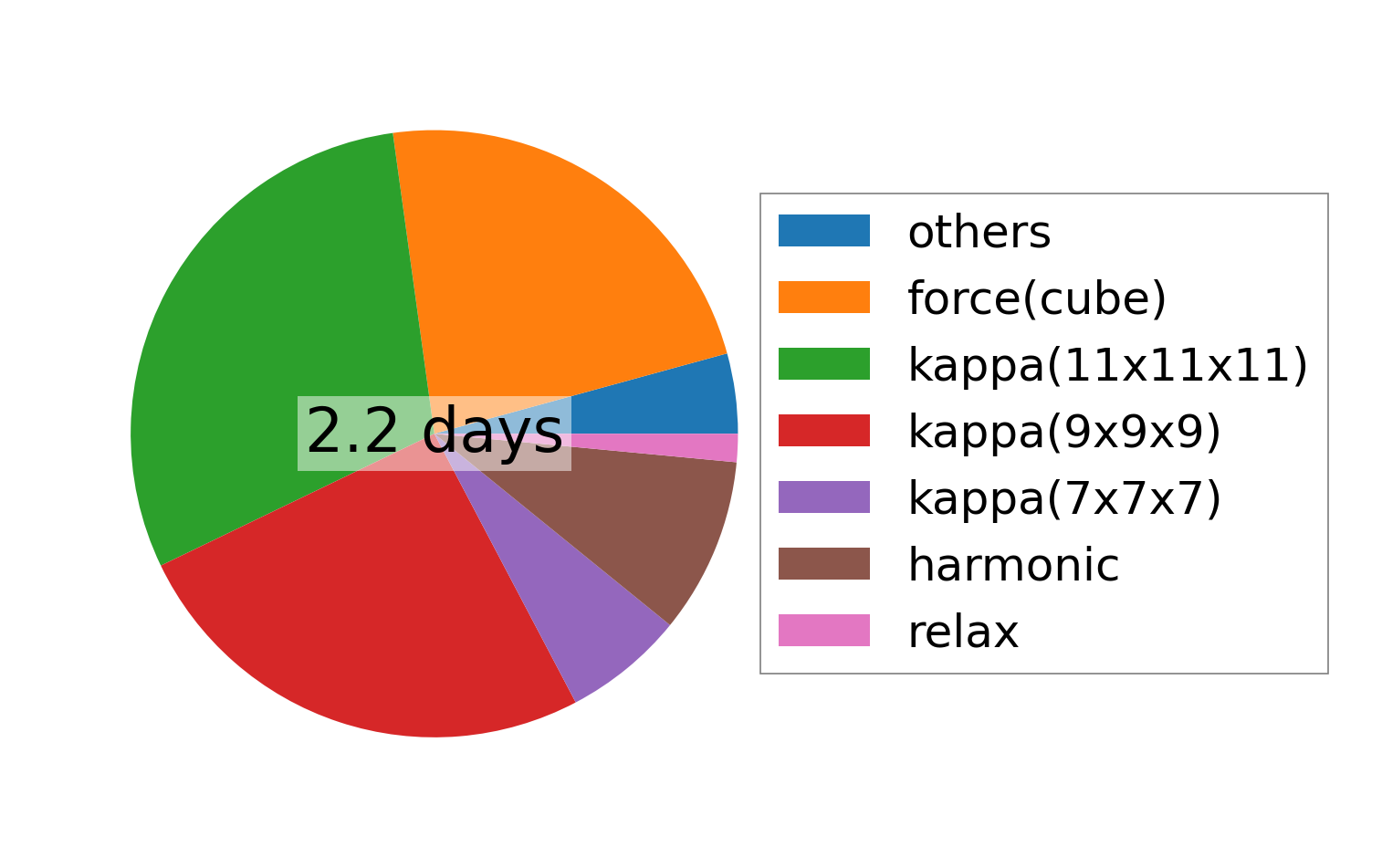

../../_images/fig_times24203.png — (b) Computation time
