mp-14249/ThP2S6/anharm

Space group: P4_2/m (84)
Link: Materials Project
Download: mp-14249.tar.gz

Harmonic properties

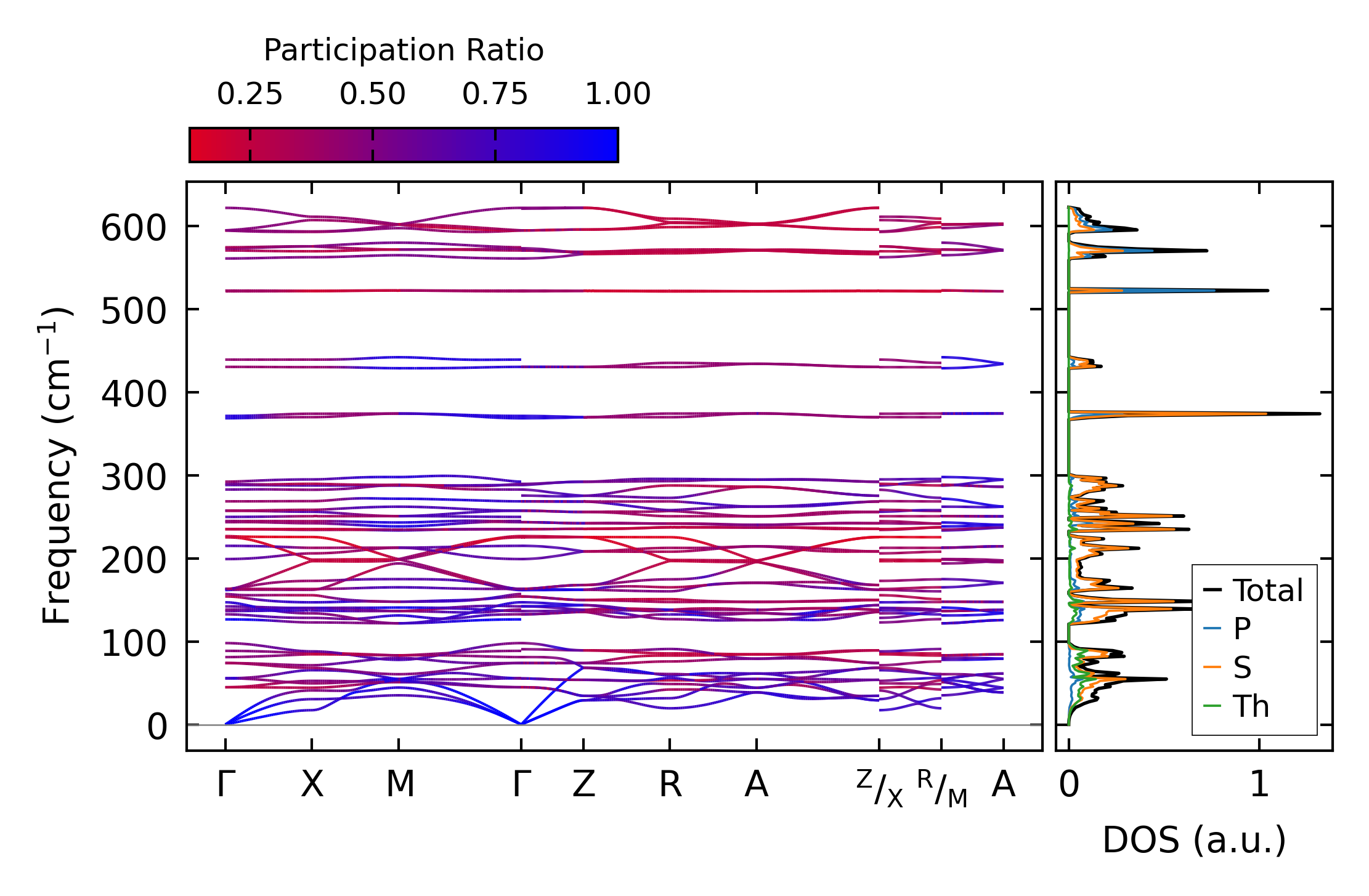

../../_images/fig_bandos_pr14735.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14735.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6317.png — (a) Grüneisen parameters

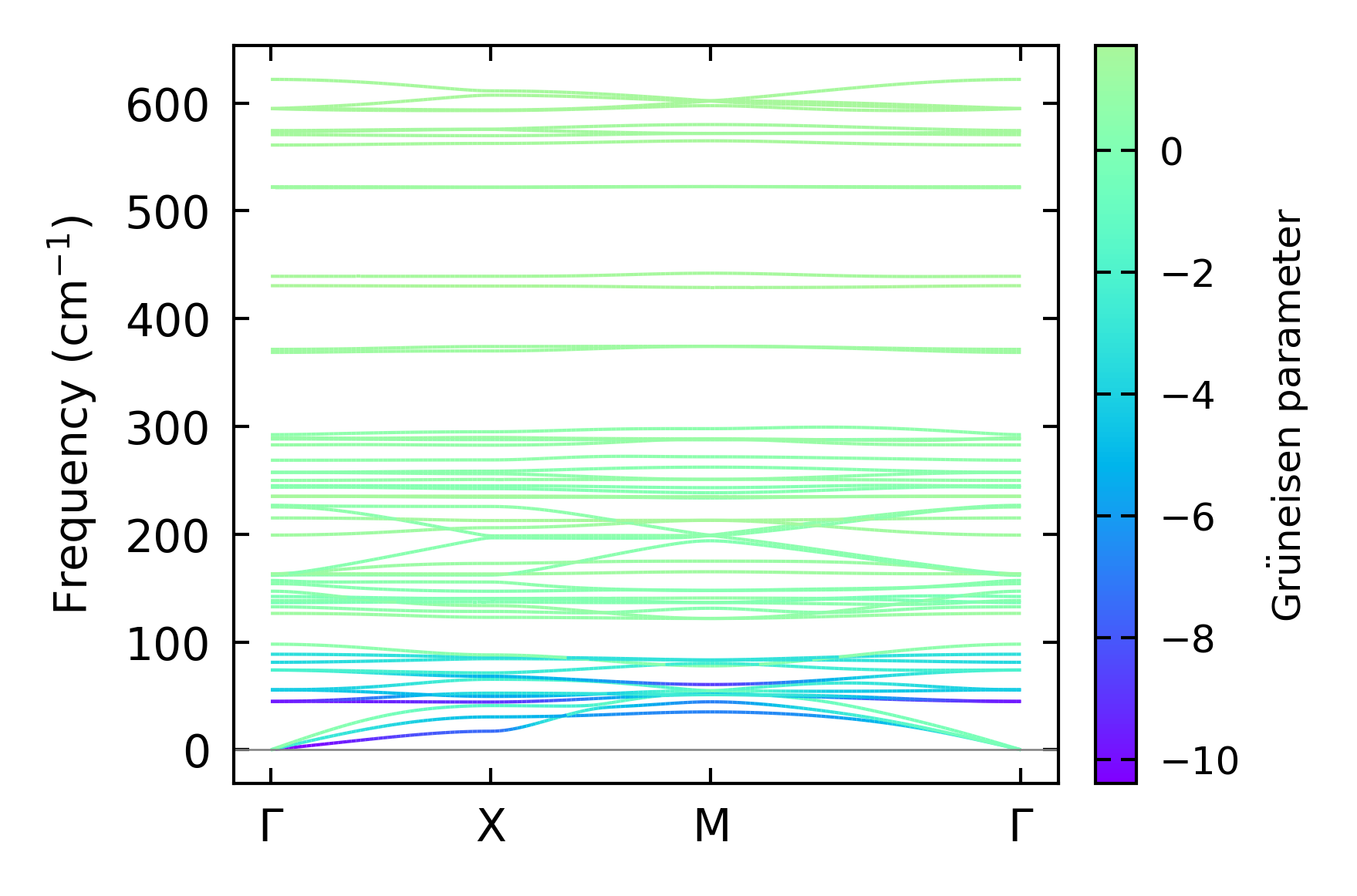

../../_images/fig_gruneisen6317.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x7, supercell: 2x2x2

../../_images/fig_kappa11881.png — (a) Temperature-dependent lattice thermal conductivity

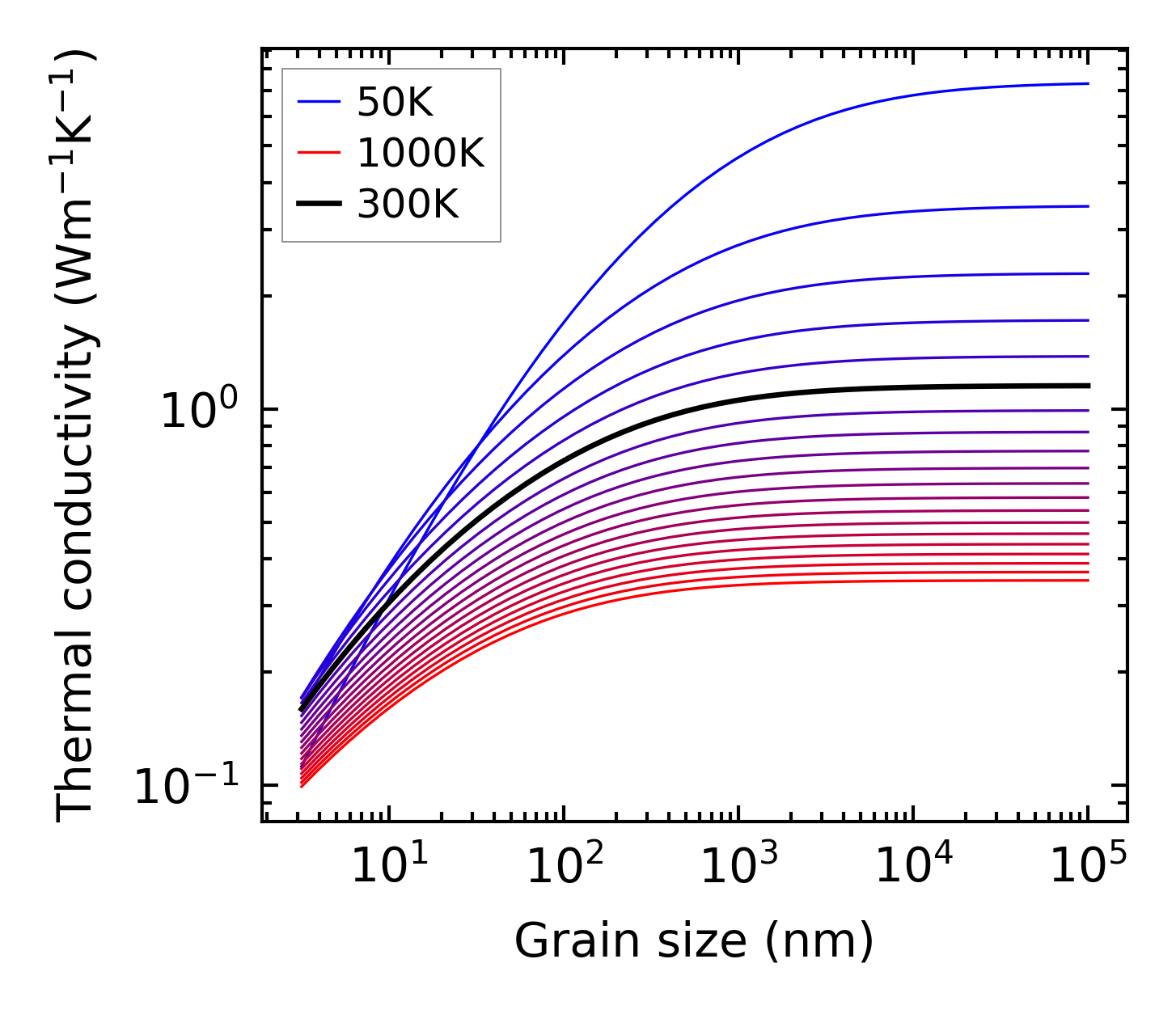

../../_images/fig_kappa_vs_grain_size6393.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

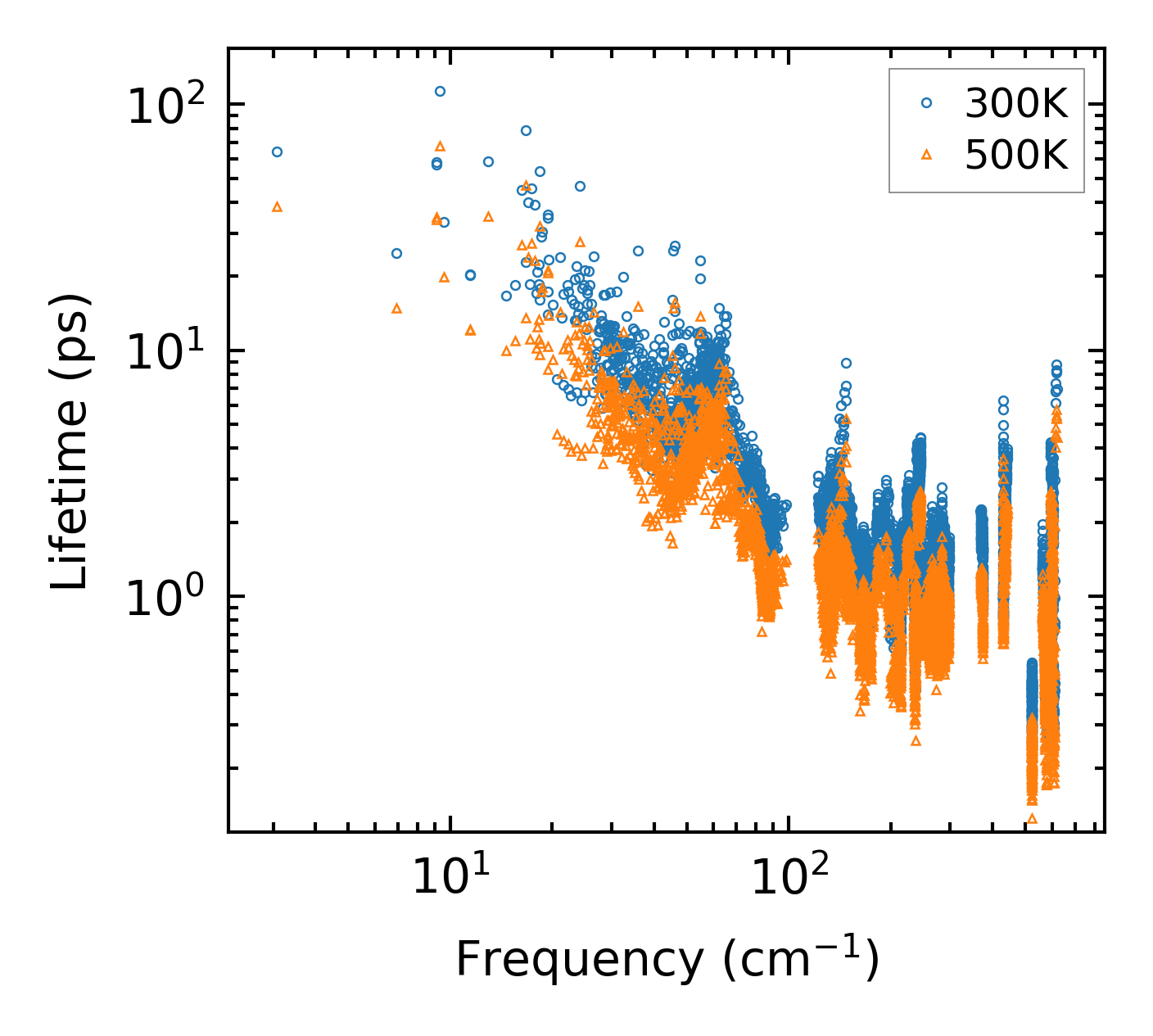

../../_images/fig_lifetime6254.png — (a) Phonon lifetime due to phonon-phonon scattering

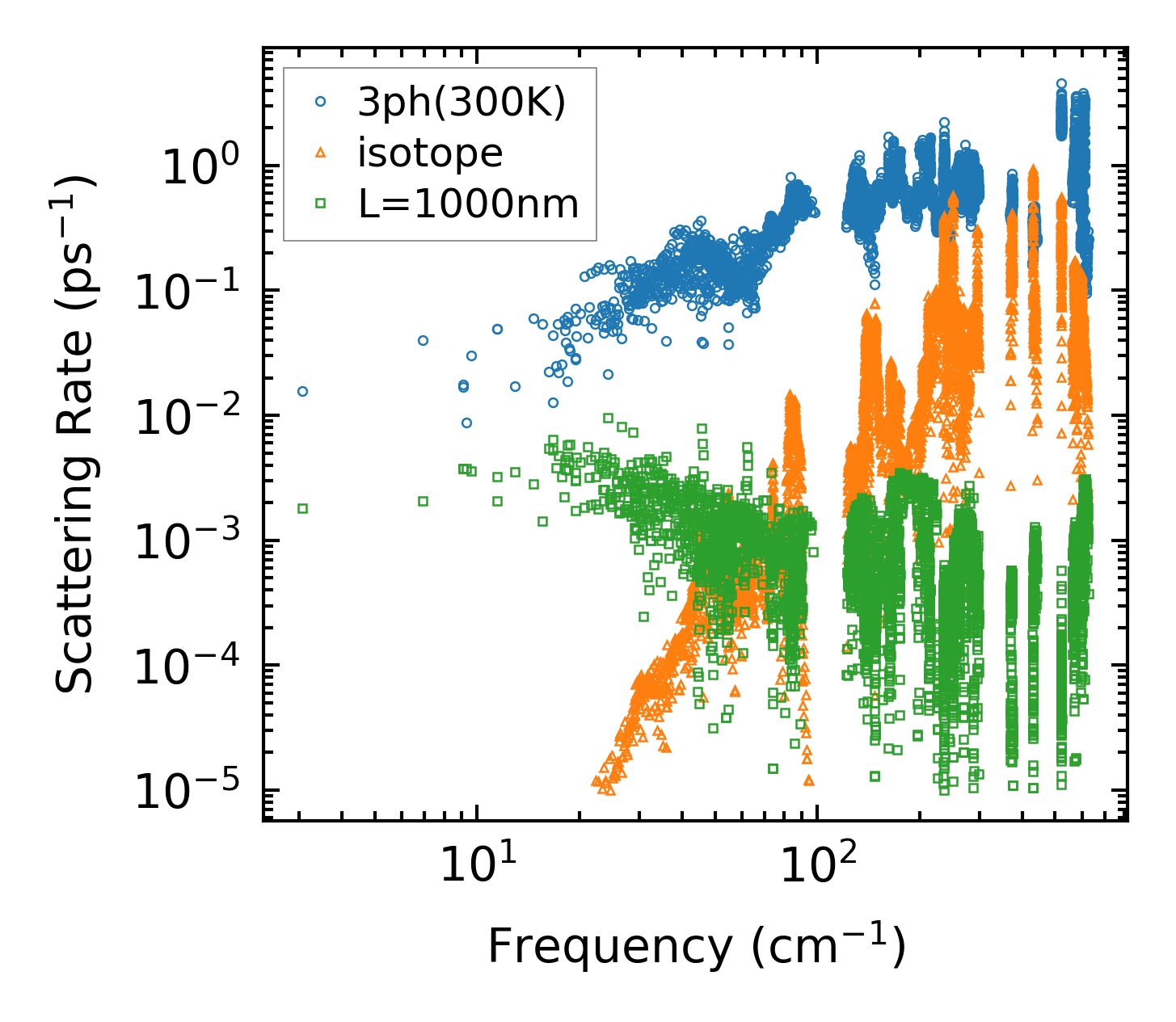

../../_images/fig_scat_rates6253.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

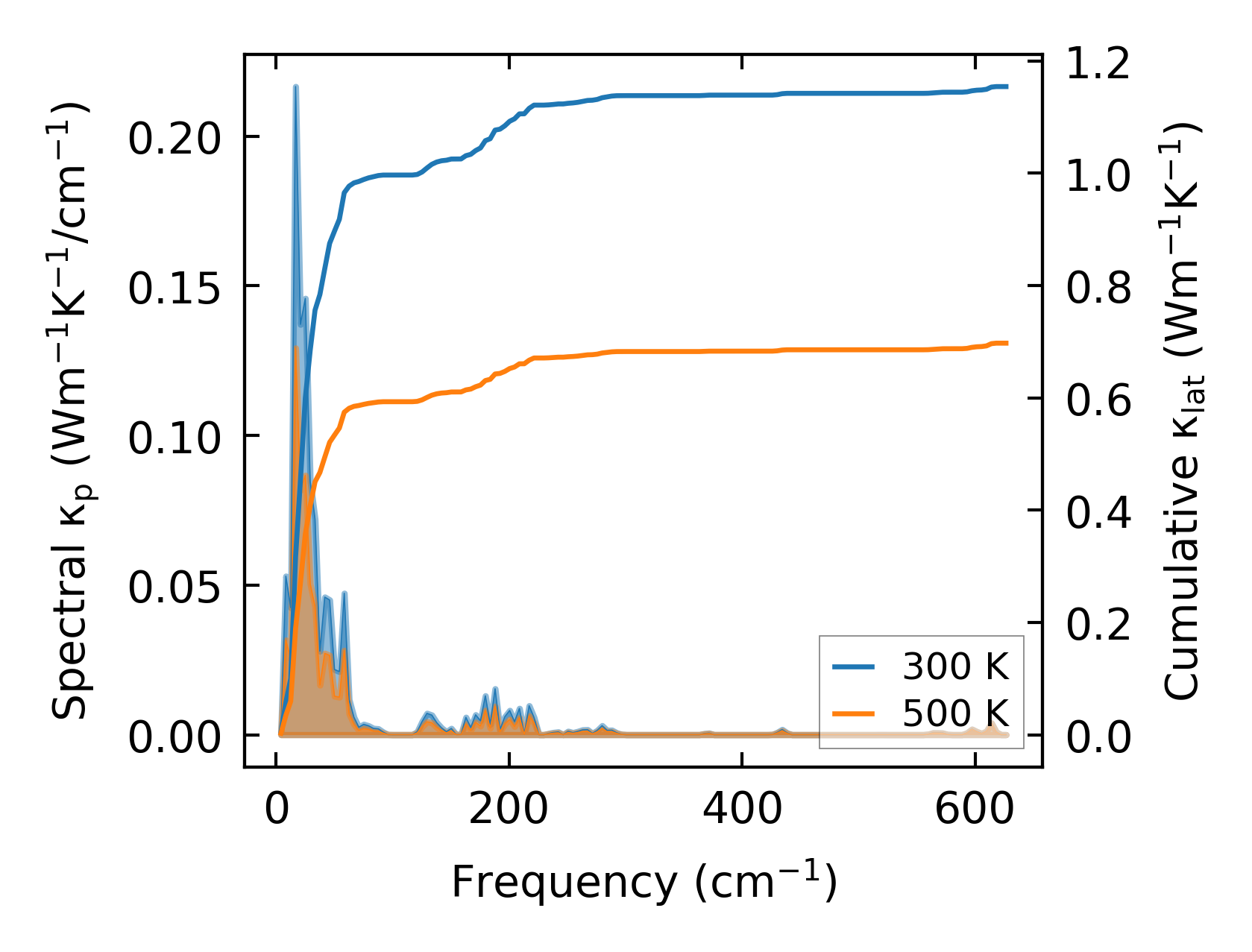

../../_images/fig_cumu_frequency6254.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6253.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

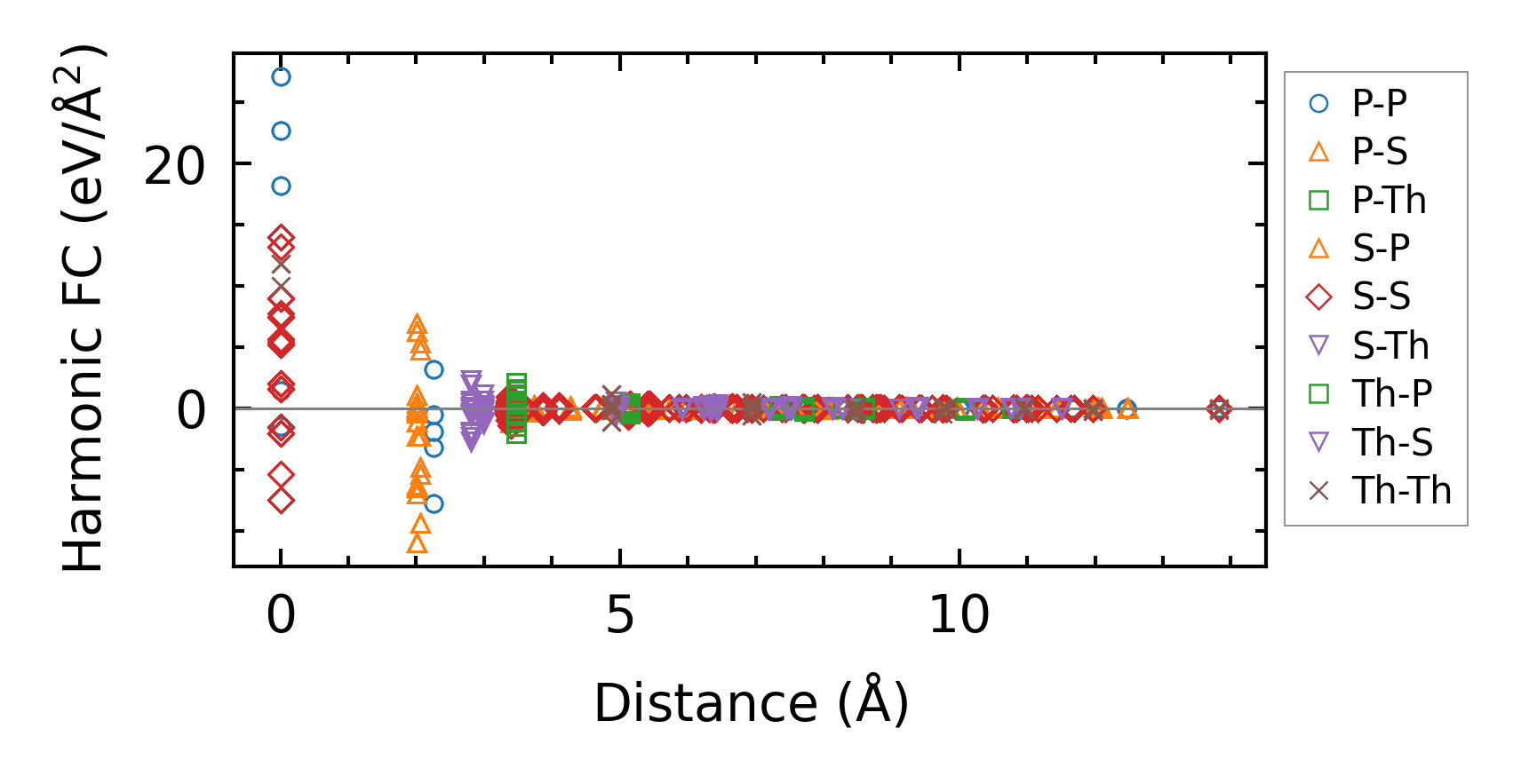

../../_images/fig_fc214353.png — (a) Force constants w.r.t atomic distance

Summary

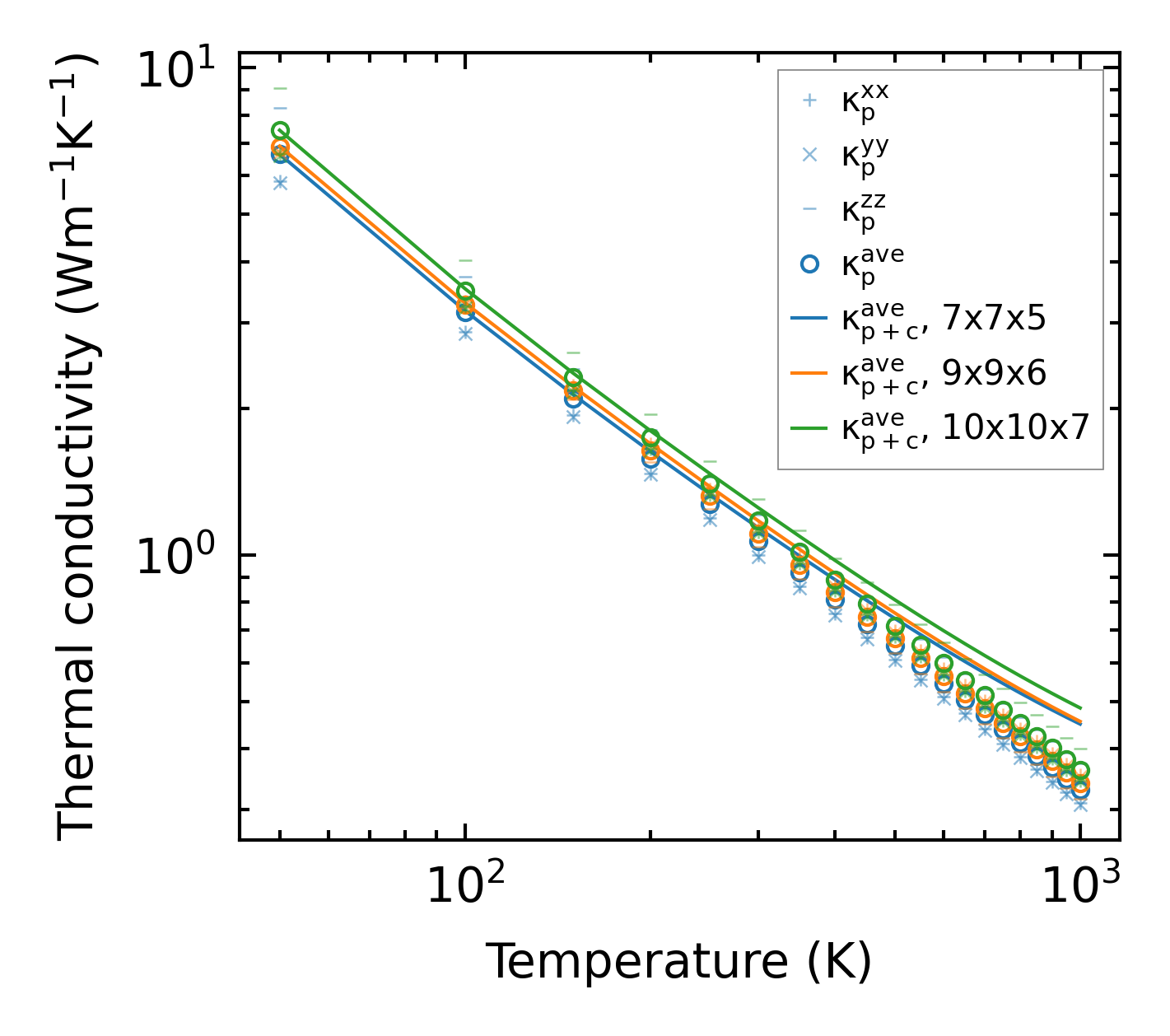

../../_images/fig_kappa11882.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times24484.png — (b) Computation time
